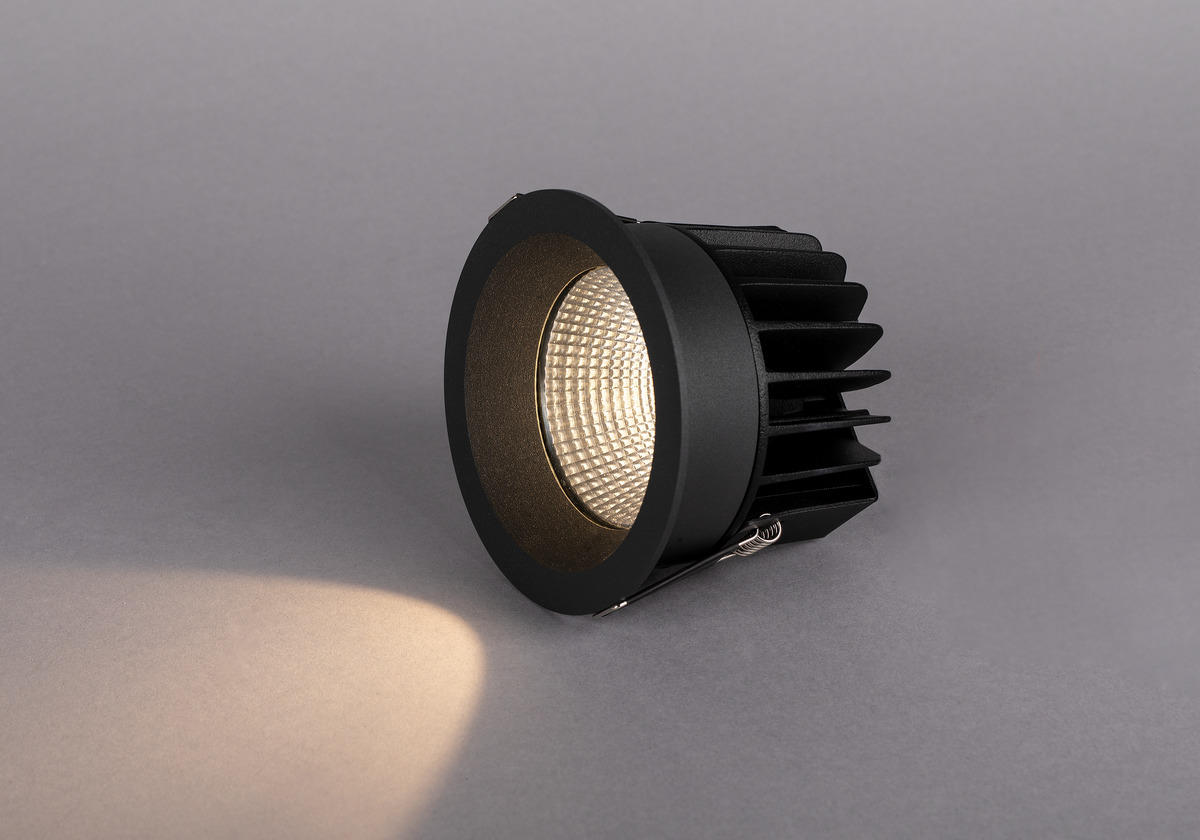

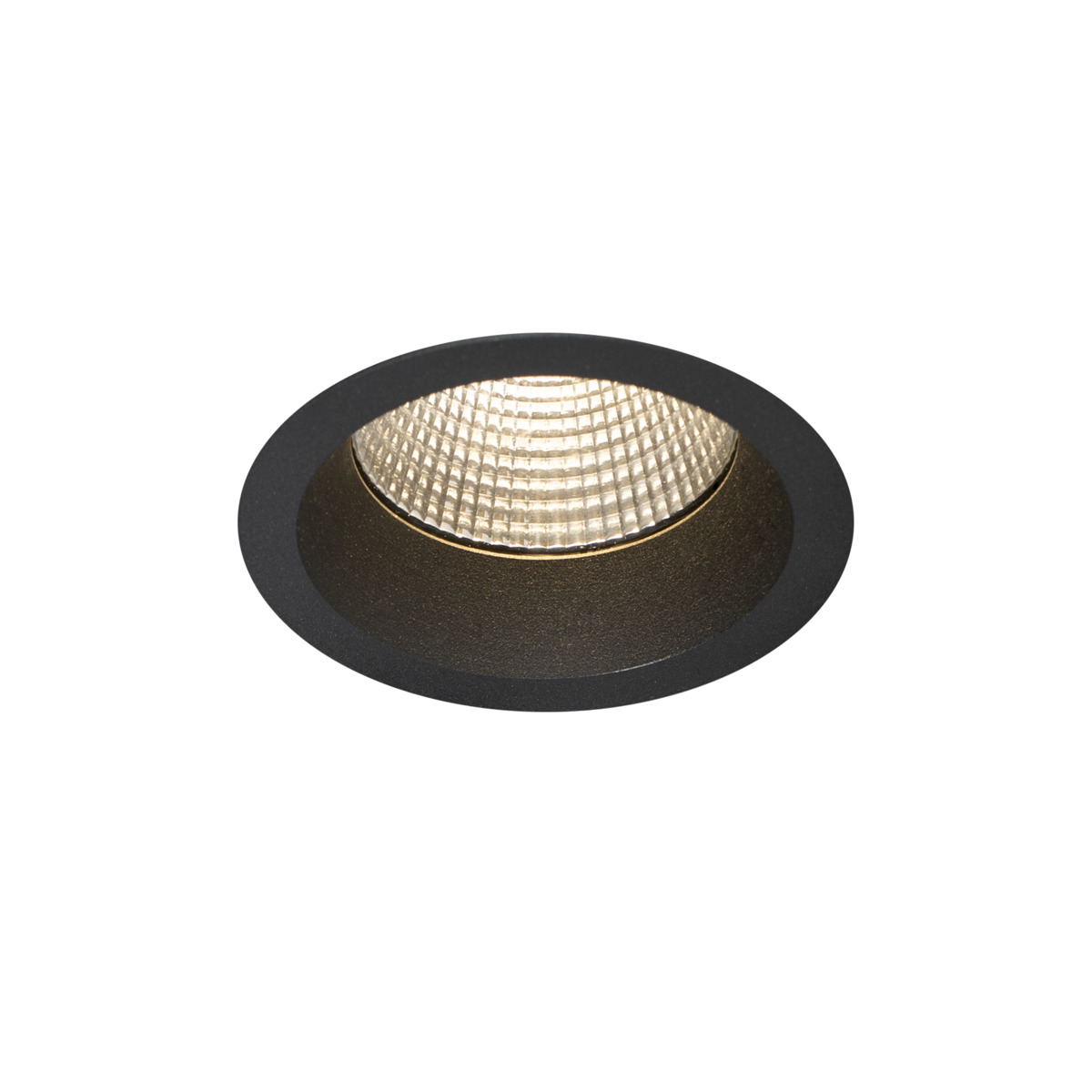

Solo Mini G2

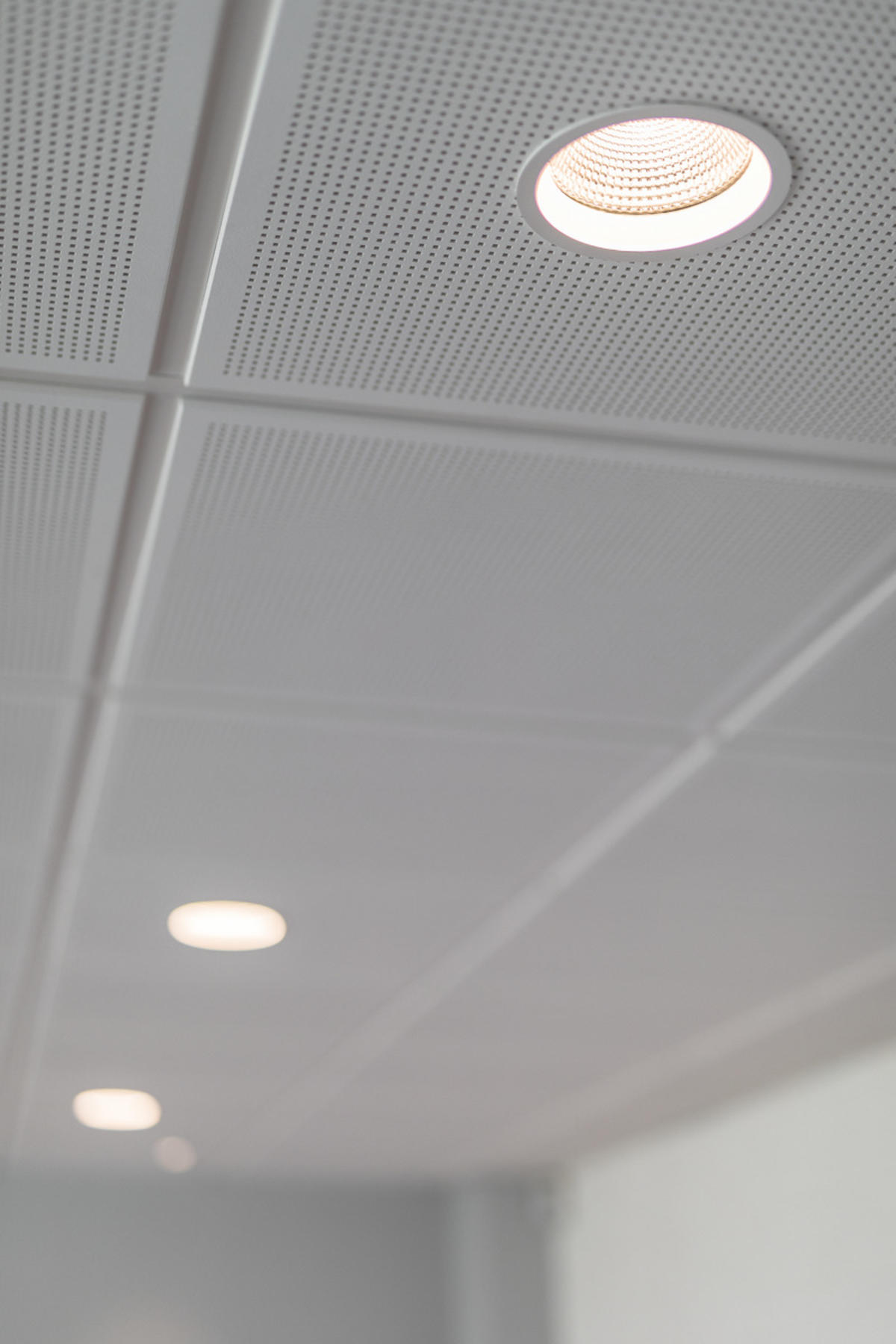

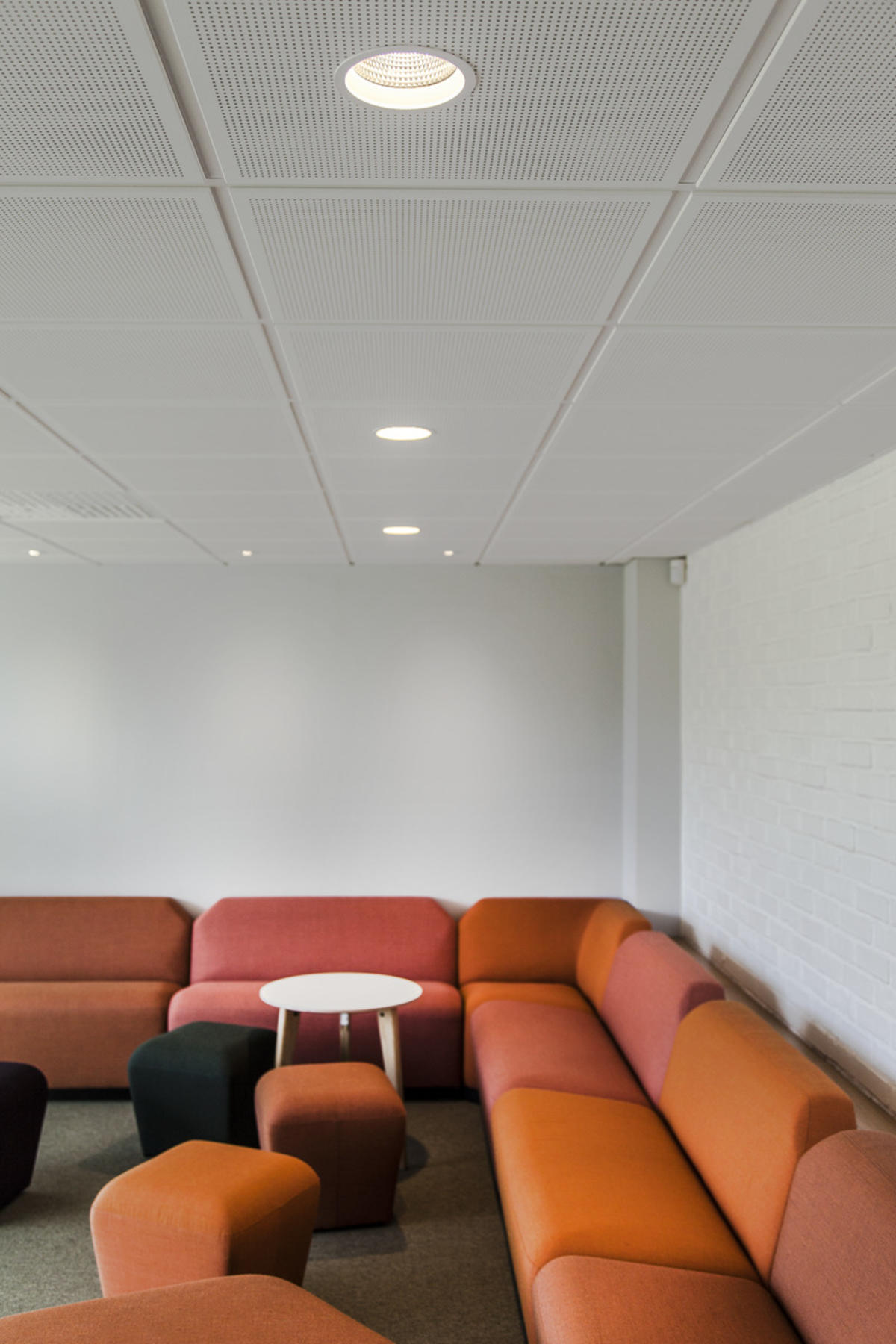

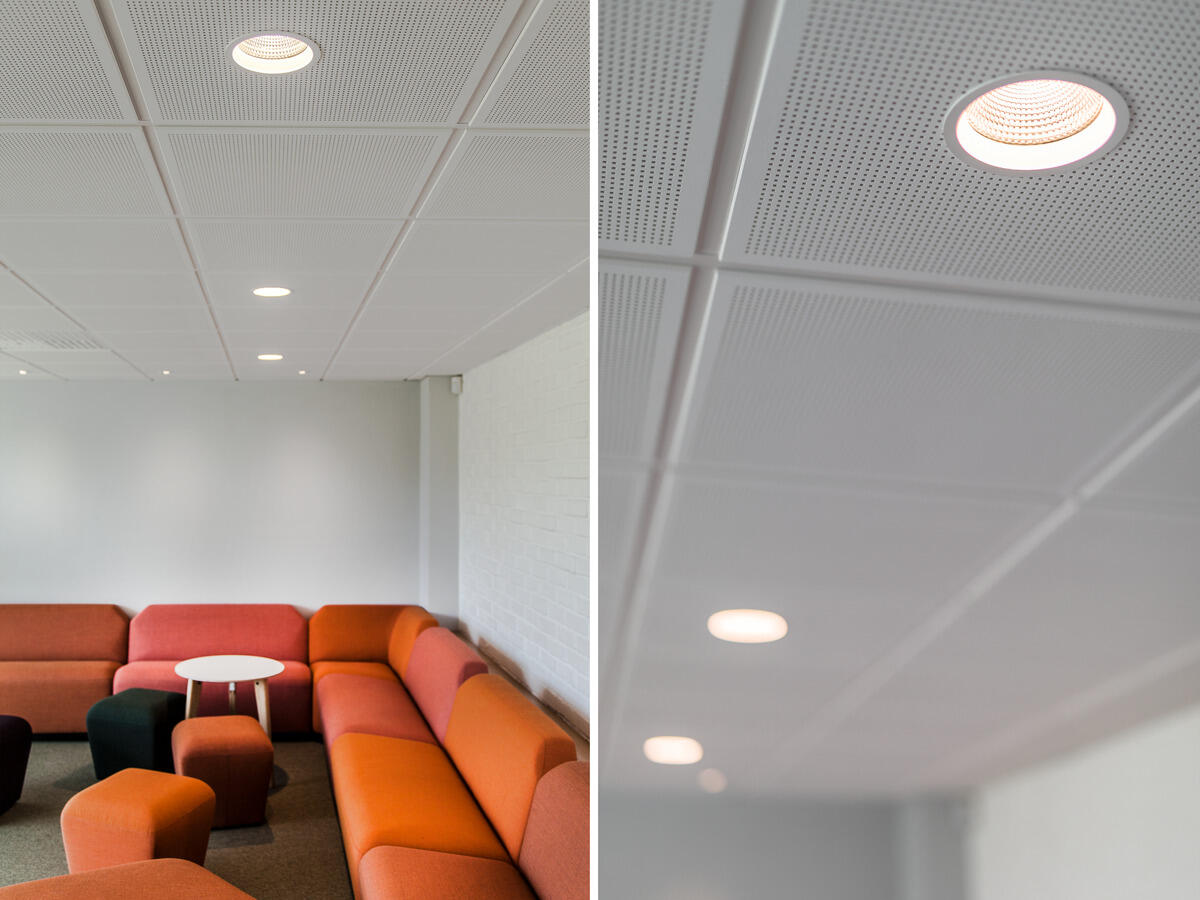

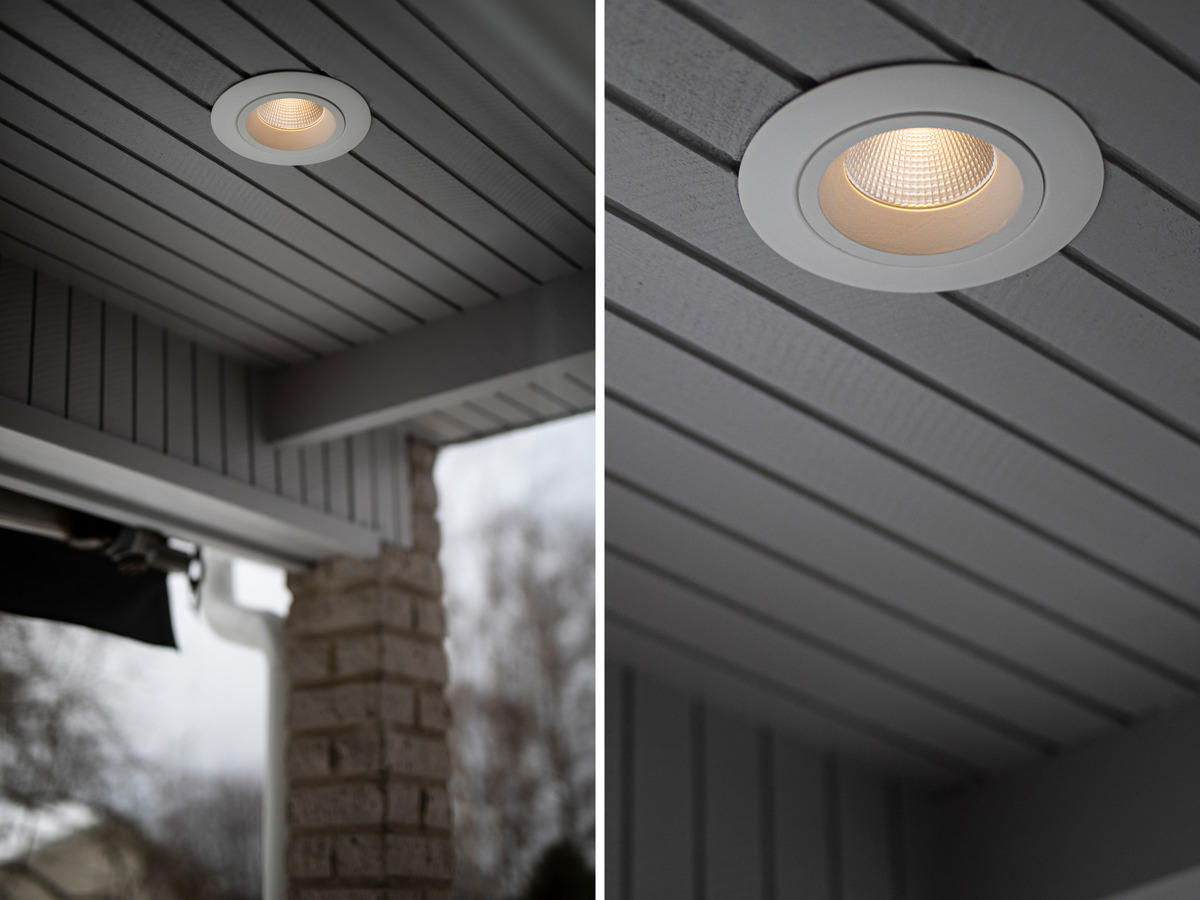

Solo Mini G2 is our downlight with a wide range of applications for indoor and outdoor usage. IP54-rating with clear cover glass. Both for private and public environment where more light is required, e.g. rooms with high ceilings and corridors, shops and outdoor entrance ceilings. Reflector technology with light situated high in the luminaire to give a highly glare-free appearance. Comes complete with driver IP20 mains dimmable or DALI, with push-in, loop-in, loop-out terminals and screwless strain relief. Can be supplied with Q-Box Mini or Linect.
Exists in several colors
  • Vit
  • Svart
  • Grå
  • Antracit

Variants

GTIN Item Name Color Type of Dimming
Solo Mini G2 Anthracite 3000K 7392971135106 Solo Mini G2 Anthracite 3000K Antracit Trailing Edge, Leading Edge

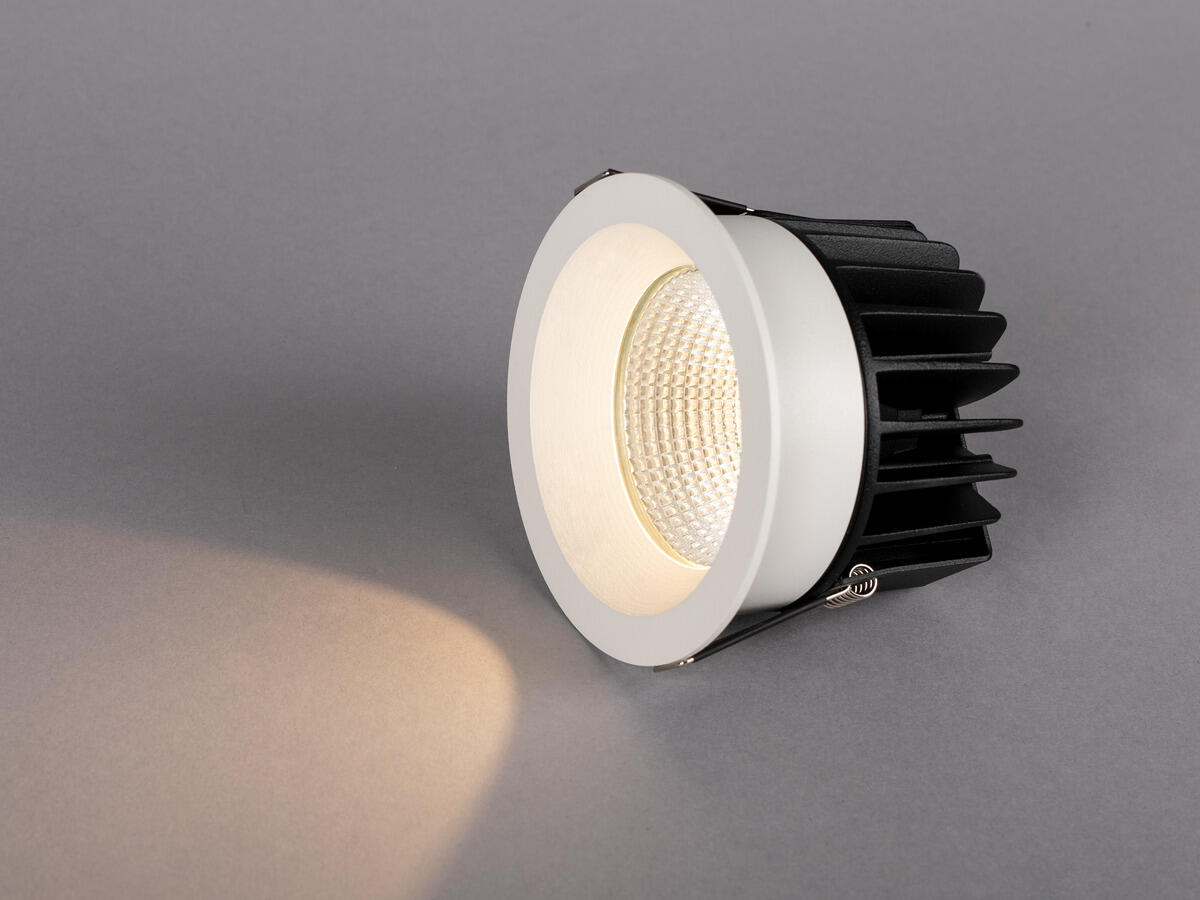

Solo Mini G2 White 3000K 7392971135069 Solo Mini G2 White 3000K White Trailing Edge, Leading Edge
Solo Mini G2 White 3000K DALI 7392971135076 Solo Mini G2 White 3000K DALI White Push 230V, DALI 2

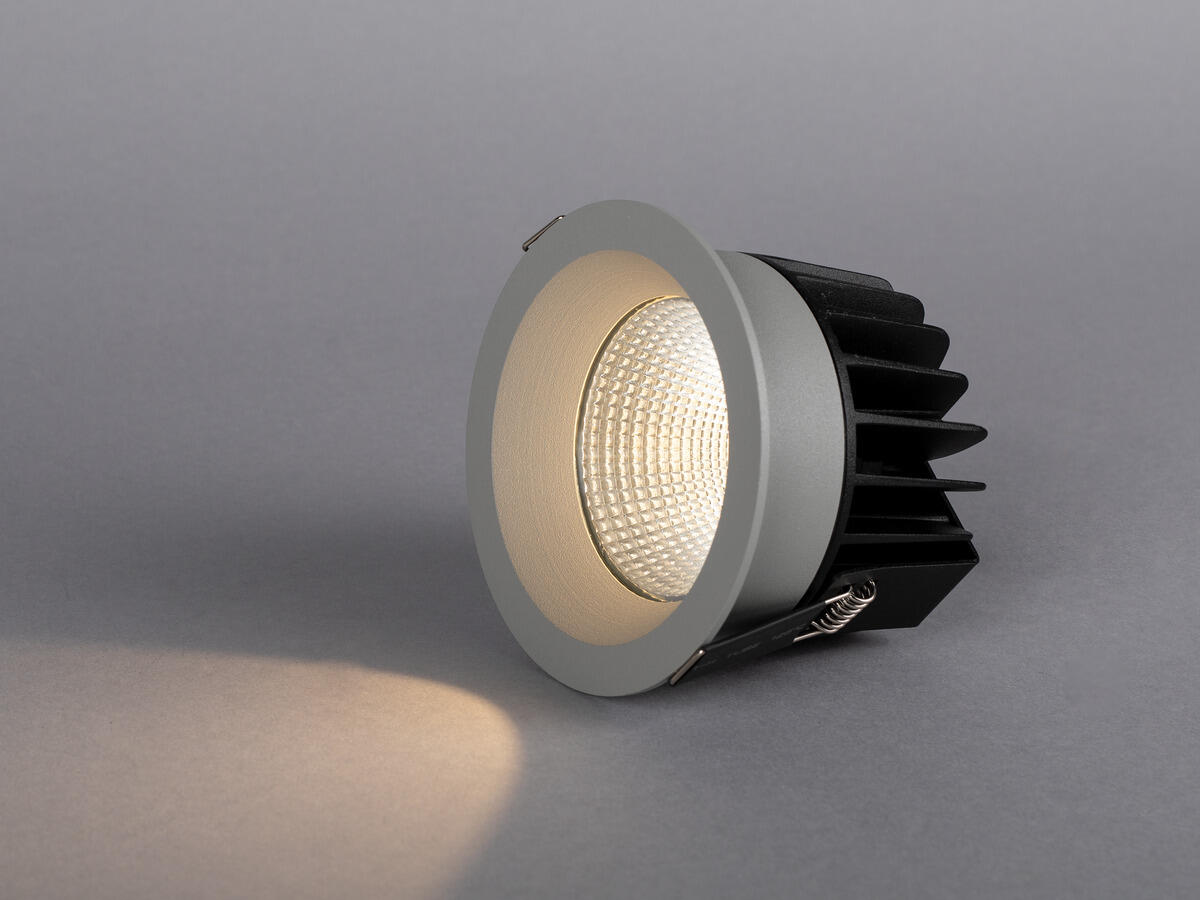

Solo Mini G2 Grey 3000K 7392971135083 Solo Mini G2 Grey 3000K Grey Trailing Edge, Leading Edge
Solo Mini G2 Grey 3000K DALI 7392971135090 Solo Mini G2 Grey 3000K DALI Grey Push 230V, DALI 2
Solo Mini G2 Anthracite 3000K DALI 7392971135113 Solo Mini G2 Anthracite 3000K DALI Antracit Push 230V, DALI 2

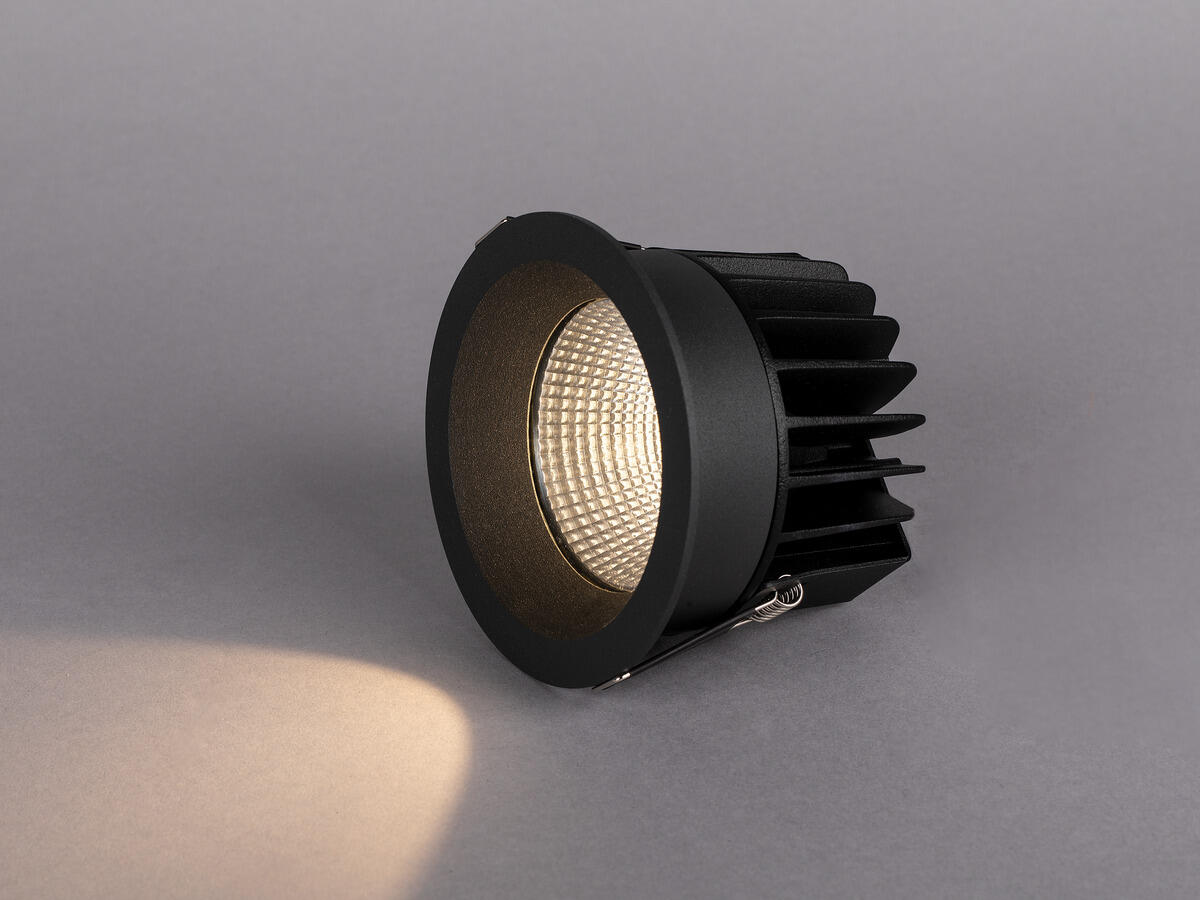

Solo Mini G2 Black 3000K 7392971135120 Solo Mini G2 Black 3000K Black Trailing Edge, Leading Edge
Solo Mini G2 Black 3000K DALI 7392971135137 Solo Mini G2 Black 3000K DALI Black Push 230V, DALI 2

Solo Mini G2 Anthracite 3000K

Description
GTIN 7392971135106
Item Name Solo Mini G2 Anthracite 3000K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >85
Colour Consistency (SDCM) 3

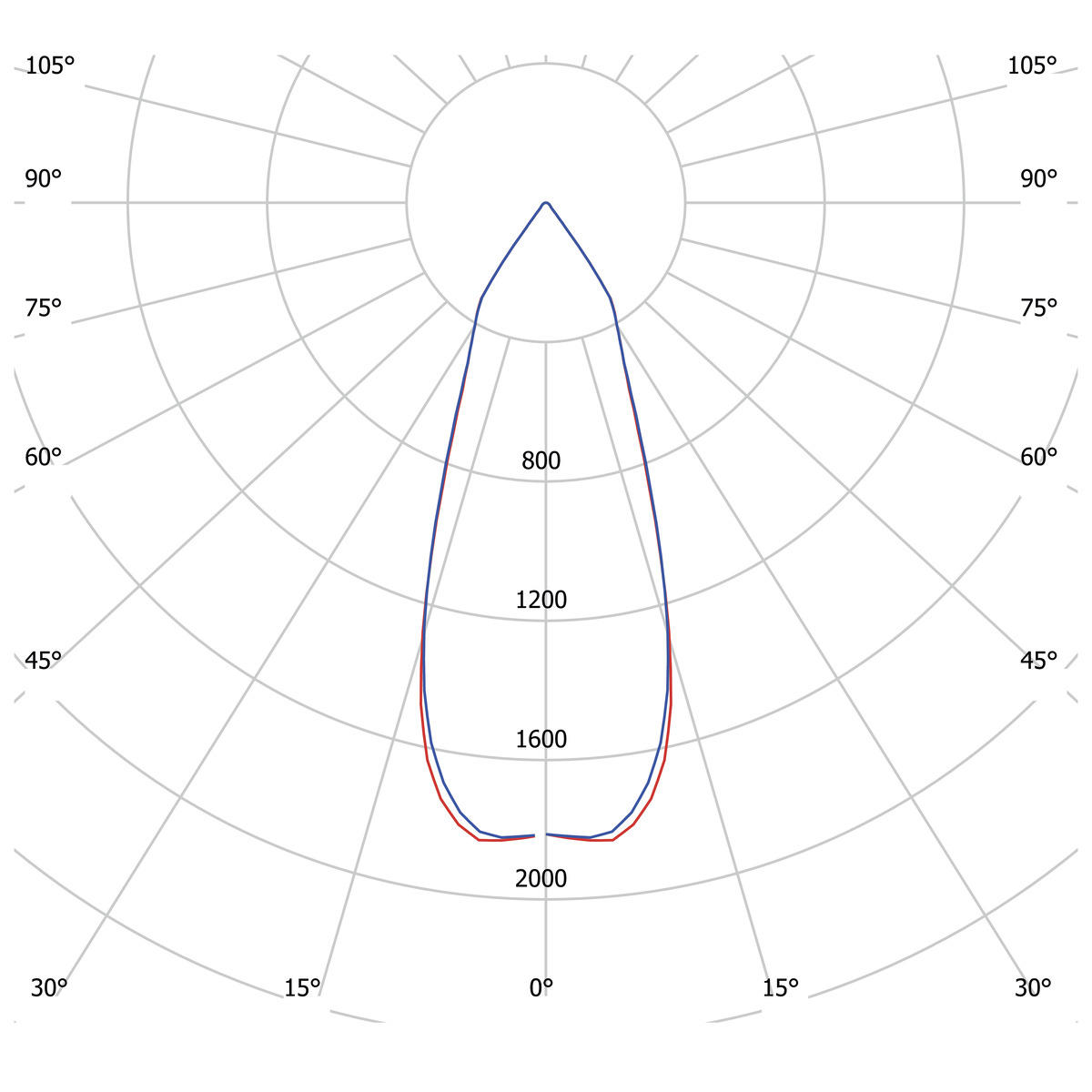

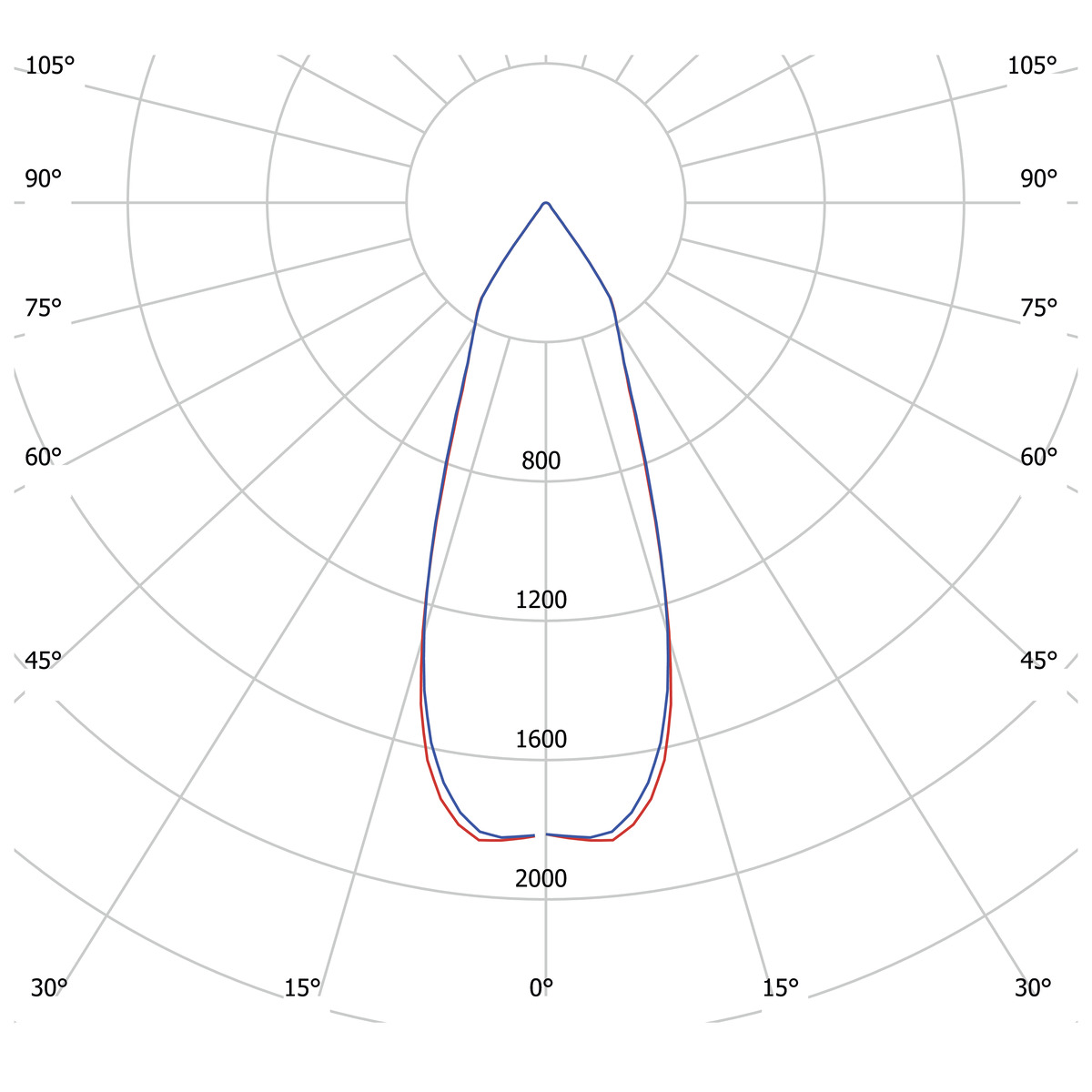

Luminous Intensity (cd) 1990
Luminaire Lumen (lm) 1080
Beam Angle (°) 40
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L92
Lumen maintenance 100 000h L87
LLMF @ 50 000h 0,92
LLMF @ 100 000h 0,87
Life Time Driver 50 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power Luminaire (W) 15
System Power (W) 15
Efficiency Luminaire (lm/W) 72
Efficiency System (lm/W) 72
Operation and Connection

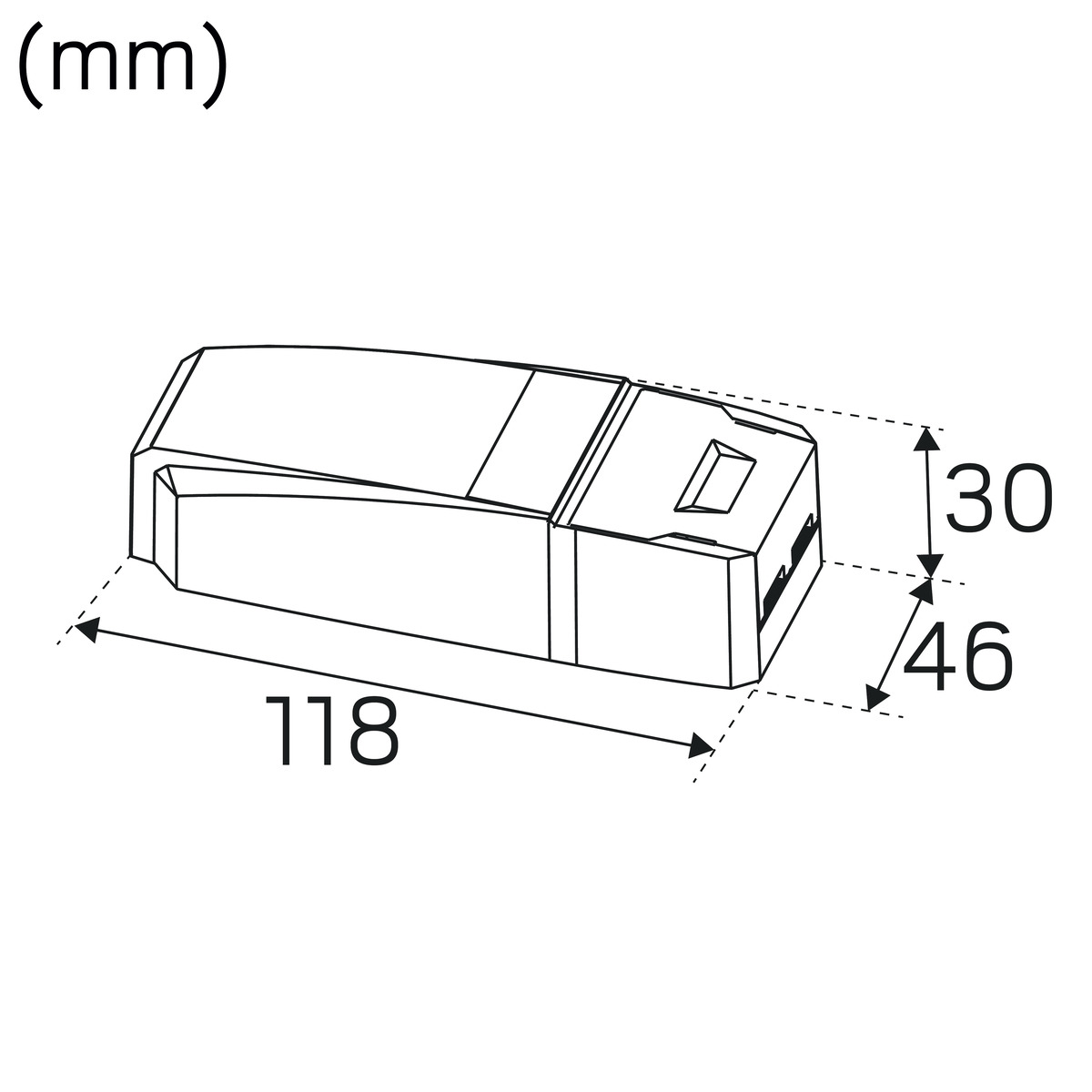

Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone
Connection (type) Quick Terminal
Connection (mm2) 3x0,75-2,5
Through Wiring Yes
Strain Relief Yes
Operating Temperature -20…+50
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Fuse B10 (pcs) 23
Fuse B16 (pcs) 38
Fuse C10 (pcs) 23
Fuse C16 (pcs) 38
Color and material
Material Aluminium
Color Antracit
Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 54
Protection Class II
Installation Built-in
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 5-45
Fire Safety Marks Not in insulation without protection cover
Approval Marks CE, SELV
Filament Test IEC 695-2-1(°C) 650

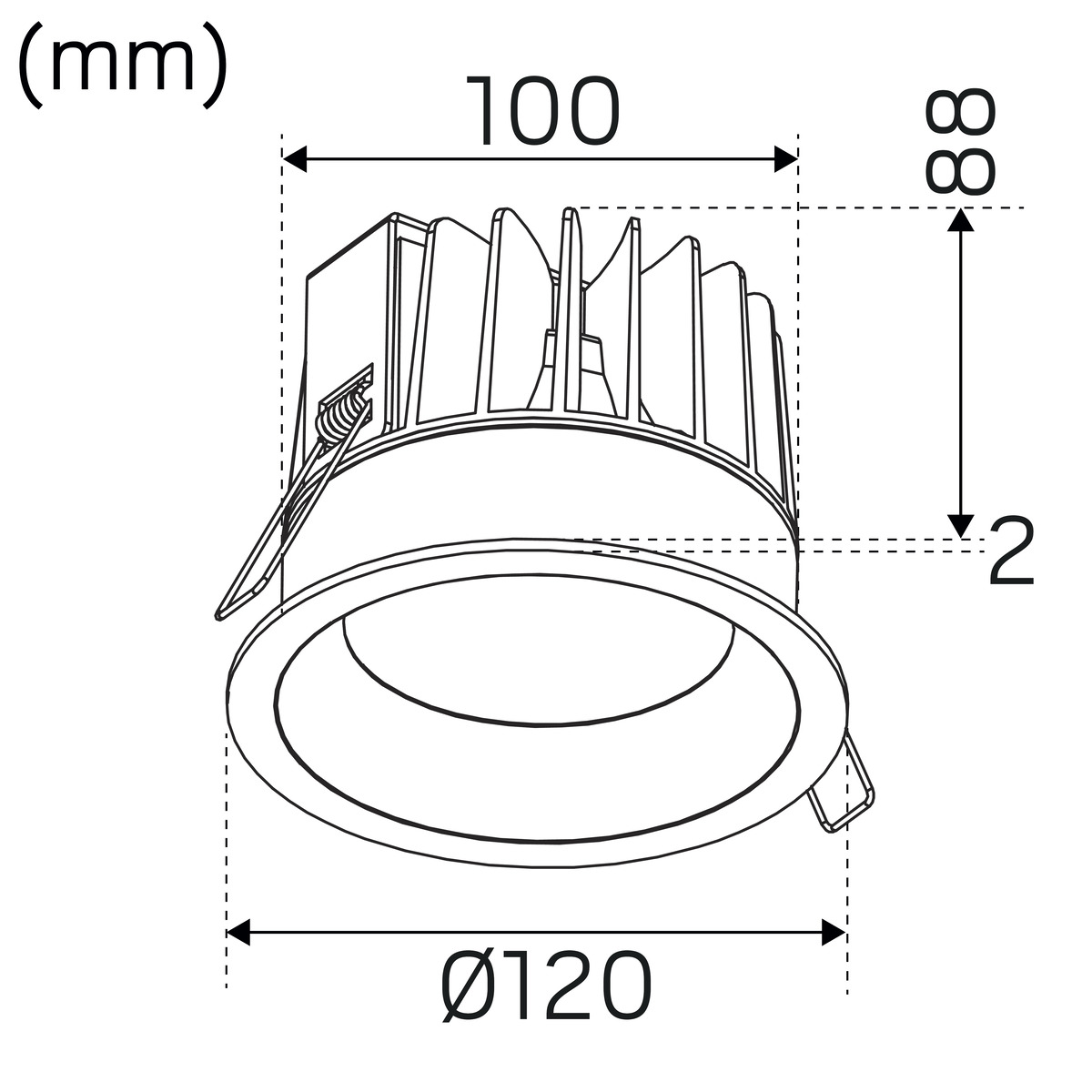

Height (mm) 90
Diameter (mm) 120
Weight (kg) 0,613
Min. Built-in (mm) 250x250x140
Min. Air Volume (cm3) 8750
Height Recessed Part (mm) 87
Height Exterior Part (mm) 3
Built-in Ø (mm) 100-109
