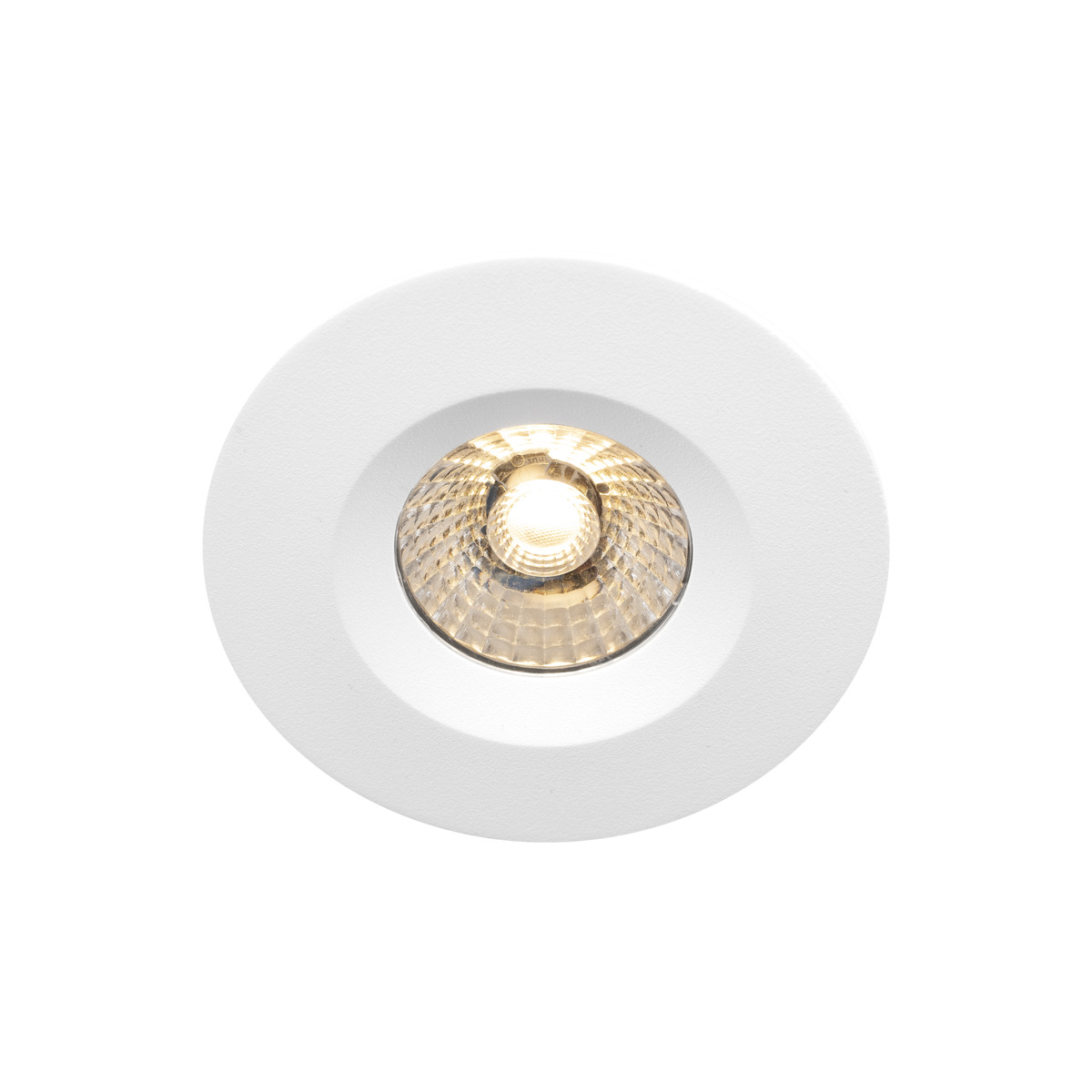

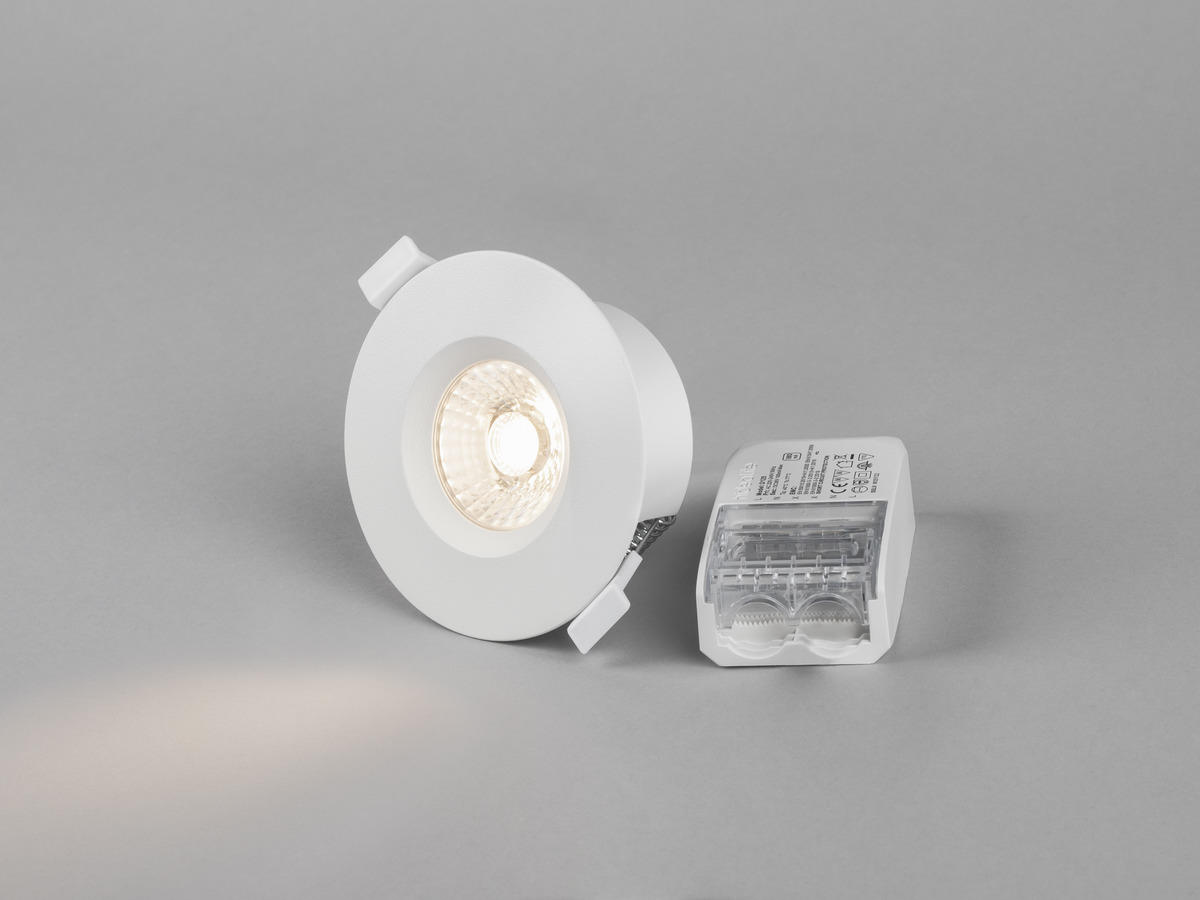

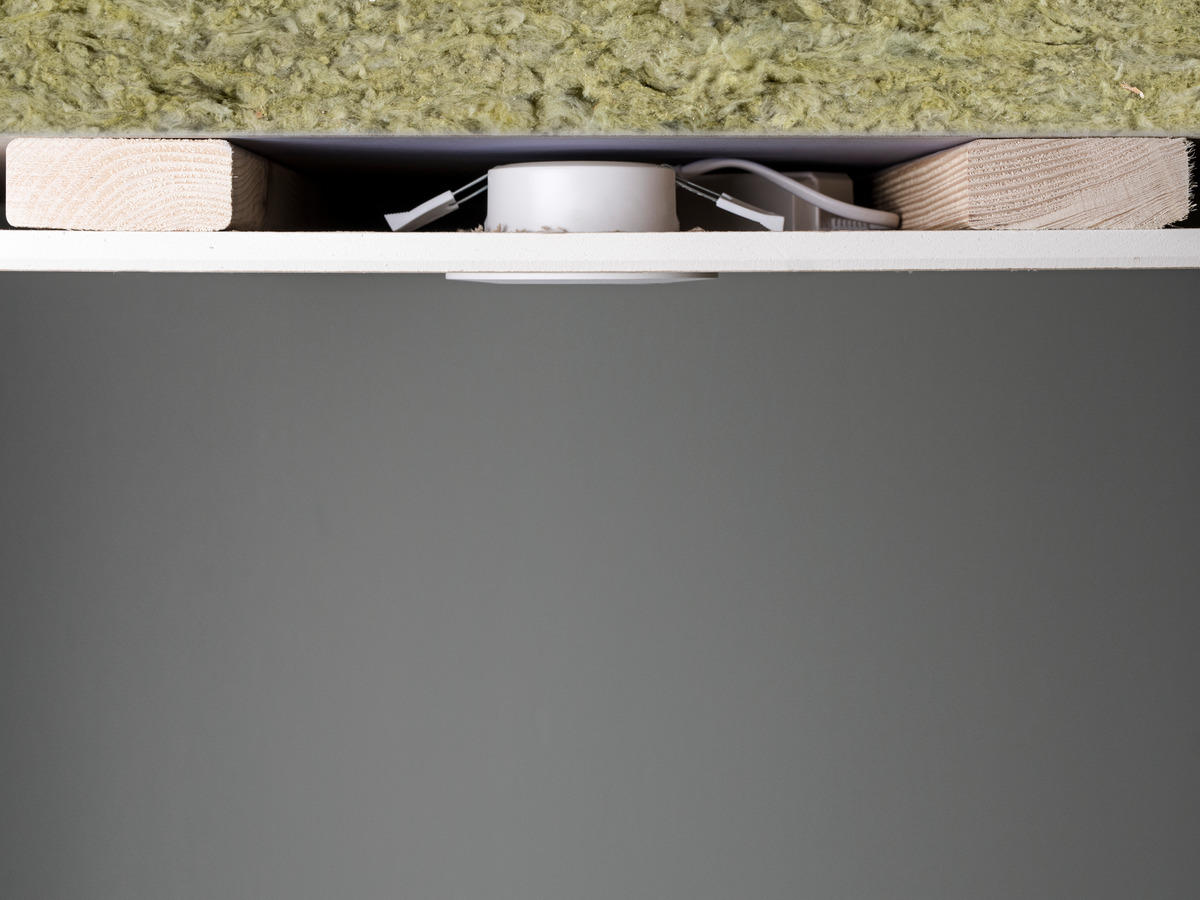

High-performance downlight made for a sustainable future – easily dismantled via a module system to save time when recycling. Comfort G4 Quick ISO is a downlight with lens technology, high lumen output and ISO cover for installation in 28mm secondary spaced boarding and approved for installation directly against insulation. Easily installed with very good colour rendering, Ra>95, that is just as good indoors as outdoors. Driver with cover that can be adapted for cable or flex hose 16mm. Comes with 3-pole push-in terminal for through wiring and strain relief. This luminaire is dimmable with the most commonly available dimmers on the market.
GTIN7392971146485 Item NameComfort G4 Quick ISO White 36° 2700K Warranty5 years
Light Technical Data
Light SourceLED Light Source IncludedYes ReplaceabilityReplaceable LED by professional, Replaceable Control gear by professional LED ColourWarm White Colour Temperature (K)2700 Colour Rendering Index (Ra)>98 Colour Consistency (SDCM)3 Initial Chromaticityx: 0.4559 y: 0.4100 Luminous Intensity (cd)1450 Luminaire Lumen (lm)650 Beam Angle (°)36 Light sharingSymmetric Light OutletDirect Number of Lamps (pcs)1 Number of LED (pcs)1 Life TimeL80 100 000h Ta 25°C Nominel Life Time (h)100000 Lumen maintenance 50 000hL90 Lumen maintenance 75 000hL86 Lumen maintenance 100 000hL82 LLMF @ 50 000h0,9 LLMF @ 100 000h0,82 Life Time Driver50 000h/10%
AdjustableNo Voltage (type)AC Voltage Interval (V)220...240 Voltage Nominal (V)230 Line Frequency (Hz)50, 60 Power LED (W)6,5 Power Luminaire (W)7,5 System Power (W)7,5 Efficiency Luminaire (lm/W)87 Efficiency System (lm/W)87 Containing light source energy efficiency class (EU) 2019/2015E
Operation and Connection

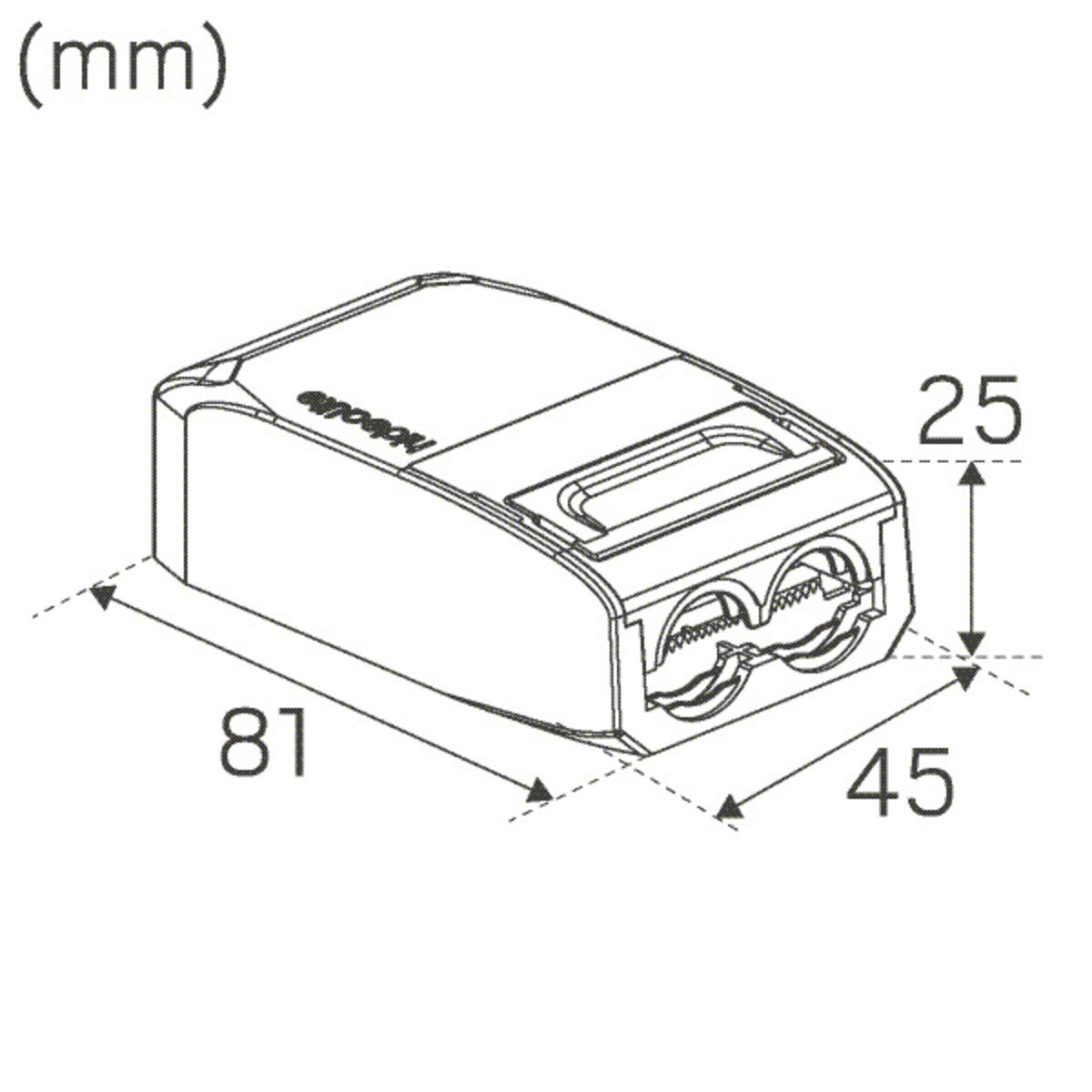

Driver IncludedYes Driver ModelConstant Current Driver TypeStand Alone Driver ManufacturerHide-a-lite Connection (type)Quick Terminal Connection (mm2)3x0,5-1,5 Through WiringYes Strain ReliefYes Power Factor ʎ0,95 Efficiency (%)80 Power loss (W)1 Leakage current (mA) (at 230 V, 50 Hz, full load)0,05 THD (%)20 Constant Current (mA)180 Operating Temperature-20…+40 Max. Tc (°C)85 DimmableYes Type of DimmingTrailing Edge Dimming secondary sideAM Memory Function Power FailureNo Inrush current (max/time)2,5A 30µs Fuse B10 (pcs)55 Fuse B16 (pcs)87 Fuse C10 (pcs)91 Fuse C16 (pcs)146
Color and material
MaterialDiecasted, Aluminium ColorWhite Available in special colorYes
Measurement and installation

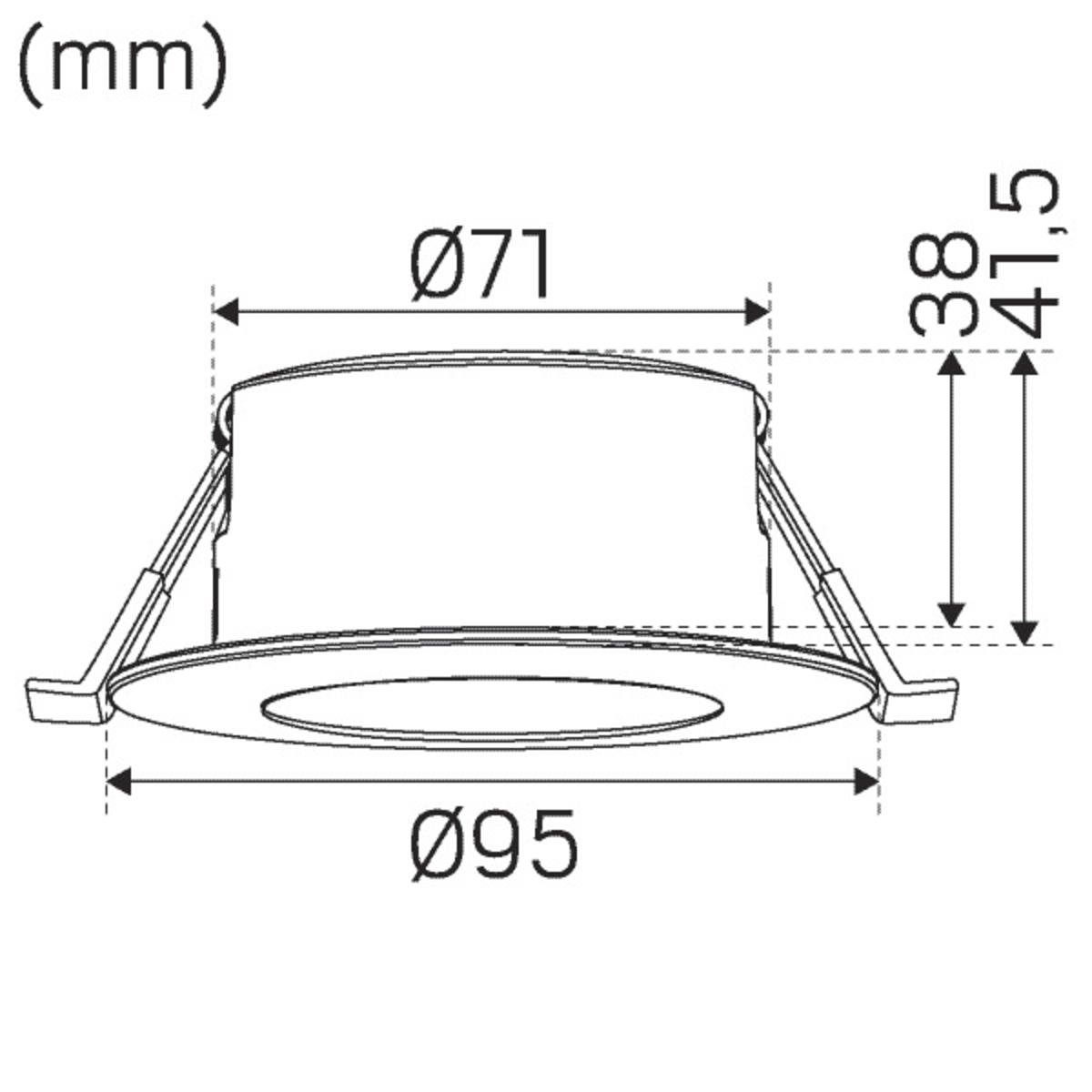

Operating EnvironmentIndoor / bathroom (ceiling area 1), Outdoor IP Degree of Protection44 Protection ClassII InstallationBuilt-in Mounting InstallationMounting Spring Ceiling Thickness Interval (mm)3-26 Fire Safety MarksApproved for installation against insulation Approval MarksCE, a Hide-a-lite Choice Height (mm)41 Diameter (mm)95 Weight (kg)0,295 Min. Built-in (mm)170x120x38 Min. Air Volume (cm3)2600 Height Recessed Part (mm)38 Height Exterior Part (mm)3 Built-in Ø (mm)73-85
