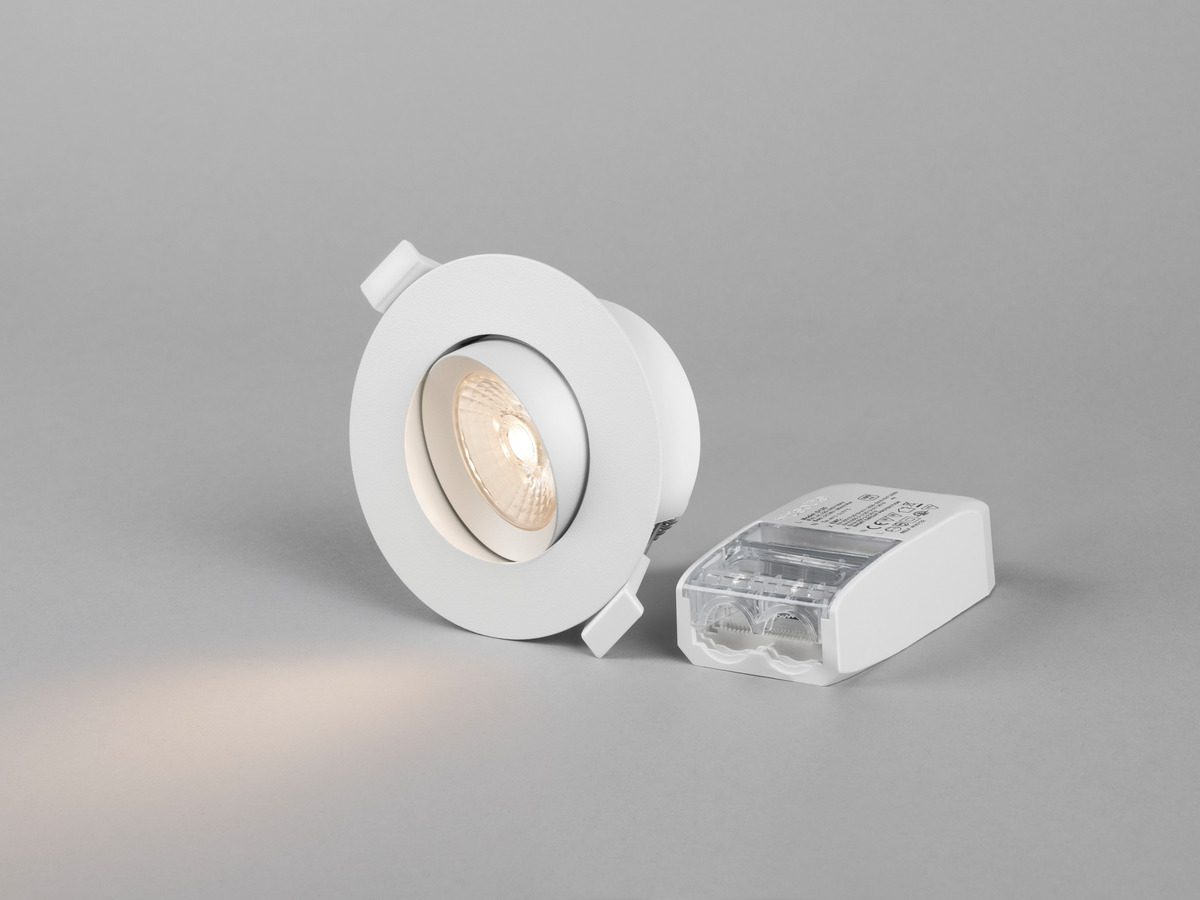

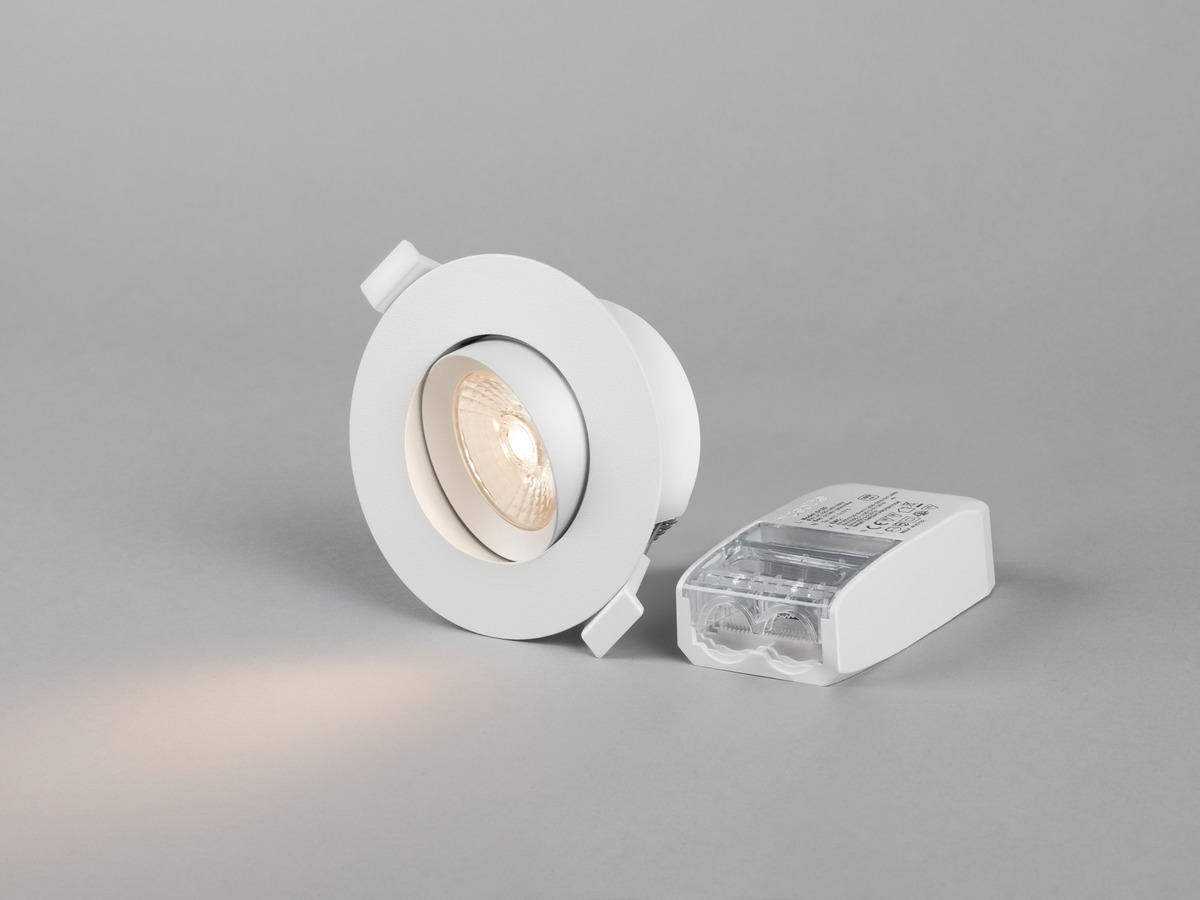

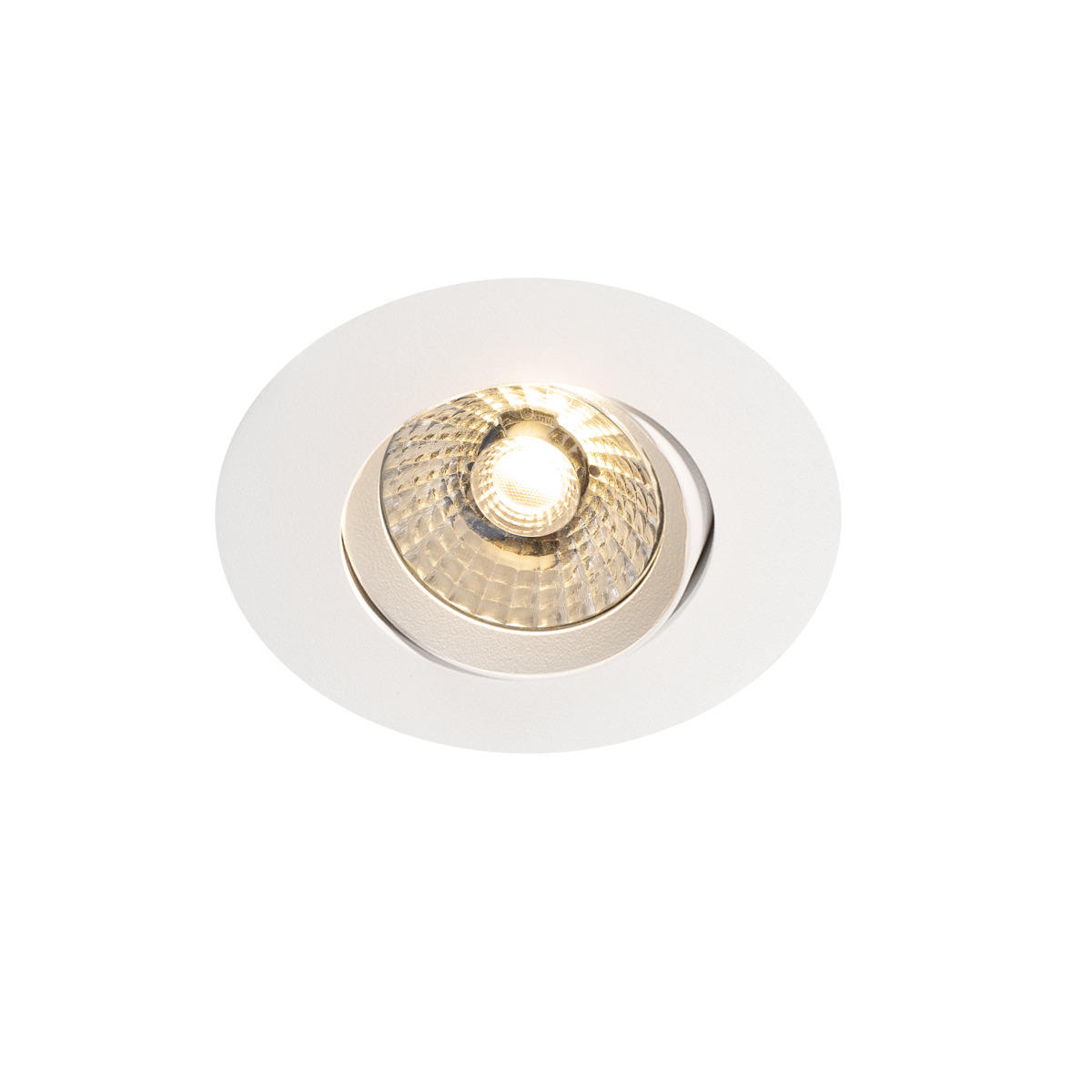

Comfort G4 Quick ISO Tilt Comfort G4 Quick ISO Tilt White 36° Tune

Low-build, perfect for secondary spaced boarding 28mm with 13mm plaster

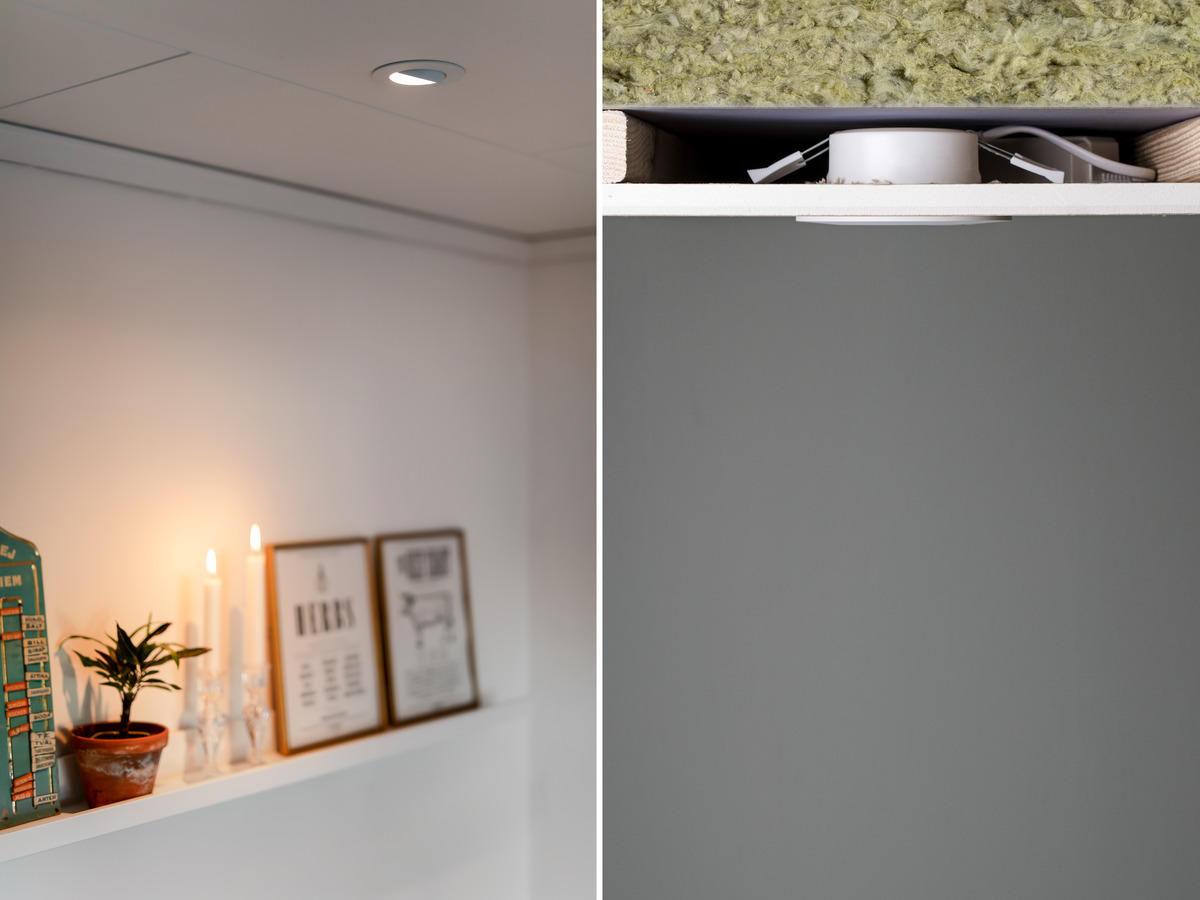

Approved for installation directly against insulation

High-performance downlight made for a sustainable future – easily dismantled via a module system to save time when recycling. Comfort G4 Quick ISO Tilt is a downlight with lens technology, high lumen output and ISO cover for installation in 28mm secondary spaced boarding and approved for installation directly against insulation. Easily installed with very good colour rendering, Ra>95, that is just as good indoors as outdoors. Tiltable version (30°) is the perfect choice of luminaire for sloping ceilings. Driver with cover that can be adapted for cable or flex hose 16mm. Comes with 3-pole push-in terminal for through wiring and strain relief. This luminaire is dimmable with the most commonly available dimmers on the market.

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)	Beam Angle (°)
7392971146508	Comfort G4 Quick ISO Tilt White 36° Tune	White	2700	520	36
7392971146515	Comfort G4 Quick ISO Tilt White 60° Tune	White	2700	520	60
7392971146522	Comfort G4 Quick ISO Tilt White 36° 2700K	White	2700	650	36
7392971146539	Comfort G4 Quick ISO Tilt White 60° 2700K	White	2700	650	60
7392971146546	Comfort G4 Quick ISO Tilt White 36° 3000K	White	3000	690	36
7392971146553	Comfort G4 Quick ISO Tilt White 60° 3000K	White	3000	690	60

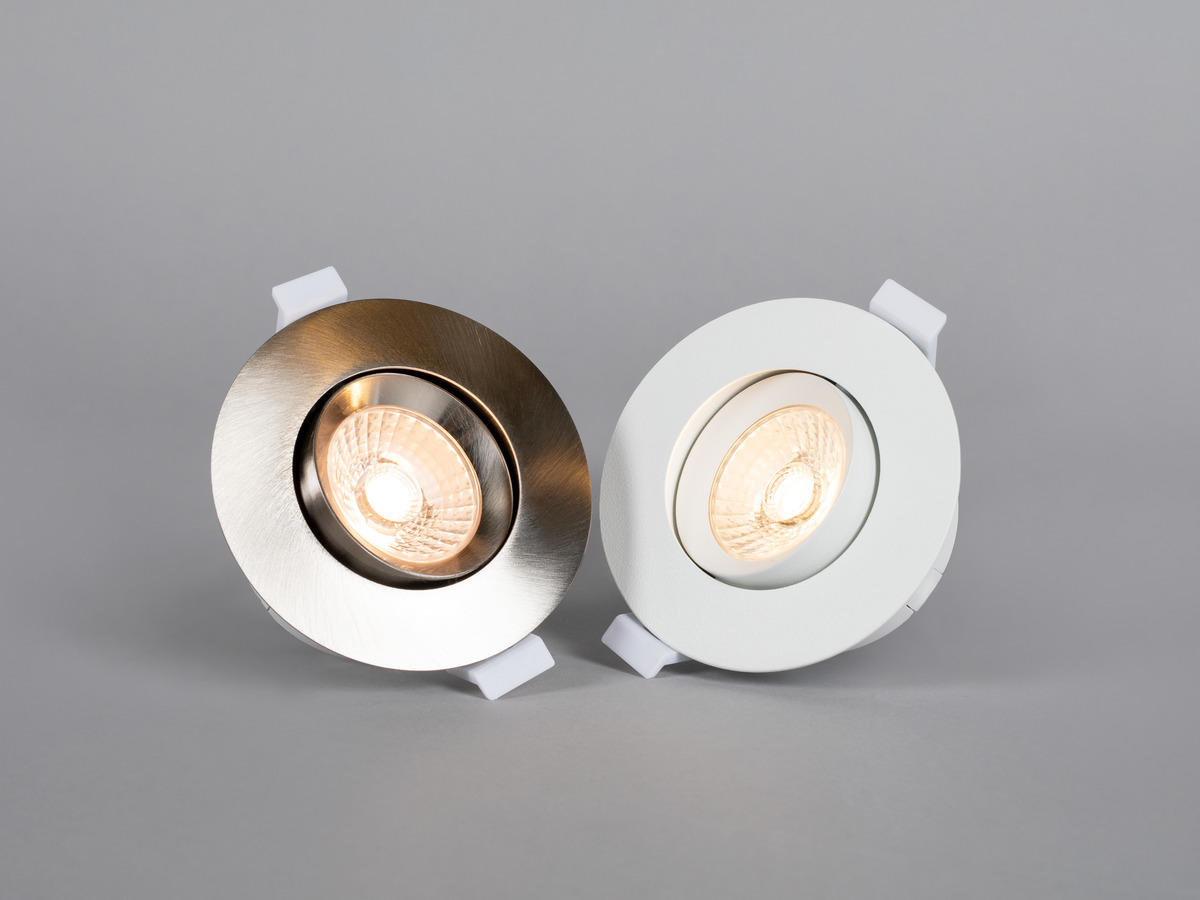

7392971146560	Comfort G4 Quick ISO Tilt Brushed steel 36° Tune	Brushed Steel	2700	520	36
7392971146577	Comfort G4 Quick ISO Tilt Brushed steel 36° 2700K	Brushed Steel	2700	650	36
7392971146584	Comfort G4 Quick ISO Tilt Brushed steel 36° 3000K	Brushed Steel	3000	690	36

Description: GTIN 7392971146508

Replaces 7392971135953

Item Name Comfort G4 Quick ISO Tilt White 36° Tune

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 520

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour Tune

Colour Temperature (K) 2700

Range Colour Temperature (K) Tune 2000-2700

Colour Rendering Index (Ra) >95

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1170

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 75 000h L86

Lumen maintenance 100 000h L82

LLMF @ 50 000h 0,9

LLMF @ 100 000h 0,82

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,003

Stroboscopic effect (SVM) 0,02
Technical data: Adjustable Yes

Tiltable (°) 30

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 6,5

Power Luminaire (W) 7,5

System Power (W) 7,5

Efficiency Luminaire (lm/W) 69

Efficiency System (lm/W) 69

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes

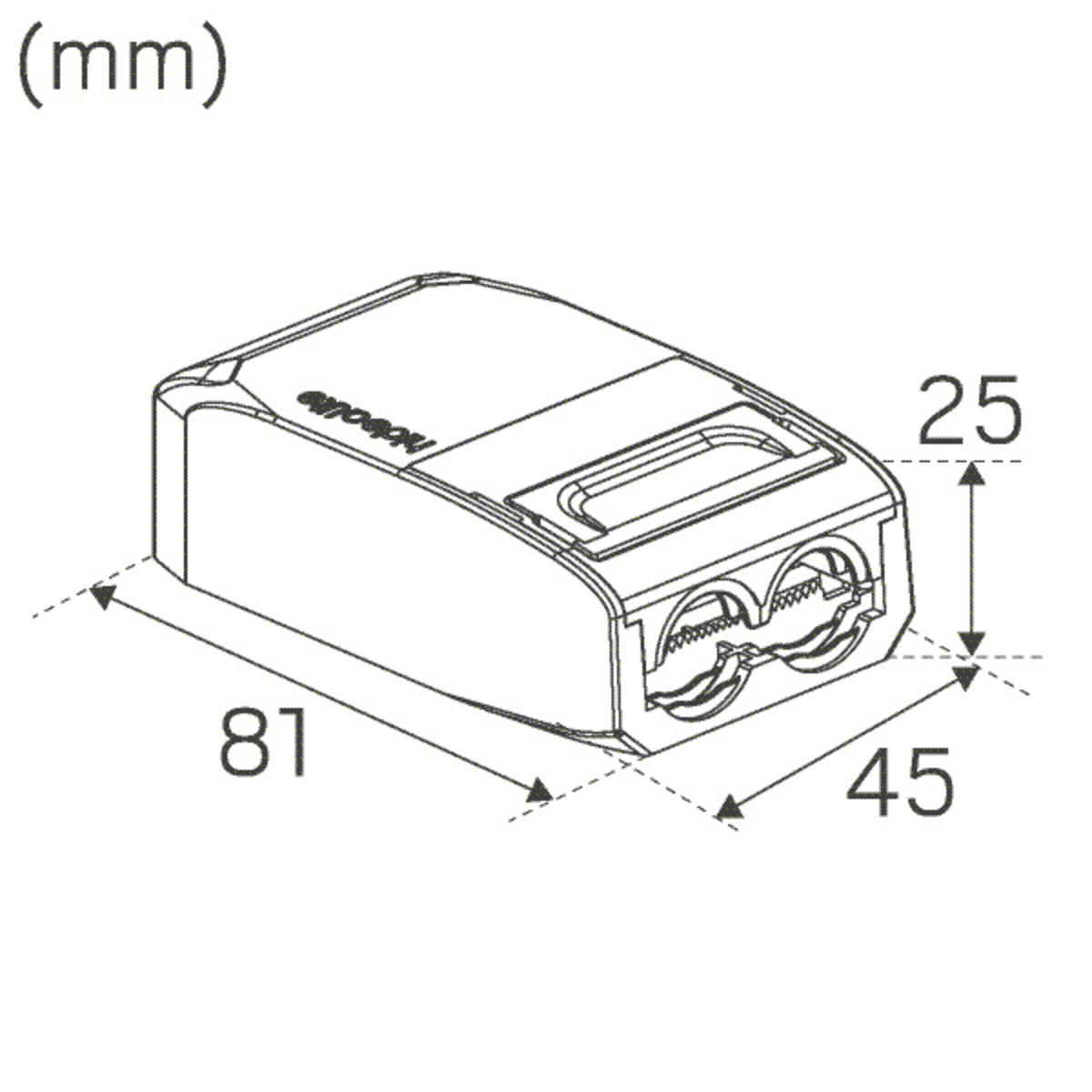

Driver Model Constant Current

Driver Type Stand Alone

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,95

Efficiency (%) 80

Power loss (W) 1

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,05

THD (%) 20

Constant Current (mA) 180

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Memory Function Power Failure No

Inrush current (max/time) 2,5A 30µs

Fuse B10 (pcs) 55

Fuse B16 (pcs) 87

Fuse C10 (pcs) 91

Fuse C16 (pcs) 146
Color and material: Material Aluminium

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 44

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-26

Fire Safety Marks Approved for installation against insulation

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE, SELV, a Hide-a-lite Choice

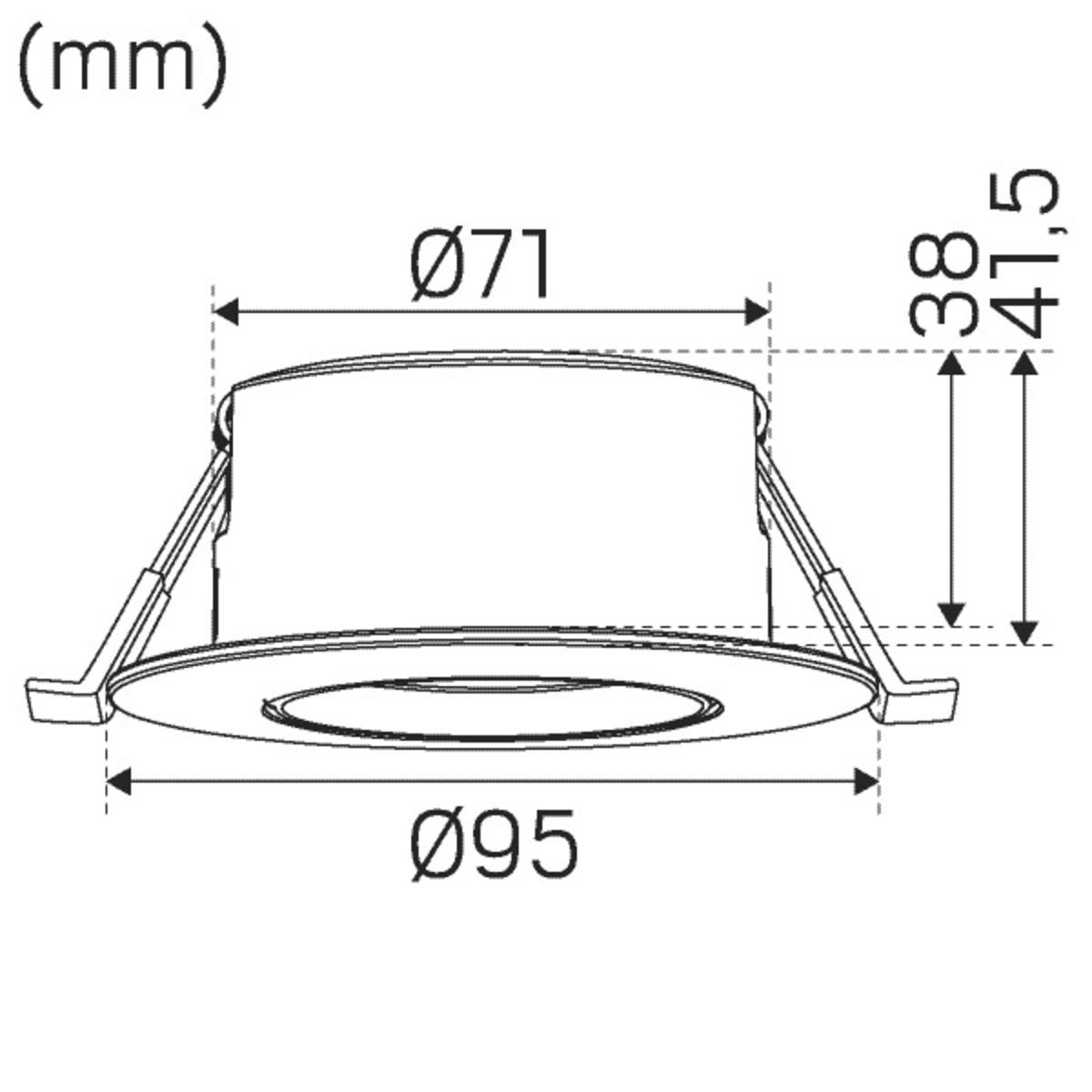

Height (mm) 41

Diameter (mm) 95

Weight (kg) 0,3

Min. Built-in (mm) 170x120x38

Height Recessed Part (mm) 38

Height Exterior Part (mm) 3

Built-in Ø (mm) 73-85

Spare parts

If you need spare parts, contact our customer support

LED-Module Comfort G4 Tune X251
Driver D125 FDIM 180mA X259
