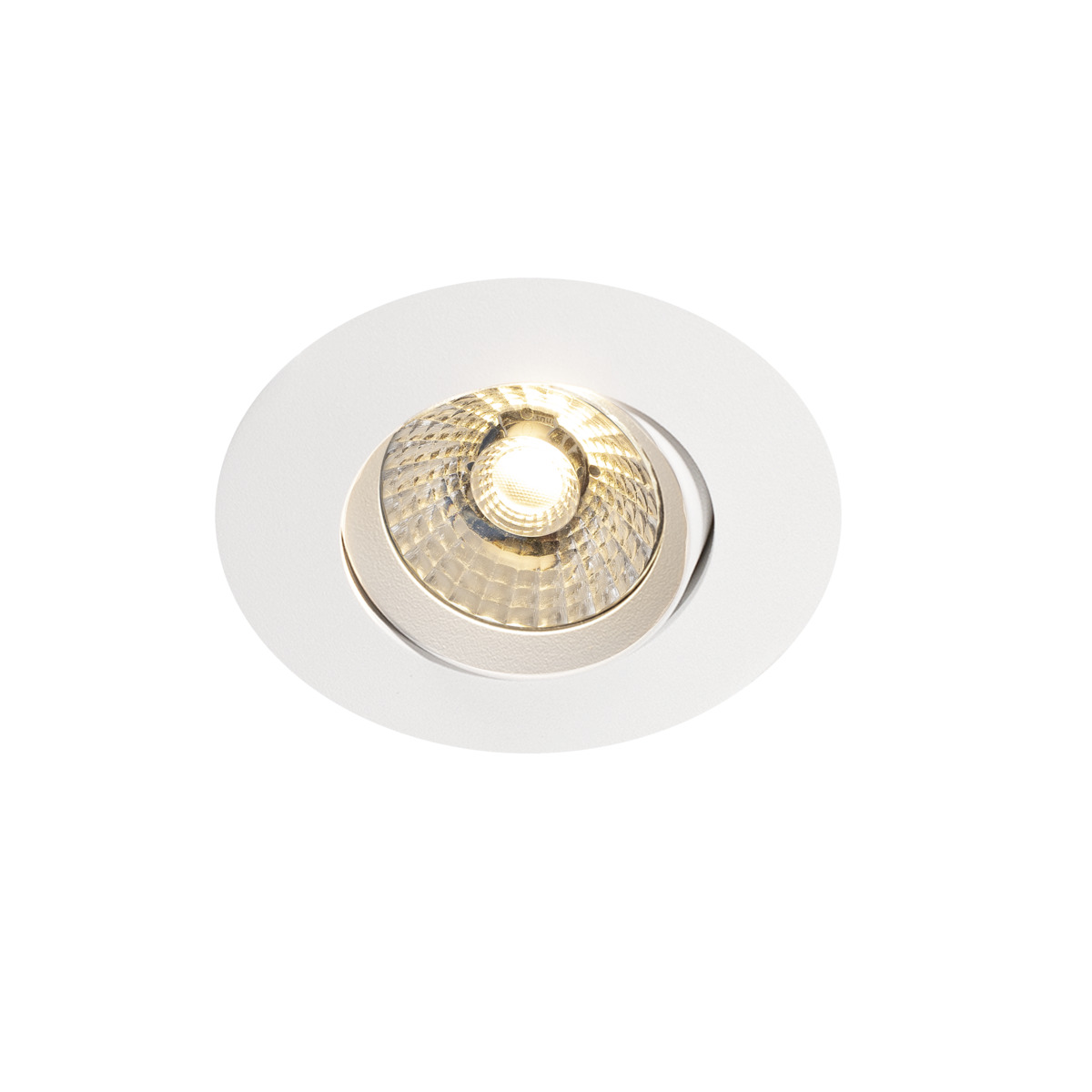

Comfort G4 Quick ISO Tilt DALI

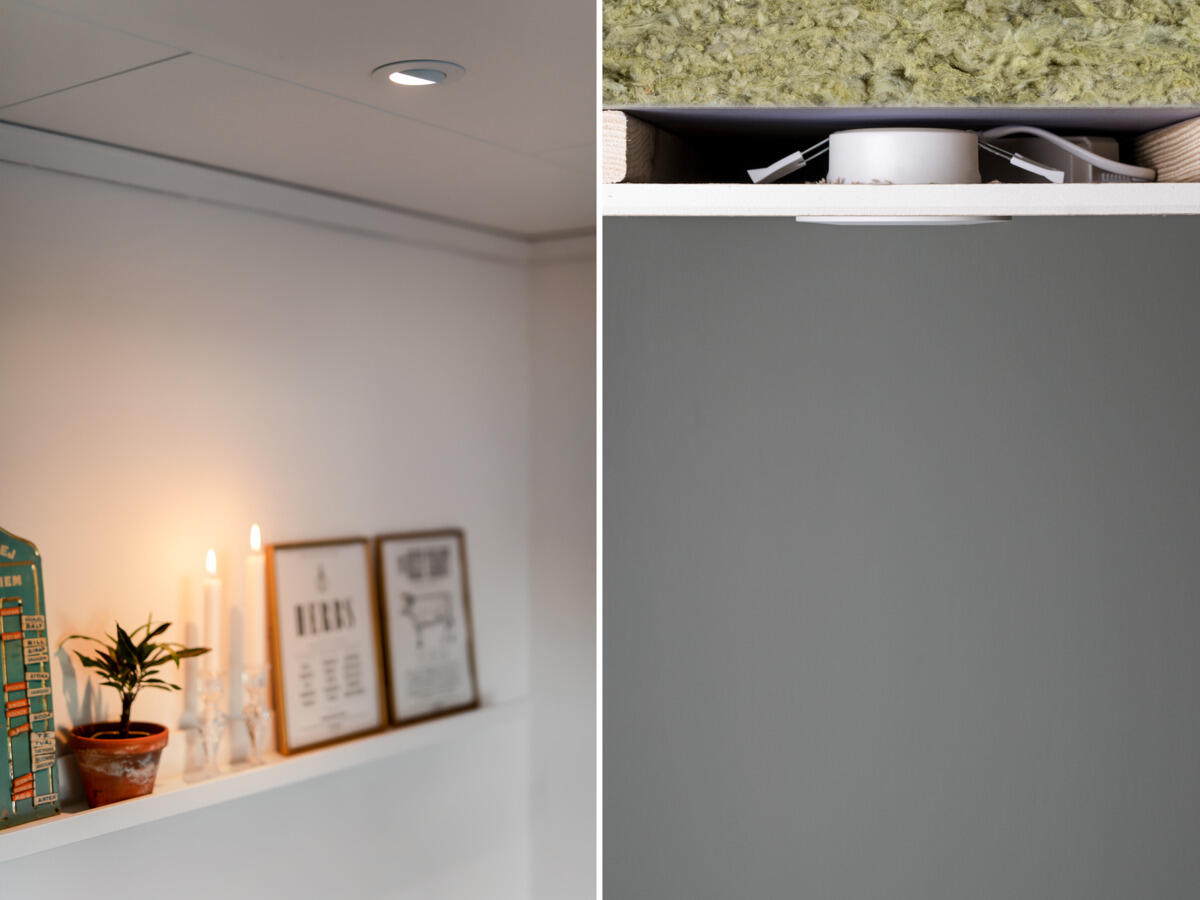

- Approved for installation directly against insulation

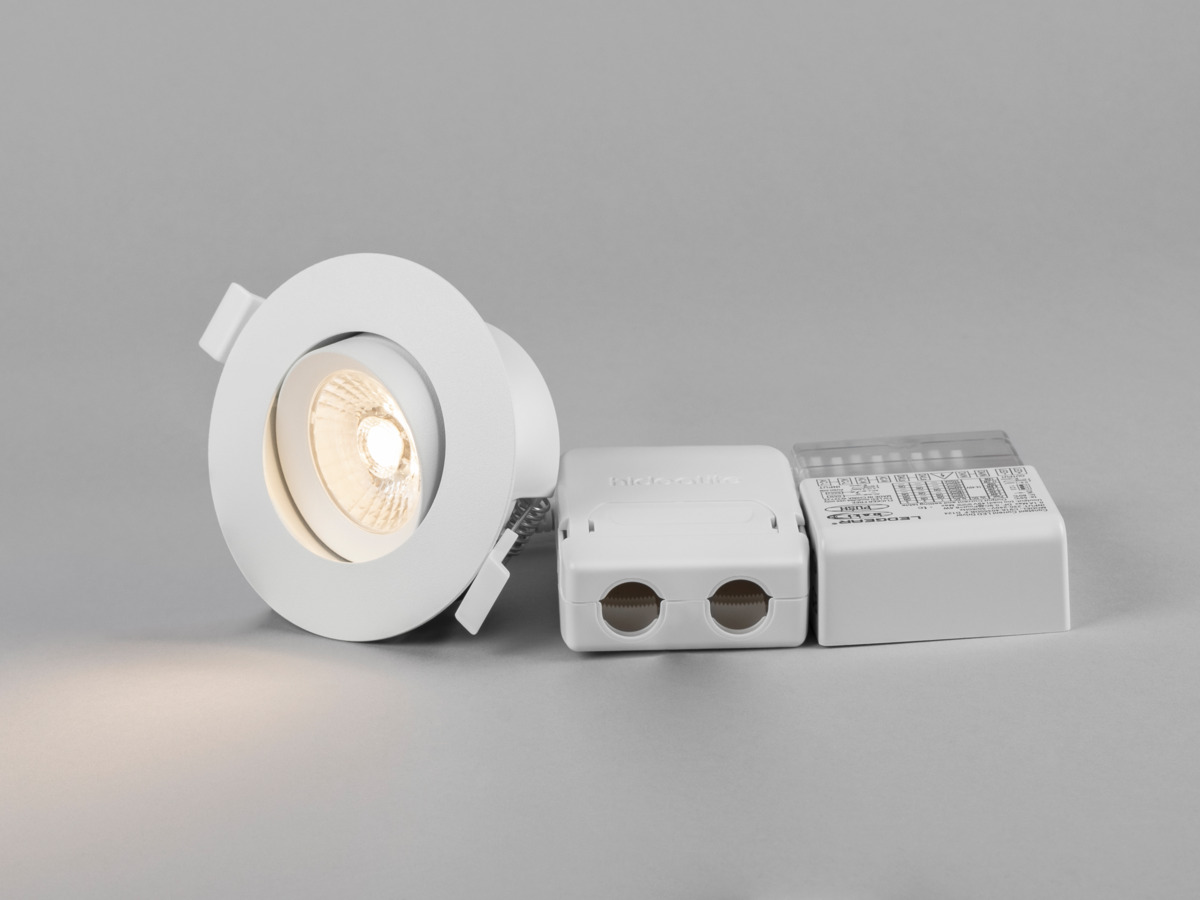

High-performance downlight made for a sustainable future – easily dismantled via a module system to save time when recycling. Comfort G4 Quick ISO is a downlight with lens technology, high lumen output and ISO cover for installation in 28mm secondary spaced boarding and approved for installation directly against insulation. Easily installed with very good colour rendering, Ra>95, that is just as good indoors as outdoors. Tiltable version (30°) is the perfect choice of luminaire for sloping ceilings. Driver with cover that can be adapted for cable or flex hose 16mm. Comes with 3-pole push-in terminal for through wiring and strain relief. Comfort G4 Quick ISO DALI comes together with Q-Box Micro driver. This luminaire is dimmable with the most commonly available dimmers on the market.
| Variants | GTIN | Item Name | Colour Temperature (K) | Max. Luminaire Lumen (lm) |
|---|---|---|---|---|
|
7392971146638 | Comfort G4 Quick ISO Tilt DALI White 36° 2700K | 2700 | 650 |
|
7392971146645 | Comfort G4 Quick ISO Tilt DALI White 36° 3000K | 3000 | 690 |
|
7392971146621 | Comfort G4 Quick ISO Tilt DALI White 36° Tune | 2700 | 520 |
Show more articles
Comfort G4 Quick ISO Tilt DALI White 36° 2700K
-
GTIN 7392971146638Item Name Comfort G4 Quick ISO Tilt DALI White 36° 2700KWarranty 5 years
- Light Technical Data
-
Max. Luminaire Lumen (lm) 650Light Source LEDLight Source Included YesReplaceability Replaceable LED by professional, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 2700Colour Rendering Index (Ra) >98Colour Consistency (SDCM) 3Luminous Intensity (cd) 1450Beam Angle (°) 36Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 1Life Time h Ta °CNominel Life Time (h) 100000Lumen maintenance 50 000h L90Lumen maintenance 75 000h L86Lumen maintenance 100 000h L82LLMF @ 50 000h 0.9LLMF @ 100 000h 0.82Life Time Driver 50 000h/10%Flicker (PstLM) 0,003Stroboscopic effect (SVM) 0,02
- Technical data
-
Adjustable YesTiltable (°) 30Voltage (type) ACVoltage Interval (V) 220...240VVoltage Nominal (V) 230Line Frequency (Hz) 50, 60Power LED (W) 6,5Max. Power Luminaire (W) 7,5Max. System Power (W) 7,5Max. Efficiency Luminaire (lm/W) 93Max. Efficiency System (lm/W) 93Containing light source energy efficiency class (EU) 2019/2015 E
- Operation and Connection
-

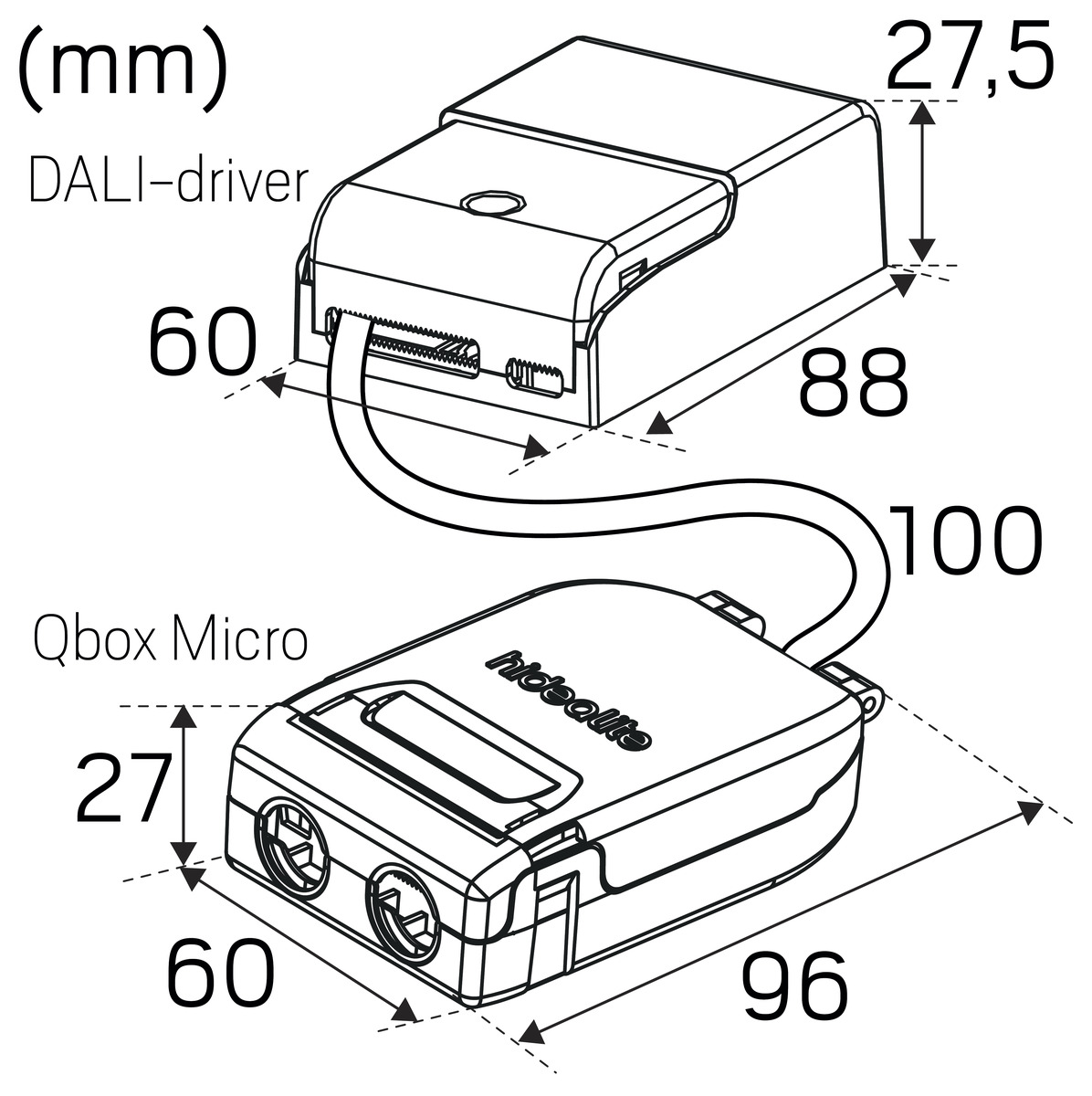

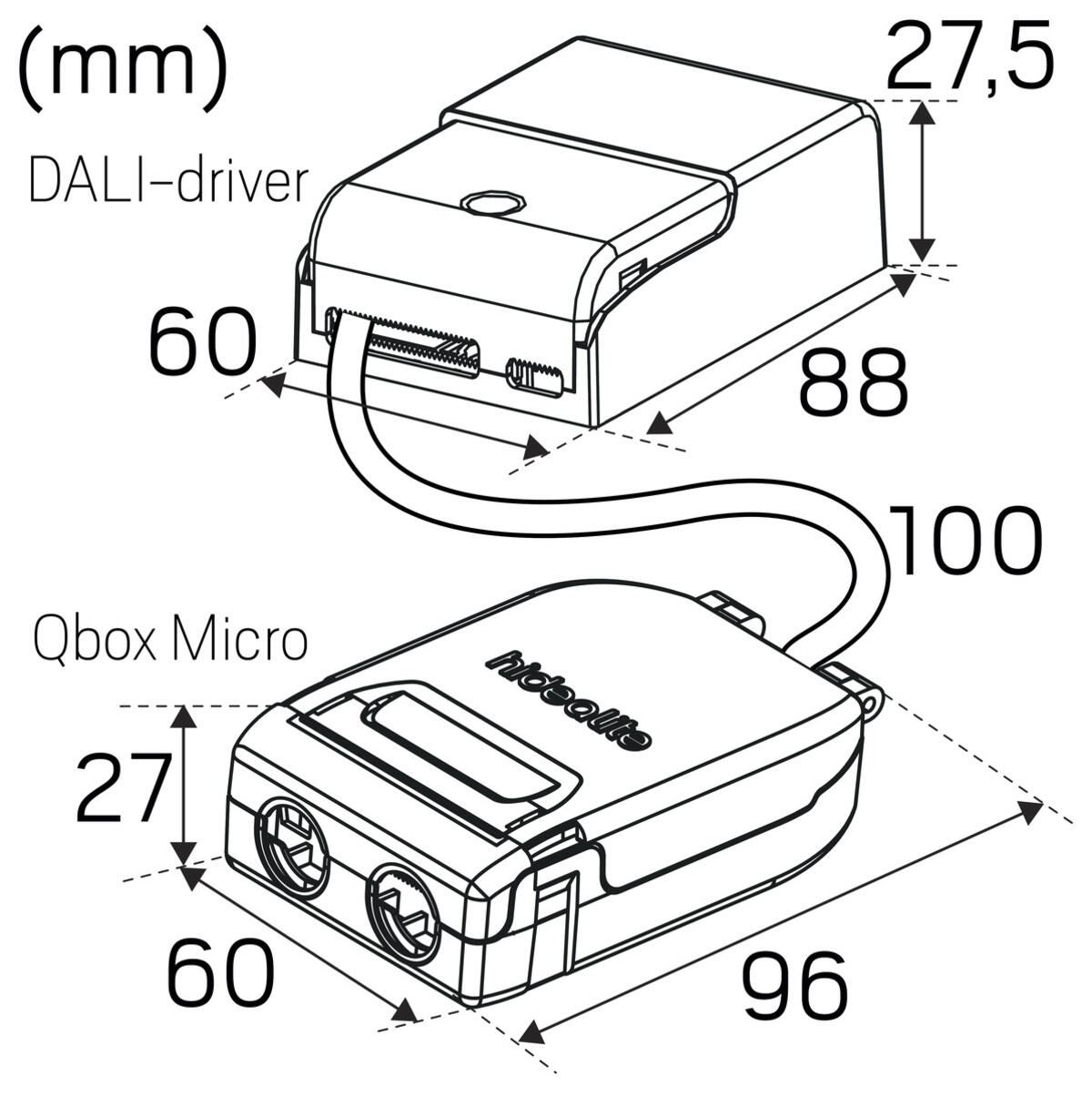

Dimmable YesType of Dimming Push 230V, DALI 2Driver Included YesDriver Model Constant CurrentDriver Type Stand AloneDriver Manufacturer Hide-a-liteConnection (type) Quick TerminalConnection (mm2) 5x0,5-2,5Through Wiring YesStrain Relief YesEfficiency (%) 80Power loss (W) 1Leakage current (mA) (at 230 V, 50 Hz, full load) 0,05THD (%) 20Constant Current (mA) 180Operating TemperatureMax. Tc (°C) 85Dimming secondary side AMMemory Function Power Failure NoInrush current (max/time) 16A 20µsFuse B10 (pcs) 65Fuse B16 (pcs) 104Fuse C10 (pcs) 75Fuse C16 (pcs) 120
- Color and material
-
Material AluminiumColor WhiteEnvironmental Assessment Byggvarubedömningen
- Measurement and installation
-

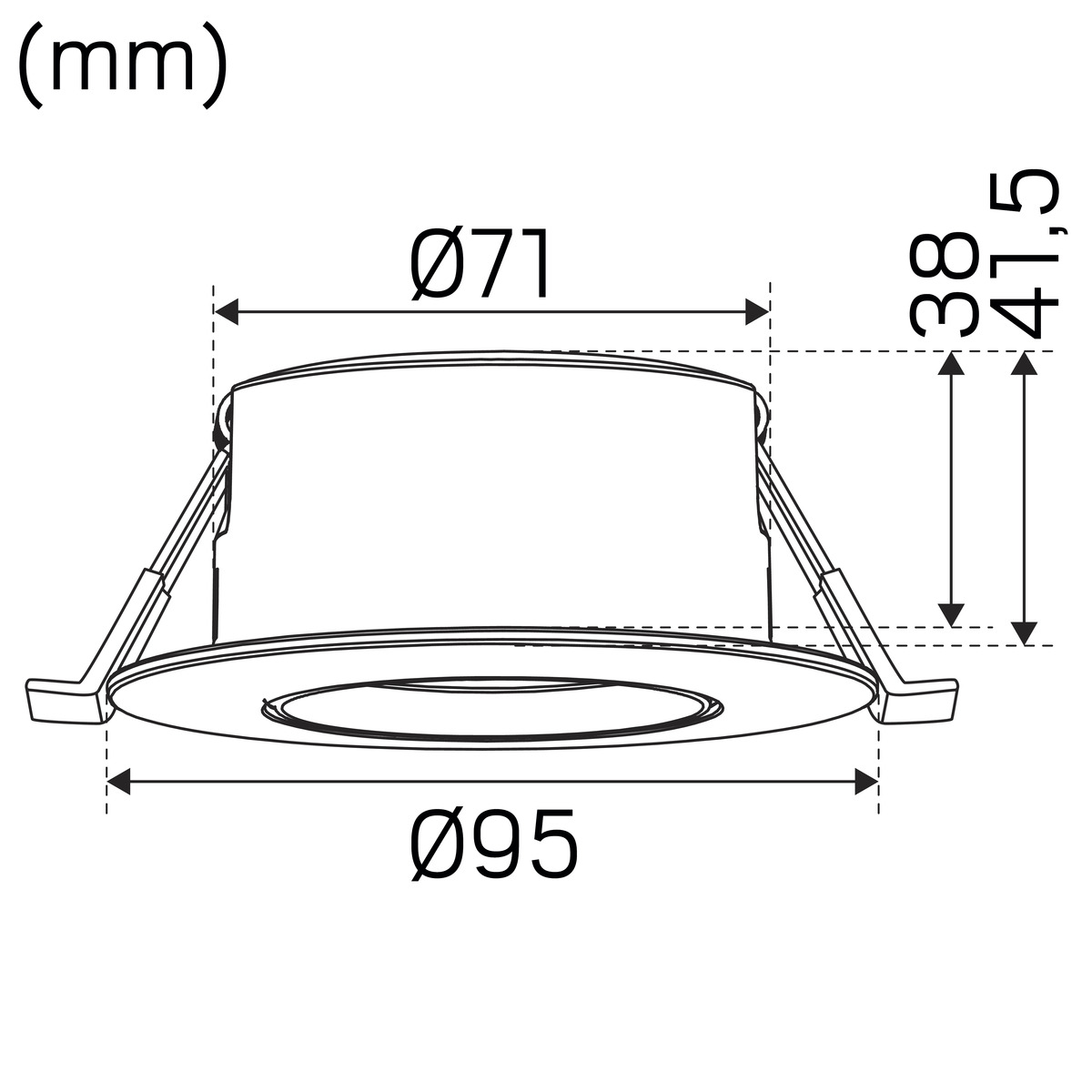

Operating EnvironmentIP Degree of Protection 44Protection Class IIInstallation Built-inMounting Installation Mounting SpringCeiling Thickness Interval (mm) 3-26mmHeight Surface Mounted (mm) 0Fire Safety Marks Approved for installation against insulationApproval Marks CE, a Hide-a-lite ChoiceHeight (mm) 41Diameter (mm) 95Weight (kg) 0,3Min. Built-in (mm) 170x120x38Height Recessed Part (mm) 38Height Exterior Part (mm) 3Built-in Ø (mm) 83-85mm
