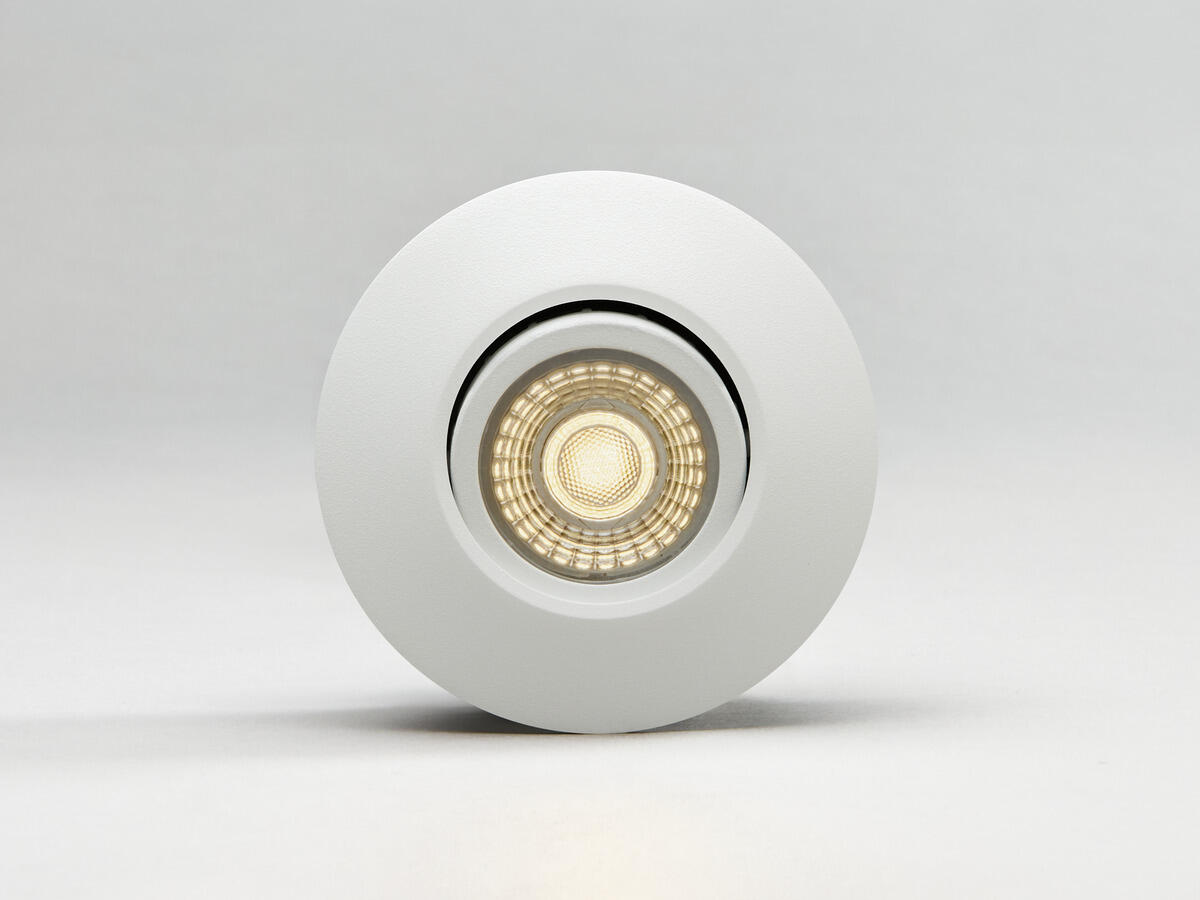

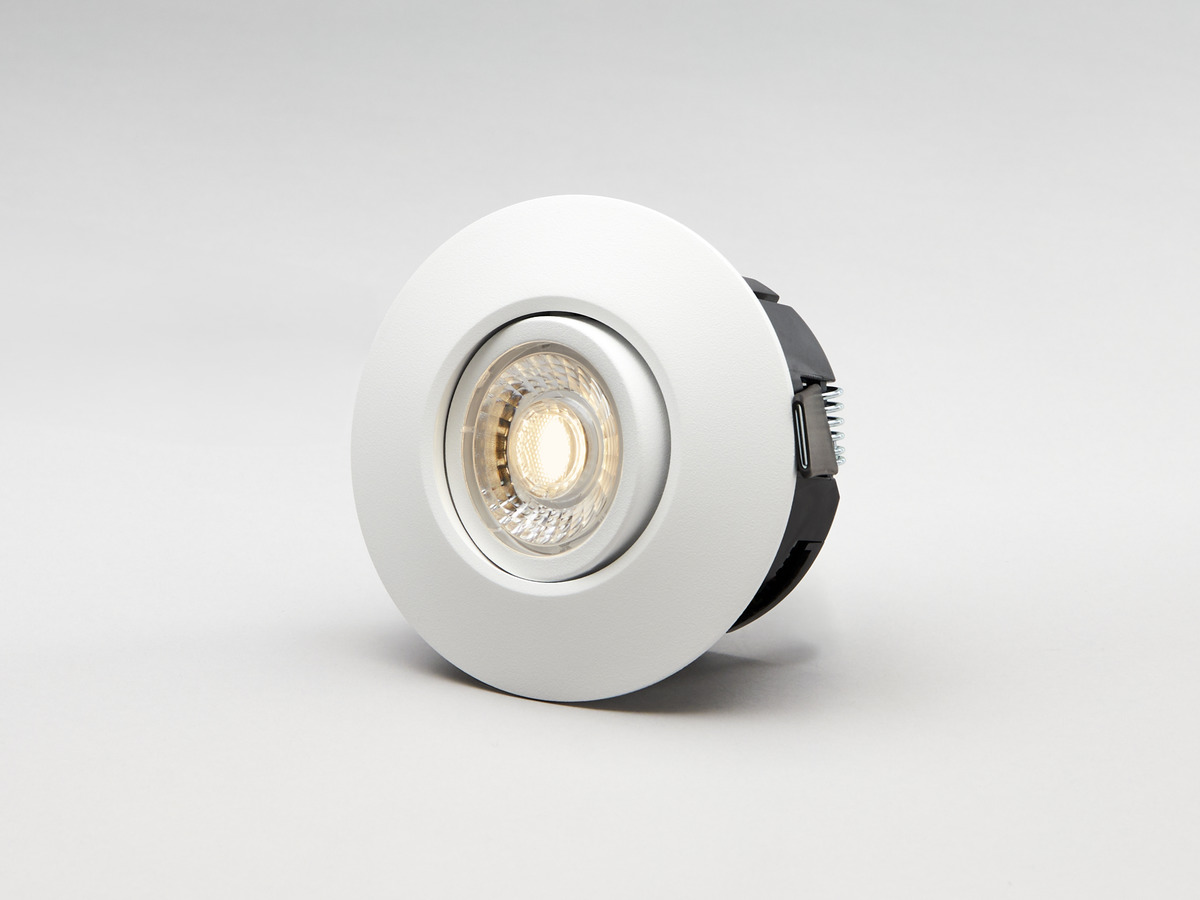

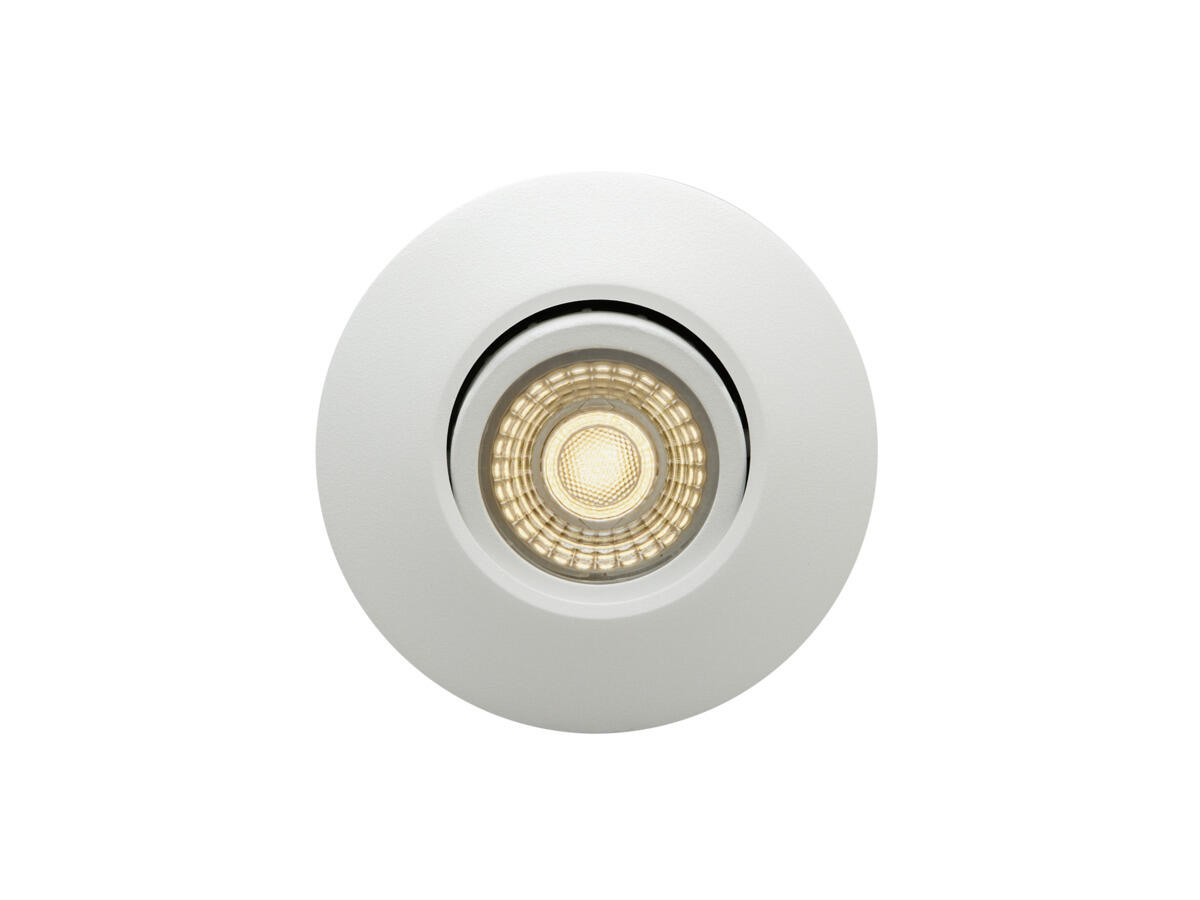

Comfort Smart ISO Tilt

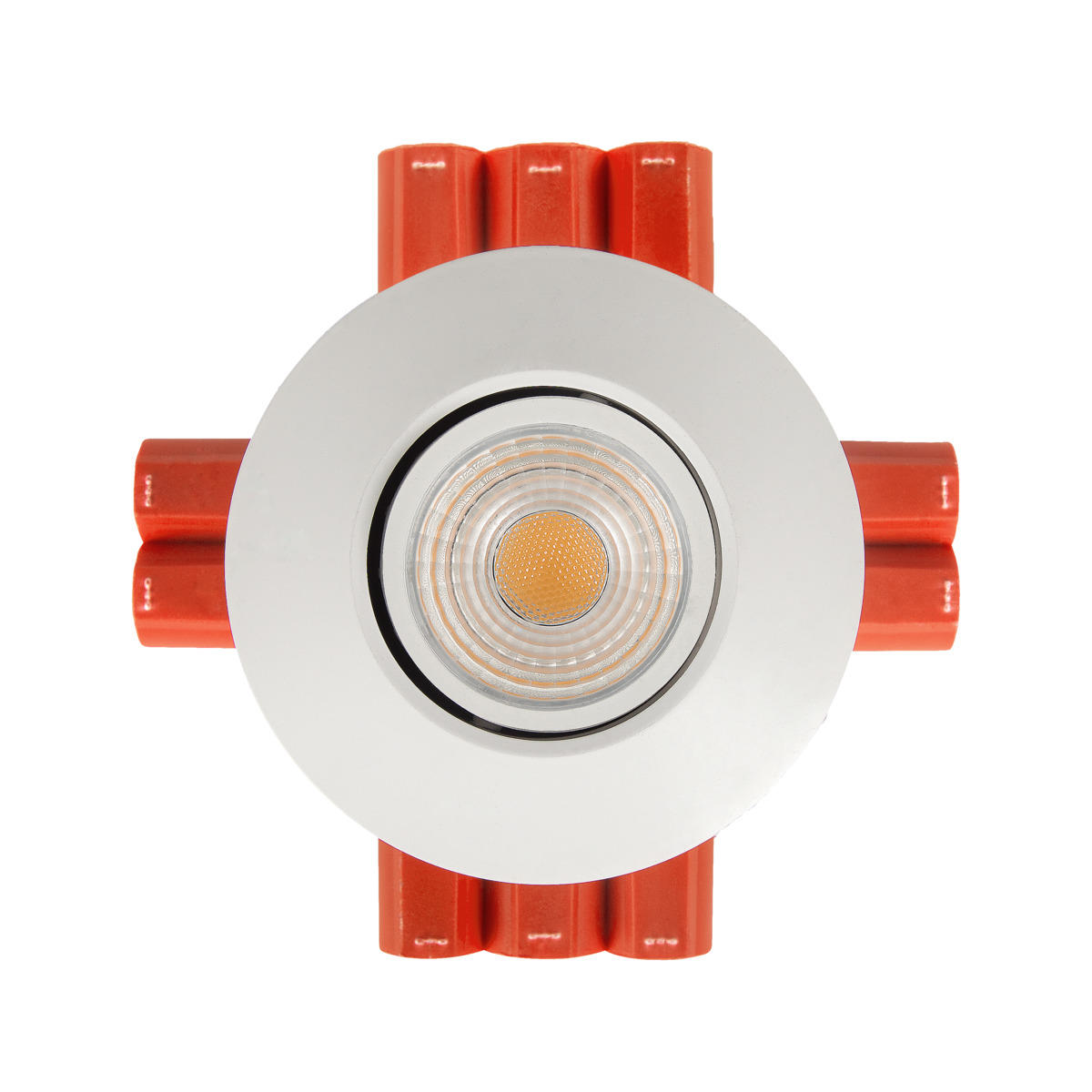

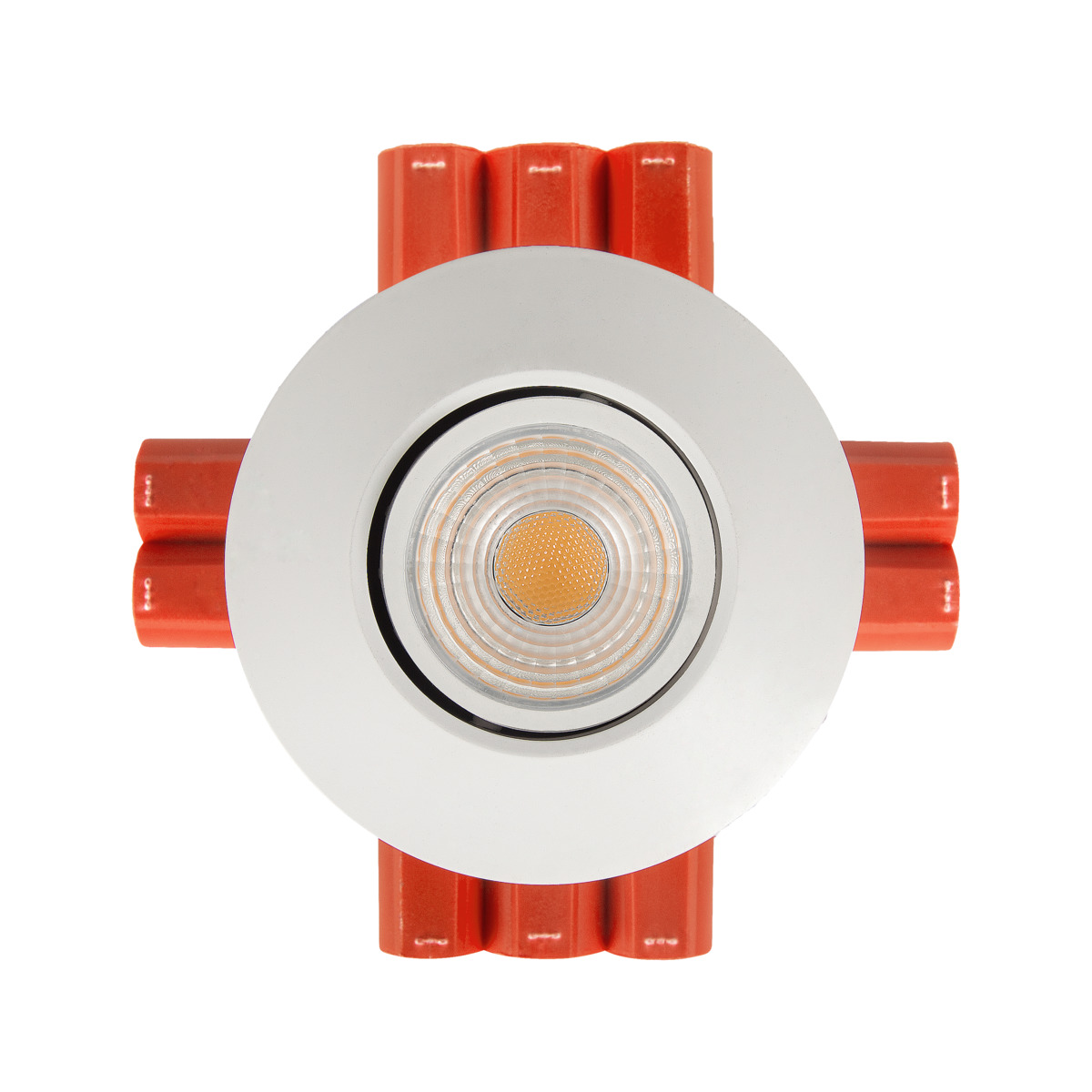

Smart, easily installed and tiltable downlight for 230V with Comfort Lens. Mains dimmable driver and push-in, loop-in, loop-out terminal block integrated into the housing. Adapted for ceiling and junction boxes with keyhole mounting or direct in insulation together with the ISO cover included. Minimum box depth 43mm. Complete, energy-efficient fixture that requires very little space, also suitable for embedment with box in concrete ceiling. Useable in all rooms thanks to its IP44 rating.
Exists in one color

Variants

GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
Comfort Smart ISO Tilt White 3000K 7392971132488 Comfort Smart ISO Tilt White 3000K 3000 450
Comfort Smart ISO Tilt White 2700K 7392971132471 Comfort Smart ISO Tilt White 2700K 2700 420
Comfort Smart ISO Tilt White Tune 7392971132495 Comfort Smart ISO Tilt White Tune 2700 350

Comfort Smart ISO Tilt White 3000K A+

Description
GTIN 7392971132488
Item Name Comfort Smart ISO Tilt White 3000K
Warranty 5 years
Type .
Light Technical Data
Light Source LED
Light Source Included (type) LED not exchangeable
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 940
Luminaire Lumen (lm) 450
Beam Angle (°) 36
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time (L70 B50) 100 000h Ta 45°C
Nominel Life Time (h) 100 000
Life Time Driver 50 000h/10%
Technical data
Adjustable Yes
Tiltable (°) 15
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 4,8
Power Luminaire (W) 6
System Power (W) 6
Efficiency LED (lm/W) 98
Efficiency Luminaire (lm/W) 75
Efficiency System (lm/W) 75
Energy Efficiency Class A+
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 4x0,5-1,5
Through Wiring Yes
Strain Relief Yes
Protection Against Short Circuit, Overload
Operating Temperature -20…+40
Max. Tc (°C) 80
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Memory Function Power Failure No
Fuse B10 (pcs) 68
Fuse B16 (pcs) 110
Fuse C10 (pcs) 114
Fuse C16 (pcs) 184
Color and material
Material Aluminium
Material Housing/Enclosure Plastic
Material Cover Ring Aluminium
Color White
Color Code (RAL) 9016
Halogen free Yes
Measurement and installation
Operation Environment Indoor
IP Degree of Protection 21
Installation Built-in

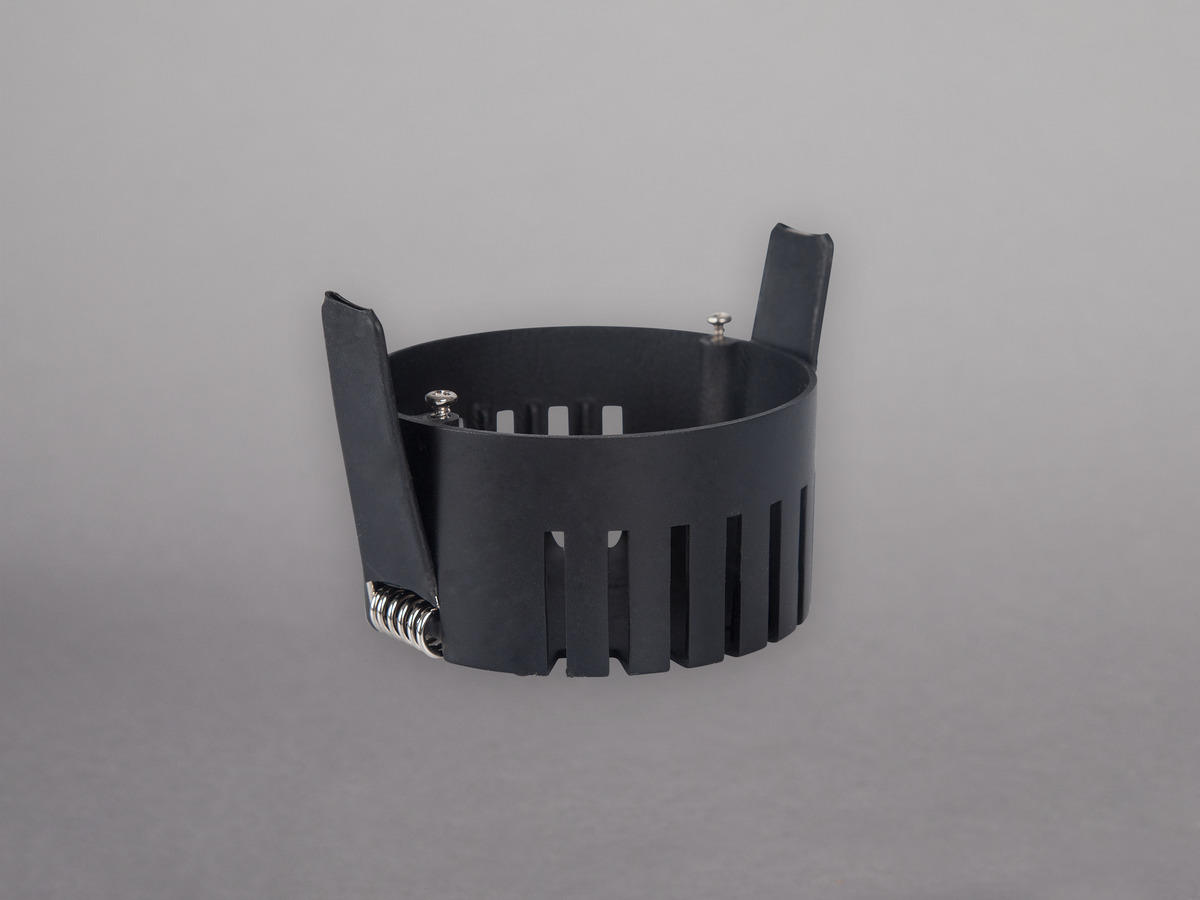

Mounting Installation Mounting Spring, Screw Mounting
Ceiling Thickness Interval (mm) 3-30

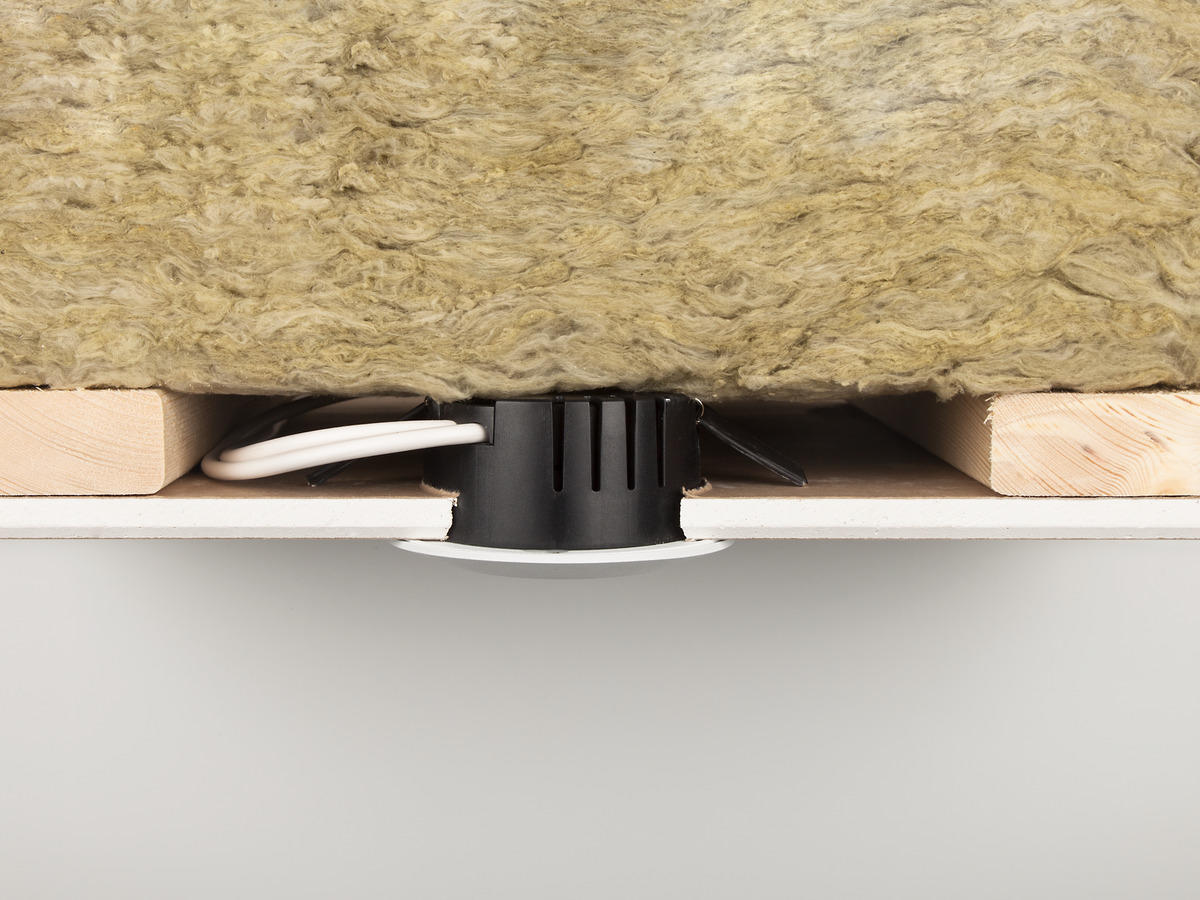

Fire Safety Marks Approved for installation in insulation
Approval Marks CE, SELV
Protection Class II

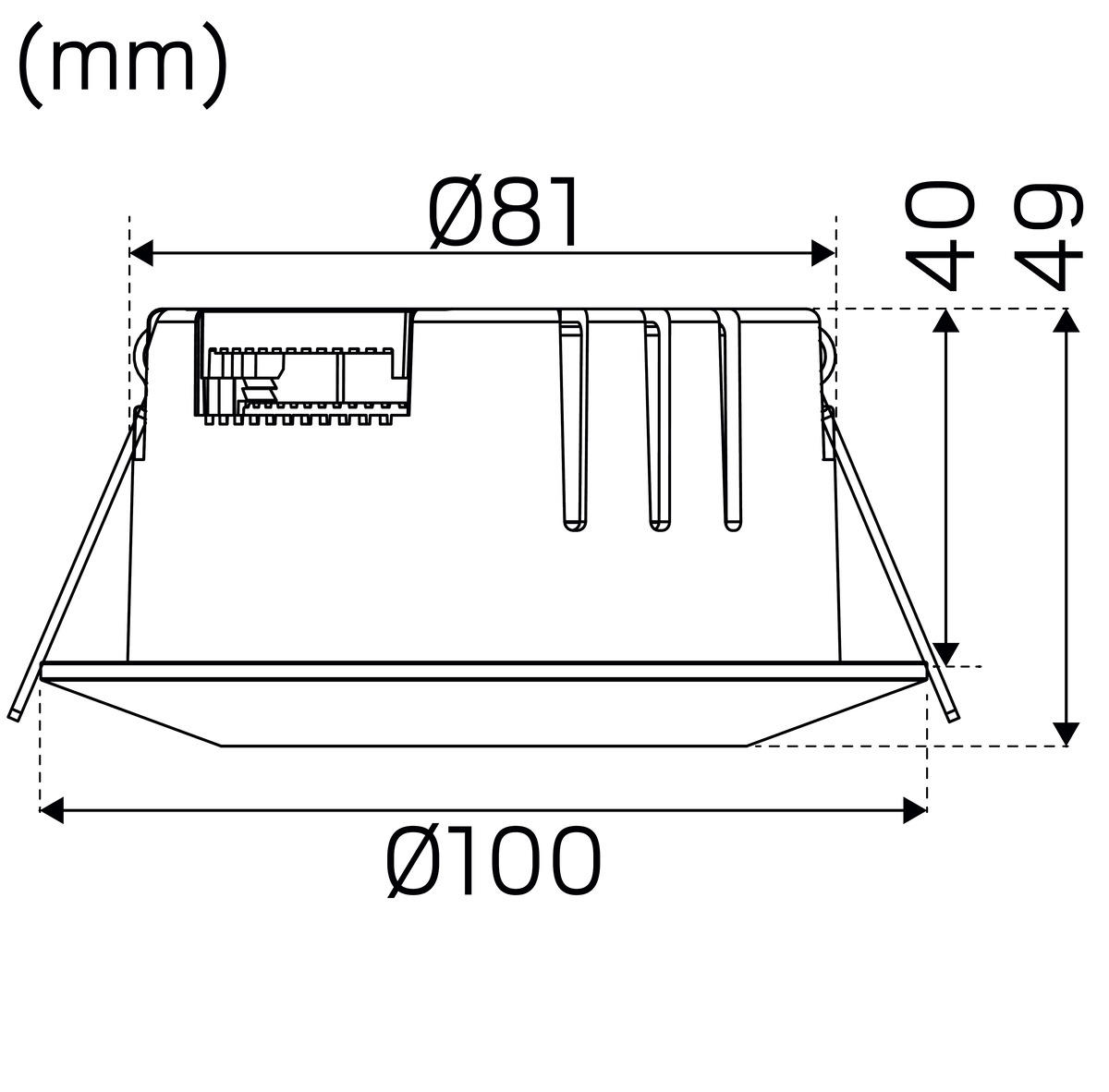

Height (mm) 49
Diameter (mm) 100
Weight (kg) 0,236
Min. Built-in (mm) Ø68x43
Height Recessed Part (mm) 40
Height Exterior Part (mm) 9
Min. Built-in (Ø mm) 83
Max. Built-in (Ø mm) 83
