Comfort Twist Quick ISO 6 pack

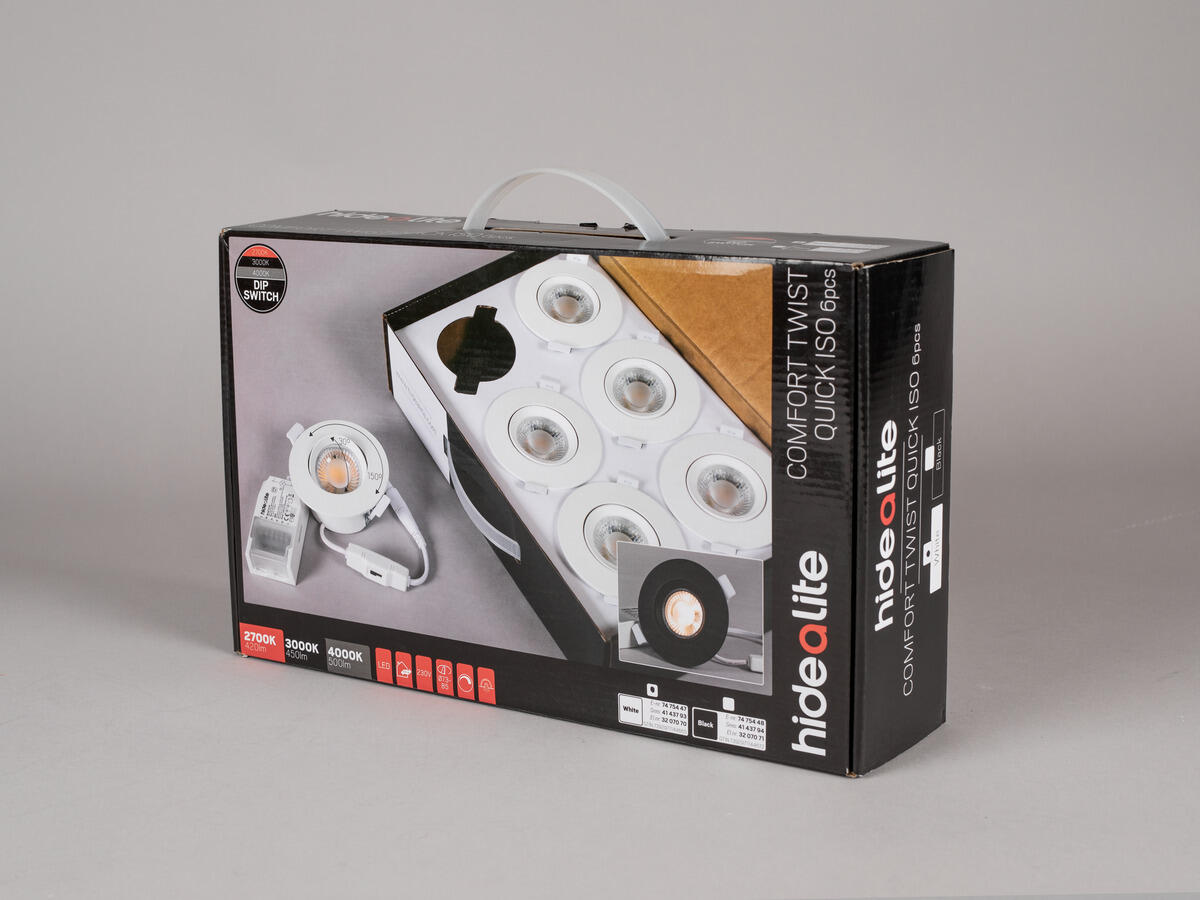

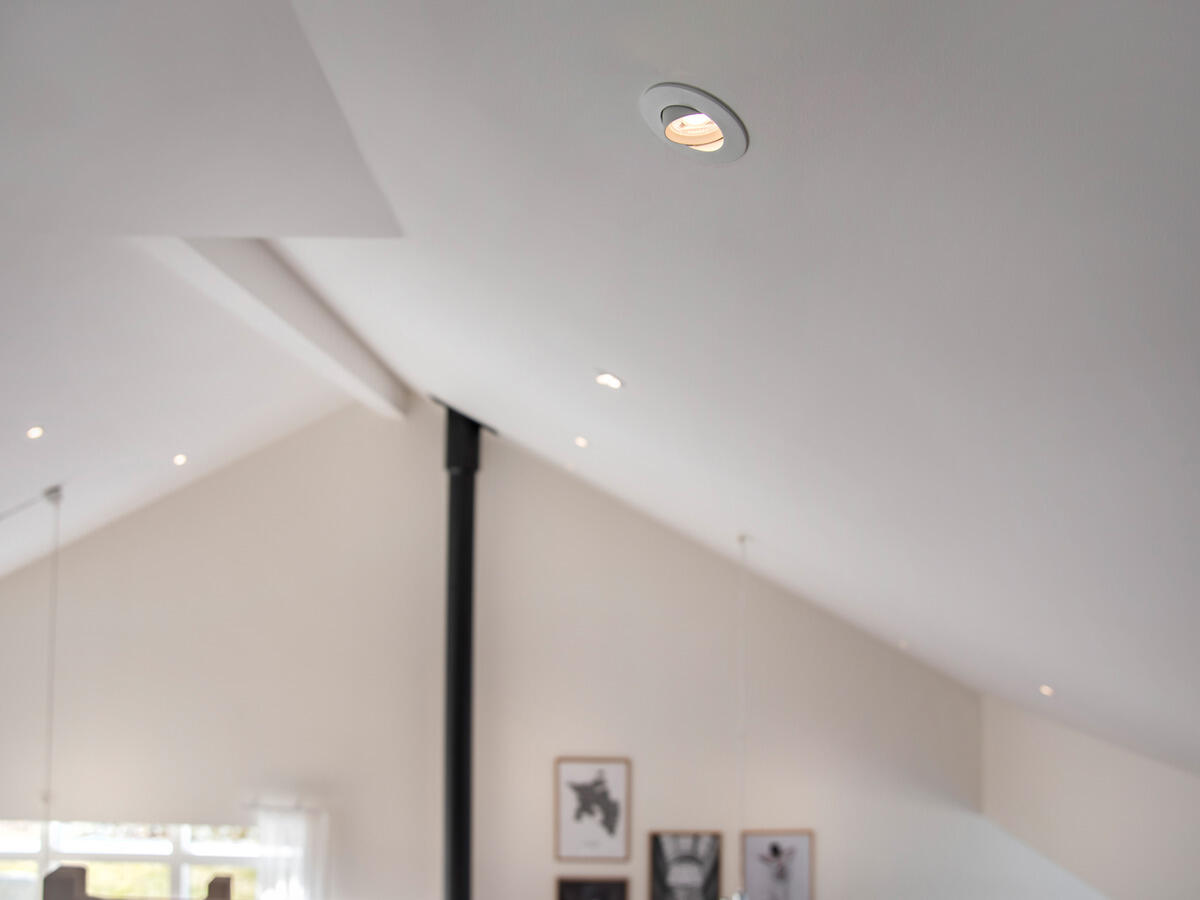

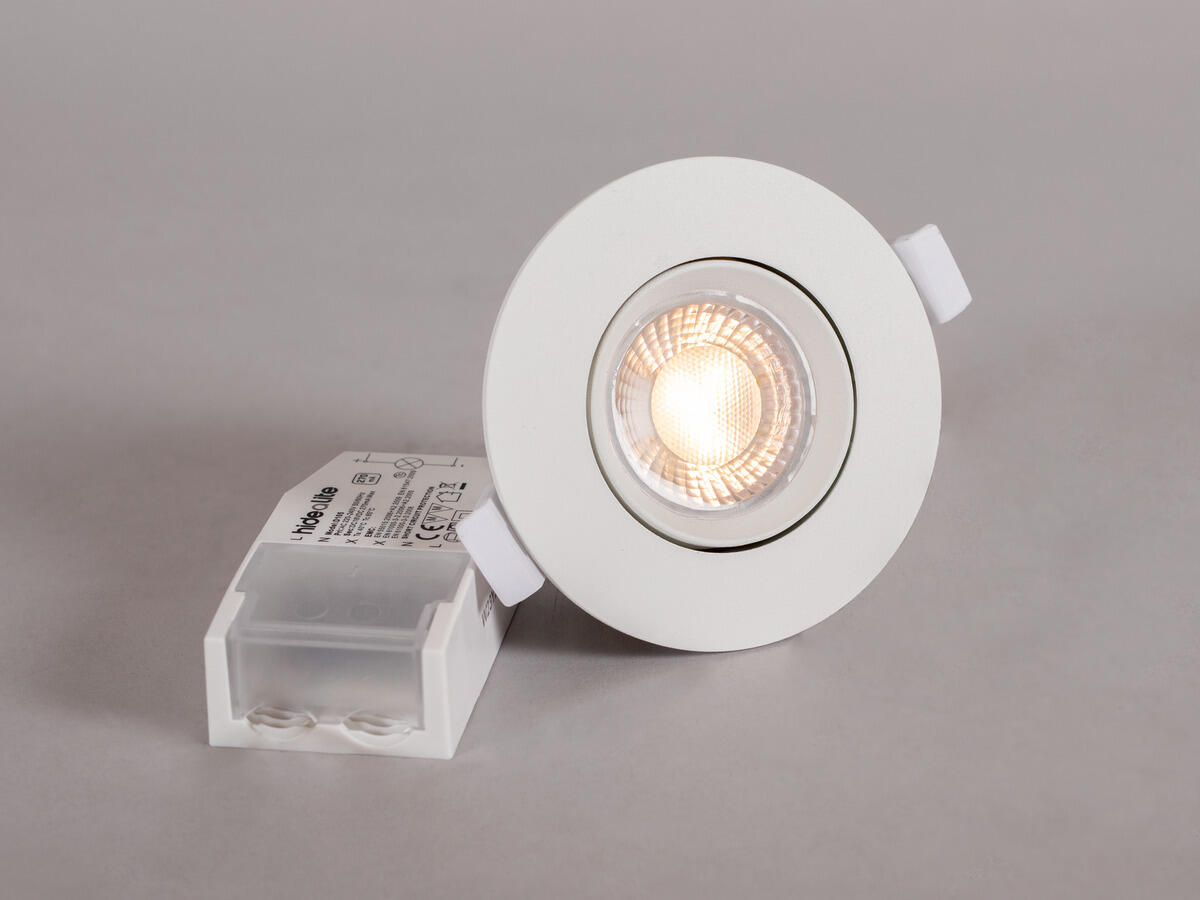

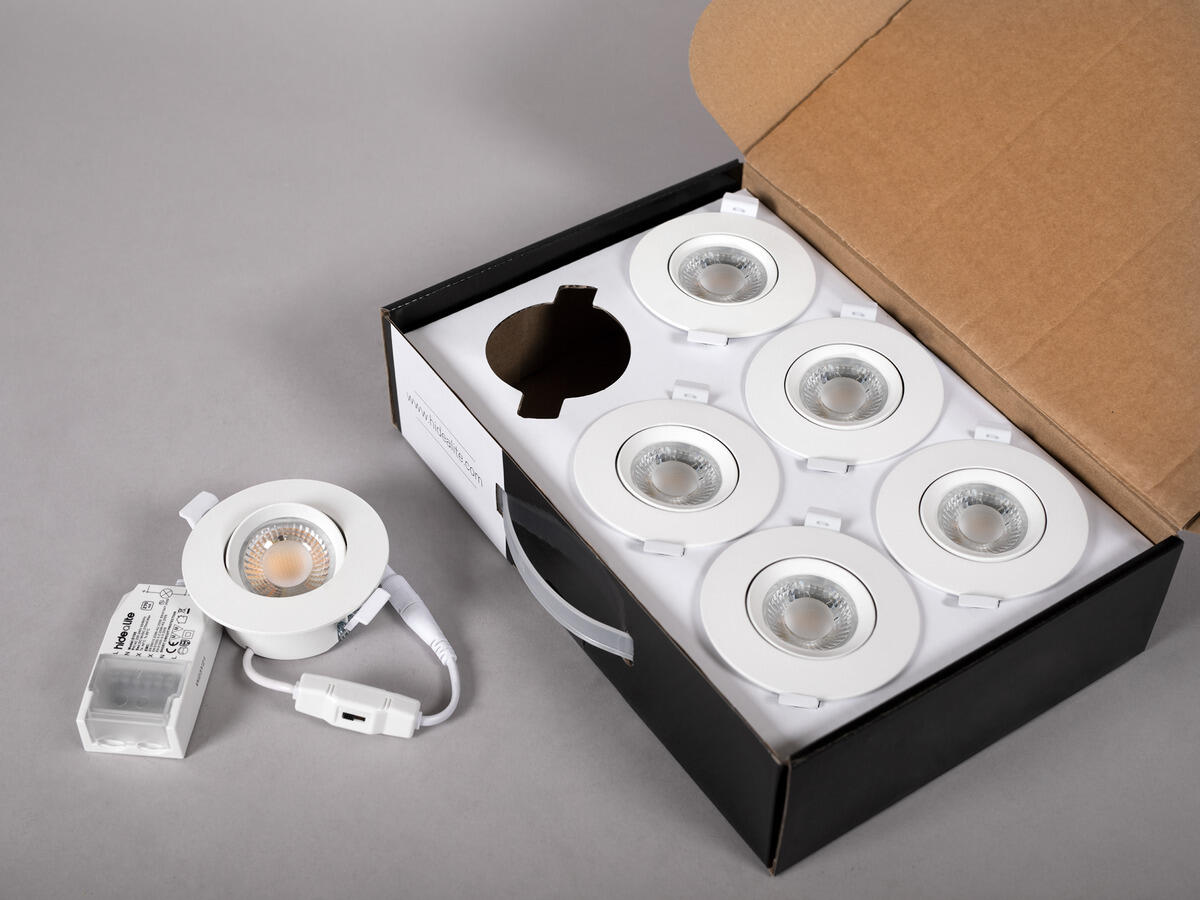

Versatile 6-pack for easier transport and fewer packages. Dimmable multifunctional all-round downlight for 230V with Comfort Lens. Twist function makes it possible to twist the luminaire 2x150° and tilt 30° – perfect if you want to direct the light or fit in a sloping ceiling for example. Selectable colour temperature via DIP-Switch ColourTemp directly in the luminaire. IP44 luminaire for use indoors and outdoors. Can be installed directly against insulation in 28mm secondary spaced boarding with 13mm plaster. Complete with dimmable driver, 3-pole push-in terminal for through wiring and strain relief for cable or flex hose 16 mm. Dimmable with most common dimmers on the market.
Exists in several colors
  • Vit
  • Svart

Variants

GTIN Item Name Color
Comfort Twist Quick ISO 6-pack Black 7392971144672 Comfort Twist Quick ISO 6-pack Black Black
Comfort Twist Quick ISO 6 pack White 7392971144665 Comfort Twist Quick ISO 6 pack White White

Comfort Twist Quick ISO 6-pack Black

Description
GTIN 7392971144672
Item Name Comfort Twist Quick ISO 6-pack Black
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Replaceable Control gear by professional
LED Colour Warm White
Colour Temperature (K) 2700, 3000, 4000
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 750
Luminaire Lumen (lm) 470
Beam Angle (°) 36
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L90
Lumen maintenance 75 000h L86
Lumen maintenance 100 000h L81
LLMF @ 50 000h 0,9
LLMF @ 100 000h 0,81
Life Time Driver 50 000h/10%
Technical data
Tiltable (°) 30
Rotatable (°) 300
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power LED (W) 4,8
Power Luminaire (W) 6,5
System Power (W) 6,5
Efficiency Luminaire (lm/W) 72
Efficiency System (lm/W) 72
Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone
Driver Manufacturer Hide-a-lite
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-1,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,9
Efficiency (%) 76
Power loss (W) 1,5
Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5
THD (%) 34
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge
Dimming secondary side AM
Protection Against Short Circuit, Overheating 130°C, Overload
Inrush current (max/time) 2A 100µs
Mains surge protection DM (kV) 500
Fuse B10 (pcs) 75
Fuse B16 (pcs) 100
Fuse C10 (pcs) 100
Fuse C16 (pcs) 125
Color and material
Material Aluminium
Color Black
Measurement and installation
Operating Environment Indoor / dry locations, Outdoor
IP Degree of Protection 44
Protection Class II
Installation Ceiling, Built-in
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 3-26
Fire Safety Marks Approved for installation against insulation
Protection Cover 7466700, 7466701, 7466702
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650
Height (mm) 40
Diameter (mm) 95
Weight (kg) 0,245
Min. Built-in (mm) 170x120x38
Height Recessed Part (mm) 36
Height Exterior Part (mm) 4
Built-in Ø (mm) 73-85
