Core Smart 45° 10 pack

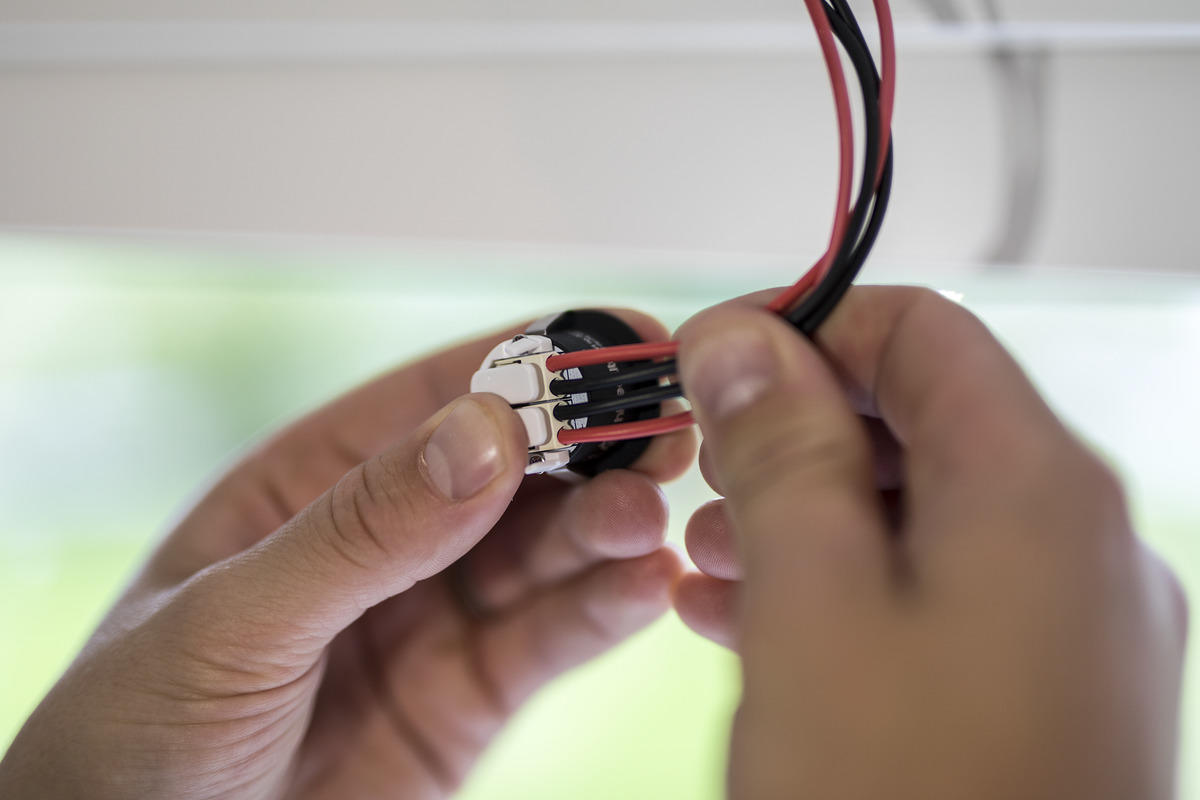

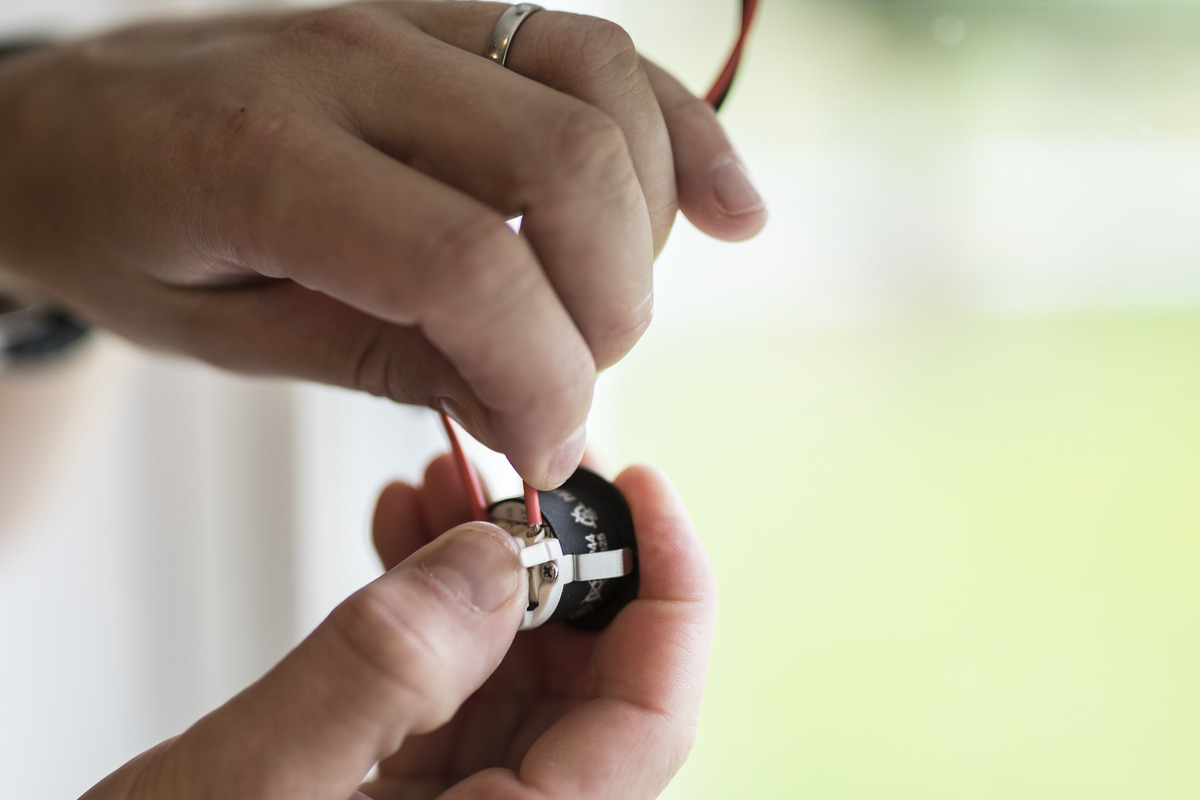

Integrated push-in terminal for easy and smart series connection

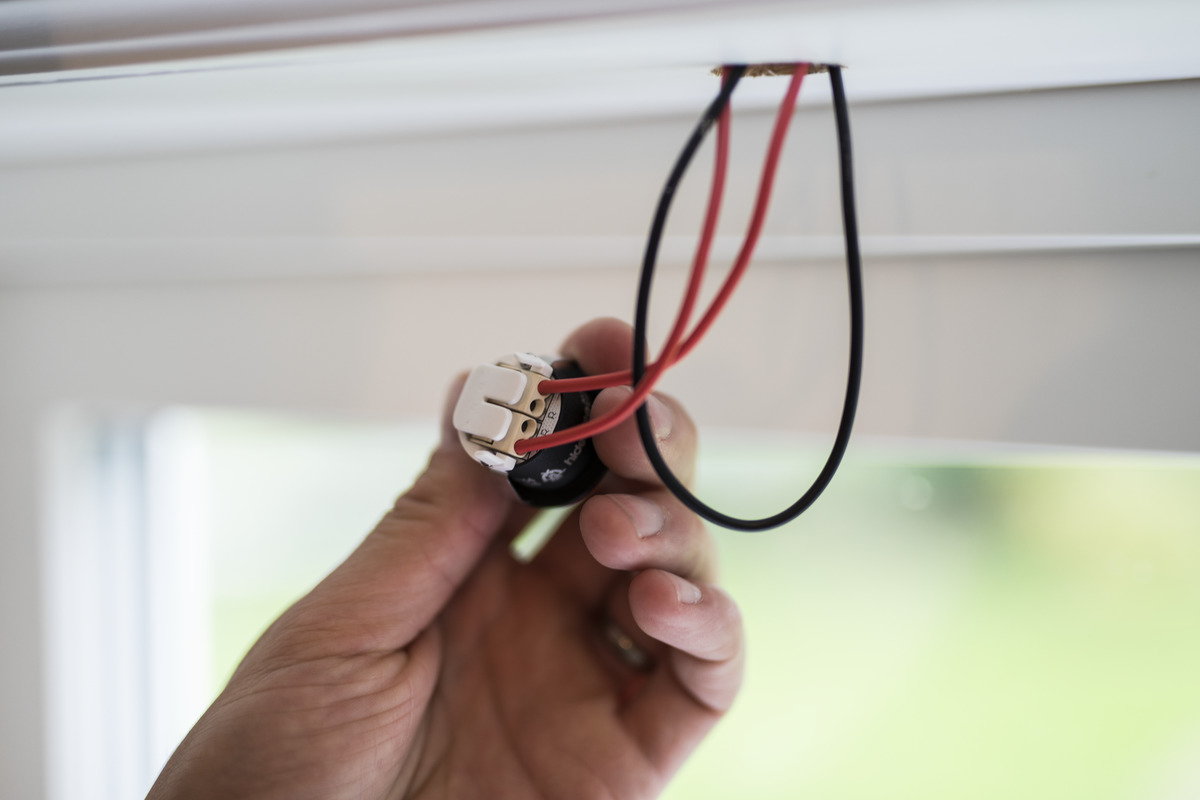

Use pre-wired cabling, avoid external joints and couple directly to the luminaire

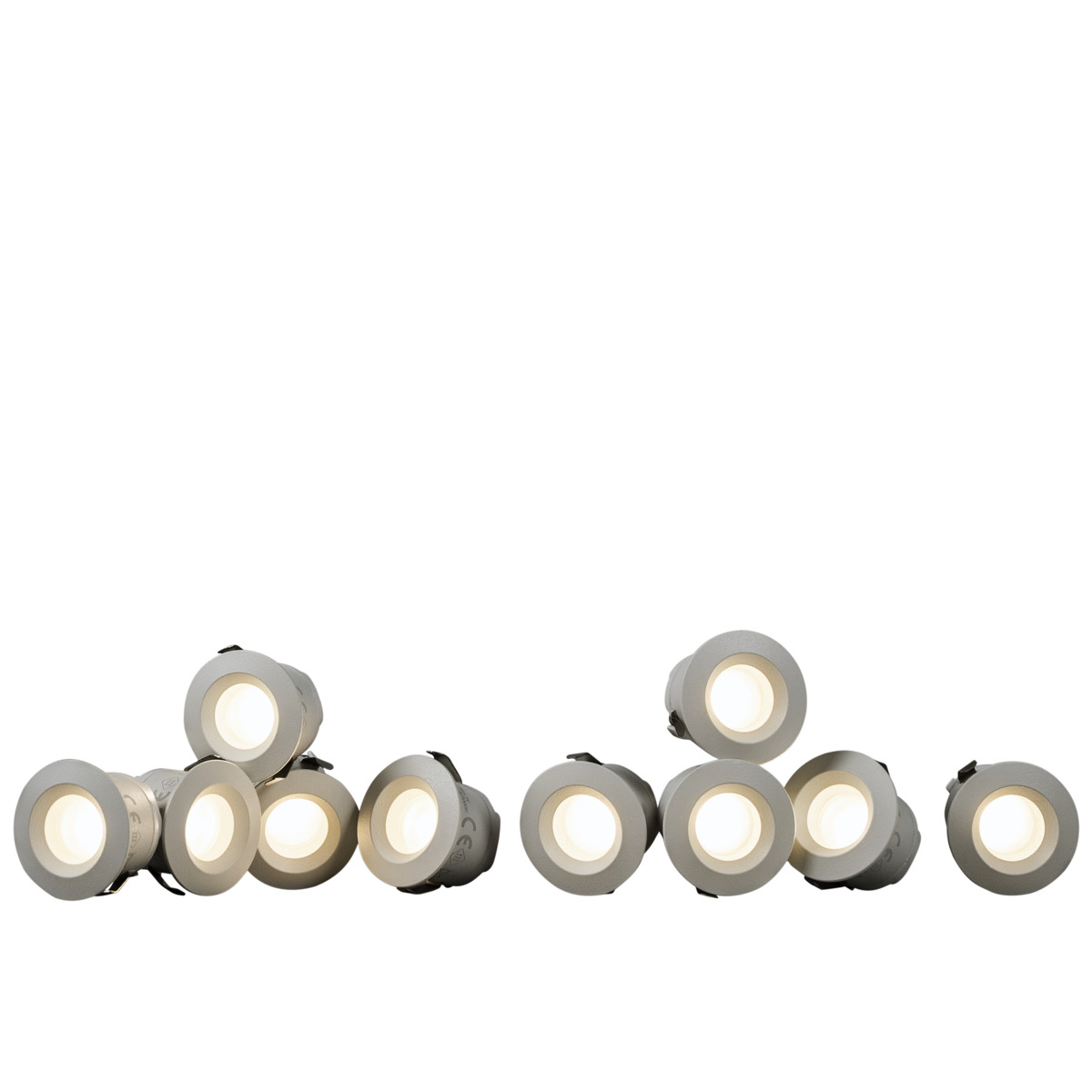

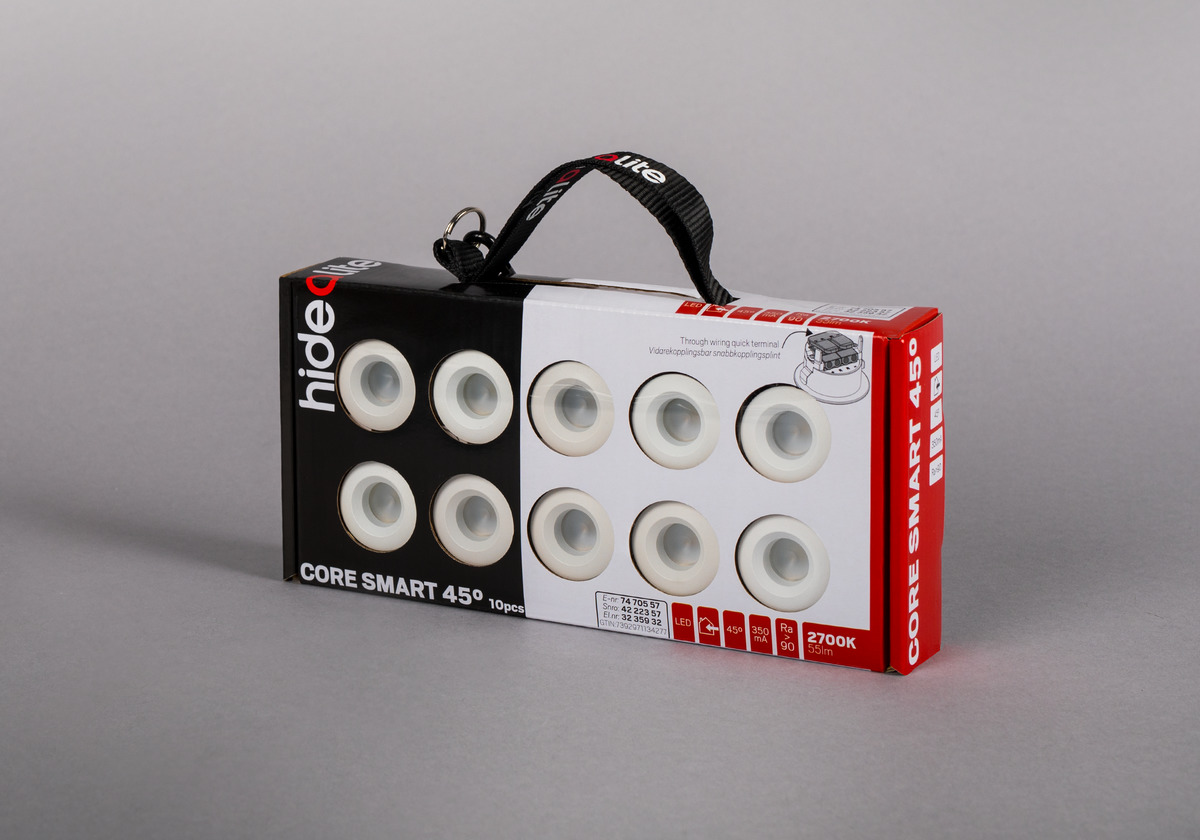

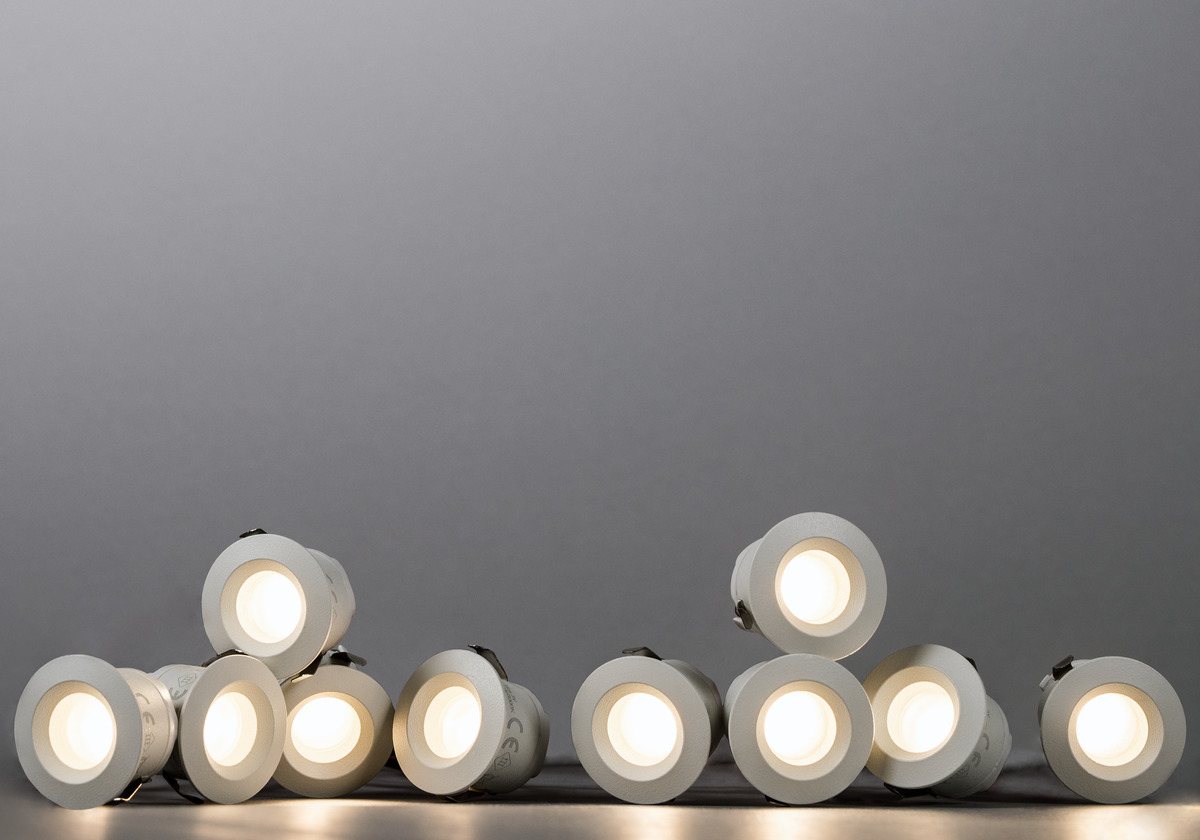

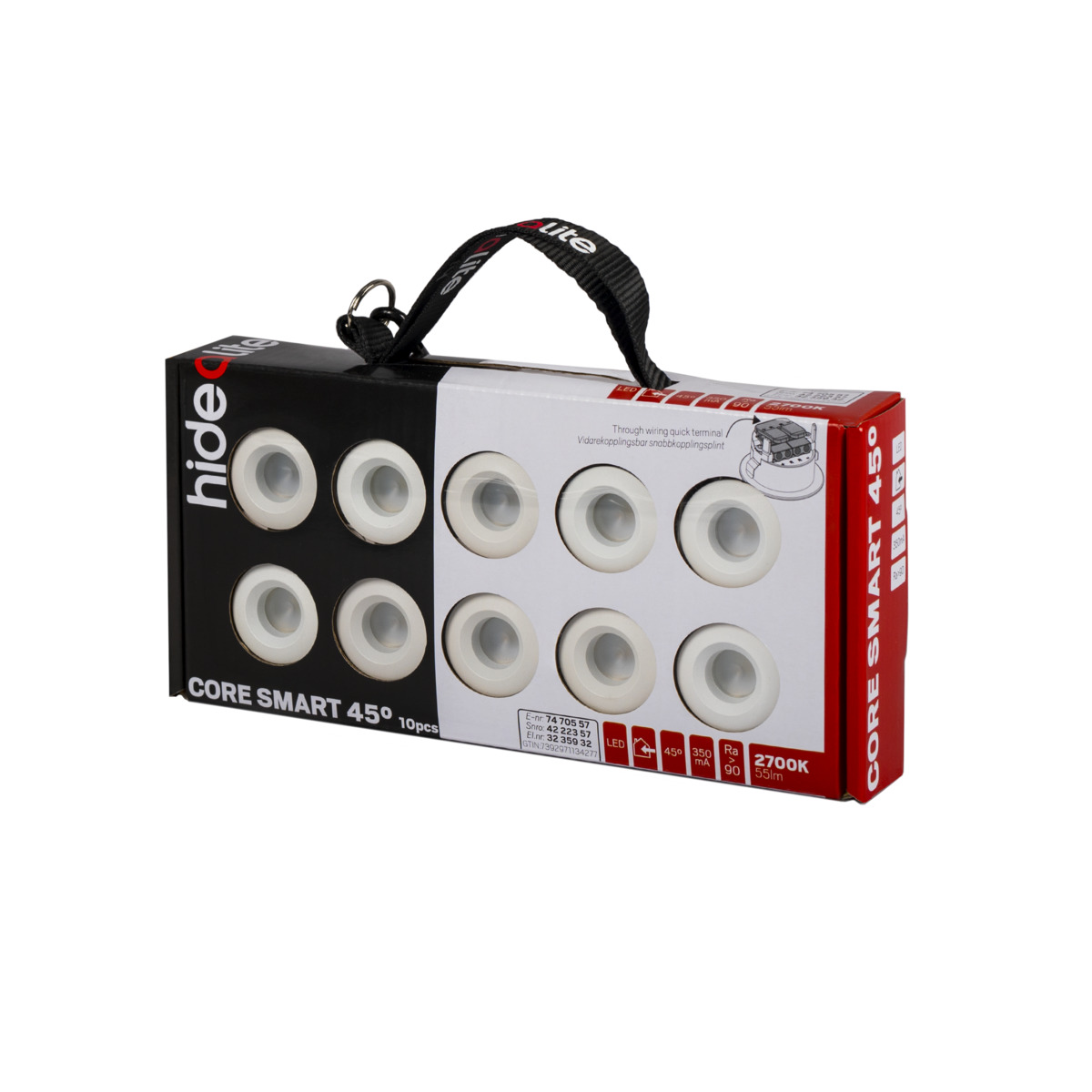

Pack includes 10pcs luminaires

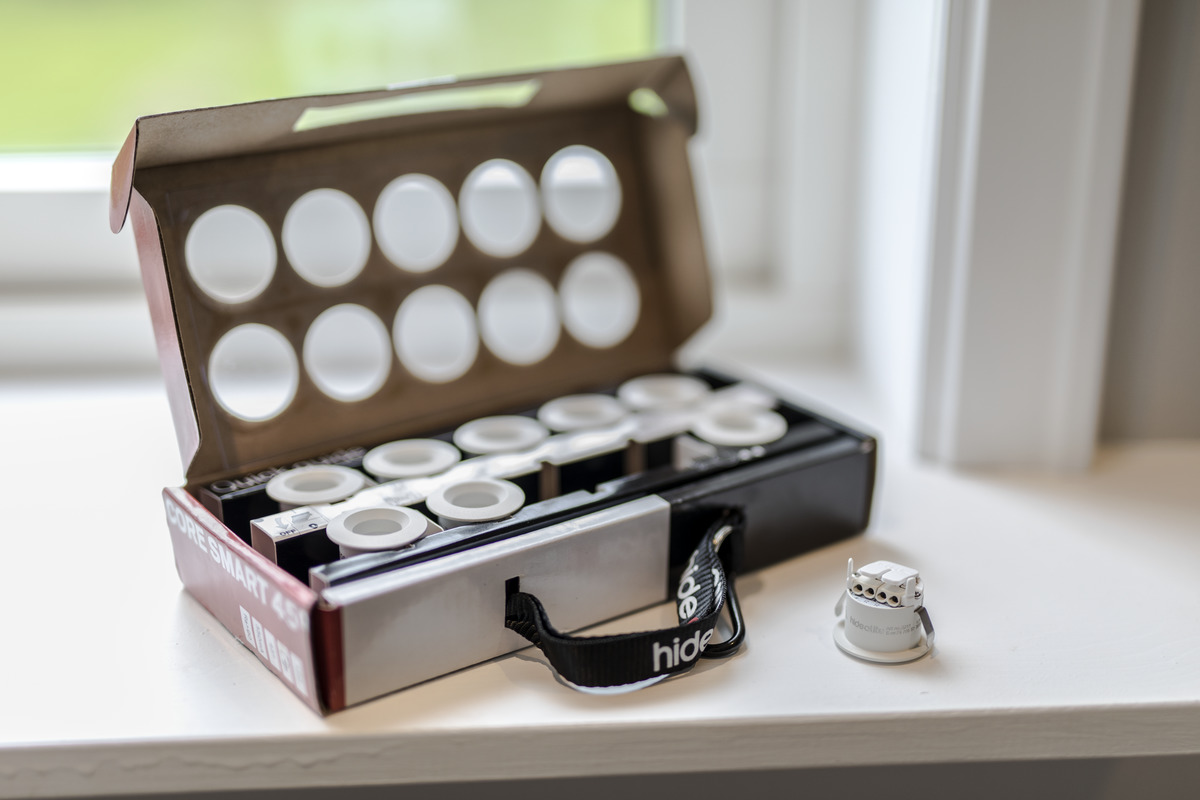

Core doesn’t like being alone. Our exclusive accent luminaire in 10-pack with snap hook for hanging on work trousers or ladder. Integrated push-in terminal for simplified and smart series connection, eliminates the hassle of external joints and minimises sources of faults and simplifies troubleshooting. For recessing into window nooks and furniture, or for surface mounting with the Core Smart Spacer Ring accessory. Save time and packaging.

Variants	GTIN	Item Name	Colour Temperature (K)
	7392971134277	Core Smart 45° 10 pack White 2700K	2700
	7392971134284	Core Smart 45° 10 pack White 3000K	3000

Description: GTIN 7392971134277

Item Name Core Smart 45° 10 pack White 2700K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 60

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 10x90

Beam Angle (°) 45

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 10

Number of LED (pcs) 10

Life Time L70 90 000h Ta 25°C

Nominel Life Time (h) 90000
Technical data: Adjustable No

Voltage Forward (Vf) 3

Power Luminaire (W) 1,2

System Power (W) 1,3

Efficiency Luminaire (lm/W) 50

Efficiency System (lm/W) 46

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Current

Connection (type) Quick Terminal

Connection (mm2) 2x0,2-0,75

Through Wiring Yes

Constant Current (mA) 350

Operating Temperature -20…+45

Max. Tc (°C) 80
Color and material: Material Aluminium

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1)

IP Degree of Protection 44

Protection Class III

Installation Built-in

Mounting Installation Tension Spring

Ceiling Thickness Interval (mm) 3

Height Surface Mounted (mm) 30

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

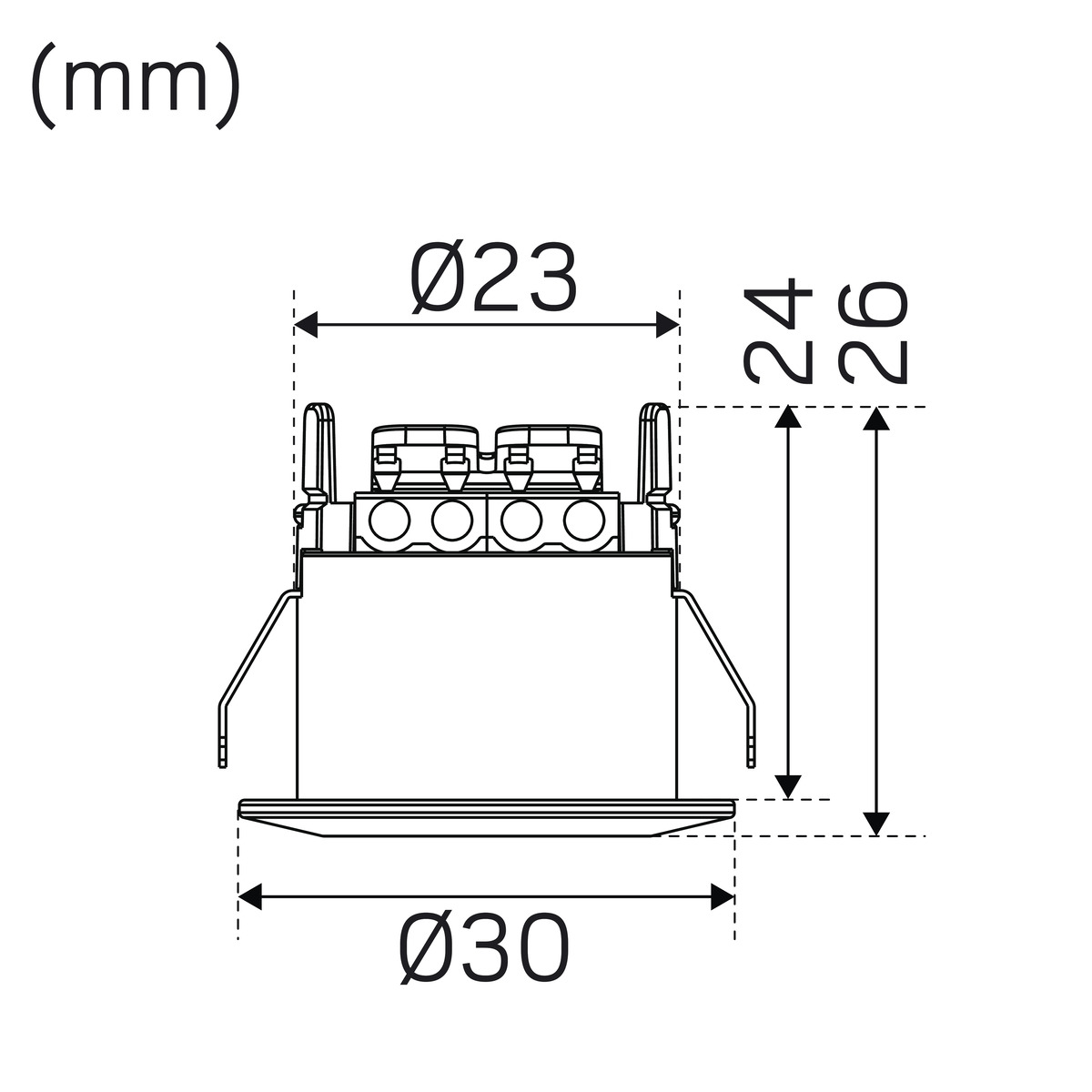

Height (mm) 26

Diameter (mm) 30

Weight (kg) 0,15

Min. Built-in (mm) Ø25x20

Height Recessed Part (mm) 24

Height Exterior Part (mm) 3

Built-in Ø (mm) 25
