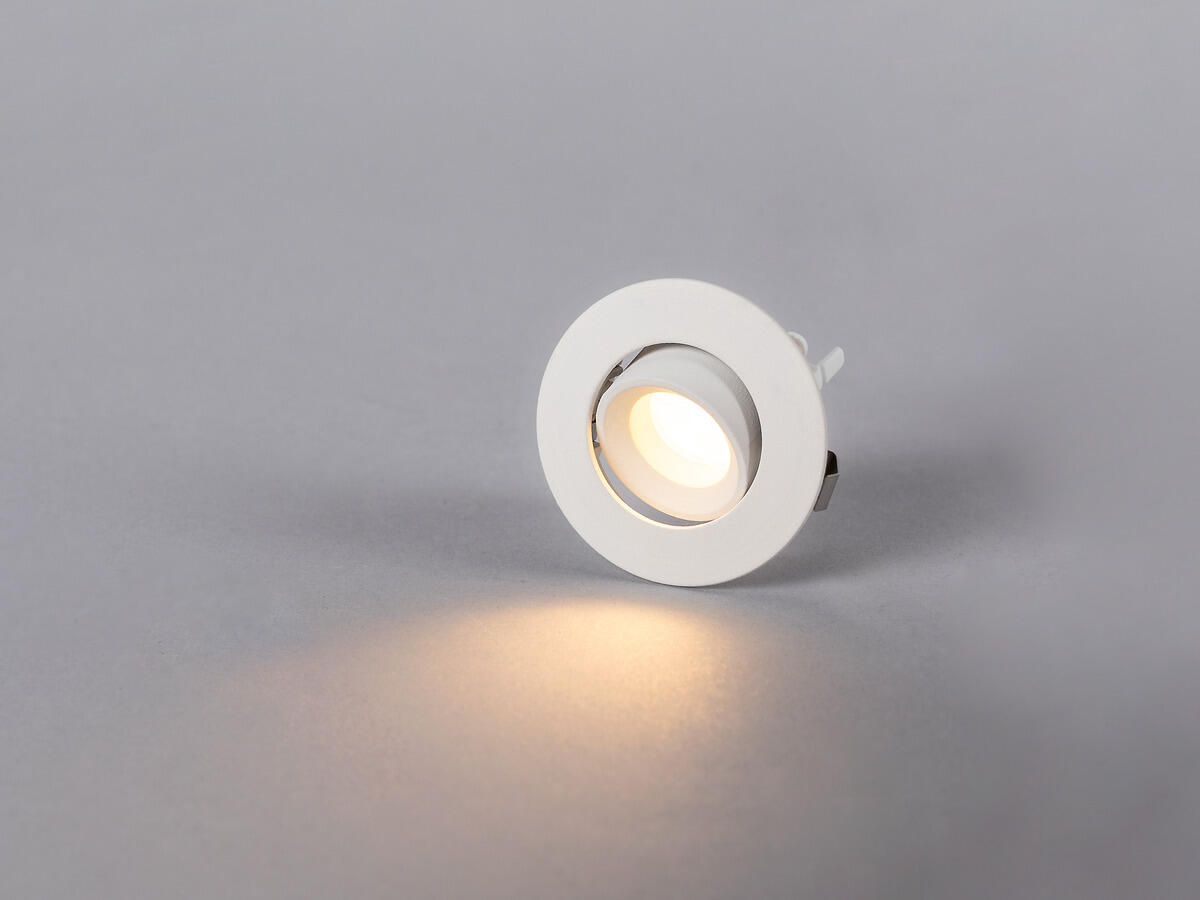

Core Smart Tilt 45°

Small, exclusive accent luminaire of the highest quality for indoor use – tiltable 30°. Beautiful decor lighting for installation in niches and ceilings where the light needs to be directed. Recessed light point makes the luminaire glare free. Integrated push-in terminal for simplified and smart series connection, eliminates the hassle of external joints and minimises sources of faults and simplifies troubleshooting.
Exists in one color


GTIN Item Name Colour Temperature (K)
Core Smart Tilt 45° White 2700K 7392971139869 Core Smart Tilt 45° White 2700K 2700
Core Smart Tilt 45° White 3000K 7392971139876 Core Smart Tilt 45° White 3000K 3000

Core Smart Tilt 45° White 2700K

GTIN 7392971139869
Item Name Core Smart Tilt 45° White 2700K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED
LED Colour Warm White
Colour Temperature (K) 2700
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Initial Chromaticity x:0,455, y:0,414
Luminous Intensity (cd) 90
Luminaire Lumen (lm) 60
Beam Angle (°) 45
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L94
Lumen maintenance 75 000h L91
Lumen maintenance 100 000h L88
LLMF @ 50 000h 0,94
LLMF @ 100 000h 0,88
Technical data
Adjustable Yes
Tiltable (°) 30
Voltage Forward (Vf) 3
Power Luminaire (W) 1,2
System Power (W) 1,3
Efficiency Luminaire (lm/W) 50
Efficiency System (lm/W) 46
Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection
Driver Included No
Driver Model Constant Current

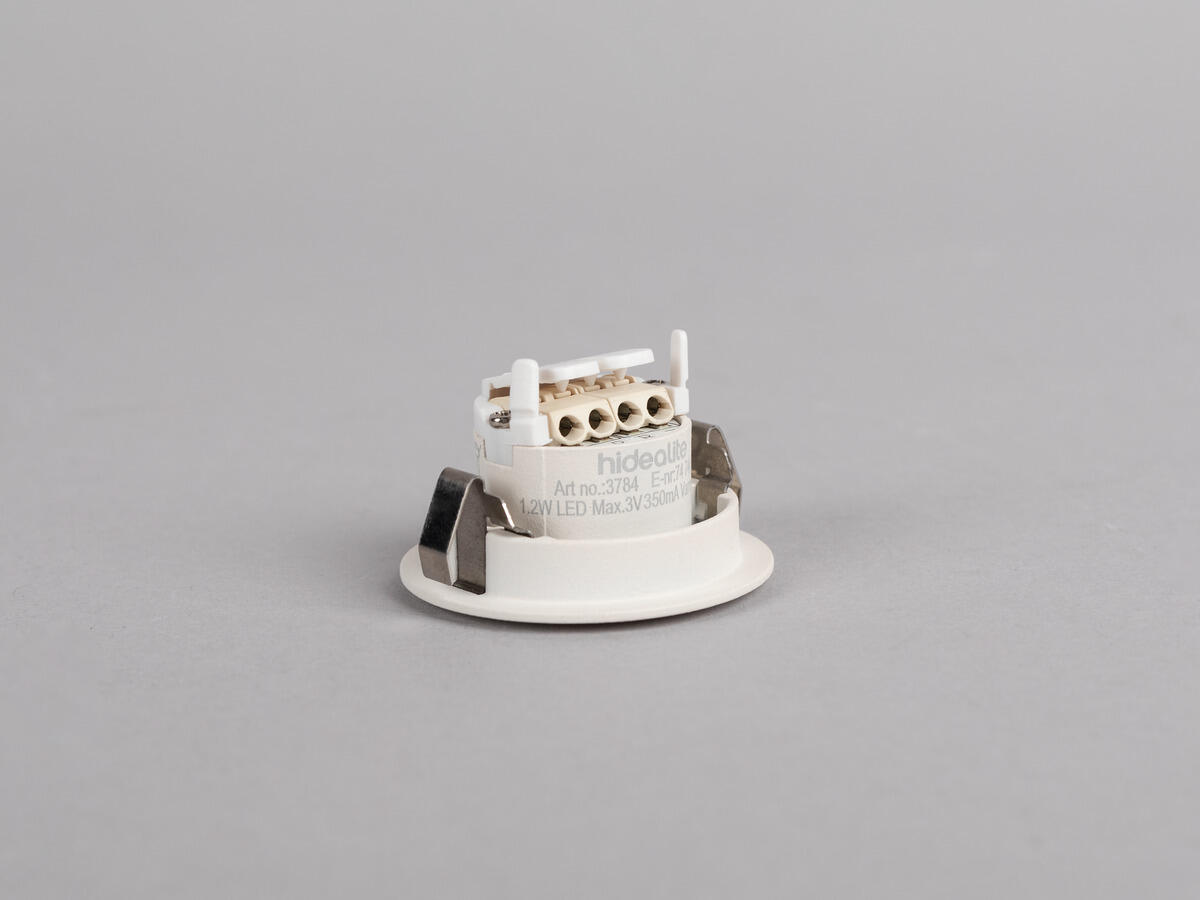

Connection (type) Quick Terminal
Connection (mm2) 2x0,2-0,75
Through Wiring Yes
Constant Current (mA) 350
Operating Temperature -20…+45
Max. Tc (°C) 80
Dimmable Yes
Color and material
Material Aluminium
Color White
Environmental Assessment Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 44
Protection Class III
Installation Built-in
Mounting Installation Tension Spring
Ceiling Thickness Interval (mm) 3
Fire Safety Marks Not in insulation without protection cover
Protection Cover 7466700, 7466701, 7466702
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650
Height (mm) 26
Diameter (mm) 40
Weight (kg) 0,02
Min. Built-in (mm) Ø35x25
Height Recessed Part (mm) 24
Height Exterior Part (mm) 3
Built-in Ø (mm) 35
