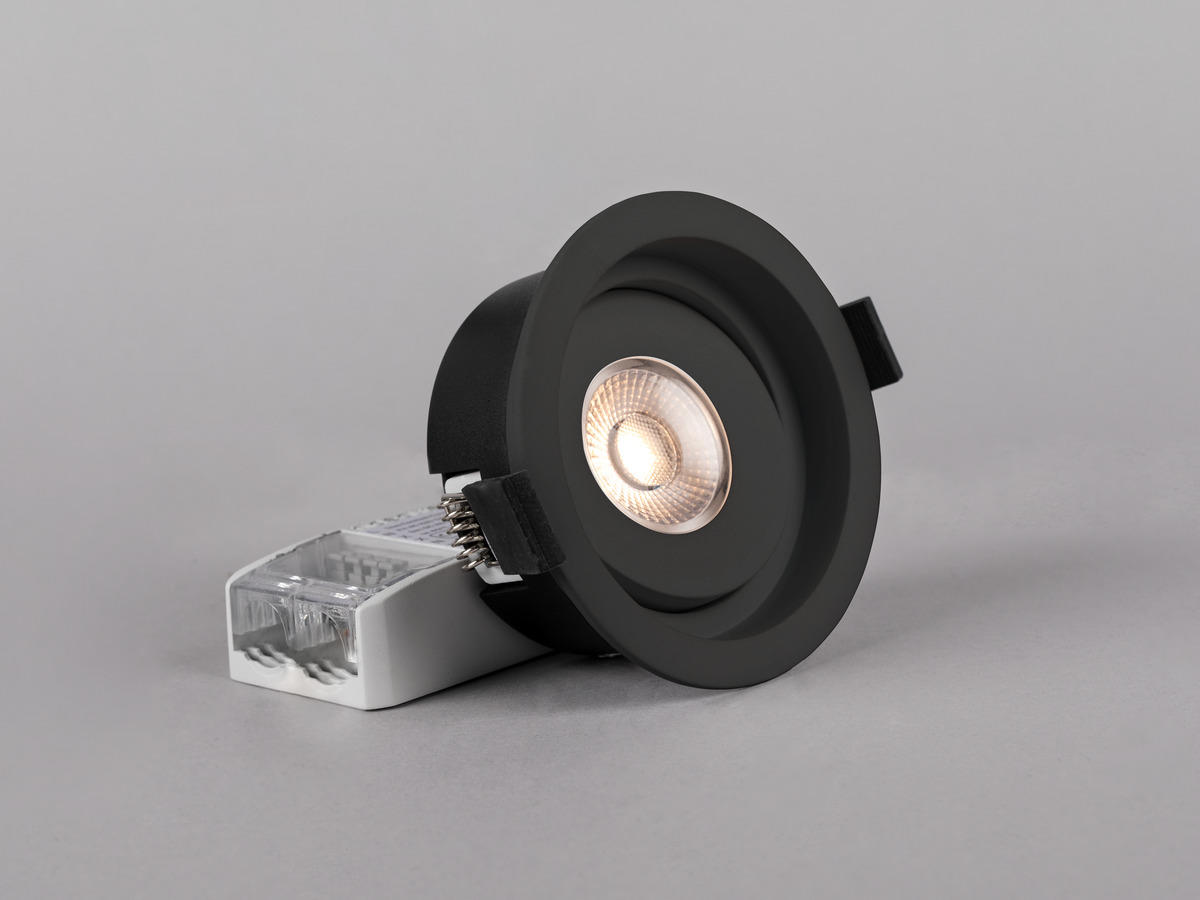

Level Quick ISO

Effective and low-build for installation in 28mm secondary spaced boarding with 13mm plasterboard, approved for installation directly against insulation. An easily installed tiltable luminaire with a modern expression. Lens technology and recessed light source giving a discrete and glare free light with very good colour rendering, Ra>95. IP44 rated for installation both indoors and outdoors. Mains dimmable driver, 3-pole push-in terminal for through wiring and screwless strain relief for cable or flex hose 16 mm. Dimmable with most common dimmers on the market.
Exists in several colors
  • Vit
  • Svart

Variants

GTIN Item Name Color Colour Temperature (K) Luminaire Lumen (lm)
Optic Quick ISO Black Tune 7392971140001 Optic Quick ISO Black Tune Black 2700 330
Level Quick ISO White Tune 7392971139968 Level Quick ISO White Tune White 2700 350
Level Quick ISO White 2700K 7392971139975 Level Quick ISO White 2700K White 2700 510
Level Quick ISO White 3000K 7392971139982 Level Quick ISO White 3000K White 3000 550
Level Quick ISO White 4000K 7392971139999 Level Quick ISO White 4000K White 4000 560
Optic Quick ISO Black 2700K 7392971140018 Optic Quick ISO Black 2700K Black 2700 480
Optic Quick ISO Black 3000K 7392971140025 Optic Quick ISO Black 3000K Black 3000 520
Optic Quick ISO Black 4000K 7392971140032 Optic Quick ISO Black 4000K Black 4000 530

Optic Quick ISO Black Tune

Description
GTIN 7392971140001
Item Name Optic Quick ISO Black Tune
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour Tune
Colour Temperature (K) 2700
Range Colour Temperature (K) Tune 2000-2700
Colour Rendering Index (Ra) >95
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 460
Luminaire Lumen (lm) 330
Beam Angle (°) 36
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L91
Lumen maintenance 75 000h L87
Lumen maintenance 100 000h L83
LLMF @ 50 000h 0,91
LLMF @ 100 000h 0,83
Life Time Driver 50 000h/5%
Technical data
Tiltable (°) 20
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 4,4
Power Luminaire (W) 5,5
System Power (W) 5,5
Efficiency Luminaire (lm/W) 60
Efficiency System (lm/W) 60
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone
Driver Manufacturer Hide-a-lite
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,9
Efficiency (%) 81
Power loss (W) 1,1
Operating Temperature -20…+40
Max. Tc (°C) 90
Dimmable Yes
Type of Dimming Trailing Edge
Dimming secondary side AM
Fuse B10 (pcs) 100
Fuse B16 (pcs) 160
Fuse C10 (pcs) 100
Fuse C16 (pcs) 160
Color and material
Material Aluminium
Color Black
Measurement and installation
Operating Environment Indoor / bathroom (ceiling area 1), Outdoor
IP Degree of Protection 44
Protection Class II
Installation Ceiling
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 3-26
Fire Safety Marks Approved for installation against insulation
Protection Cover 7466700, 7466701, 7466702
Approval Marks CE, SELV
Filament Test IEC 695-2-1(°C) 650

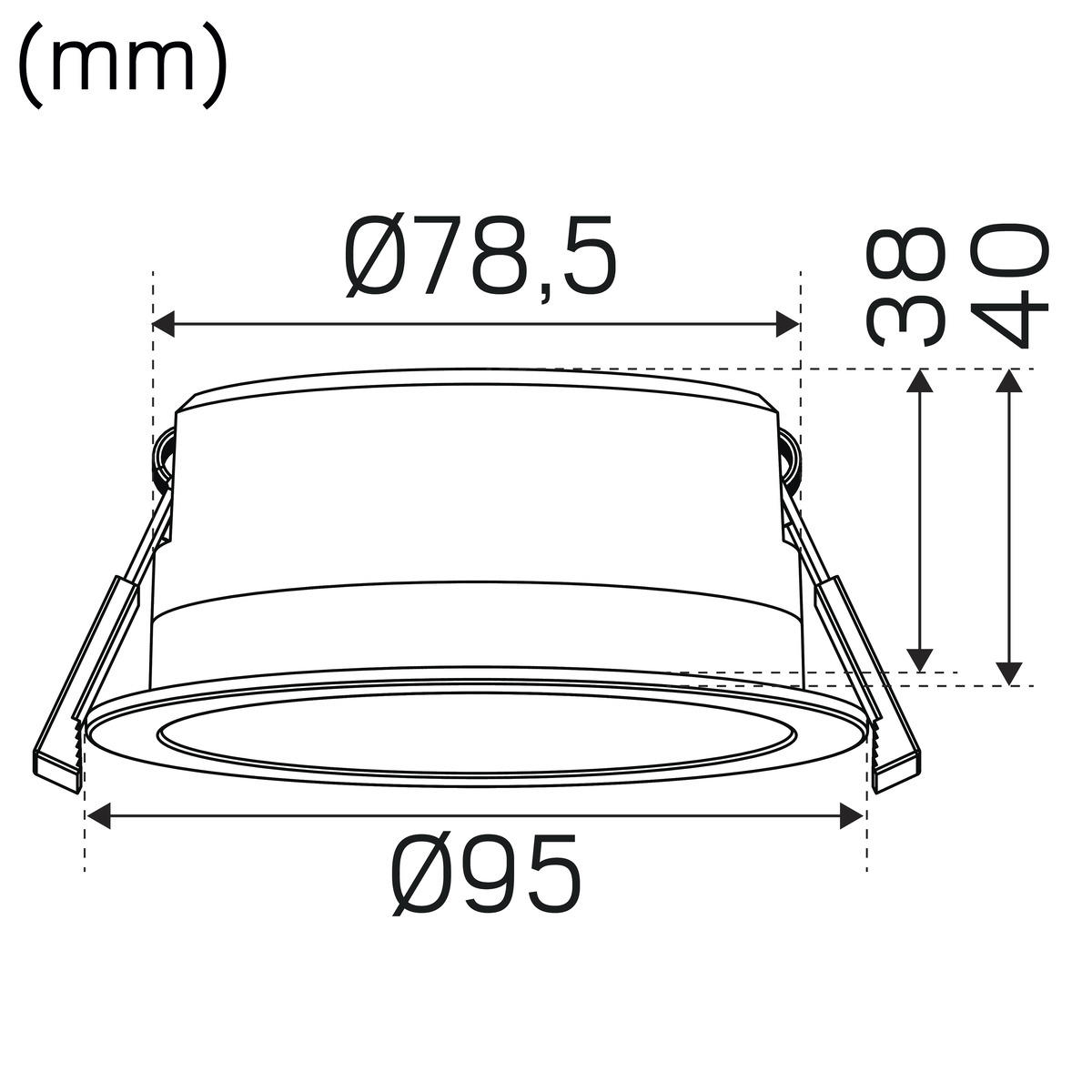

Height (mm) 40
Diameter (mm) 95
Weight (kg) 0,23
Min. Built-in (mm) 180x150x28
Min. Air Volume (cm3) 756
Height Recessed Part (mm) 38
Height Exterior Part (mm) 2
Built-in Ø (mm) 80-85
