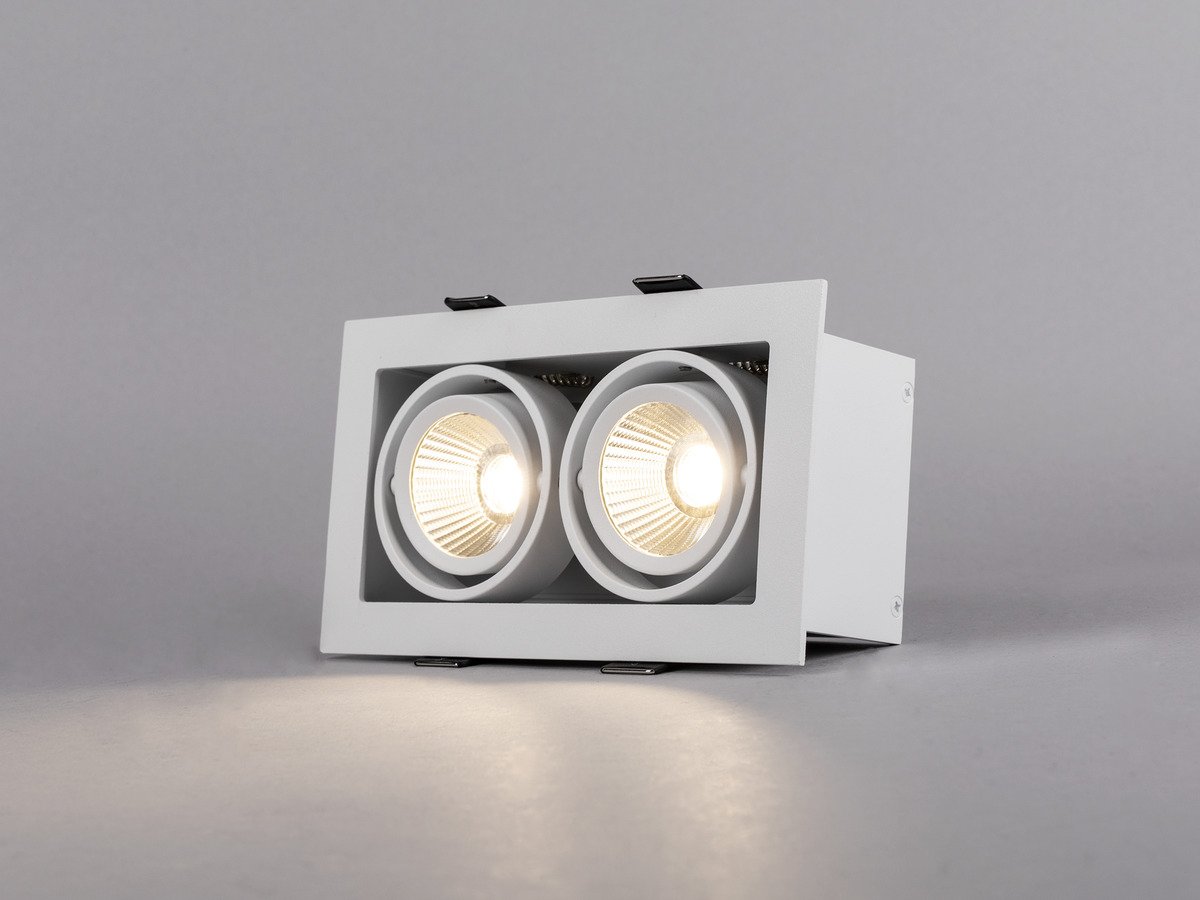

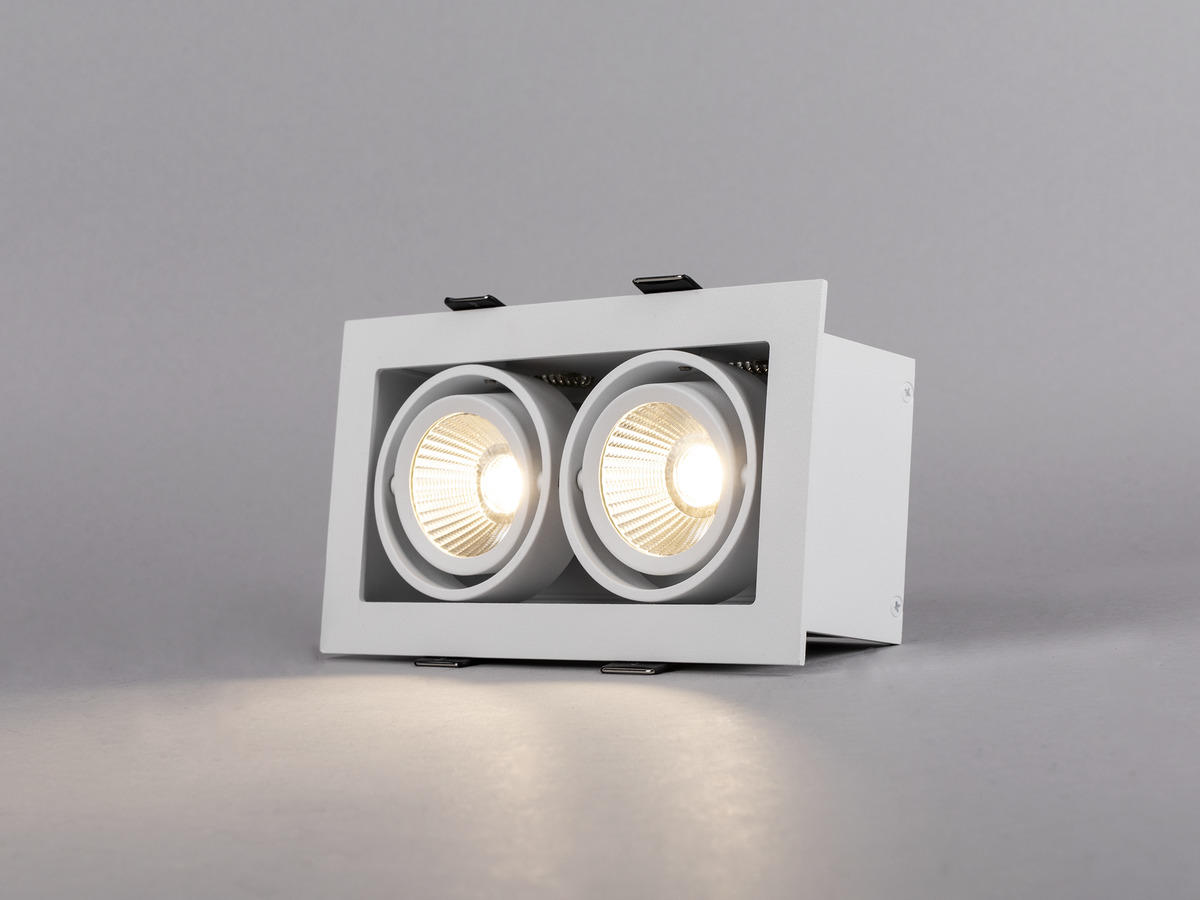

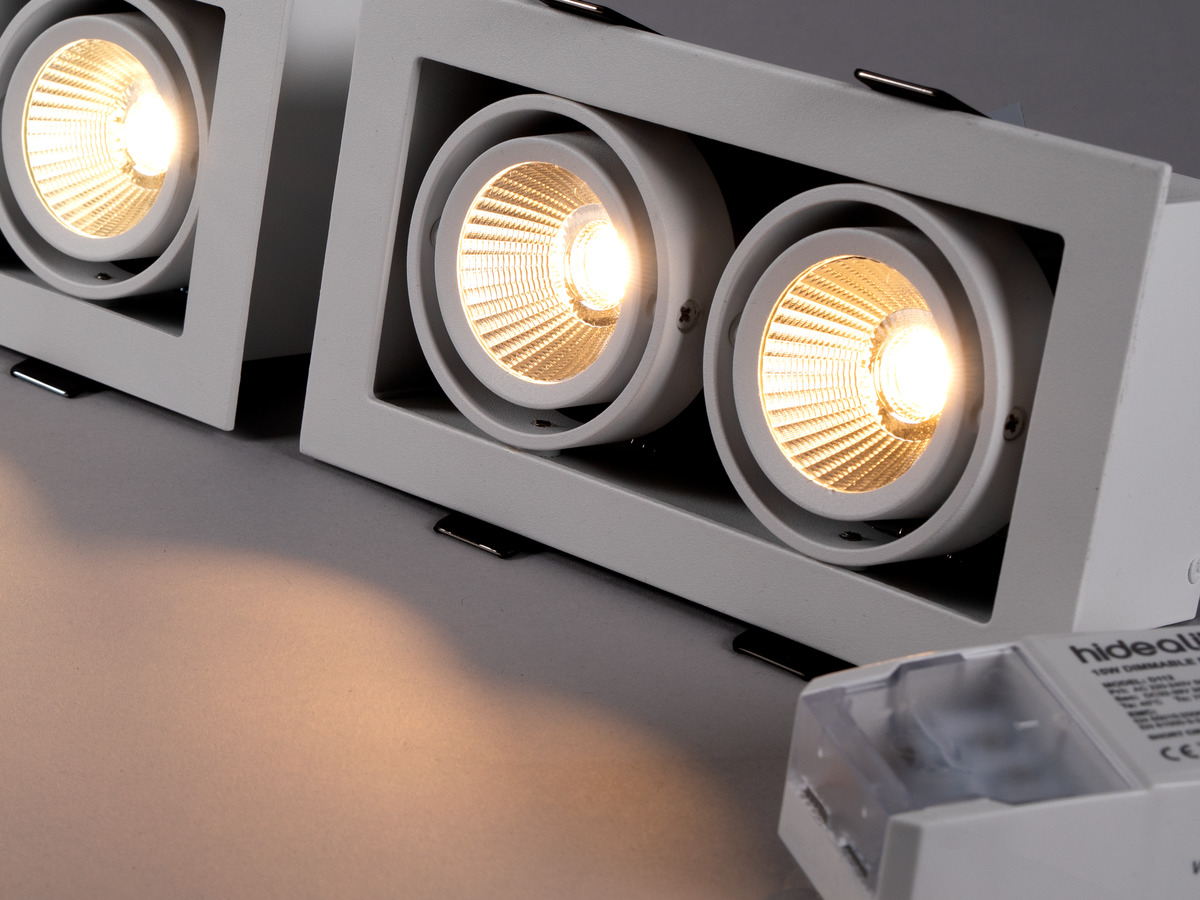

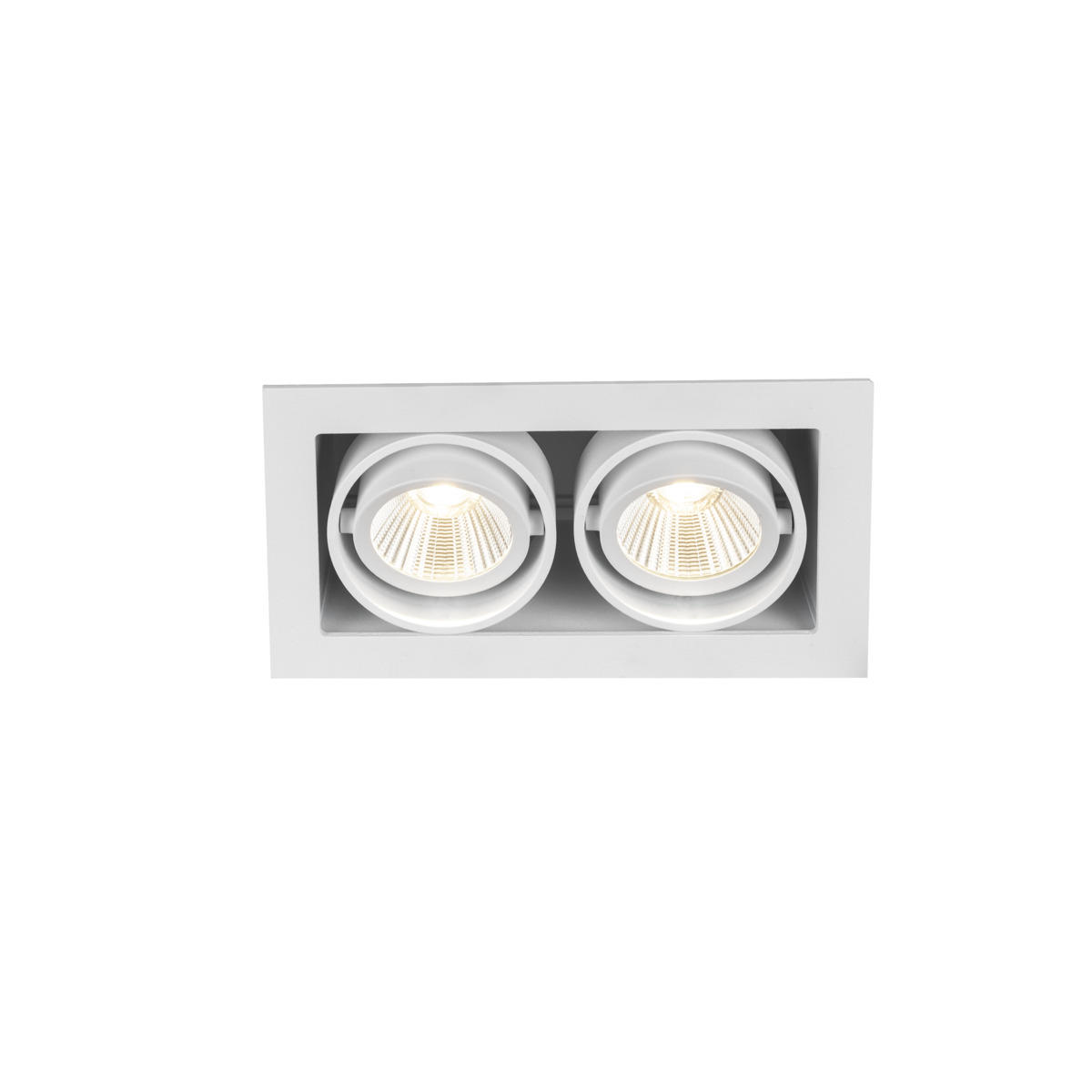

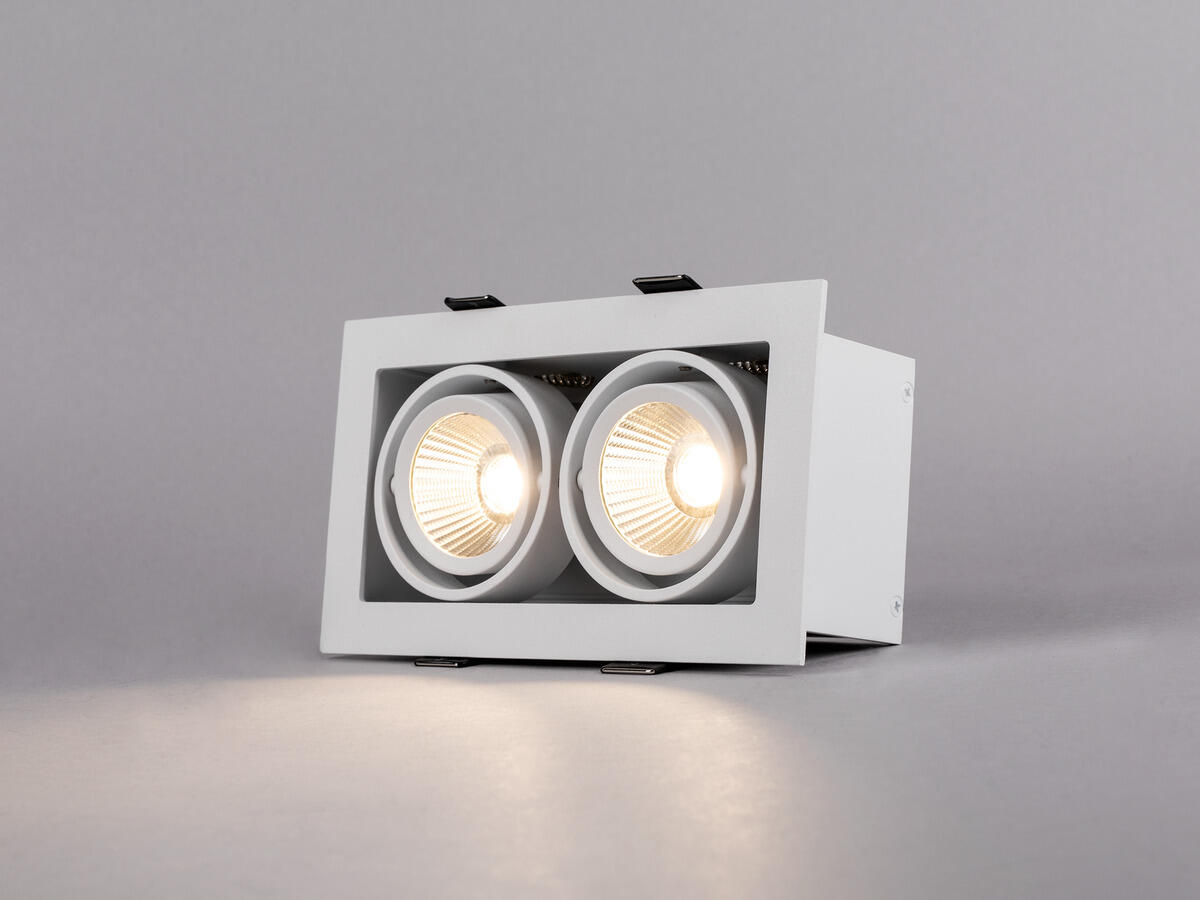

Optic Box II

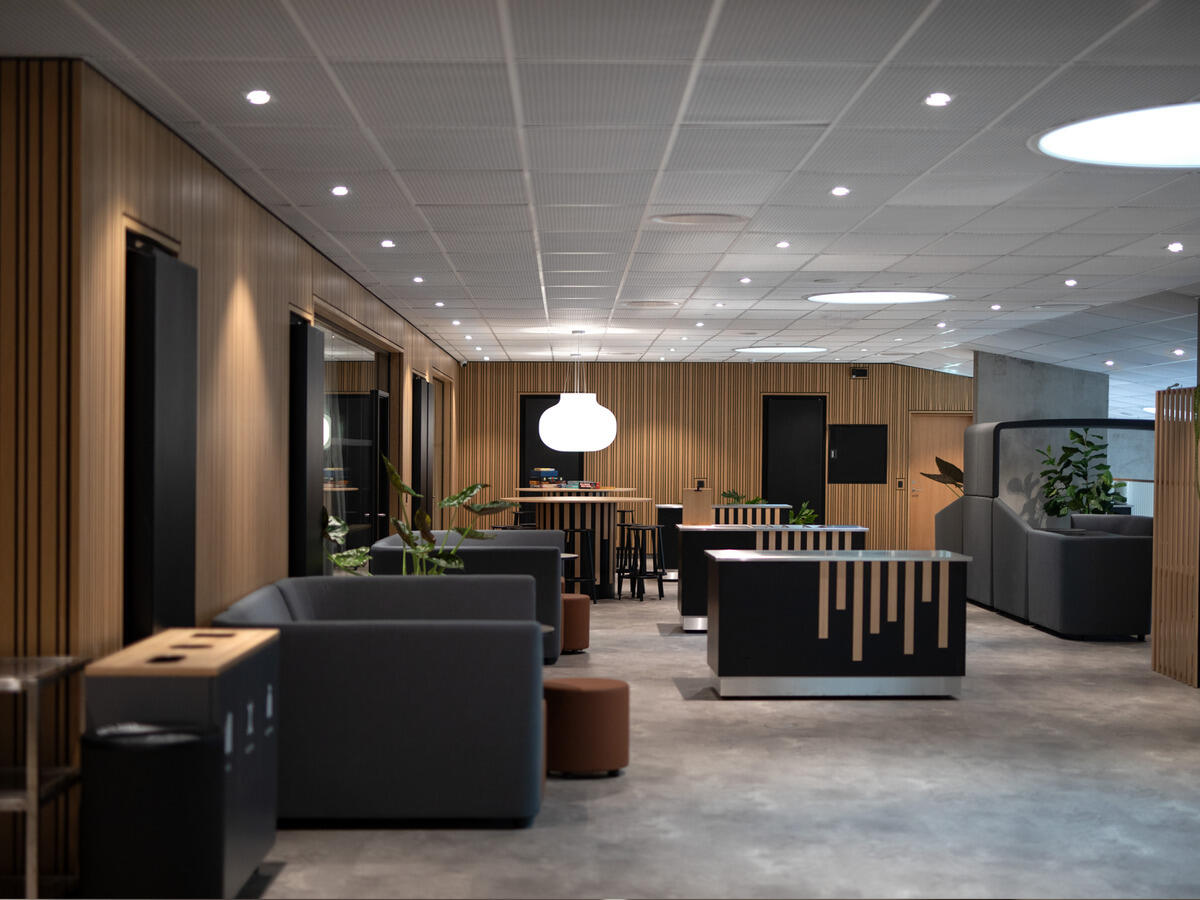

Complete 230V downlight in box-design with reflector technology and phase dimmable driver. With its square design, fits very well in both private and public environments which require a discrete and comfortable general light. Comes in several colour temperatures and Tune. Very good colour rendering, Ra>95. Can be installed under moisture barrier with our Spot Guard Gles. Complete with phase dimmable driver with push-in terminal and screwless strain relief. Dimmable with the most commonly available dimmers on the market. Can be delivered with Converter DALI.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971137469	Optic Box II White Tune	2700	930
7392971137476	Optic Box II White 2700K	2700	1050
7392971137483	Optic Box II White 3000K	3000	1150

Description: GTIN 7392971137469

Item Name Optic Box II White Tune

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 930

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Tune

Colour Temperature (K) 2700

Range Colour Temperature (K) Tune 2000-2700

Colour Rendering Index (Ra) >95

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 2x800

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 2

Number of LED (pcs) 2

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,003

Stroboscopic effect (SVM) 0,004
Technical data: Adjustable Yes

Tiltable (°) 25

Rotatable (°) 360

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 12,5

Power Luminaire (W) 15

System Power (W) 15

Efficiency Luminaire (lm/W) 62

Efficiency System (lm/W) 62

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

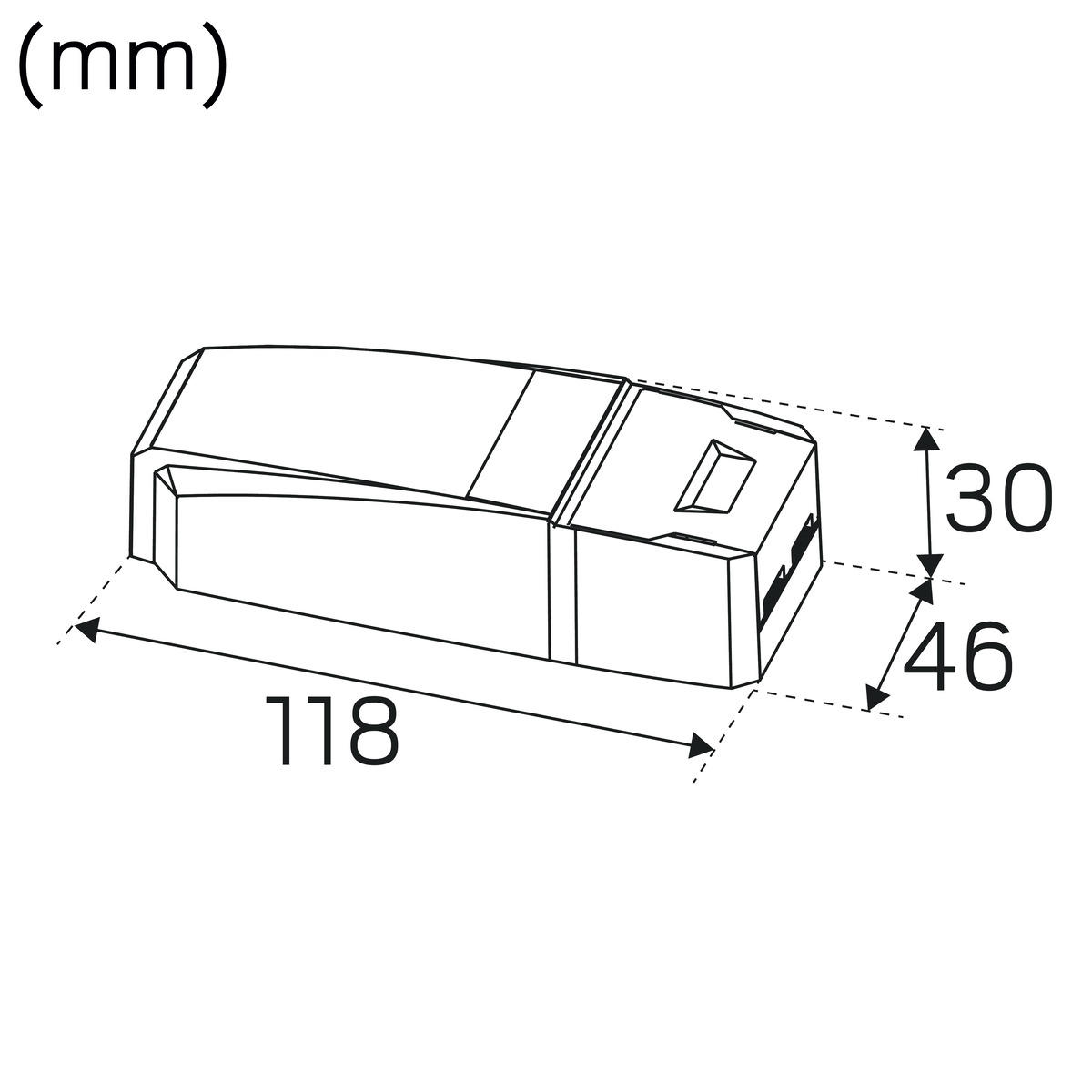

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 80

Constant Current (mA) 350

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Memory Function Power Failure No

Protection Against Short Circuit, Overheating 110°C, Overload

Fuse B10 (pcs) 25

Fuse B16 (pcs) 40

Fuse C10 (pcs) 45

Fuse C16 (pcs) 70
Color and material: Material Aluminium

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / damp locations

IP Degree of Protection 21

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-26

Fire Safety Marks Not in insulation without protection cover

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE, SELV

Filament Test IEC 695-2-1(°C) 650

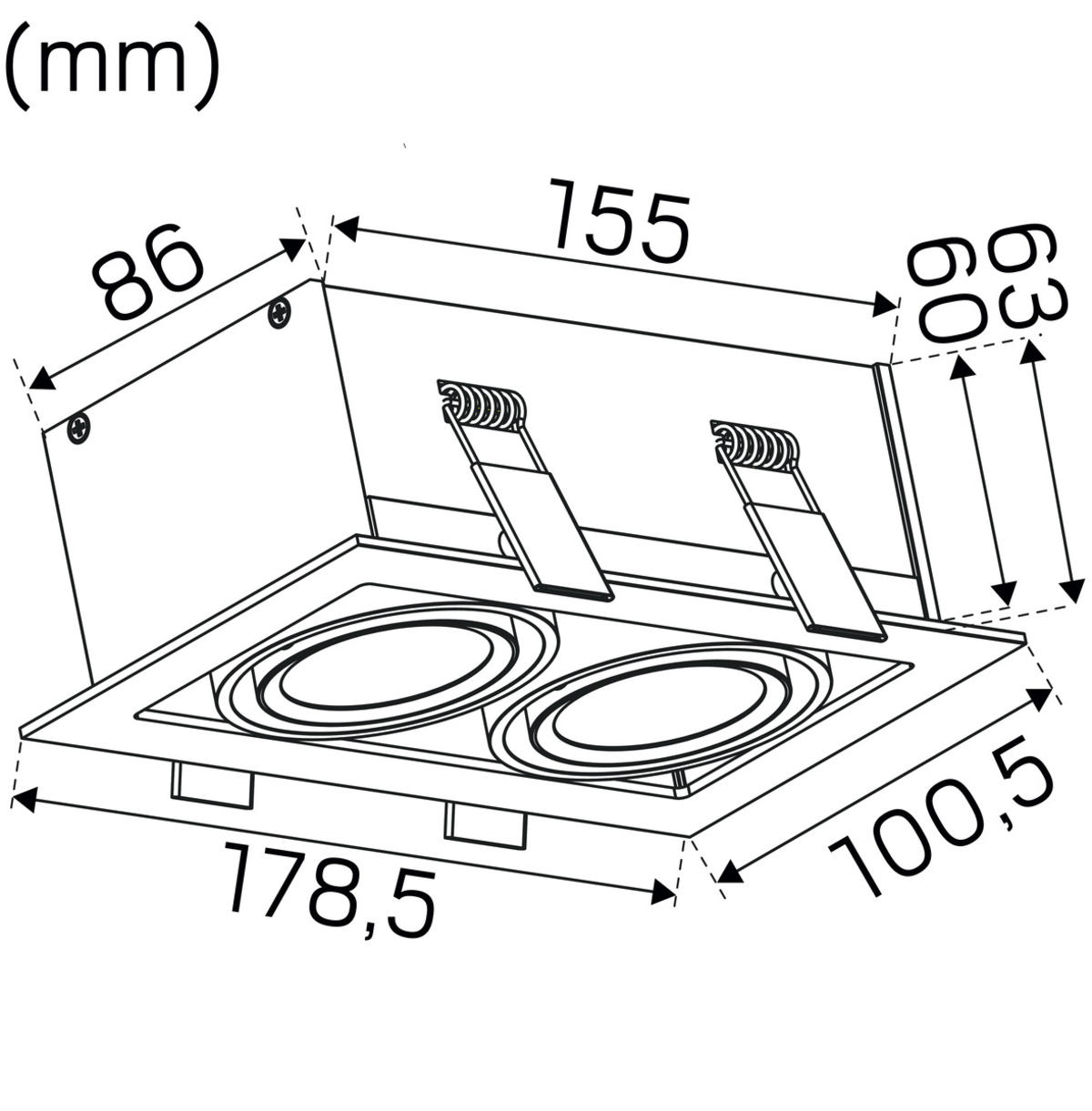

Length (mm) 179

Width (mm) 101

Height (mm) 63

Weight (kg) 0,705

Min. Built-in (mm) 300x230x70

Height Recessed Part (mm) 60

Height Exterior Part (mm) 3

Built-in LxB (mm) 168x88
