Optic Deep
Optic Deep
Optic Deep

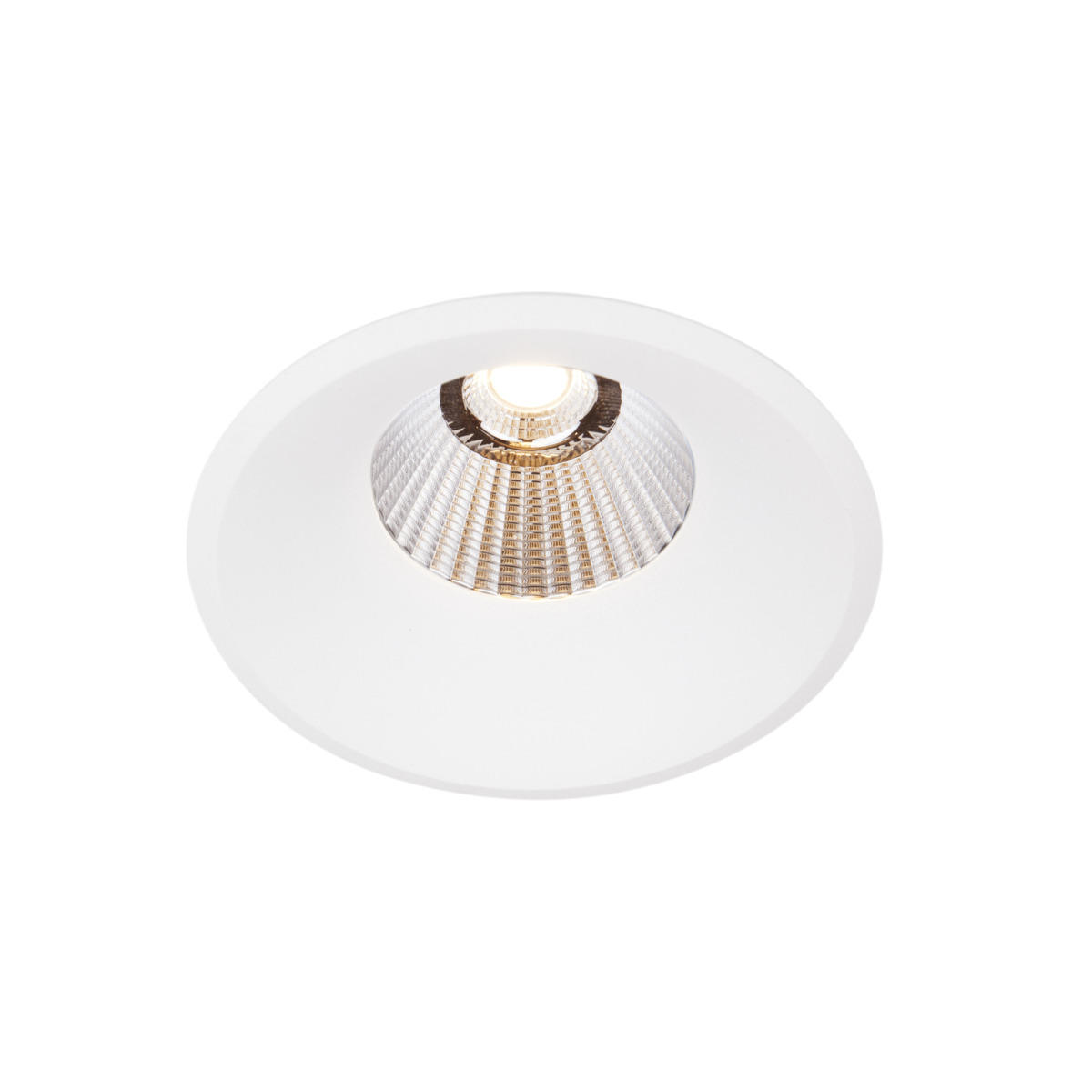

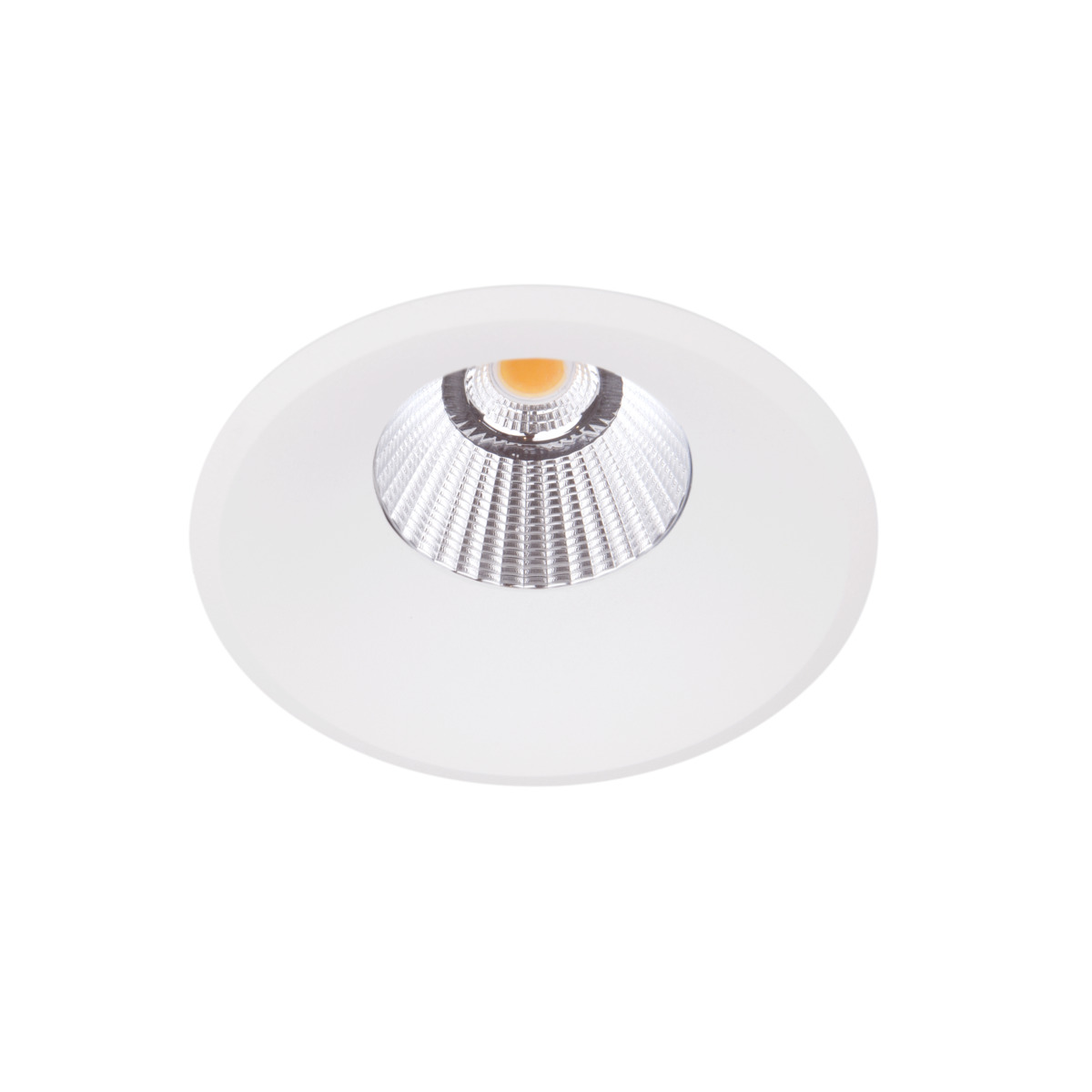

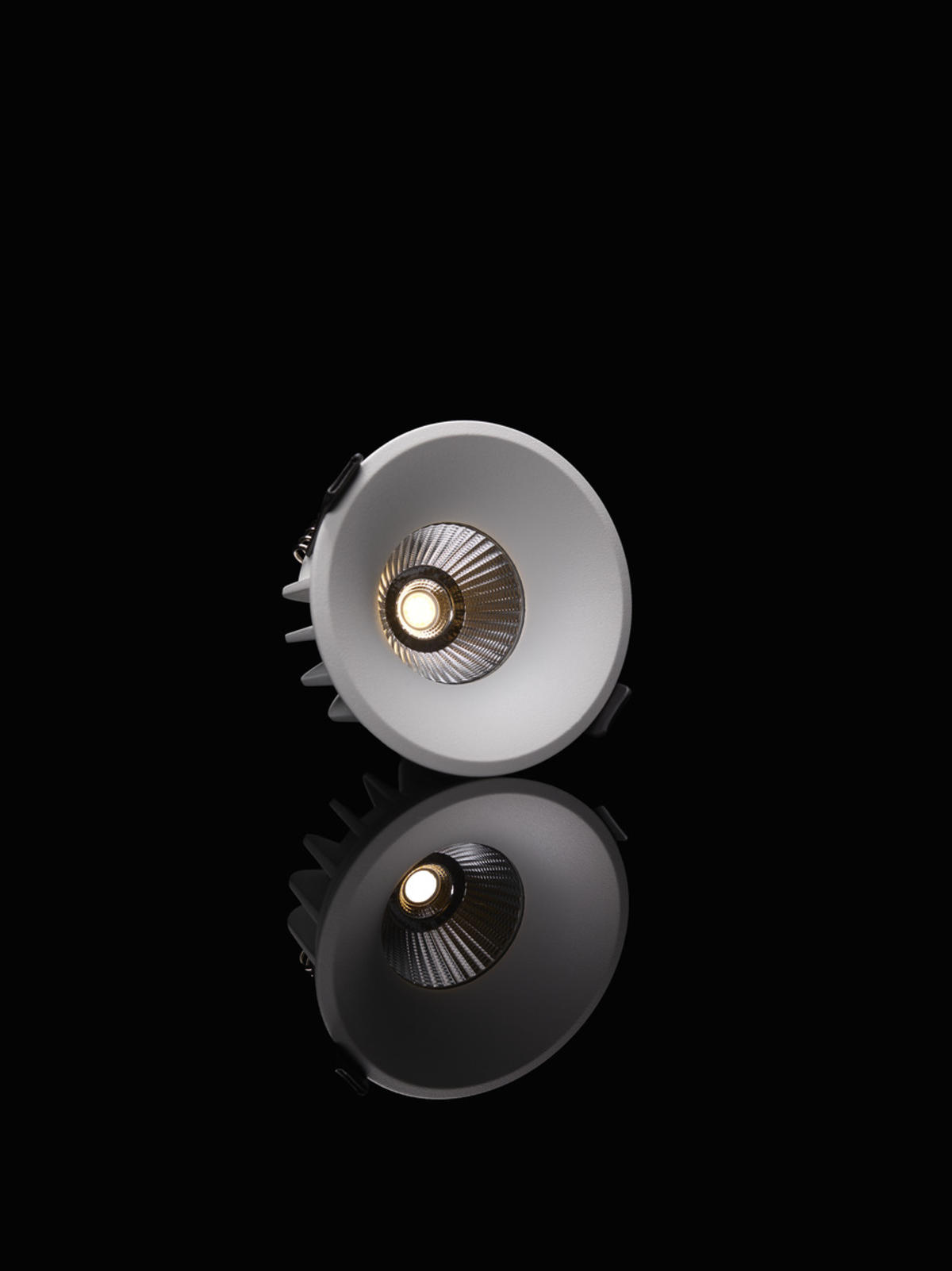

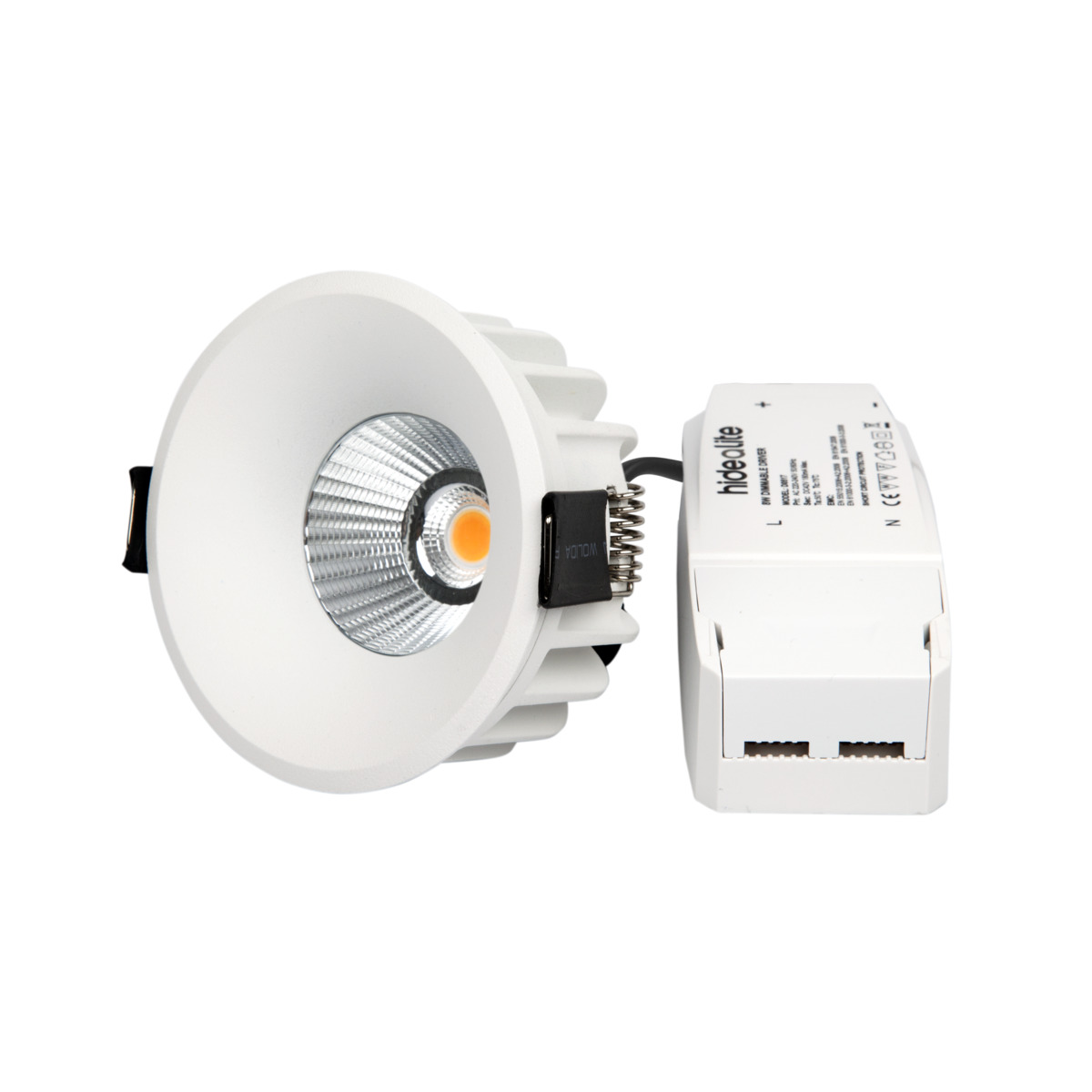

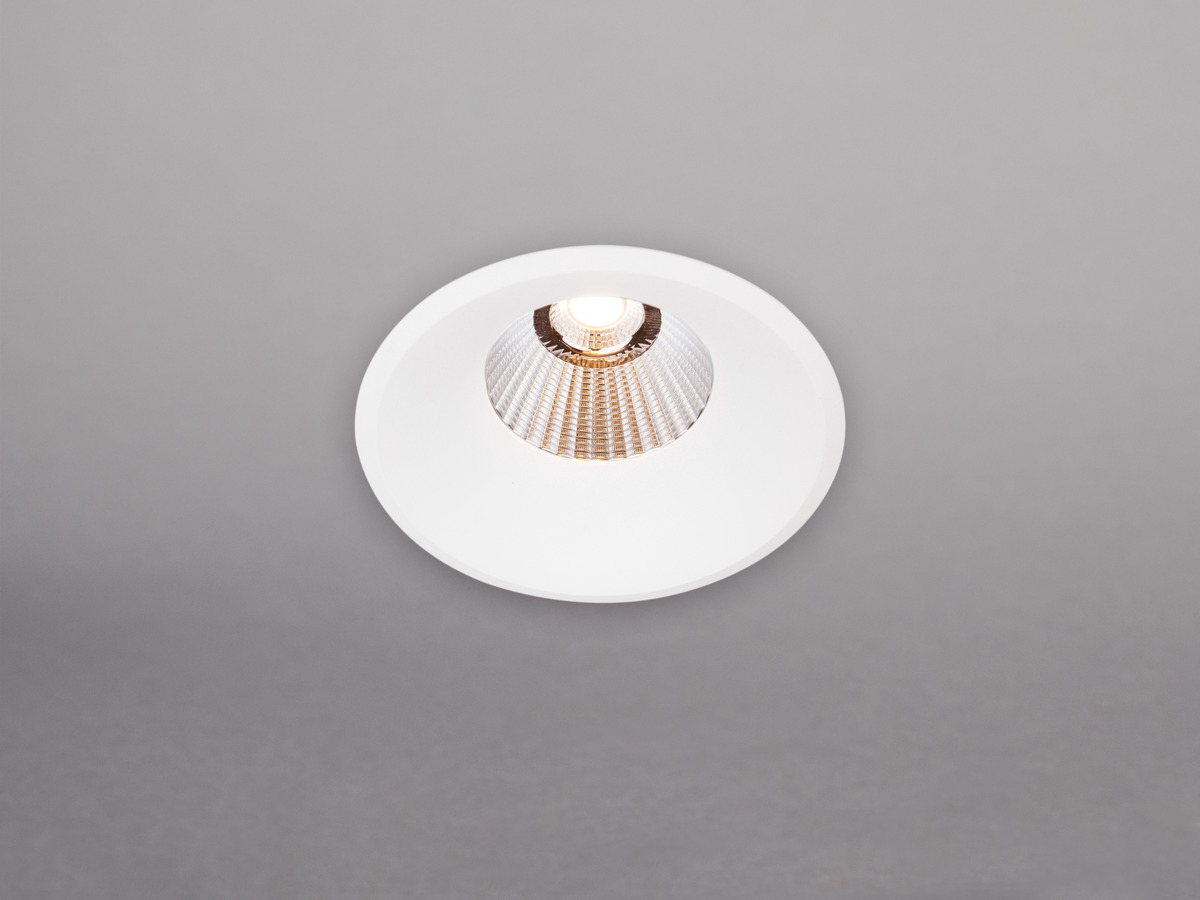

Efficient LED downlight with recessed light source and thin edging for discreet ceiling installation, IP44 rated all round. Modern LED and reflector technology ensures a high luminous efficacy, distinct light distribution and glare-free lighting with very good colour rendering. Easily installed and low-build luminaire complete with mains dimmable driver, push-in, loop-in, loop-out terminals and screwless strain relief for easy connection. Dimmable with the most commonly available dimmers on the market. Can be delivered with Converter DALI.
Exists in one color

Variants

GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
Optic Deep White Tune 7392971129143 Optic Deep White Tune 2700 430
Optic Deep White 2700K 7392971129150 Optic Deep White 2700K 2700 540
Optic Deep White 3000K 7392971129167 Optic Deep White 3000K 3000 570
Description
GTIN 7392971129143
Item Name Optic Deep White Tune
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Replaceable Control gear by professional
LED Colour Tune
Colour Temperature (K) 2700
Range Colour Temperature (K) Tune 2000-2700
Colour Rendering Index (Ra) >95
Colour Consistency (SDCM) 3
Initial Chromaticity x:0.4402 y:0.4035
Luminous Intensity (cd) 690
Luminaire Lumen (lm) 430
Beam Angle (°) 36
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 50 000h Ta 30°C
Nominel Life Time (h) 50000
Life Time Driver 50 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 6,5
Power Luminaire (W) 7,5
System Power (W) 7,5
Efficiency Luminaire (lm/W) 57
Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone
Connection (type) Quick Terminal
Connection (mm2) 3x0,75-2,5
Through Wiring Yes
Strain Relief Yes
Constant Current (mA) 180
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Dimming secondary side AM
Memory Function Power Failure Yes
Fuse B10 (pcs) 55
Fuse B16 (pcs) 88
Fuse C10 (pcs) 91
Fuse C16 (pcs) 147
Color and material
Material Aluminium
Color White
Environmental Assessment SundaHus, Byggvarubedömningen
Available in special color Yes
Measurement and installation
Operating Environment Indoor / bathroom (ceiling area 1), Outdoor
IP Degree of Protection 44
Protection Class II
Installation Built-in
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 3-26
Fire Safety Marks Not in insulation without protection cover
Protection Cover 7466700, 7466701, 7466702
Approval Marks CE, SELV
Height (mm) 50
Diameter (mm) 90
Weight (kg) 0,24
Min. Built-in (mm) 300x200x48
Min. Air Volume (cm3) 2800
Height Recessed Part (mm) 47
Height Exterior Part (mm) 3
Built-in Ø (mm) 83
