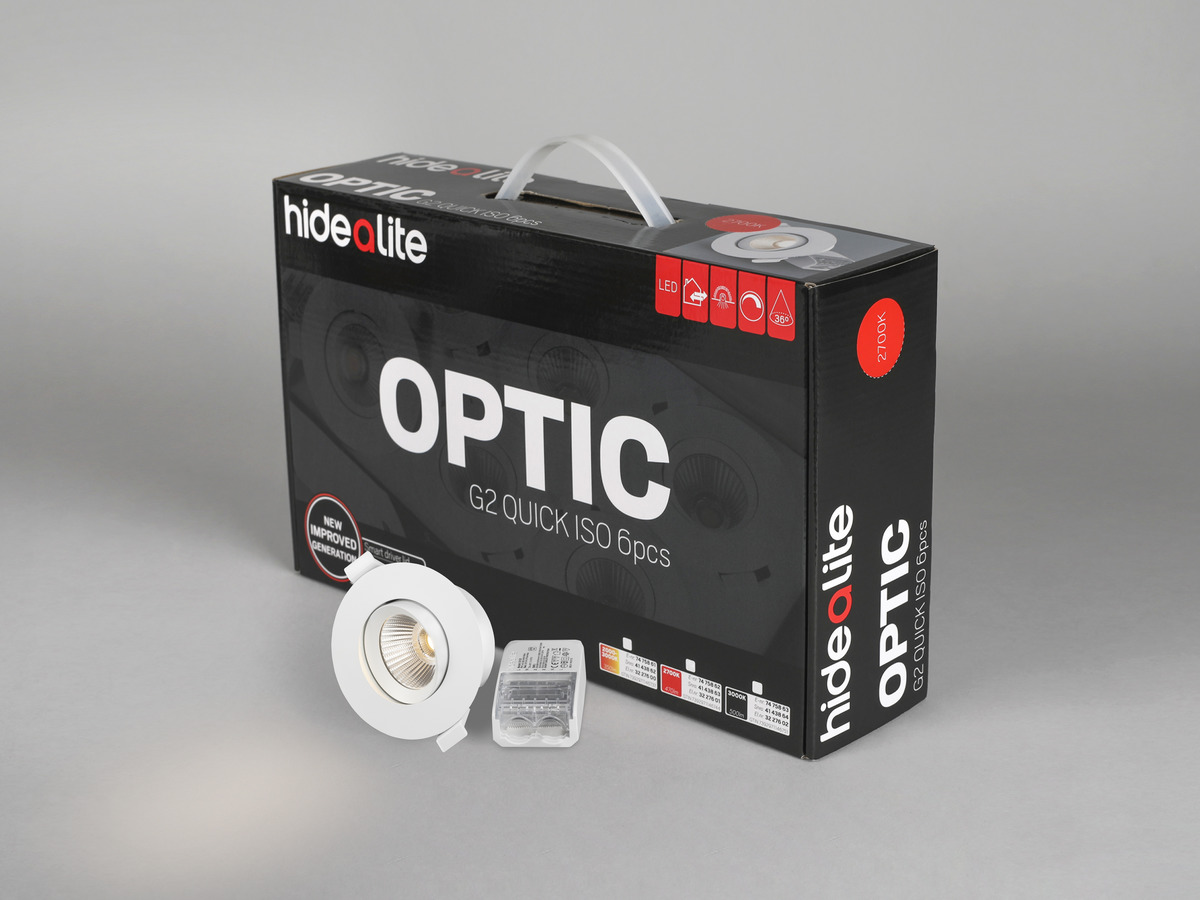

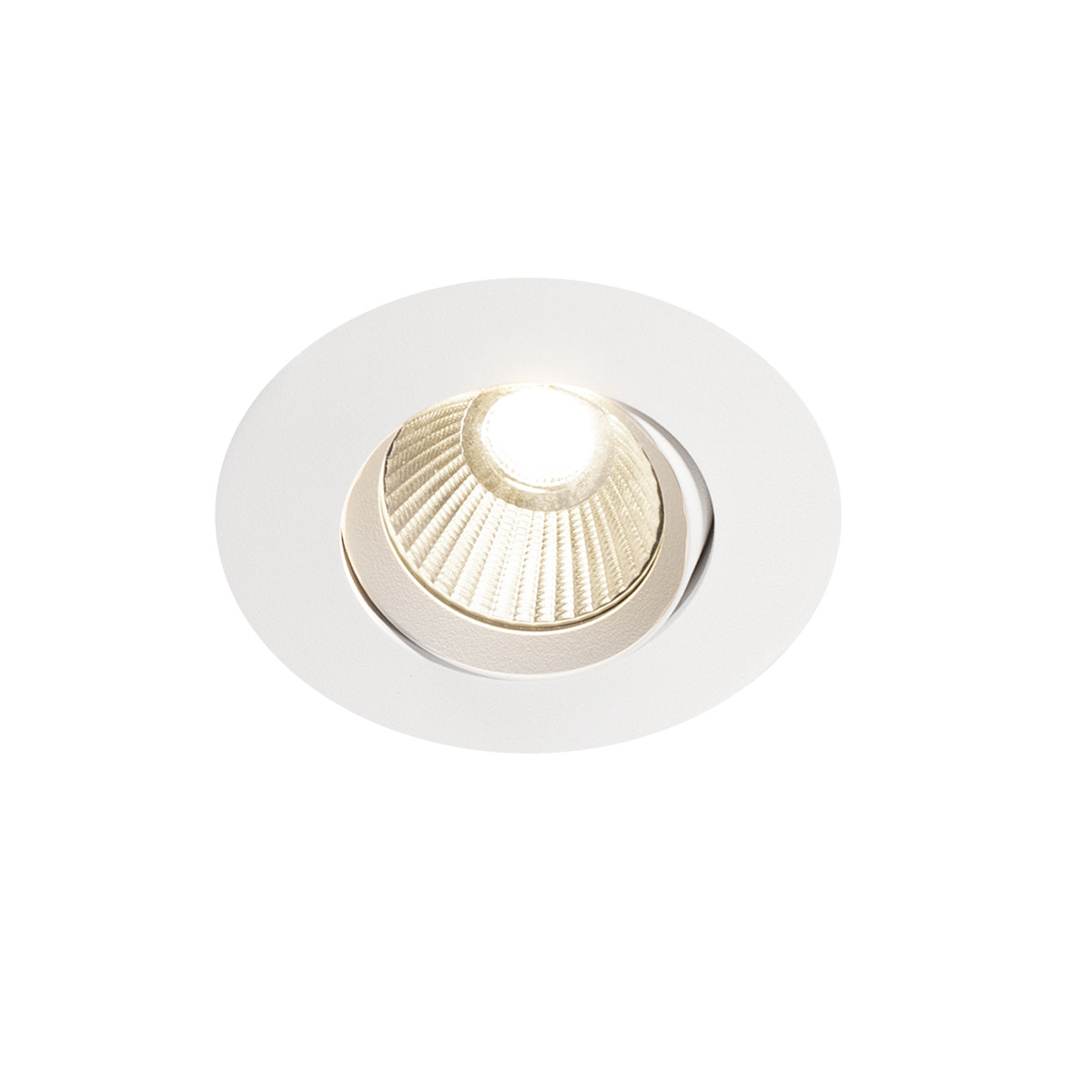

Optic G2 Quick ISO 6 pack Optic G2 Quick ISO 6 pack White Tune

Low-build, perfect for secondary spaced boarding 28mm with 13mm plaster
Approved for installation directly against insulation
Can be installed both indoors and outdoors

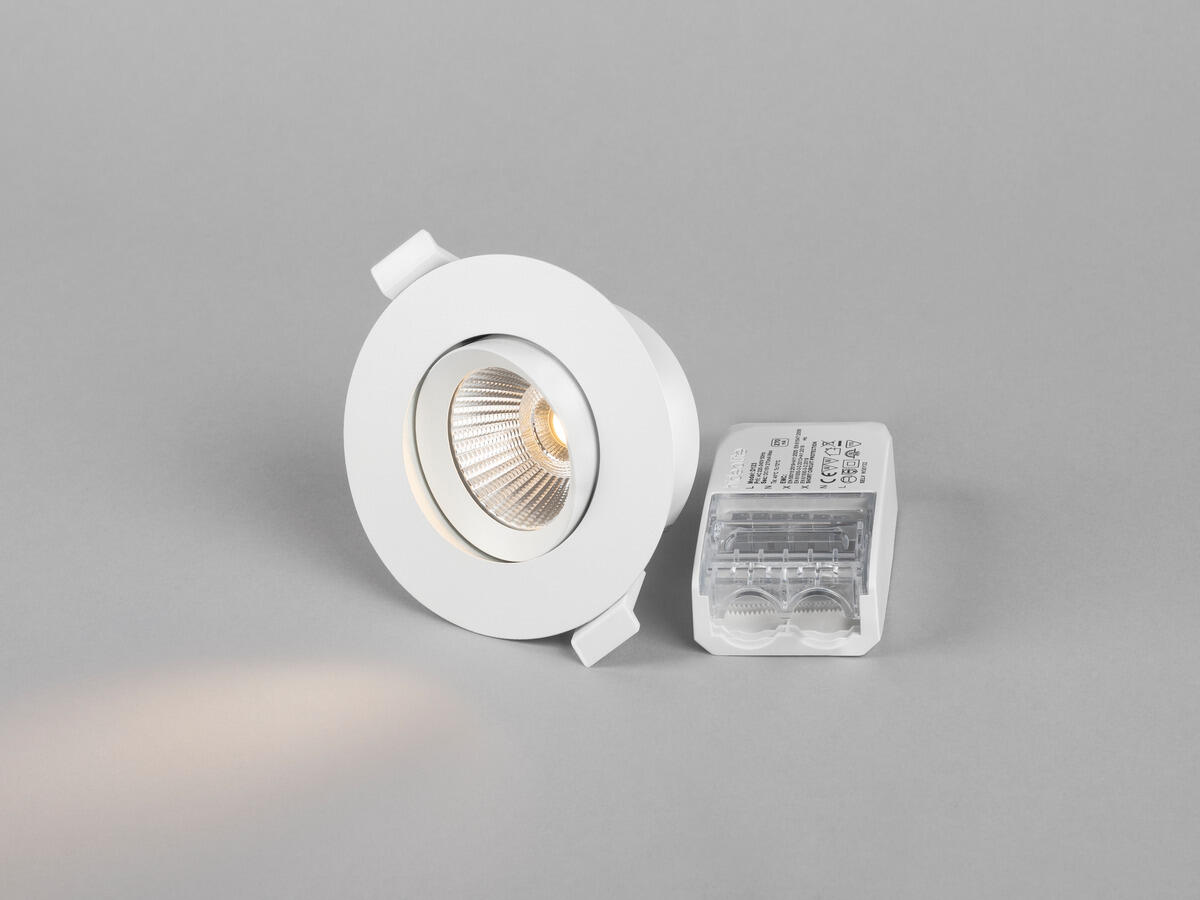

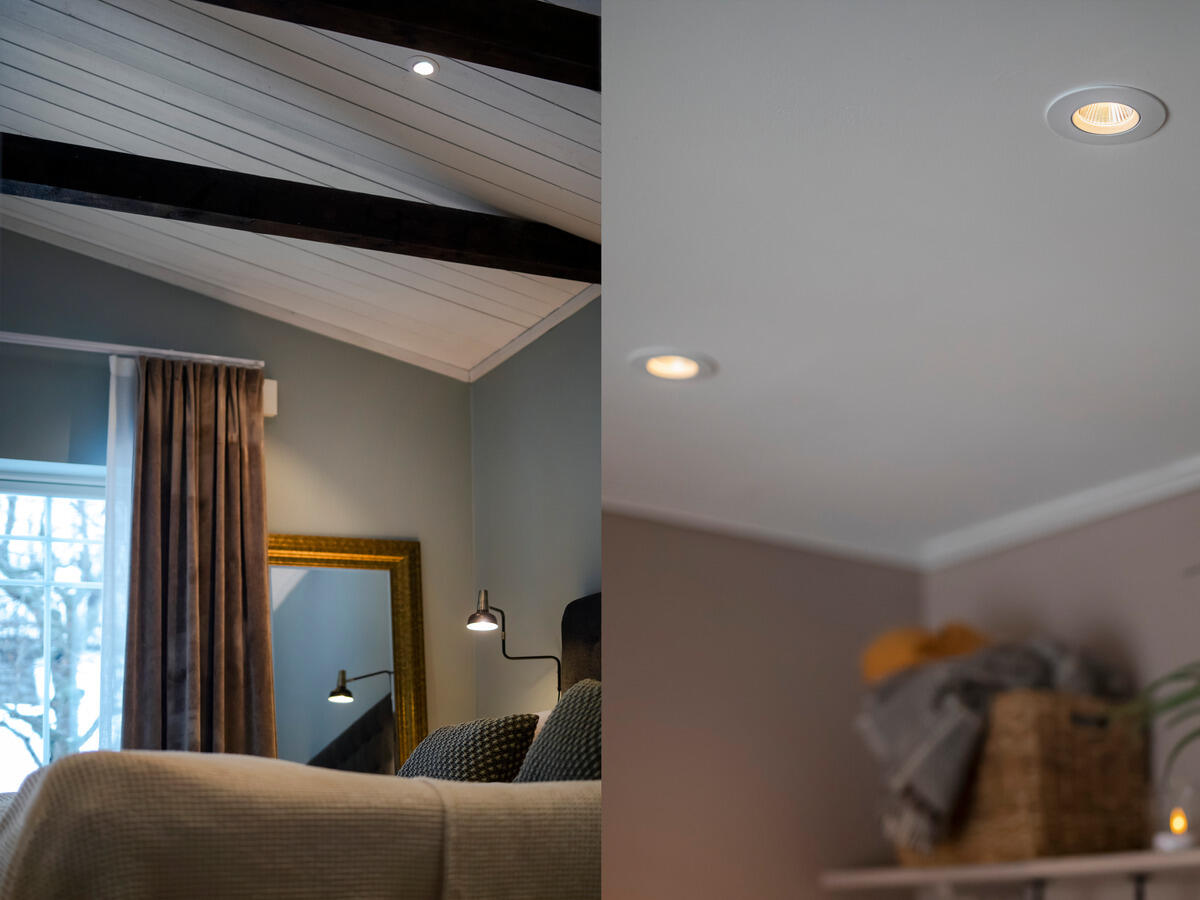

Versatile 6-pack for easier transport and fewer packages. Downlight made for a sustainable future – easily dismantled via a module system to save time when recycling. Low-build and adapted for installation in 28mm secondary spaced boarding directly against insulation. Modern LED and reflector technology with good glare-free light distribution and high lumen output. Tiltable 30°, which also makes it the perfect choice for sloping ceilings. Very good colour rendering, Ra>95. Driver with cover that can be adapted for cable or flex hose 16mm. Comes with 3-pole push-in terminal for through wiring and strain relief. This luminaire is dimmable with the most commonly available dimmers on the market.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971146737	Optic G2 Quick ISO 6 pack White Tune	3000	350
7392971146744	Optic G2 Quick ISO 6 pack White 2700K	2700	470
7392971146751	Optic G2 Quick ISO 6 pack White 3000K	3000	500

Description: GTIN 7392971146737

Replaces 7392971134567

Item Name Optic G2 Quick ISO 6 pack White Tune

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 350

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour Tune

Colour Temperature (K) 3000

Range Colour Temperature (K) Tune 2000-3000

Colour Rendering Index (Ra) >95

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 550

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L91

Lumen maintenance 75 000h L83

Lumen maintenance 100 000h L82

LLMF @ 50 000h 0,91

LLMF @ 100 000h 0,82

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,006

Stroboscopic effect (SVM) 0,021
Technical data: Adjustable Yes

Tiltable (°) 30

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 4,8

Power Luminaire (W) 6

System Power (W) 6

Efficiency Luminaire (lm/W) 58

Efficiency System (lm/W) 58

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-1,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,95

Efficiency (%) 78

Power loss (W) 1,2

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,05

THD (%) 20

Constant Current (mA) 270

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Memory Function Power Failure No

Inrush current (max/time) 2,5A 30µs

Fuse B10 (pcs) 68

Fuse B16 (pcs) 109

Fuse C10 (pcs) 114

Fuse C16 (pcs) 182
Color and material: Color White
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 44

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-26

Fire Safety Marks Approved for installation against insulation

Approval Marks CE, a Hide-a-lite Choice

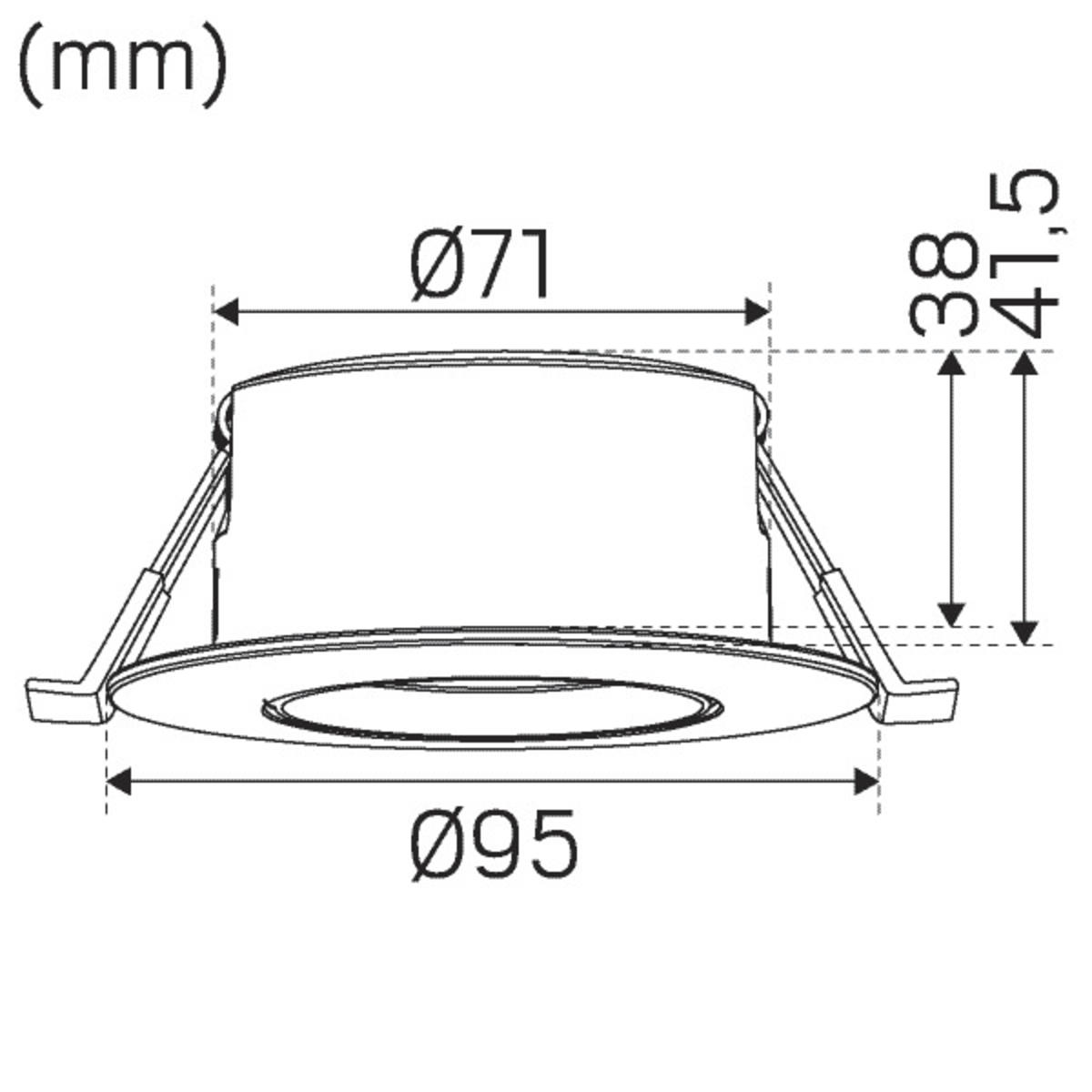

Height (mm) 41

Diameter (mm) 95

Weight (kg) 0,26

Min. Built-in (mm) 170x120x38

Height Recessed Part (mm) 38

Height Exterior Part (mm) 3

Built-in Ø (mm) 73-85

Spare parts

If you need spare parts, contact our customer support

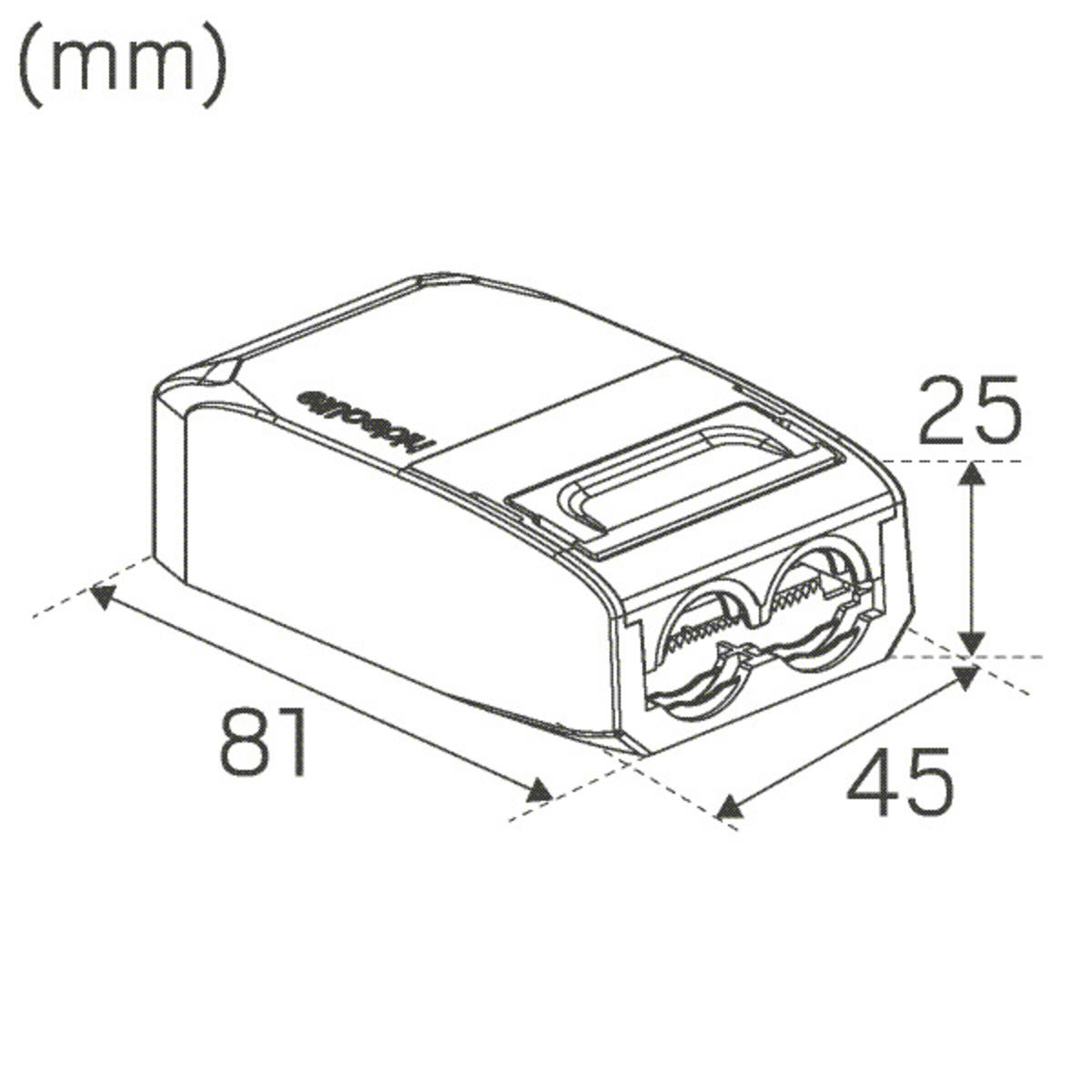

Driver D123 FDIM 270mA X258
LED-Module Optic G2 Tune X254
