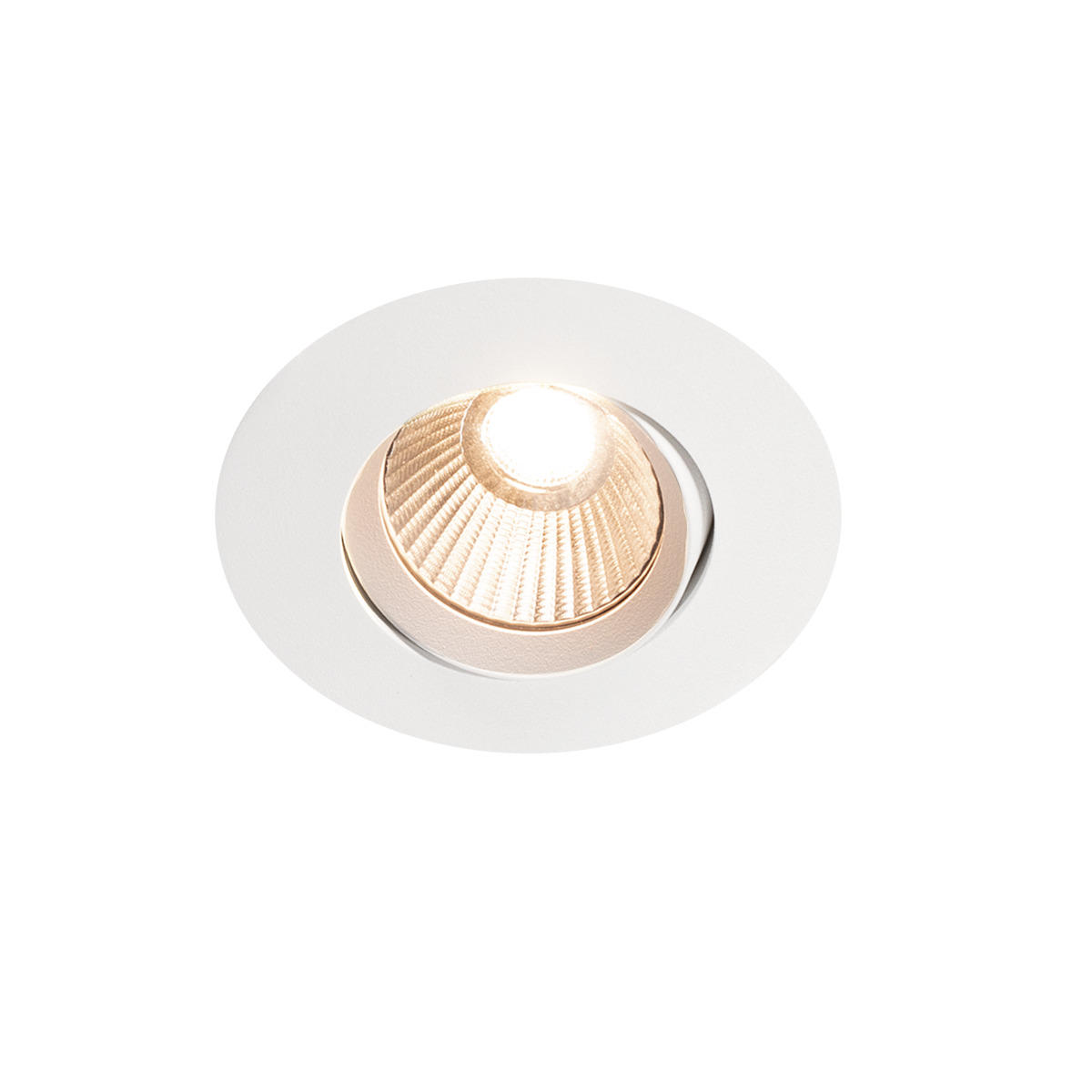

Optic G2 Quick ISO

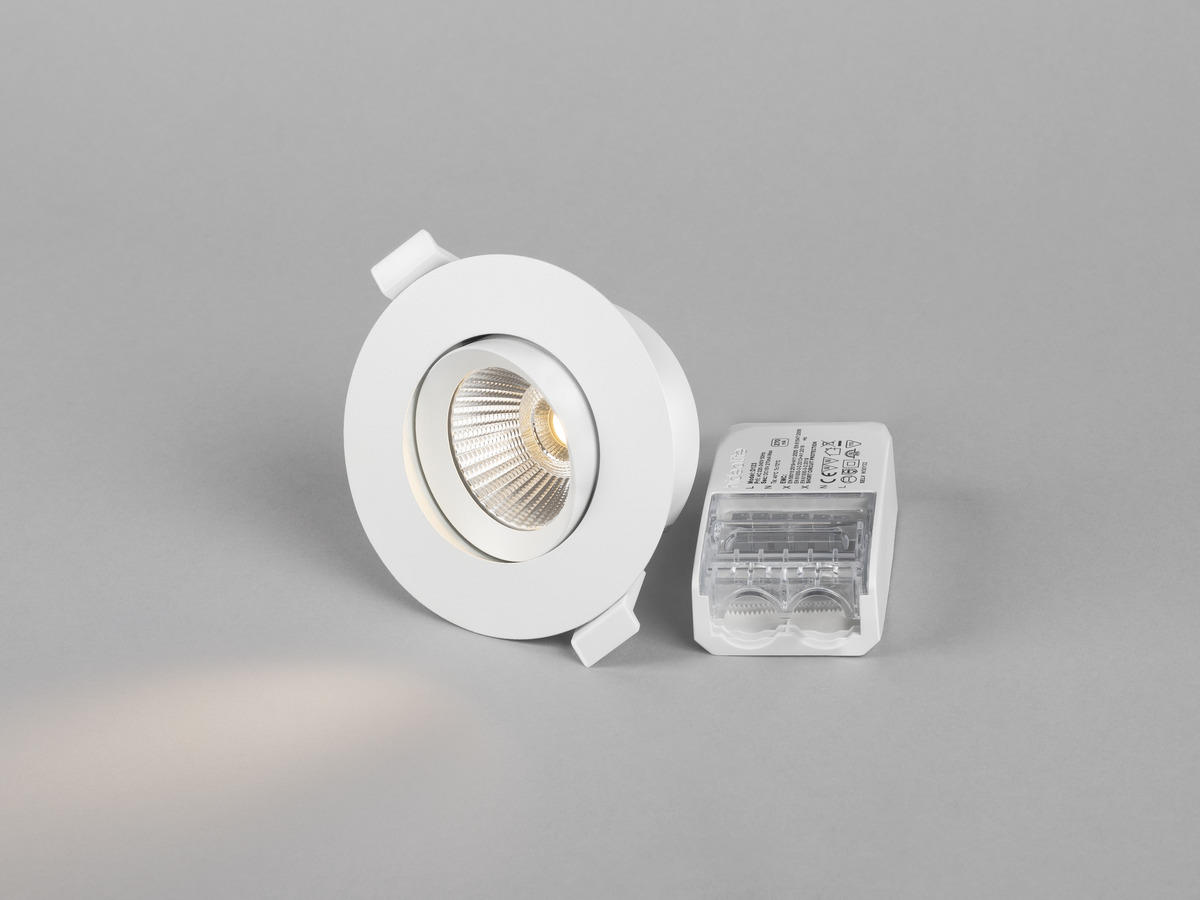

Downlight made for a sustainable future – easily dismantled via a module system to save time when recycling. Low-build and adapted for installation in 28mm secondary spaced boarding directly against insulation. Modern LED and reflector technology with good glare-free light distribution and high lumen output. Tiltable 30°, which also makes it the perfect choice for sloping ceilings. Very good colour rendering, Ra>95. Driver with cover that can be adapted for cable or flex hose 16mm. Comes with 3-pole push-in terminal for through wiring and strain relief. This luminaire is dimmable with the most commonly available dimmers on the market.
Exists in several colors
  • Vit
  • Svart

Variants

GTIN Item Name Color Colour Temperature (K) Luminaire Lumen (lm)
Optic G2 Quick ISO White Tune 7392971146652 Optic G2 Quick ISO White Tune White 3000 350
Optic G2 Quick ISO White 2700K 7392971146669 Optic G2 Quick ISO White 2700K White 2700 470
Optic G2 Quick ISO White 3000K 7392971146676 Optic G2 Quick ISO White 3000K White 3000 500
Optic G2 Quick ISO White 4000K 7392971146683 Optic G2 Quick ISO White 4000K White 4000 530
Optic G2 Quick ISO Black Tune 7392971146690 Optic G2 Quick ISO Black Tune Black 3000 350
Optic G2 Quick ISO Black 2700K 7392971146706 Optic G2 Quick ISO Black 2700K Black 2700 470
Optic G2 Quick ISO Black 3000K 7392971146713 Optic G2 Quick ISO Black 3000K Black 3000 500
Optic G2 Quick ISO Black 4000K 7392971146720 Optic G2 Quick ISO Black 4000K Black 4000 530

Optic G2 Quick ISO White Tune

Description
GTIN 7392971146652
Item Name Optic G2 Quick ISO White Tune
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Replaceable LED by professional, Replaceable Control gear by professional
LED Colour Tune
Colour Temperature (K) 3000
Range Colour Temperature (K) Tune 2000-3000
Colour Rendering Index (Ra) >95
Colour Consistency (SDCM) 3
Initial Chromaticity x: 0.4419 y: 0.4044
Luminous Intensity (cd) 550
Luminaire Lumen (lm) 350
Beam Angle (°) 36
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L90
Lumen maintenance 75 000h L86
Lumen maintenance 100 000h L82
LLMF @ 50 000h 0,9
LLMF @ 100 000h 0,82
Life Time Driver 50 000h/10%
Technical data
Adjustable Yes
Tiltable (°) 30
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 4,8
Power Luminaire (W) 6
System Power (W) 6
Efficiency Luminaire (lm/W) 58
Efficiency System (lm/W) 58
Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection

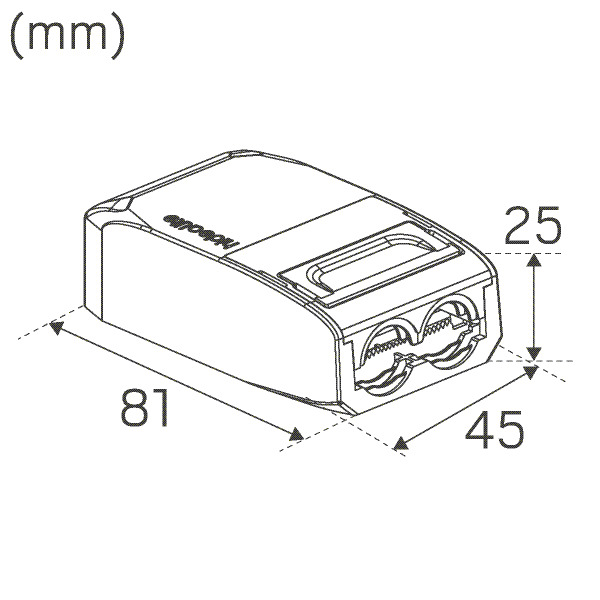

Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone
Driver Manufacturer Hide-a-lite
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-1,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,95
Efficiency (%) 78
Power loss (W) 1,2
Leakage current (mA) (at 230 V, 50 Hz, full load) 2
THD (%) 20
Constant Current (mA) 270
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge
Dimming secondary side AM
Memory Function Power Failure No
Inrush current (max/time) 2,5A 30µs
Fuse B10 (pcs) 68
Fuse B16 (pcs) 109
Fuse C10 (pcs) 114
Fuse C16 (pcs) 182
Color and material
Material Aluminium
Color White
Measurement and installation
Operating Environment Indoor / bathroom (ceiling area 1), Outdoor
IP Degree of Protection 44
Protection Class II
Installation Built-in
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 3-26
Fire Safety Marks Approved for installation against insulation
Approval Marks CE, SELV, a Hide-a-lite Choice

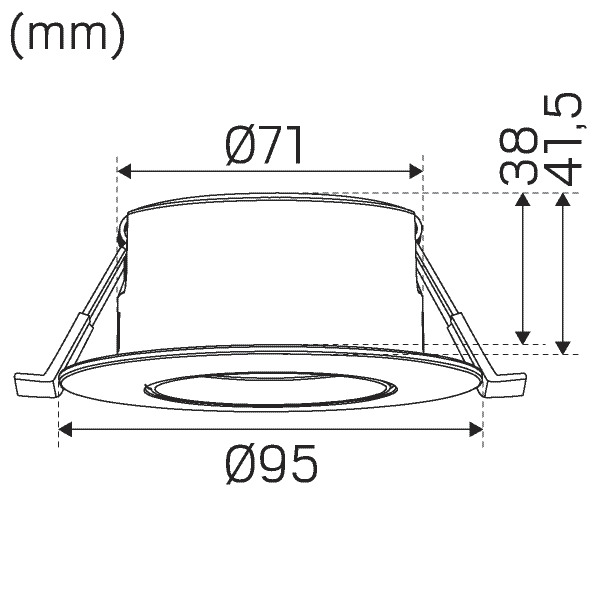

Height (mm) 41
Diameter (mm) 95
Weight (kg) 0,26
Min. Built-in (mm) 170x120x38
Min. Air Volume (cm3) 2600
Height Recessed Part (mm) 38
Height Exterior Part (mm) 3
Built-in Ø (mm) 73-85
