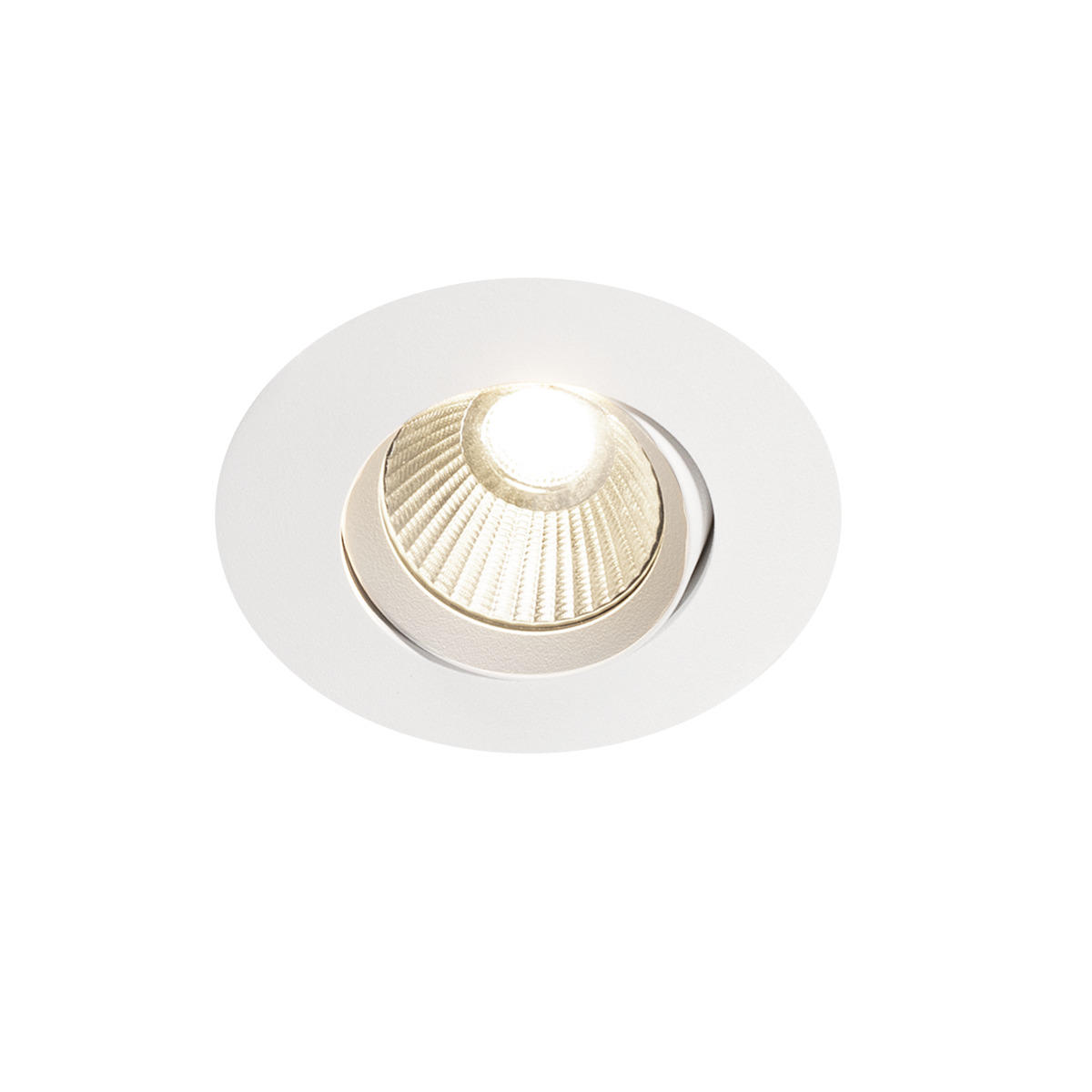

Optic G2 Quick ISO DALI

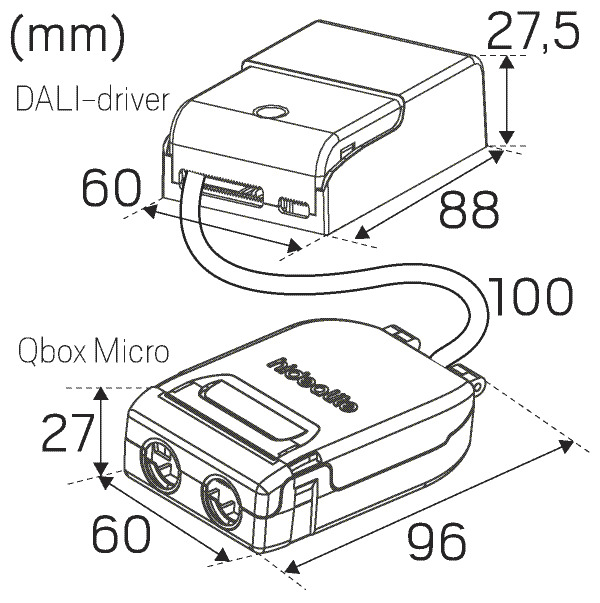

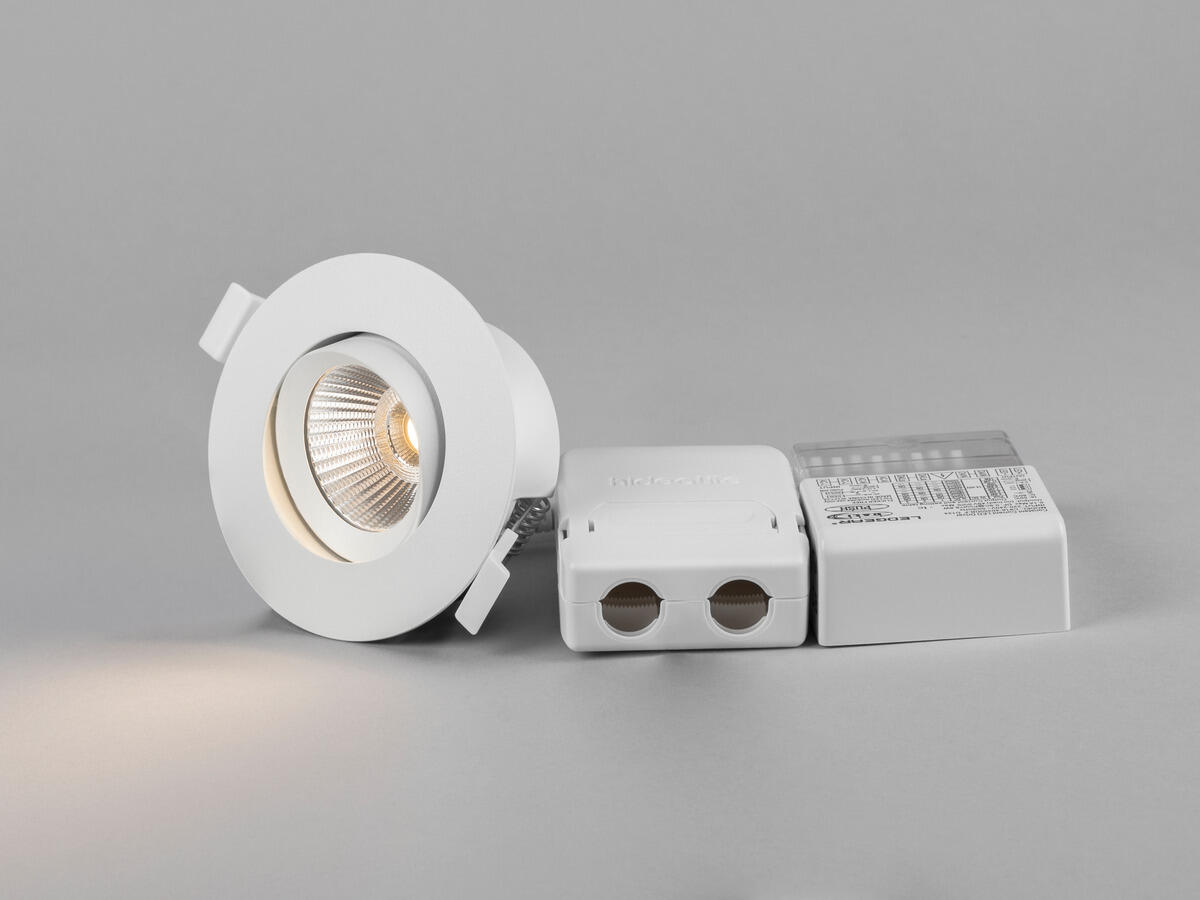

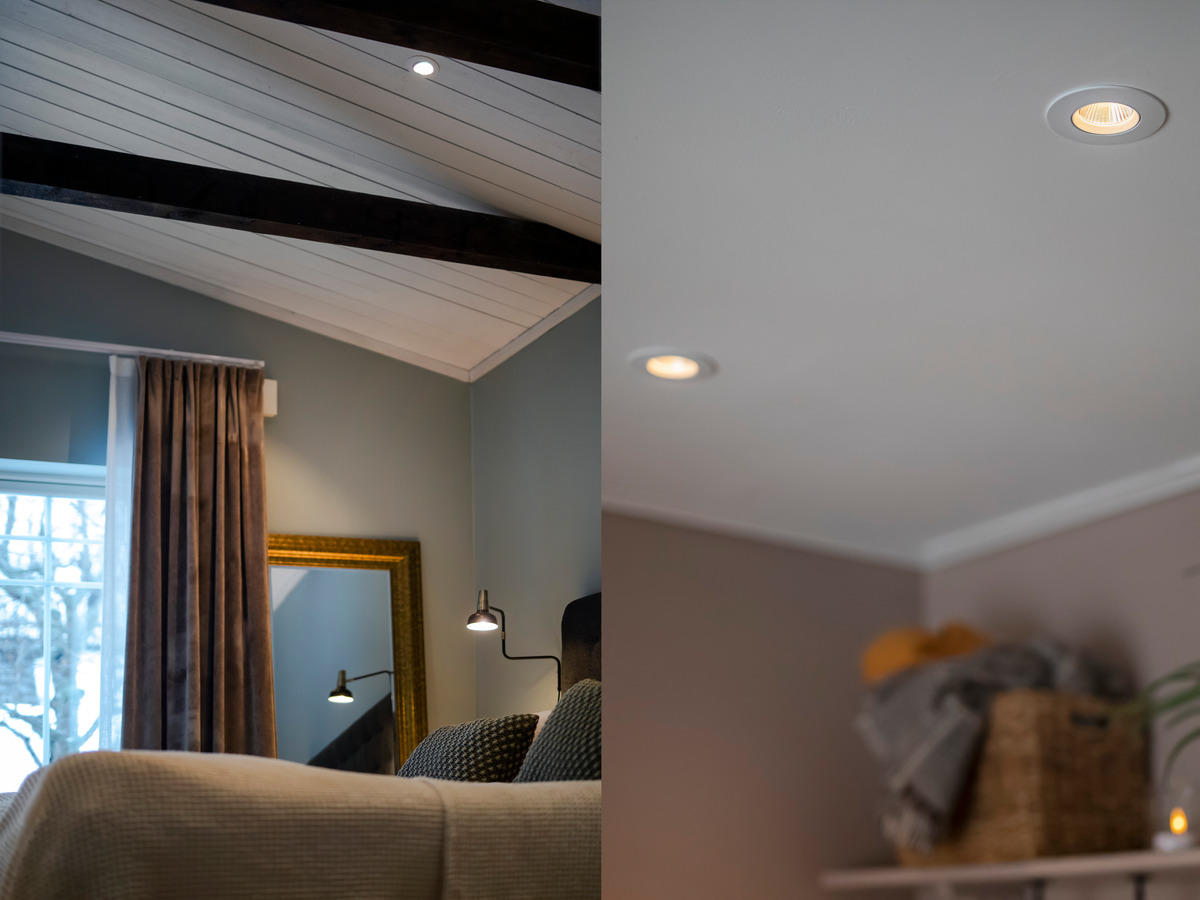

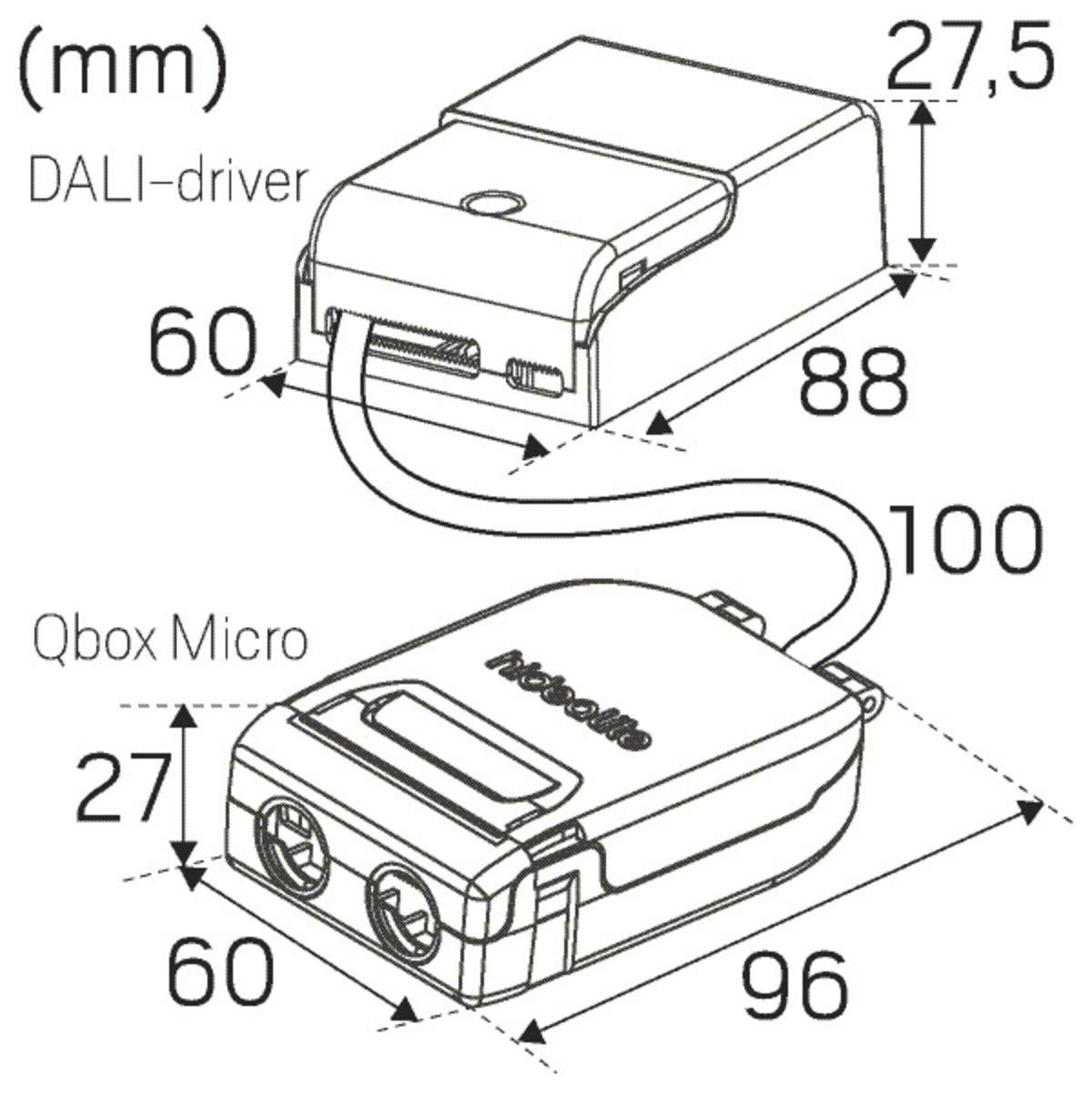

Downlight made for a sustainable future – easily dismantled via a module system to save time when recycling. Low-build and adapted for installation in 28mm secondary spaced boarding directly against insulation. Modern LED and reflector technology with good glare-free light distribution and high lumen output. Tiltable 30°, which also makes it the perfect choice for sloping ceilings. Very good colour rendering, Ra>95. Driver comes together with Q-Box Micro, which can be adapted for cable or flex hose 16mm without any tools. Comes with 3-pole push-in terminal for through wiring and strain relief. Suitable for 45mm secondary spaced boarding and hole size 83 mm. The driver is also equipped with DIP-switch so you can adjust to the desired lumen output without any tools. Dimmable with most common dimmers on the market.
Exists in one color

Variants

GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
Optic G2 Quick ISO DALI White Tune 7392971146768 Optic G2 Quick ISO DALI White Tune 3000 350
Optic G2 Quick ISO DALI White 2700K 7392971146775 Optic G2 Quick ISO DALI White 2700K 2700 470
Optic G2 Quick ISO DALI White 3000K 7392971146782 Optic G2 Quick ISO DALI White 3000K 3000 500

Optic G2 Quick ISO DALI White Tune

Description
GTIN 7392971146768
Item Name Optic G2 Quick ISO DALI White Tune
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Replaceable LED by professional, Replaceable Control gear by professional
LED Colour Tune
Colour Temperature (K) 3000
Range Colour Temperature (K) Tune 2000-3000
Colour Rendering Index (Ra) >95
Colour Consistency (SDCM) 3
Initial Chromaticity x: 0.4419 y: 0.4044
Luminous Intensity (cd) 550
Luminaire Lumen (lm) 350
Beam Angle (°) 36
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L90
Lumen maintenance 75 000h L86
Lumen maintenance 100 000h L82
LLMF @ 50 000h 0,9
LLMF @ 100 000h 0,82
Life Time Driver 50 000h/10%
Technical data
Adjustable Yes
Tiltable (°) 30
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 4,8
Power Luminaire (W) 6
System Power (W) 6
Efficiency Luminaire (lm/W) 58
Efficiency System (lm/W) 58
Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone
Driver Manufacturer Hide-a-lite
Connection (type) Quick Terminal
Connection (mm2) 5x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,9
Efficiency (%) 78
Power loss (W) 1,2
Leakage current (mA) (at 230 V, 50 Hz, full load) 2
THD (%) 20
Constant Current (mA) 270
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Push 230V, DALI 2
Dimming secondary side AM
Memory Function Power Failure No
Inrush current (max/time) 16A 20µs
Fuse B10 (pcs) 65
Fuse B16 (pcs) 104
Fuse C10 (pcs) 75
Fuse C16 (pcs) 120
Color and material
Color White
Measurement and installation
Operating Environment Indoor / bathroom (ceiling area 1), Outdoor
IP Degree of Protection 44
Protection Class II
Installation Built-in
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 3-26
Fire Safety Marks Approved for installation against insulation
Approval Marks CE, a Hide-a-lite Choice

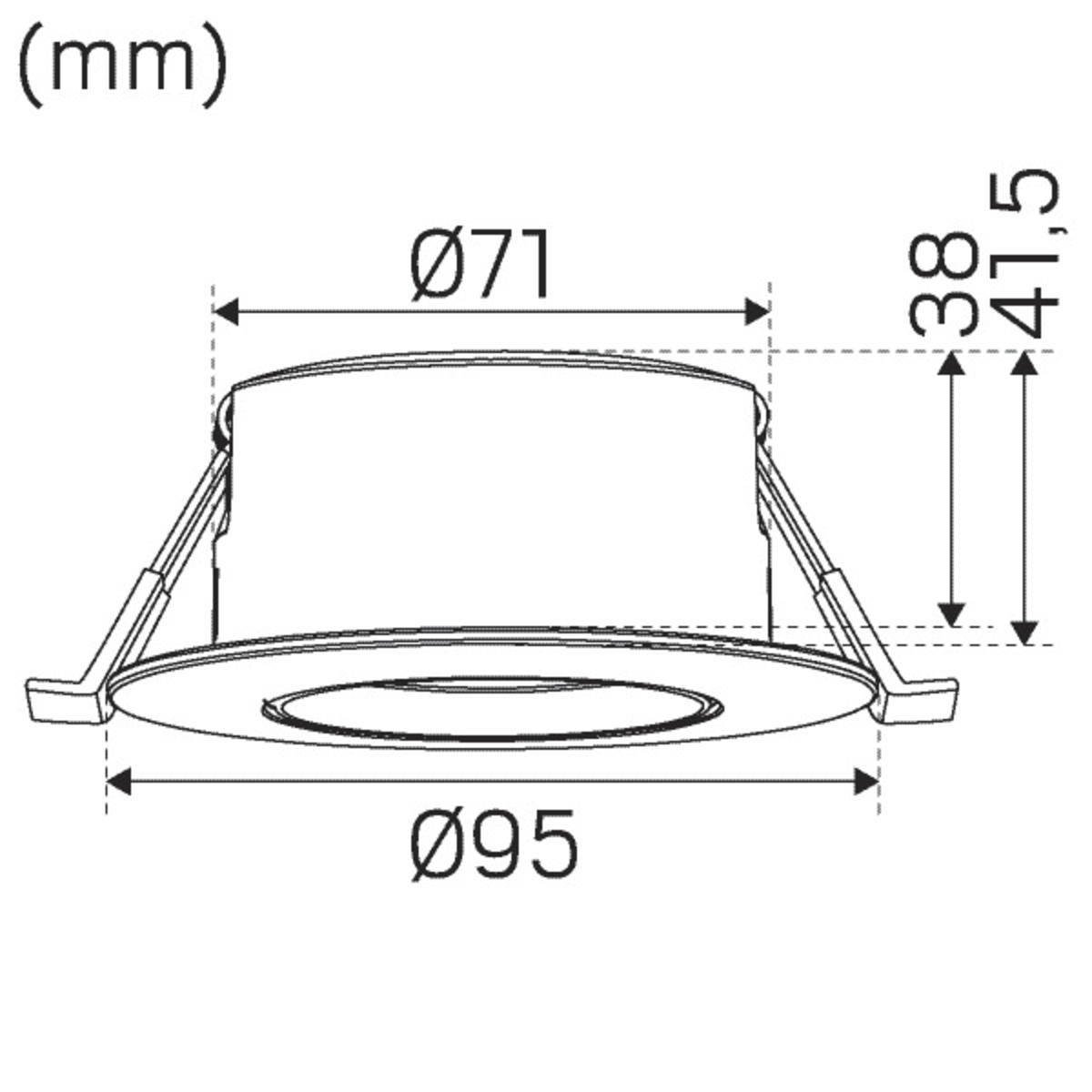

Height (mm) 41
Diameter (mm) 95
Weight (kg) 0,26
Min. Built-in (mm) 170x120x38
Min. Air Volume (cm3) 4400
Height Recessed Part (mm) 38
Height Exterior Part (mm) 3
Built-in Ø (mm) 83-85
