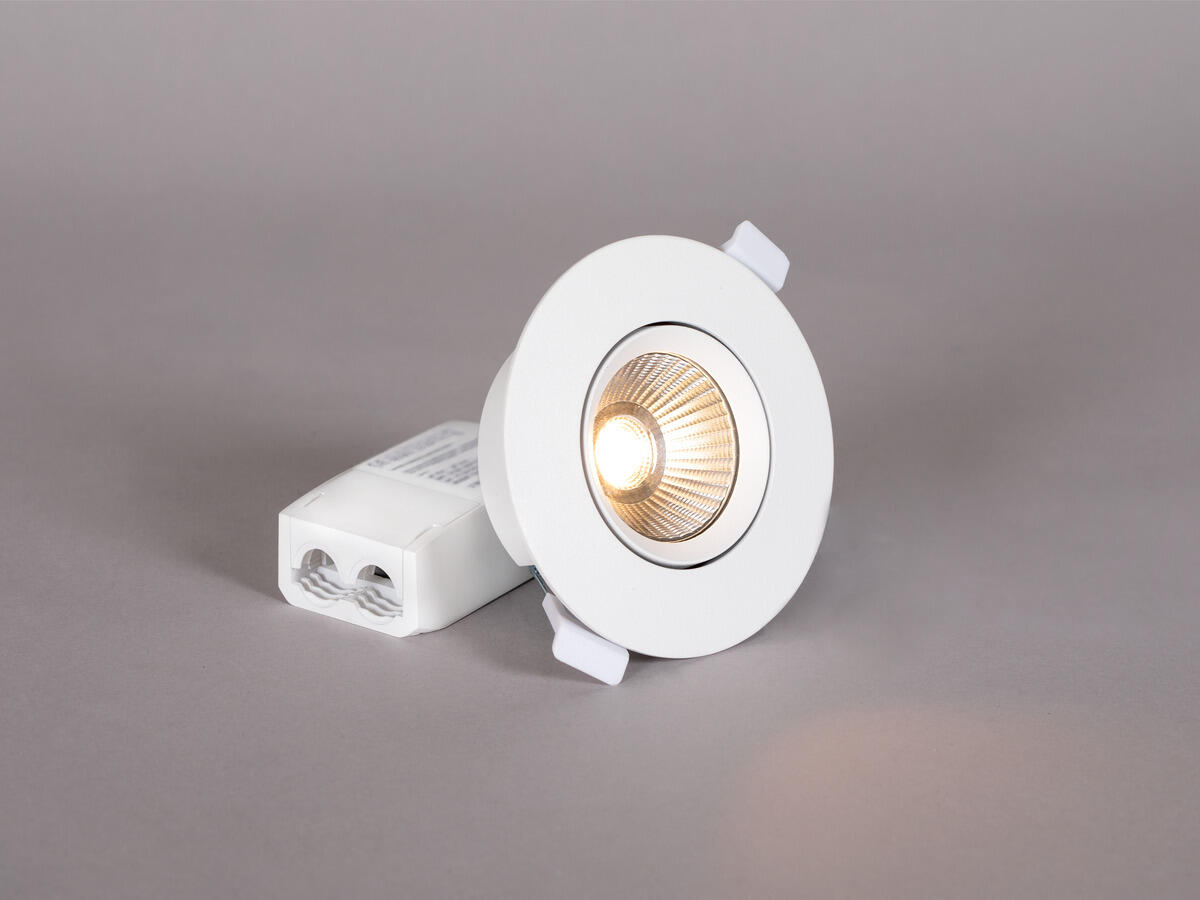

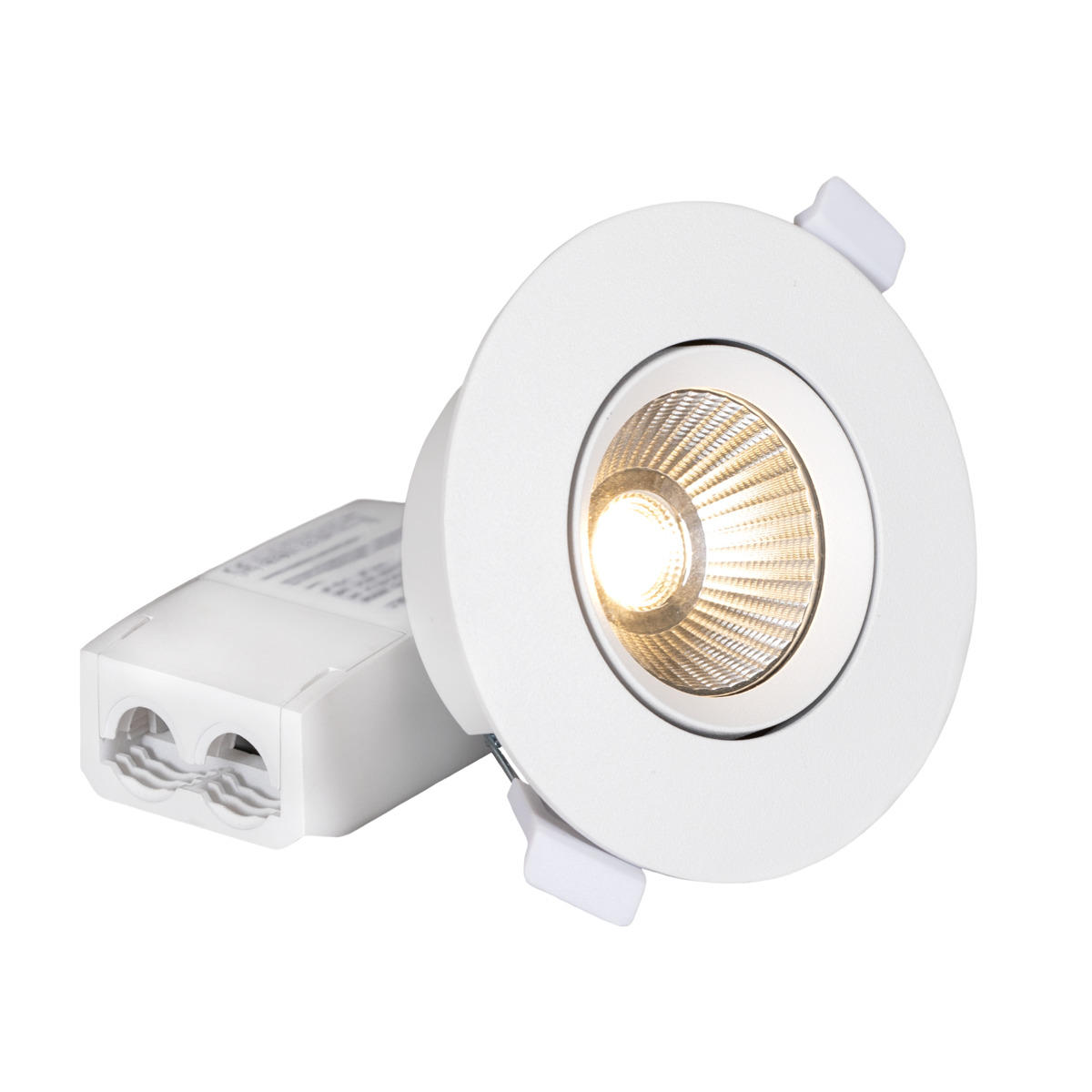

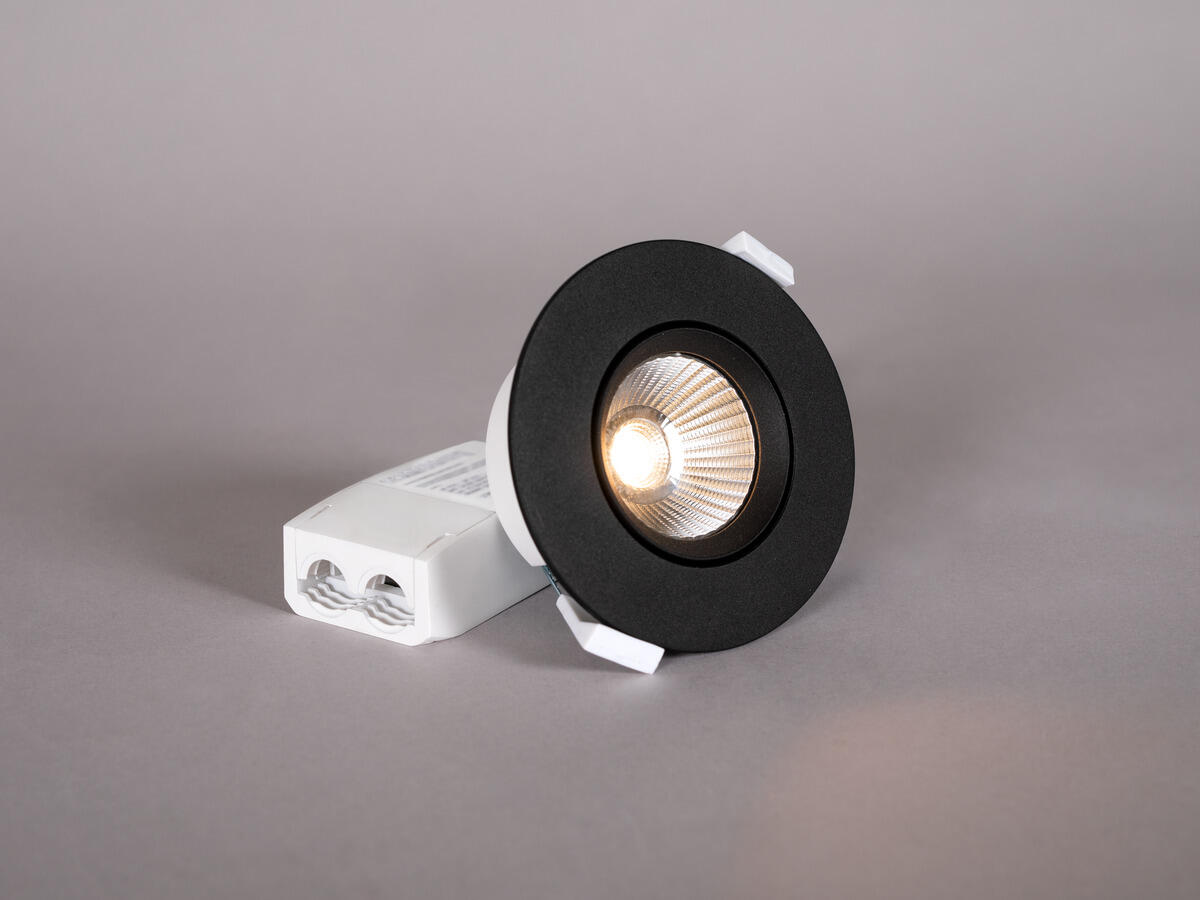

Low-build, effective and tiltable downlight, made for installation in 28mm secondary spaced boarding and approved for installation directly against insulation. Modern LED and reflector technology for a high luminous efficacy with distinct and glare-free light distribution with very good colour rendering, Ra>95. An easily installed IP44 luminaire, complete with a phase dimmable driver, 3-pole push-in terminal for through wiring and strain relief for cable or flex hose 16 mm. Dimmable with most common dimmers on the market.
GTIN7392971141374 Item NameOptic L Quick ISO White Tune Warranty5 years
Light Technical Data
Light SourceLED Light Source IncludedYes ReplaceabilityNon-replaceaable LED, Replaceable Control gear by professional LED ColourTune Colour Temperature (K)2700 Range Colour Temperature (K)Tune 2000-2700 Colour Rendering Index (Ra)>95 Colour Consistency (SDCM)3 Initial Chromaticityx:0.4427 y:0.4051 Luminous Intensity (cd)780 Luminaire Lumen (lm)460 Beam Angle (°)36 Light sharingSymmetric Light OutletDirect Number of Lamps (pcs)1 Number of LED (pcs)1 Life TimeL80 100 000h Ta 25°C Nominel Life Time (h)100000 Lumen maintenance 50 000hL90 Lumen maintenance 75 000hL86 Lumen maintenance 100 000hL82 LLMF @ 50 000h0,9 LLMF @ 100 000h0,82 Life Time Driver50 000h/10%
AdjustableYes Tiltable (°)20 Voltage (type)AC Voltage Interval (V)220...240 Voltage Nominal (V)230 Line Frequency (Hz)50, 60 Power LED (W)6,5 Power Luminaire (W)7,5 System Power (W)7,5 Efficiency Luminaire (lm/W)61 Efficiency System (lm/W)61 Containing light source energy efficiency class (EU) 2019/2015F
Operation and Connection

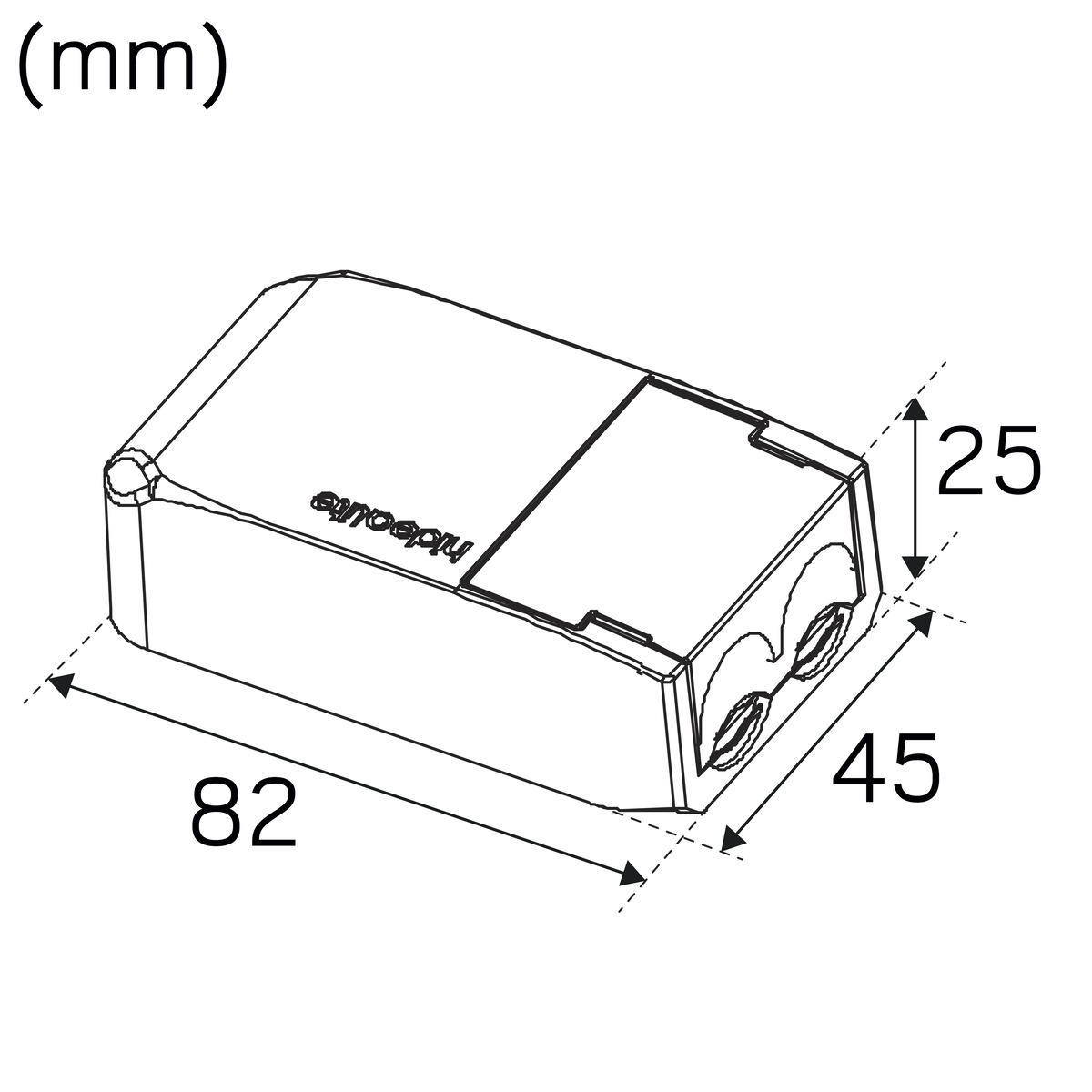

Driver IncludedYes Driver ModelConstant Current Driver TypeStand Alone Driver ManufacturerHide-a-lite Connection (type)Quick Terminal Connection (mm2)3x0,5-1,5 Through WiringYes Strain ReliefYes Power Factor ʎ0,85 Efficiency (%)86 Constant Current (mA)180 Operating Temperature-20…+40 Max. Tc (°C)85 DimmableYes Type of DimmingTrailing Edge, Leading Edge Dimming secondary sideAM Memory Function Power FailureNo Protection AgainstOverheating 90°C, Overload Fuse B10 (pcs)55 Fuse B16 (pcs)90 Fuse C10 (pcs)95 Fuse C16 (pcs)150

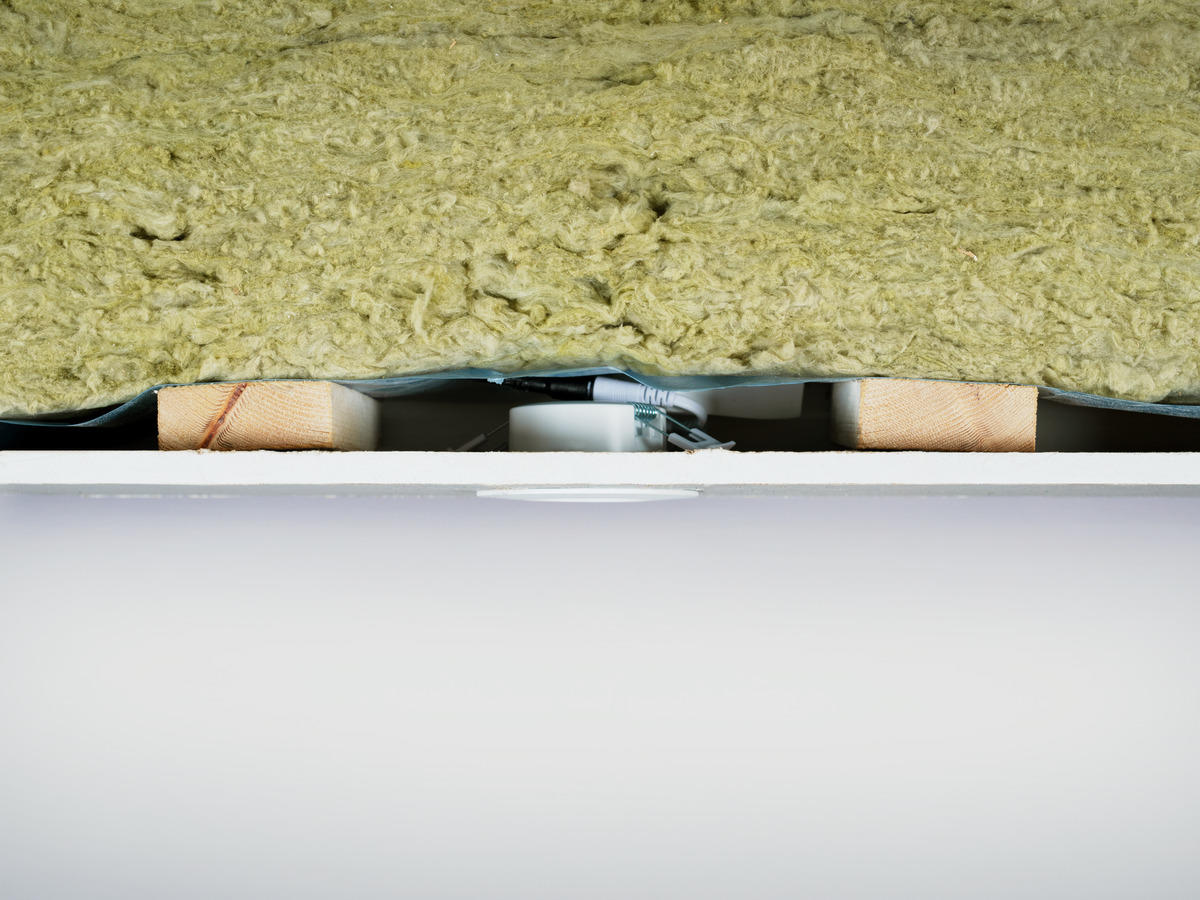

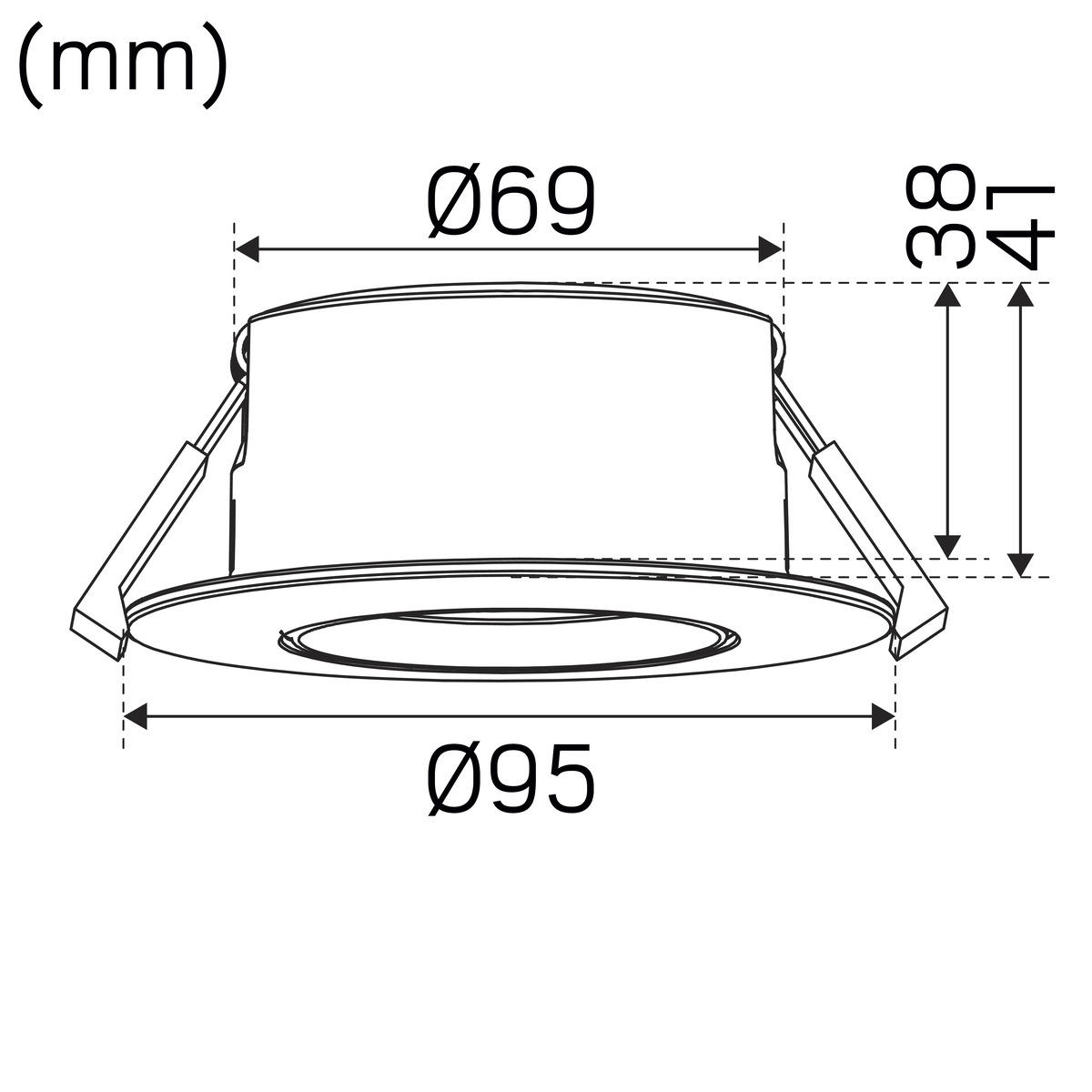

Operating EnvironmentIndoor / bathroom (ceiling area 1), Outdoor IP Degree of Protection44 Protection ClassII InstallationBuilt-in Mounting InstallationMounting Spring Ceiling Thickness Interval (mm)3-26 Fire Safety MarksApproved for installation against insulation Protection Cover7466700, 7466701, 7466702 Approval MarksCE, SELV Filament Test IEC 695-2-1(°C)650 Height (mm)41 Diameter (mm)95 Weight (kg)0,262 Min. Built-in (mm)170x120x38 Height Recessed Part (mm)38 Height Exterior Part (mm)3 Built-in Ø (mm)83-85
