Optic S Quick ISO Optic S Quick ISO White Tune

Can be installed both indoors and outdoors
Push-in, loop-in, loop-out terminal block and screwless strain relief

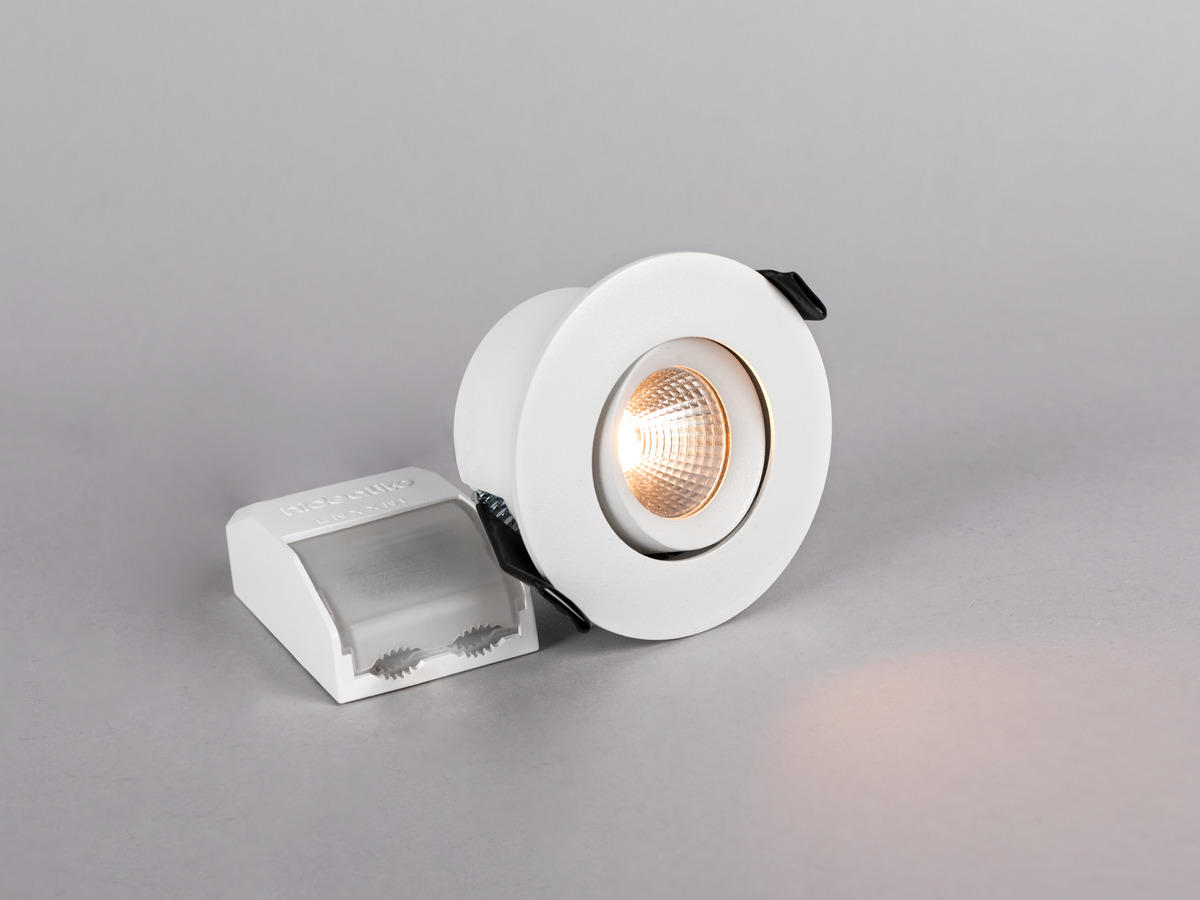

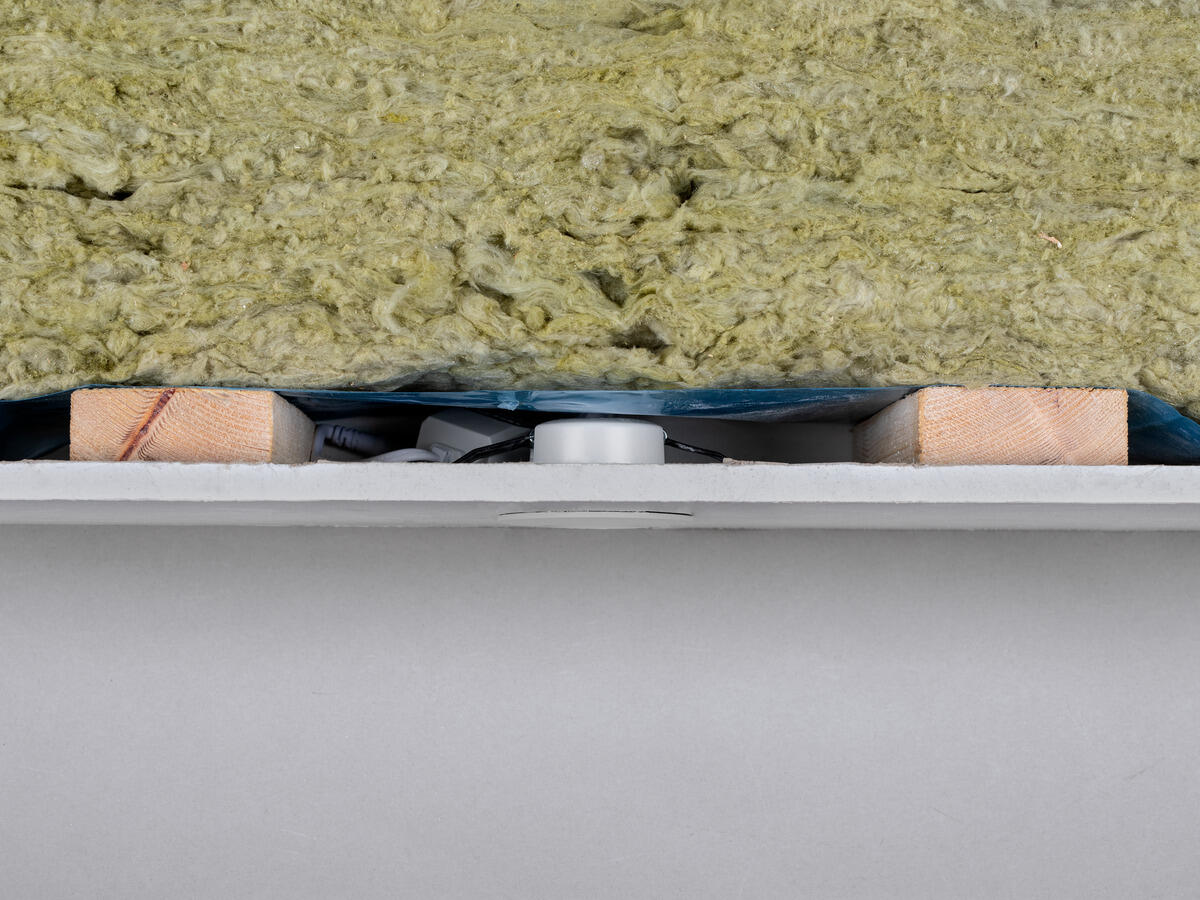

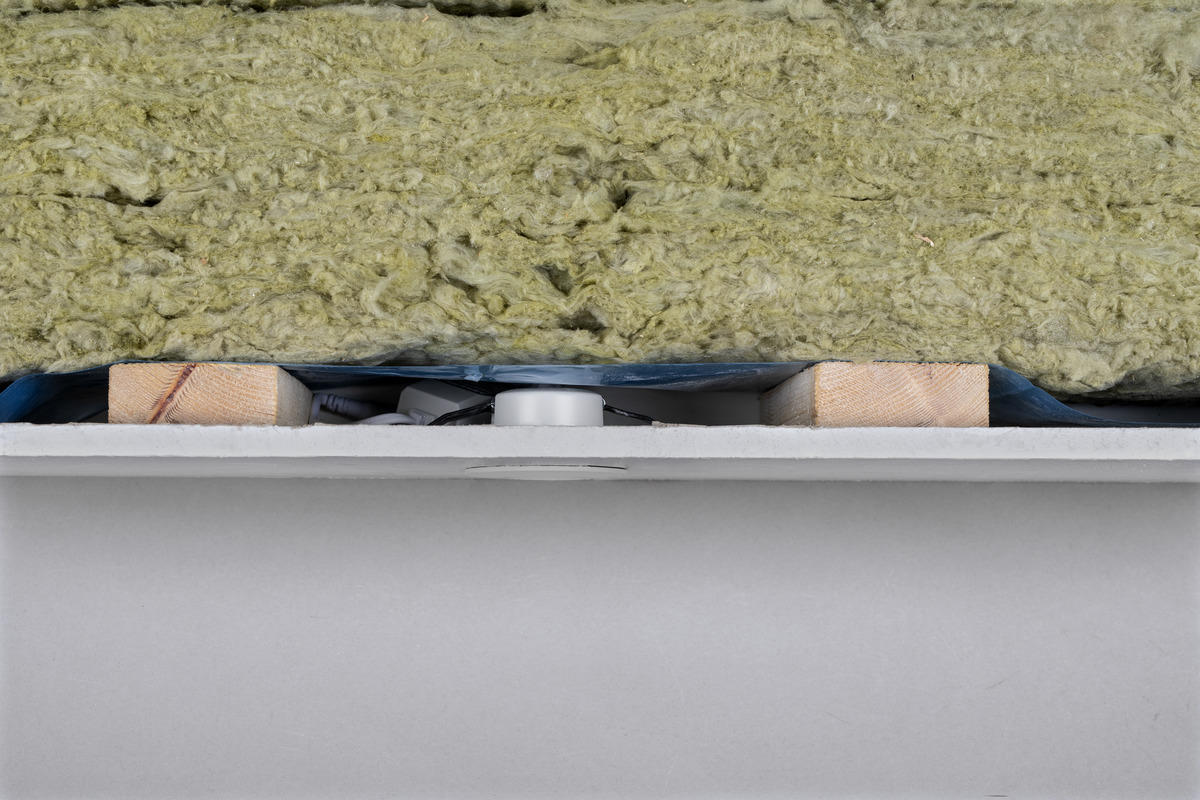

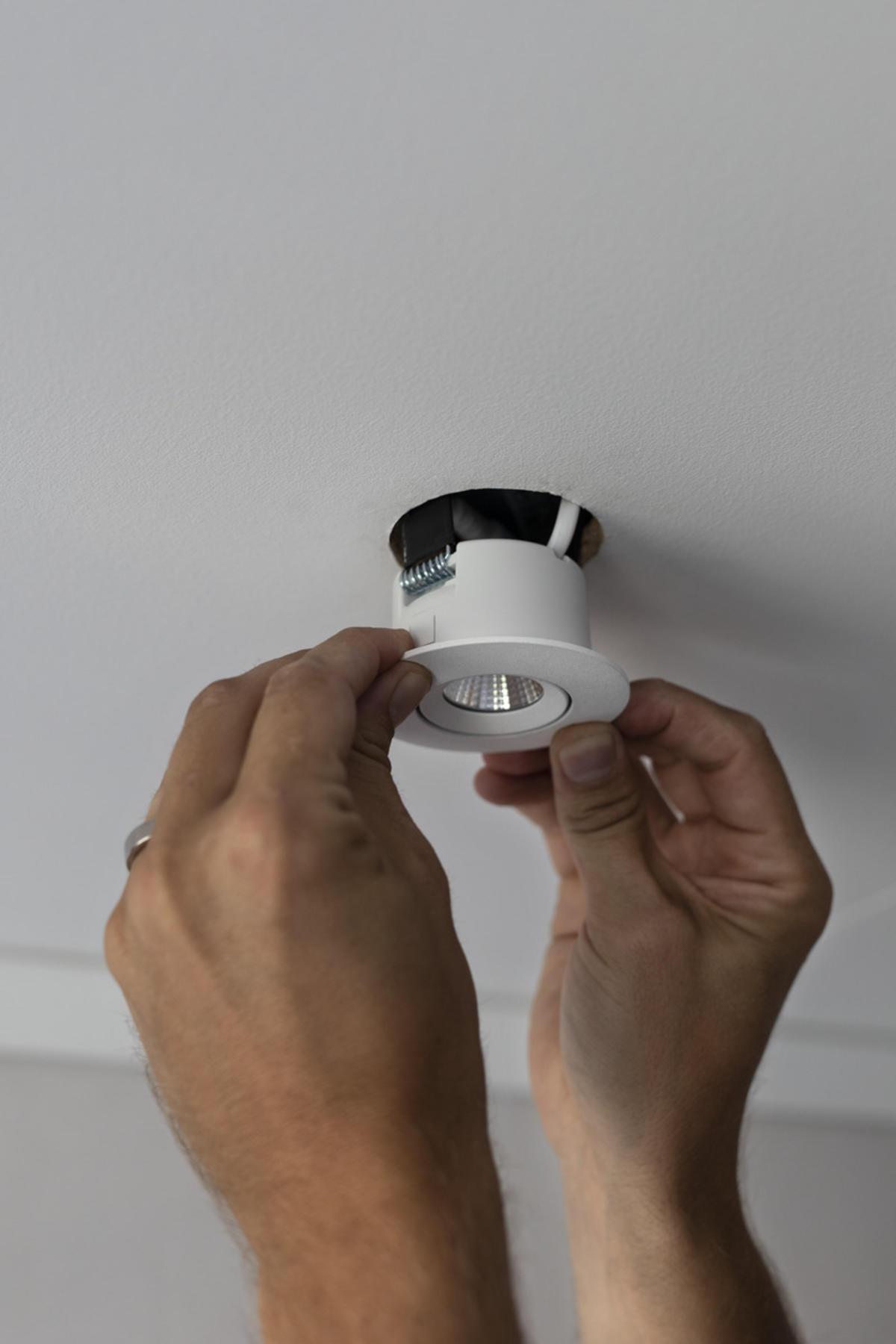

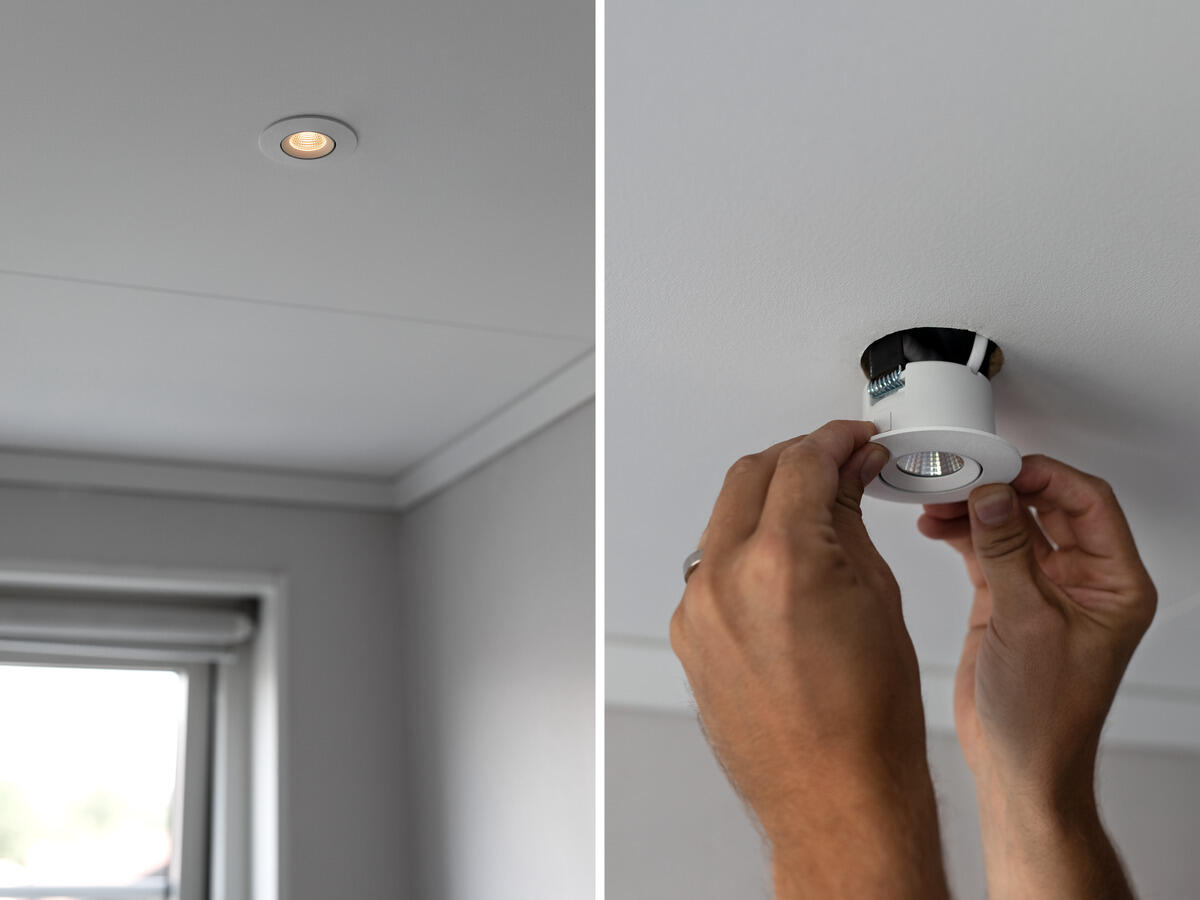

Low-build tiltable downlight, made for installation in 28mm secondary spaced boarding and approved for installation directly against insulation. Cut-out between 55-63mm – perfect replacement for old halogen fittings in renovation and maintenance work. Reflector technology, highly glare-free light distribution and extremely good colour rendering, Ra>95. IP44 rated for installation indoors or outdoors. Complete with phase dimmable driver, 3-pole push-in terminal for through wiring and screwless strain relief for cable or flex hose 230V. Dimmable with most common dimmers on the market.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971139890	Optic S Quick ISO White Tune	2700	230
7392971139906	Optic S Quick ISO White 2700K	2700	275
7392971139913	Optic S Quick ISO White 3000K	3000	290
7392971139920	Optic S Quick ISO White 4000K	4000	310

Description: GTIN 7392971139890

Item Name Optic S Quick ISO White Tune

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 230

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Tune

Colour Temperature (K) 2700

Range Colour Temperature (K) Tune 2000-2700

Colour Rendering Index (Ra) >95

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 450

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 75 000h L86

Lumen maintenance 100 000h L82

LLMF @ 50 000h 0,9

LLMF @ 100 000h 0,82

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,053

Stroboscopic effect (SVM) 0,058
Technical data: Tiltable (°) 20

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 3,3

Power Luminaire (W) 4,5

System Power (W) 4,5

Efficiency Luminaire (lm/W) 51

Efficiency System (lm/W) 51

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-1,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 73

Constant Current (mA) 180

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Fuse B10 (pcs) 100

Fuse B16 (pcs) 160

Fuse C10 (pcs) 165

Fuse C16 (pcs) 260
Color and material: Material Aluminium

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 44

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-26

Fire Safety Marks Approved for installation against insulation

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

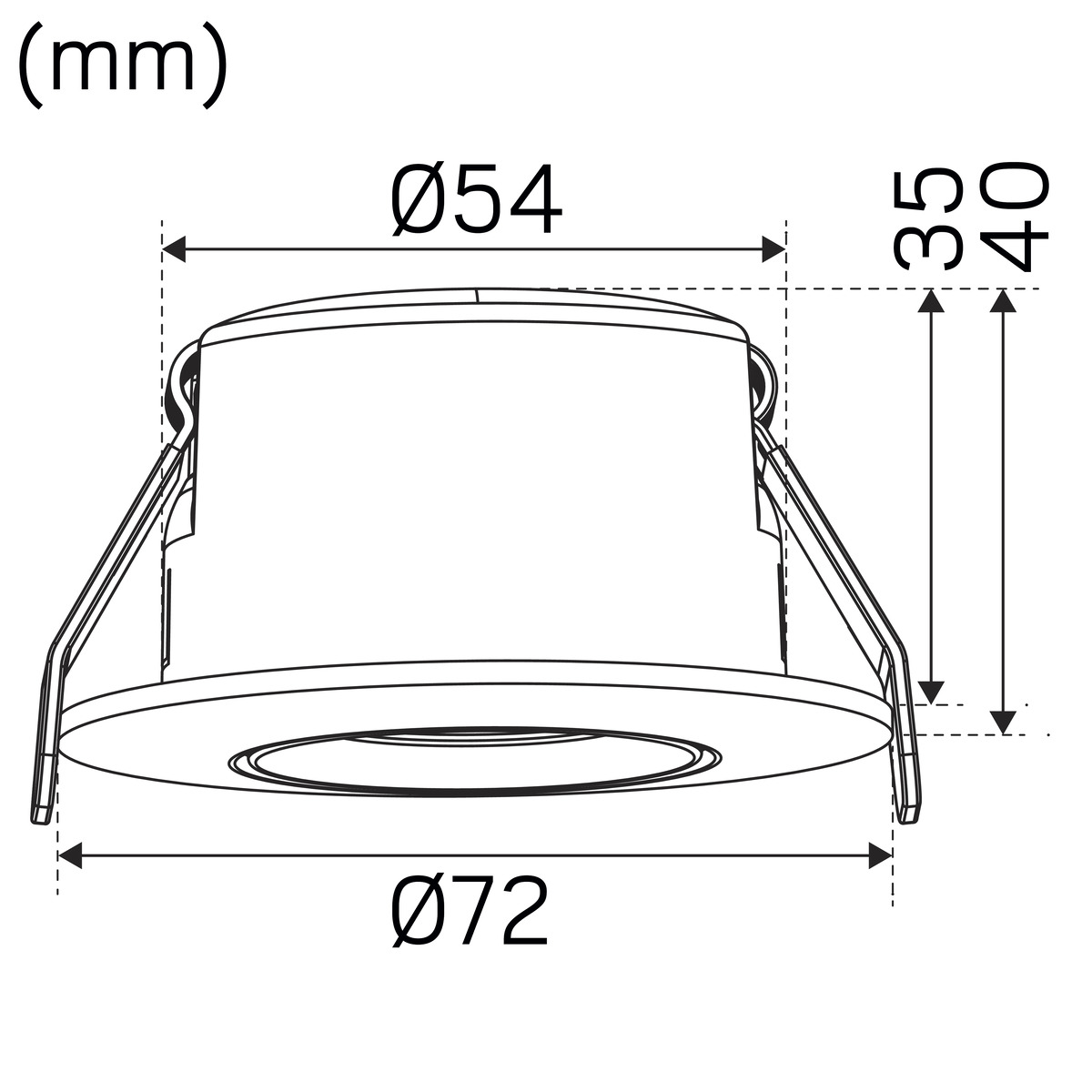

Height (mm) 39

Diameter (mm) 72

Weight (kg) 0,155

Min. Built-in (mm) 170x120x28

Height Recessed Part (mm) 35

Height Exterior Part (mm) 4

Built-in Ø (mm) 55-63

Spare parts

If you need spare parts, contact our customer support
