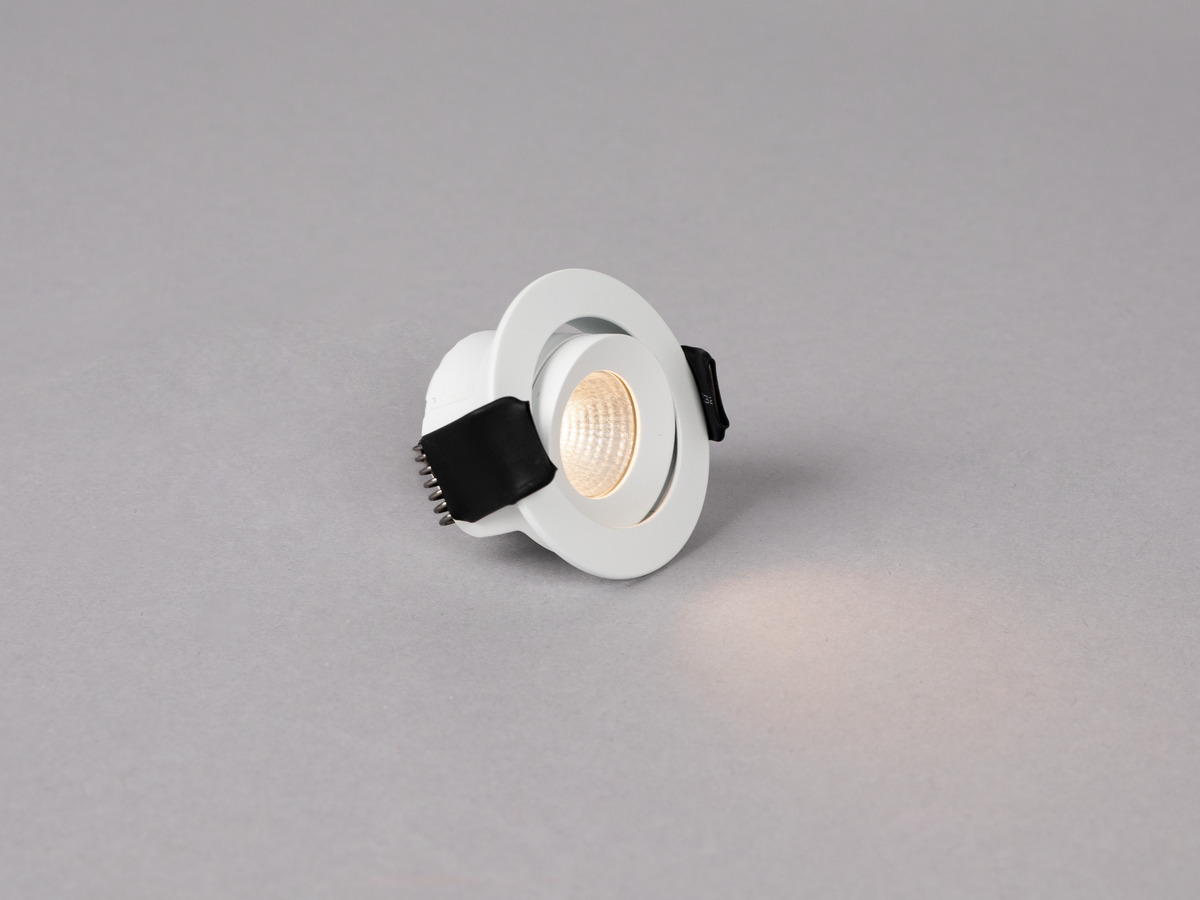

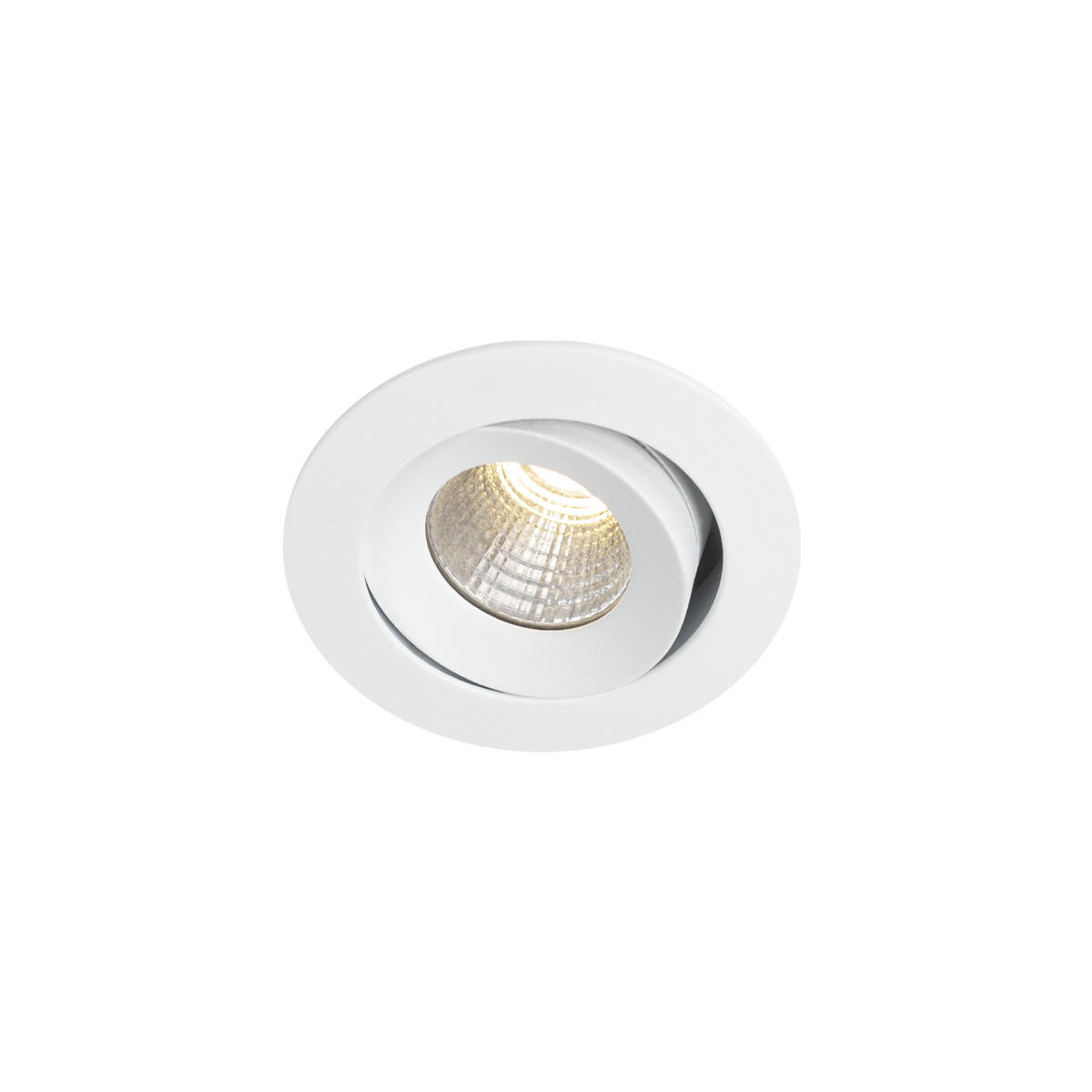

Optic XS Tilt

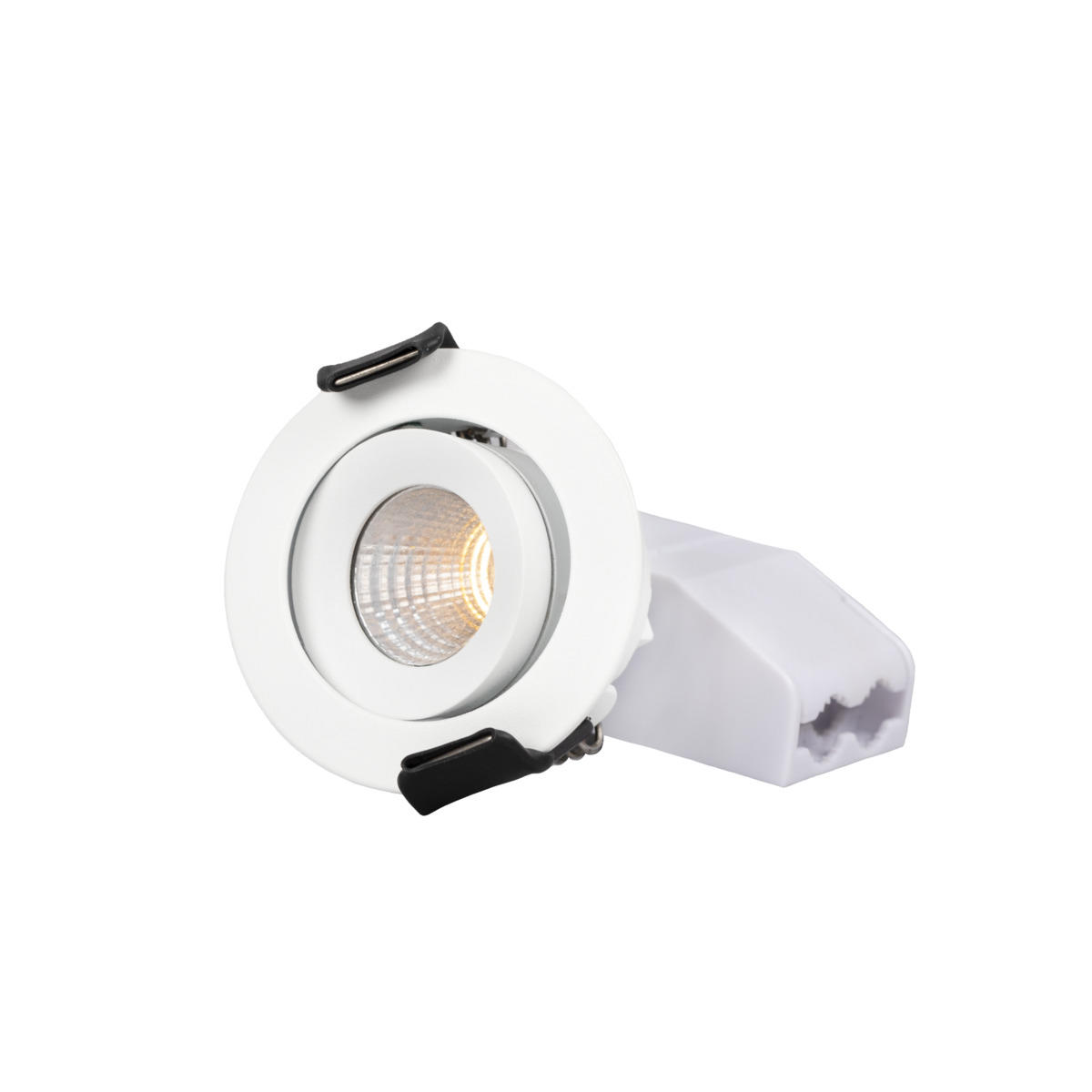

Exclusive small tiltable accent luminaire with well-developed reflector technology. Gives a discrete and glare free light with very good colour rendering, Ra>95. Small and low-build – perfect for secondary spaced boarding 28mm with 13mm gypsum. Beautiful as accent lighting solo or in group when directed lighting is desired. Complete with small mains dimmable driver, push-in, loop-in, loop-out terminals and screwless strain relief for easy installation. Dimmable with the most commonly available dimmers on the market.
Exists in one color

Variants

GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
Optic XS Tilt White 3000K 7392971135892 Optic XS Tilt White 3000K 3000 230
Optic XS Tilt White Tune 7392971135878 Optic XS Tilt White Tune 2700 205
Optic XS Tilt White 2700K 7392971135885 Optic XS Tilt White 2700K 2700 230

Optic XS Tilt White 3000K A+

Description
GTIN 7392971135892
Item Name Optic XS Tilt White 3000K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included (type) LED not exchangeable
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >95
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 370
Luminaire Lumen (lm) 230
Beam Angle (°) 45
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L90 100 000h Ta 25°C
Nominel Life Time (h) 100 000
Life Time Driver 50 000h/10%
Technical data
Adjustable Yes
Tiltable (°) 20
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Voltage Forward (Vf) 14
Power LED (W) 3
Power Luminaire (W) 4
System Power (W) 4
Efficiency Luminaire (lm/W) 58
Efficiency System (lm/W) 58
Energy Efficiency Class A+
Operation and Connection

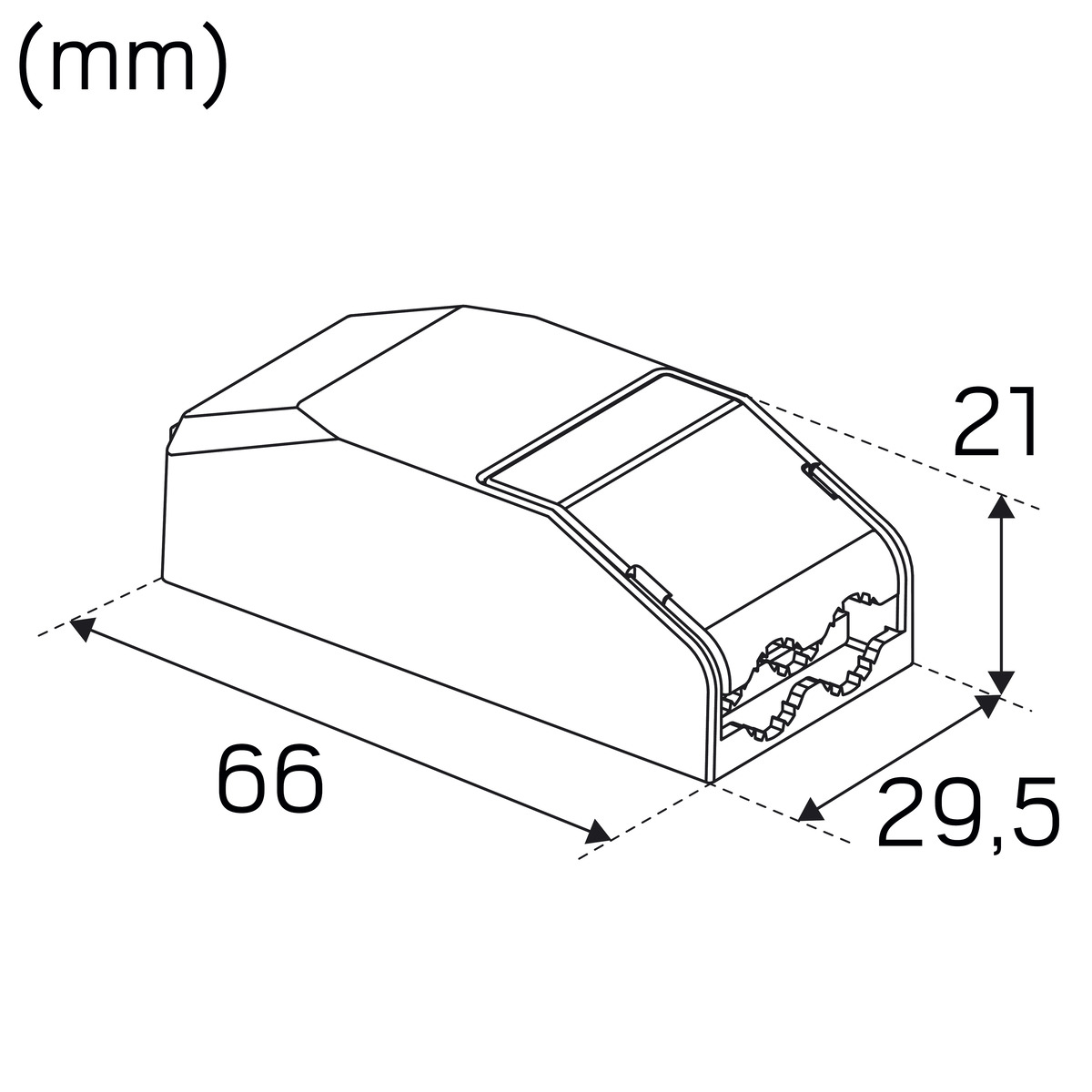

Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-1,5
Through Wiring Yes
Strain Relief Yes
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Fuse B10 (pcs) 75
Fuse B16 (pcs) 100
Fuse C10 (pcs) 100
Fuse C16 (pcs) 125
Color and material
Color White
Color Code (RAL) 9016
Halogen free Yes
Measurement and installation
Operation Environment Indoor
IP Degree of Protection 44
Installation Built-in
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 3-13
Fire Safety Marks Not in insulation without protection cover
Protection Cover 7466700, 7466701, 7466702
Approval Marks CE, SELV
Protection Class II

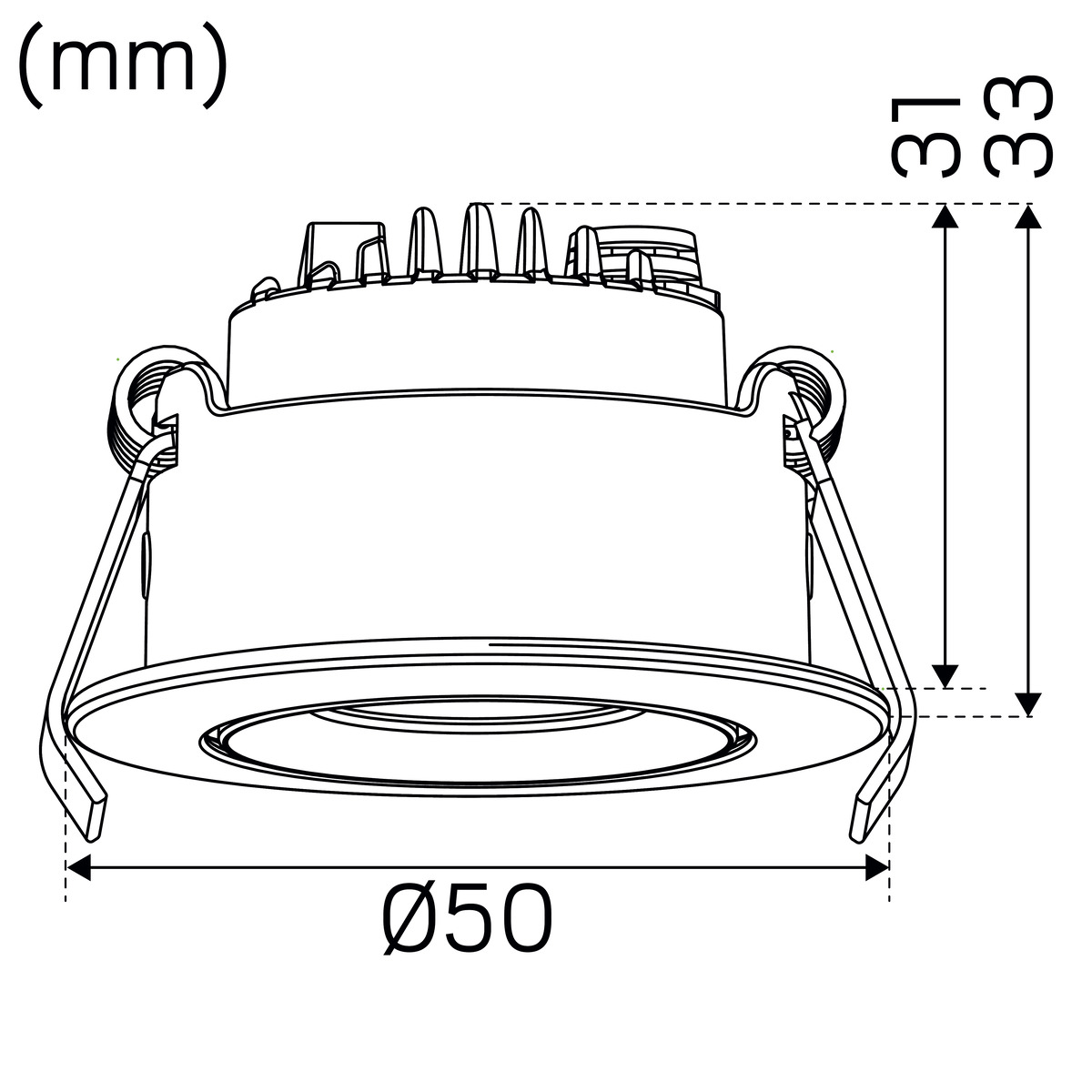

Height (mm) 33
Diameter (mm) 50
Weight (kg) 0,1
Min. Built-in (mm) 200x230x28
Min. Air Volume (cm3) 1300
Height Recessed Part (mm) 31
Height Exterior Part (mm) 2
Min. Built-in (Ø mm) 44
Max. Built-in (Ø mm) 47
