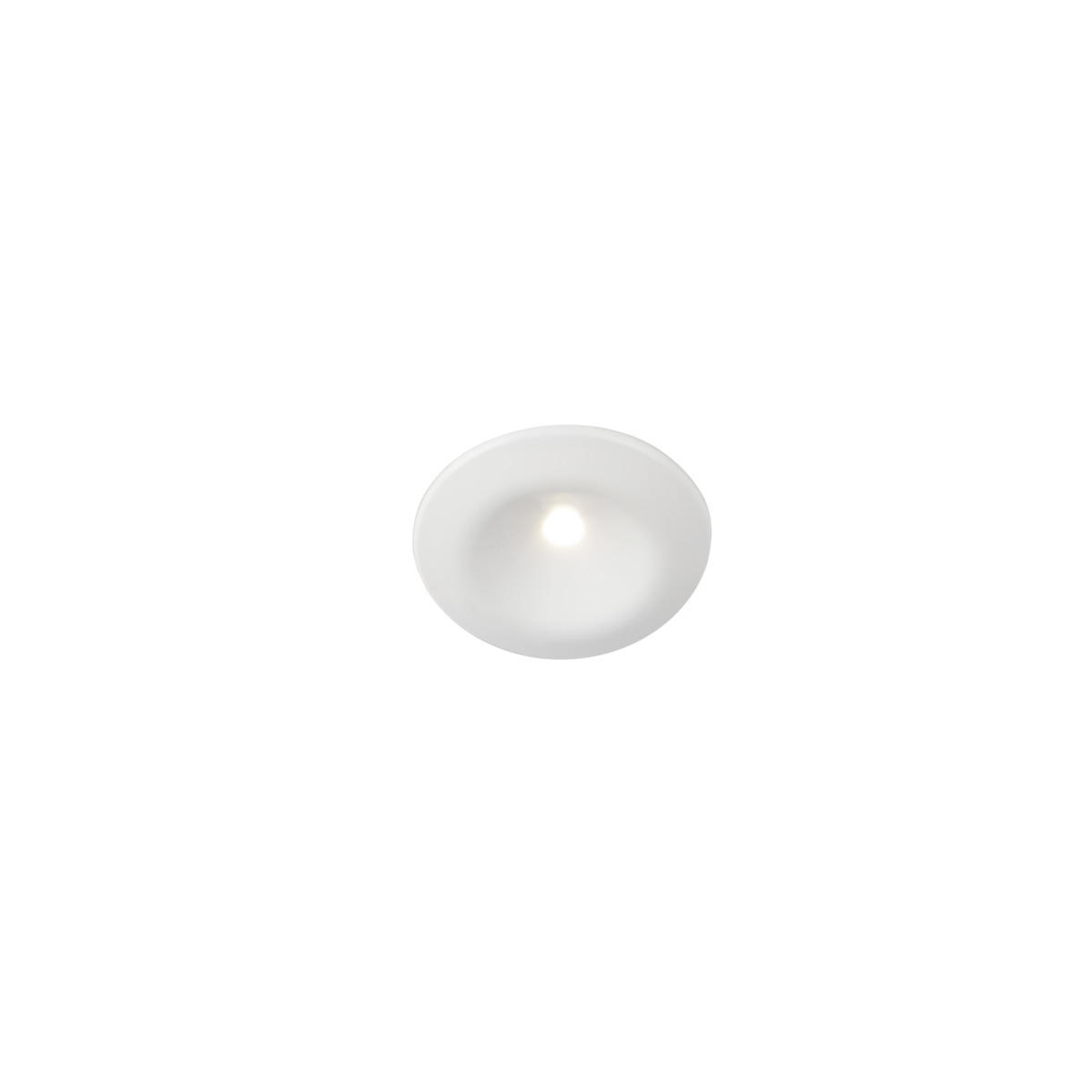

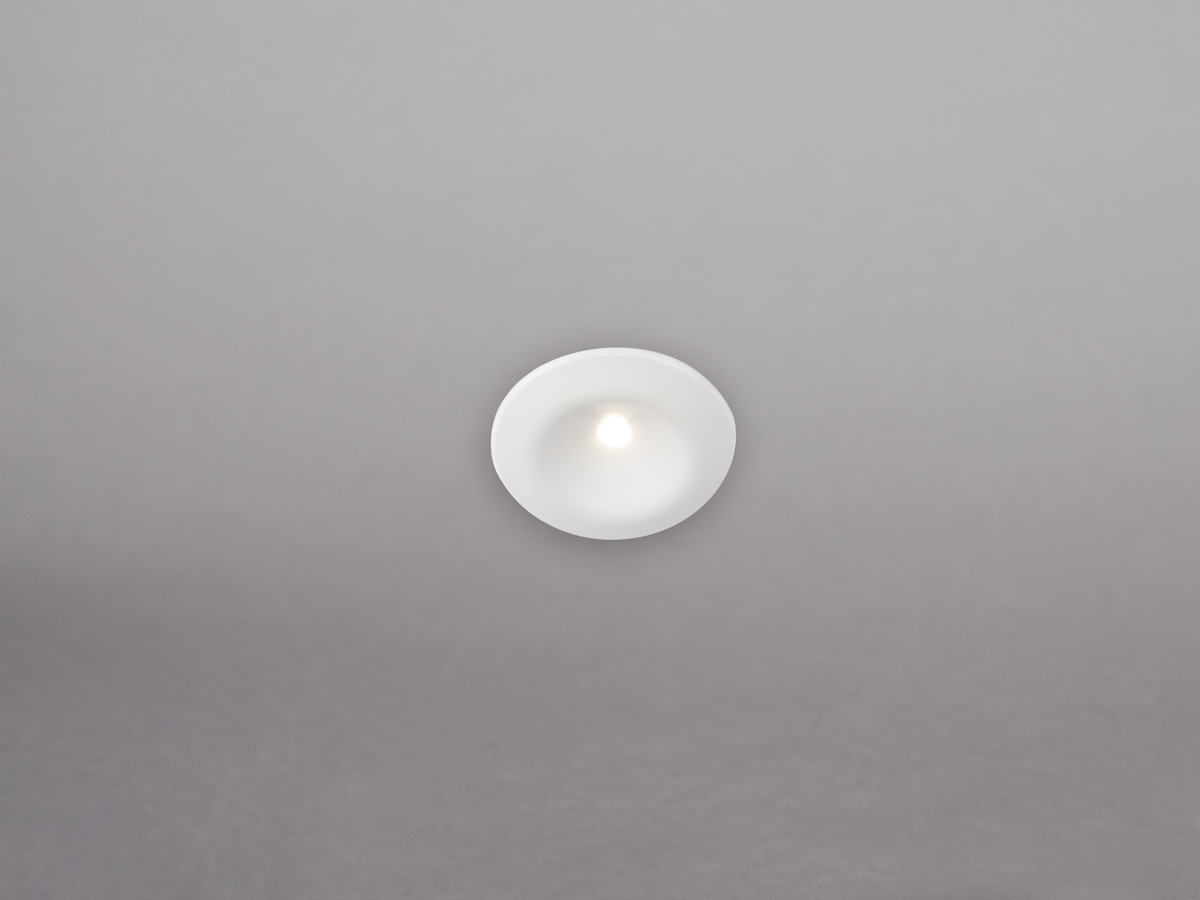

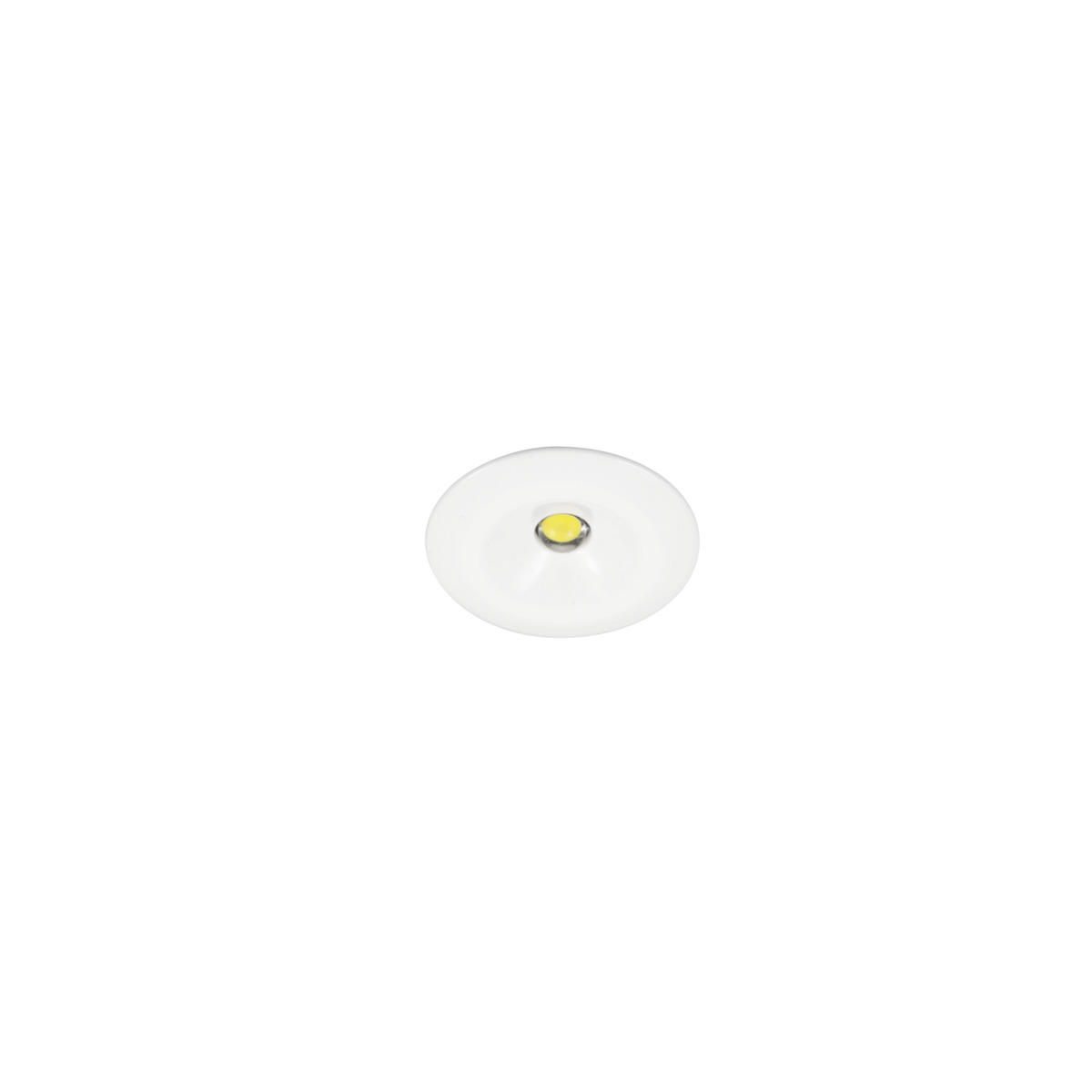

Spot Mini

Small modern LED spot with 1.2W/350mA Power LED with 120° light distribution for recessed installation in shelves, cabinets, window nooks and kitchen counters. Low energy consumption and long life make it a very good and environmentally friendly alternative to traditional halogen lighting. Drivers ordered separately and are available with or without dimming possibility. Including 0.3 m cable with AMP quick connection.
Exists in one color
GTIN 7392971105734
Item Name Spot Mini White 3000K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >85
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 15
Luminaire Lumen (lm) 70
Beam Angle (°) 120
Life Time L70 30 000h Ta 25°C
Nominel Life Time (h) 30000
Technical data
Adjustable No
Power LED (W) 1,2
Power Luminaire (W) 1,2
Operation and Connection
Driver Included No
Driver Model Constant Current
Connection (type) AMP Contact
Constant Current (mA) 350
Dimmable Yes
Color and material
Material Plastic
Color White
Measurement and installation
Operating Environment Indoor / damp locations
IP Degree of Protection 21
Protection Class III
Installation Built-in
Mounting Installation Press Fit
Ceiling Thickness Interval (mm) 2
Fire Safety Marks Not in insulation without protection cover
Approval Marks CE
Height (mm) 11
Diameter (mm) 32
Weight (kg) 0,014
Min. Built-in (mm) Ø24x8
Height Recessed Part (mm) 8
Height Exterior Part (mm) 3
Built-in Ø (mm) 24
