Converter DALI
Converter DALI
Converter DALI
Converter DALI

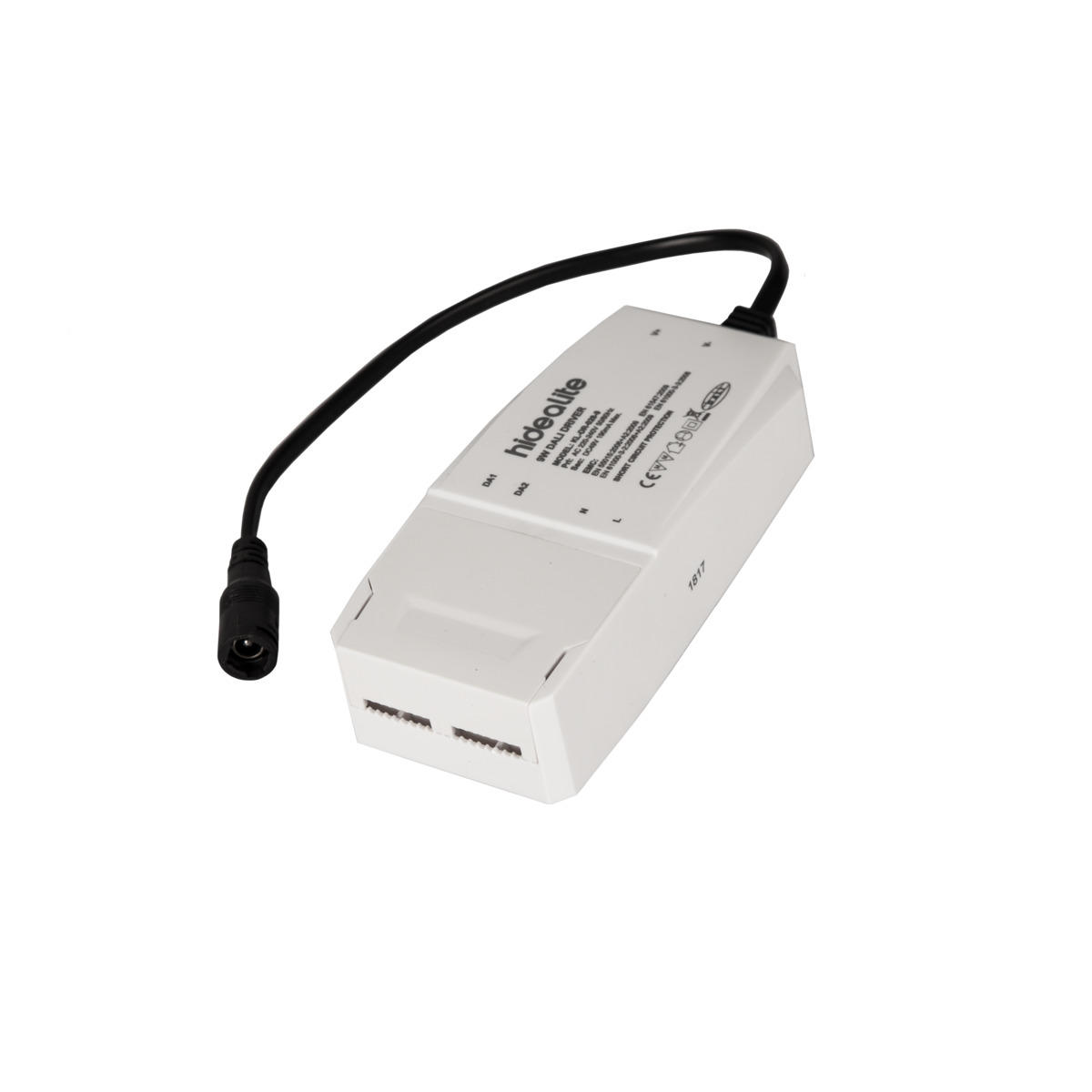

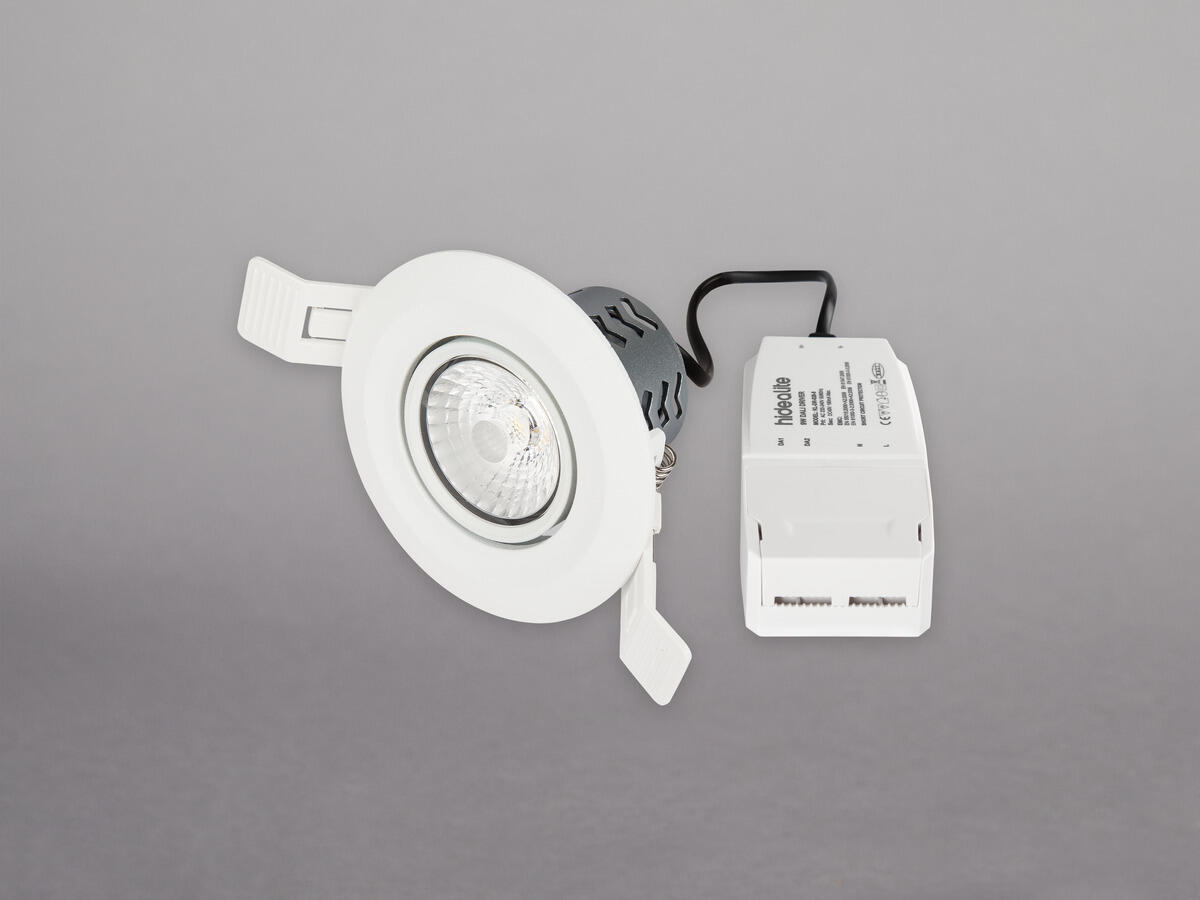

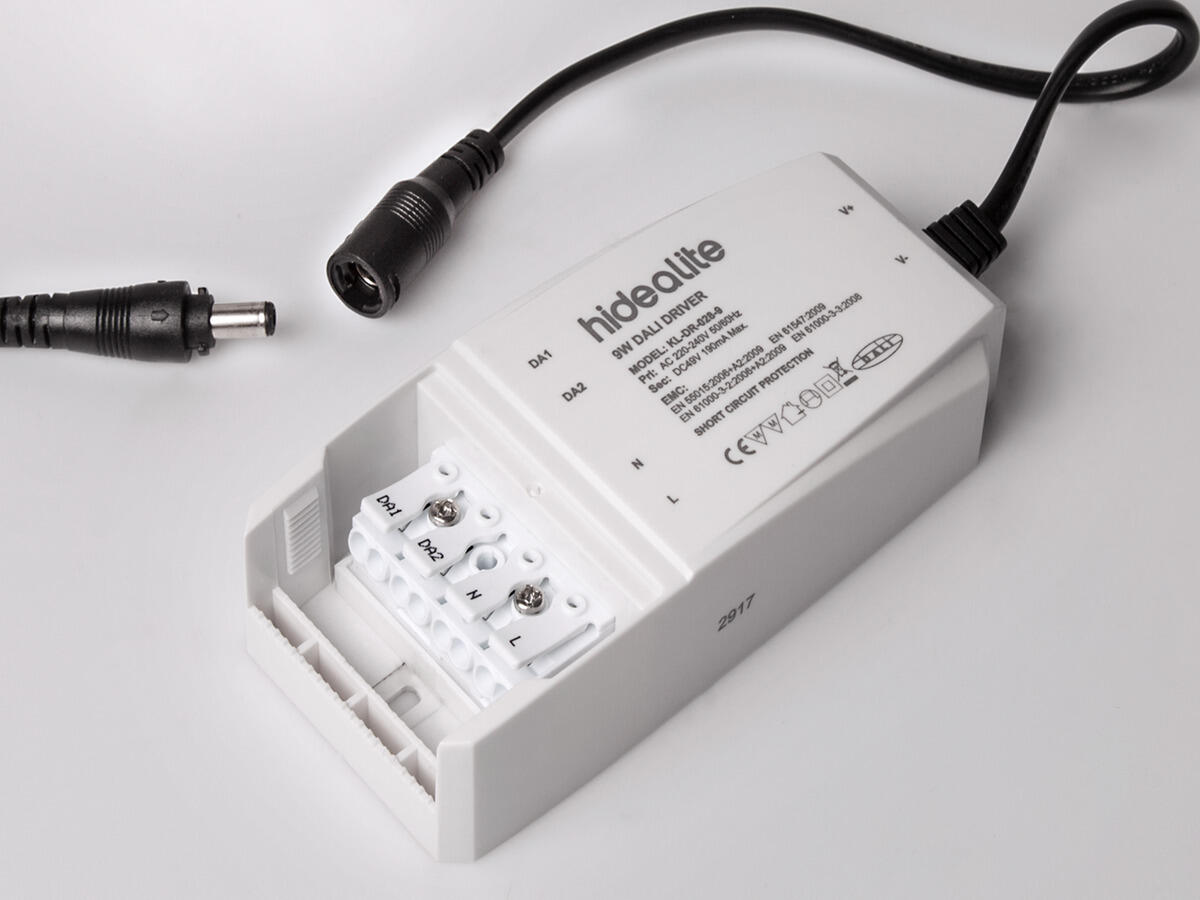

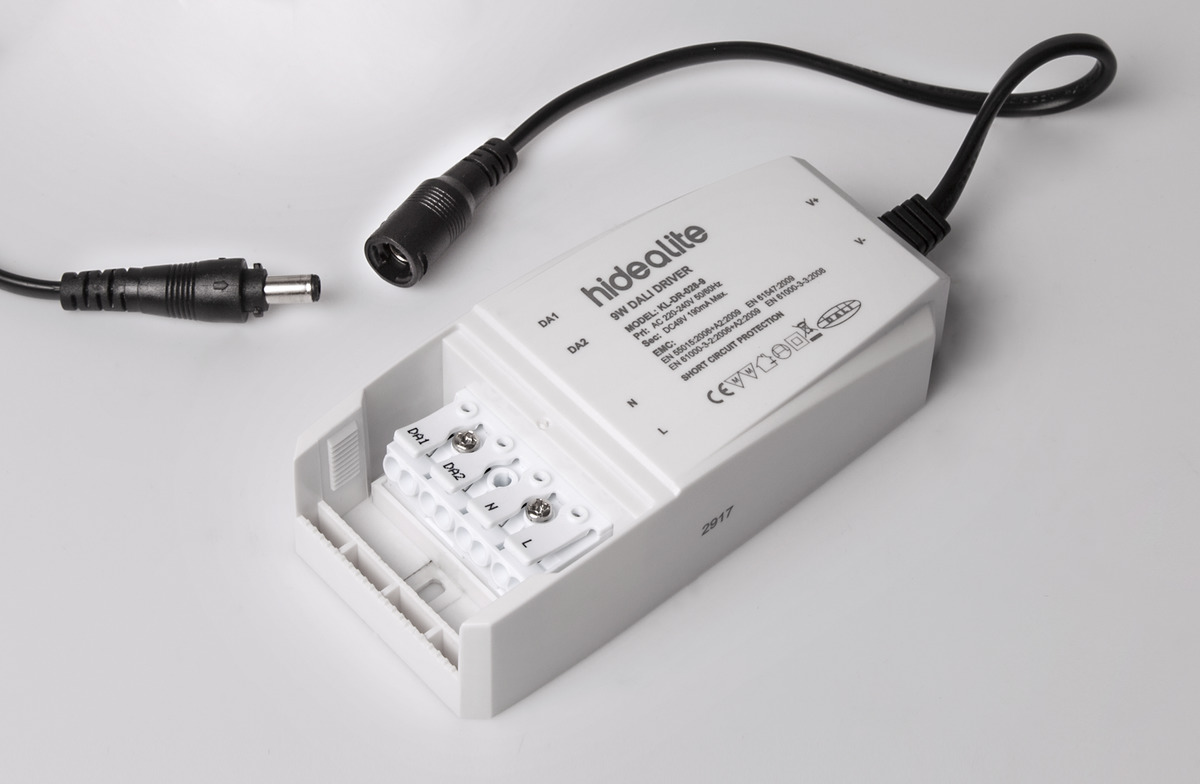

DALI converter for constant current luminaires. The primary side has push-in, loop-in, loop-out terminals and screwless strain relief for cables. Secondary side has prepared wires with phono connectors.
Exists in one color

Variants

GTIN Item Name
Converter DALI 180mA 7392971130170 Converter DALI 180mA

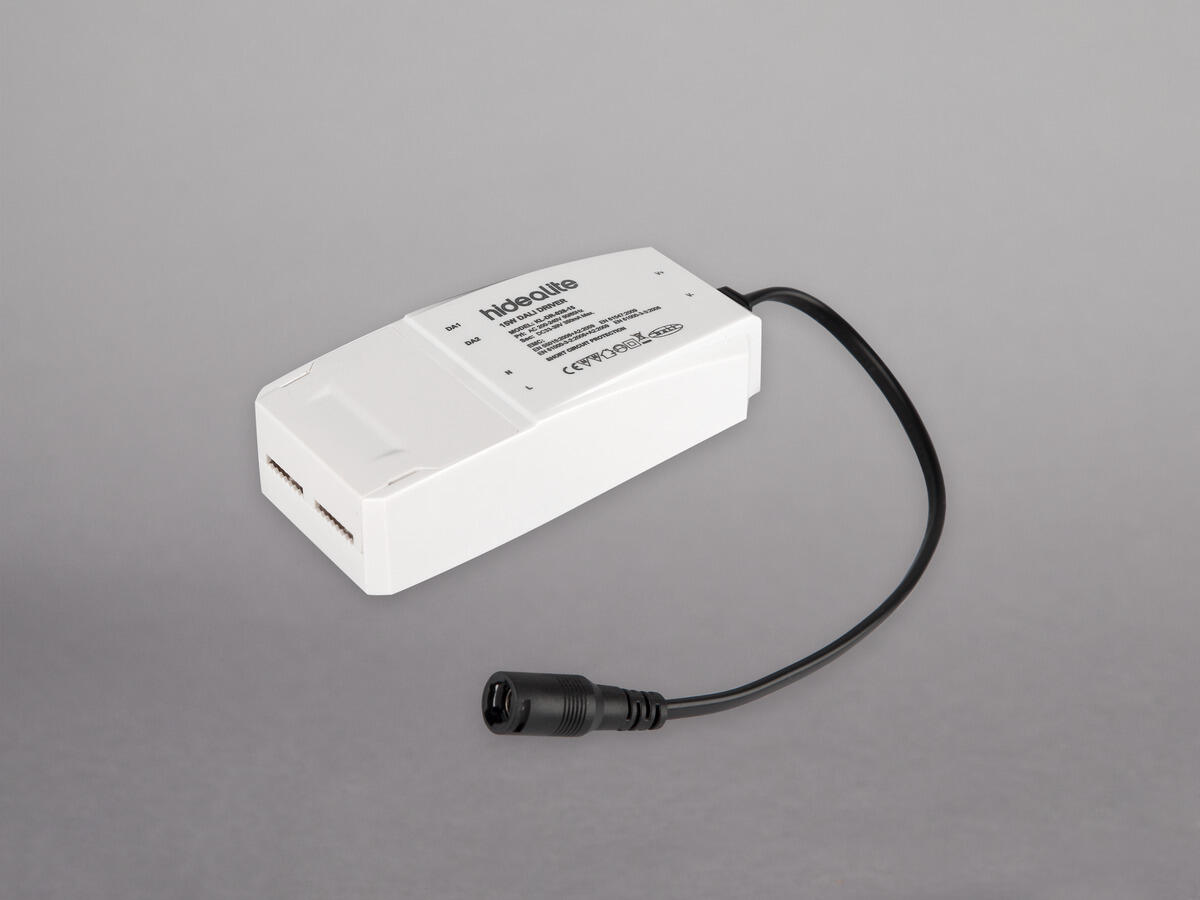

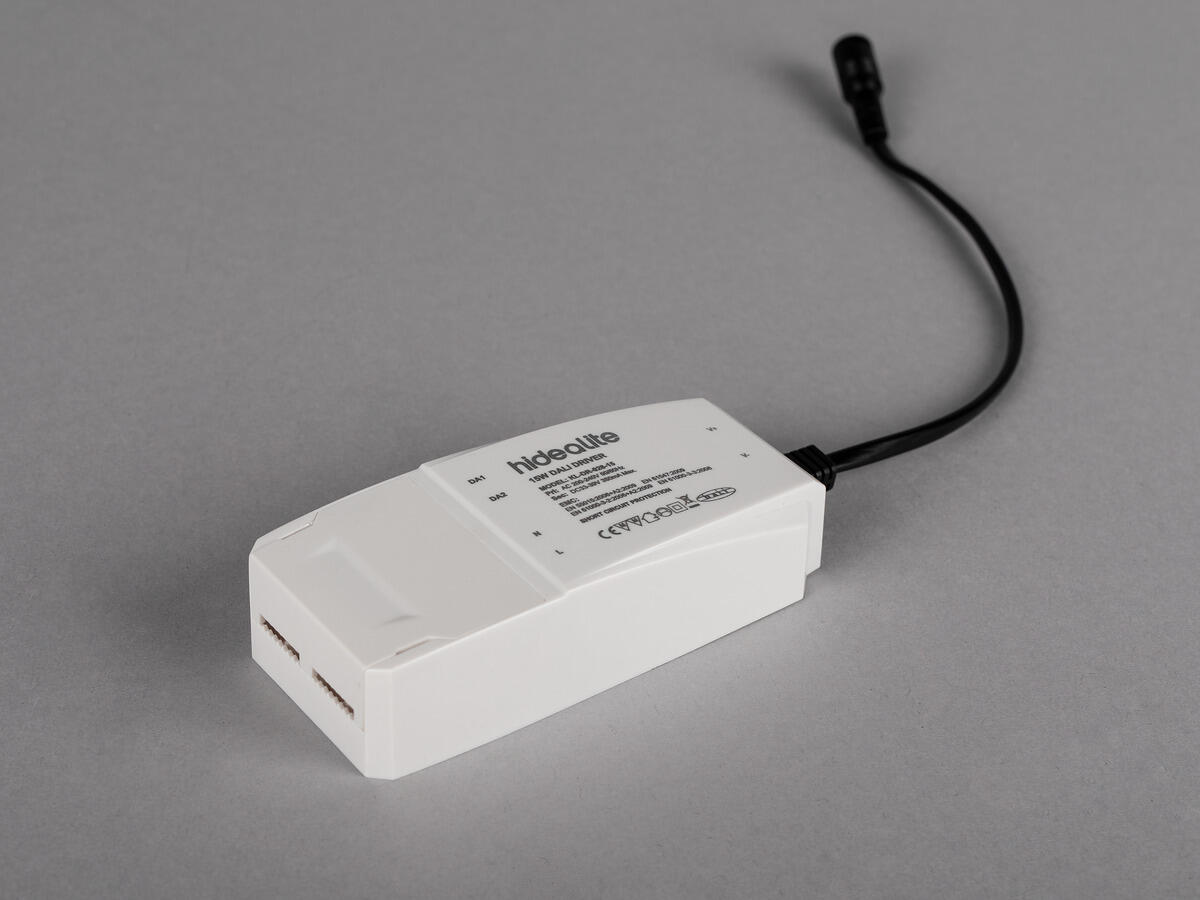

Converter DALI 350mA 7392971135410 Converter DALI 350mA
Description
GTIN 7392971130170
Item Name Converter DALI 180mA
Warranty 5 years
Light Technical Data
Life Time Driver 50 000h/10%
Technical data
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Operation and Connection
Driver Model Constant Current
Driver Type Stand Alone
Connection (type) Quick Terminal
Connection (mm2) 4x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Connection Secondary (type) Cable
Length Connection Secondary (cm) 30
Secondary Outputs (pair) 1
Voltage Output Interval (V) 32-39
Efficiency (%) 75
Power Interval for Catalogue (W) 5,8-7
Standby Power 1
Constant Current (mA) 180
Operating Temperature -20…+45
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Push 230V, DALI 2
Dimming secondary side AM
Protection Against Short Circuit, Overload, Overheating 100°C
Color and material
Material Plastic
Color White
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class II
Installation Surface mounted
Fire Safety Marks MM-mark
Approval Marks CE

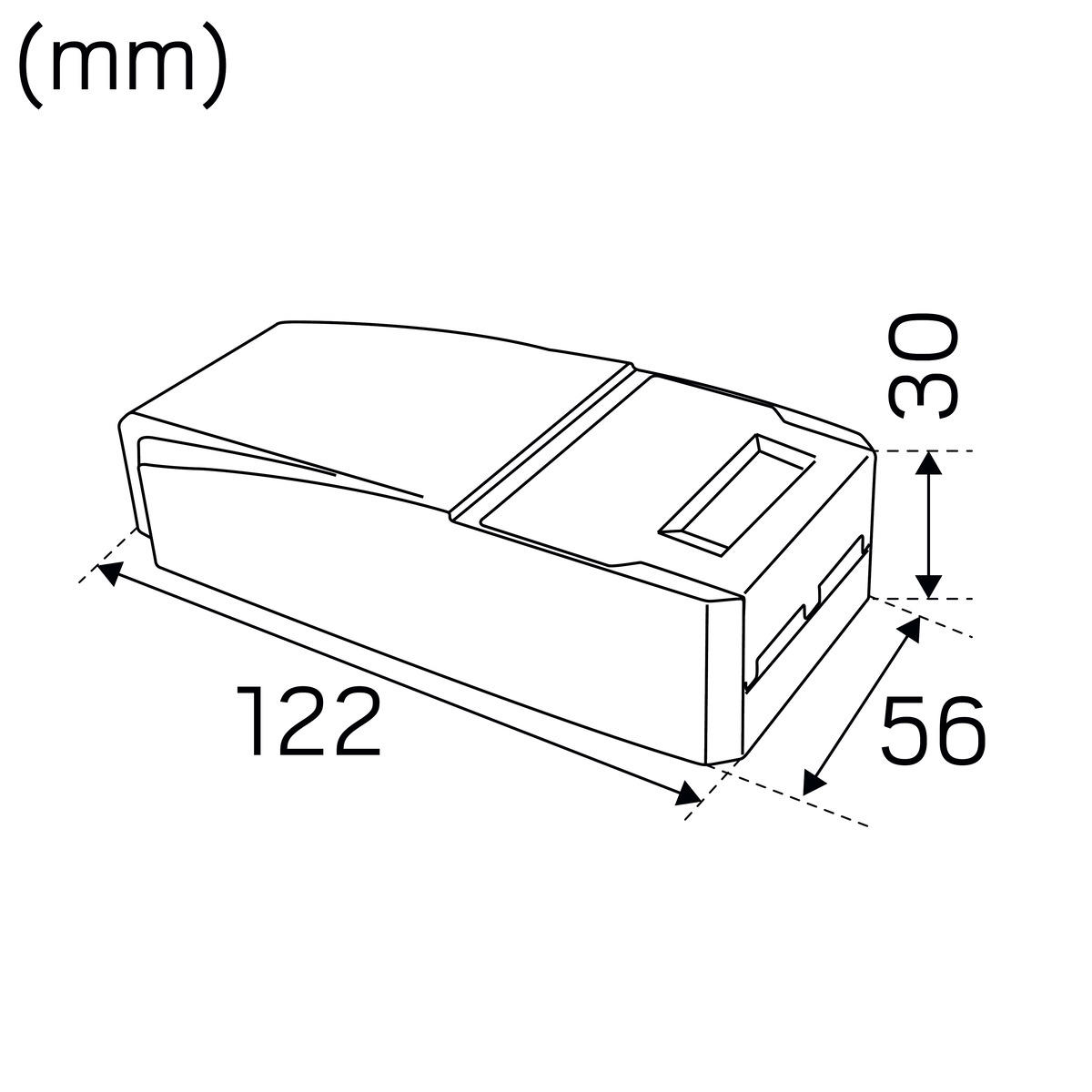

Length (mm) 122
Width (mm) 56
Height (mm) 30
Weight (kg) 0,117
Built-in Ø (mm) 73
