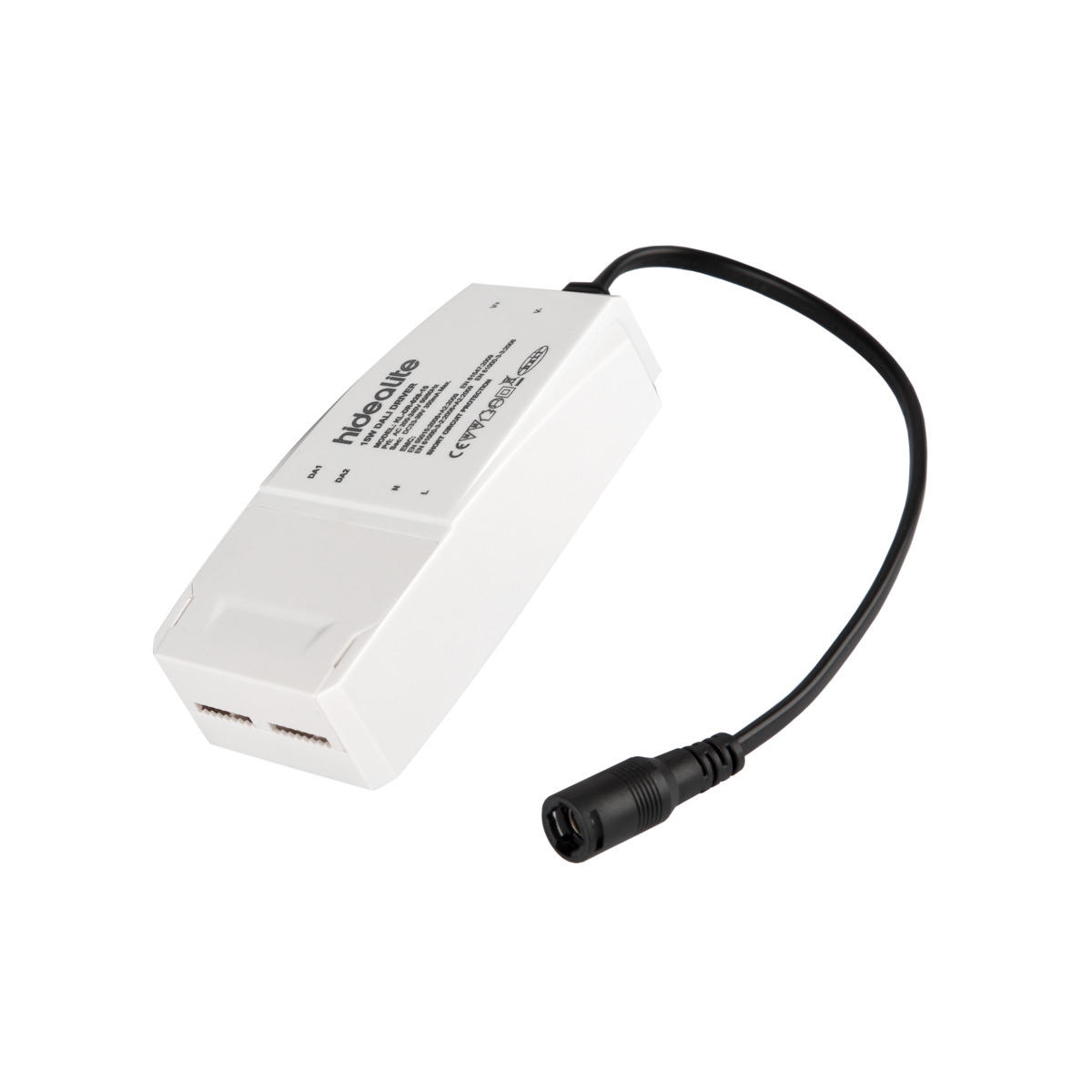

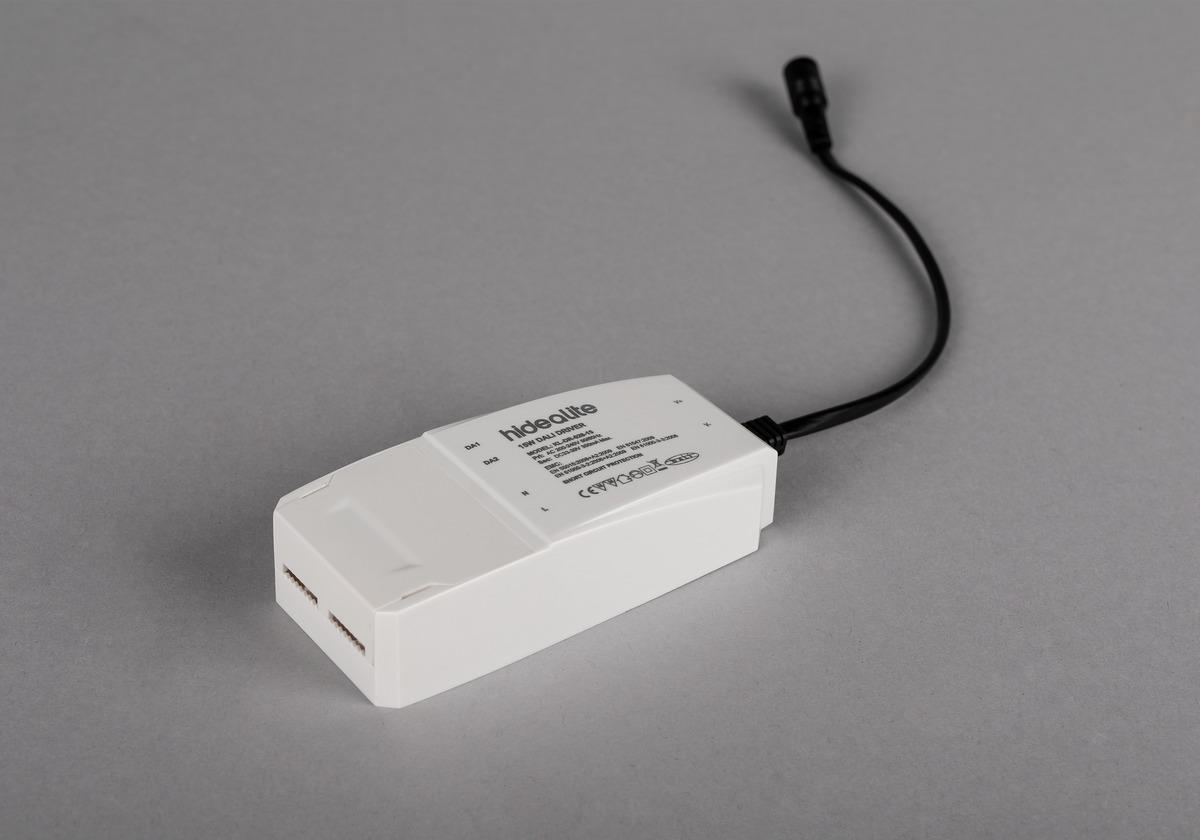

Converter DALI

DALI converter for constant current luminaires. The primary side has push-in, loop-in, loop-out terminals and screwless strain relief for cables. Secondary side has prepared wires with phono connectors.

Variants	GTIN	Item Name
	7392971135410	Converter DALI 350mA
	7392971130170	Converter DALI 180mA

Description: GTIN 7392971135410

Item Name Converter DALI 350mA

Warranty 5 years
Light Technical Data: Life Time Driver 50 000h/10%
Technical data: Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50
Operation and Connection: Dimmable Yes

Type of Dimming Push 230V, DALI 2

Driver Model Constant Current

Driver Type Stand Alone

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 4x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Connection Secondary (type) Cable

Length Connection Secondary (cm) 30

Voltage Output Interval (V) 33-39

Efficiency (%) 80

Power Interval for Catalogue (W) 11,6-13,7

Standby Power 1

Constant Current (mA) 350

Operating Temperature -20…+40

Max. Tc (°C) 70

Dimming secondary side AM

Memory Function Power Failure Yes

Protection Against Short Circuit, Overload, Overheating 100°C

Fuse B10 (pcs) 40

Fuse B16 (pcs) 64

Fuse C10 (pcs) 68

Fuse C16 (pcs) 108
Color and material: Material Plastic

Color White
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Surface mounted

Fire Safety Marks MM-mark

Approval Marks CE

Length (mm) 122

Width (mm) 56

Height (mm) 30

Weight (kg) 0,13

Built-in Ø (mm) 73
