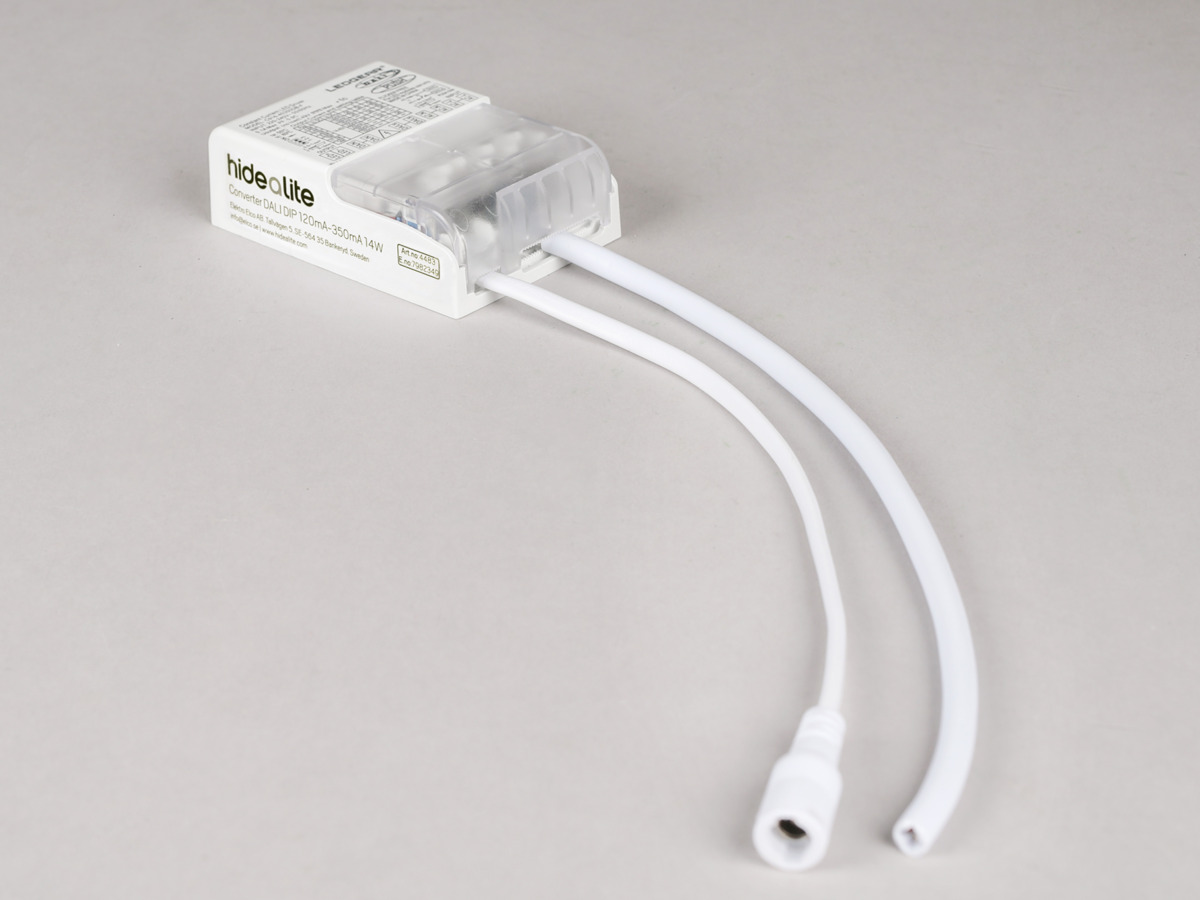

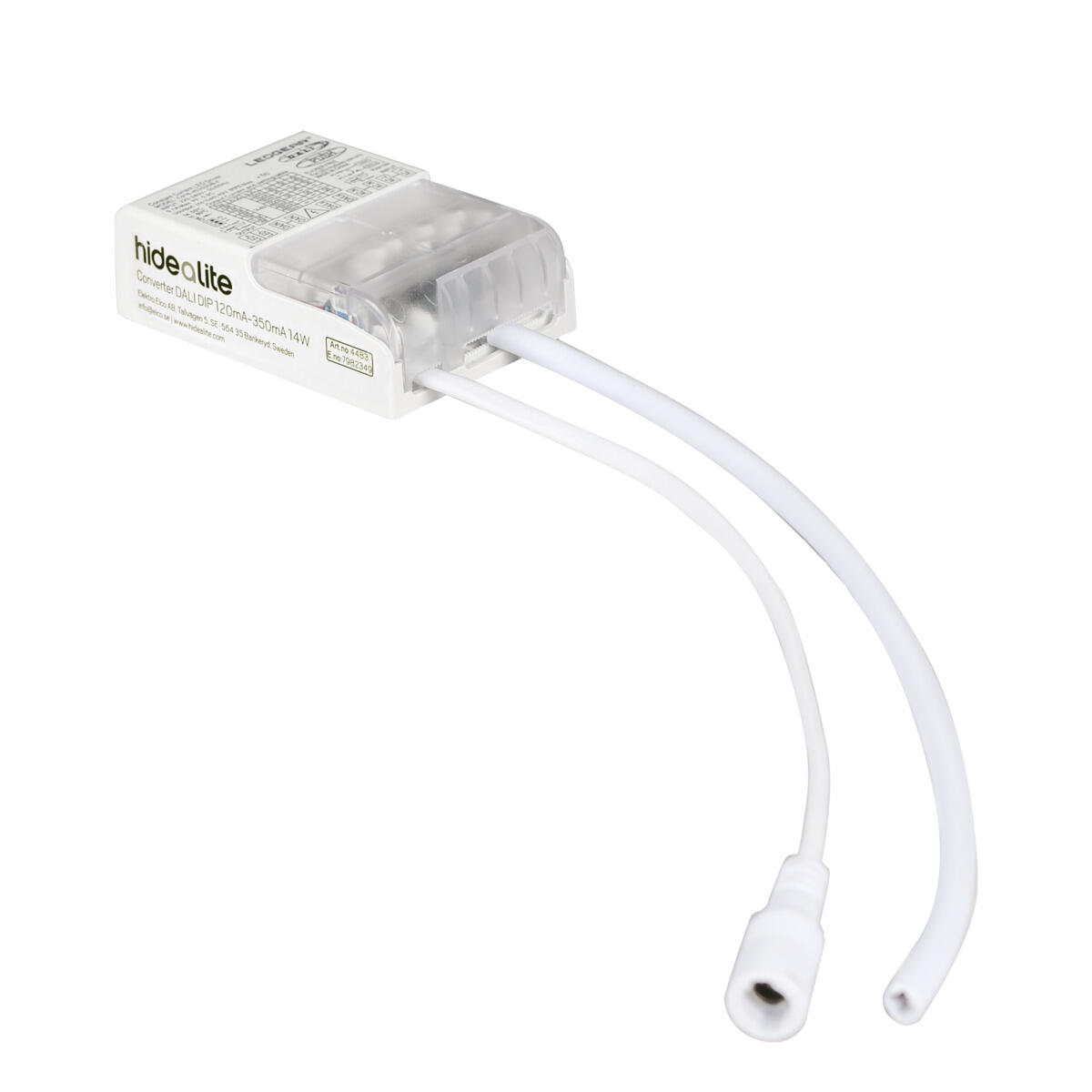

Converter DALI DIP Converter DALI DIP 120mA-350mA 14W

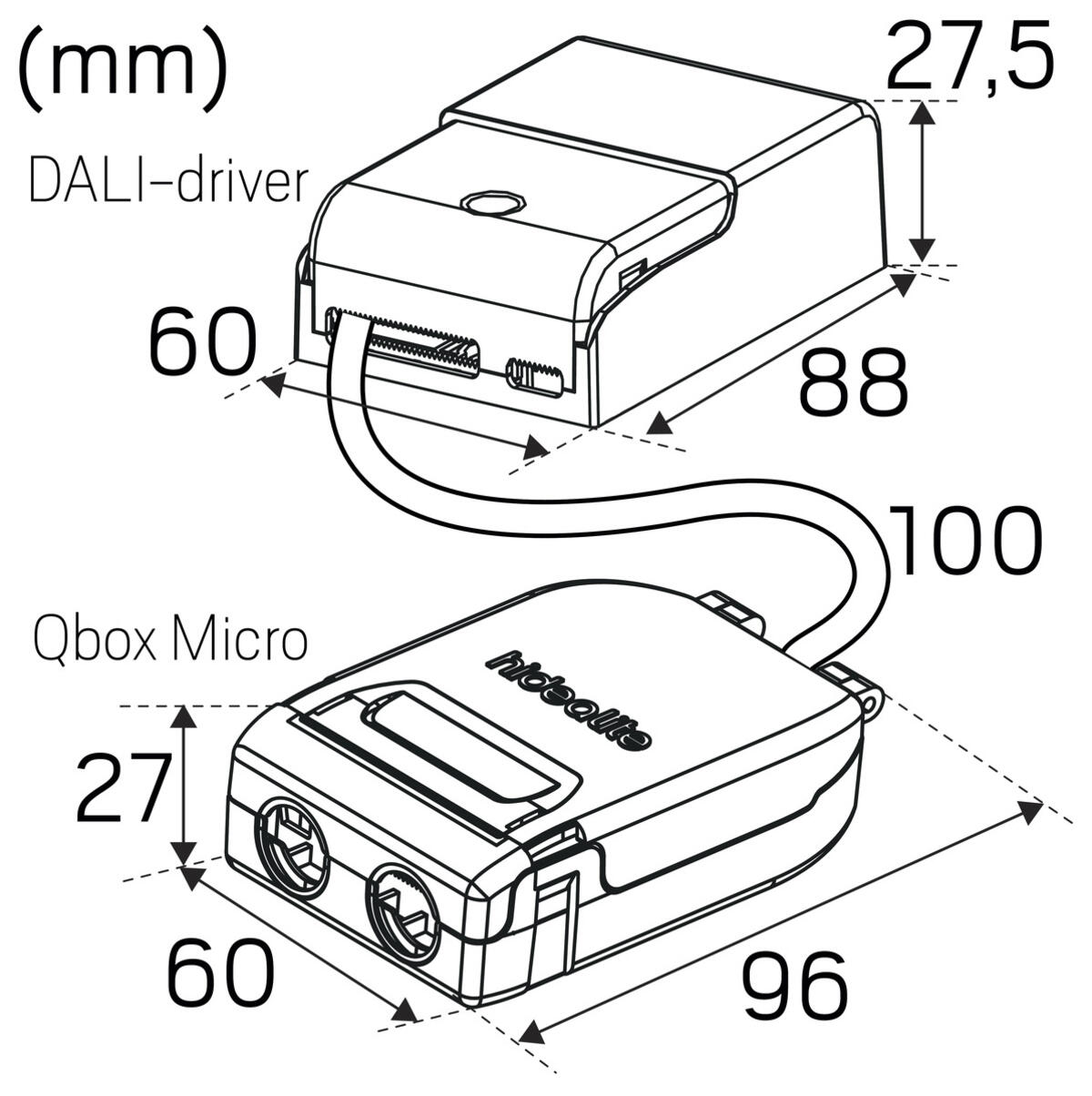

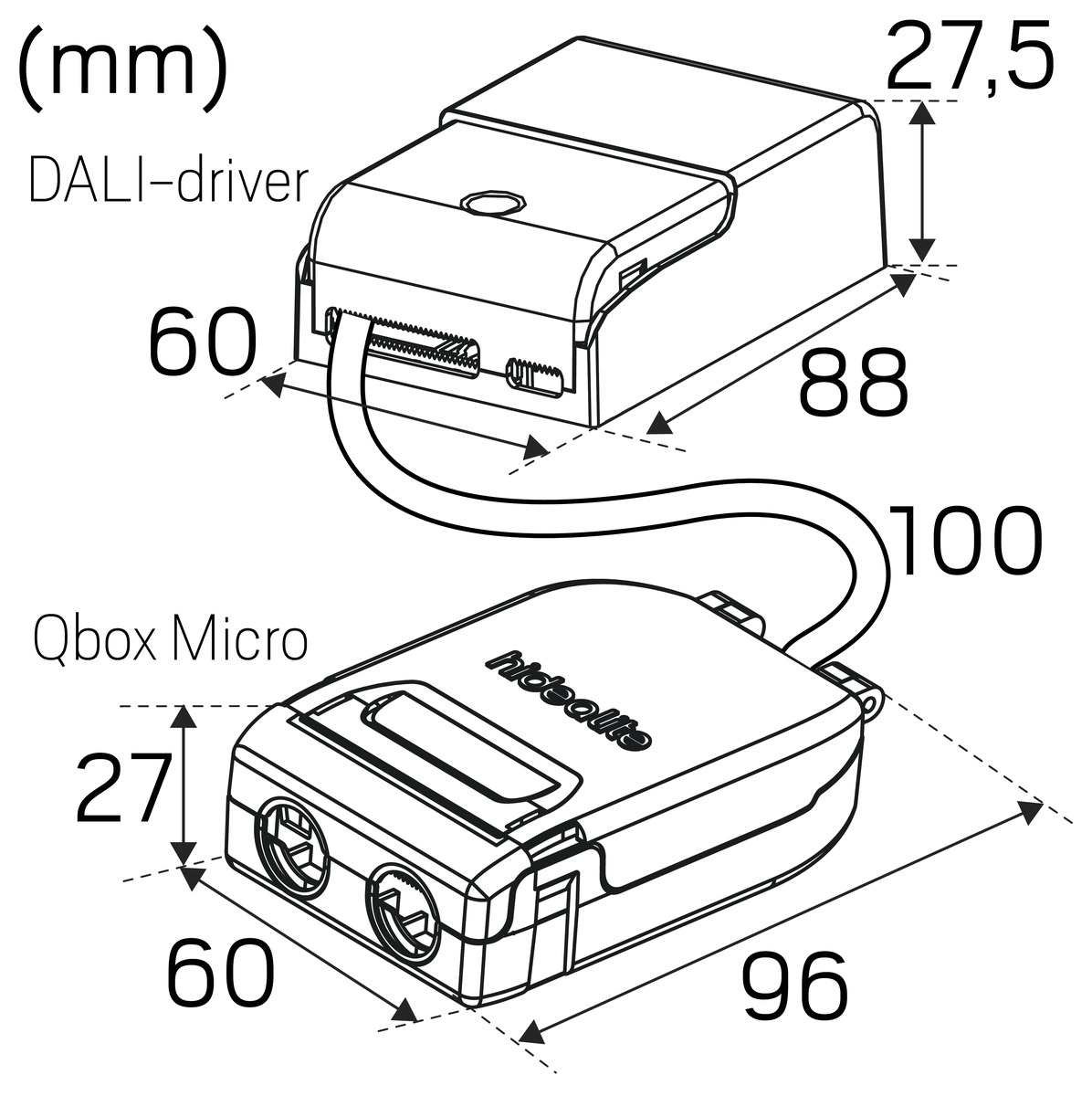

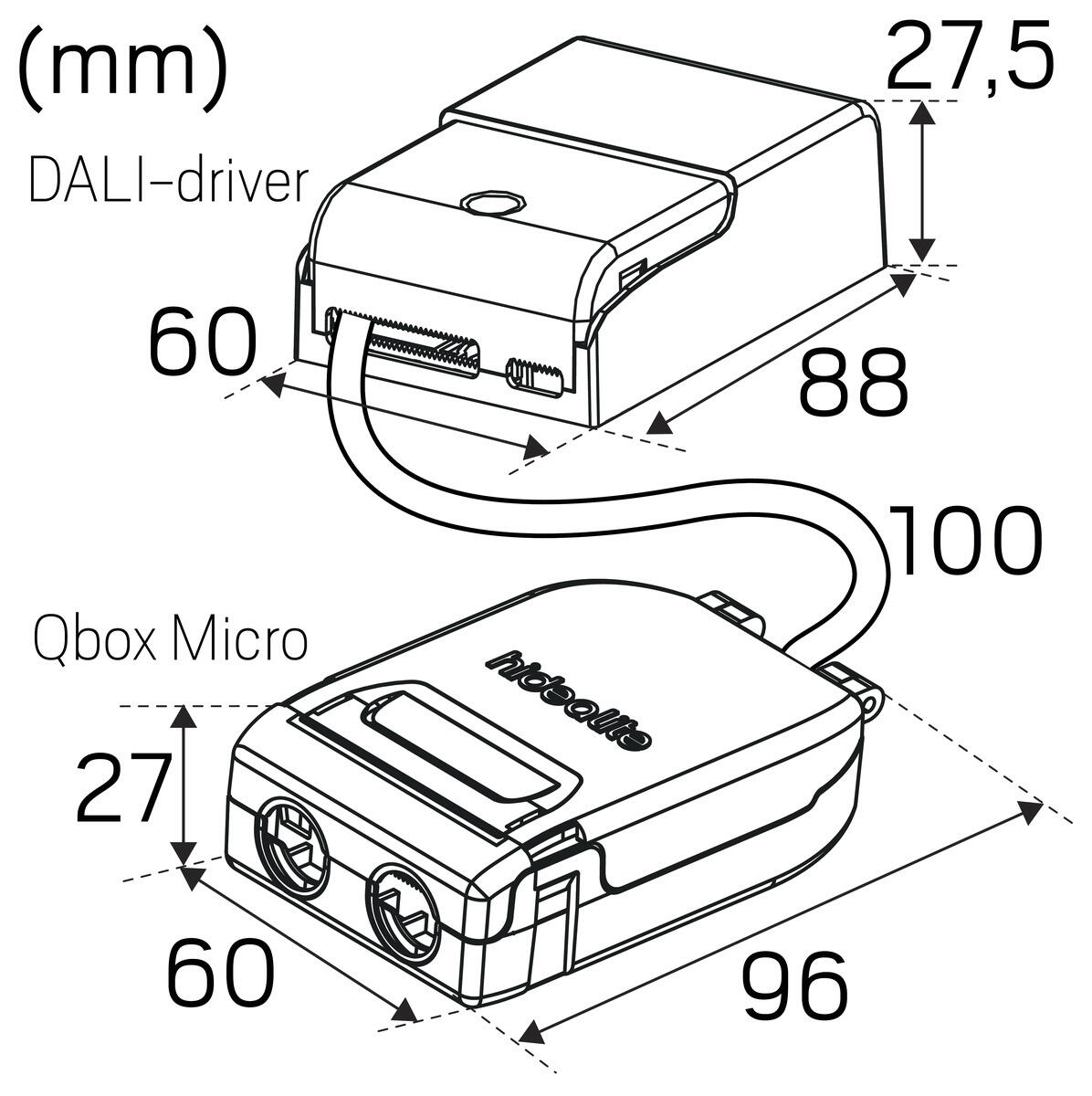

DALI converter and included Q-Box Micro for constant current luminaires. Q-box Micro has 5-pole push-in, loop-in, loop-out terminals and screwless strain relief. The secondary side has finished cable connection with phono contact for connection to your luminaire without tools. Suitable for 45mm secondary spaced boarding and hole size 83-85mm. The driver is equipped with DIP-switch so you can easily adjust to the right current for your luminaire.

Description: GTIN 7392971146430

Item Name Converter DALI DIP 120mA-350mA 14W

Warranty 5 years
Light Technical Data: Life Time Driver 50 000h/10%

Flicker (PstLM) 0,012

Stroboscopic effect (SVM) 0,002
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60
Operation and Connection: Dimmable Yes

Type of Dimming Push 230V, DALI 2

Driver Model Constant Current

Driver Type Stand Alone

Connection (type) Quick Terminal

Connection (mm2) 5x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Connection Secondary (type) Quick Connection

Length Connection Secondary (cm) 15

Voltage Output Interval (V) 220-240V

Power Factor ʎ 0,9

Efficiency (%) 78

Power loss (W) 1,2

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,02

THD (%) 20

Power Interval for Catalogue (W) 0,5-16

Standby Power 0,5

Max. Load Per Output (W) 16

Constant Current (mA) 110, 180, 220, 250, 280, 350

Current (A) 0,35

Min. Ta (°C) -20

Max. Ta (°C) 40

Max. Tc (°C) 85

Dimming secondary side AM

Memory Function Power Failure Yes

Protection Against Short Circuit, Overload

Inrush current (max/time) 16A 20μs

Fuse B10 (pcs) 65

Fuse B16 (pcs) 104

Fuse C10 (pcs) 75

Fuse C16 (pcs) 120
Color and material: Material Plastic

Color White

Halogen free Yes

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Surface mounted

Mounting Installation Screw Mounting

Fire Safety Marks MM-mark

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

Length (mm) 120

Width (mm) 120

Height (mm) 27

Weight (kg) 0,179

Min. Built-in (mm) 120x120x27

Built-in Ø (mm) 73-85mm

Converter DALI

DALI converter for constant current luminaires. The primary side has push-in, loop-in, loop-out terminals and screwless strain relief for cables. Secondary side has prepared wires with phono connectors.

Converter Round DALI/PUSH

Small and versatile dimmable LED converter for constant current 350/700mA with easy setting of current via dip switch Suitable for junction box, which makes it easy to place. Excellent for smaller constant current luminaires, such as lighting in window niches. Dimmable via Push (230V) or DALI. Converter Round has memory function which lights up with latest set value after power failure. For further technical information see instruction manual.

Converter DALI DIP

Converter DALI DIP 120mA-350mA 14W
