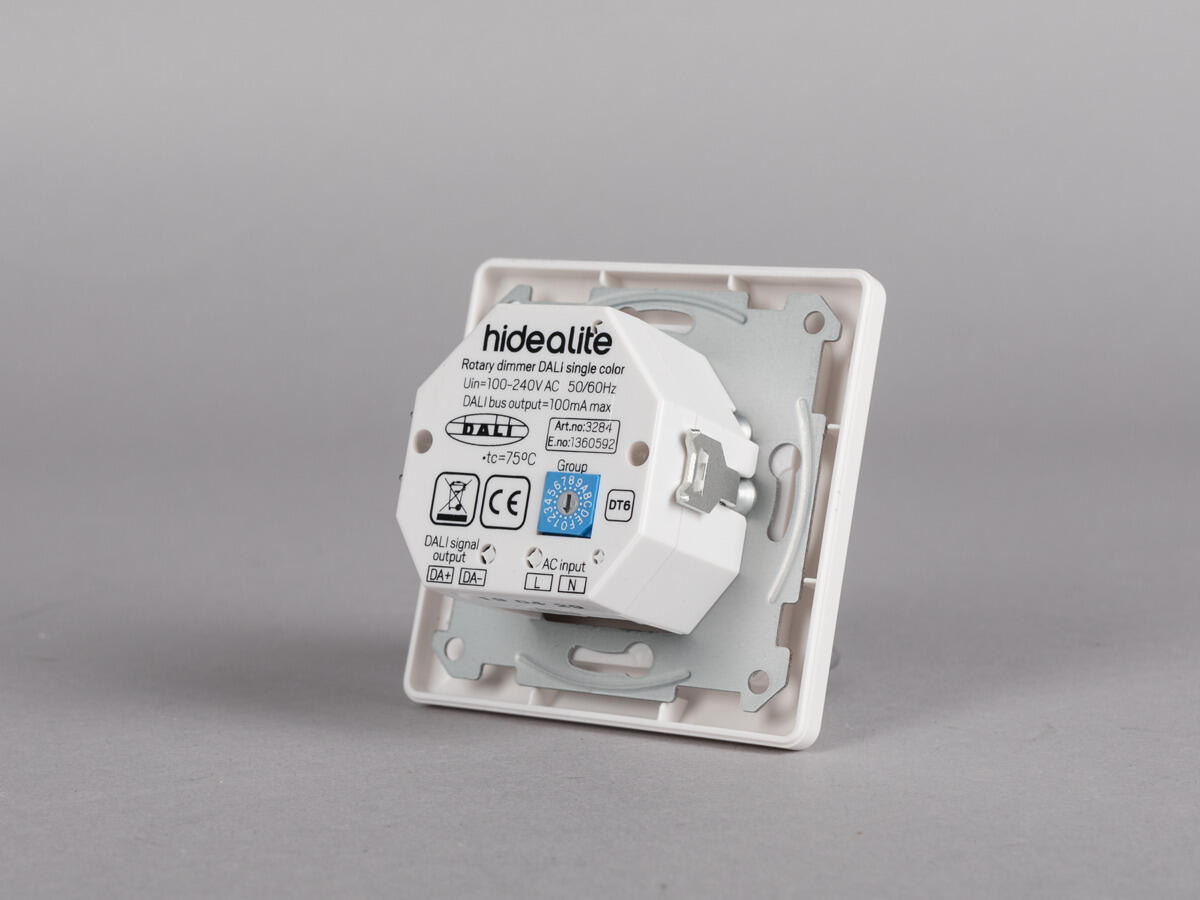

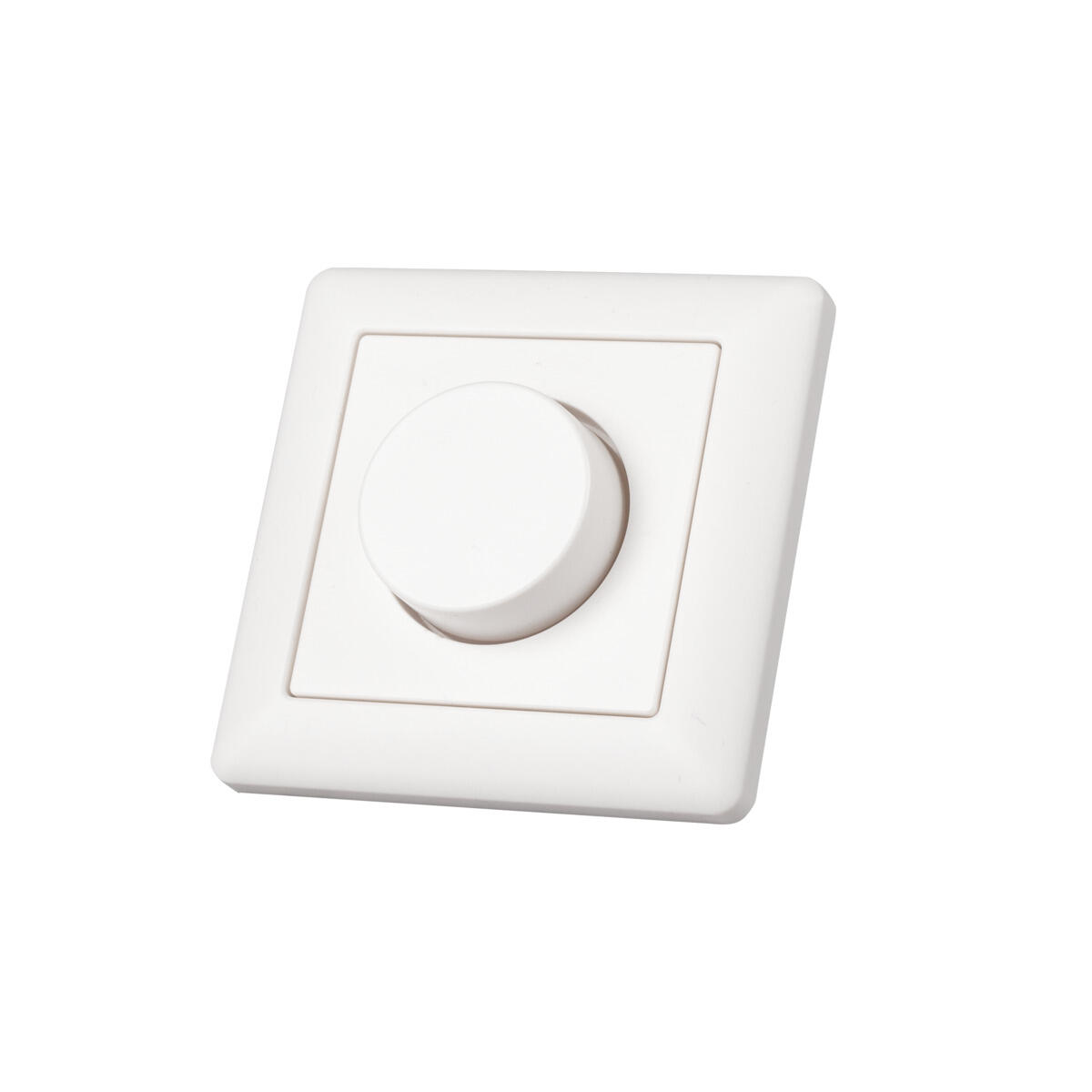

Rotary dimmer DALI

DALI dimmer for LED and electronic drivers with DALI interface. The dimmer has integrated power supply. Can control a chosen DALI-group or work as broadcast. For 1-25 DALI devices. Up to four dimmers can be connected in parallel with synchronized control Comes complete with frame and center plate, also fits frames from other brands. For further technical information see instruction manual.

Description: GTIN 7392971136790

Item Name Rotary dimmer DALI Single color

Warranty 5 years
Light Technical Data: Life Time Driver 50 000h/15%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 110...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60
Operation and Connection: Dimmable Yes

Type of Dimming DALI, DALI DT6

Driver Type Built-in

Connection (type) Screw Terminals

Connection (mm2) 2x0,5-2,5

Through Wiring No

Strain Relief No

Connection Secondary (type) Screw Terminals

Secondary Connection (mm2) 2x0,5-2,5

Standby Power 1

Min. Ta (°C) 0

Max. Ta (°C) 50

Max. Tc (°C) 50

Memory Function Power Failure Yes
Color and material: Material Plastic

Color White

Halogen free Yes

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Built-in

Mounting Installation Screw Mounting

Fire Safety Marks MM-mark

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

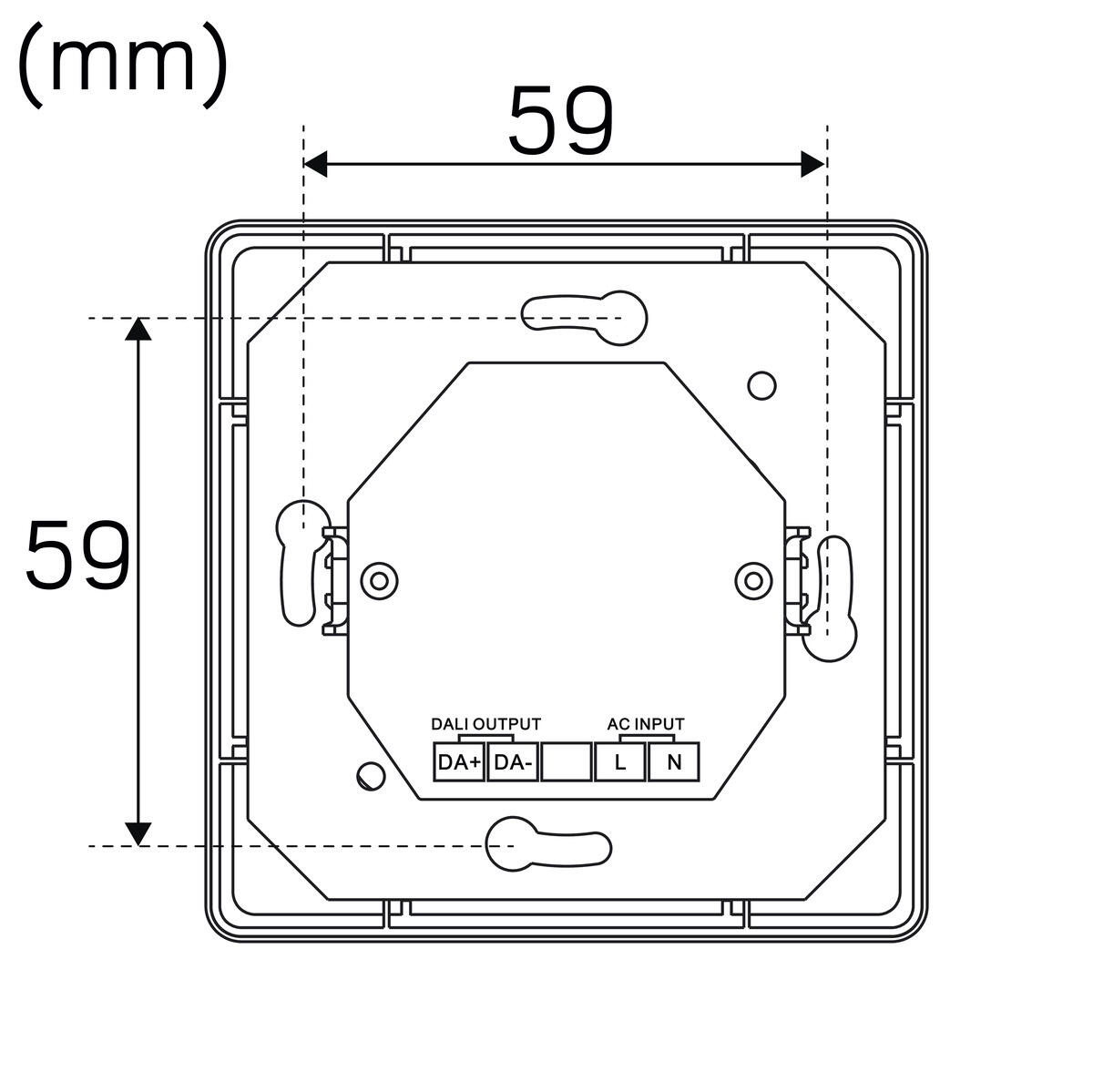

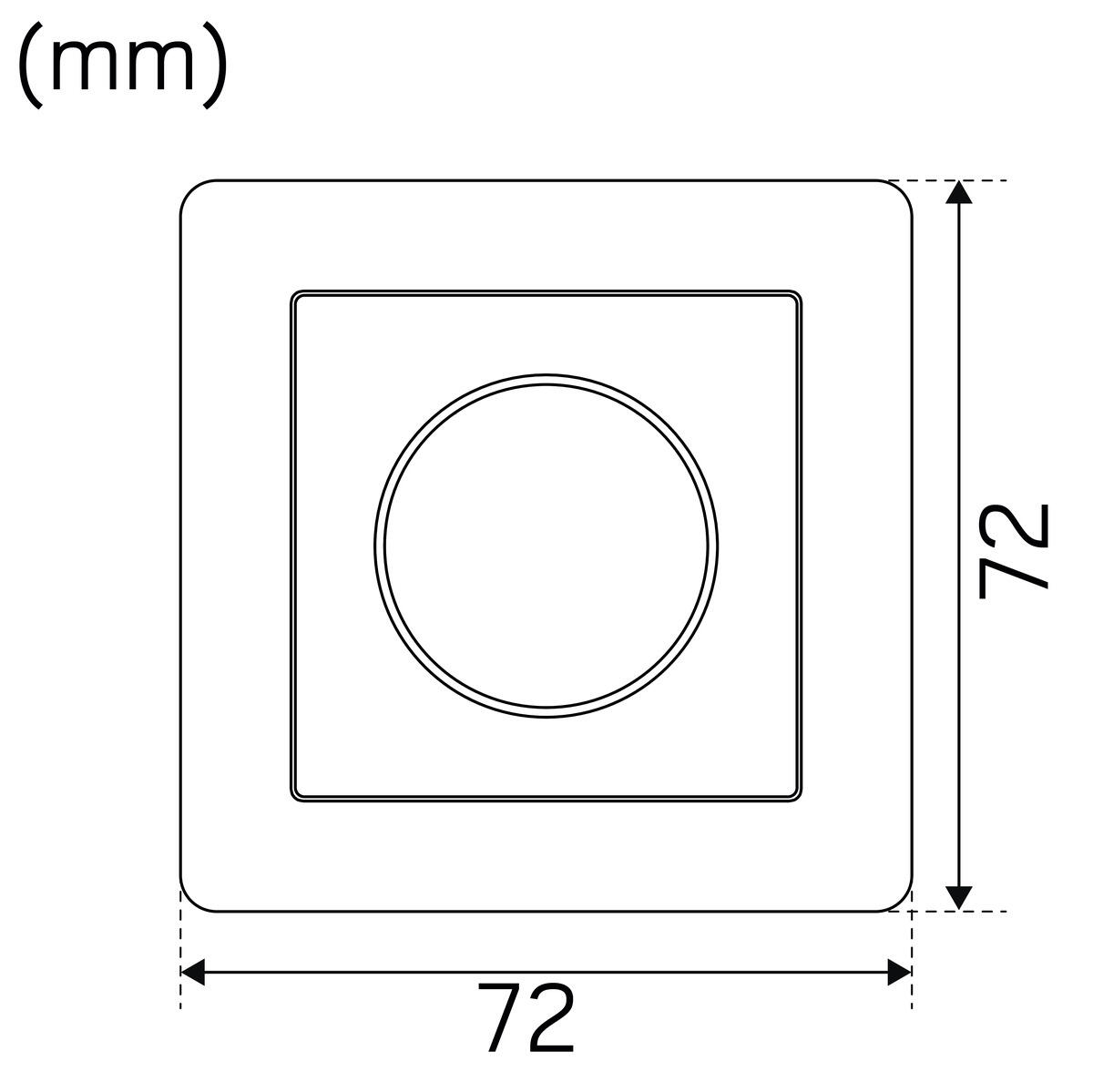

Length (mm) 80

Width (mm) 80

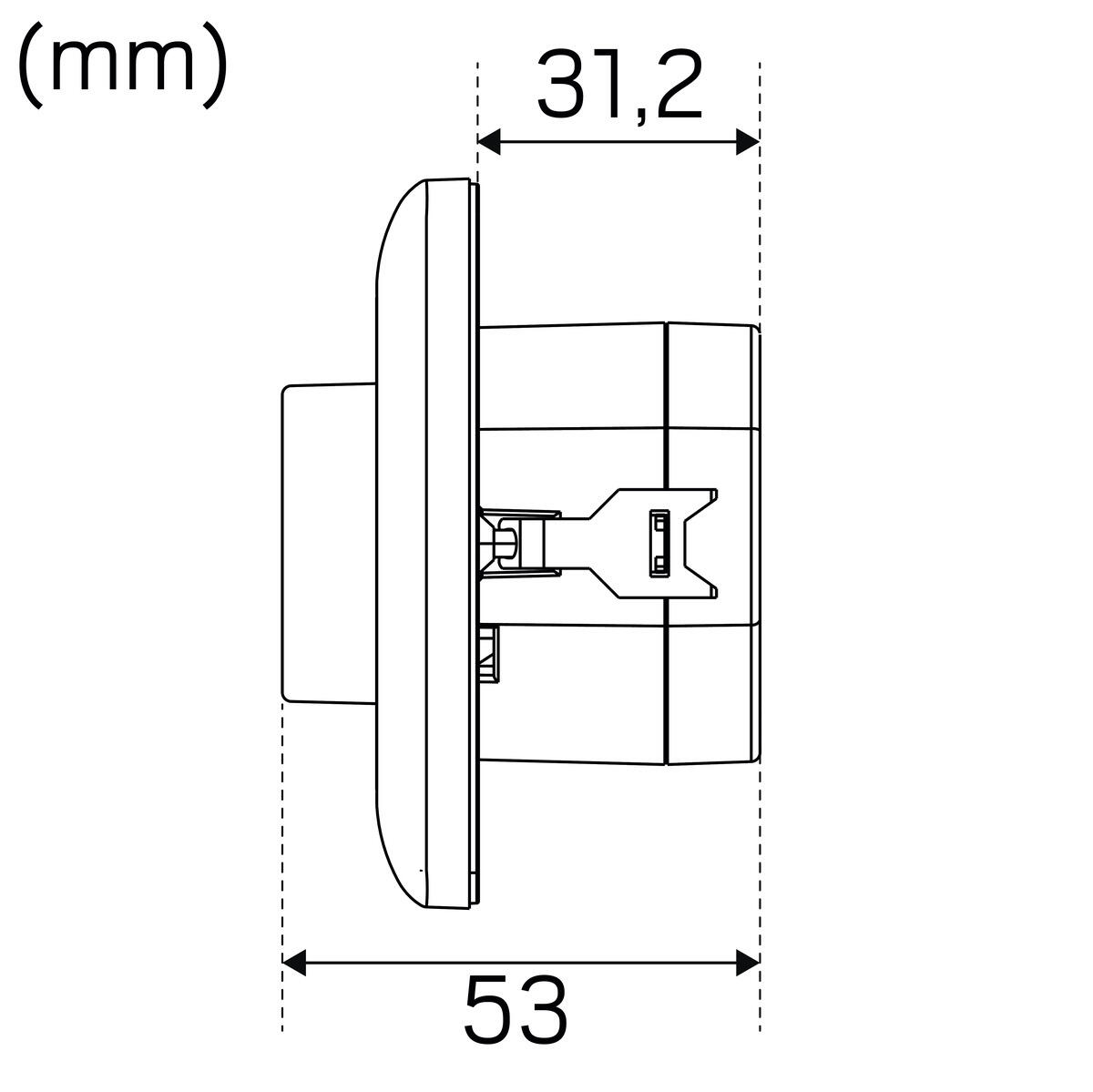

Height (mm) 53

Weight (kg) 0,2

Built-in Ø (mm) 73mm

LED-dimtrafo DALI/PUSH

Powerful LED dimmer trafo for 12V or 24V LEDstrips. Perfect for dimming LEDstrip single color via Push (230V) Can also be dimmed via DALI Memory function which lights up with latest set value after power failure. For color control and further technical information see instruction manual.

LED-dimtrafo FDIM/DALI/PUSH

Powerful dimmer trafo for 24V LED strips. Perfect for phase dimming of LED strip single colour via rotary dimmer Can also be dimmed via Push (230V), DALI or 0/1-10V. Memory function which lights up with latest set value after power failure. The entire capacity can be taken out via one output.

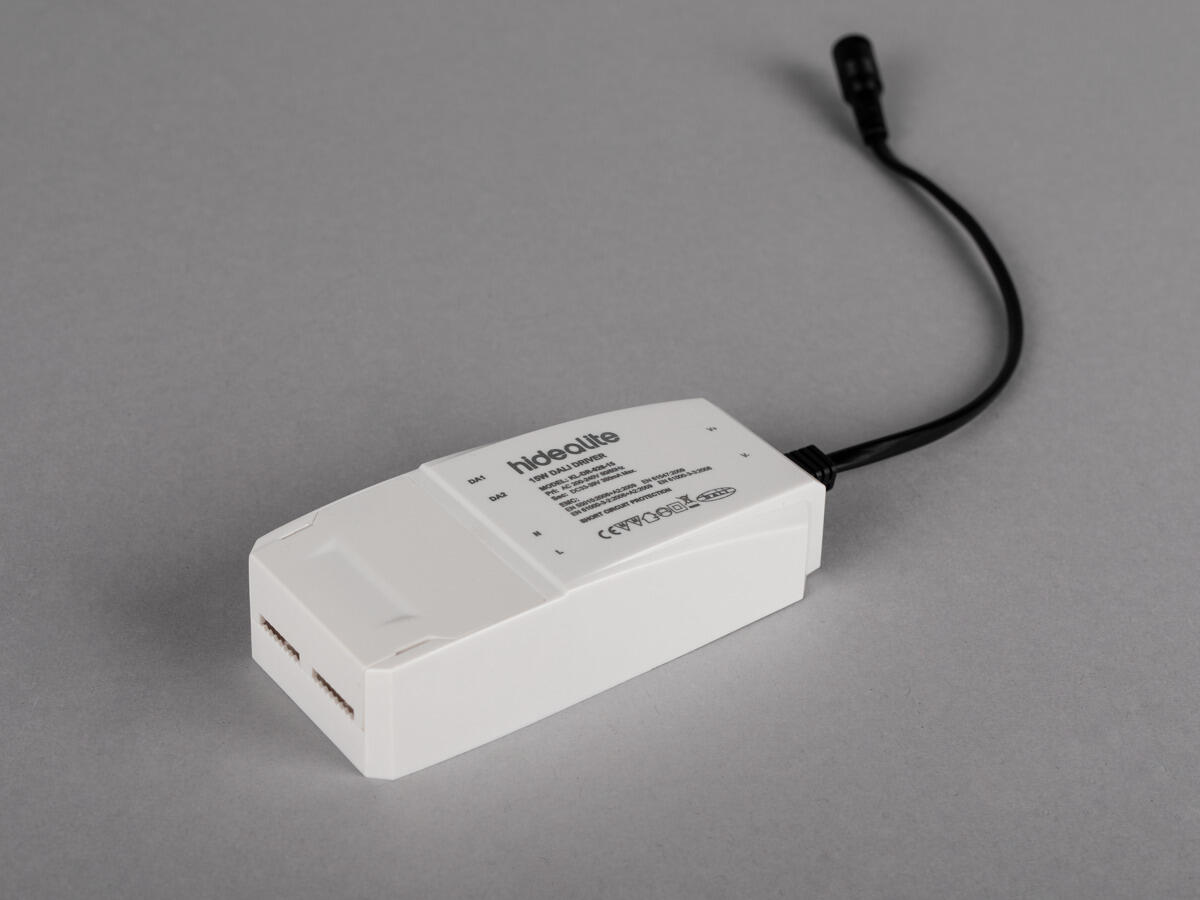

Converter DALI

DALI converter for constant current luminaires. The primary side has push-in, loop-in, loop-out terminals and screwless strain relief for cables. Secondary side has prepared wires with phono connectors.

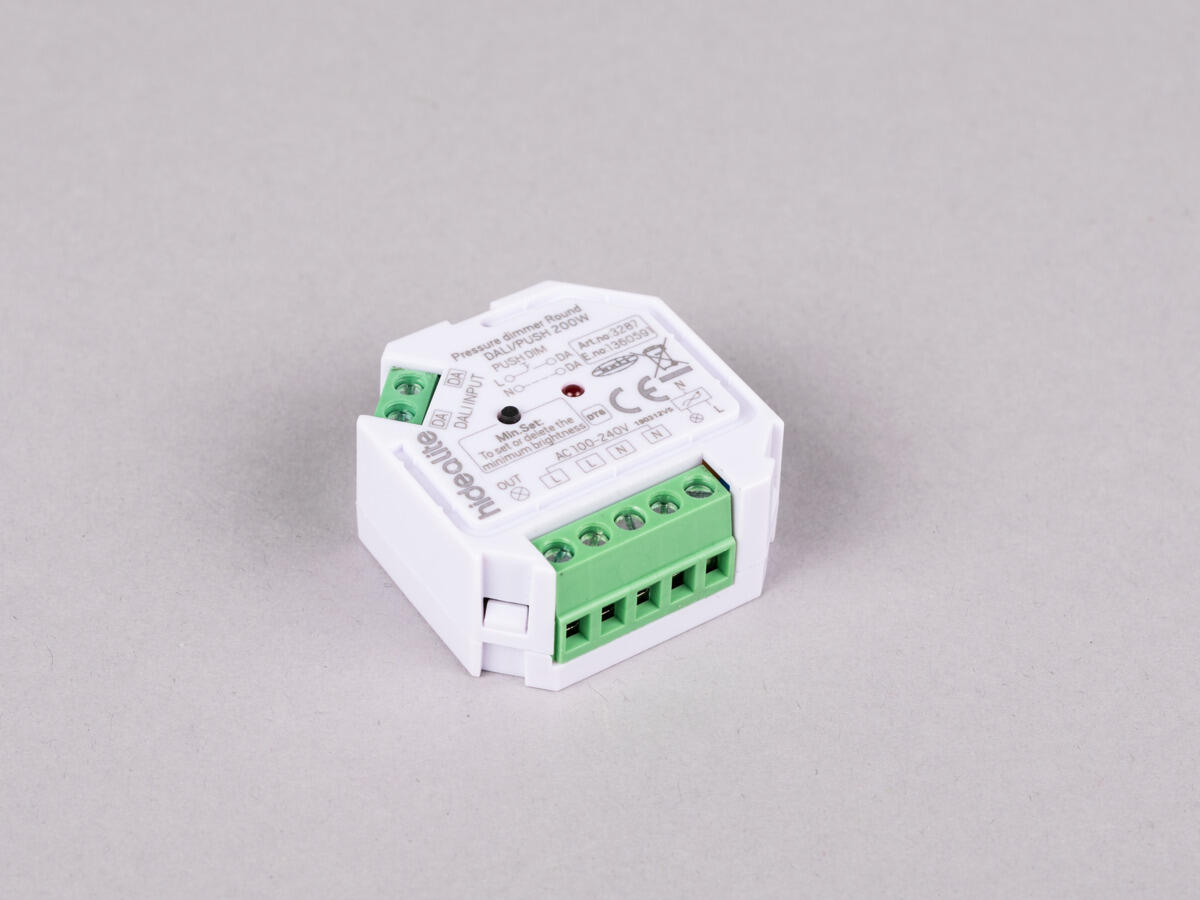

Push dimmer Round DALI/PUSH
