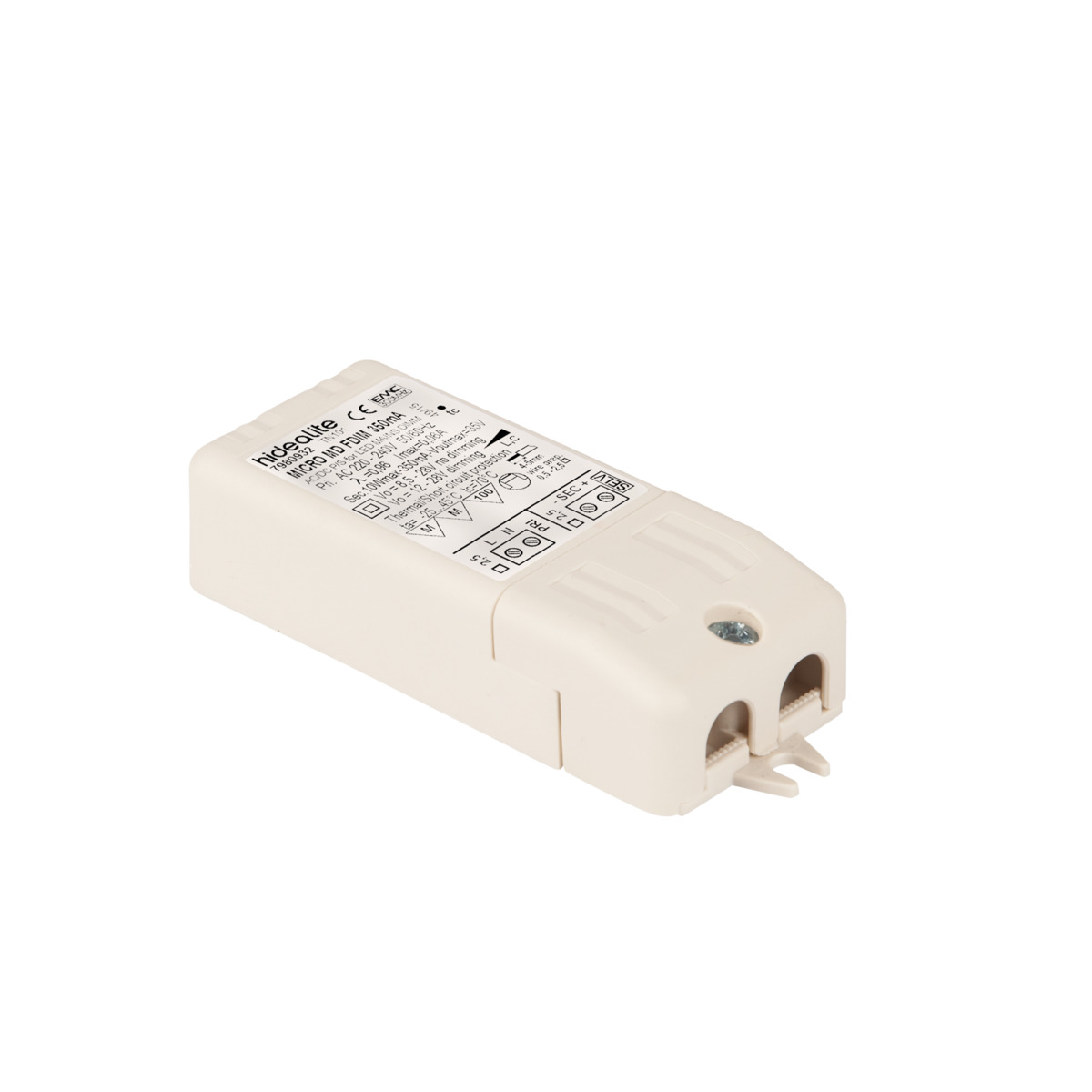

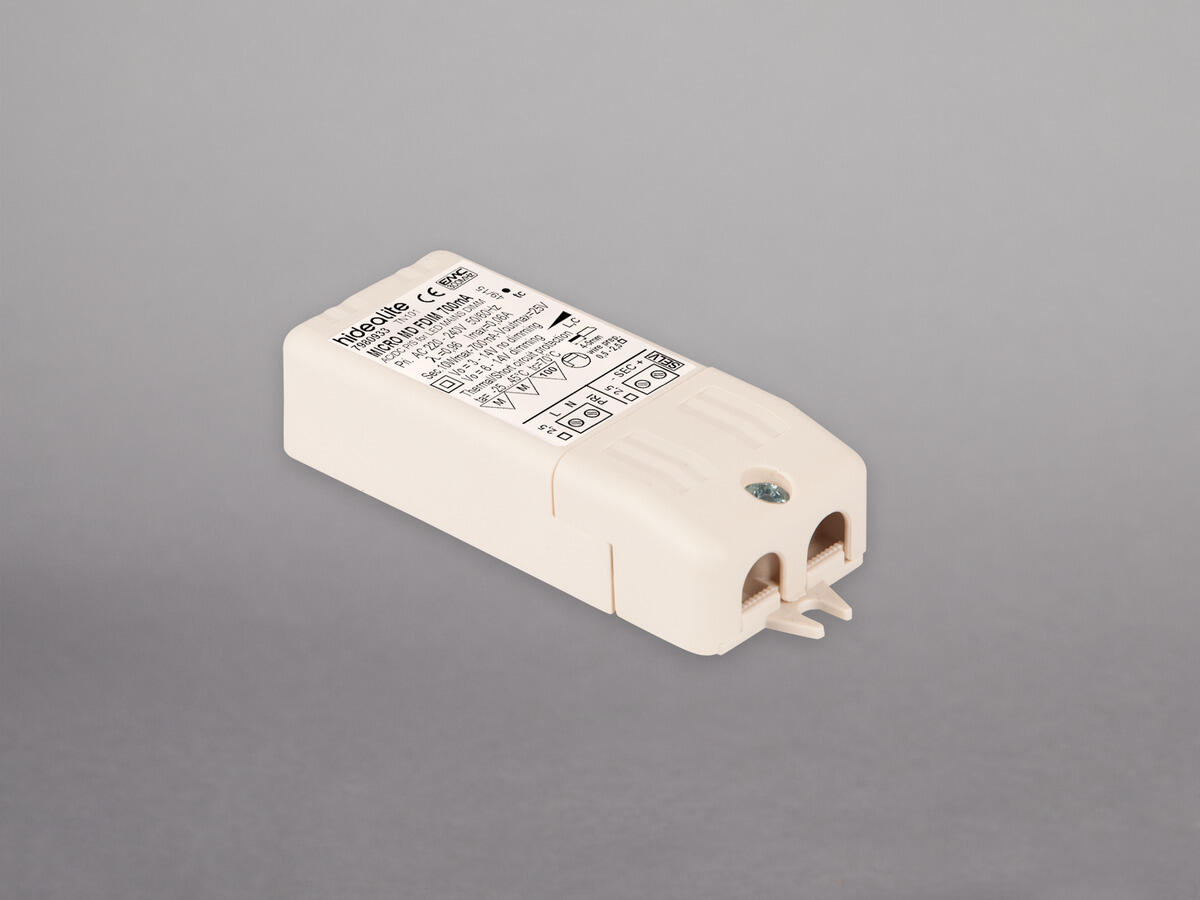

Converter Micro MD FDIM
Converter Micro MD FDIM
Converter Micro MD FDIM

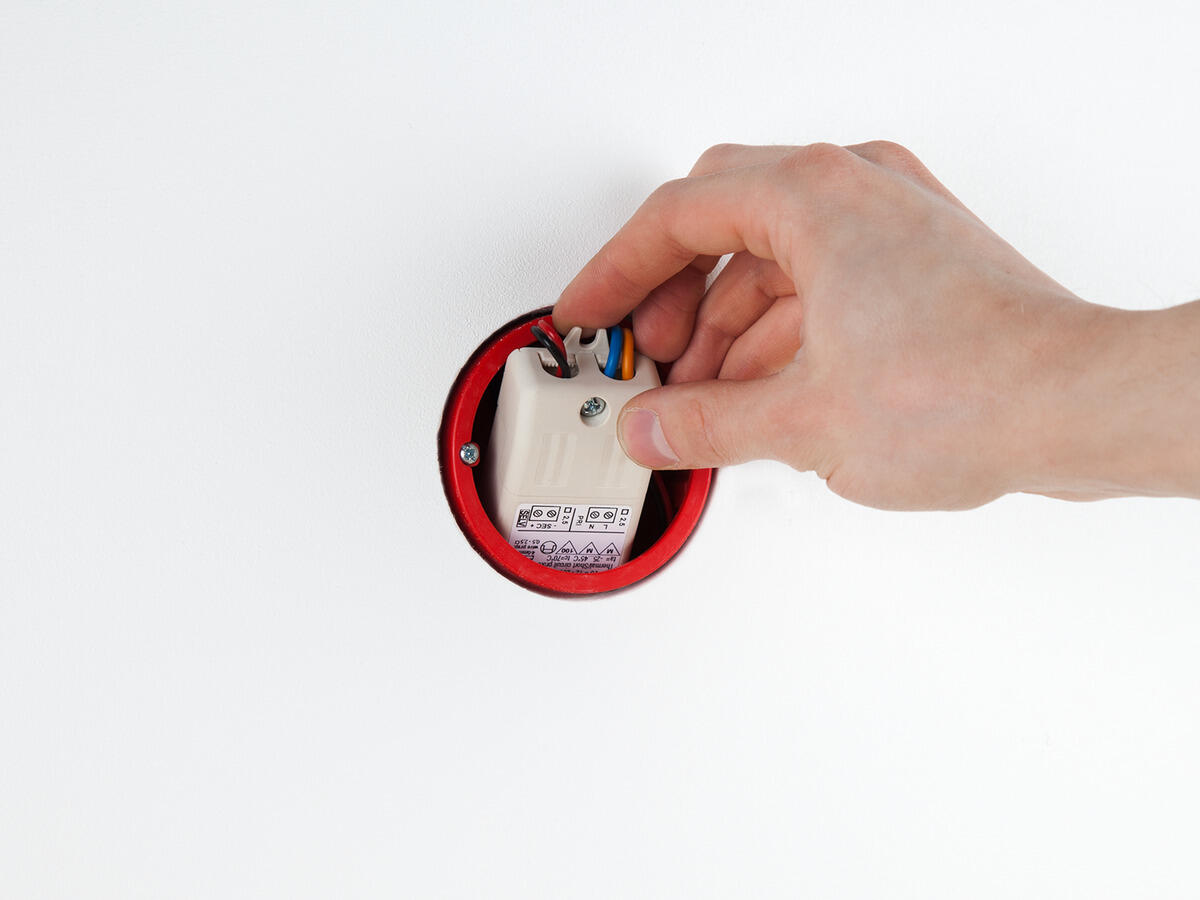

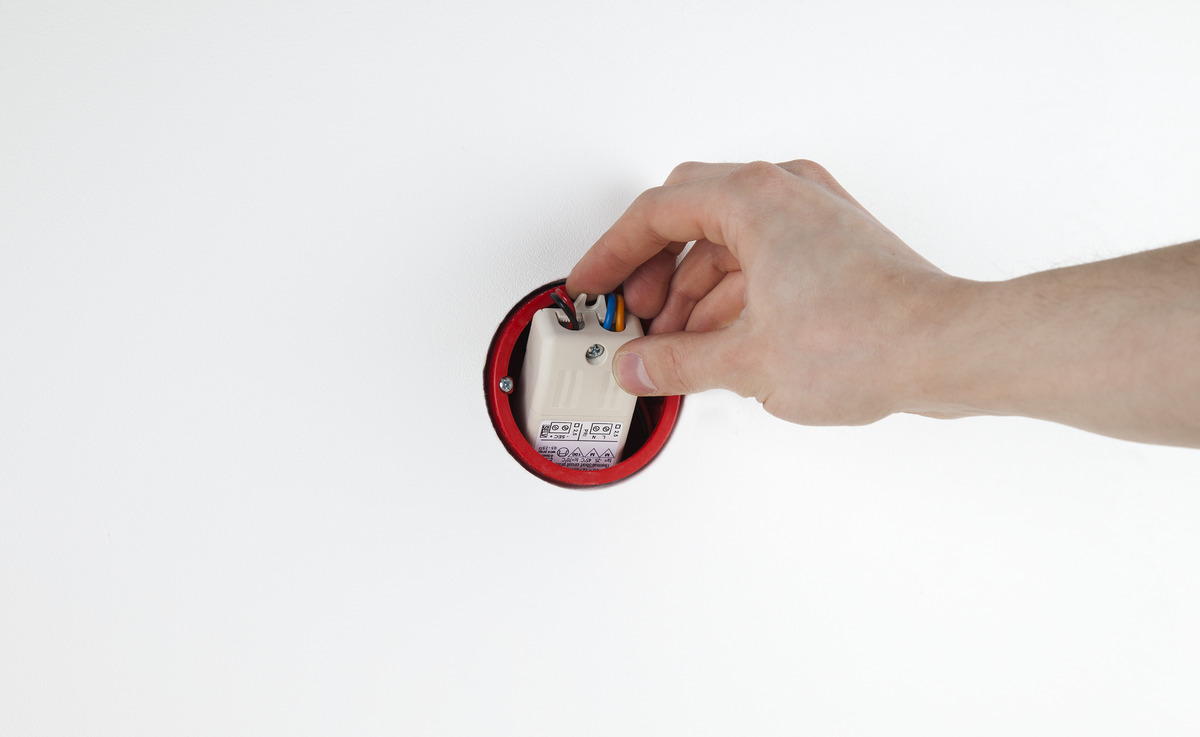

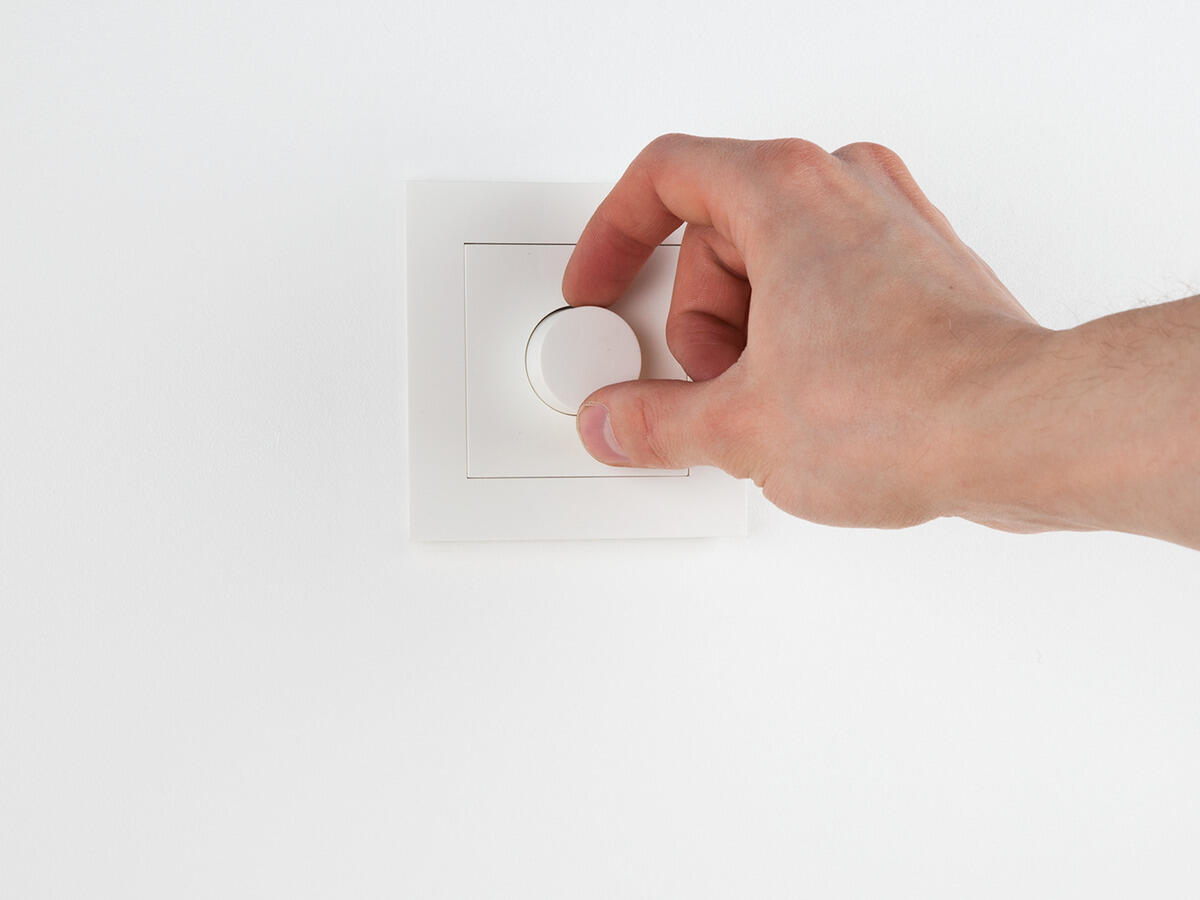

Mains dimmable converter for constant current that can be regulated with normal standard rotating/press dimmers for leading-edge and trailing-edge control. Slim design for installation in appliance box with extra space or together with the luminaire in Spot Guard Gles.

Variants

GTIN Item Name
Converter Micro MD FDIM 350mA 7392971127507 Converter Micro MD FDIM 350mA
Converter Micro MD FDIM 700mA 7392971127514 Converter Micro MD FDIM 700mA

Converter Micro MD FDIM 350mA

Description
GTIN 7392971127507
Item Name Converter Micro MD FDIM 350mA
Warranty 5 years
Light Technical Data
Nominel Life Time (h) 50000
Life Time Driver 50 000h/5%
Operation and Connection
Driver Model Constant Current
Driver Type Stand Alone
Connection (type) Screw Terminals
Connection (mm2) 2x0,5-2,5
Strain Relief Yes
Connection Secondary (type) Screw Terminals
Secondary Connection (mm2) 2x0,5-2,5
Secondary Outputs (pair) 1
Voltage Output Interval (V) 12-28
Power Interval for Catalogue (W) 4,2-10
Constant Current (mA) 350
Current (A) 0,06
Operating Temperature -25…+45
Max. Tc (°C) 70
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Protection Against Short Circuit, Overload, Overheating 110°C
Color and material
Material Plastic
Color White
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class II
Installation Built-in, Surface mounted
Mounting Installation Screw Mounting
Fire Safety Marks MM-mark
Approval Marks CE
Length (mm) 102
Width (mm) 37
Height (mm) 21
Weight (kg) 0,065
Built-in Ø (mm) 46

Images and downloads

Accessories

No accessories for this product.
