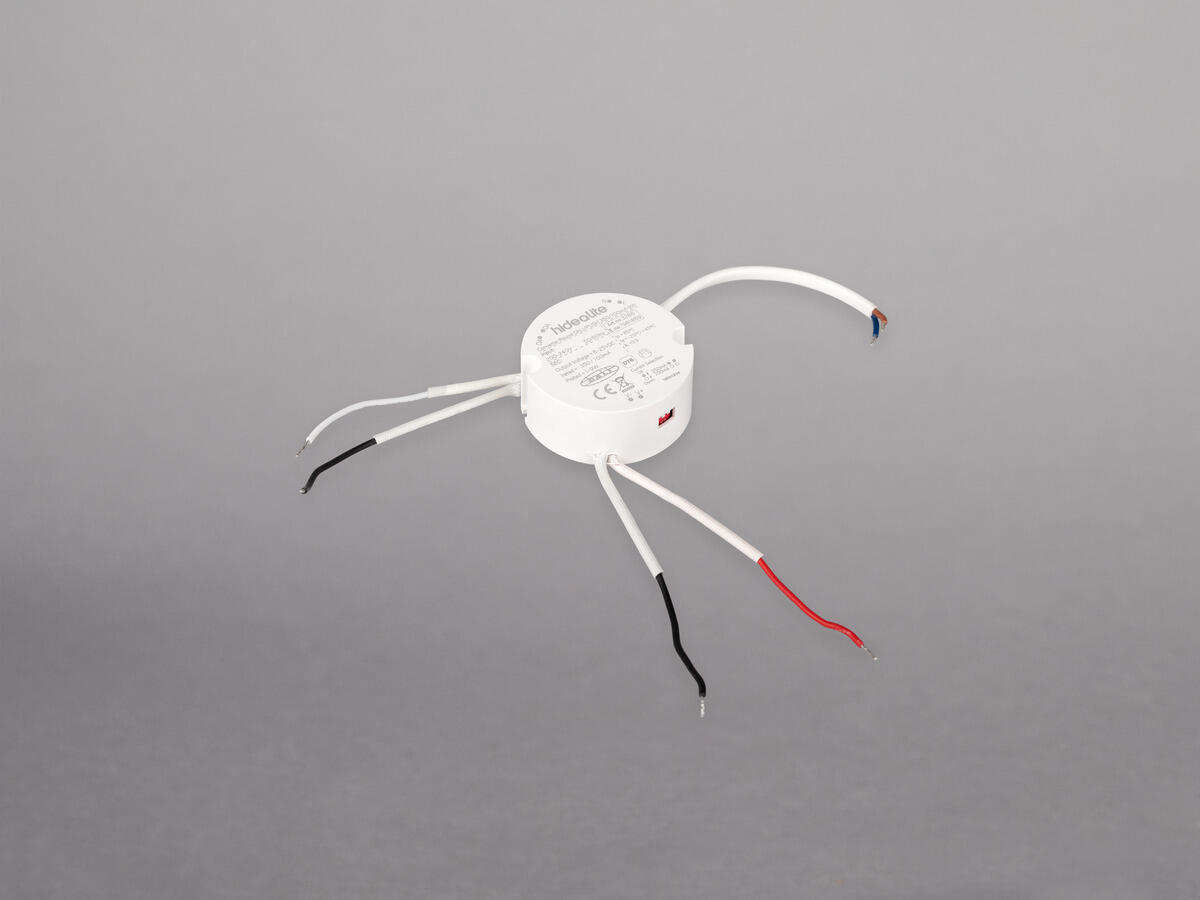

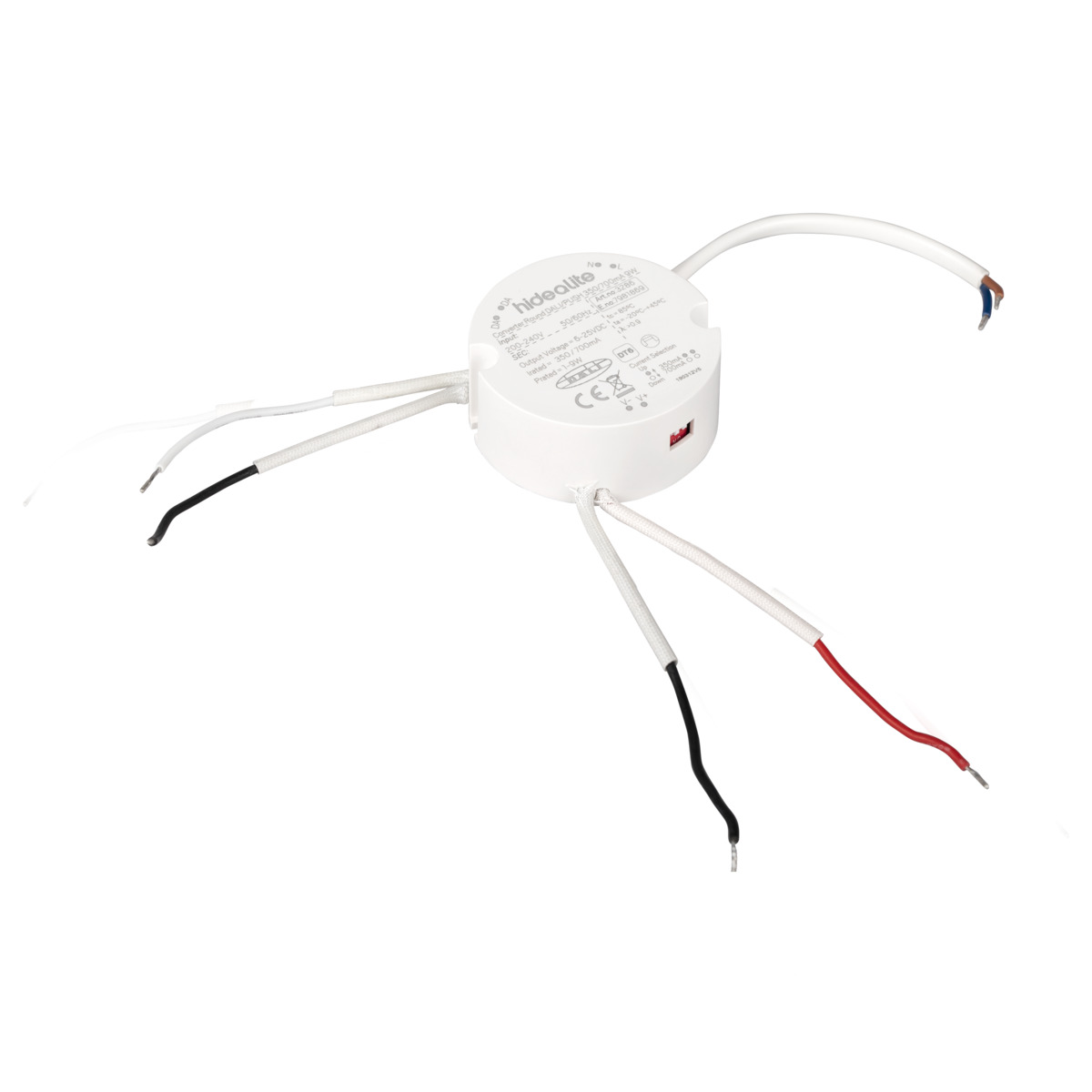

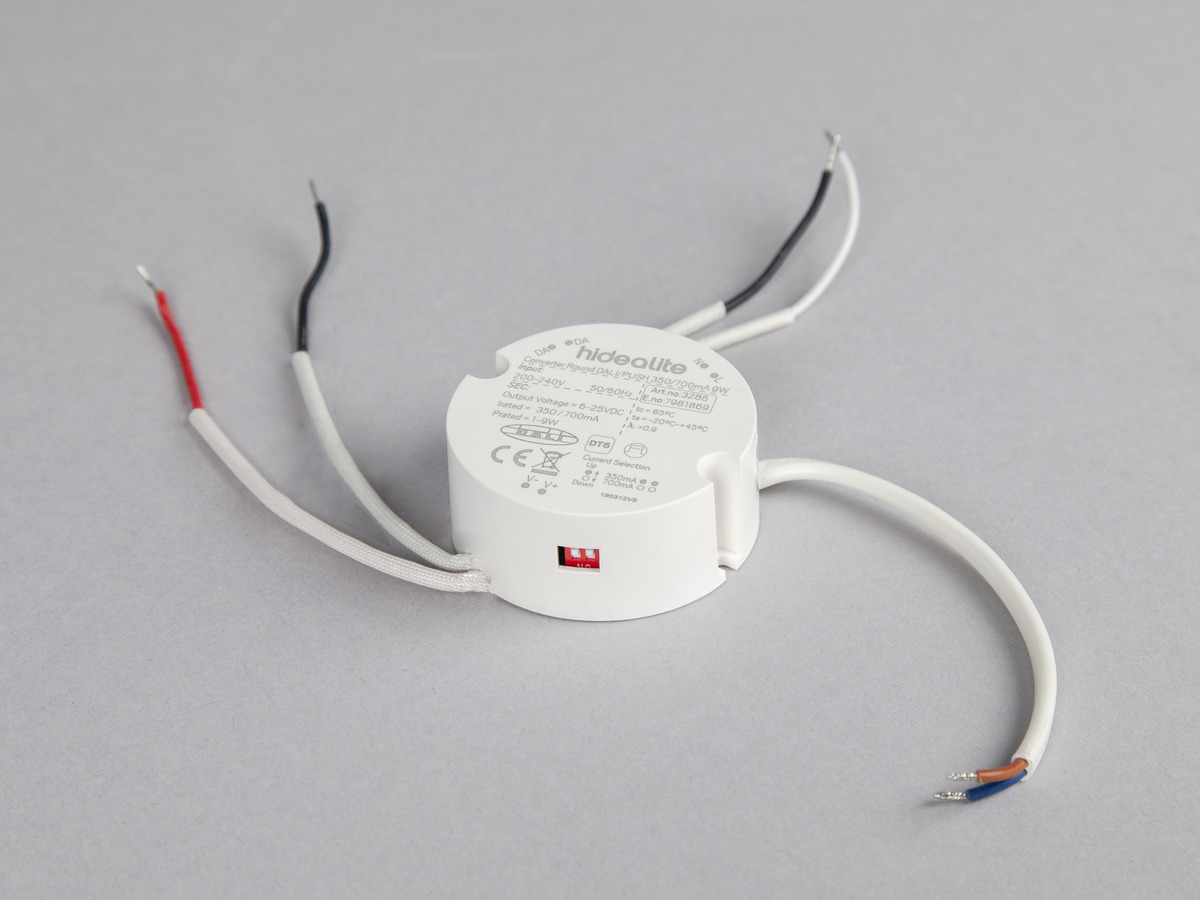

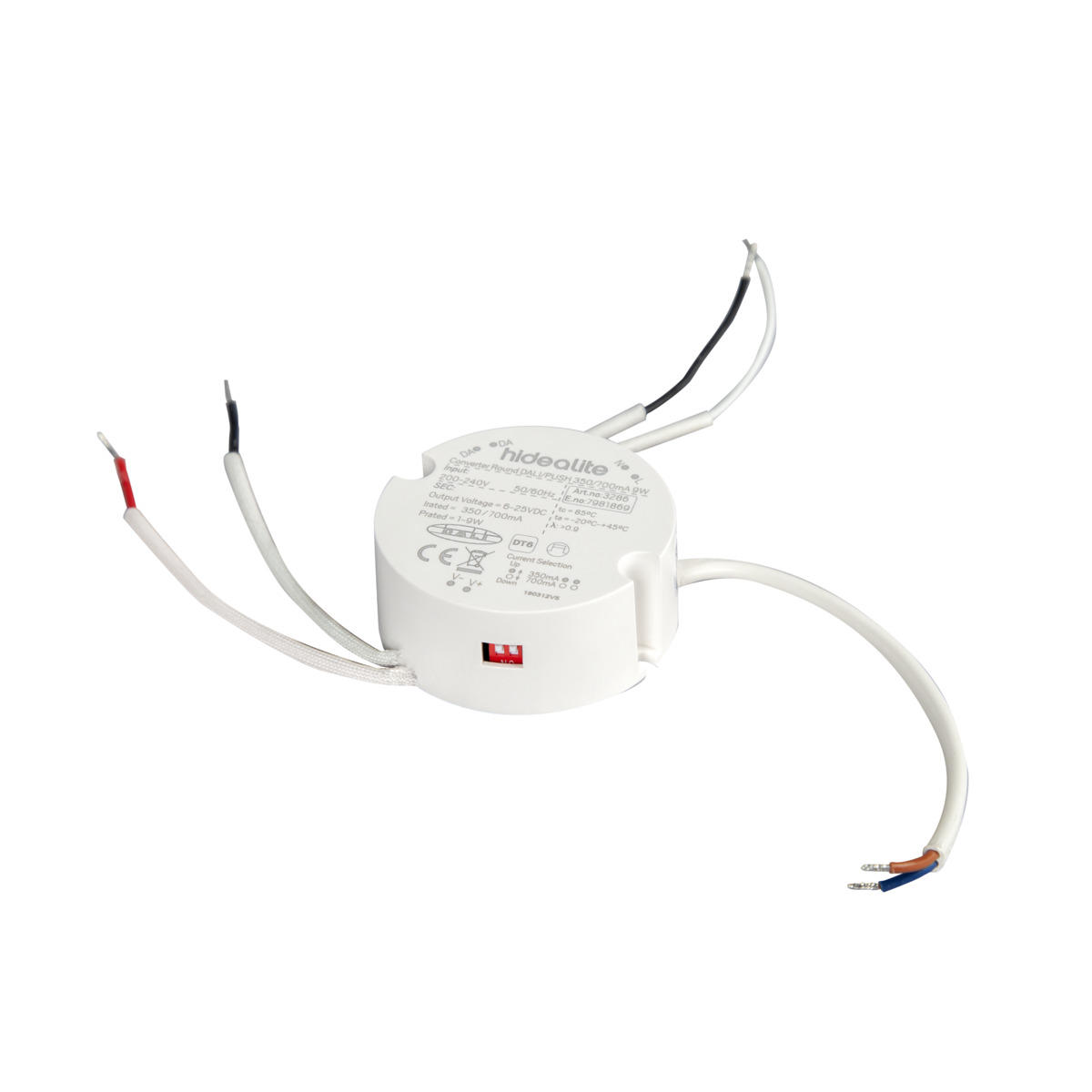

Converter Round DALI/PUSH

Small and versatile dimmable LED converter for constant current 350/700mA with easy setting of current via dip switch Suitable for junction box, which makes it easy to place. Excellent for smaller constant current luminaires, such as lighting in window niches. Dimmable via Push (230V) or DALI. Converter Round has memory function which lights up with latest set value after power failure. For further technical information see instruction manual.

Description: GTIN 7392971136653

Item Name Converter Round DALI/PUSH 350/700mA 9W

Warranty 5 years
Light Technical Data: Life Time Driver 50 000h/15%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 180...260V

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60
Operation and Connection: Dimmable Yes

Type of Dimming Push 230V, DALI 2, DALI DT6

Driver Model Constant Current

Driver Type Built-in

Connection (type) Cable

Length Connection (cm) 10

Connection (mm2) 2x0,75

Through Wiring No

Strain Relief No

Connection Secondary (type) Cable

Length Connection Secondary (cm) 10

Secondary Connection (mm2) 2x0,75

Voltage Output Interval (V) 3-26V

Power Factor ʎ 0,9

Efficiency (%) 80

Power Interval for Catalogue (W) 1-9

Standby Power 1

Constant Current (mA) 350, 700

Min. Ta (°C) -20

Max. Ta (°C) 45

Max. Tc (°C) 85

Dimming secondary side PWM

Frequency PWM dimming (Hz) >300

Memory Function Power Failure Yes

Protection Against Short Circuit, Overheating 110°C, Overload

Fuse B10 (pcs) 70

Fuse B16 (pcs) 110

Fuse C10 (pcs) 80

Fuse C16 (pcs) 220
Color and material: Material Plastic

Color White

Halogen free Yes

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Built-in

Fire Safety Marks MM-mark

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

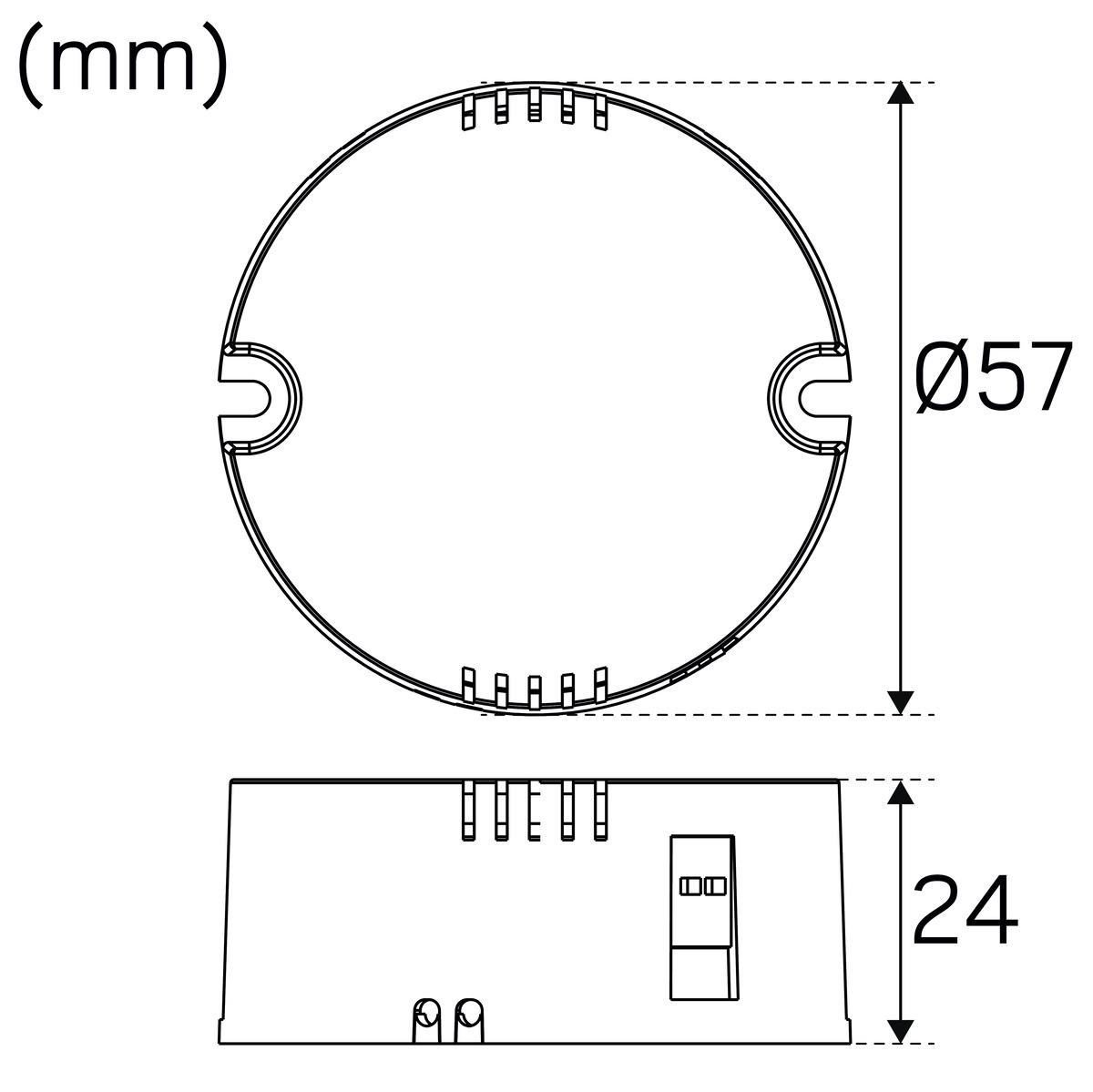

Height (mm) 24

Diameter (mm) 57

Weight (kg) 0,1

Built-in Ø (mm) 58mm
