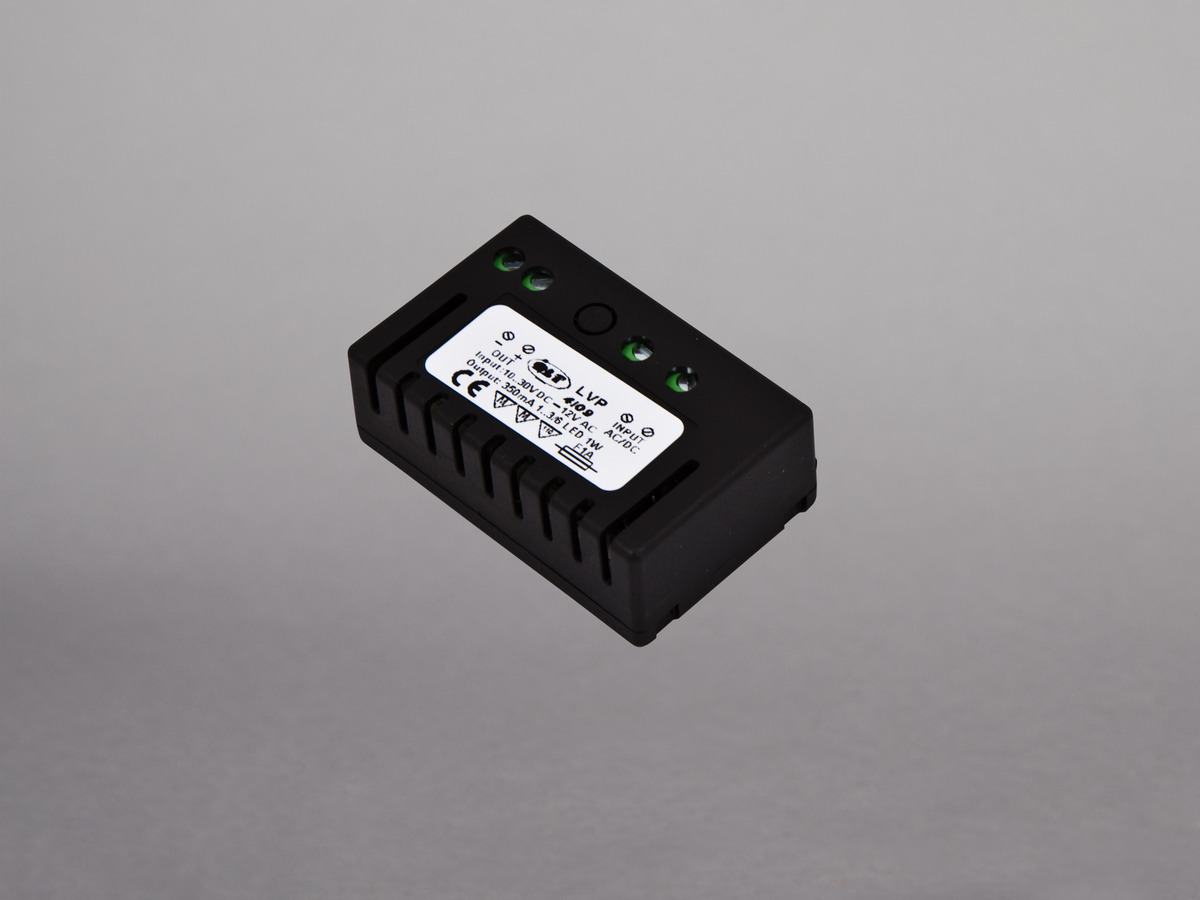

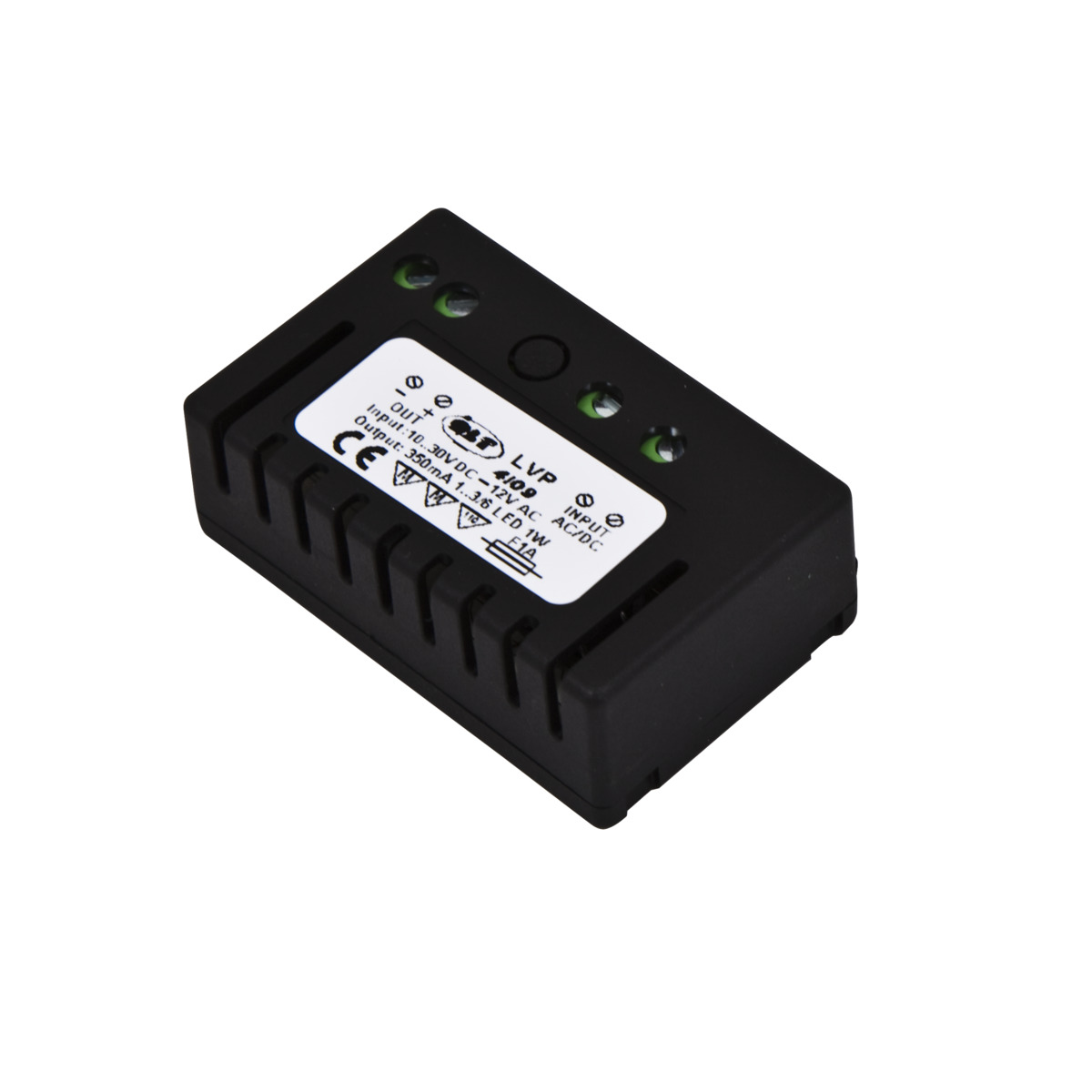

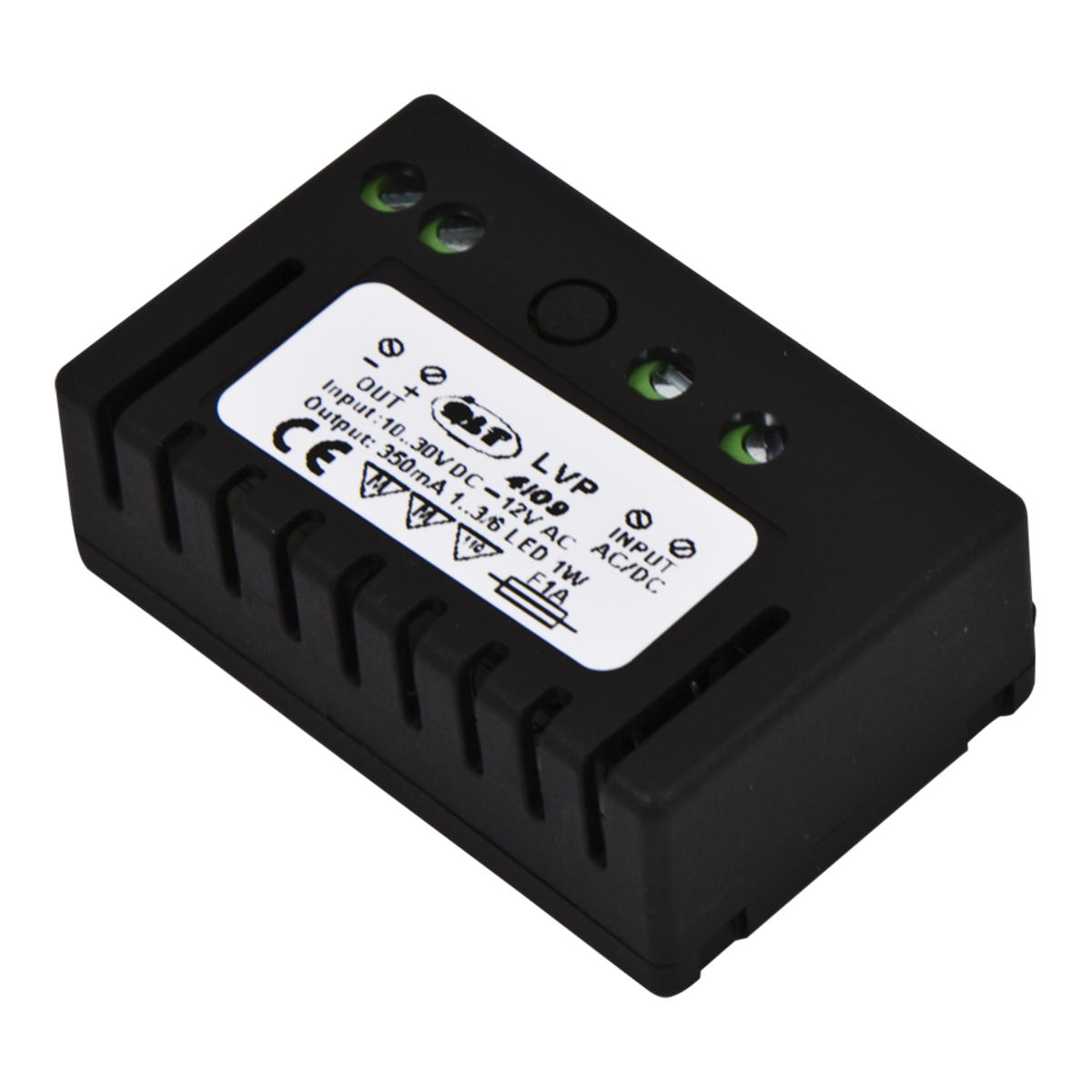

Converter LVP/LVQ
Constant current converter for battery voltages 10-28V DC for LED Light Sources.
Converter LVP 350mA
-
GTIN 7331575109342Item Name Converter LVP 350mA
- Operation and Connection
-
Dimmable NoDriver Model Constant CurrentDriver Type Built-inConnection (type) Screw TerminalsVoltage Output Interval (V) 3-24VPower Interval for Catalogue (W) 1-7,2Max. Power (W) 7,2Constant Current (mA) 350Min. Ta (°C) -10Max. Ta (°C) 40Operating TemperatureProtection Against Short Circuit, Overload, Overheating 110°C
- Color and material
-
Color Black
- Measurement and installation
-

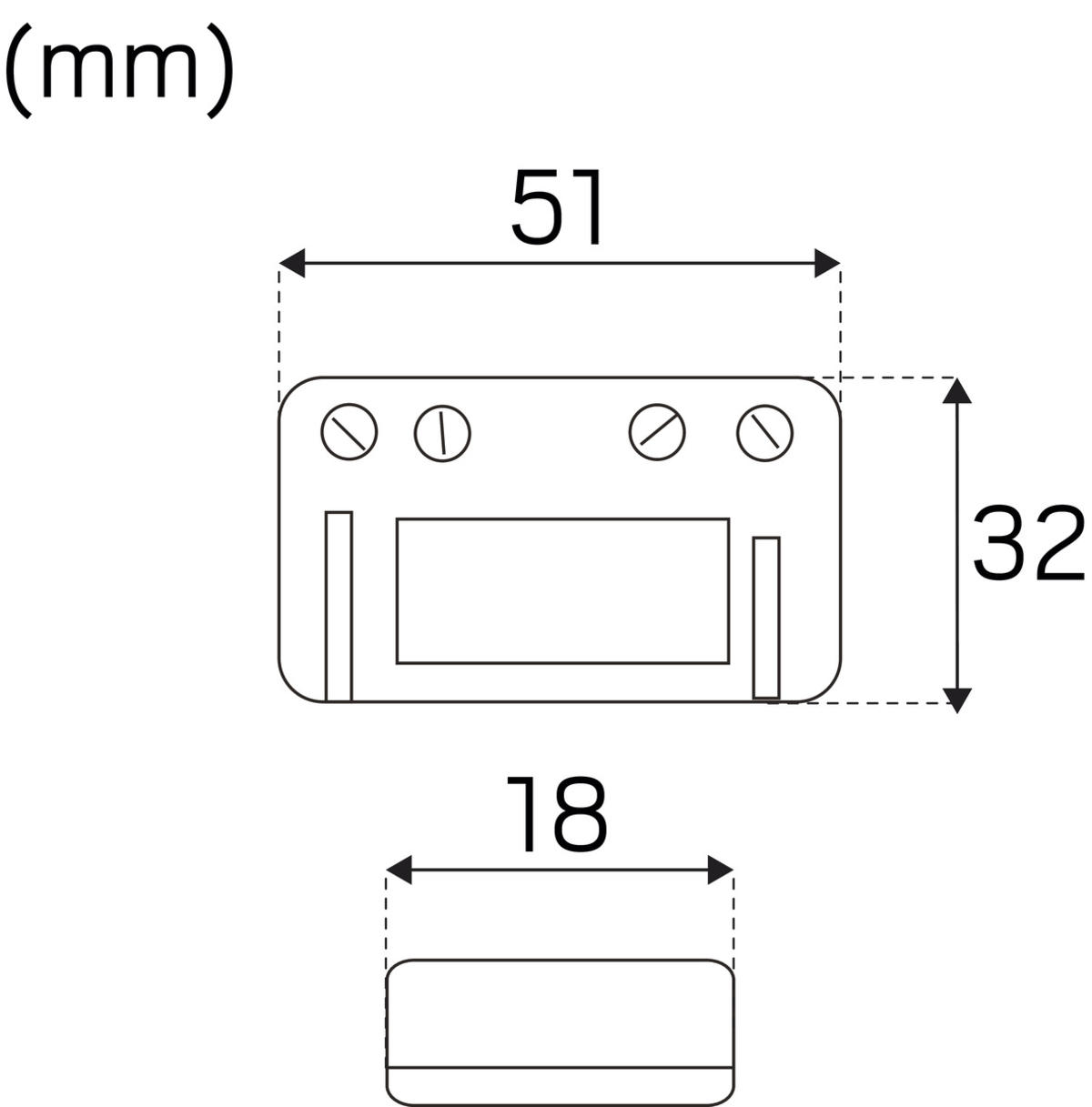

Operating EnvironmentIP Degree of Protection 20Protection Class IIIFire Safety Marks MM-markApproval Marks CELength (mm) 51Width (mm) 32Height (mm) 18Weight (kg) 0,05Built-in Ø (mm) 36mm
