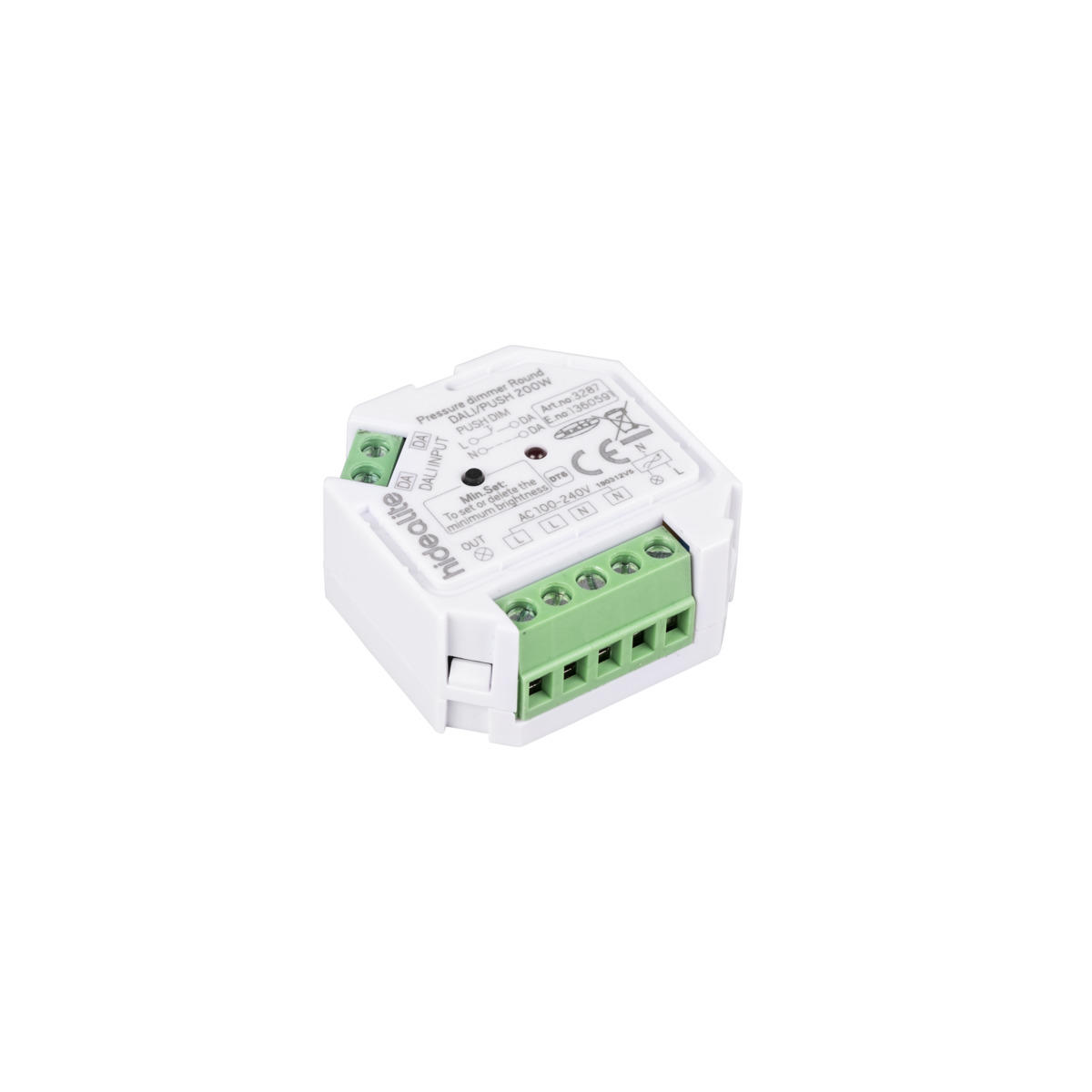

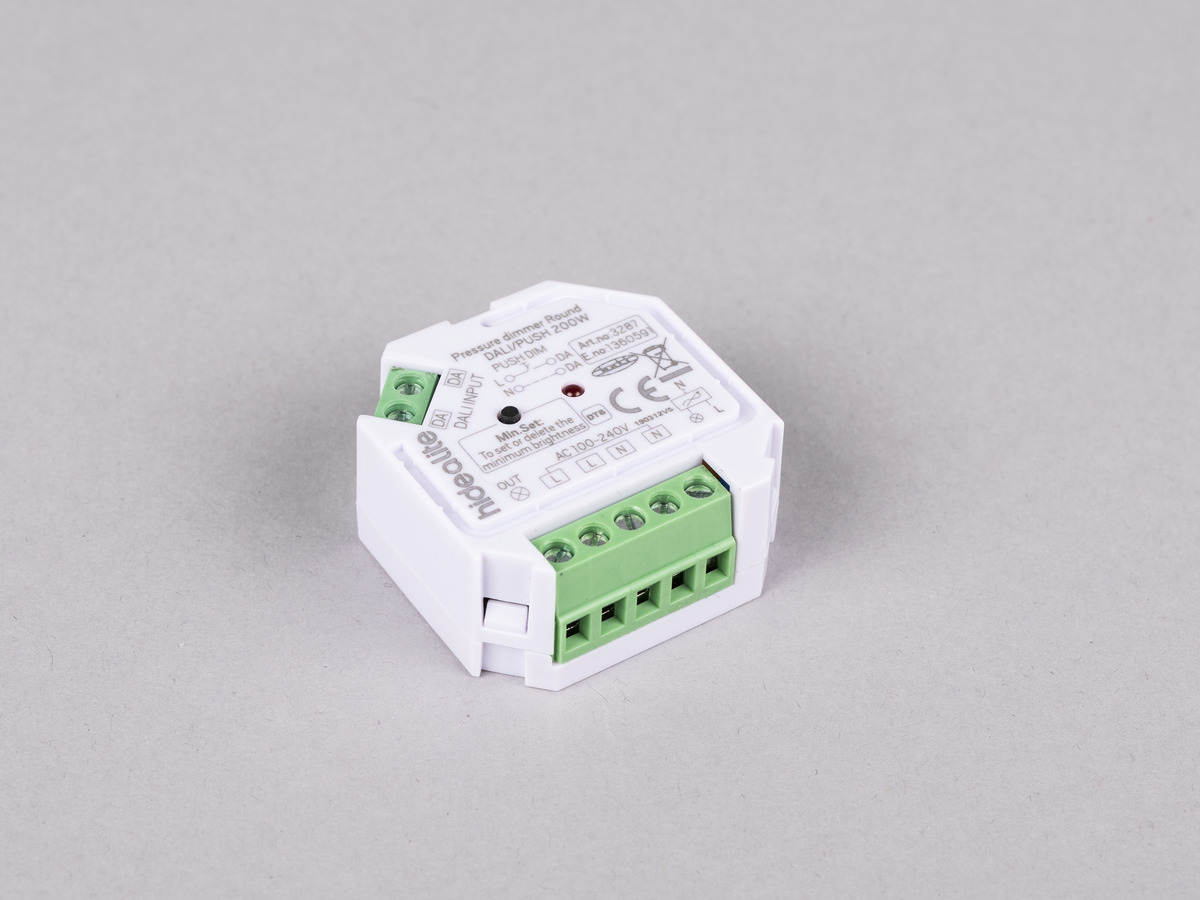

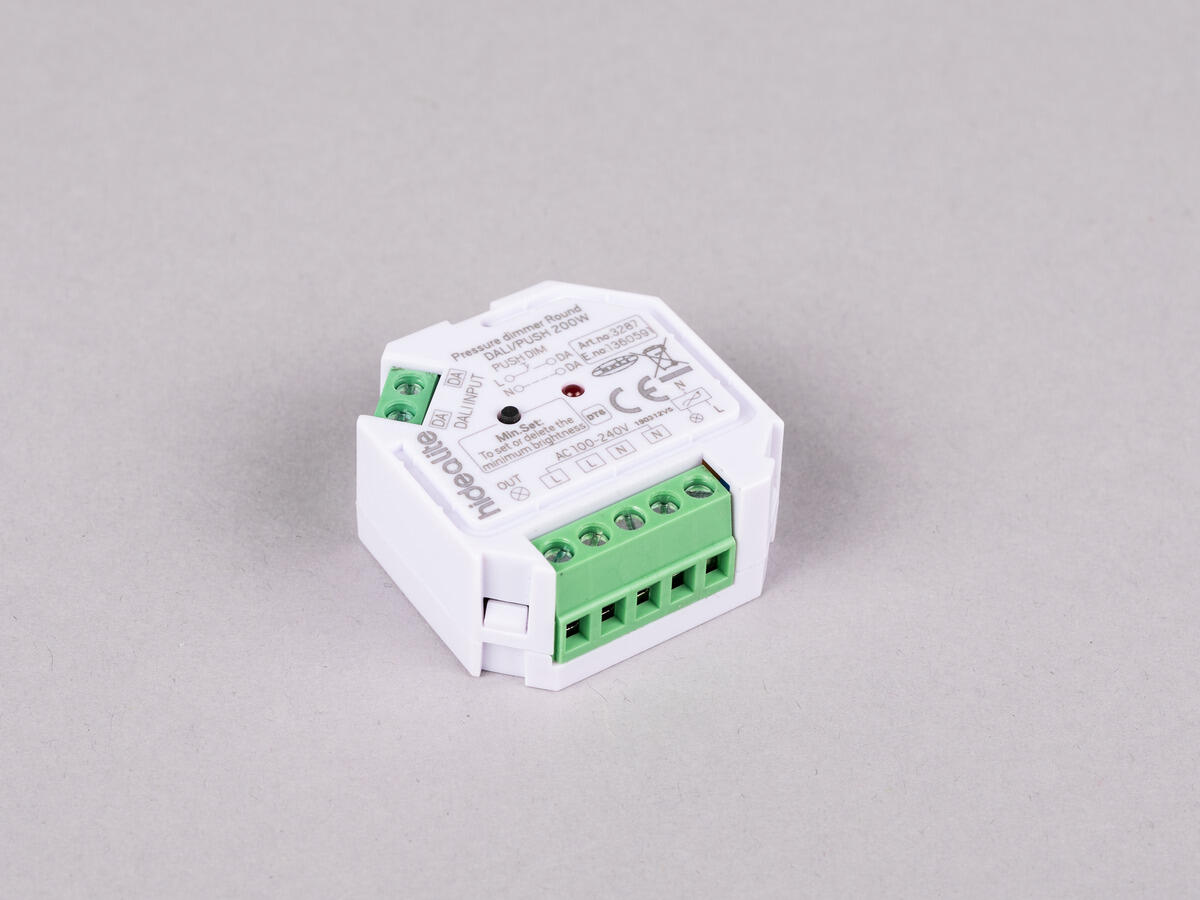

Push dimmer Round DALI/PUSH
Small and versatile dimmer puck for mains dimmable drivers and luminaires. For installation in appliance or junction box. Dimmable on the primary side via Push (230V) or DALI signal. Push dimmer Round DALI has screw terminals that can manage cables up to 2.5 mm² and memory function which lights up with latest set value after power failure. For further technical information see instruction manual.

Push dimmer Round DALI/PUSH 200W

Description
GTIN 7392971136783
Item Name Push dimmer Round DALI/PUSH 200W
Warranty 5 years
Light Technical Data
Life Time Driver 50 000h/10%
Technical data
Voltage (type) AC
Voltage Interval (V) 110...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Operation and Connection
Driver Type Built-in
Connection (type) Screw Terminals
Connection (mm2) 2x0,5-2,5
Through Wiring Yes
Strain Relief No
Connection Secondary (type) Screw Terminals
Secondary Connection (mm2) 2x0,5-2,5
Power Interval for Catalogue (W) 1-200
Standby Power 1
Current (A) 1,5
Operating Temperature -25…+45
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Push 230V, DALI 2
Dimming secondary side PWM
Frequency PWM dimming (Hz) >300
Memory Function Power Failure Yes
Protection Against Short Circuit, Overheating 110°C, Overload
Fuse B10 (pcs) 8
Fuse B16 (pcs) 12
Fuse C10 (pcs) 8
Fuse C16 (pcs) 13
Color and material
Material Plastic
Color White
Environmental Assessment Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class II
Installation Built-in
Mounting Installation Screw Mounting
Fire Safety Marks MM-mark
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650

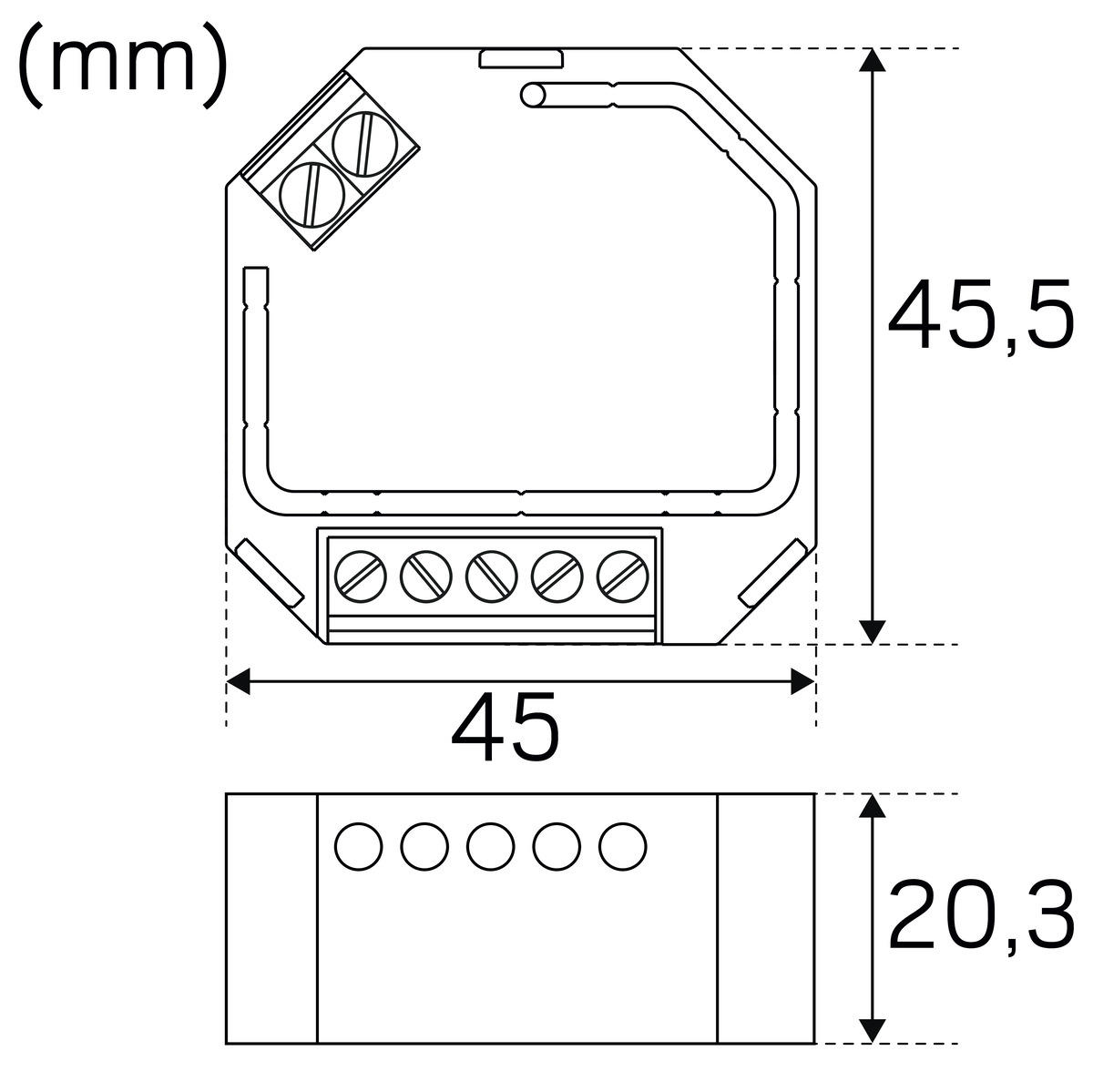

Length (mm) 45,5
Width (mm) 45
Height (mm) 21
Weight (kg) 0,08
Built-in Ø (mm) 53
