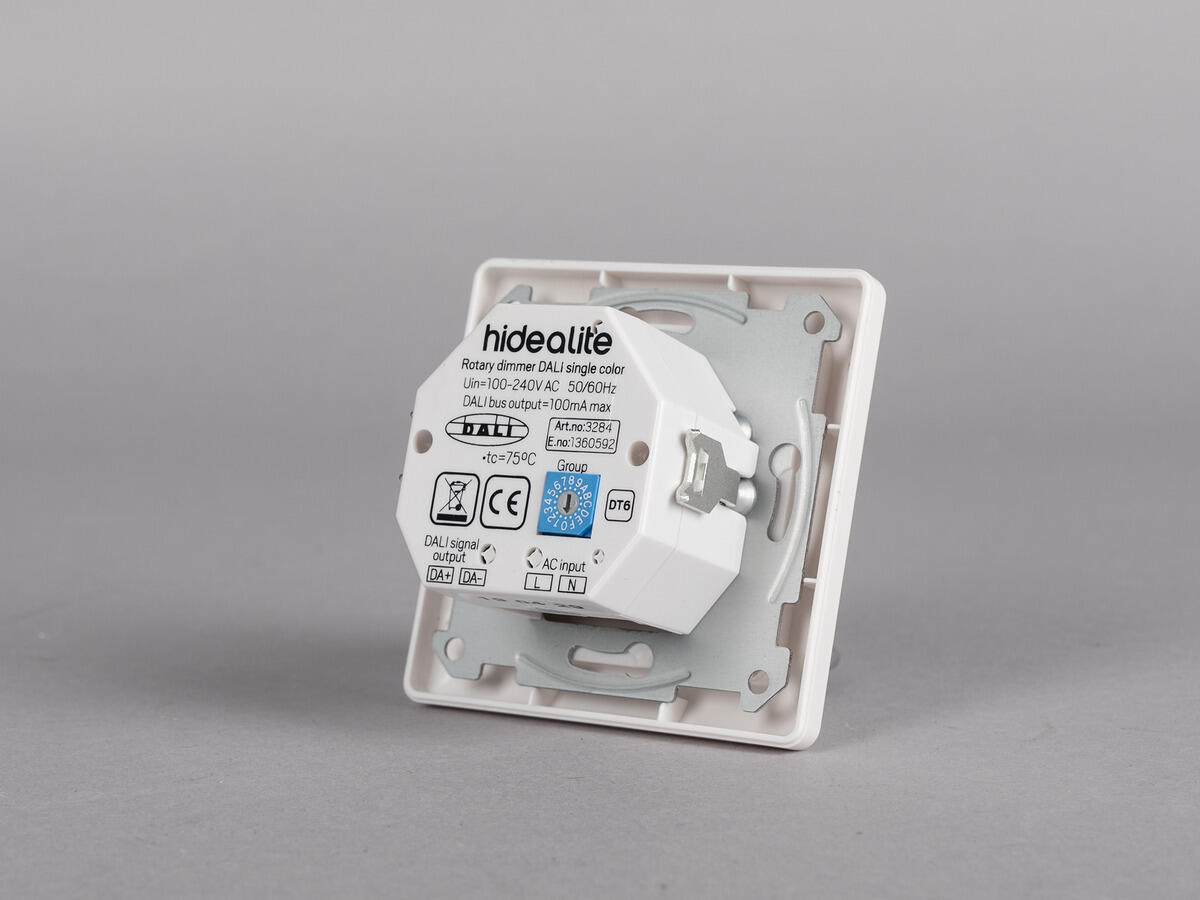

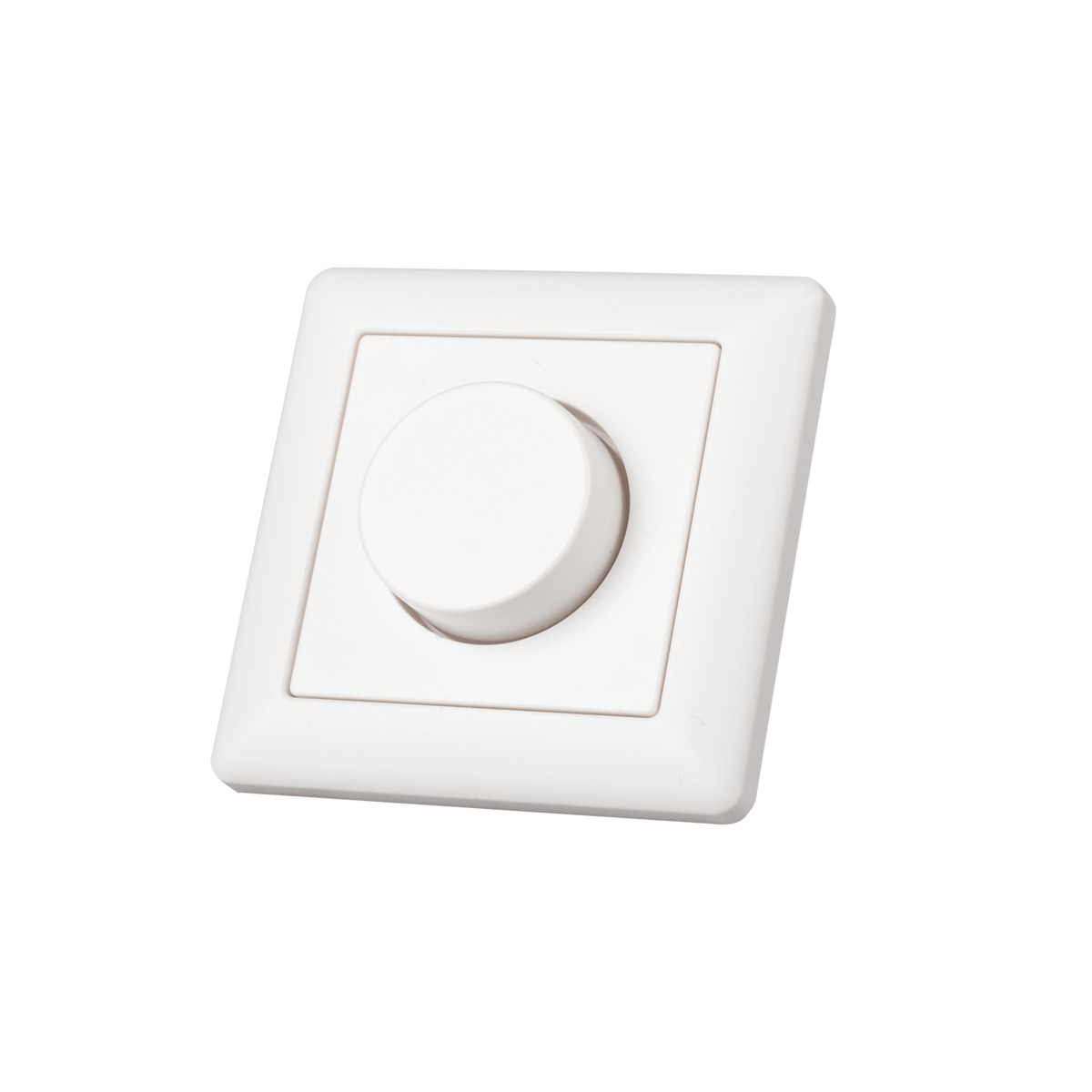

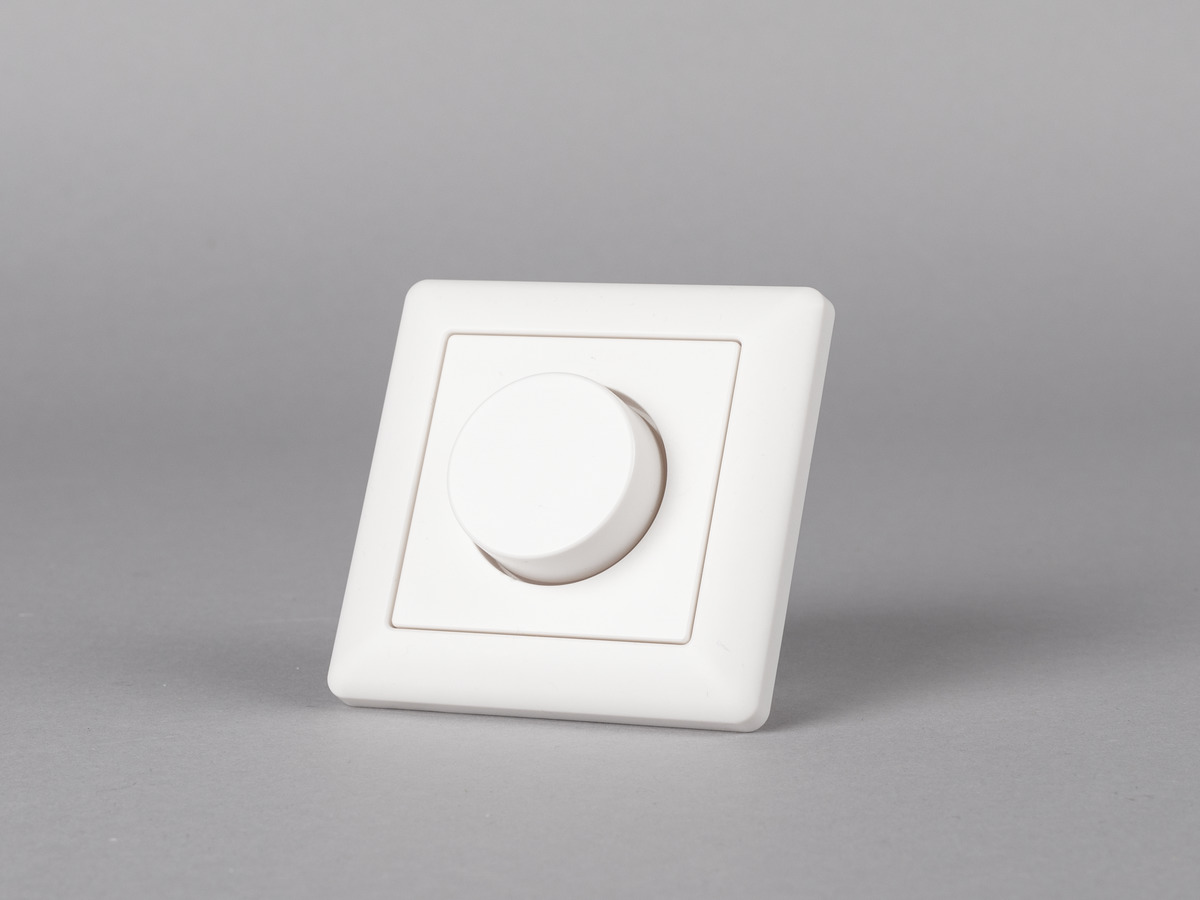

Rotary dimmer DALI

DALI dimmer for LED and electronic drivers with DALI interface. The dimmer has integrated power supply. Can control a chosen DALI-group or work as broadcast. For 1-25 DALI devices. Up to four dimmers can be connected in parallel with synchronized control Comes complete with frame and center plate, also fits frames from other brands. For further technical information see instruction manual.

Description: GTIN 7392971136790

Item Name Rotary dimmer DALI Single color

Warranty 5 years
Light Technical Data: Life Time Driver 50 000h/10%
Technical data: Voltage (type) AC

Voltage Interval (V) 110...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60
Operation and Connection: Dimmable Yes

Type of Dimming DALI

Driver Type Built-in

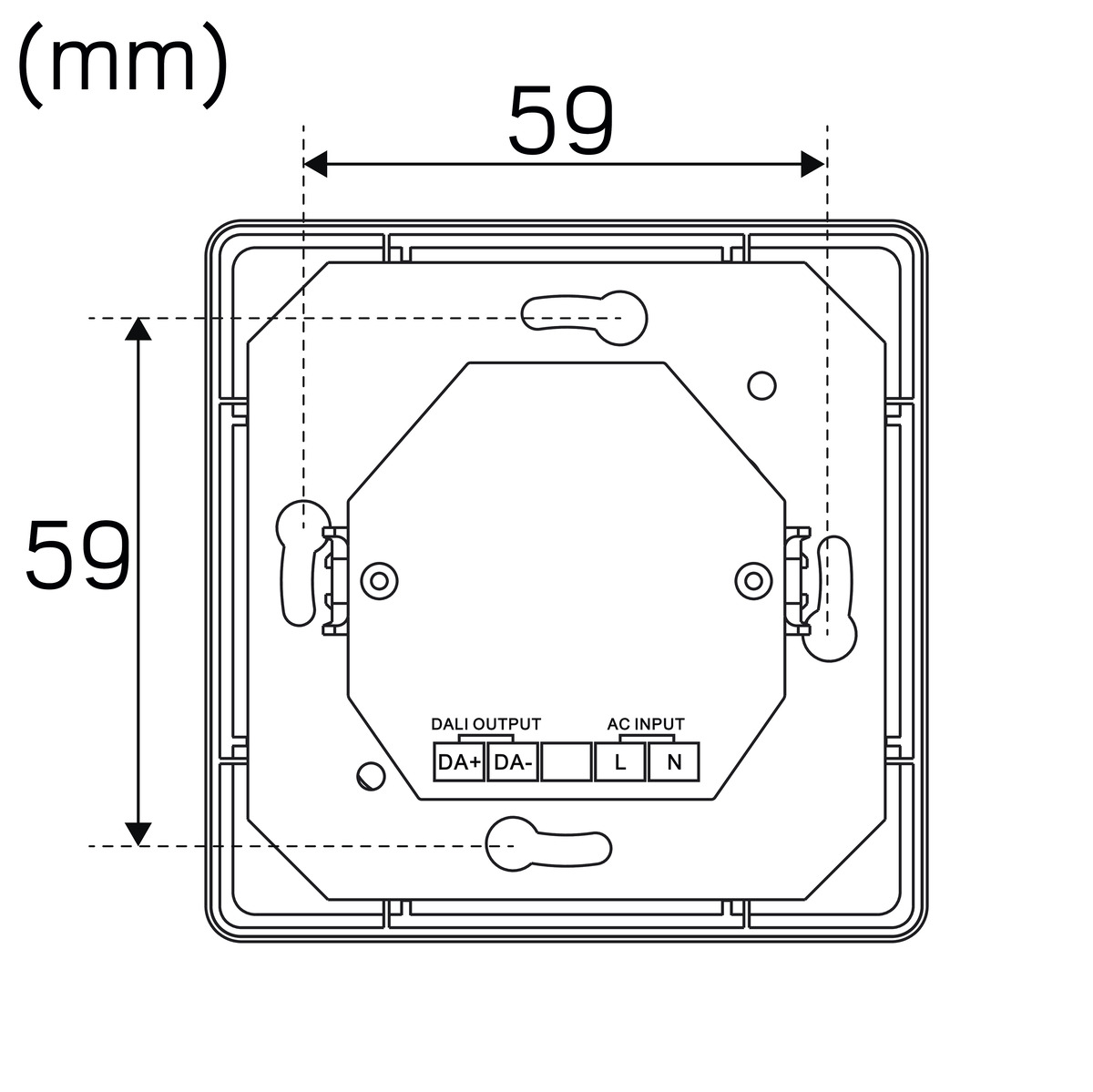

Connection (type) Screw Terminals

Connection (mm2) 2x0,5-2,5

Through Wiring No

Strain Relief No

Connection Secondary (type) Screw Terminals

Secondary Connection (mm2) 2x0,5-2,5

Standby Power 1

Operating Temperature 0...+50

Max. Tc (°C) 50

Memory Function Power Failure Yes
Color and material: Material Plastic

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Built-in

Mounting Installation Screw Mounting

Fire Safety Marks MM-mark

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

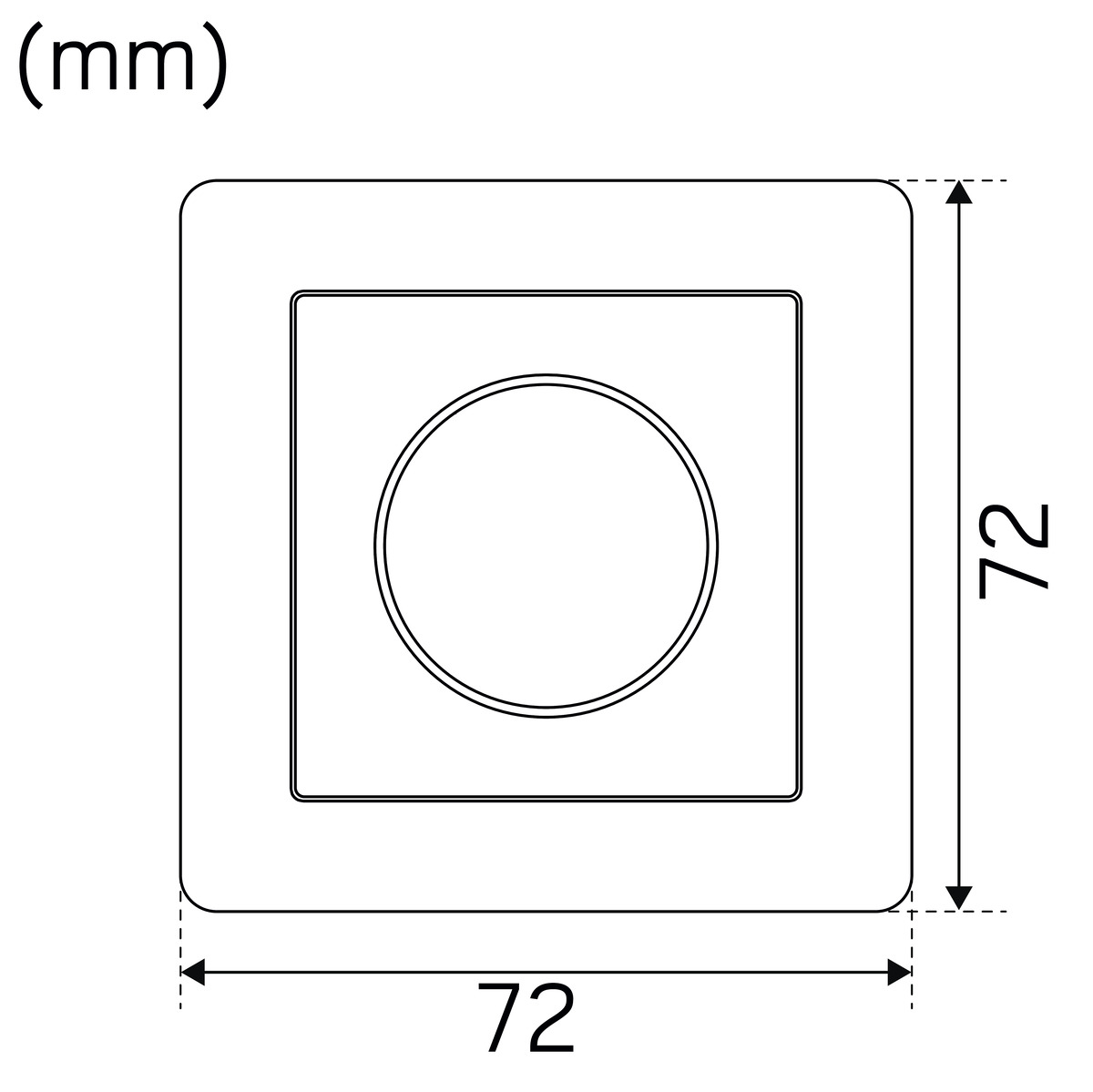

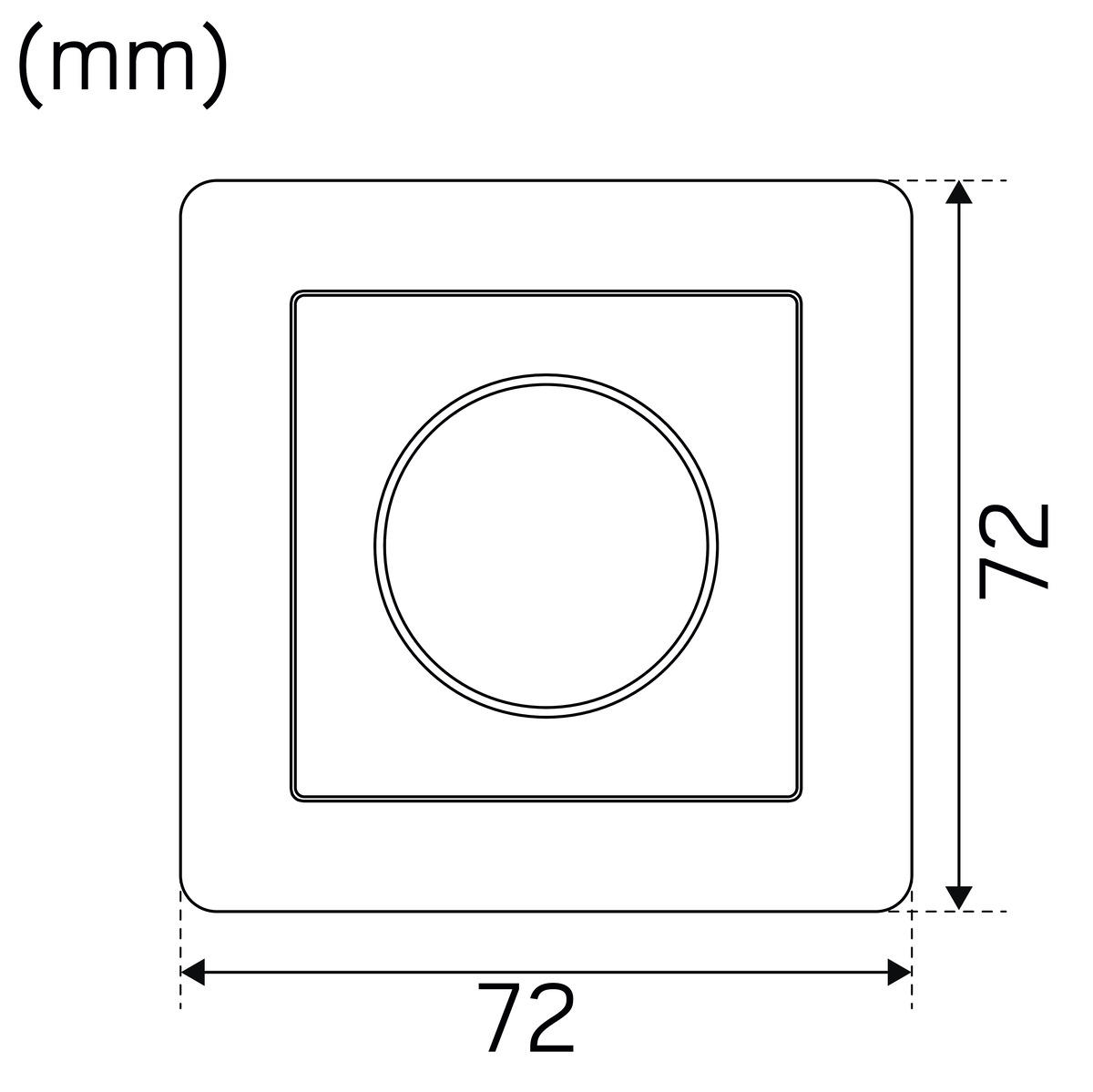

Length (mm) 80

Width (mm) 80

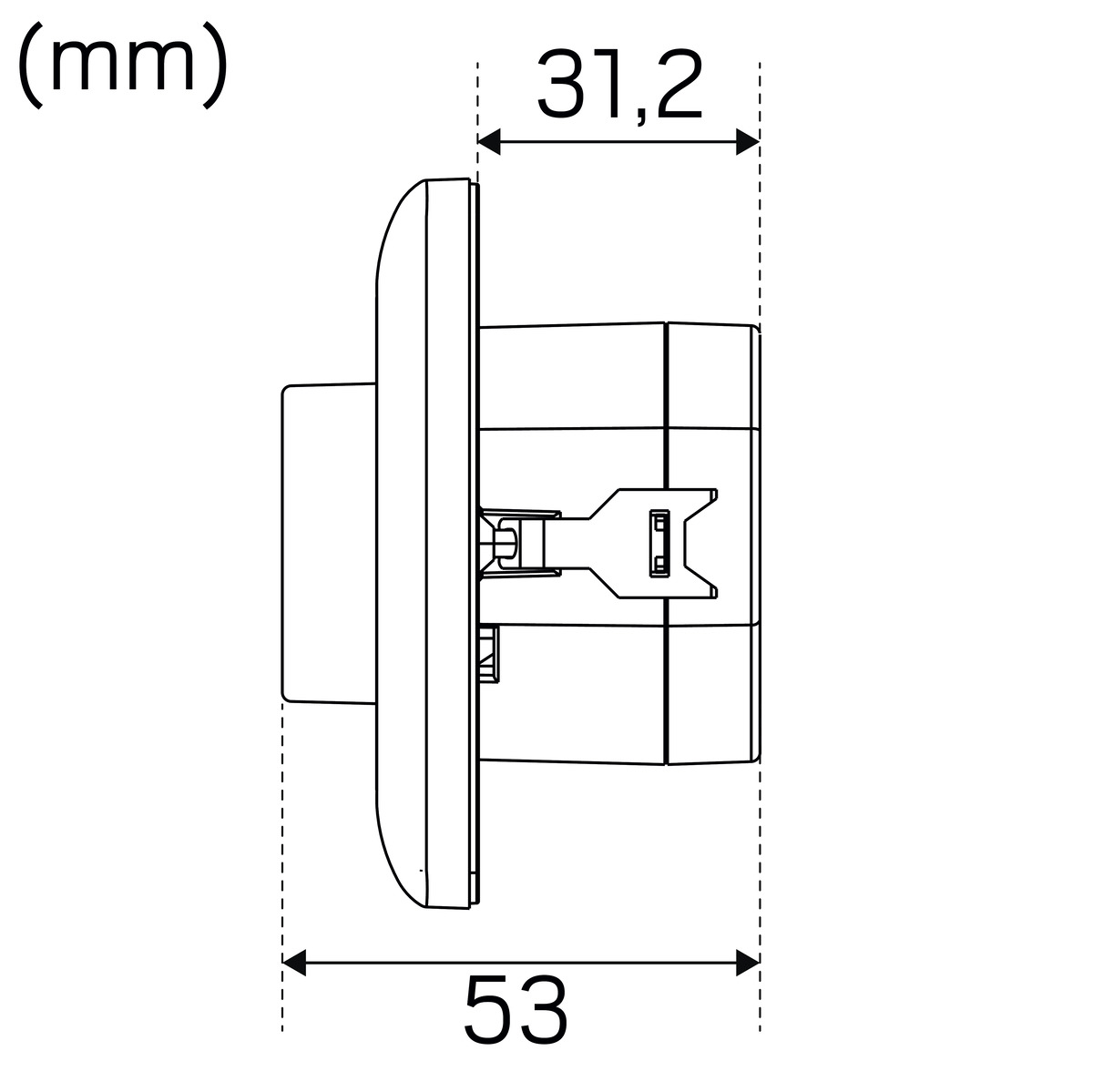

Height (mm) 53

Weight (kg) 0,2

Built-in Ø (mm) 73
