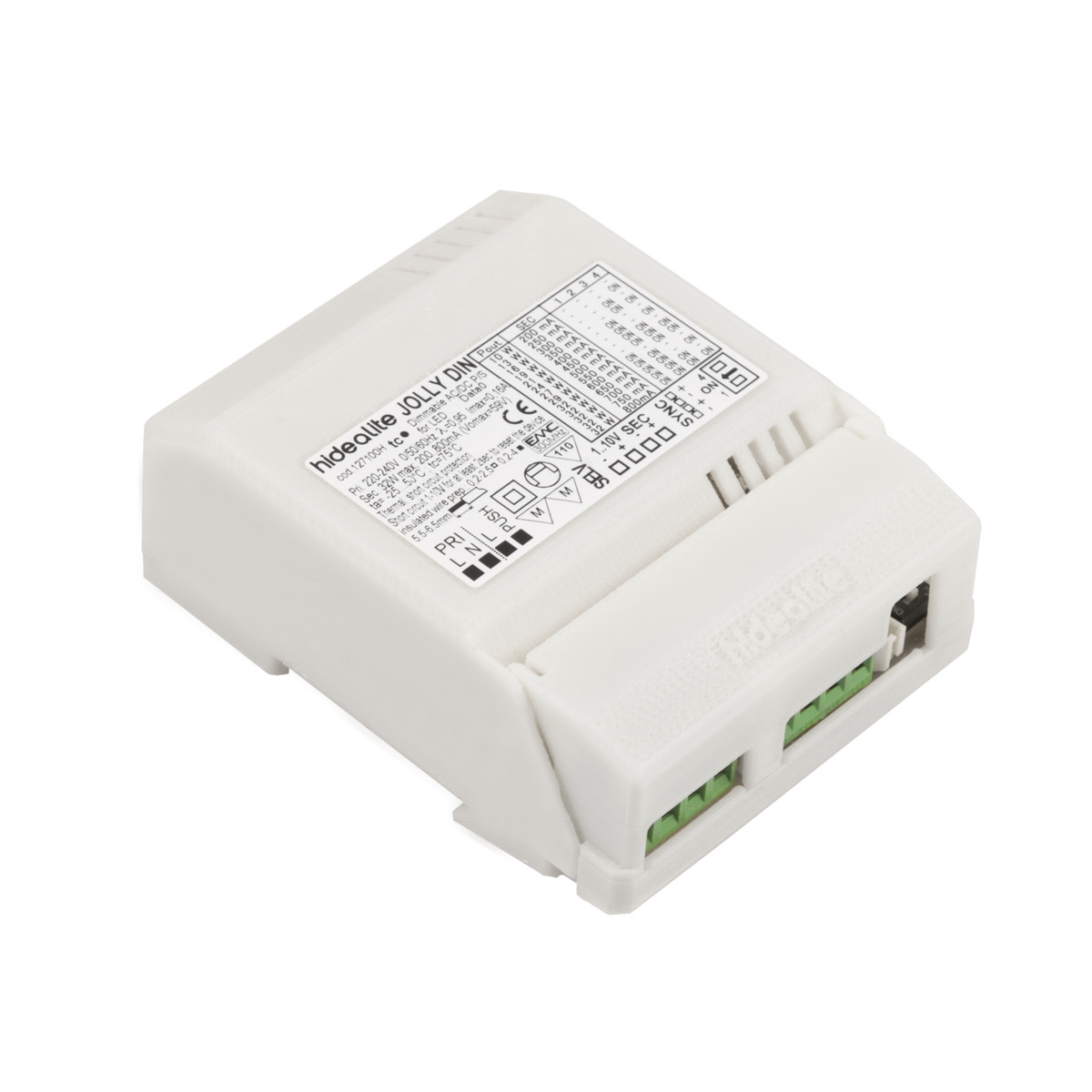

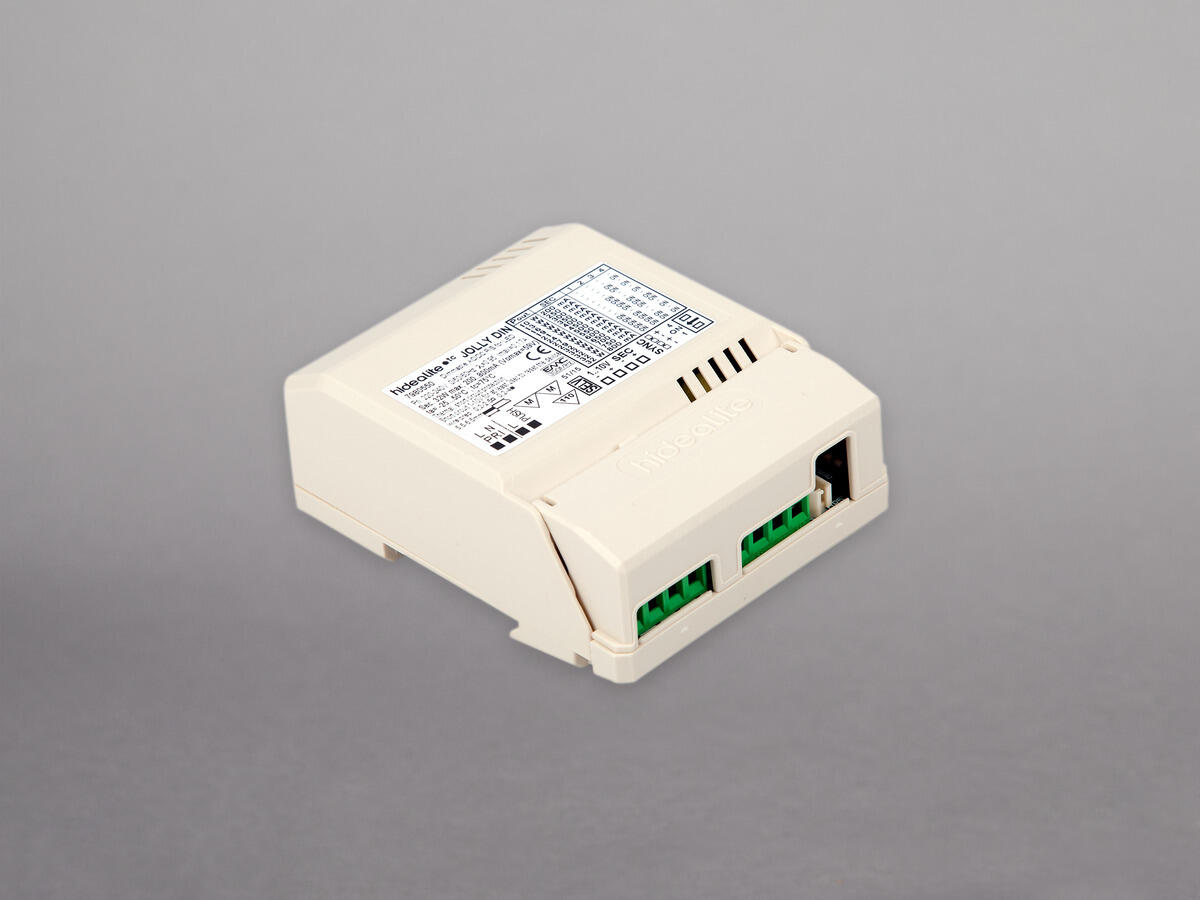

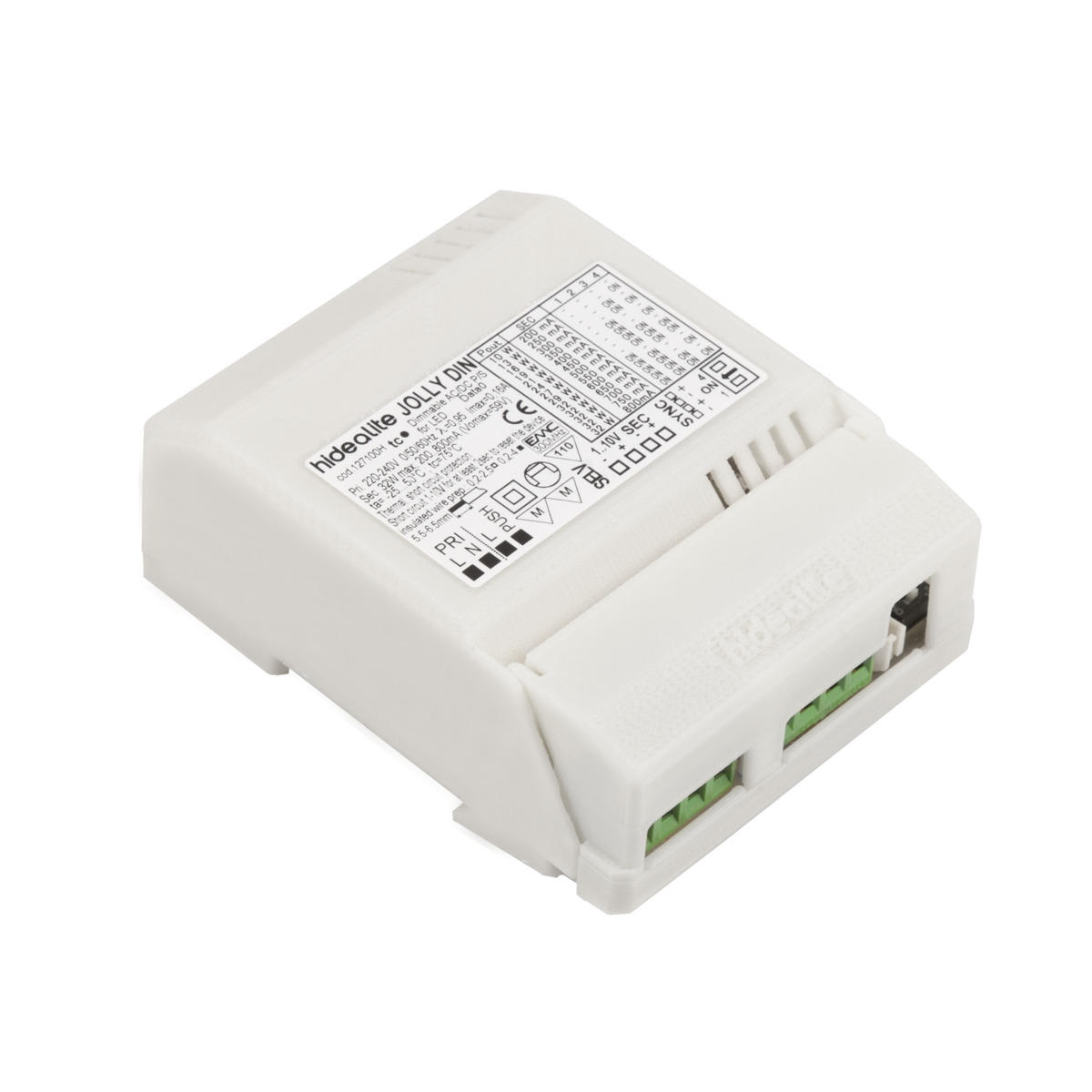

Jolly DIN

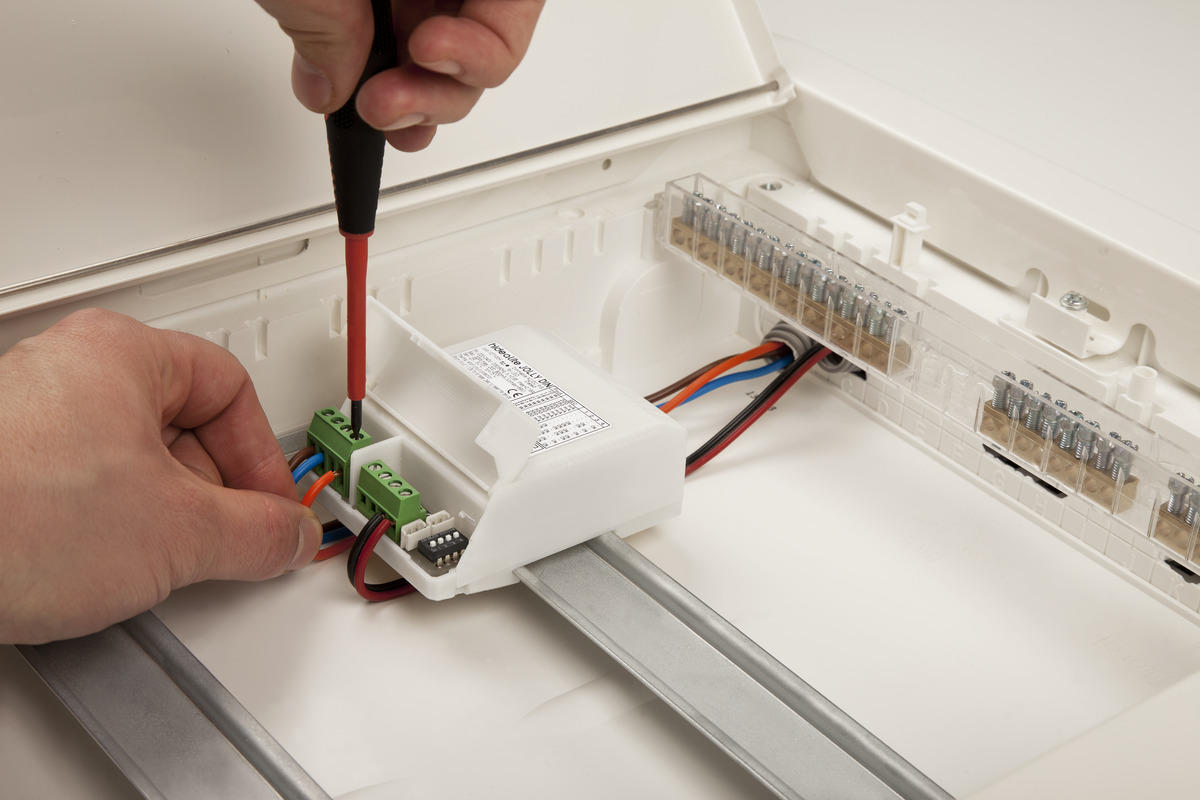

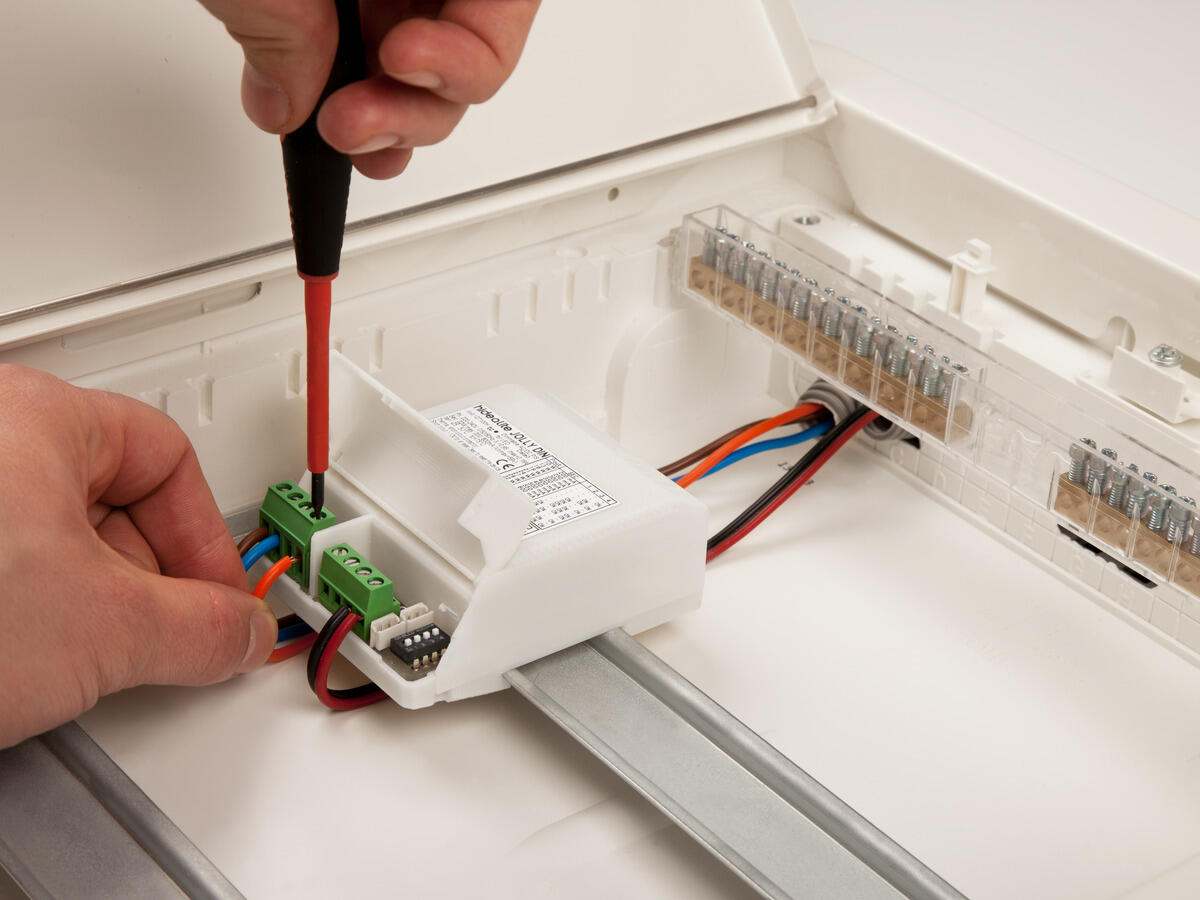

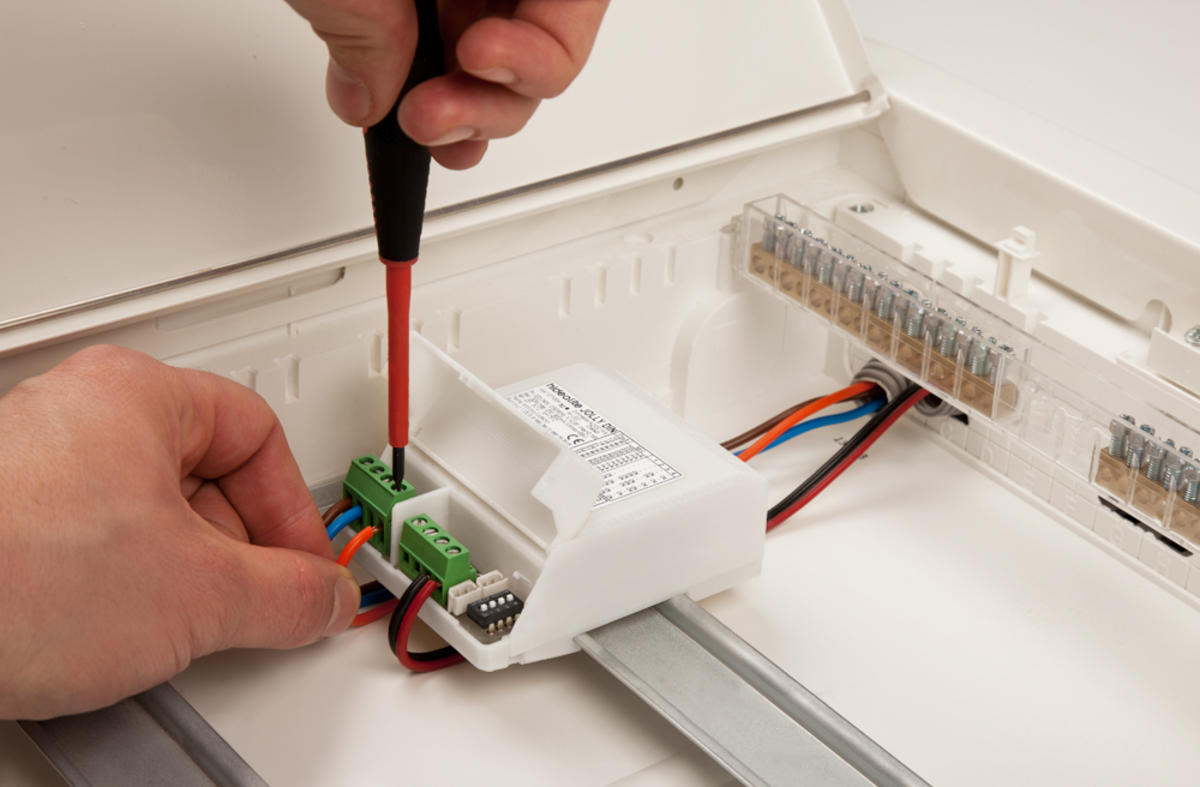

All-in-one converter for LED with integrated PWM dimmer for easy installation directly on a DIN track for large projects and small renovations. Able via a simple adjustment to drive and regulate most types of LED light sources for constant current DC (200 mA to 800 mA in steps of 50 mA). 1-10 units can be linked controlled from one or more places via a spring-loaded pushbutton, via a potentiometer, 1-10V or bus/KNX system via actuator. Comes with 15 cm synch cable.
GTIN 7392971123561
Item Name Jolly DIN
Warranty 5 years
Operation and Connection
Driver Model Constant Current
Driver Type Built-in
Connection (type) Screw Terminals
Secondary Connection (mm2) 2x0,5-2,5
Secondary Outputs (pair) 1
Voltage Output Interval (V) 2-54
Power Interval for Catalogue (W) 350mA 0-19W (2-54V) 500mA 0-27W (2-54V) 700mA 0-32W (2-46V)

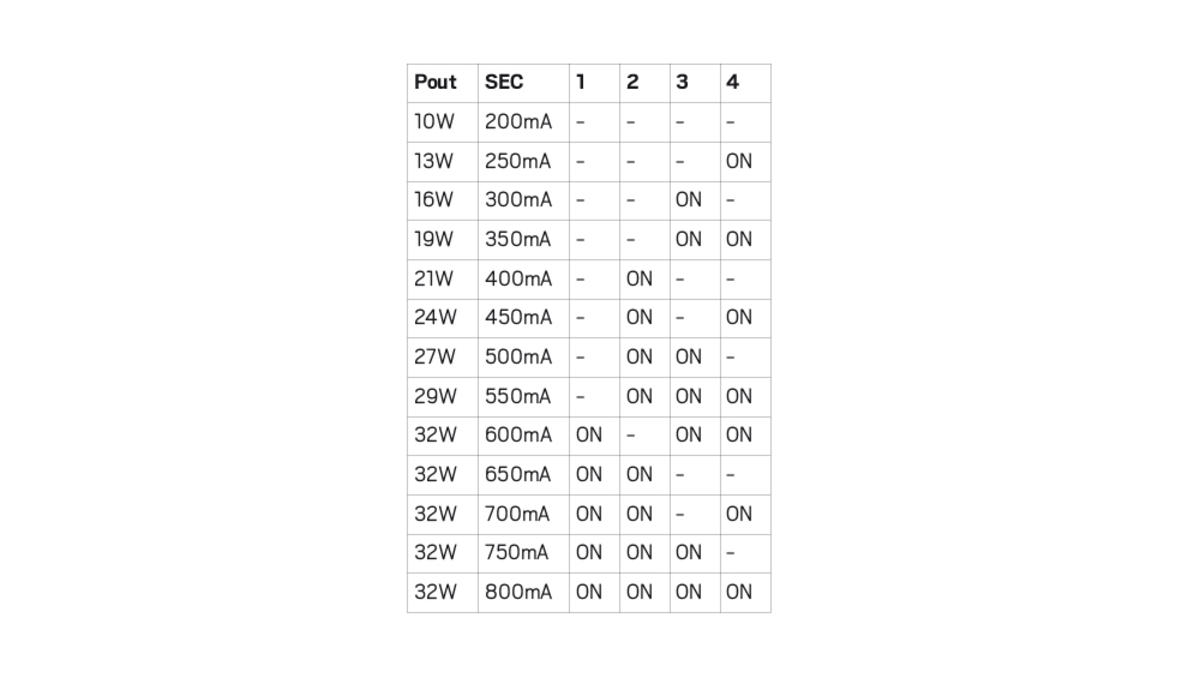

Constant Current (mA) 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800
Operating Temperature -25…+50
Max. Tc (°C) 75
Dimmable Yes
Type of Dimming 1-10V, Push 230V, Potentiometer
Dimming secondary side PWM
Frequency PWM dimming (Hz) >300
Protection Against Short Circuit, Overload, Overheating 110°C
Fuse B10 (pcs) 31
Fuse B16 (pcs) 50
Fuse C10 (pcs) 52
Fuse C16 (pcs) 85
Color and material
Material Plastic
Color White
Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Installation Built-in
Fire Safety Marks MM-mark
Approval Marks CE
Filament Test IEC 695-2-1(°C) 850

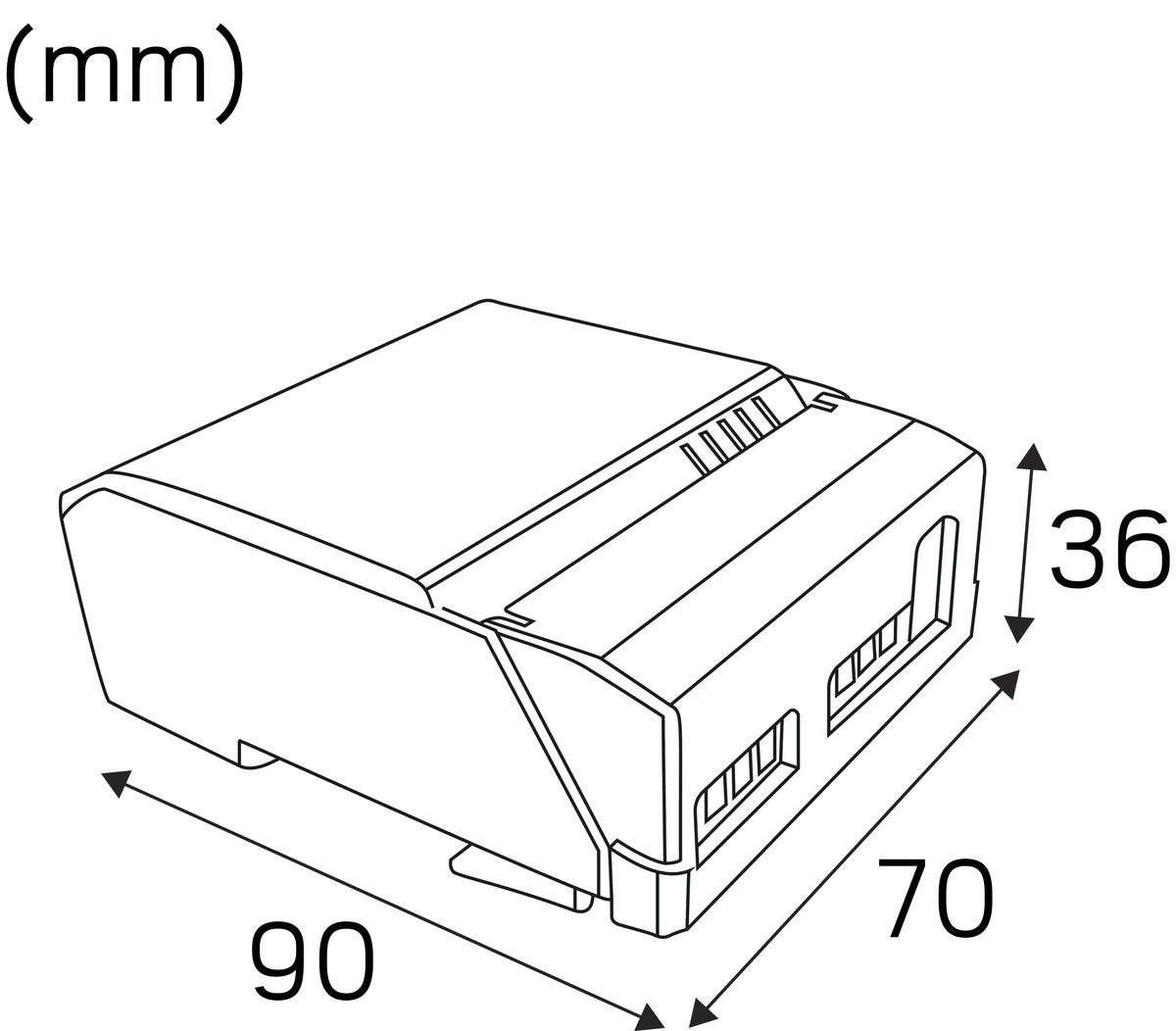

Length (mm) 90
Width (mm) 70
Height (mm) 36
Weight (kg) 0,08
