LEDstrip 24V IP20 LEDstrip 24V IP20 Midlum 2700K lpm

Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

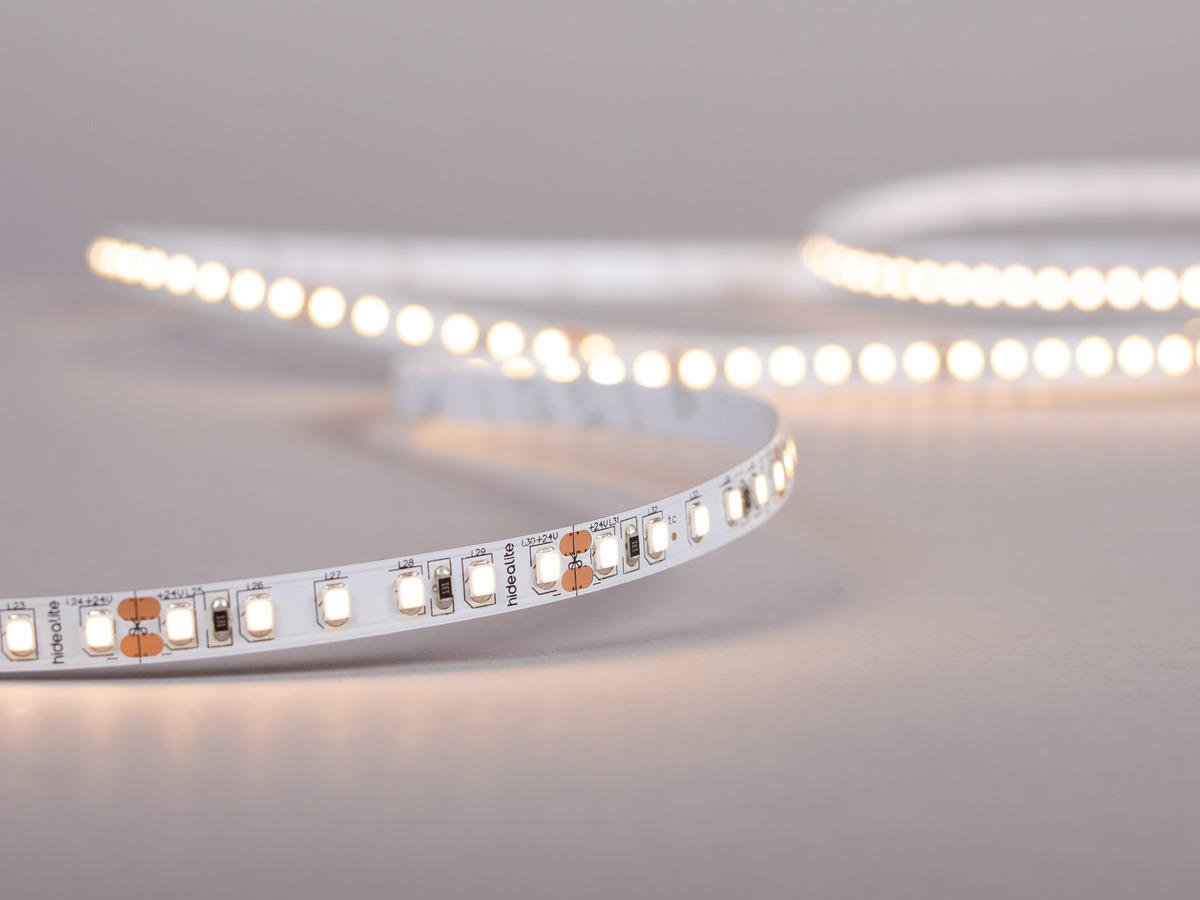

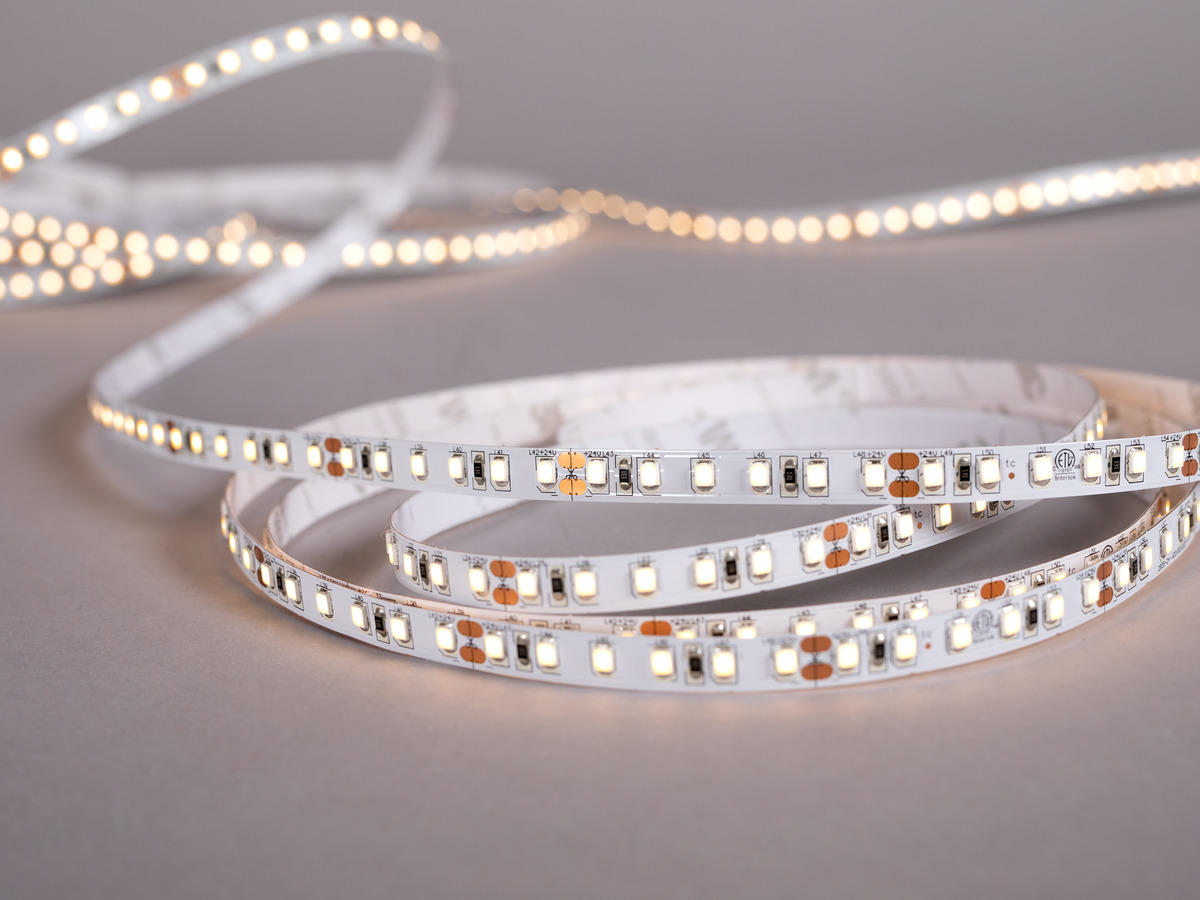

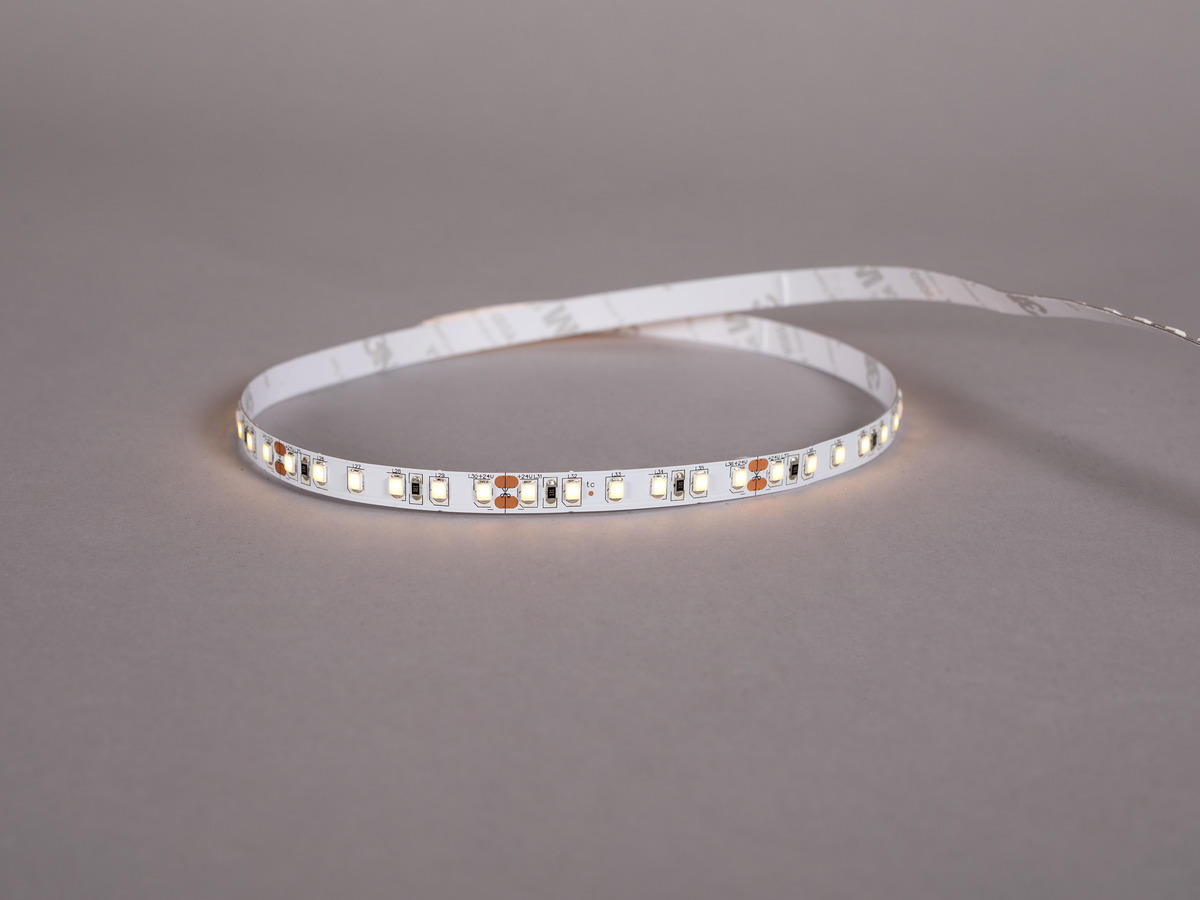

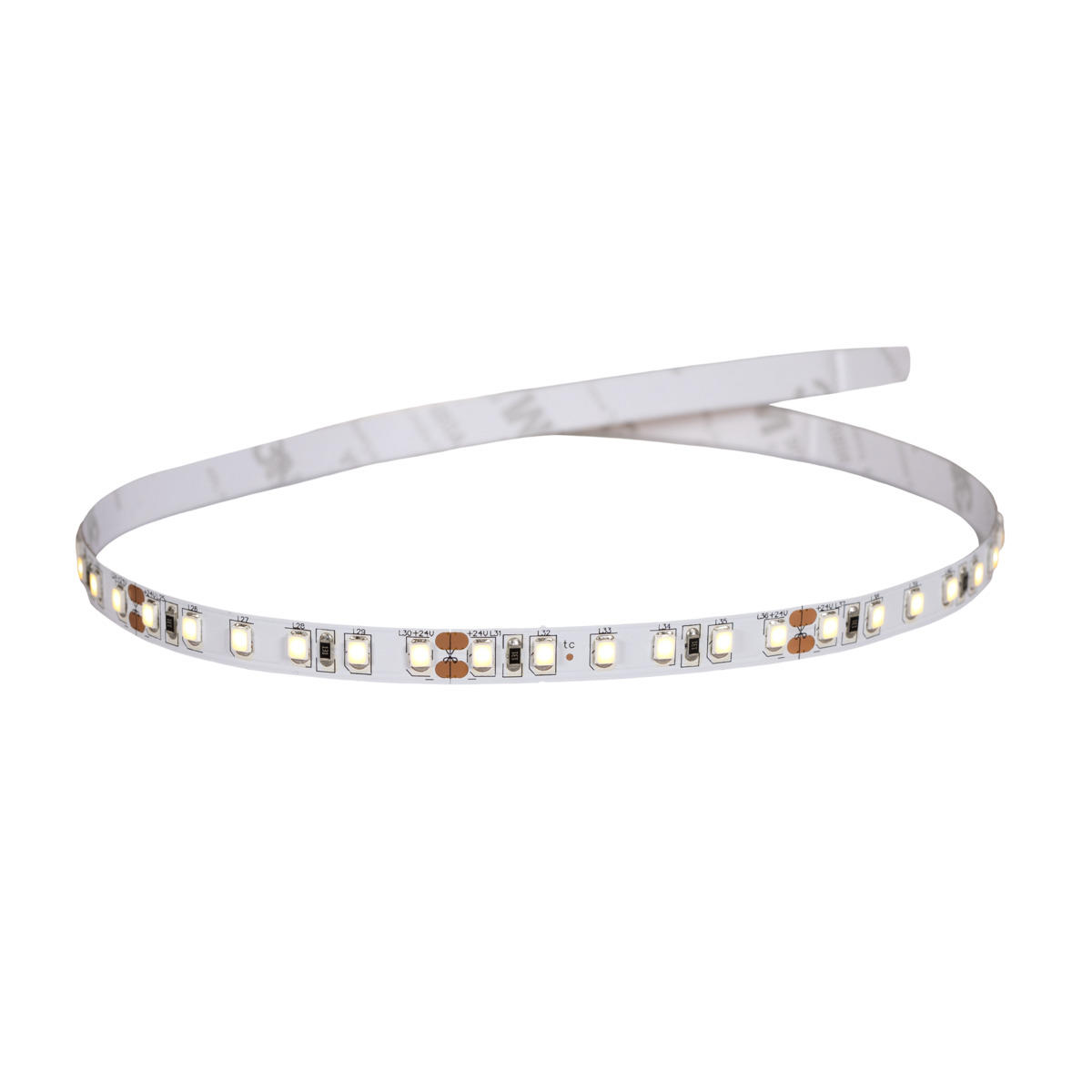

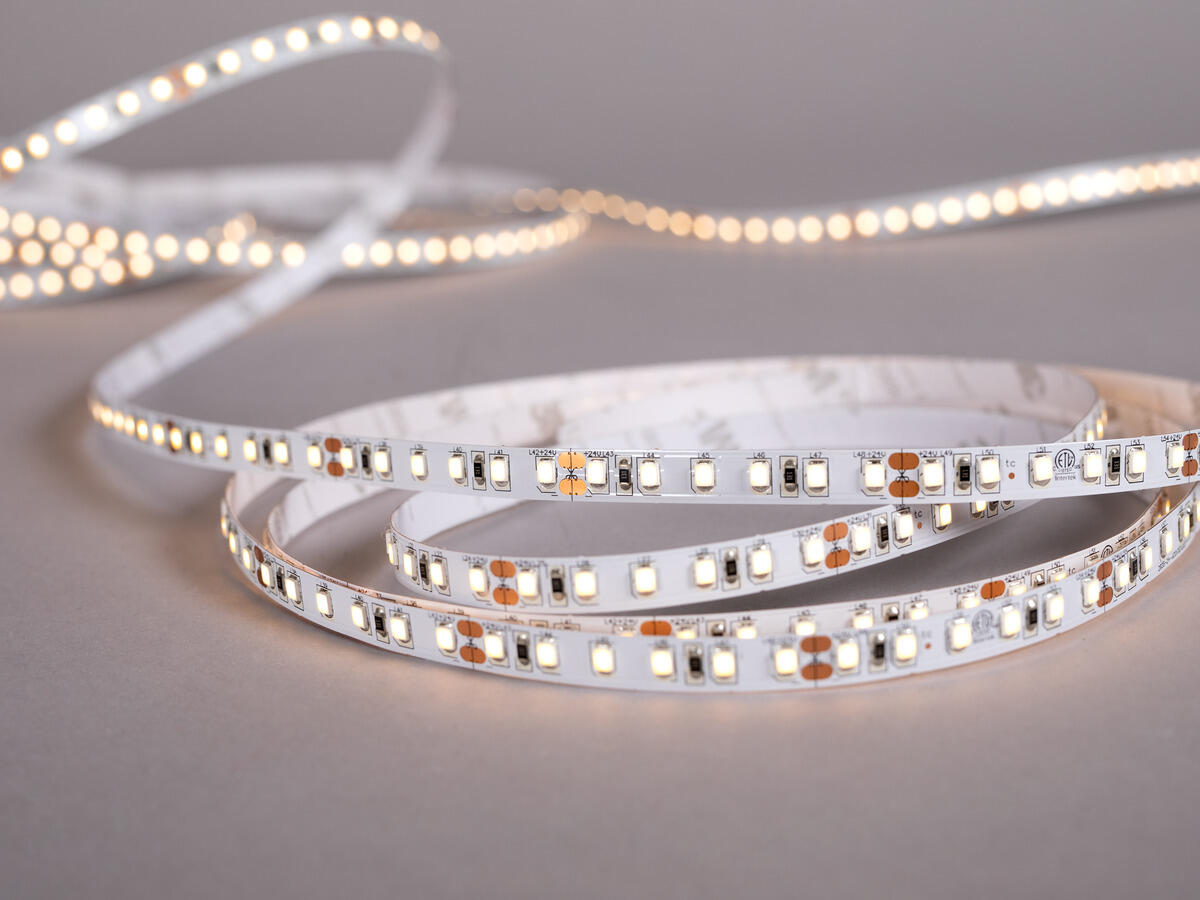

Basic version of our 24V LEDstrip, with120 LED/m there is lots of light and good efficiency. The smaller gap between diodes gives a homogeneous light with opal cover also in lower profiles. Very good colour rendering, Ra> 90. Comes in 5m lengths with self-adhesive tape, 2m connecting cable at each end and 1one quick connection. Also available made to measure in optional lengths with 50mm cut-off intervals and maximum length 10m. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

Variants	GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
	7392971141886	LEDstrip 24V IP20 Midlum 2700K lpm	2700	1050
	7392971141923	LEDstrip 24V IP20 Midlum 4000K lpm	4000	1120

Description: GTIN 7392971141886

Item Name LEDstrip 24V IP20 Midlum 2700K lpm

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1050

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 335

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 120

LED Pitch (mm) 8

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L77

Lumen maintenance 75 000h L73

LLMF @ 50 000h 0,77
Technical data: Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Voltage Forward (Vf) 3

Power Luminaire (W) 12

System Power (W) 13,2

Efficiency Luminaire (lm/W) 88

Efficiency System (lm/W) 80

Energy Efficiency Class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Connection (mm2) 2x0,5

Operating Temperature -20…+45

Max. Tc (°C) 75
Color and material: Material Copper

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

Requires cooling No

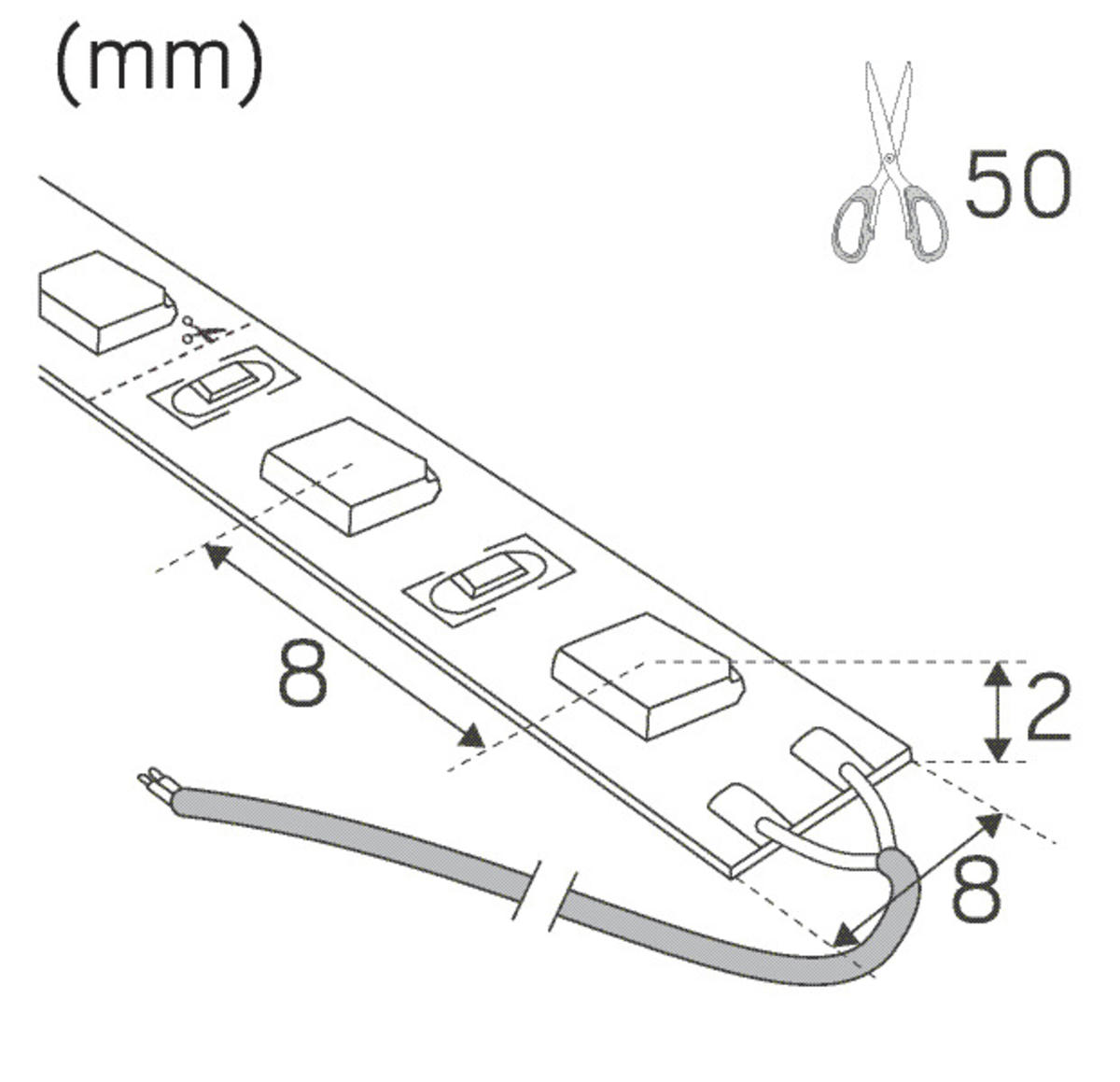

Length (mm) 1000

Width (mm) 8

Height (mm) 2

Weight (kg) 0,02
LEDstrips: Min. Bend Radius (mm) 30

Min. Length (m) 0,05

Max. Length (m) 10

Cutting Increments (mm) 50

LEDstrip 24V IP20

LEDstrip 24V IP20 comes with three lumen outputs, Low, Mid and High, to make it easier to find the right light for the right place. Want a subtle and relaxed atmosphere? Choose Low. Need more powerful lighting to bring out specific areas? Choose High. Perfect when you want to adapt the light to create character whatever the environment. Fits perfectly in our range of aluminium profiles. Very good colour rendering, RA > 90. Comes as standard in rolls of five metres with two metre connecting cable at each end, a quick connection and self-adhesive tape for easy installation. Five metre packs contain products to enable you to create three different lengths to suit your needs. LEDstrip 24V is also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V Line IP20

LEDstrip with technology that conceals the LED Chip and electronics under an homogenous phosphorous/silicone layer. Short spacing between the LEDs creates an even illuminated line without profile or cover. COB technology with high lumen output and very good efficiency. Cutting increments of 31,25 mm and seamless joints make it simple to adapt lengths. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing. Maximum length 5m.

LEDstrip 24V IP20

LEDstrip 24V IP20 Midlum 2700K lpm
