LEDstrip 24V Line IP67

LEDstrip with encapsulated opal coloured casing in silicone, which creates an evenly lit line with no profile or cover. COB technology with small gaps between diodes for very good efficiency. Short cutting increments of 30mm and seamless joints make it simple to create custom lengths. Comes in standard rolls of 5m with self-adhesive tape and 2m connecting cable for quick and easy installation. Drivers are ordered separately according to desired dimmer technology and placing. Maximum length 5m.

Variants

GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
LEDstrip 24V Line IP67 Opal MidLum 2700K 5m 7392971140049 LEDstrip 24V Line IP67 Opal MidLum 2700K 5m 2700 3750
LEDstrip 24V Line IP67 Opal MidLum 2700K lpm 7392971140056 LEDstrip 24V Line IP67 Opal MidLum 2700K lpm 2700 750
LEDstrip 24V Line IP67 Opal MidLum 3000K 5m 7392971140063 LEDstrip 24V Line IP67 Opal MidLum 3000K 5m 3000 4000
LEDstrip 24V Line IP67 Opal MidLum 3000K lpm 7392971140070 LEDstrip 24V Line IP67 Opal MidLum 3000K lpm 3000 800
LEDstrip 24V Line IP67 Opal MidLum 4000K 5m 7392971140087 LEDstrip 24V Line IP67 Opal MidLum 4000K 5m 4000 4500
LEDstrip 24V Line IP67 Opal MidLum 4000K lpm 7392971140094 LEDstrip 24V Line IP67 Opal MidLum 4000K lpm 4000 900

LEDstrip 24V Line IP67 Opal MidLum 2700K 5m A+

Description
GTIN 7392971140049
Item Name LEDstrip 24V Line IP67 Opal MidLum 2700K 5m
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Light Source Included (type) LED not exchangeable
LED Colour Warm White
Colour Temperature (K) 2700
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 190
Luminaire Lumen (lm) 3750
Beam Angle (°) 130
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 512
LED Pitch (mm) 2
Life Time L70 50 000h Ta 25°C
Nominel Life Time (h) 50000
Lumen maintenance 50 000h L71
LLMF @ 50 000h 0,71
Technical data
Voltage (type) DC
Voltage Interval (V) 24...24
Voltage Nominal (V) 24
Voltage Forward (Vf) 3,2
Power Luminaire (W) 50
System Power (W) 55
Efficiency Luminaire (lm/W) 75
Efficiency System (lm/W) 68
Energy Efficiency Class A+
Operation and Connection
Driver Included No
Driver Model Constant Voltage
Connection (type) Open Cable End
Length Connection (cm) 200
Connection (mm2) 2x0,75
Operating Temperature -25…+45
Max. Tc (°C) 65
Dimmable Yes
Color and material
Material Copper, Silicone
Color White
Measurement and installation
Operating Environment Indoor / bathroom (area 1), Outdoor
IP Degree of Protection 67
Protection Class III
Installation Surface mounted
Mounting Installation Self Adhesive Tape
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650
Requires cooling No

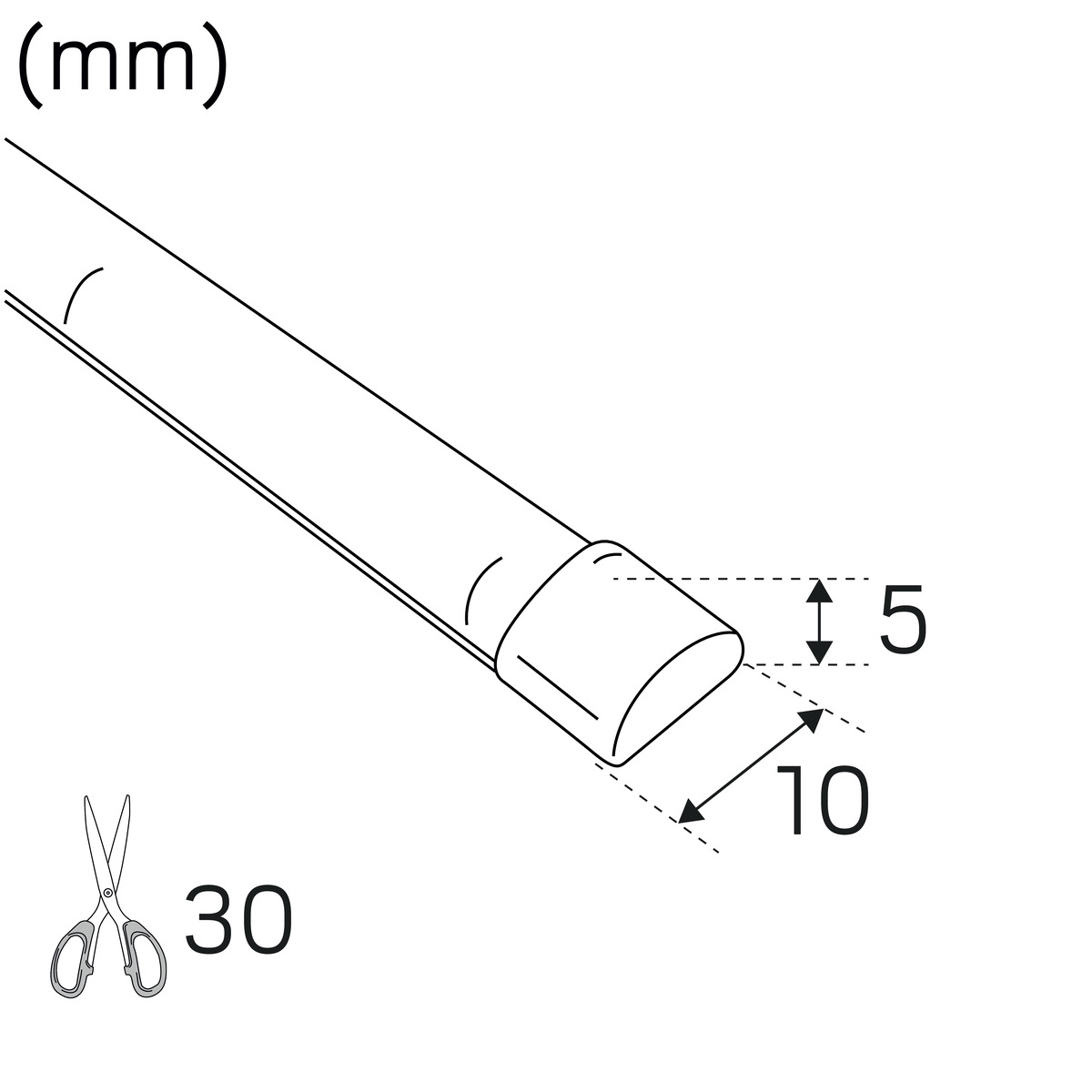

Length (mm) 5000
Width (mm) 10
Height (mm) 5
Weight (kg) 0,48
Fibres and strips
Min. Bend Radius (mm) 50
Min. Length (m) 0,33
Max. Length (m) 5
Cutting Increments (mm) 30
