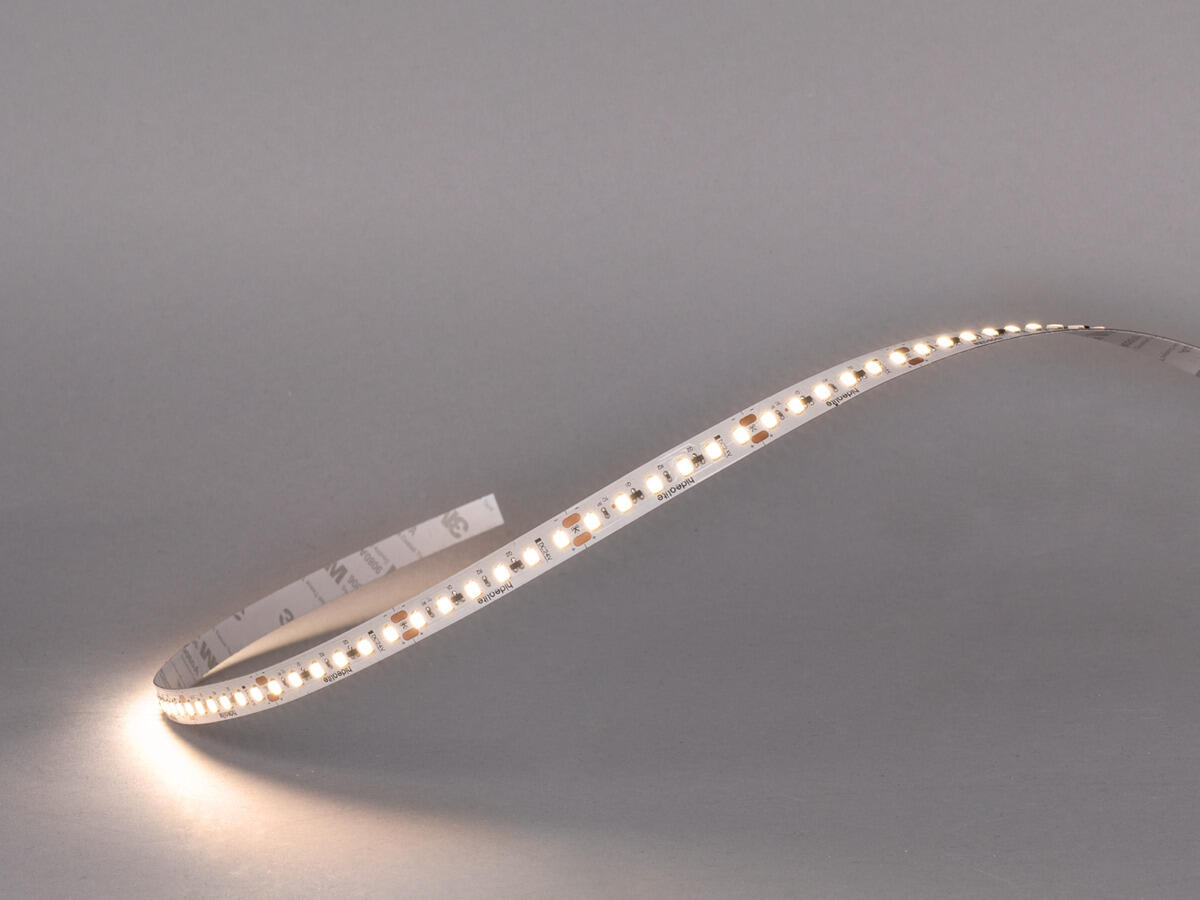

LEDstrip 24V Long IP20

Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

Dimmable LED strip that pulls away in length and creates an even light without interruption in lengths of up to 20m, 40m when feeding from the middle or from two sides, cutting increments of 5cm. Very good colour rendering, Ra> 90. Fits perfectly in our range of aluminium profiles. Opal cover is recommended for visible installation. Ordered in desired length with self-adhesive tape. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Quick joint and quick connection are available as accessories, ordered separately. Driver ordered after desired dimming technology and location.

GTIN	Item Name	Colour Temperature (K)	Max. Luminaire Lumen (lm)
7392971137797	LEDstrip 24V Long IP20 MidLum 3000K lpm	3000	700
7392971137780	LEDstrip 24V Long IP20 MidLum 2700K lpm	2700	680
7392971137803	LEDstrip 24V Long IP20 MidLum 4000K lpm	4000	780

Show more articles

Description: GTIN 7392971137797

Item Name LEDstrip 24V Long IP20 MidLum 3000K lpm

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 700

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 220

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 120

LED Pitch (mm) 8

Life Time h Ta °C

Nominel Life Time (h) 50000
Technical data: Adjustable No

Voltage (type) DC

Voltage Interval (V) 24...24V

Voltage Nominal (V) 24

Voltage Forward (Vf) 2,9

Max. Power Luminaire (W) 8

Max. Efficiency Luminaire (lm/W) 88

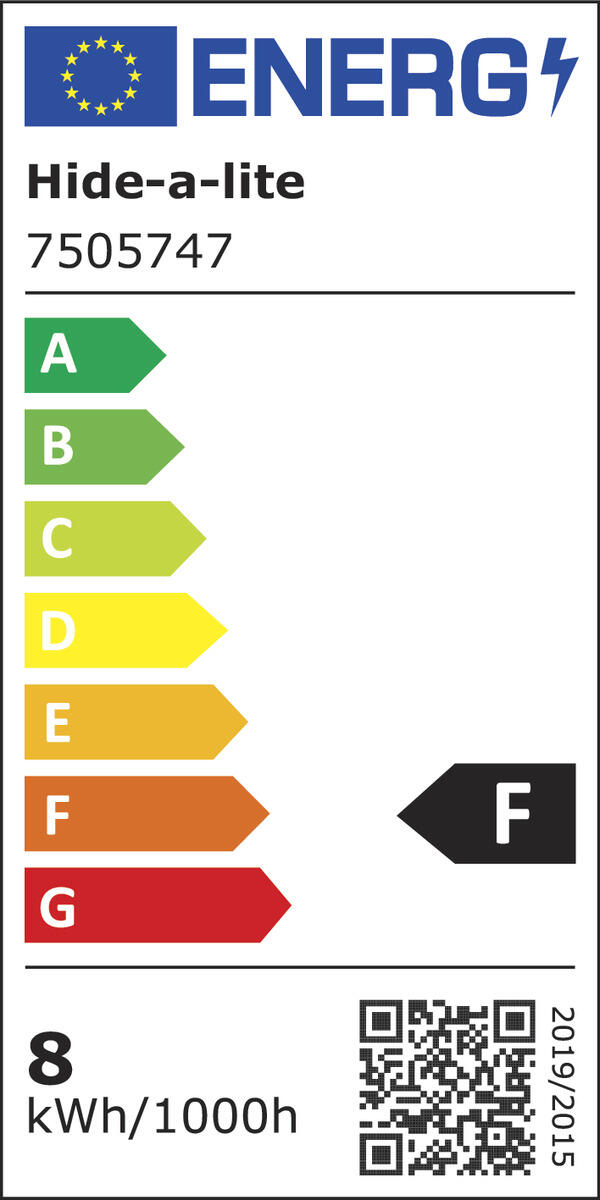

Energy Efficiency Class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Through Wiring No

Strain Relief No

Min. Ta (°C) -25

Max. Ta (°C) 45

Max. Tc (°C) 50
Color and material: Material Copper

Color White

Halogen free Yes

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

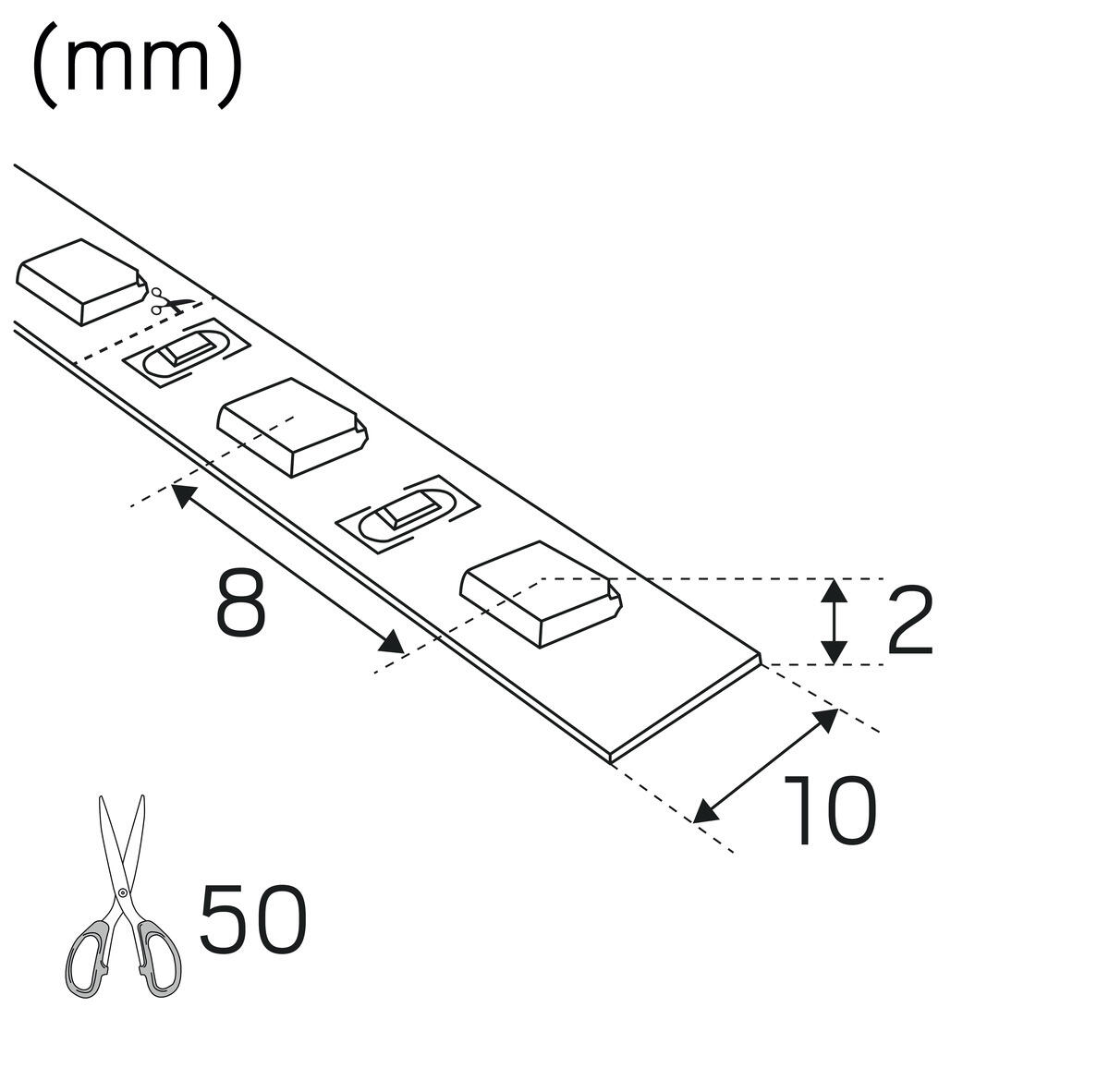

Length (mm) 1000

Width (mm) 10

Height (mm) 2

Weight (kg) 0,05
LEDstrips: Min. Bend Radius (mm) 50

Min. Length (m) 0,05

Max. Length (m) 20

Cutting Increments (mm) 50

LEDstrip 24V Line IP20

With LEDstrip 24V Line, you can create ambient lighting, highlight walkways, or accentuate details with a uniform, dot-free light—even without a diffuser cover. It delivers even, shadow-free lighting and fits perfectly into Hide-a-lite’s range of aluminium profiles, whether for light lines in handrails, around mirrors, in furniture, or as edge lighting in kitchens and bathrooms. The short cut interval of just 8 mm makes it easy to customise lengths, extending light all the way to the edge of the profile. Available in Lowlum and Midlum, with 2700K or 3000K colour temperature and Ra90 for natural colour rendering. Supplied in 5-metre rolls with 2-metre connection cable at both ends, self-adhesive tape, and accessories for easy installation. Cut-to-length strip is supplied as standard without connection cable. Upon request, it can also be supplied with custom-length connection cable. Maximum length: Low 6m, Mid 5m. Drivers are ordered separately based on desired dimming method and placement. LEDstrip 24V Line is for those who want homogeneous light without shadows—and a result that looks as professional as it is installed.

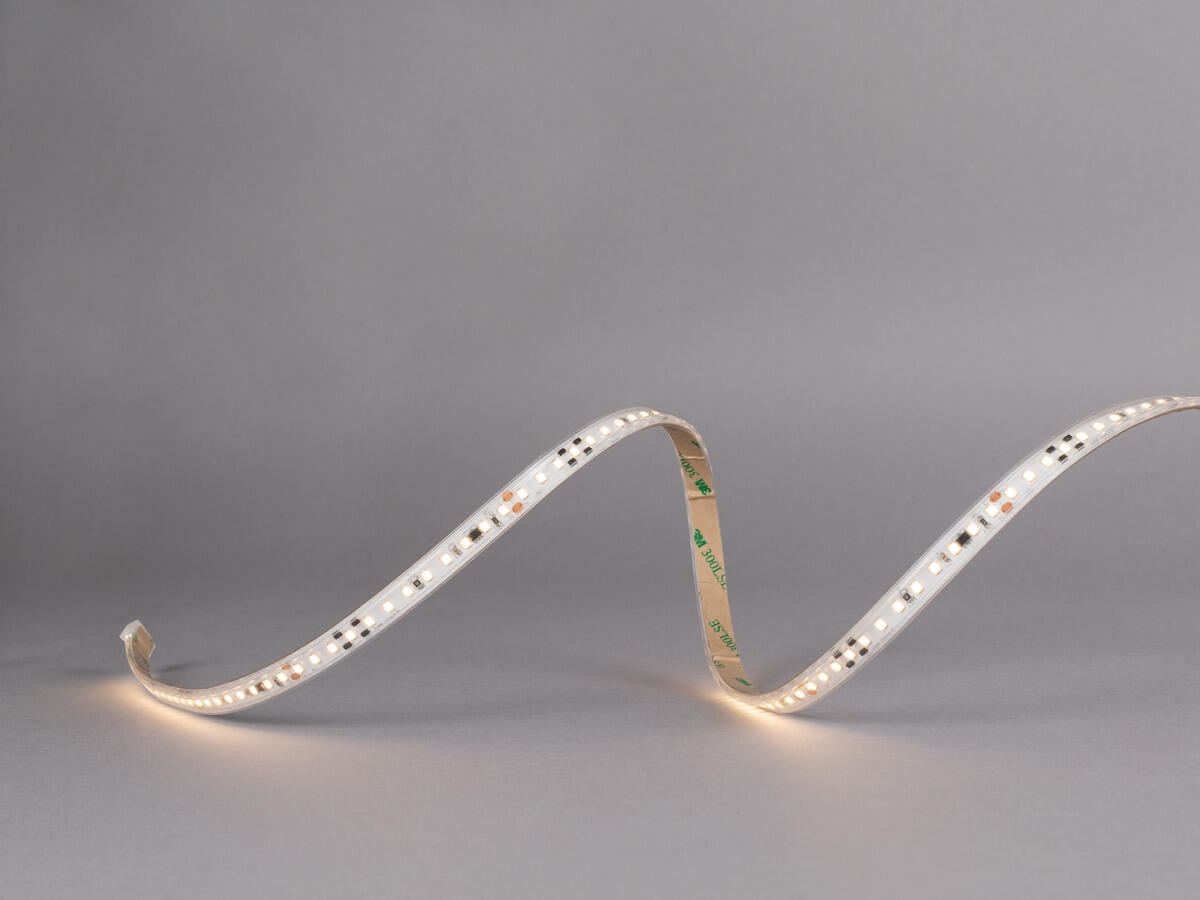

LEDstrip 230V IP65

LEDstrip IP65 for direct connection to 230V, cutting increments 10cm. No drivers and limited secondary leads. Perfect for outdoor use comes in three lumen outputs, Low, Mid, High and several color temperatures, not dimmable. We recommend using an aluminium profile with opal cover if the fitting is visible. Comes as standard in roles of 10m with self-adhesive tape, 3m connecting cable with plug, clips and shrink hose for the end cover. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Available made to measure in optional lengths, accessories are ordered separately.

LEDstrip 24V Long IP20

LEDstrip 24V Long IP20 MidLum 3000K lpm

Accessories

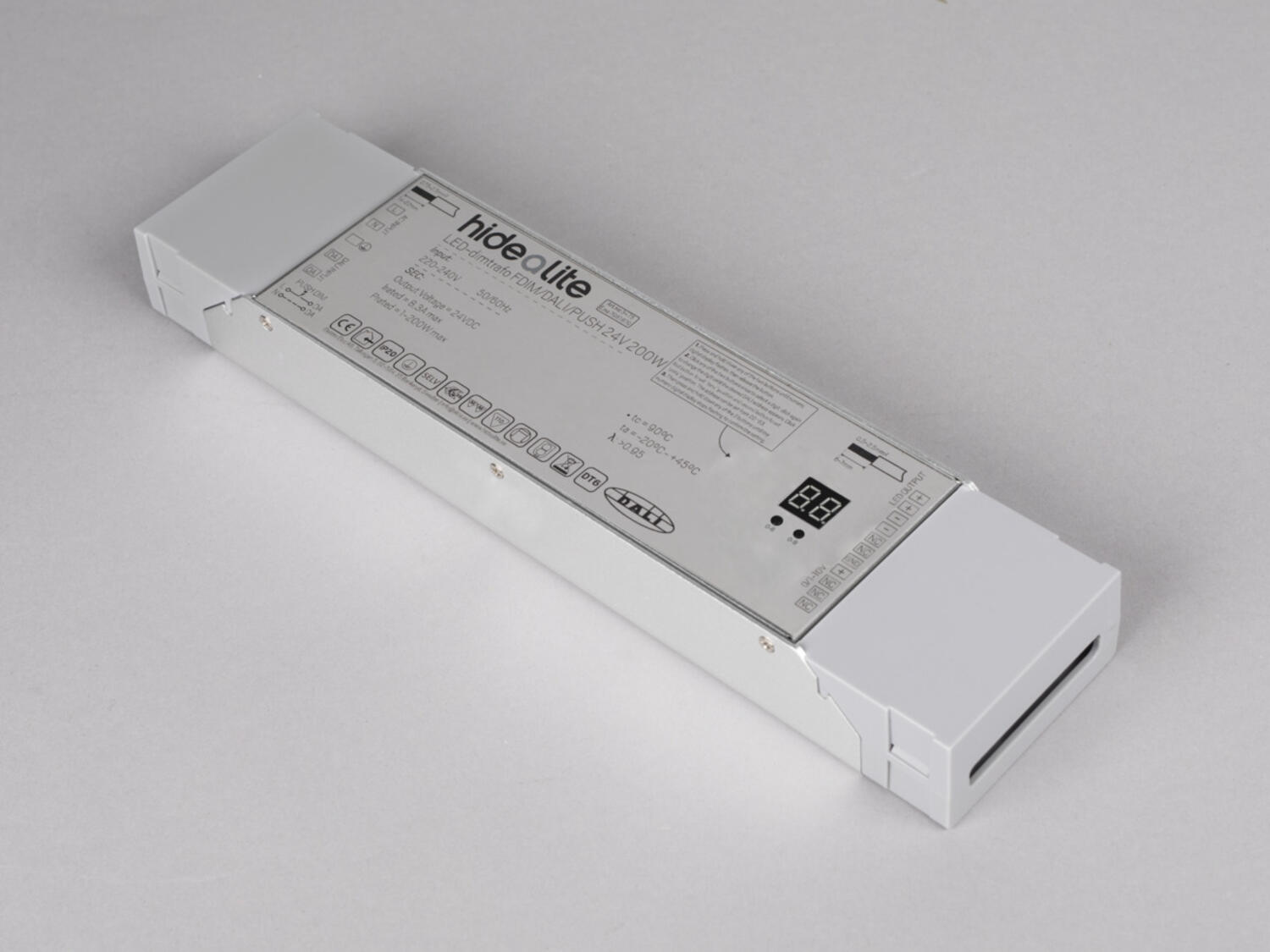

LED-dimtrafo FDIM/DALI/PUSH 24V 200W

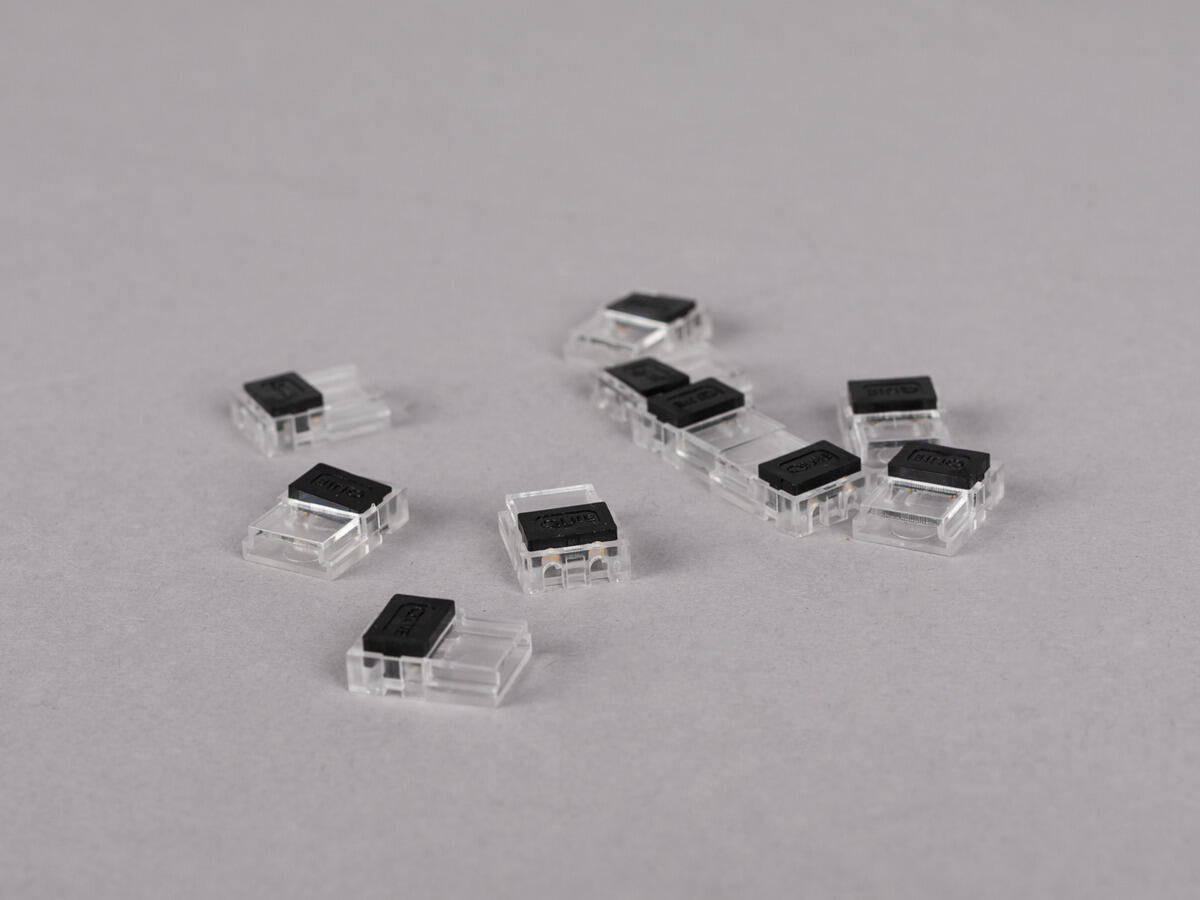

Quick connection 10mm IP20

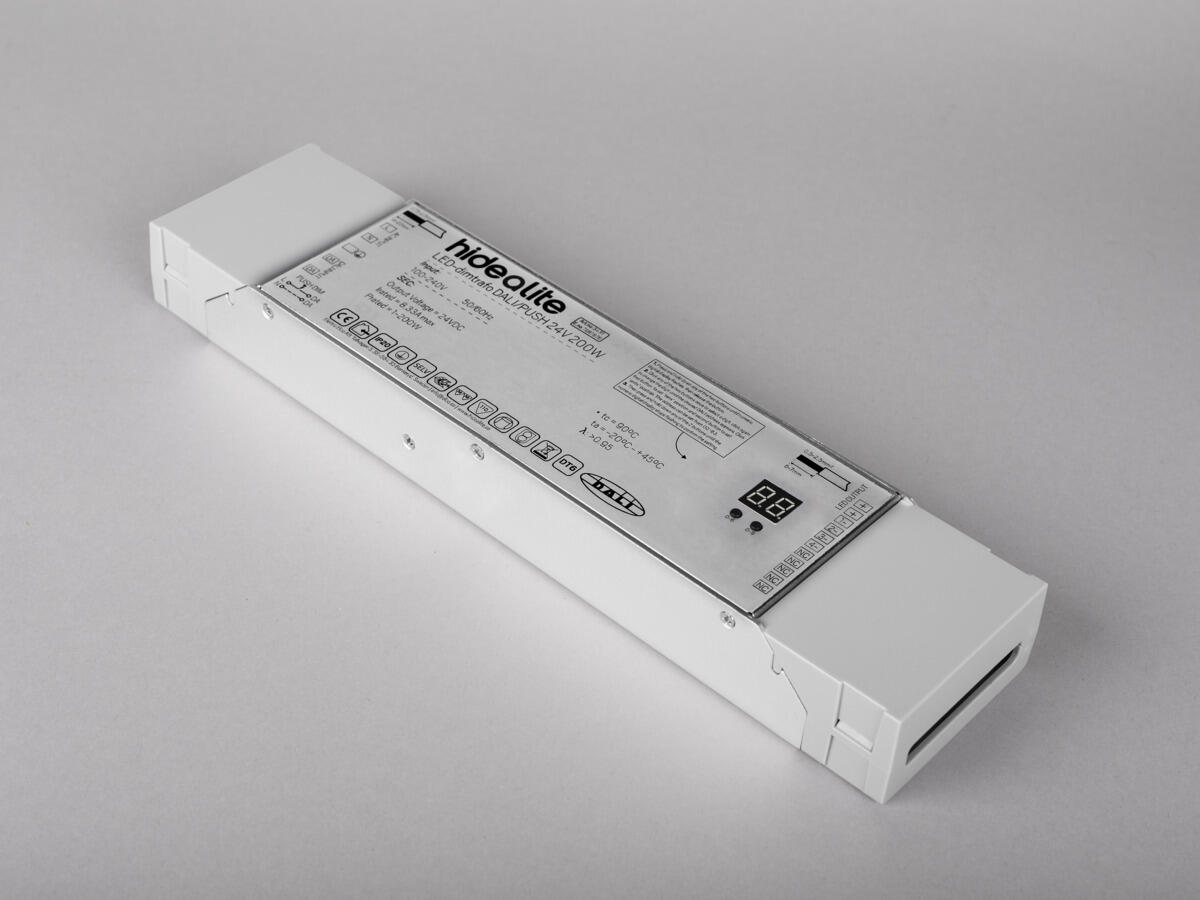

LED-dimtrafo DALI/PUSH 24V 200W

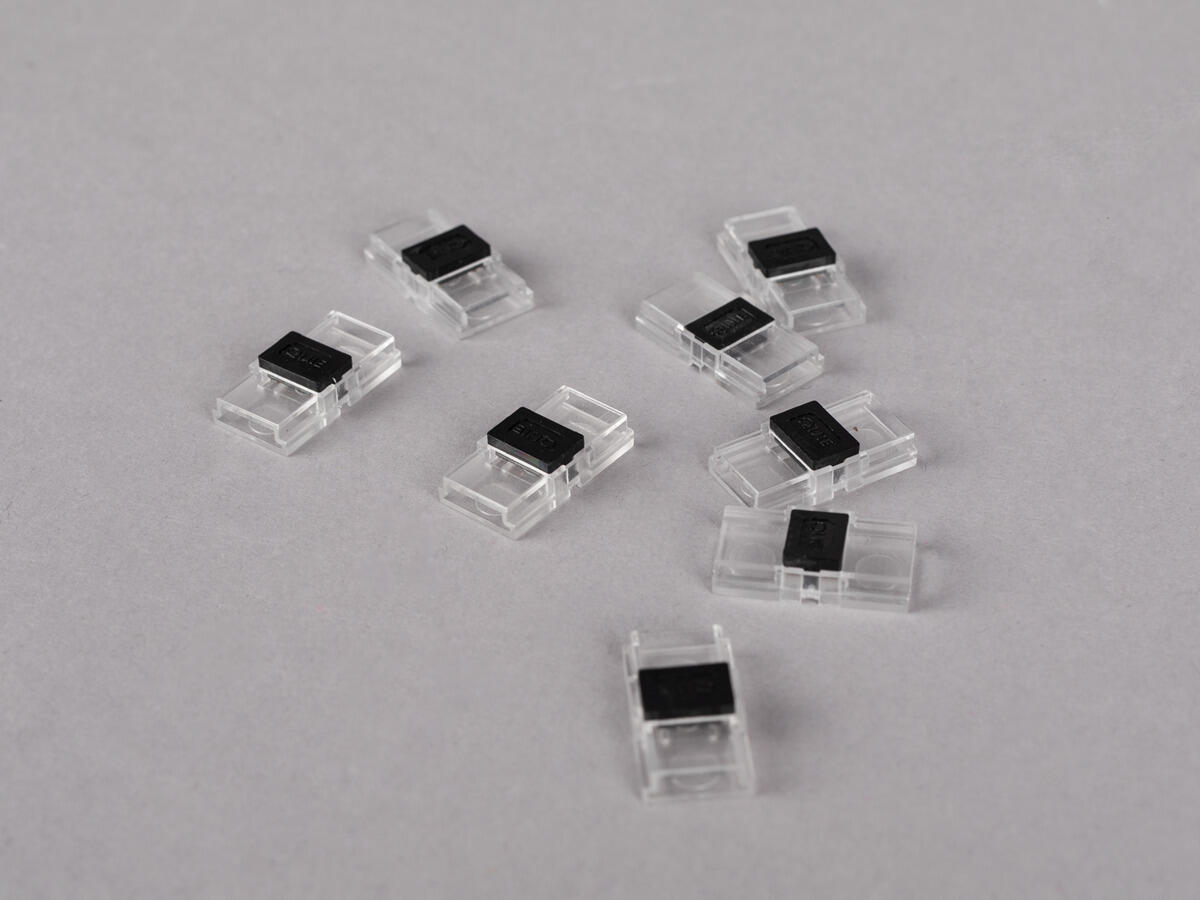

Quick joint 10mm IP20

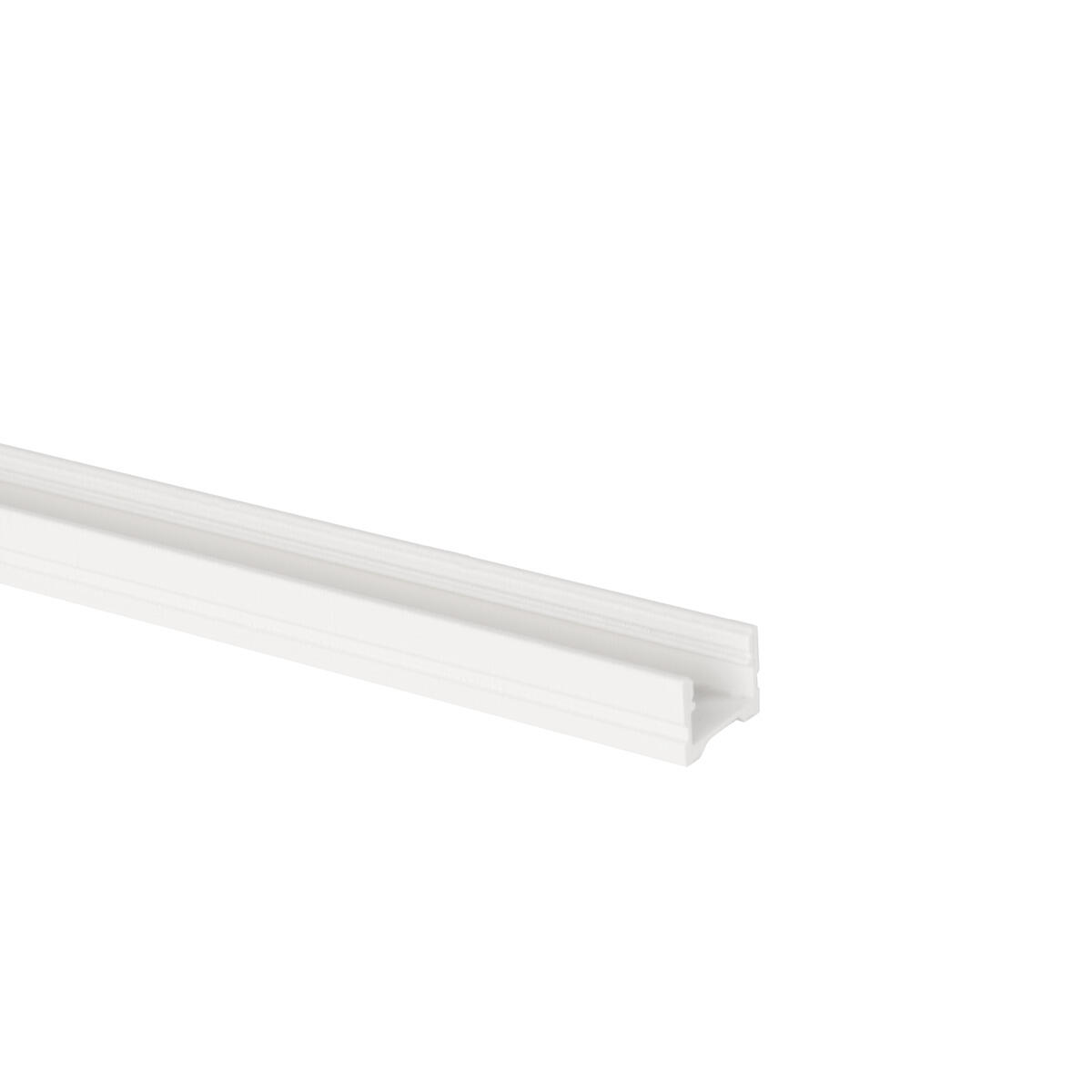

Profile Art Low 2m White

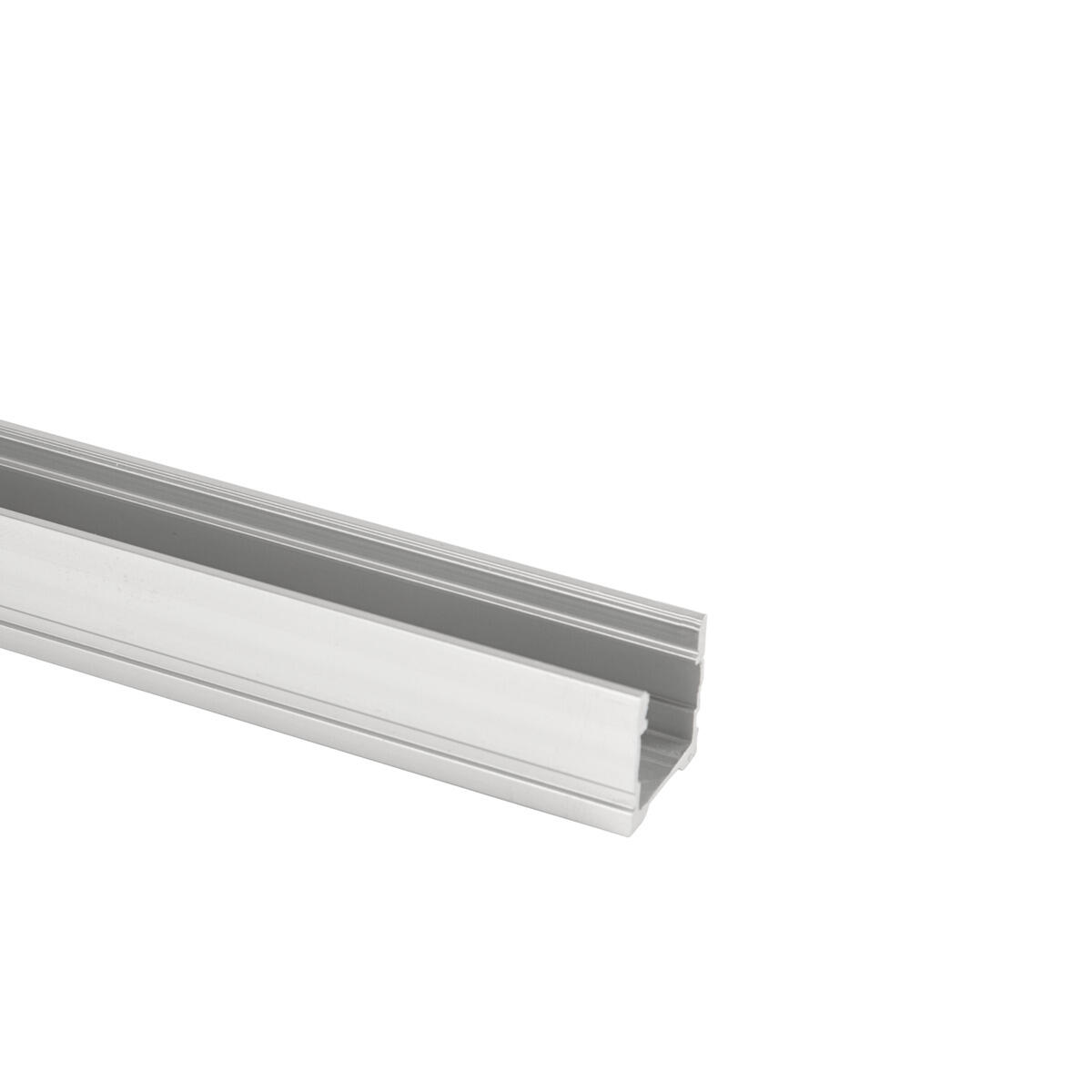

Profile Art High 2m Alu

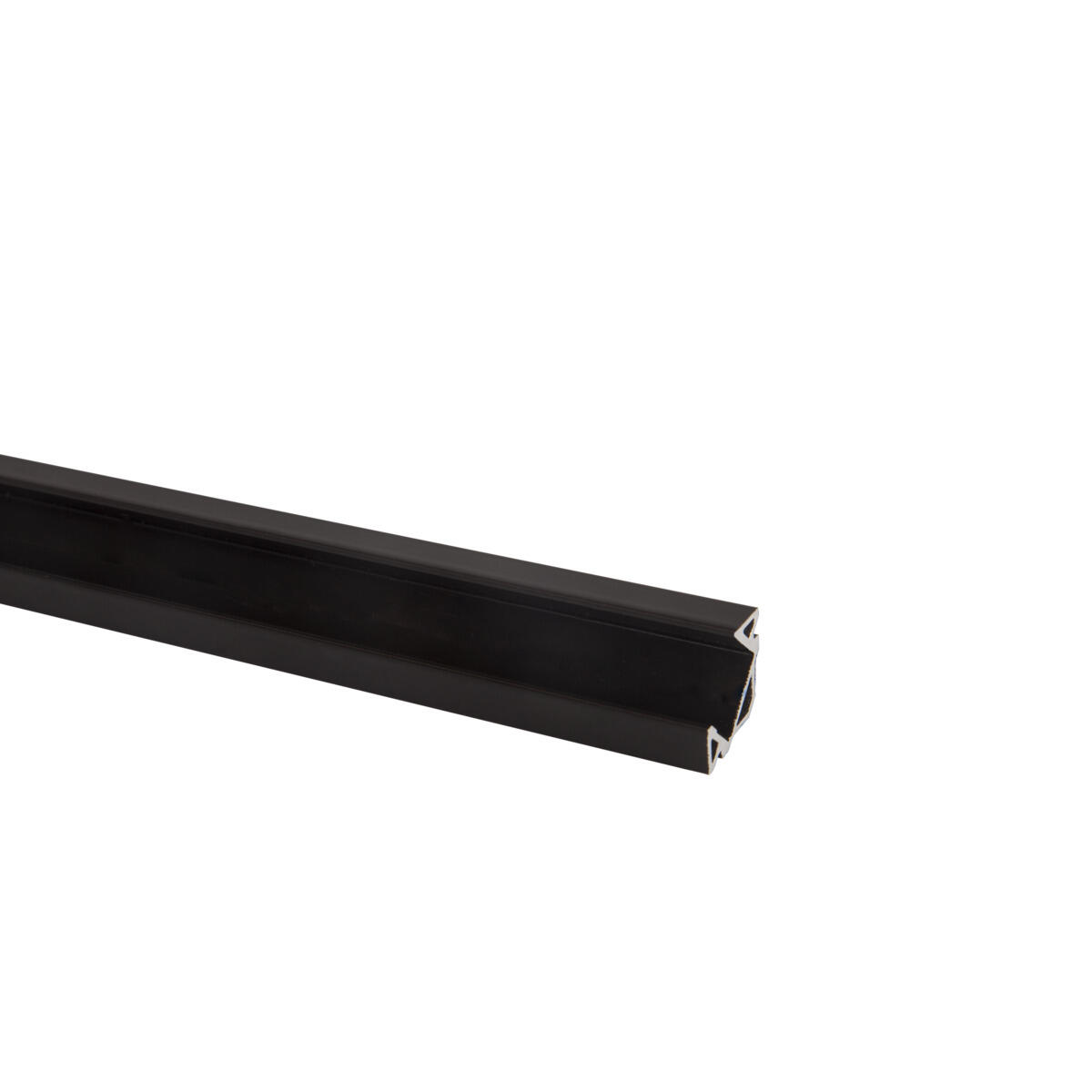

Profile Art Corner 2m Black

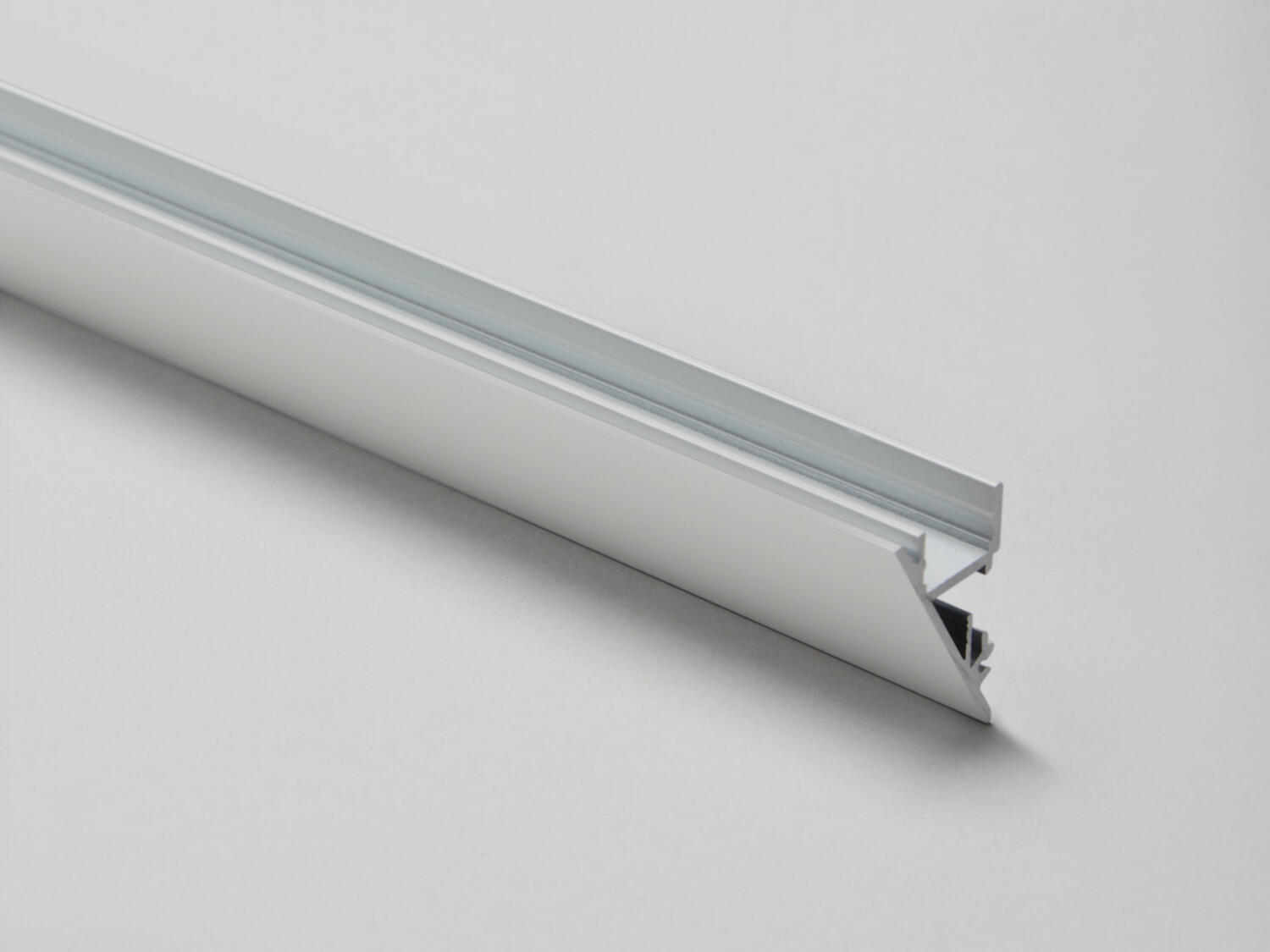

Profile Wedge White 2m

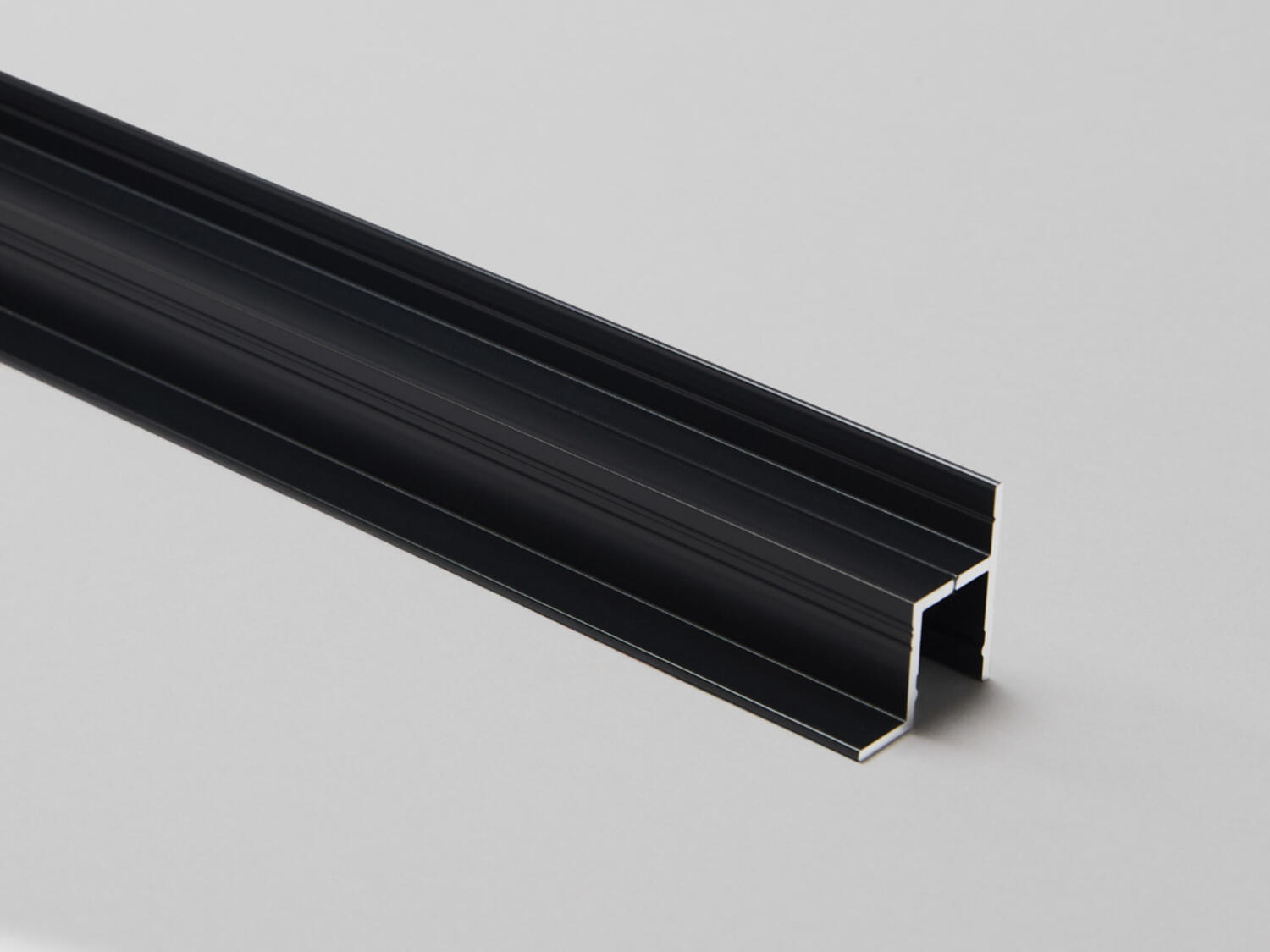

Profile Hidden Black 2m

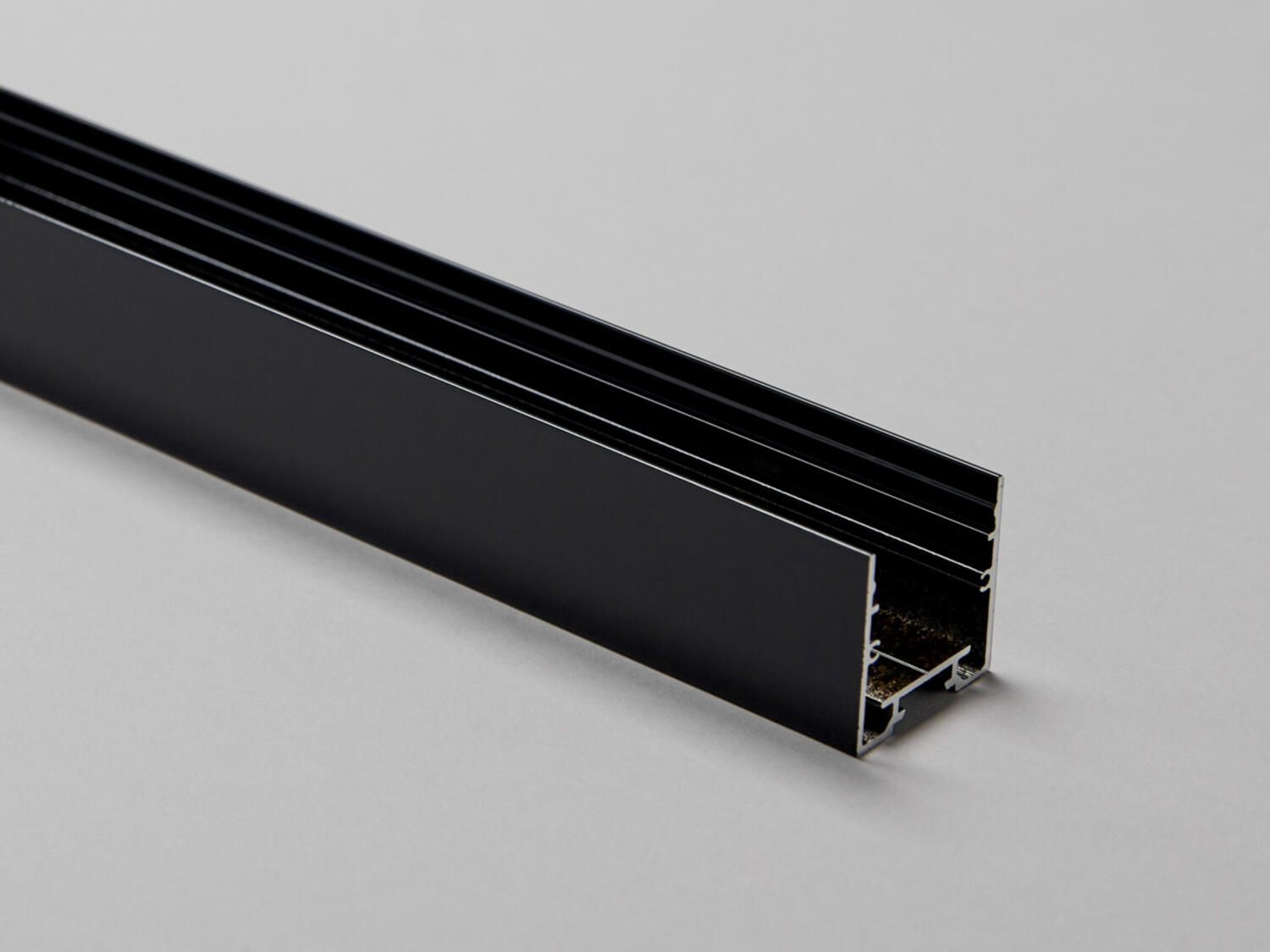

Profile 30x30 Black 2m
