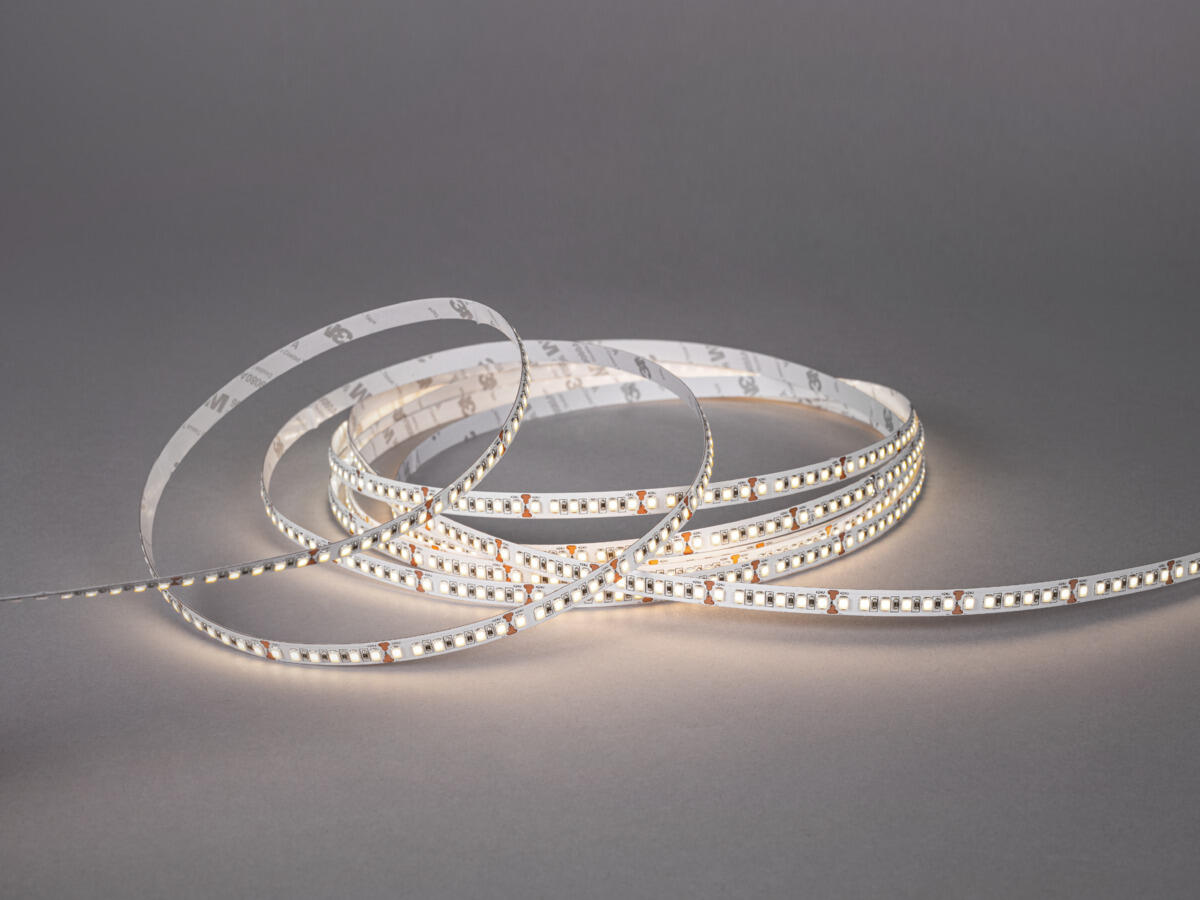

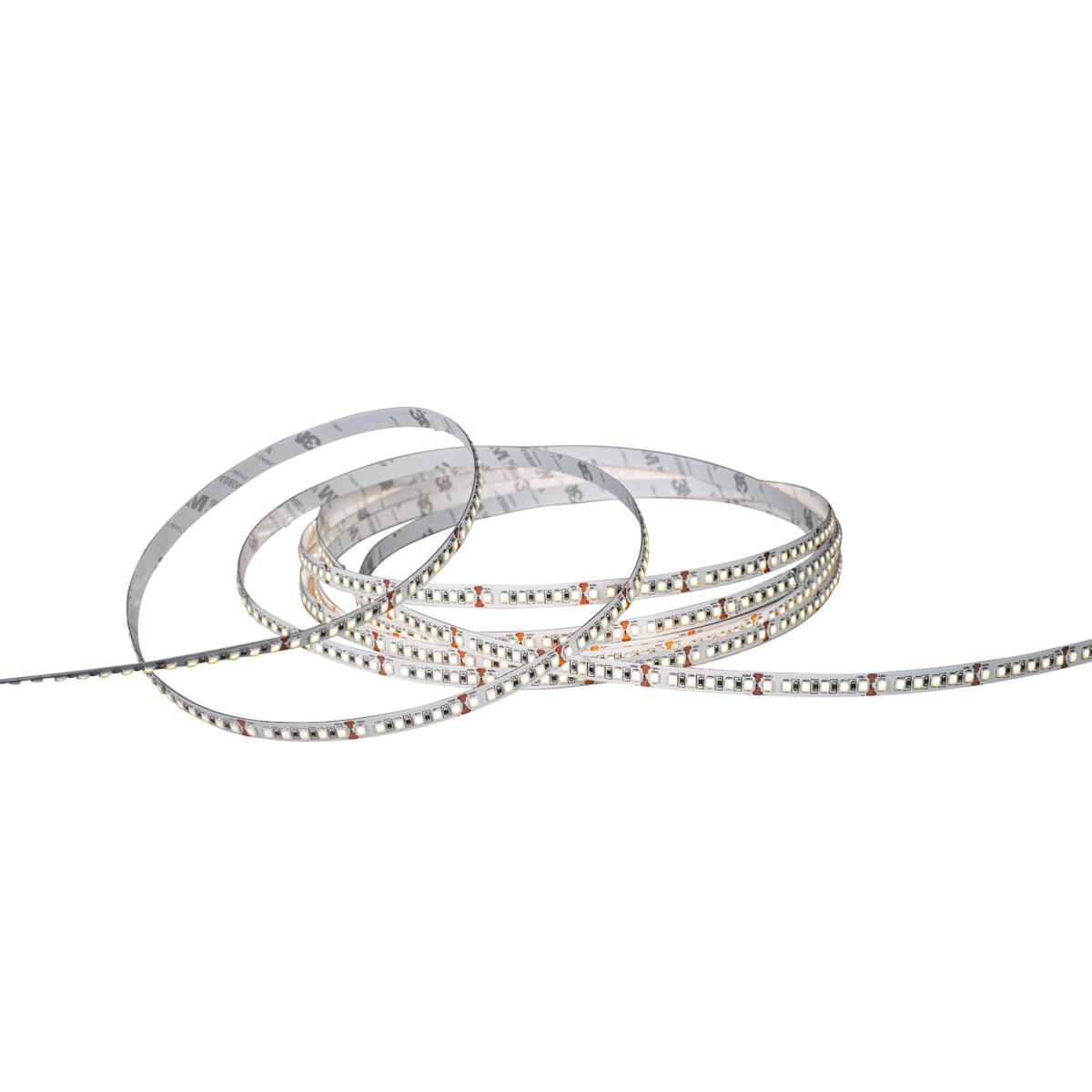

LEDstrip RX HD IP20

Comes with 2m connecting cable at each end, self-adhesive tape and 1pc quick connection (5 m)
Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

Professional LEDstrip with close LED spacing to create a homogenous light with opal cover - also for low profiles. High lumen output and very good colour rendering, Ra>90. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

GTIN	Item Name	Colour Temperature (K)	Max. Luminaire Lumen (lm)
7392971138640	LEDstrip RX HD IP20 24V 4000K lpm	4000	1250
7392971138619	LEDstrip RX HD IP20 24V 2700K 5m	2700	5750
7392971138626	LEDstrip RX HD IP20 24V 2700K lpm	2700	1150

Show more articles

Description: GTIN 7392971138640

Item Name LEDstrip RX HD IP20 24V 4000K lpm

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 1250

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour White

Colour Temperature (K) 4000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 380

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 168

LED Pitch (mm) 6

Life Time h Ta °C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L82

LLMF @ 50 000h 0.82
Technical data: Adjustable No

Voltage (type) DC

Voltage Interval (V) 24...24V

Voltage Nominal (V) 24

Max. Power Luminaire (W) 12,5

Max. System Power (W) 13,75

Max. Efficiency Luminaire (lm/W) 104

Max. Efficiency System (lm/W) 96

Energy Efficiency Class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Through Wiring No

Strain Relief No

Min. Ta (°C) -20

Max. Ta (°C) 45

Max. Tc (°C) 70
Color and material: Material Copper

Color White

Halogen free Yes

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

Length (mm) 1000

Width (mm) 8

Height (mm) 2

Weight (kg) 0,02
LEDstrips: Min. Bend Radius (mm) 60

Min. Length (m) 0,036

Max. Length (m) 10

Cutting Increments (mm) 35,7

LEDstrip 24V IP20

LEDstrip 24V IP20 comes with three lumen outputs, Low, Mid and High, to make it easier to find the right light for the right place. Want a subtle and relaxed atmosphere? Choose Low. Need more powerful lighting to bring out specific areas? Choose High. Perfect when you want to adapt the light to create character whatever the environment. Fits perfectly in our range of aluminium profiles. Very good colour rendering, RA > 90. Comes as standard in rolls of five metres with two metre connecting cable at each end, a quick connection and self-adhesive tape for easy installation. Five metre packs contain products to enable you to create three different lengths to suit your needs. LEDstrip 24V is also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V Line IP20

With LEDstrip 24V Line, you can create ambient lighting, highlight walkways, or accentuate details with a uniform, dot-free light—even without a diffuser cover. It delivers even, shadow-free lighting and fits perfectly into Hide-a-lite’s range of aluminium profiles, whether for light lines in handrails, around mirrors, in furniture, or as edge lighting in kitchens and bathrooms. The short cut interval of just 8 mm makes it easy to customise lengths, extending light all the way to the edge of the profile. Available in Lowlum and Midlum, with 2700K or 3000K colour temperature and Ra90 for natural colour rendering. Supplied in 5-metre rolls with 2-metre connection cable at both ends, self-adhesive tape, and accessories for easy installation. Cut-to-length strip is supplied as standard without connection cable. Upon request, it can also be supplied with custom-length connection cable. Maximum length: Low 6m, Mid 5m. Drivers are ordered separately based on desired dimming method and placement. LEDstrip 24V Line is for those who want homogeneous light without shadows—and a result that looks as professional as it is installed.

LEDstrip 24V Line IP20

LEDstrip with technology that conceals the LED Chip and electronics under an homogenous phosphorous/silicone layer. Short spacing between the LEDs creates an even illuminated line without profile or cover. COB technology with high lumen output and very good efficiency. Cutting increments of 31,25 mm and seamless joints make it simple to adapt lengths. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing. Maximum length 5m.

LEDstrip 24V RX HDI IP20

LEDstrip with short spacing between LEDs giving high lumen output with very good light quality and colour rendering, Ra>90. Perfect for a homogenous light with opal cover- also with lower profiles. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Also available made to measure in optional lengths with 5cm cut-off intervals. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V RX HD IP20
