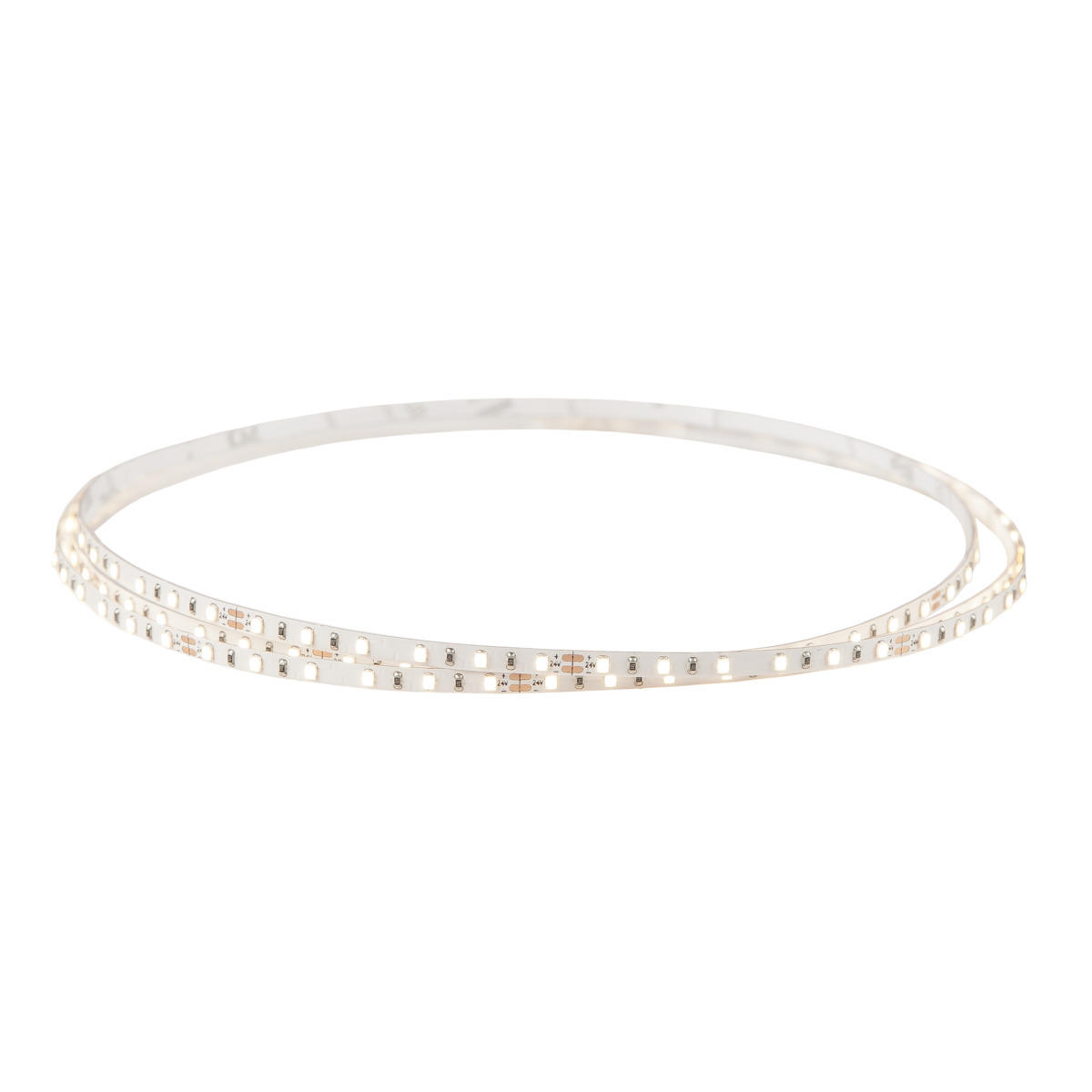

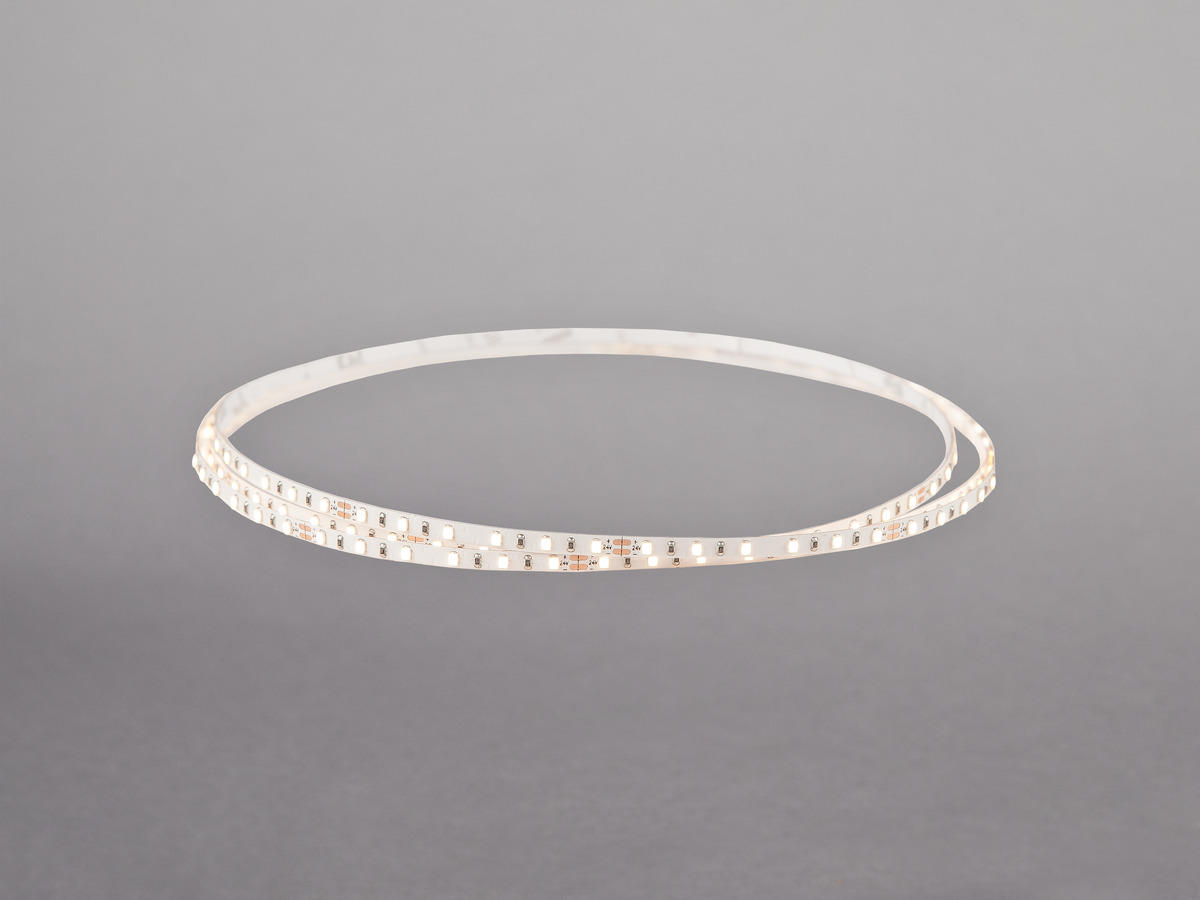

LEDstrip 24V RXM IP20

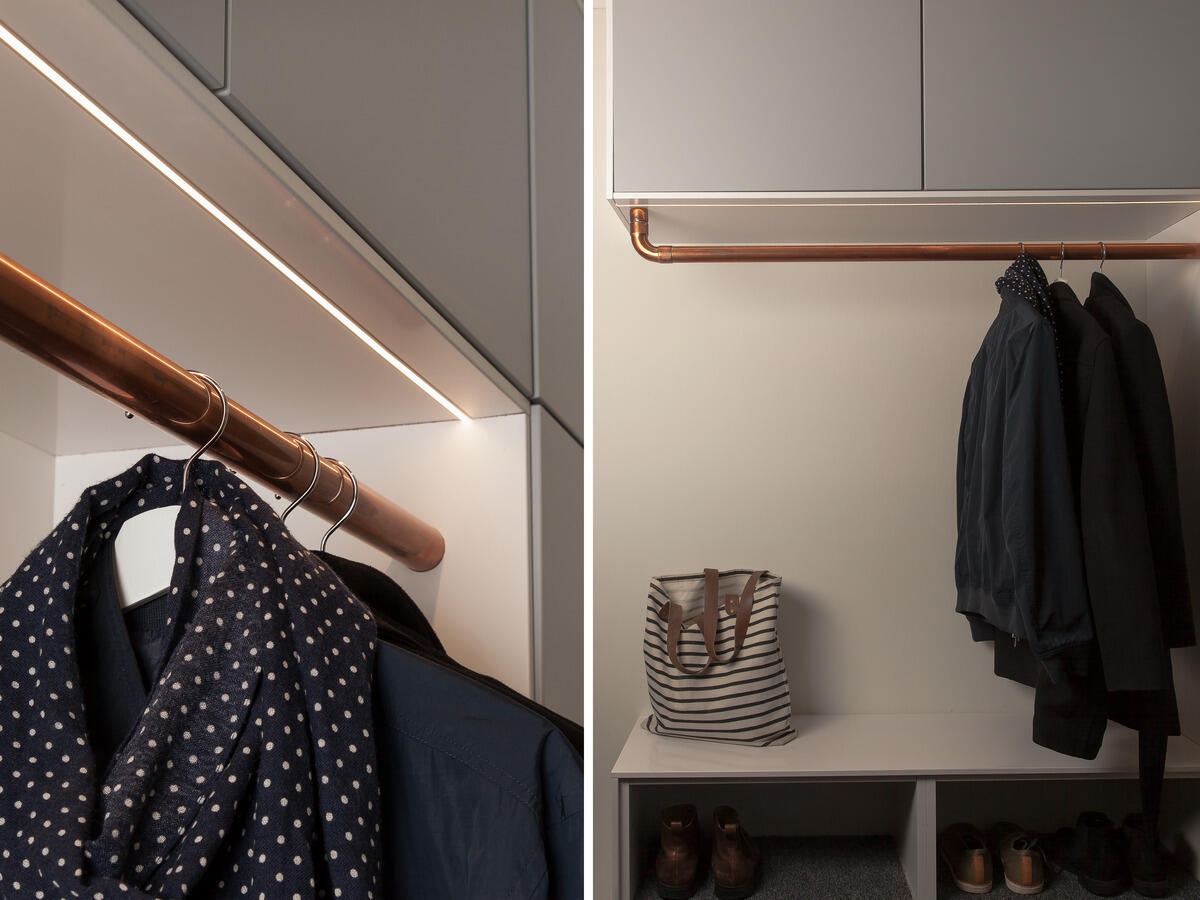

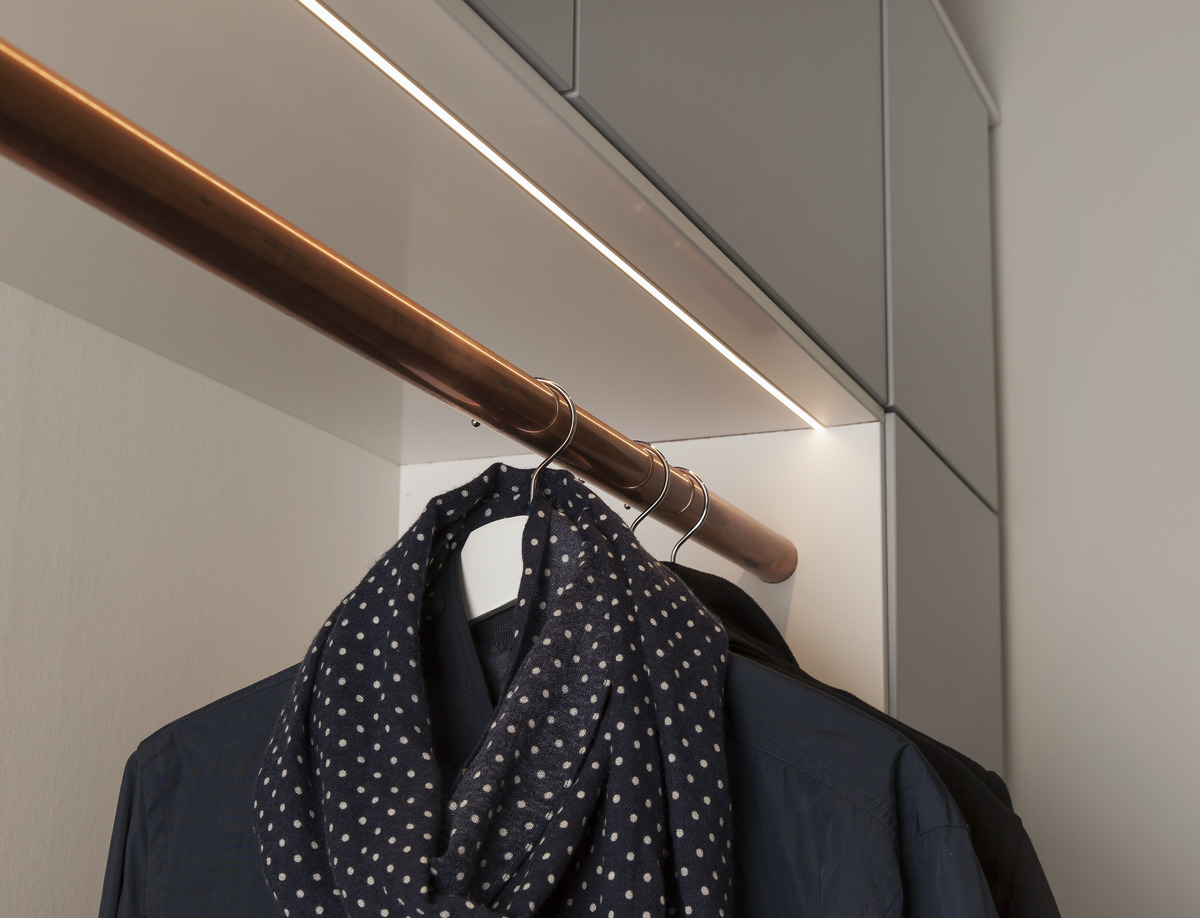

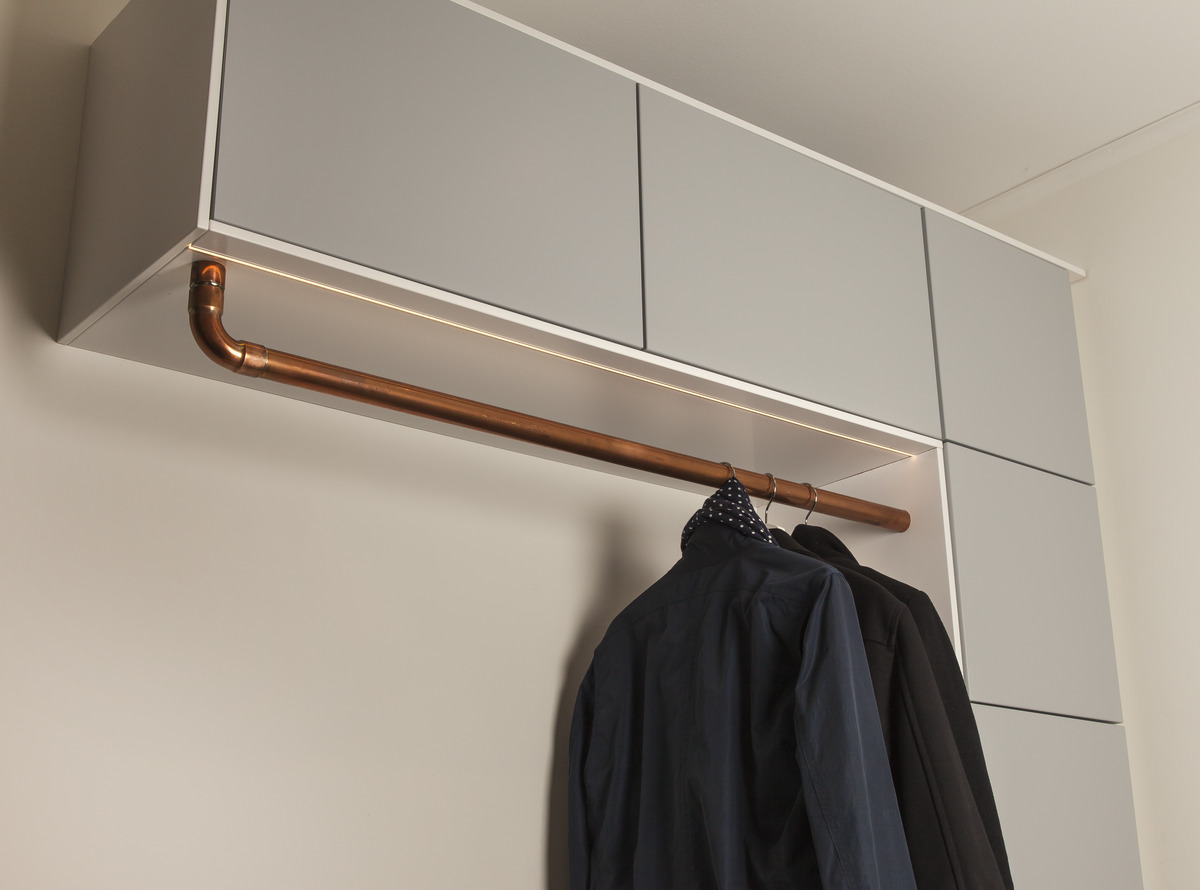

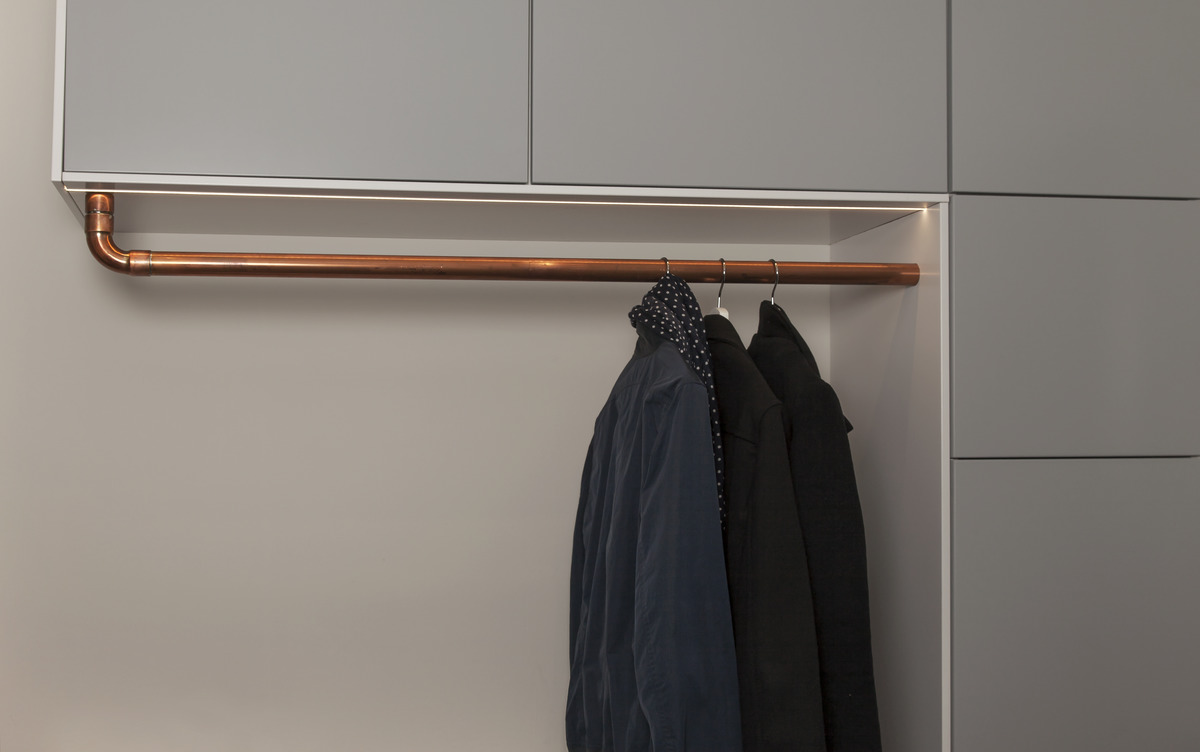

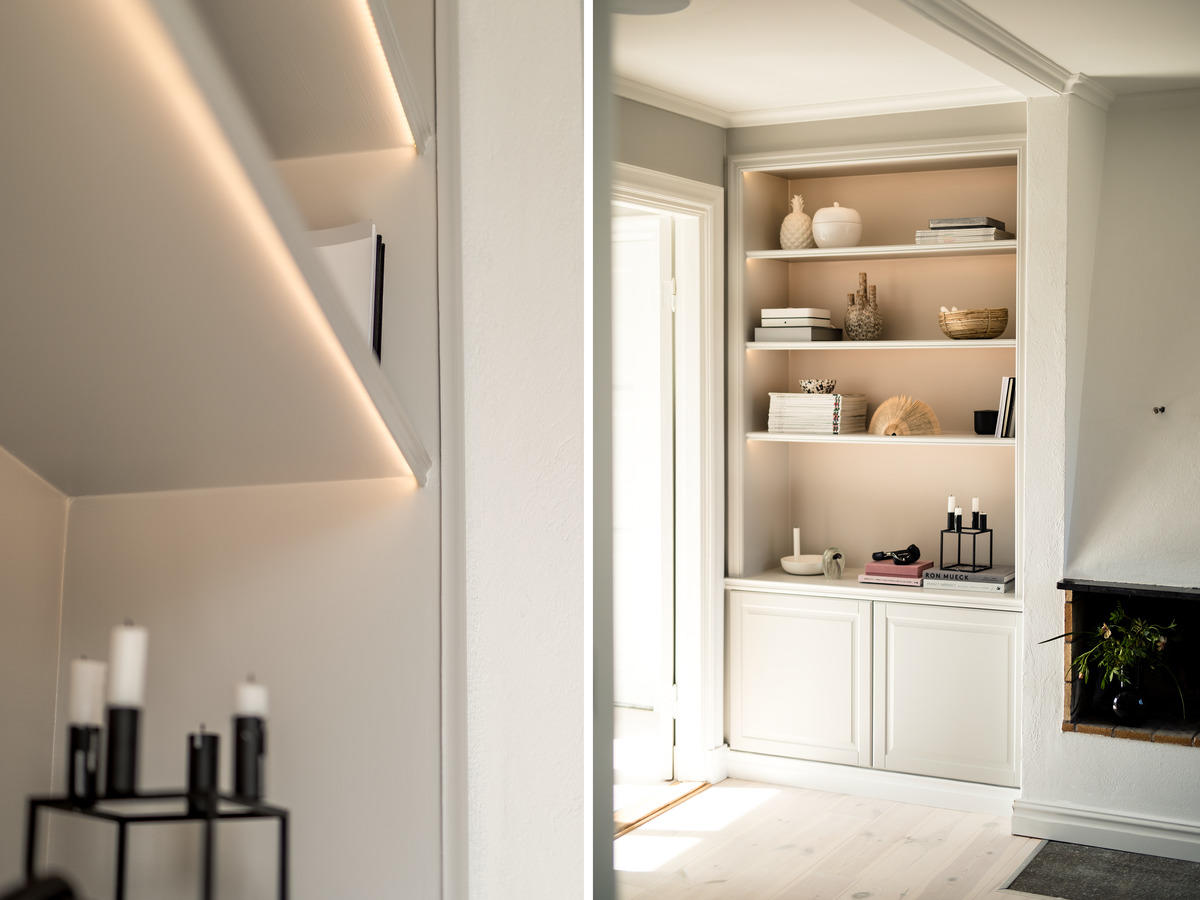

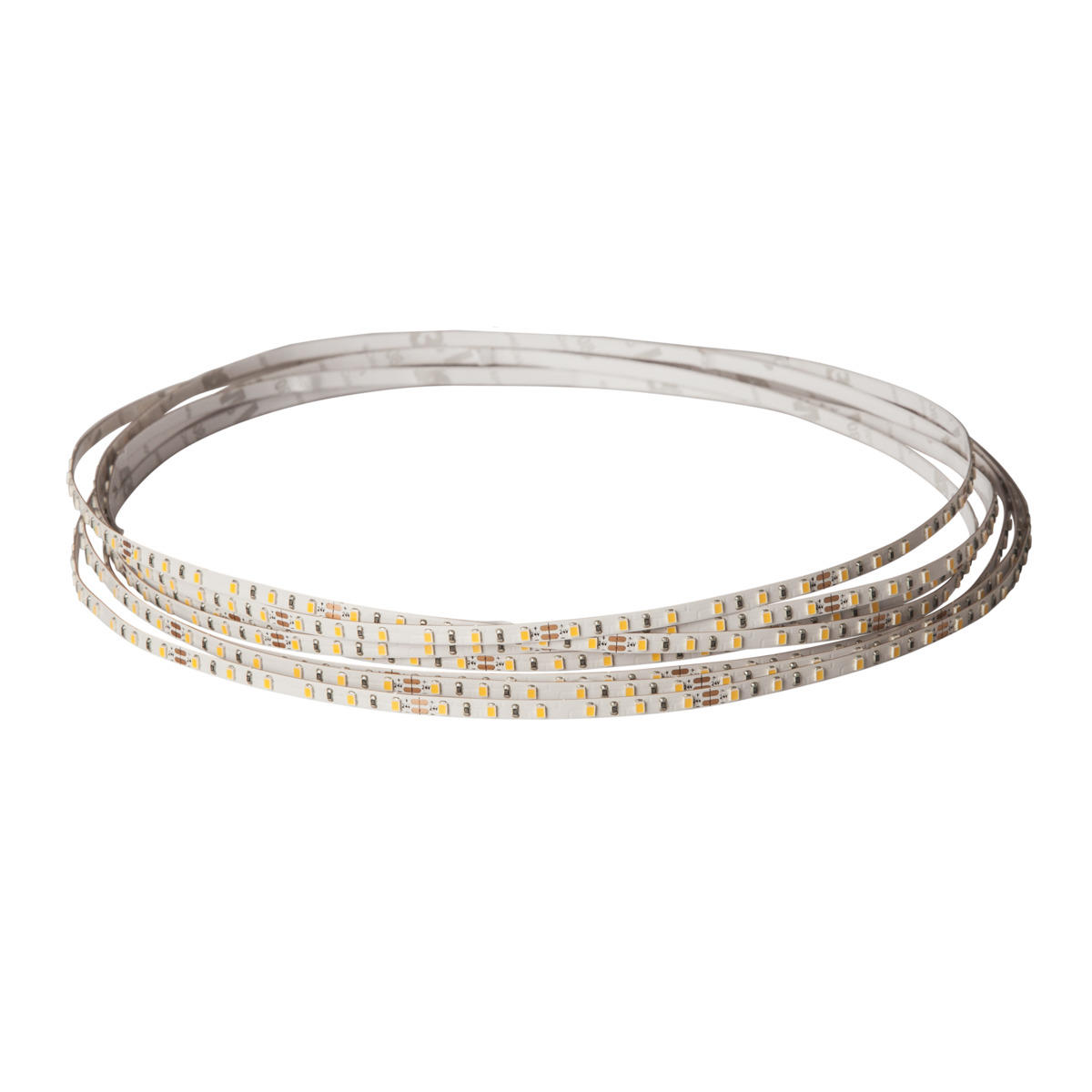

Flexible LEDstrip only 3.5 mm wide, high lumen output and very good colour rendering, Ra>90. Made for most indoor applications where an even lumen output is desired. Can be fitted in our aluminium profiles Micro U or Micro T. Comes as standard in rolls of five metres with 2m 2 m connecting cable at each end and self-adhesive tape for easy installation. Also available made to measure in optional lengths. Drivers are ordered separately according to required dimmer technology and placing.

Variants	GTIN	Item Name	Luminaire Lumen (lm)
	7392971129808	LEDstrip RXM IP20 24V 3000K 5m	2550
	7392971129815	LEDstrip RXM IP20 24V 3000K lpm	510

Description: GTIN 7392971129808

Item Name LEDstrip RXM IP20 24V 3000K 5m

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 2550

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 5

Luminous Intensity (cd) 800

Beam Angle (°) 120

Rated Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 600

LED Pitch (mm) 8

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000
Technical data: Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Line Frequency (Hz) 50, 60

Power LED (W) 36

Power Luminaire (W) 36

System Power (W) 39,6

Efficiency Luminaire (lm/W) 70

Efficiency System (lm/W) 65

Energy Efficiency Class (EU) 2019/2015 G
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Connection (type) Cable

Length Connection (cm) 200

Connection (mm2) 2x0,5

Length Connection Secondary (cm) 200

Operating Temperature -20…+45

Max. Tc (°C) 85
Color and material: Material Copper

Color White

Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

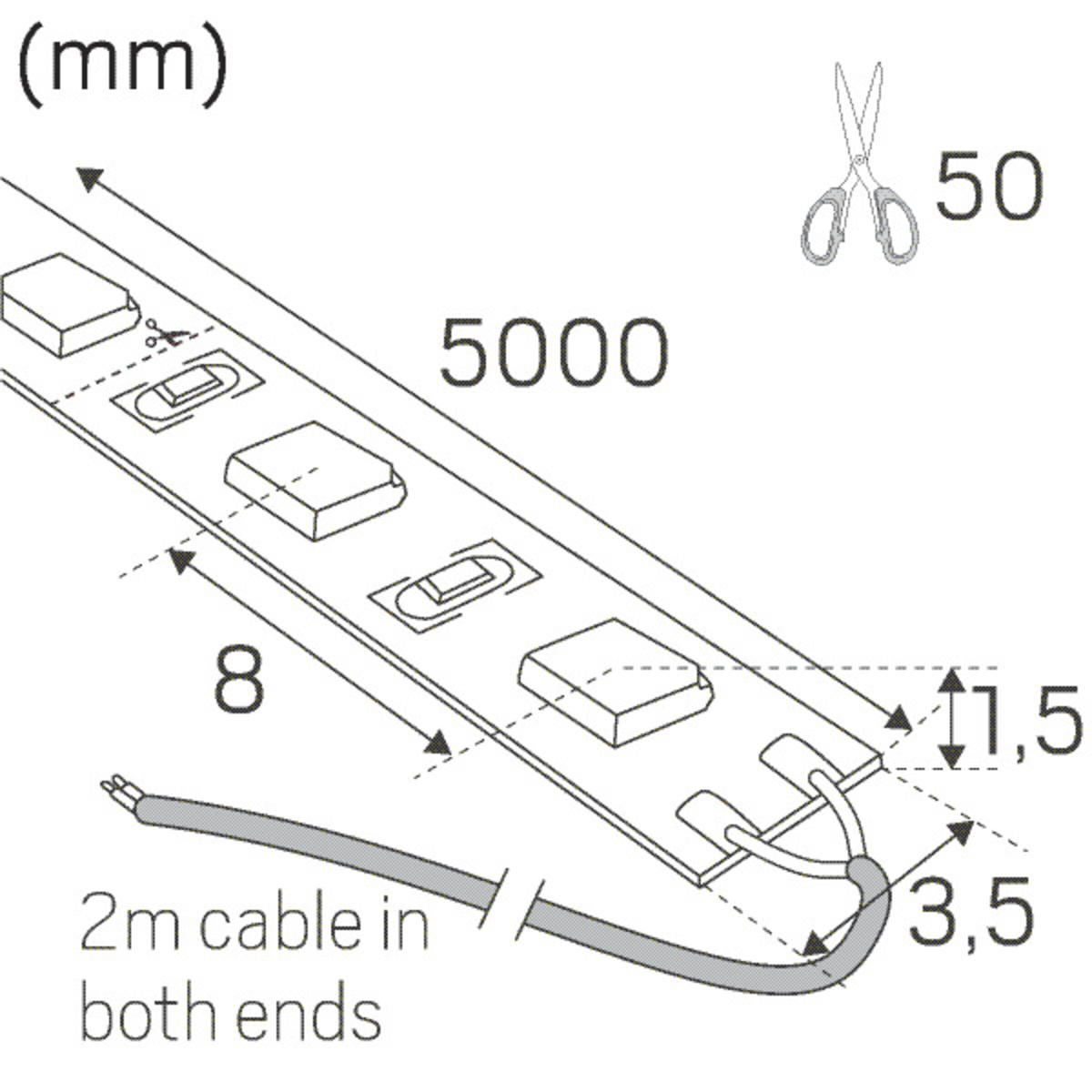

Length (mm) 5000

Width (mm) 4

Height (mm) 2

Weight (kg) 0,1
LEDstrips: Min. Bend Radius (mm) 60

Min. Length (m) 0,05

Max. Length (m) 5

Cutting Increments (mm) 50
