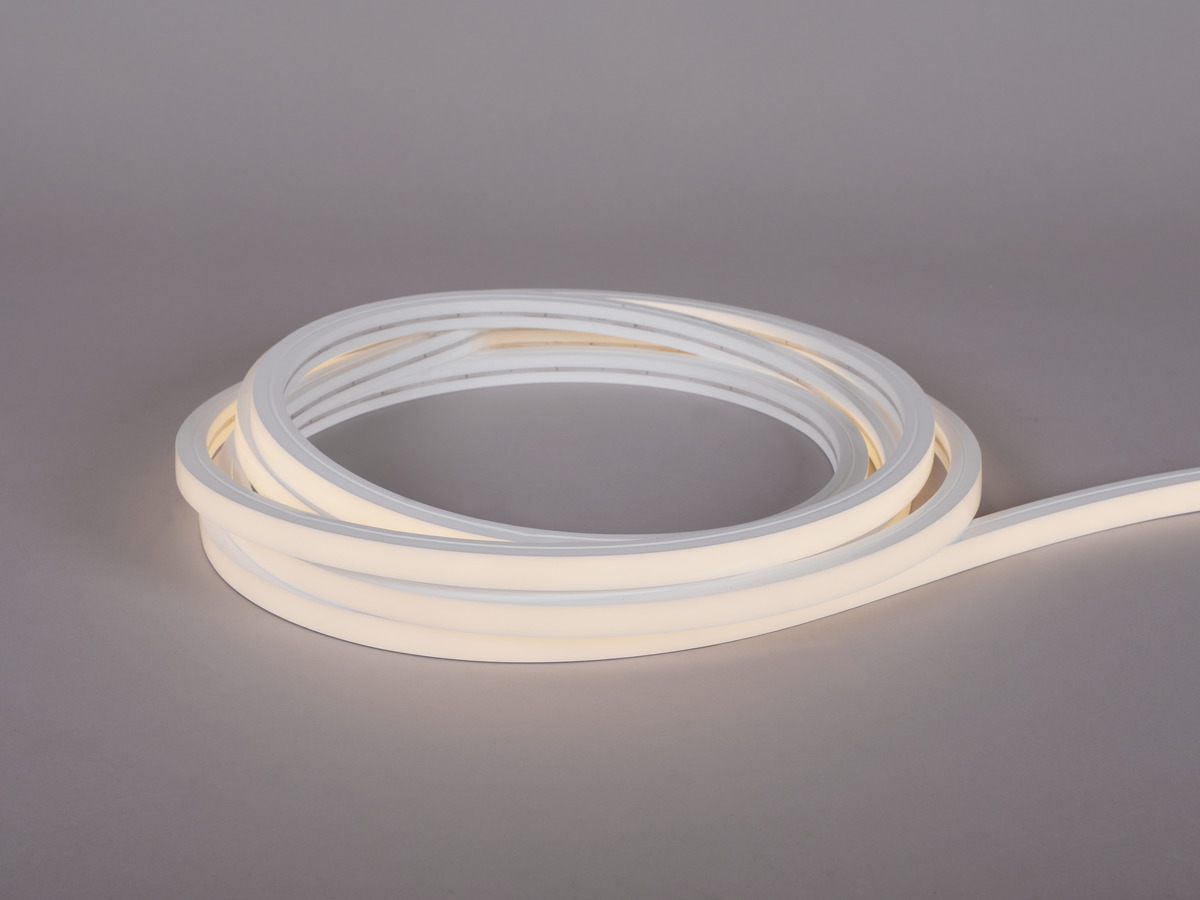

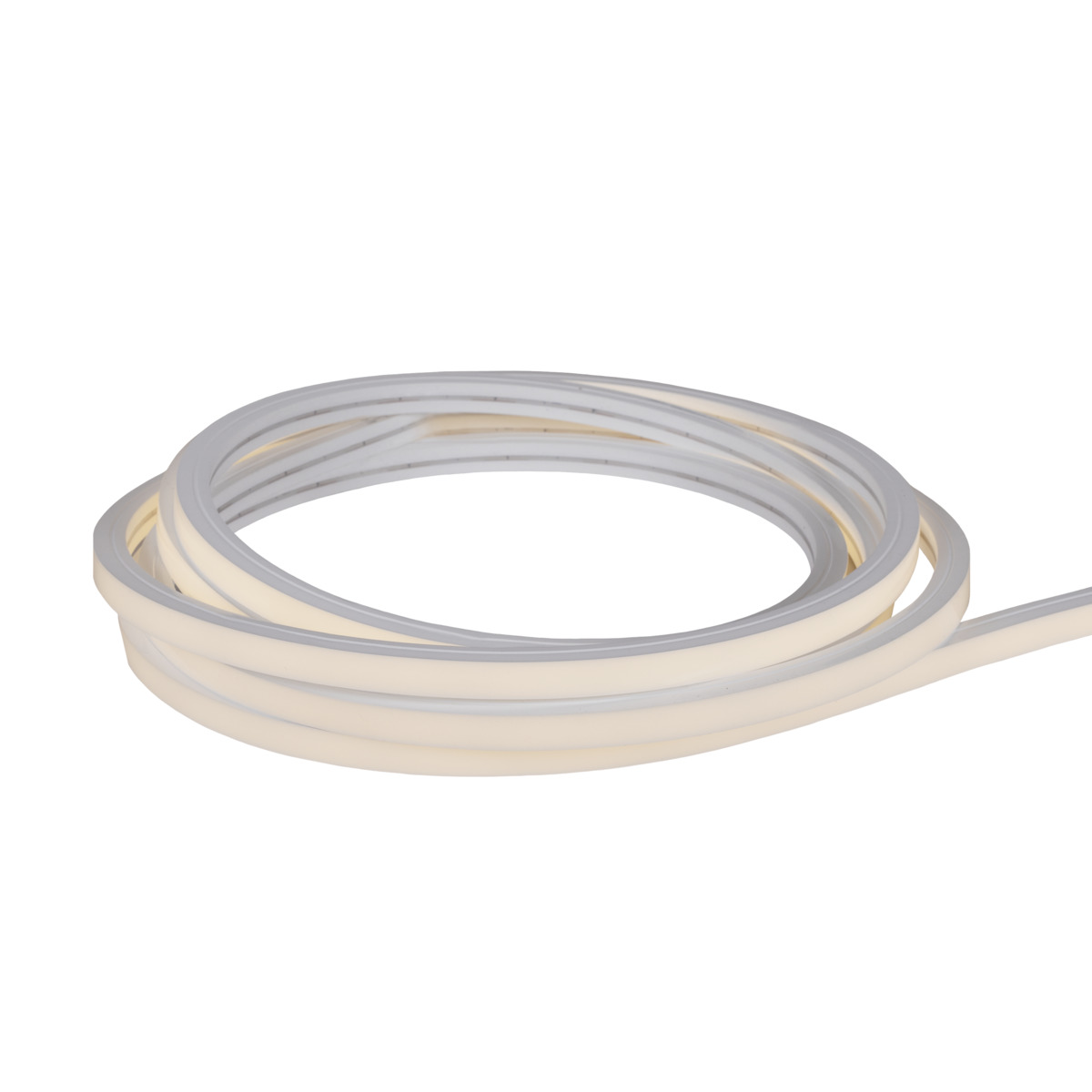

LEDstrip 24V Neon Top IP67 LEDstrip 24V Neon Top IP67 3000K 5m

Max length 17m (RGB 13m), 120LED/m (RGB 96LED/m). Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables.

Top bending LEDstrip, IP67-rated, available in longer lengths with accessories that you can easily fit yourself. Flexible, high quality silicon casing that gives strong, durable protection. Homogenous spot-free lighting without accessories. Comes in 5m rolls with 3m connection cable at one end, 15 clips, screws, one end cap and one end cap for cable for quick and easy installation. Also available made to measure in optional lengths up to 17m (RGB 13m). Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Connects to 24VDC, drivers ordered separately.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971141725	LEDstrip 24V Neon Top IP67 3000K 5m	3000	3100
7392971141732	LEDstrip 24V Neon Top IP67 3000K lpm	3000	620
7392971141749	LEDstrip 24V Neon Top IP67 4000K lpm	4000	625
7392971141756	LEDstrip 24V Neon Top IP67 RGB 5m		1375
7392971141763	LEDstrip 24V Neon Top IP67 RGB lpm		275

Description: GTIN 7392971141725

Item Name LEDstrip 24V Neon Top IP67 3000K 5m

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 3100

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 190

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 600

LED Pitch (mm) 8

Life Time L90 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L98

Lumen maintenance 75 000h L97

Lumen maintenance 100 000h L95

LLMF @ 50 000h 0,98

LLMF @ 100 000h 0,95
Technical data: Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Power Luminaire (W) 50

System Power (W) 55

Efficiency Luminaire (lm/W) 62

Efficiency System (lm/W) 56

Energy Efficiency Class (EU) 2019/2015 G
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Connection (type) Cable

Length Connection (cm) 300

Connection (mm2) 2x0,5

Operating Temperature -25…+45

Max. Tc (°C) 85
Color and material: Material Copper, Silicone

Color White
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 67

Protection Class III

Installation Surface mounted

Mounting Installation Clips

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

Requires cooling No

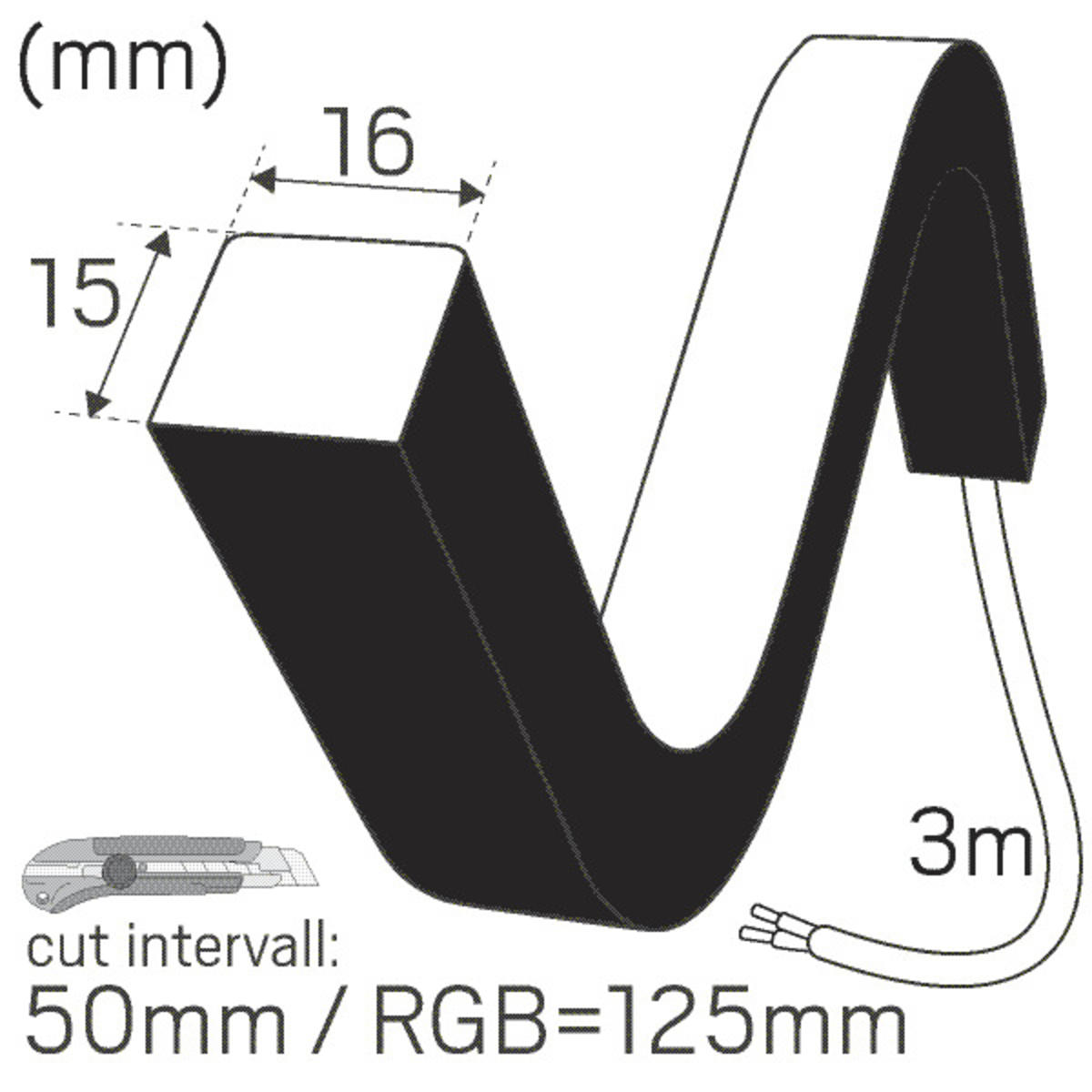

Length (mm) 5000

Width (mm) 16

Height (mm) 15

Weight (kg) 1,73
LEDstrips: Min. Bend Radius (mm) 120

Min. Length (m) 0,057

Max. Length (m) 17

Cutting Increments (mm) 50
