LED Extend G2

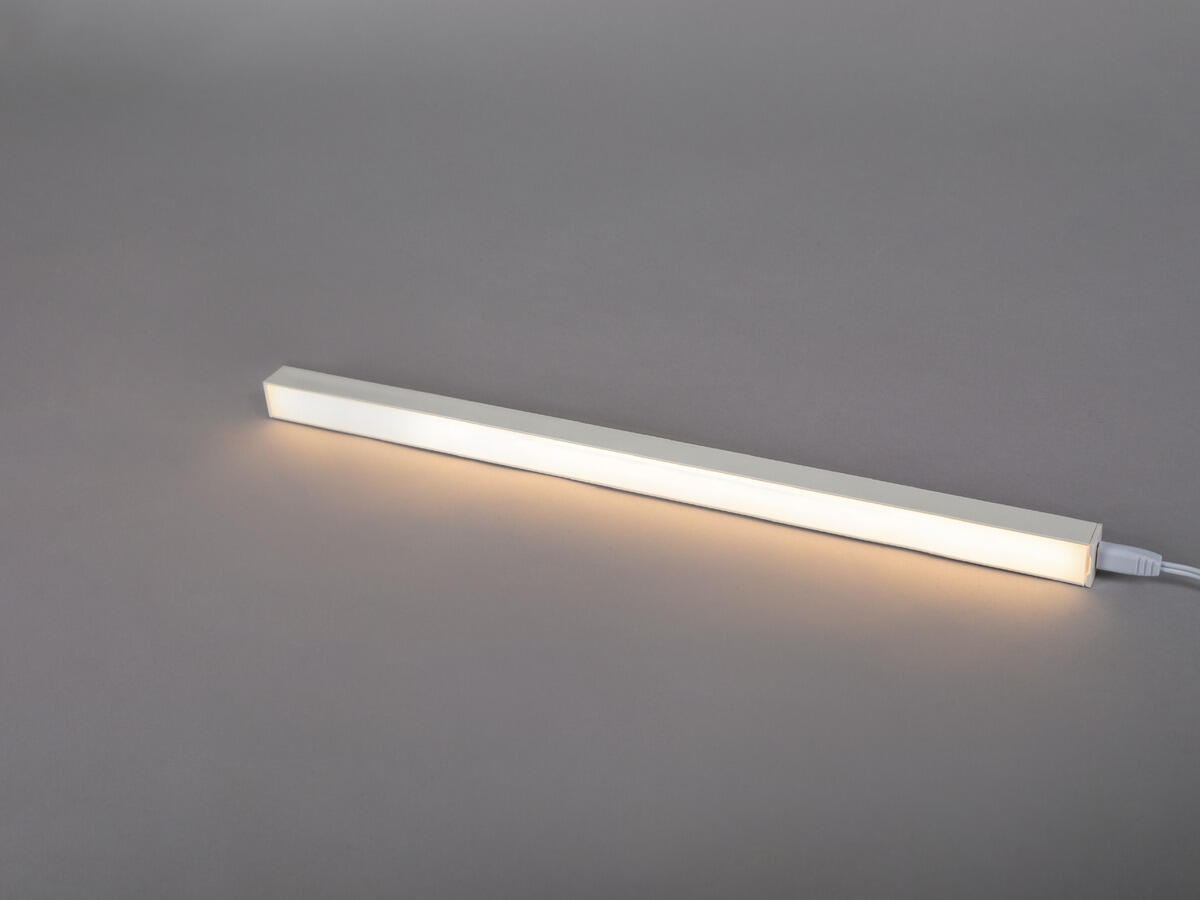

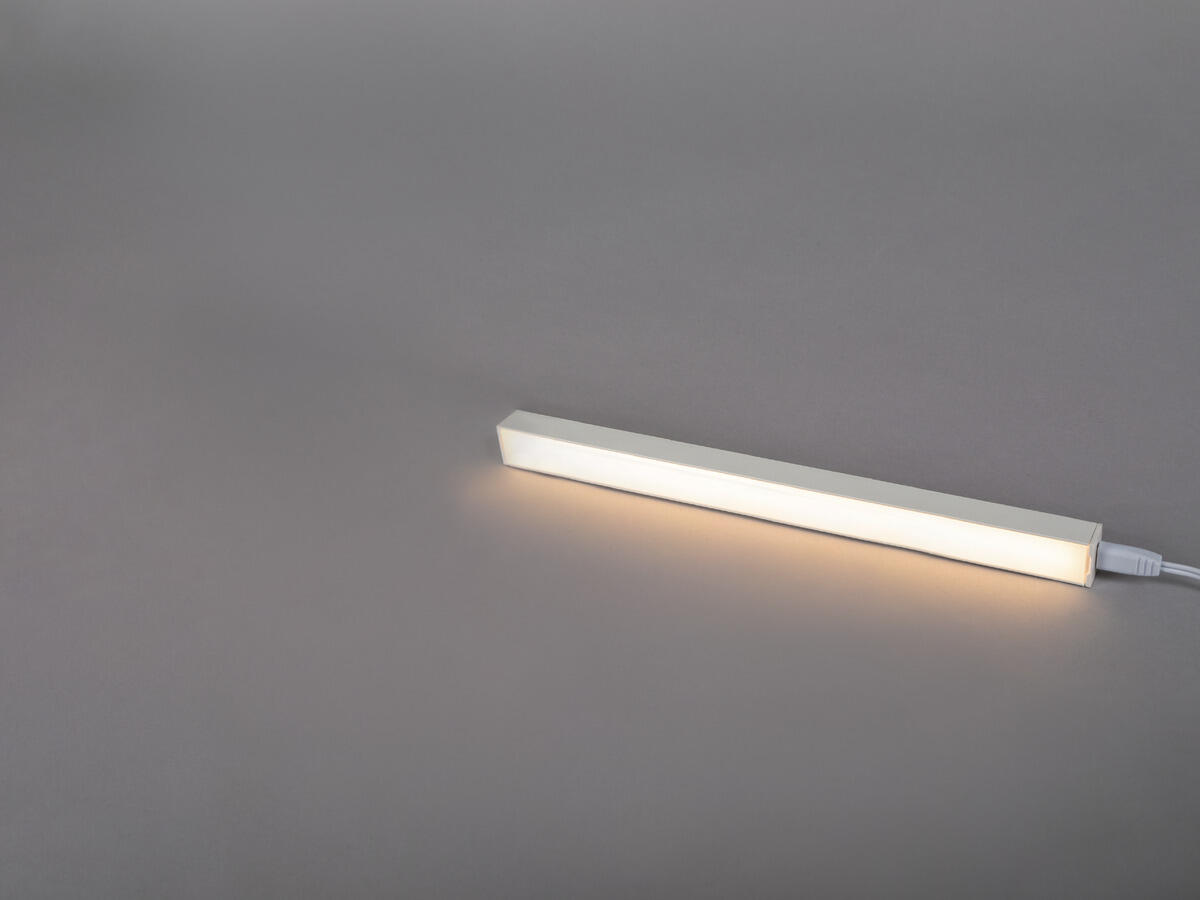

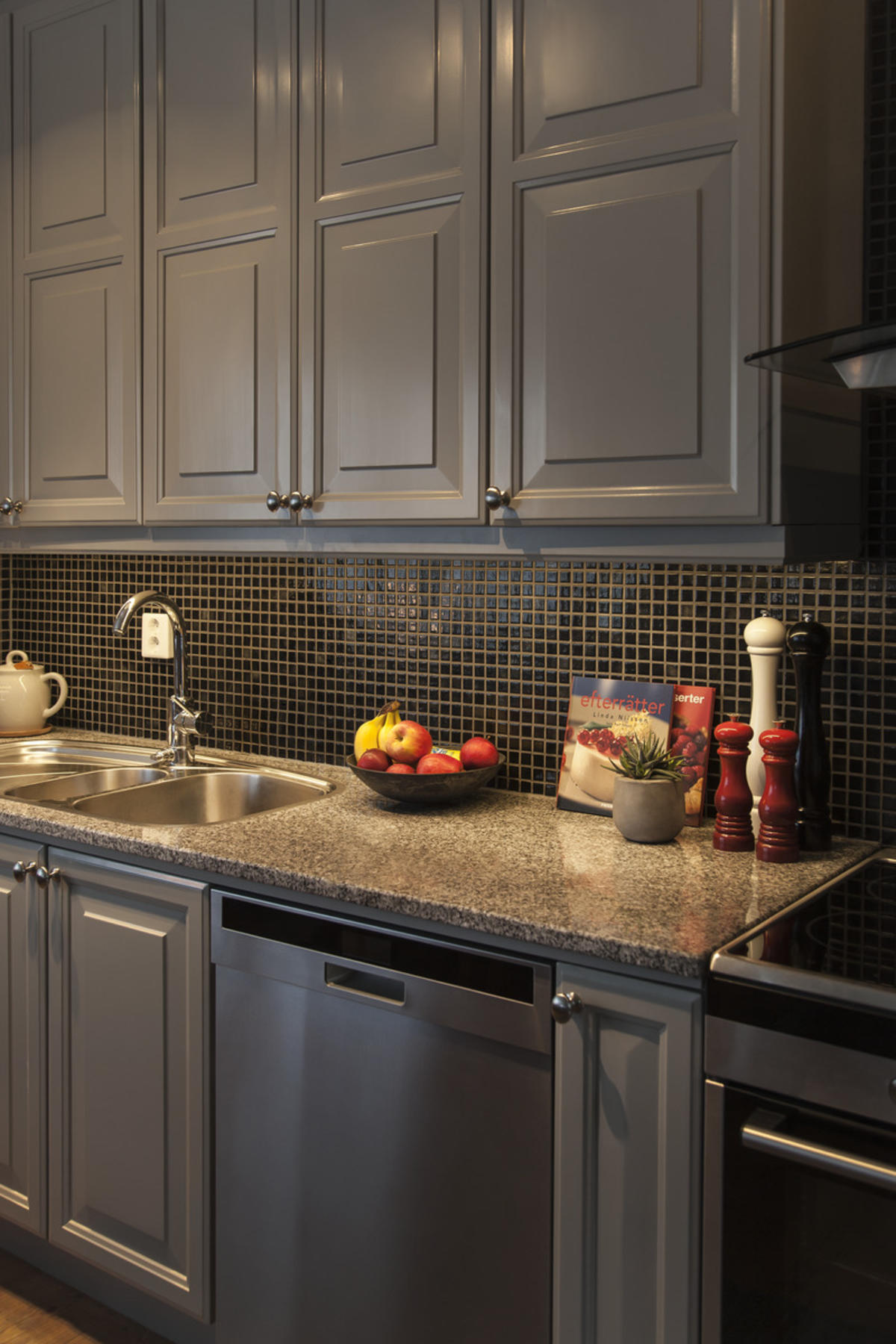

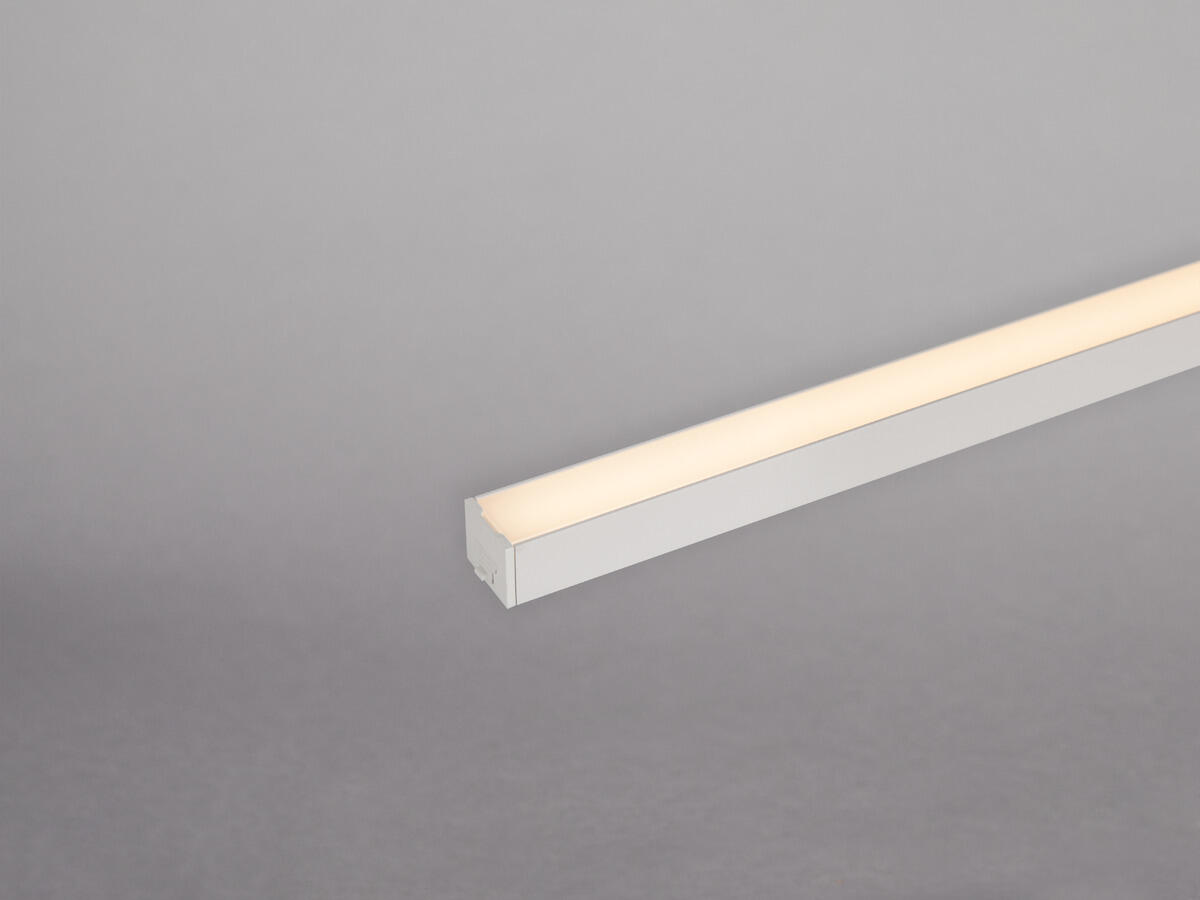

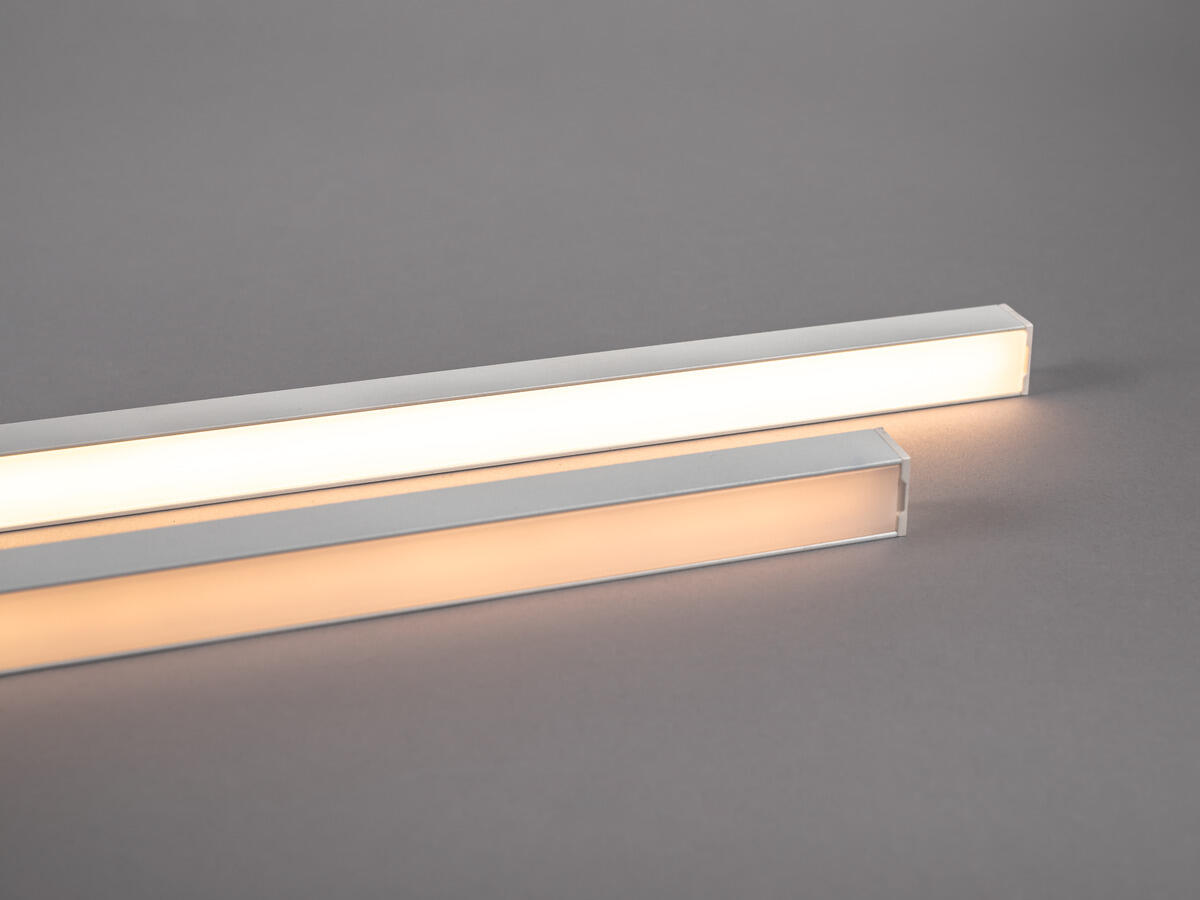

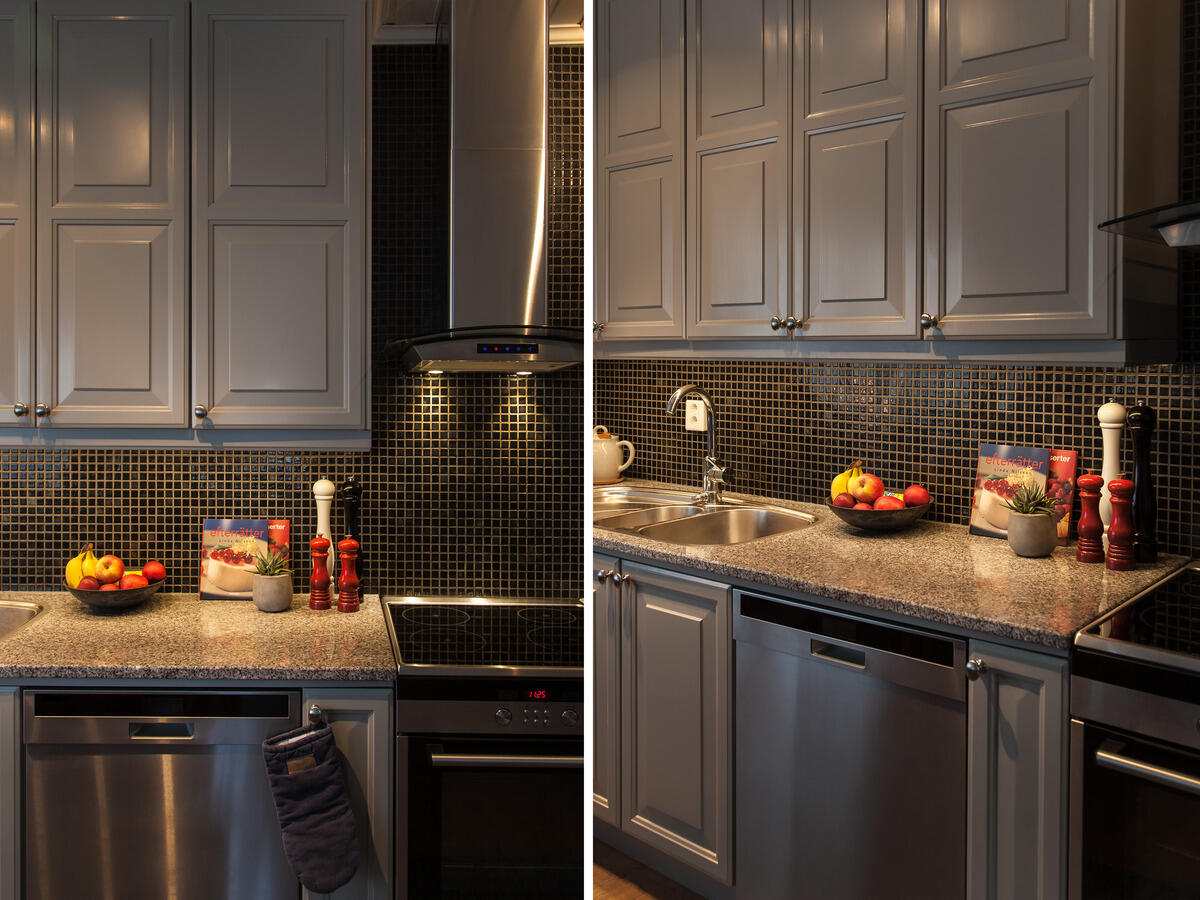

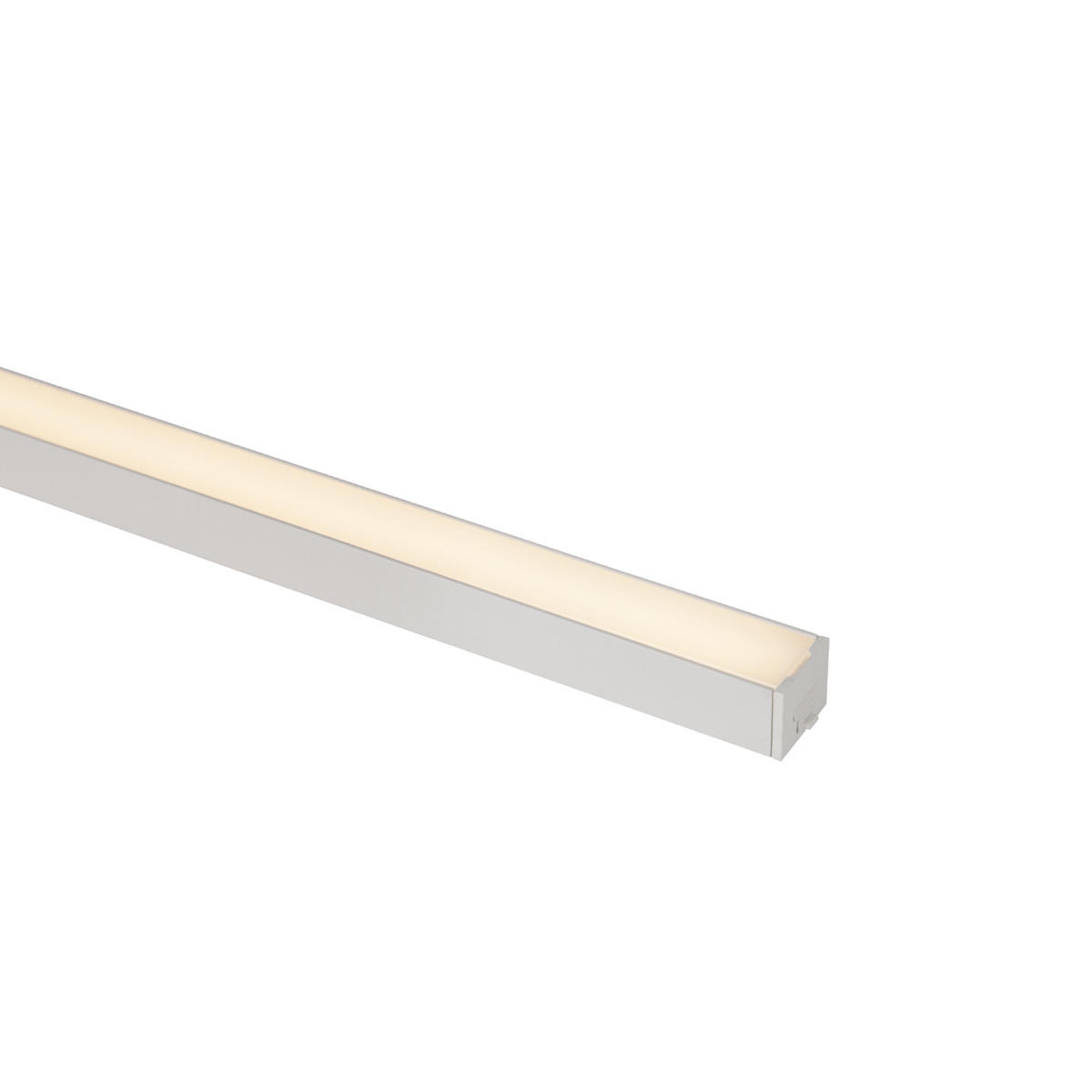

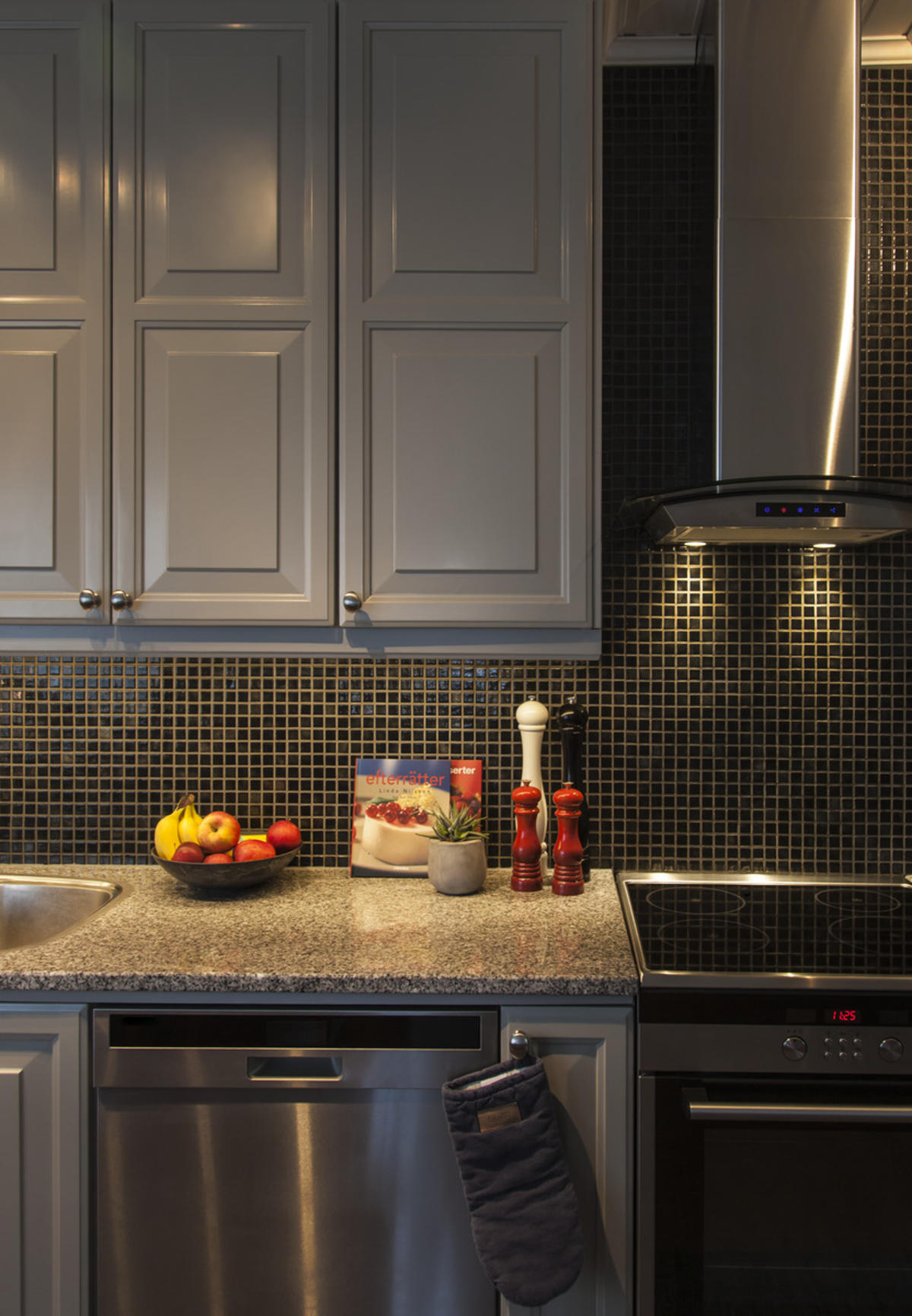

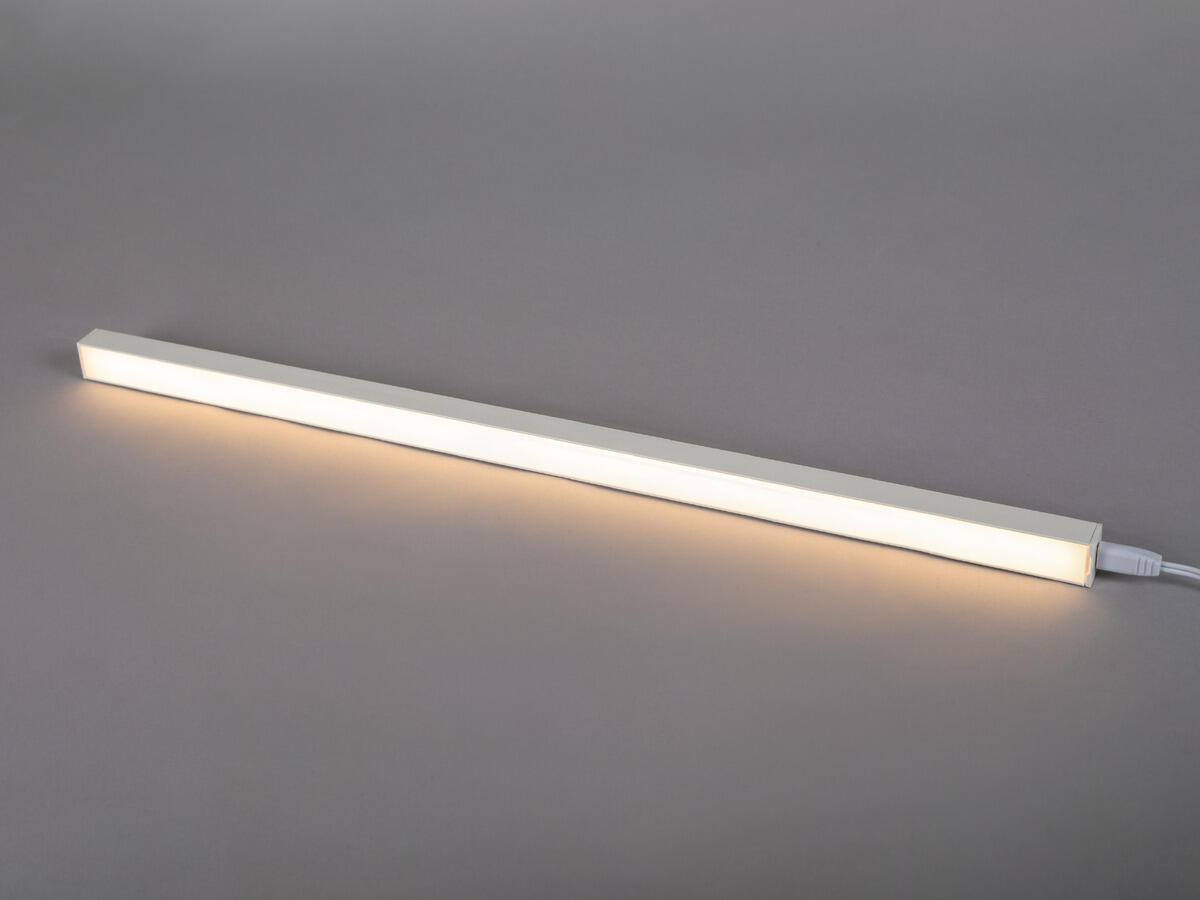

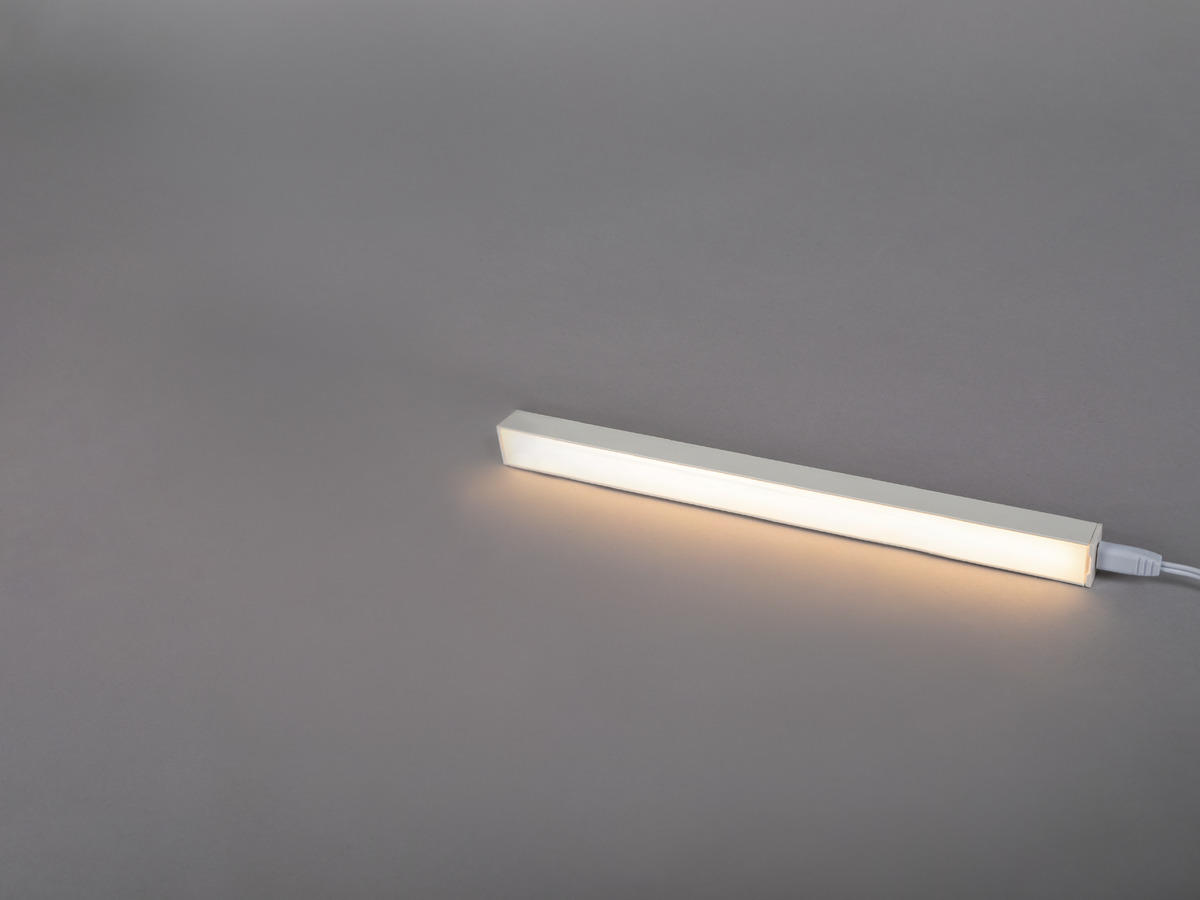

LED strip of white enamelled aluminium with a high lumen output, excellent colour rendering and an even homogenous light. Mounted with double-sided tape and screws or with hidden clips. Perfect alternative to fluorescent lights and spotlights for under cabinet lighting. Can be linked together up to 4m with link pins or linking cables. Comes with 2m connecting cable, 25cm linking cable, link pins and brackets. Connects to LED-trafo 24VDC. LED Extend G2 Corner is available for 90° angles. Linkable touch dimmer is available as an accessory.
Exists in one color

Variants

GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
LED Extend G2 75 4000K 7392971132587 LED Extend G2 75 4000K 4000 680
LED Extend G2 75 3000K 7392971132570 LED Extend G2 75 3000K 3000 640
LED Extend G2 75 2700K 7392971132563 LED Extend G2 75 2700K 2700 620
LED Extend G2 50 4000K 7392971132556 LED Extend G2 50 4000K 4000 470
LED Extend G2 50 3000K 7392971132549 LED Extend G2 50 3000K 3000 420
LED Extend G2 50 2700K 7392971132532 LED Extend G2 50 2700K 2700 410
LED Extend G2 30 4000K 7392971132525 LED Extend G2 30 4000K 4000 240
LED Extend G2 30 3000K 7392971132518 LED Extend G2 30 3000K 3000 220
LED Extend G2 30 2700K 7392971132501 LED Extend G2 30 2700K 2700 210

LED Extend G2 30 2700K A

Description
GTIN 7392971132501
Item Name LED Extend G2 30 2700K
Warranty 5 years
Type .
Lighting Data
Light Source LED
Light Source Included (type) LED not exchangeable
LED Colour Warm White
Colour Temperature (K) 2700
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 75
Luminaire Lumen (lm) 210
Beam Angle (°) 110
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 35
LED Pitch (mm) 6
Technical data
Adjustable No
Life Time (L70 B50) 90 000h Ta 25°C
Nominel Life Time (h) 90000
Voltage (type) DC
Voltage Interval (V) 24...24
Voltage Nominal (V) 24
Power LED (W) 3,5
Power Luminaire (W) 3,5
System Power (W) 3,9
Efficiency LED (lm/W) 147
Efficiency Luminaire (lm/W) 60
Efficiency System (lm/W) 55
Energy Efficiency Class A
Operation and Connection
Driver Included No
Driver Model Constant Voltage
Connection (type) Plug-in
Length Connection (cm) 200
Through Wiring No
Operating Temperature -25…+45
Max. Tc (°C) 50
Dimmable Yes
Color and material
Material Aluminium
Color White
Color Code (RAL) 9016
Halogen free No
Measurement and installation
Operation Environment Indoor
IP Degree of Protection 21
Approval Marks CE
Protection Class III

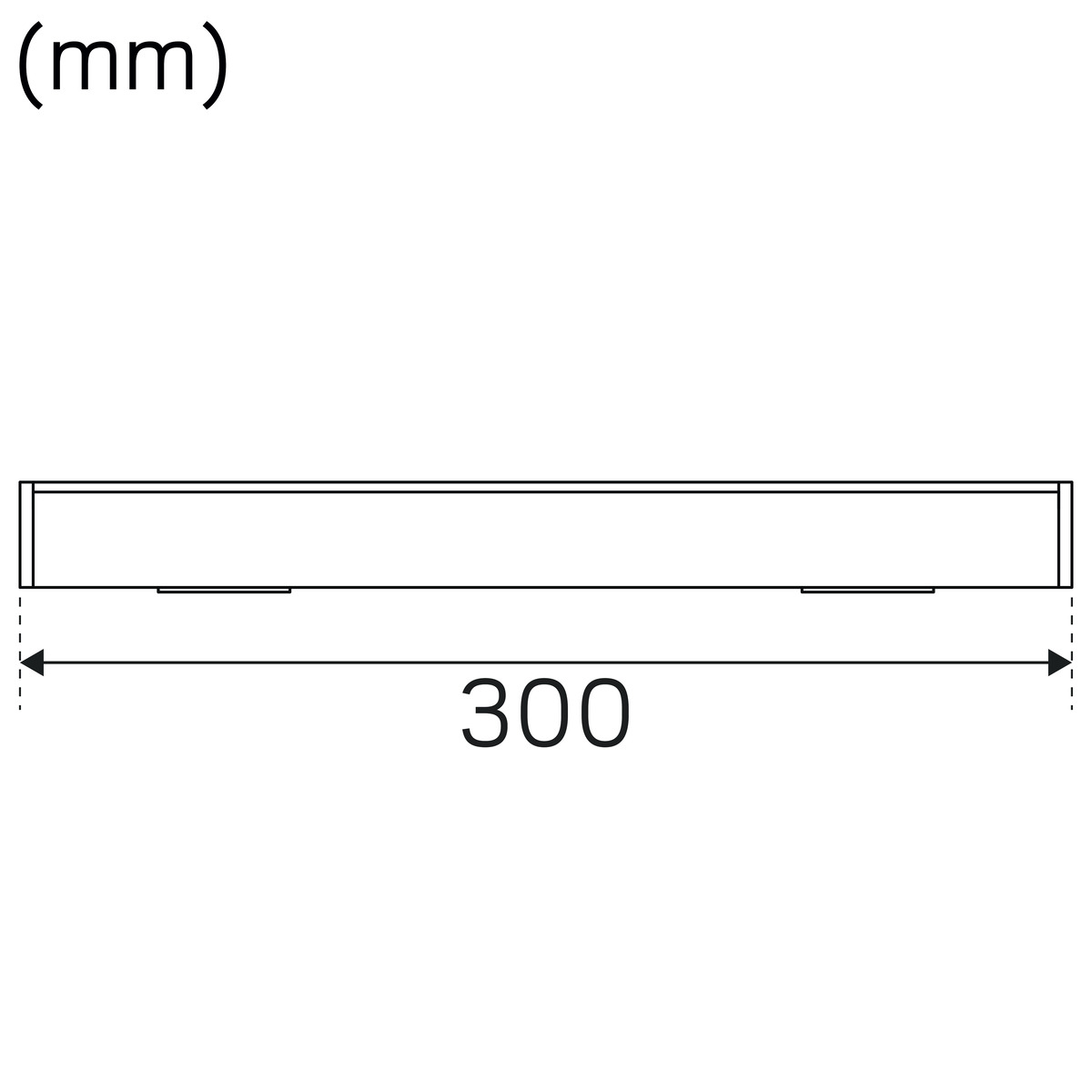

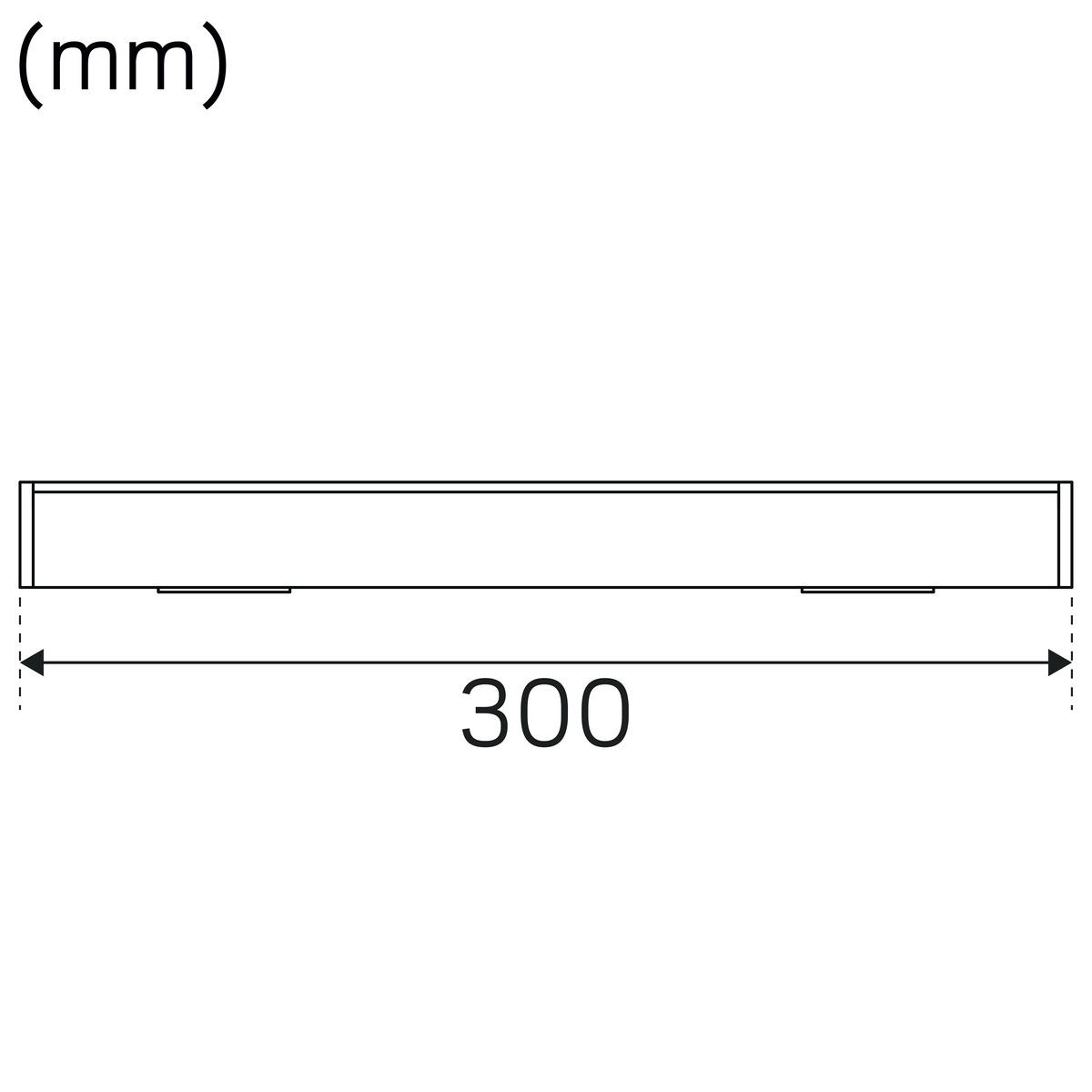

Length (mm) 300

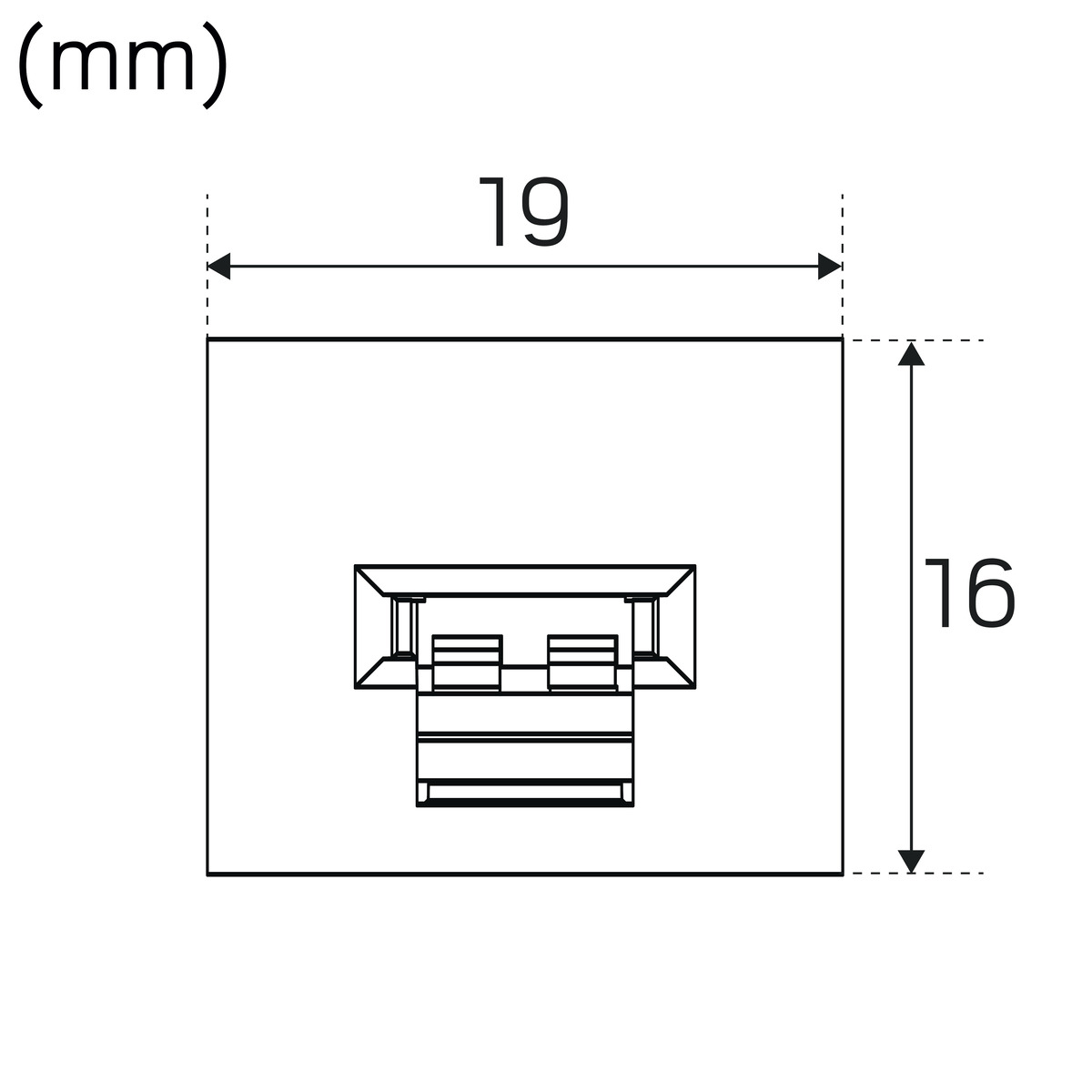

Width (mm) 19
Height (mm) 16
Weight (kg) 0,13
