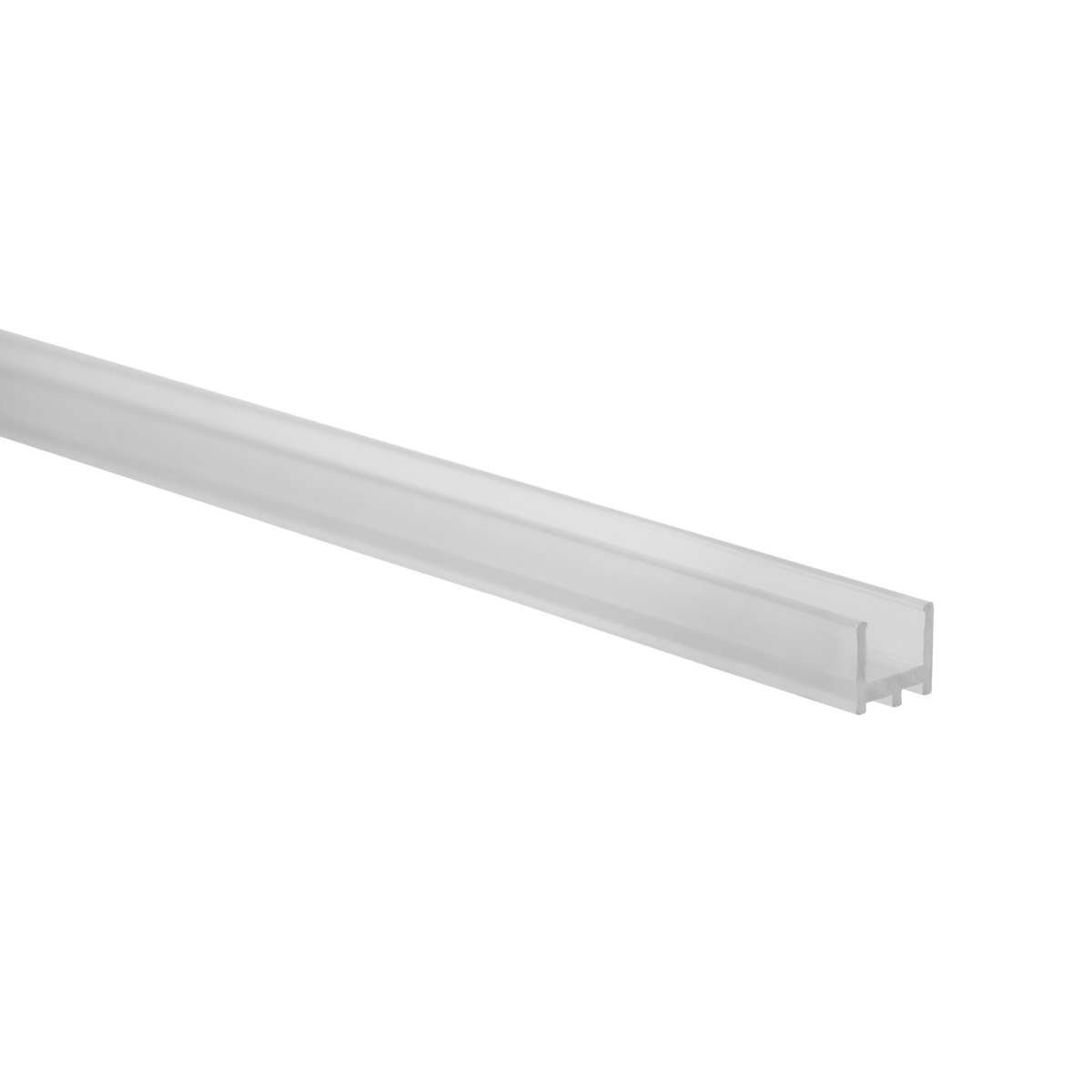

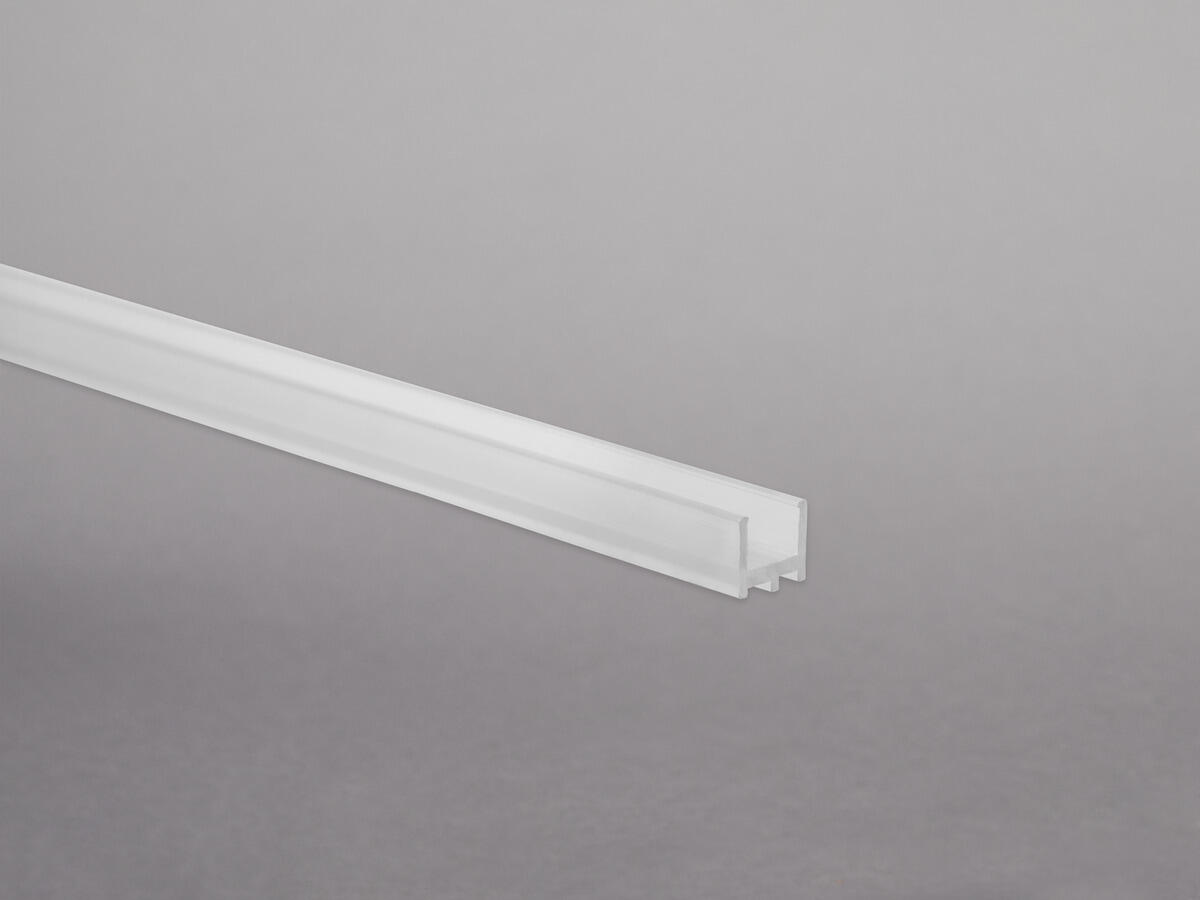

Profile U Plastic 17mm

U-profile that simplifies installation of LEDstrip with higher IP rating Perfect for creating straight lines of light without the use of clips. Equally suitable outdoors and indoors. As standard, comes in 2m lengths with prebored holes in the bottom for easy installation with screws. Fits with LEDstrip R IP67 12V RGB and LEDstrip RX IP67 24V RGB.

Profile U Plastic 17mm 2m

Description
GTIN 7392971131436
Item Name Profile U Plastic 17mm 2m
Warranty 5 years
Operation and Connection
Through Wiring No
Color and material
Material Extruded, Plastic, PVC
Color Transparent
Halogen free Yes
Environmental Assessment SundaHus
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
Installation Surface mounted
Mounting Installation Screw Mounting
Filament Test IEC 695-2-1(°C) 650

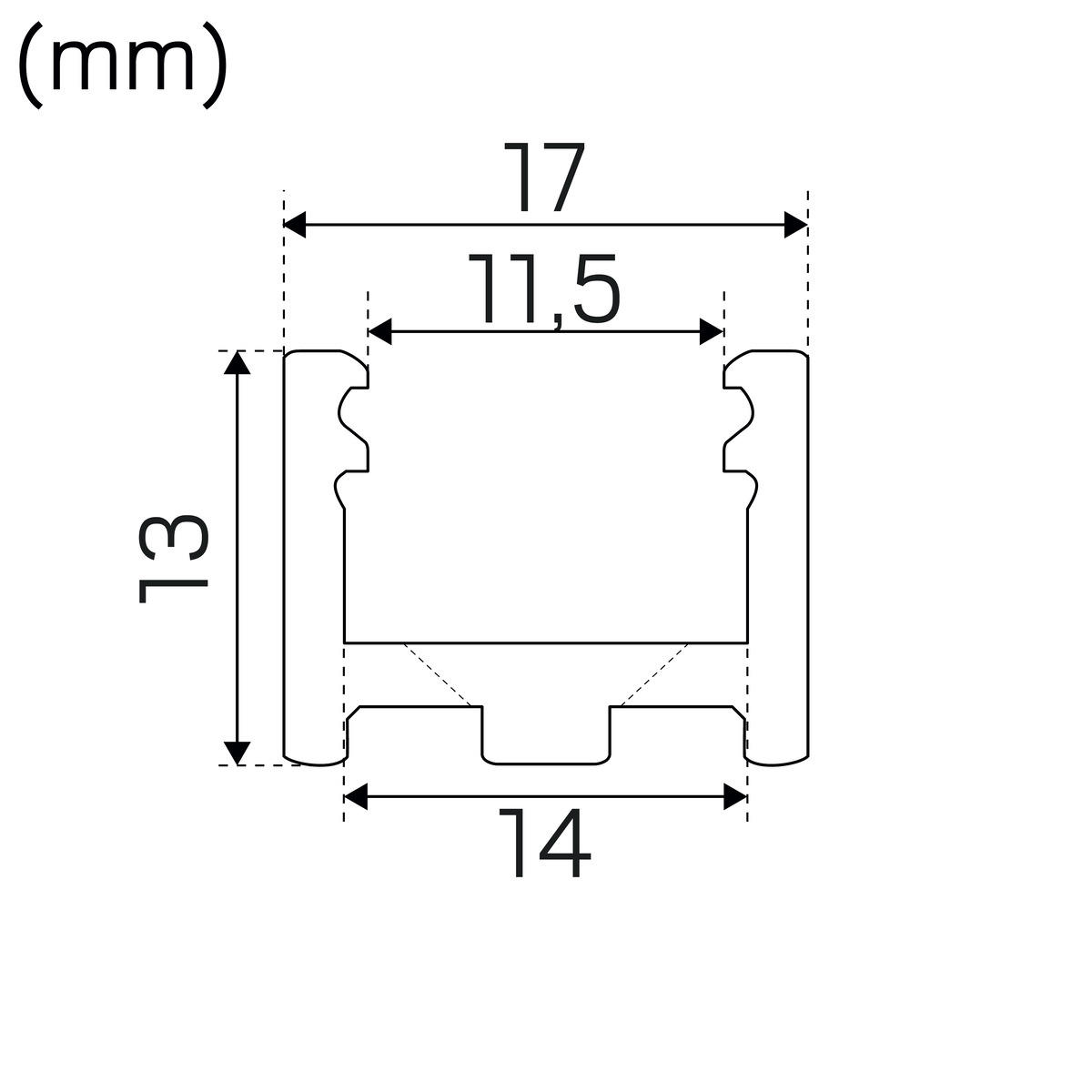

Length (mm) 2000
Width (mm) 17
Height (mm) 13
Weight (kg) 0,18

Images and downloads

Accessories

No accessories for this product.
