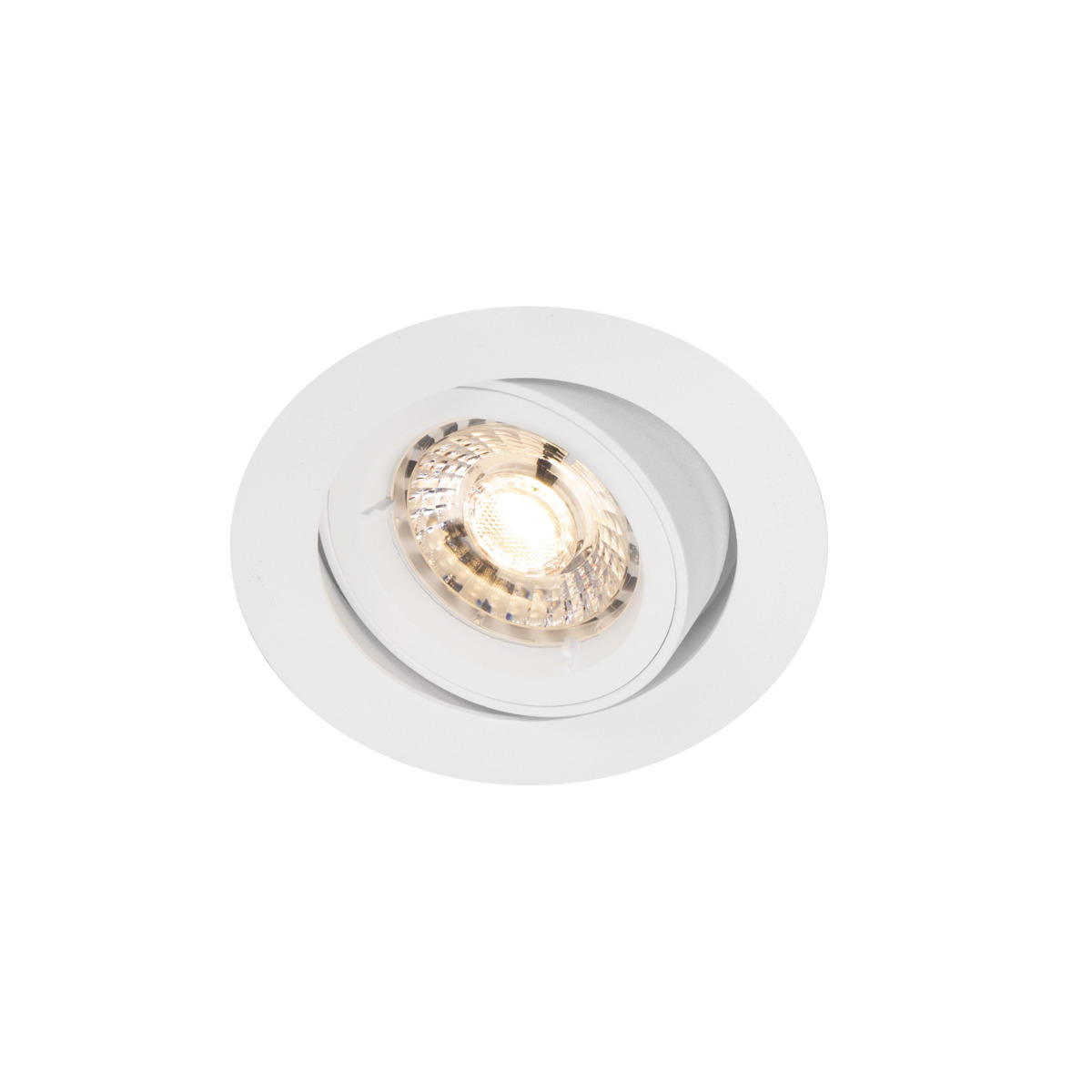

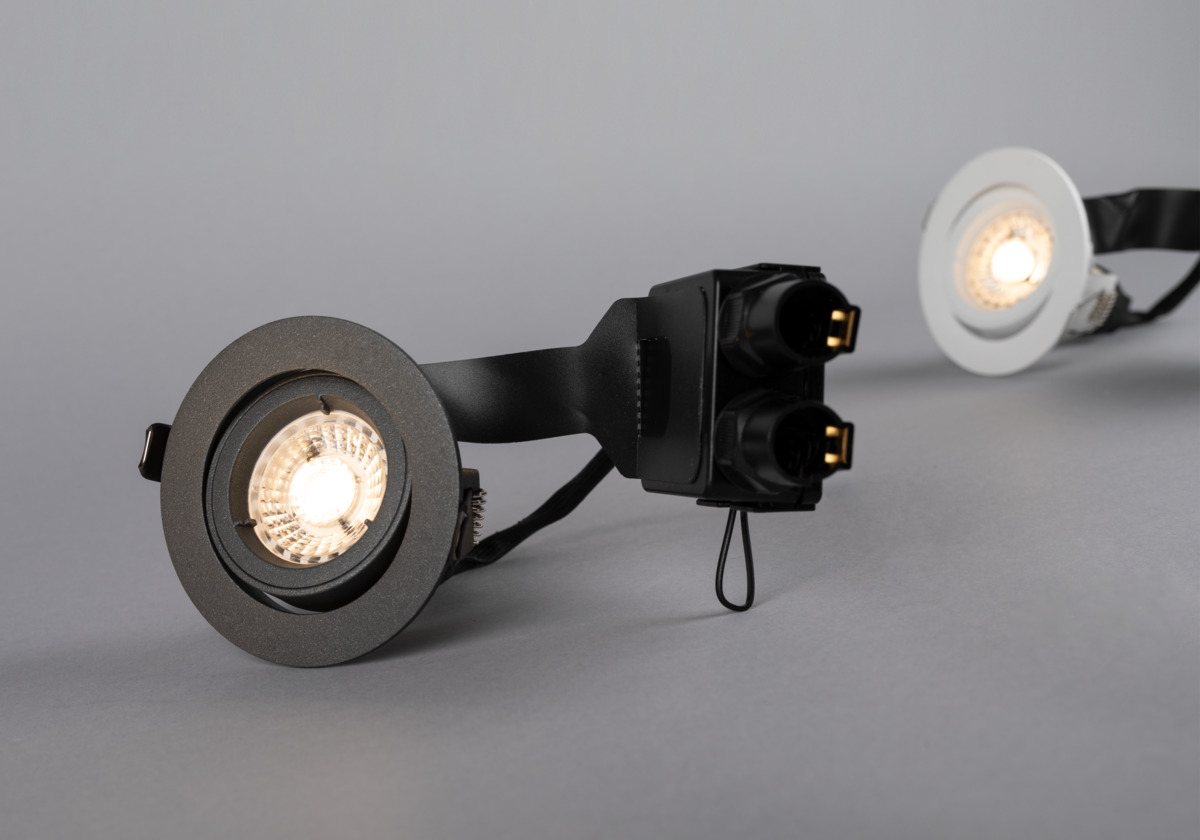

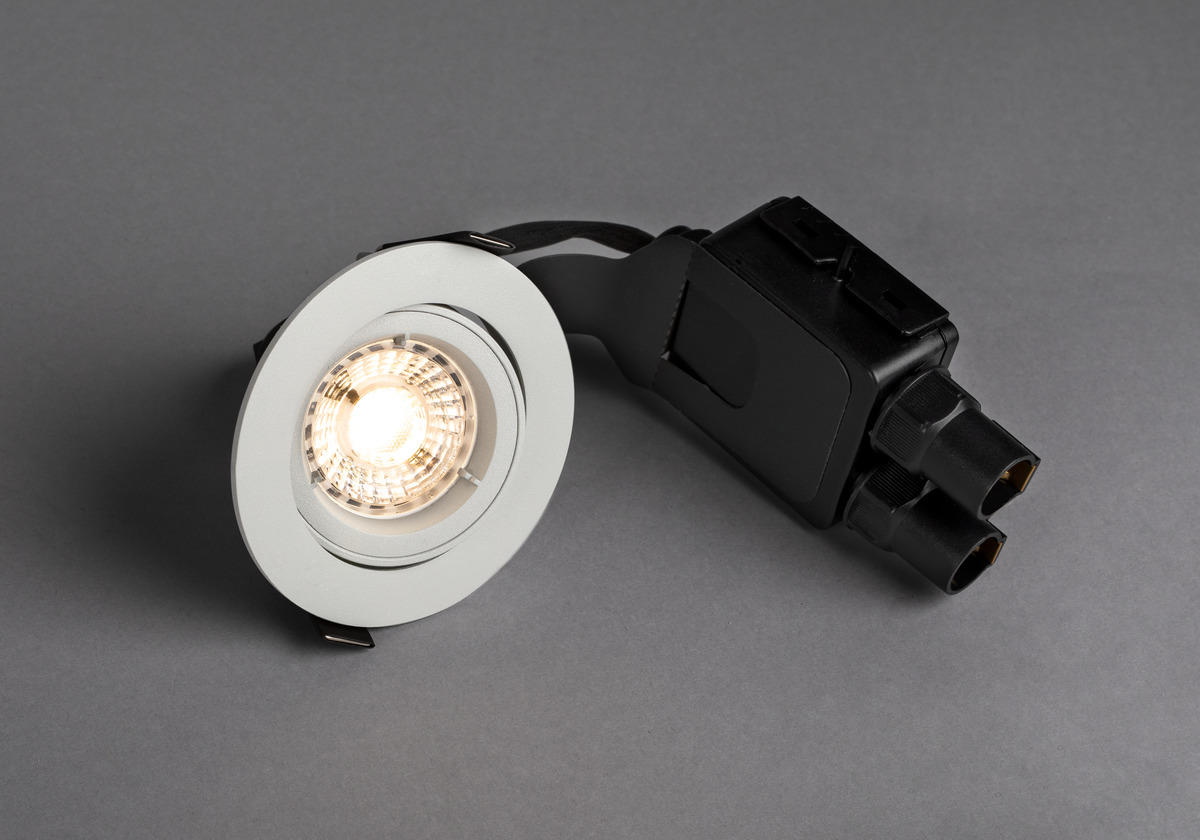

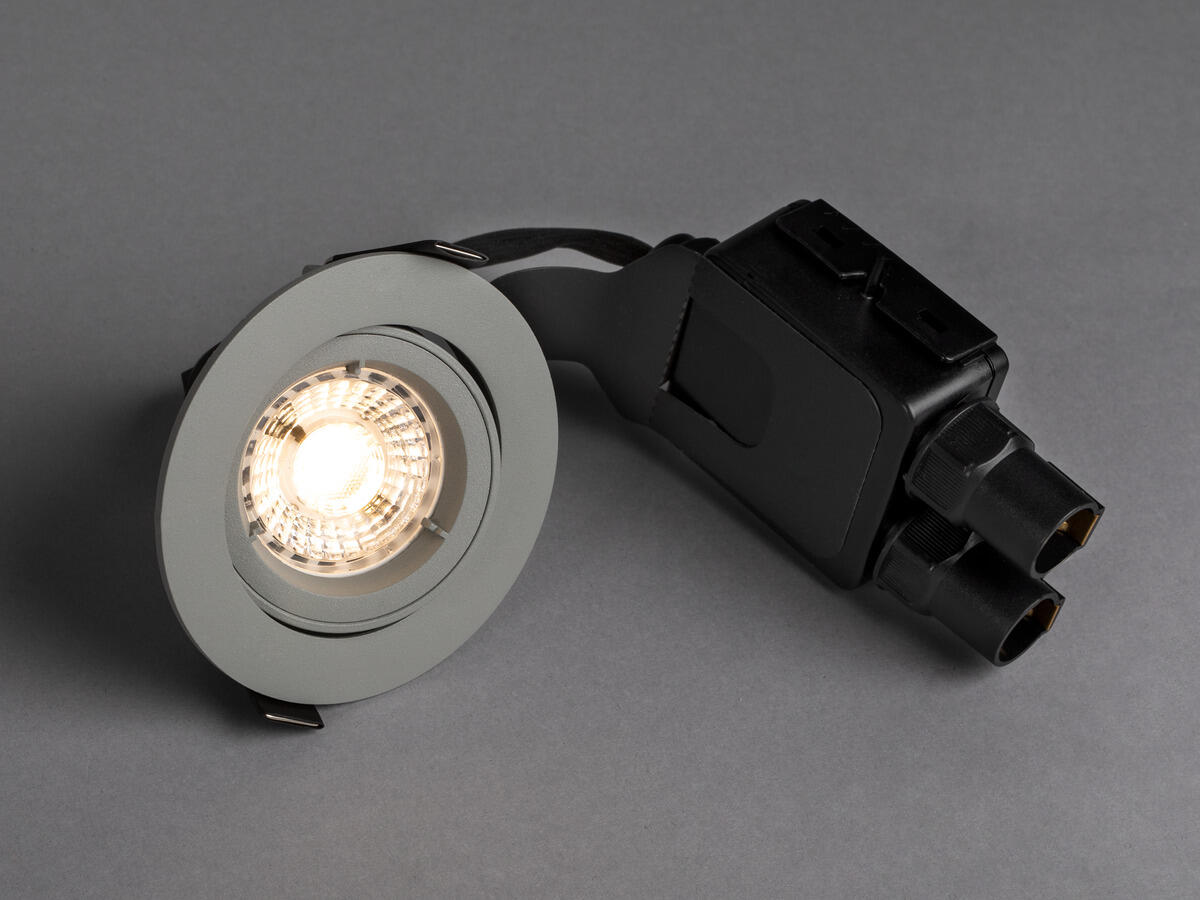

Comfort Quick Outdoor GU10

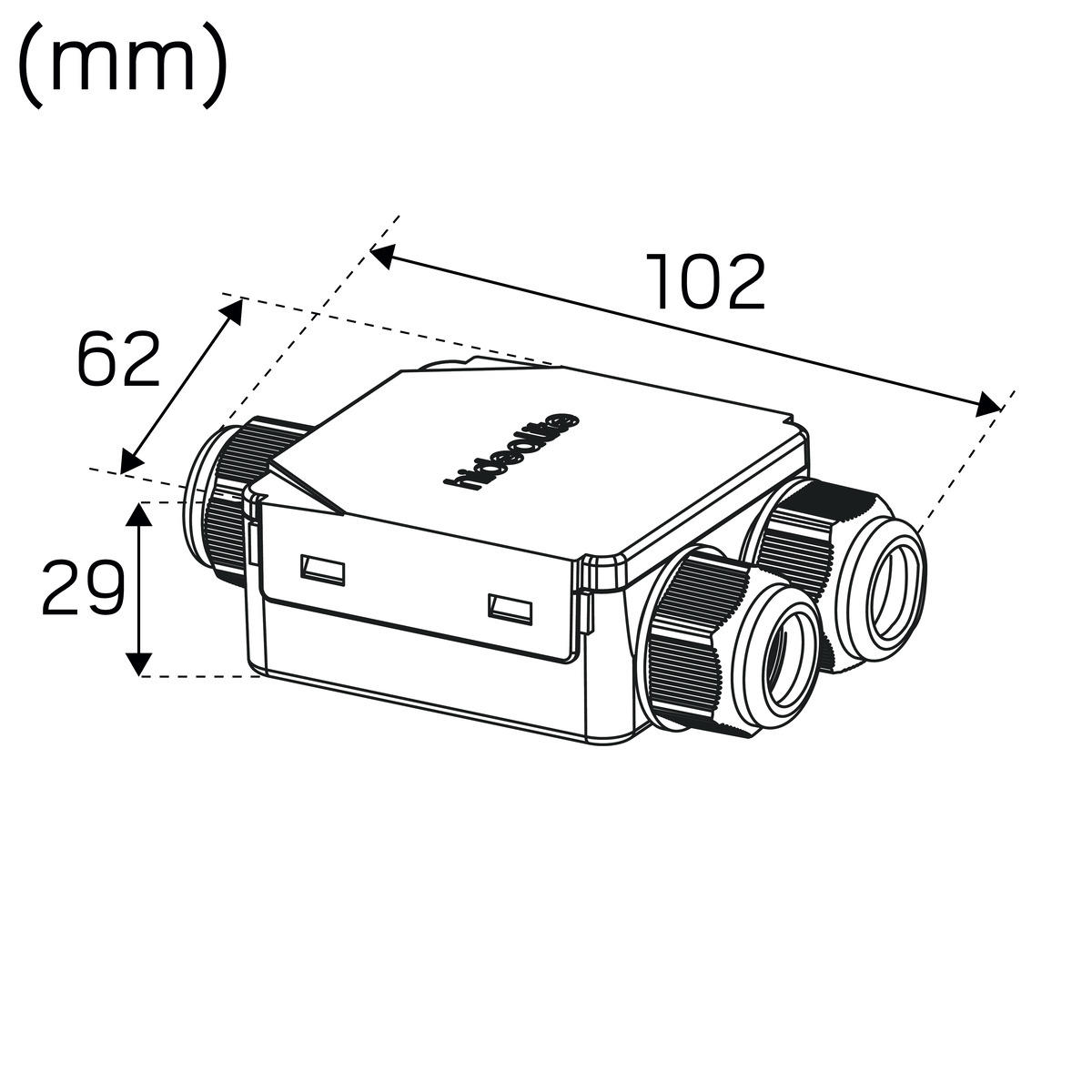

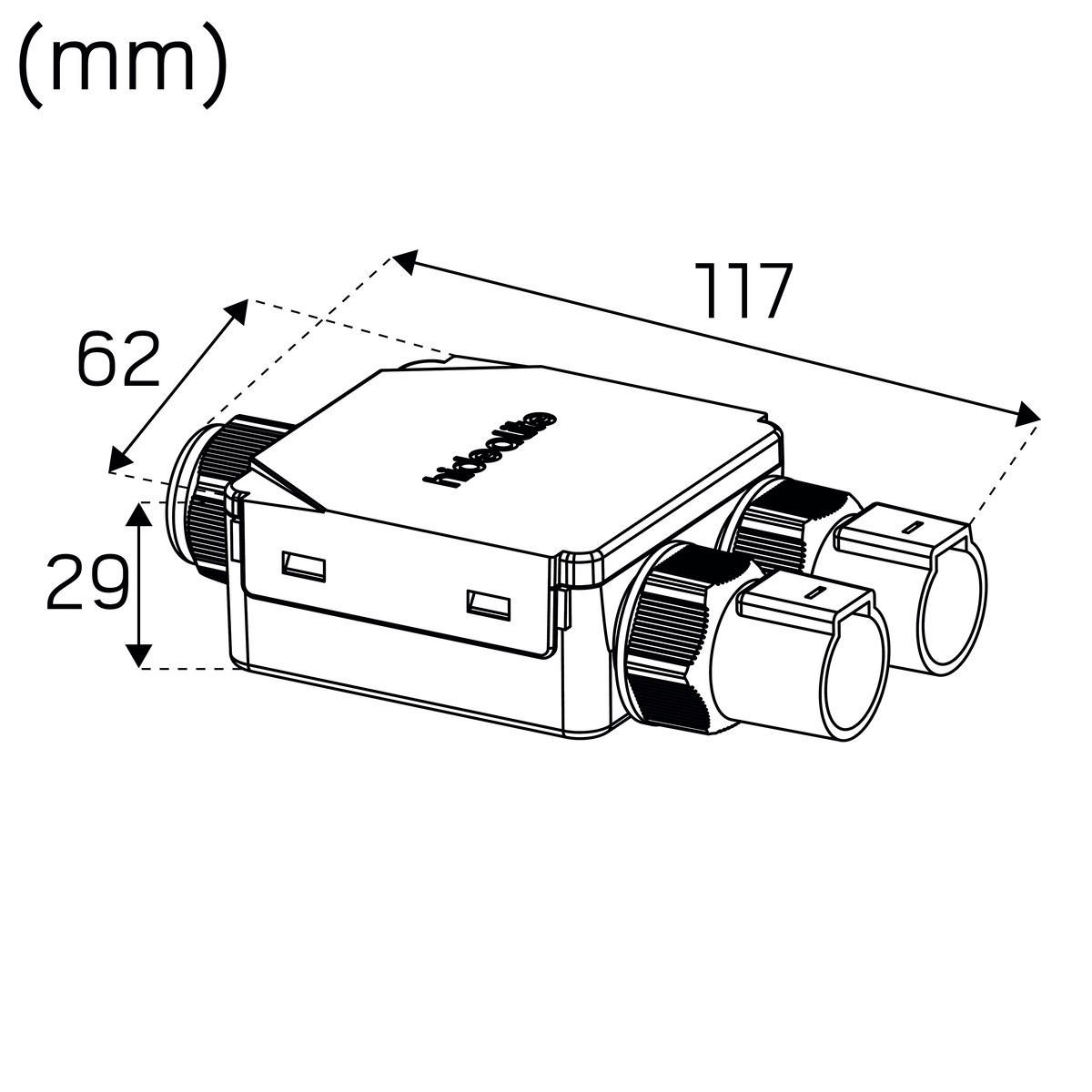

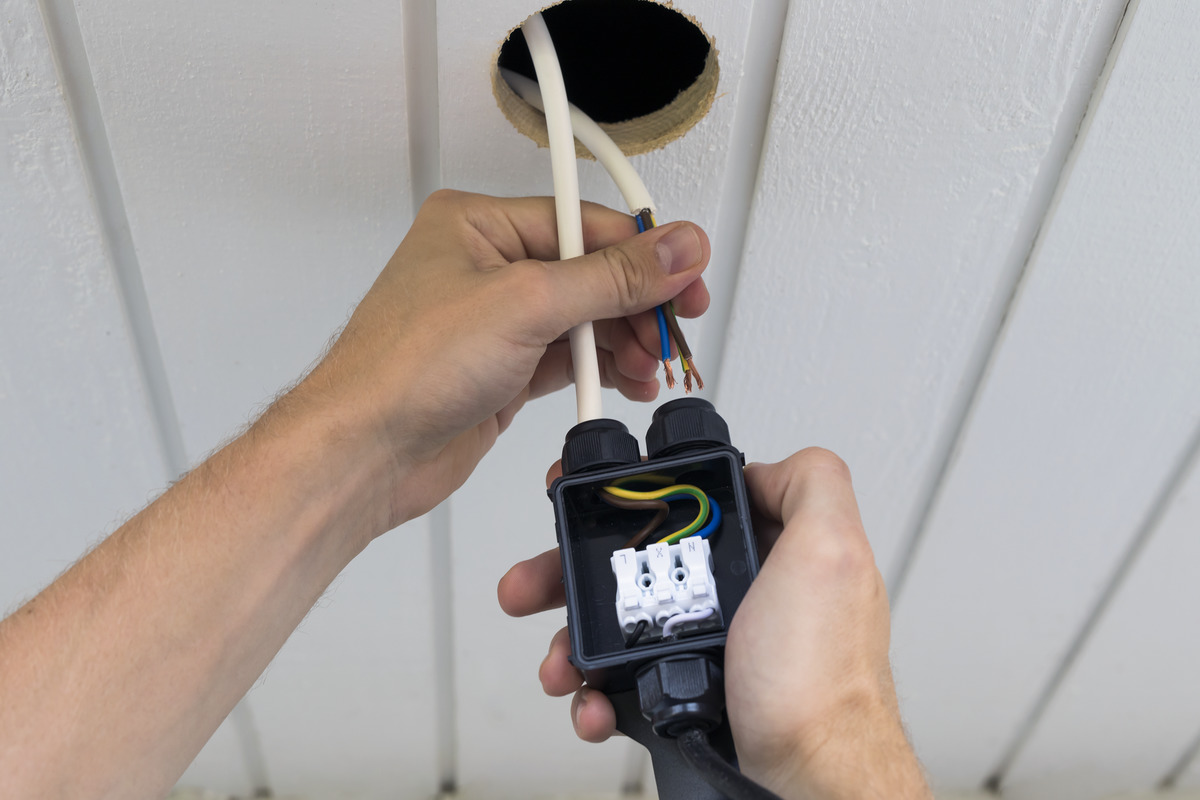

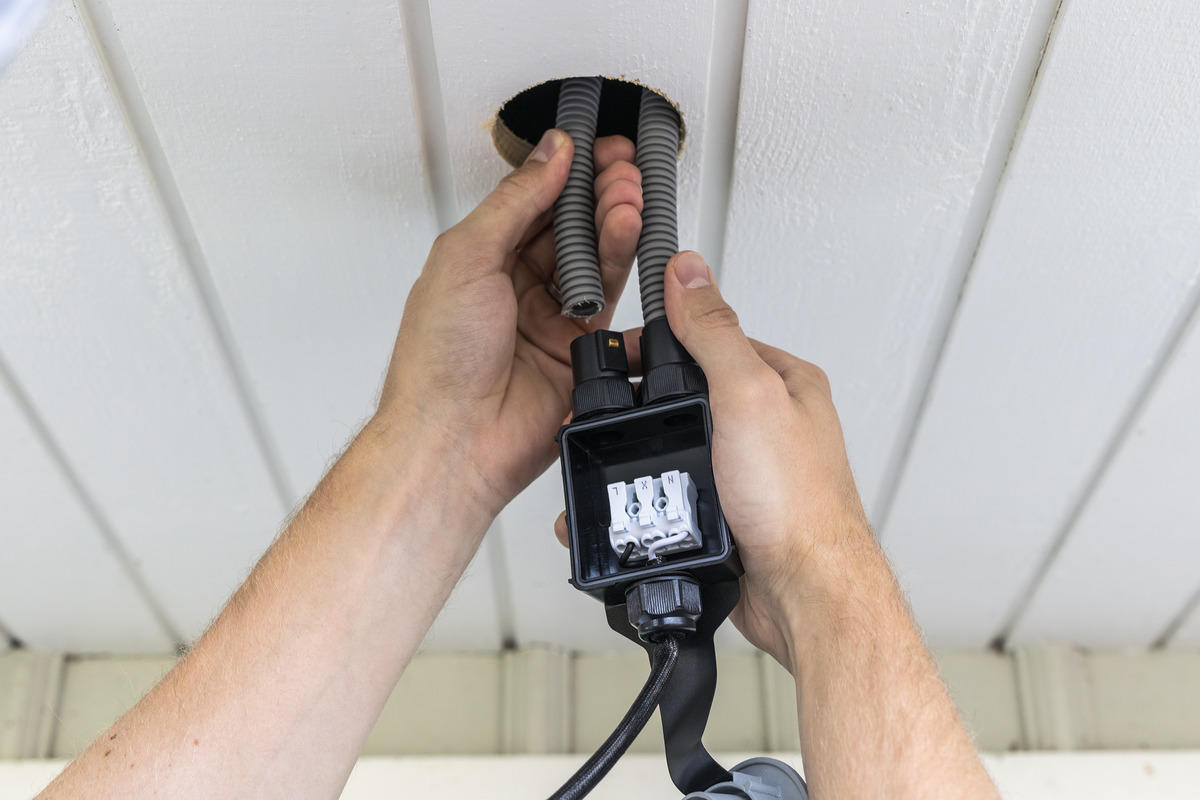

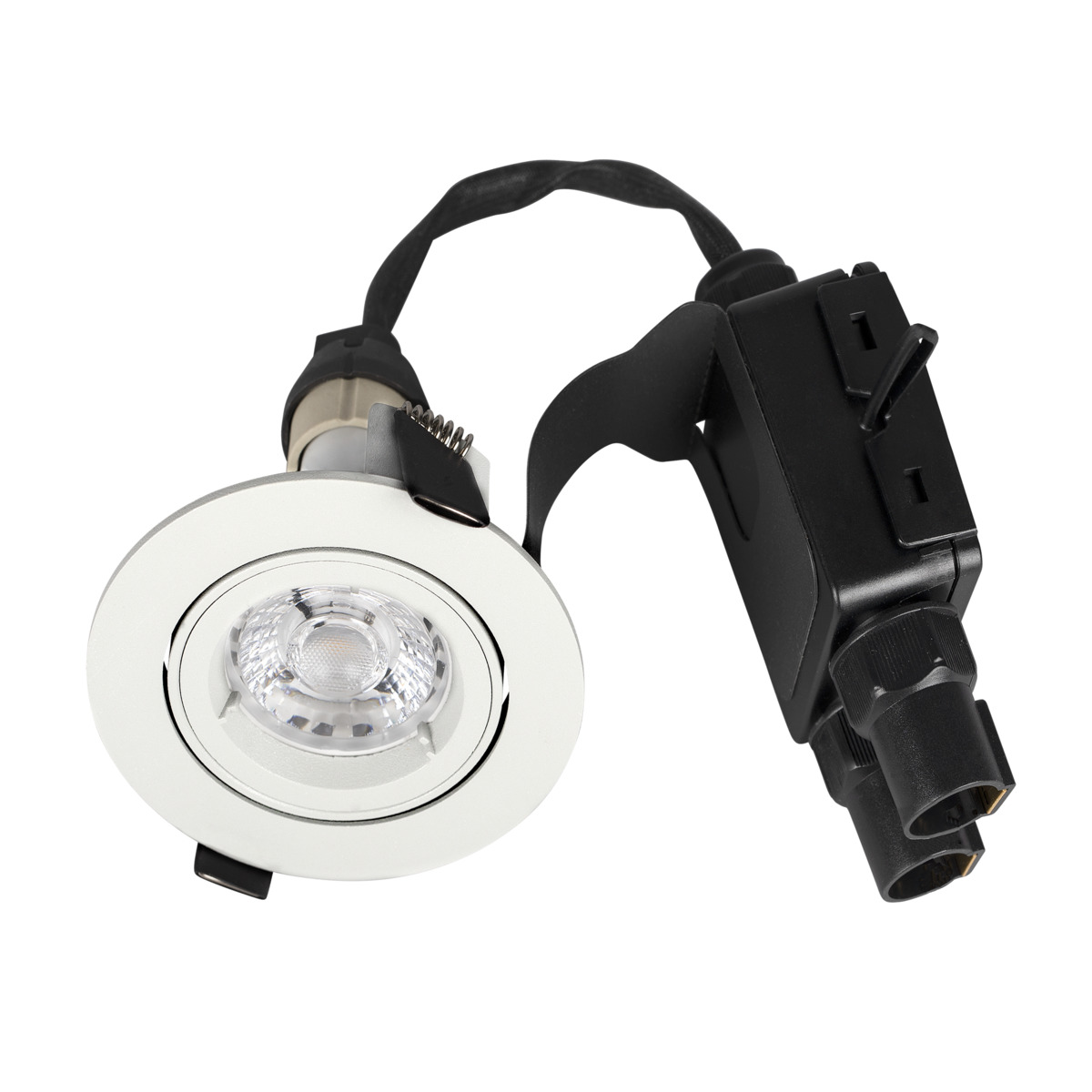

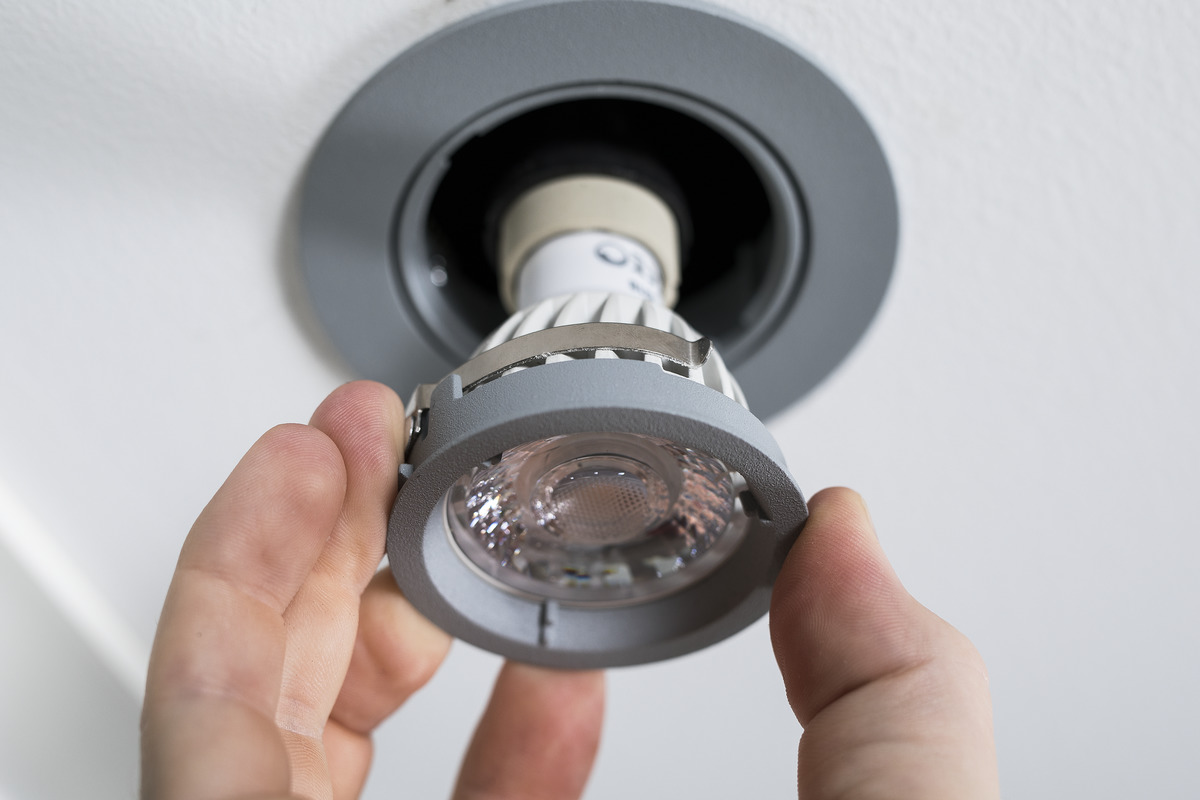

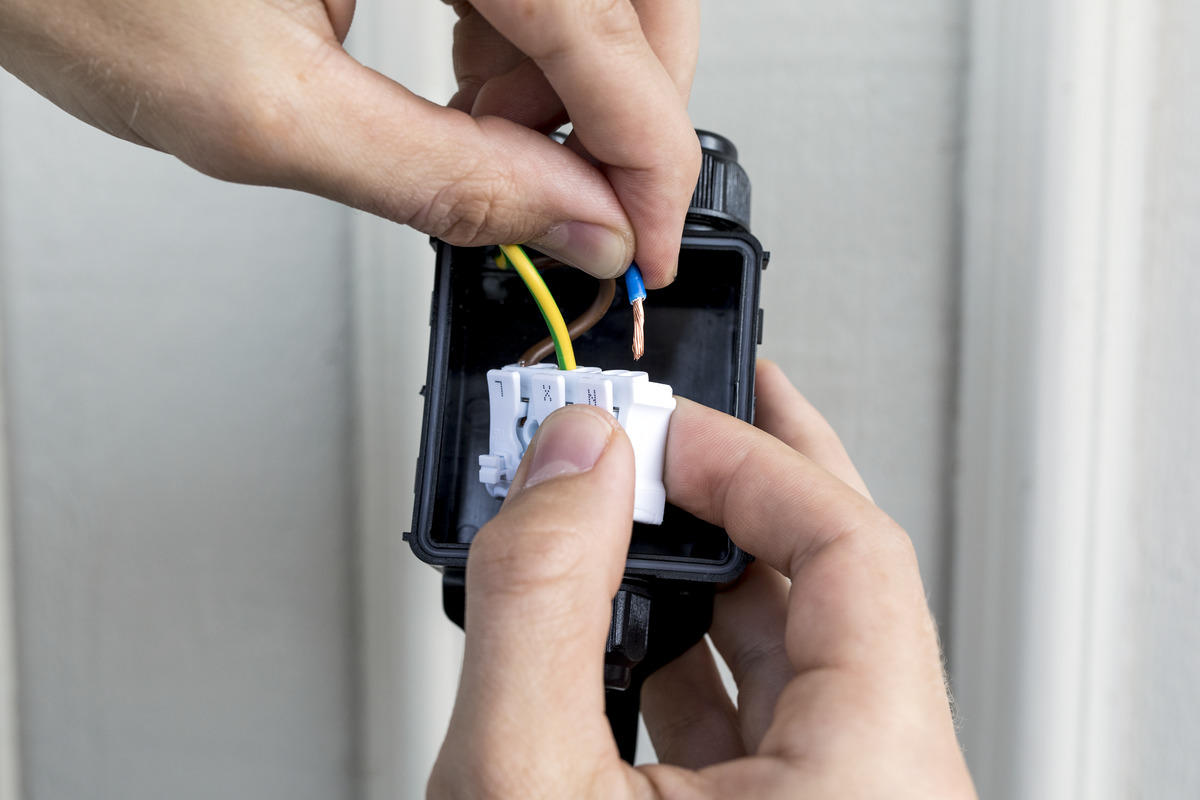

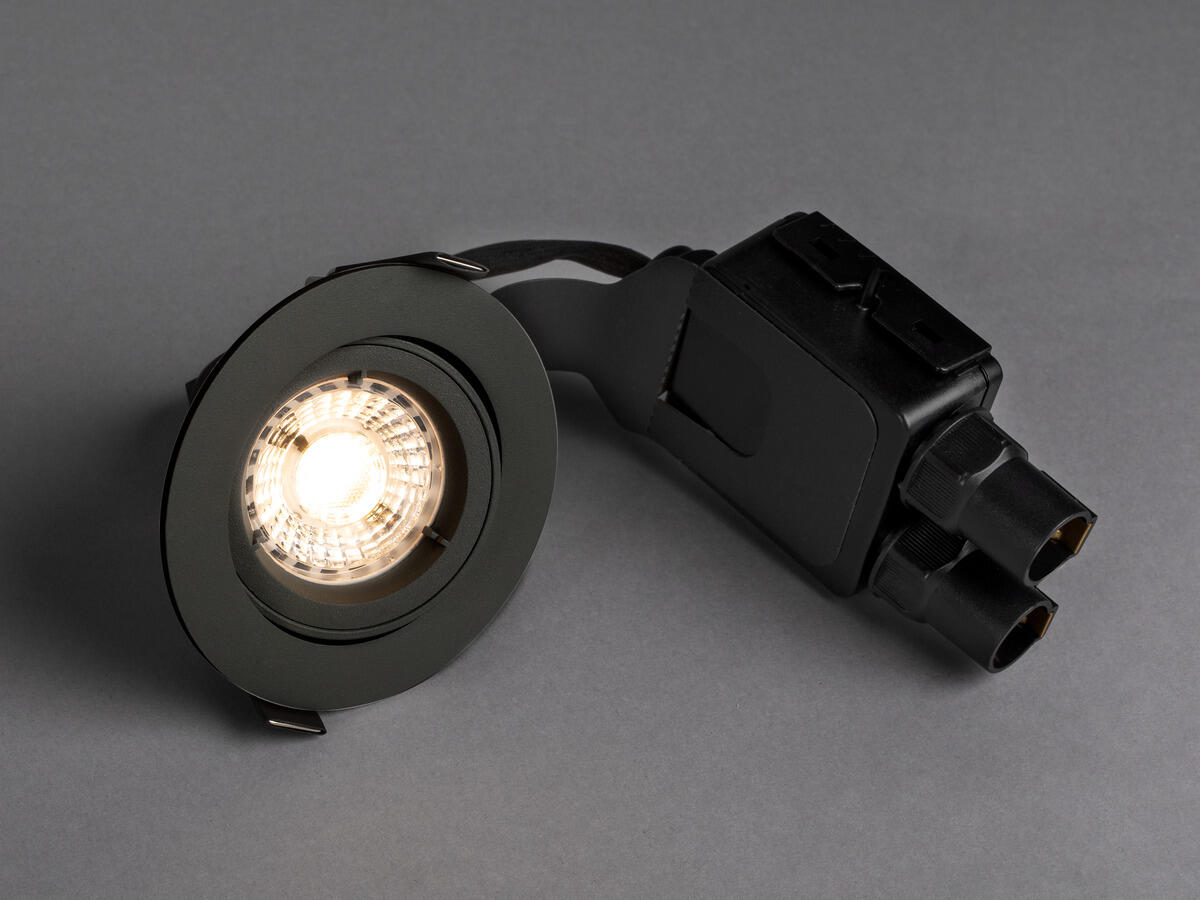

Low built and adjustable outdoor luminaire in the Comfort series with a pre-installed dimmable GU10-socket. Very easy to install thanks to our easy to use connection box with 3-pole push in terminal for through wiring and tool free installation. Comes with 2 inlets for 16mm hose, where the hose is clicked in. Can easily be switched to cable gland when needed. Easy to change light source thanks to removable front ring. Dimmable with the most commonly available dimmers on the market.

Variants

GTIN Item Name Color
Comfort Quick Outdoor GU10 White 3000K 7392971135380 Comfort Quick Outdoor GU10 White 3000K White
Comfort Quick Outdoor GU10 Grey 3000K 7392971135397 Comfort Quick Outdoor GU10 Grey 3000K Grey
Comfort Quick Outdoor GU10 Anthracite 3000K 7392971135403 Comfort Quick Outdoor GU10 Anthracite 3000K Antracit

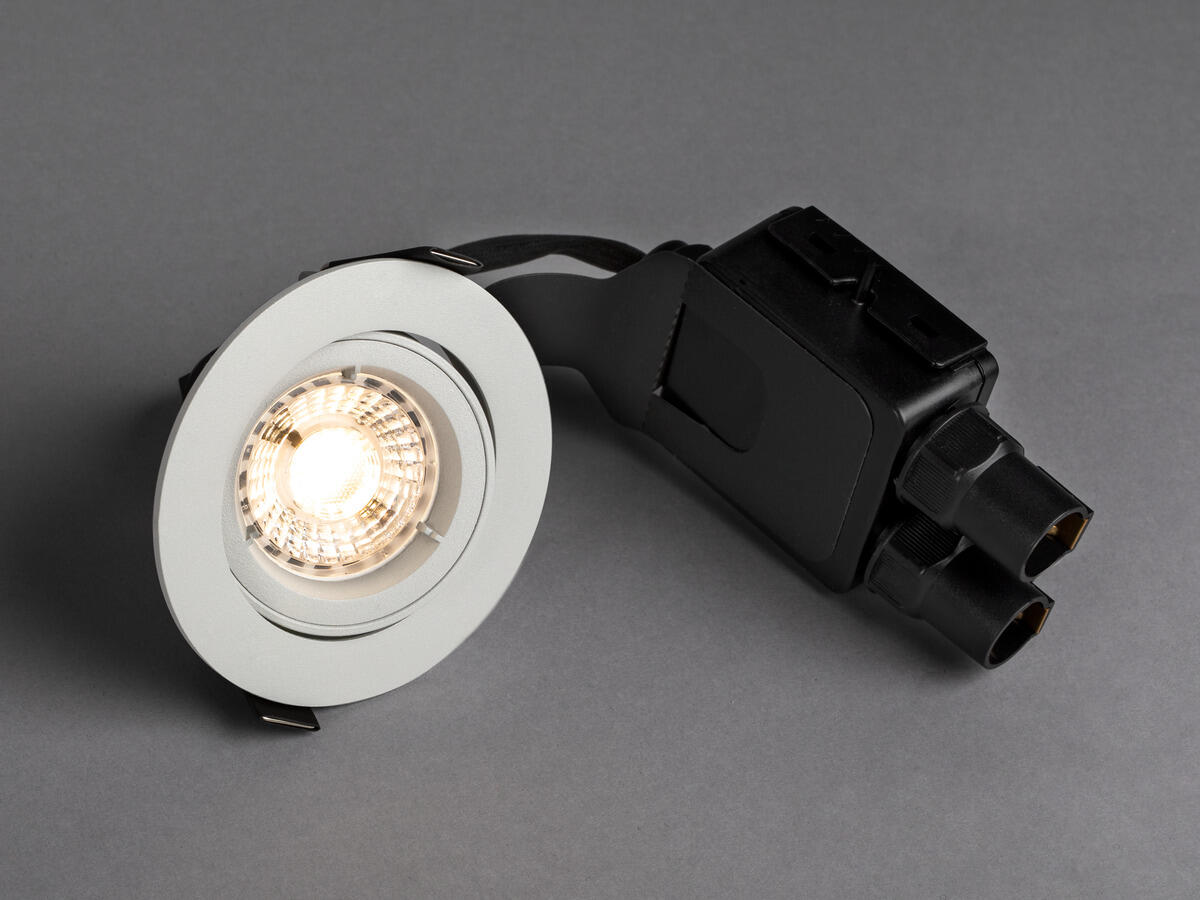

Comfort Quick Outdoor GU10 White 3000K

Description
GTIN 7392971135380
Item Name Comfort Quick Outdoor GU10 White 3000K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes

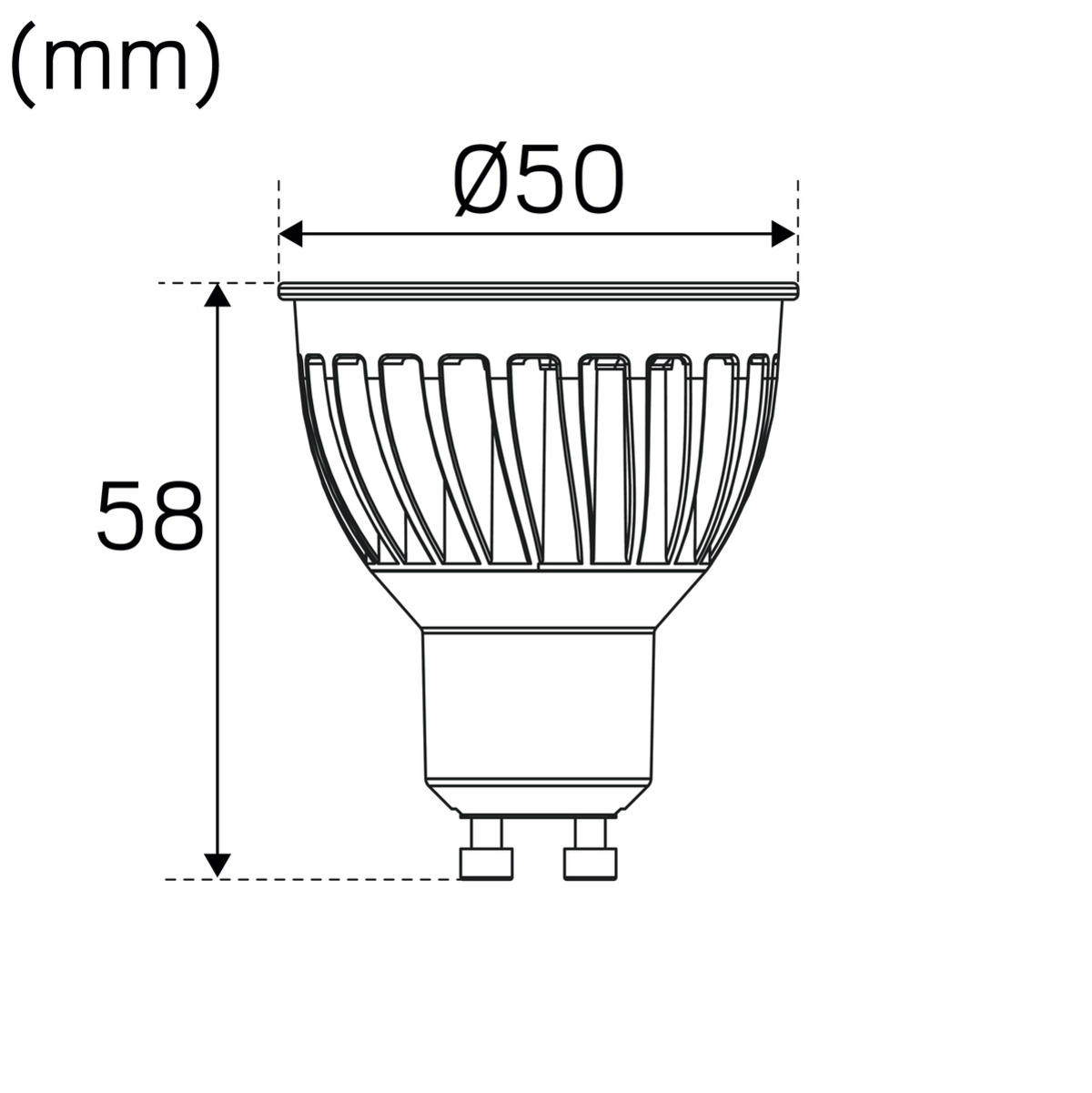

Lamp Holder (type) GU10
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Initial Chromaticity x=0.4360 y=0.4007
Luminous Intensity (cd) 815
Luminaire Lumen (lm) 470
Beam Angle (°) 36
Rated Beam Angle (°) 40
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 50 000h Ta 25°C
Nominel Life Time (h) 50000
Technical data
Adjustable Yes
Tiltable (°) 30
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 4,8
Power Luminaire (W) 5,8
System Power (W) 5,8
Efficiency Luminaire (lm/W) 81
Efficiency System (lm/W) 81
Operation and Connection
Driver Included No
Connection (type) Quick Connection
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge
Fuse B10 (pcs) 68
Fuse B16 (pcs) 110
Fuse C10 (pcs) 114
Fuse C16 (pcs) 184
Color and material
Material Aluminium
Color White
Environmental Assessment SundaHus
Measurement and installation
Operating Environment Indoor / damp locations, Outdoor
IP Degree of Protection 23
Protection Class II
Installation Built-in
Mounting Installation Tension Spring
Ceiling Thickness Interval (mm) 2-26
Fire Safety Marks Not in insulation without protection cover
Protection Cover 7466700, 7466701
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650

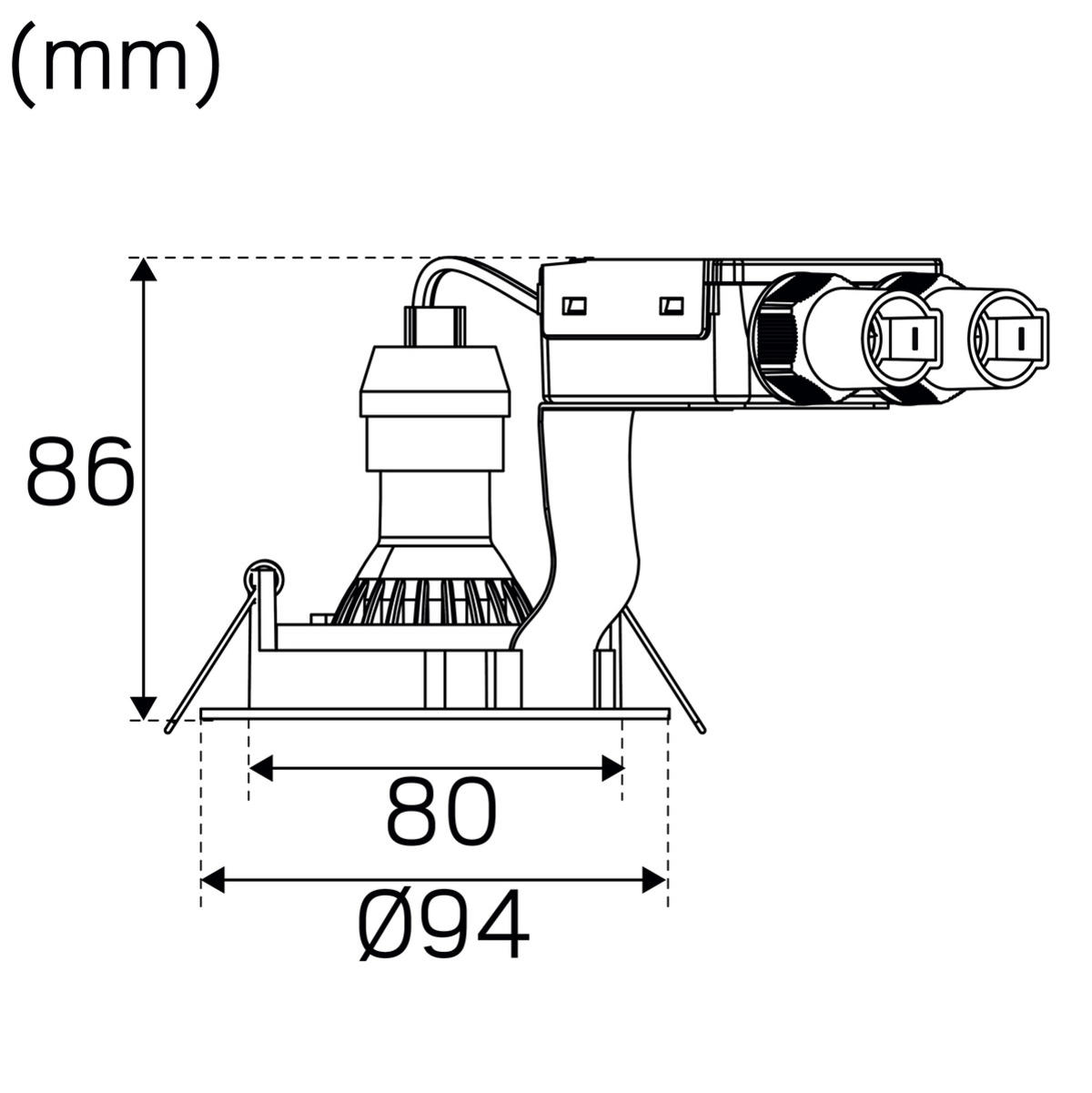

Height (mm) 86
Diameter (mm) 95
Weight (kg) 0,3
Min. Built-in (mm) 200x200x120
Height Exterior Part (mm) 3
Built-in Ø (mm) 83-88
