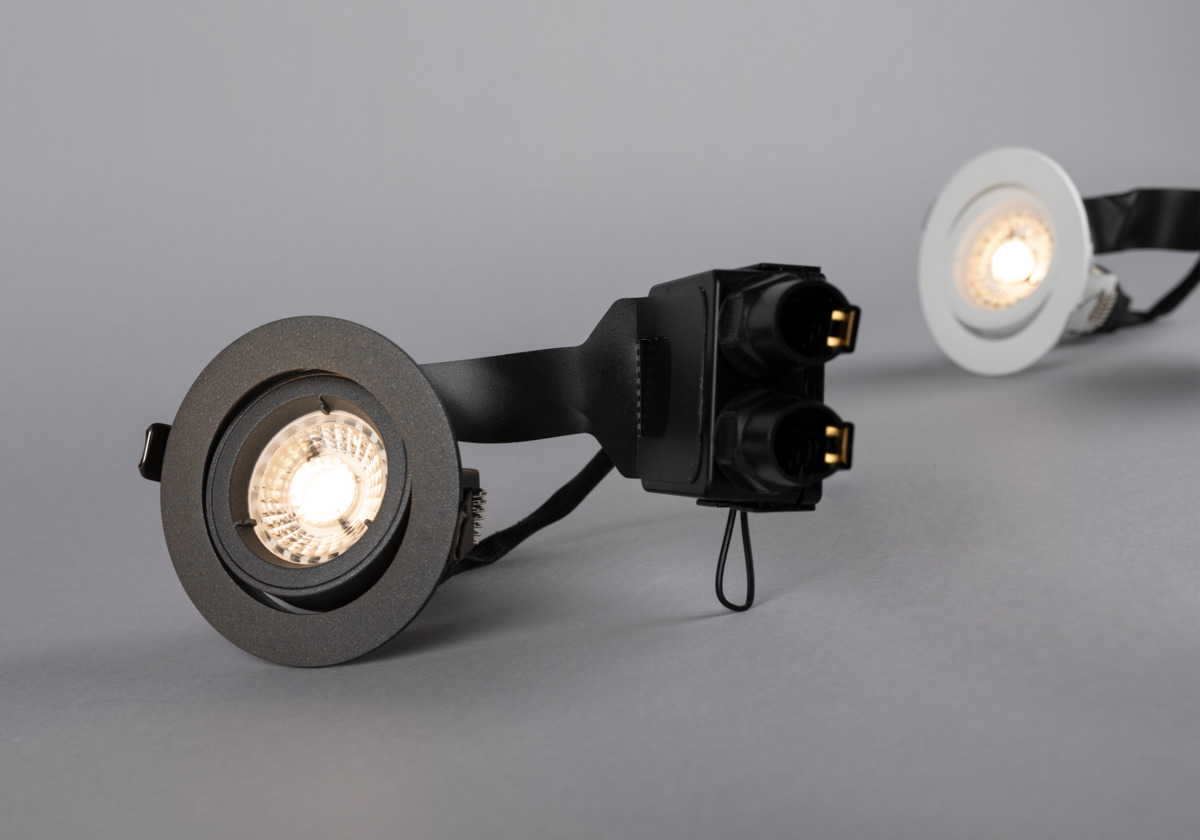

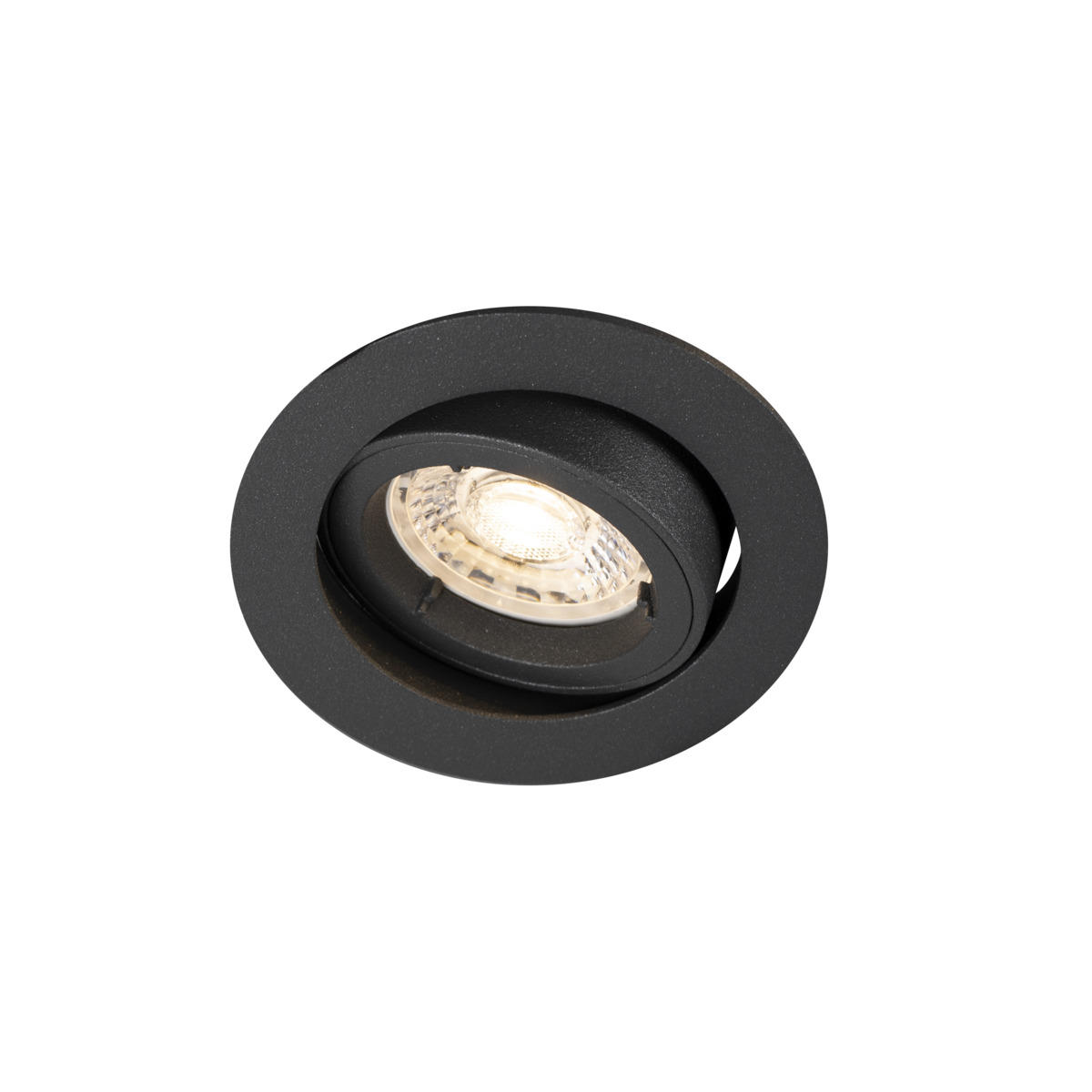

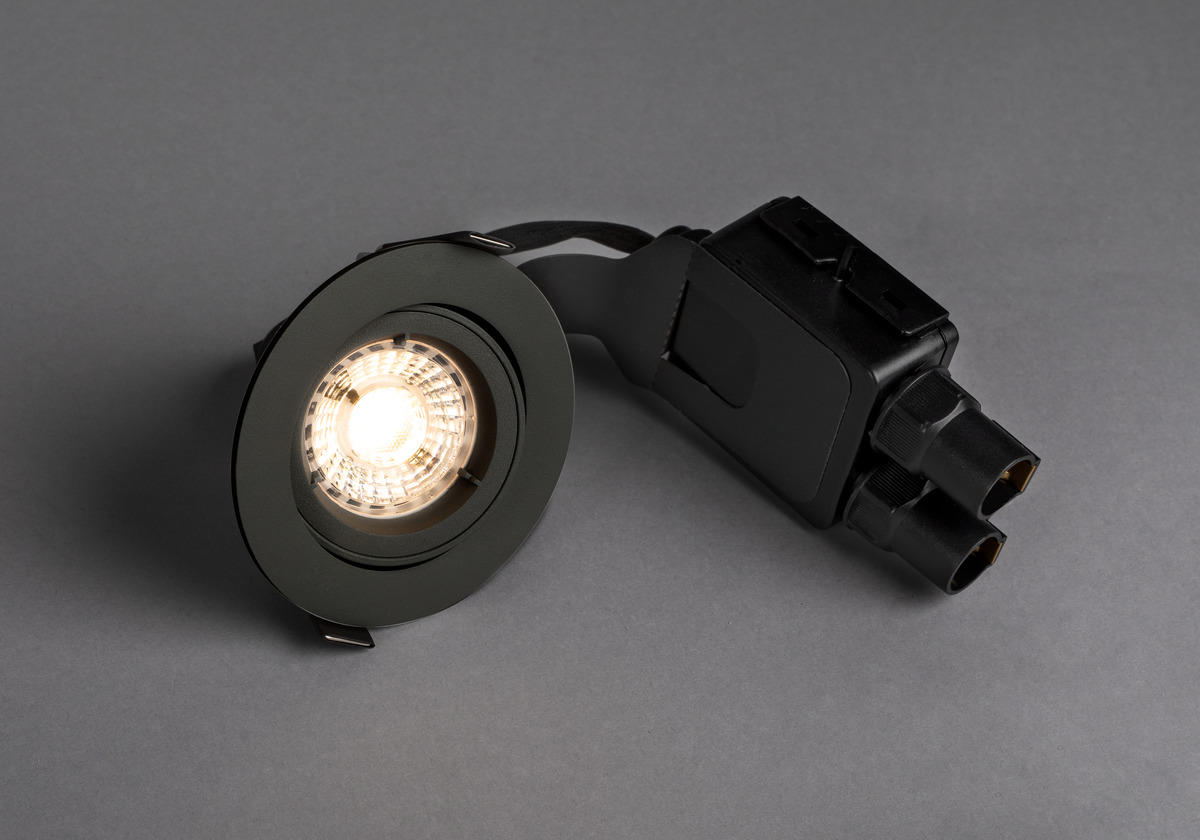

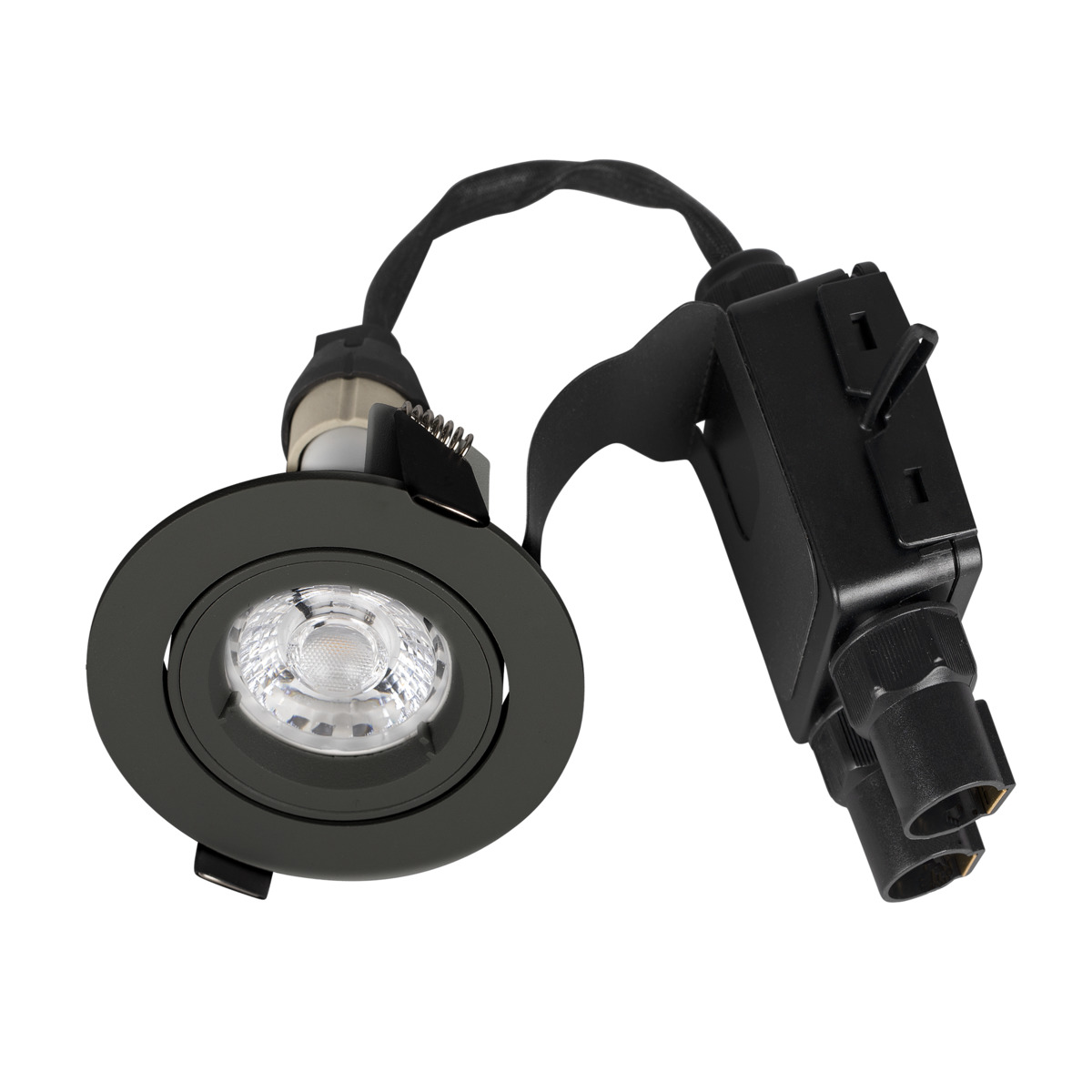

Comfort Quick Outdoor GU10

Variants

GTIN Item Name Color
Comfort Quick Outdoor GU10 Anthracite 3000K 7392971135403 Comfort Quick Outdoor GU10 Anthracite 3000K Antracit
Comfort Quick Outdoor GU10 Grey 3000K 7392971135397 Comfort Quick Outdoor GU10 Grey 3000K Grey
Comfort Quick Outdoor GU10 White 3000K 7392971135380 Comfort Quick Outdoor GU10 White 3000K White

Comfort Quick Outdoor GU10 Anthracite 3000K A++

Description
GTIN 7392971135403
Item Name Comfort Quick Outdoor GU10 Anthracite 3000K
Warranty 5 years
Lighting Data
Light Source LED

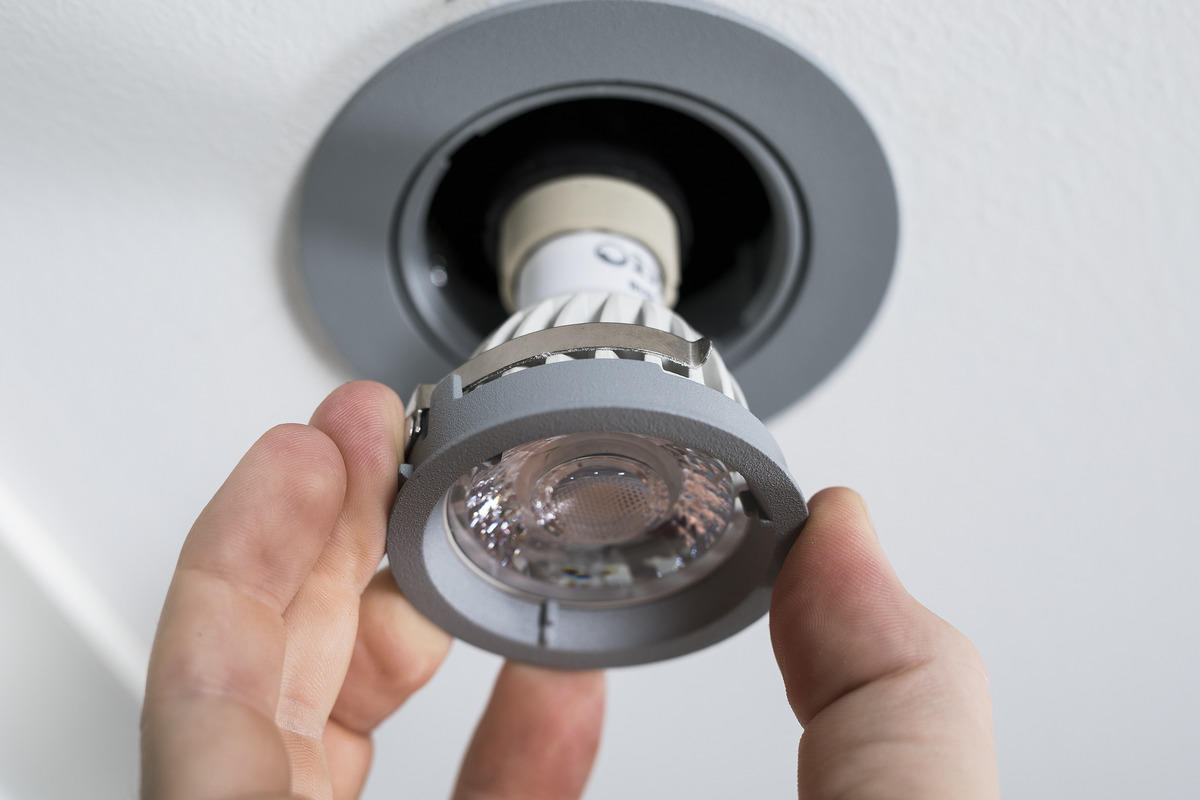

Light Source Included (type) LED exchangeable

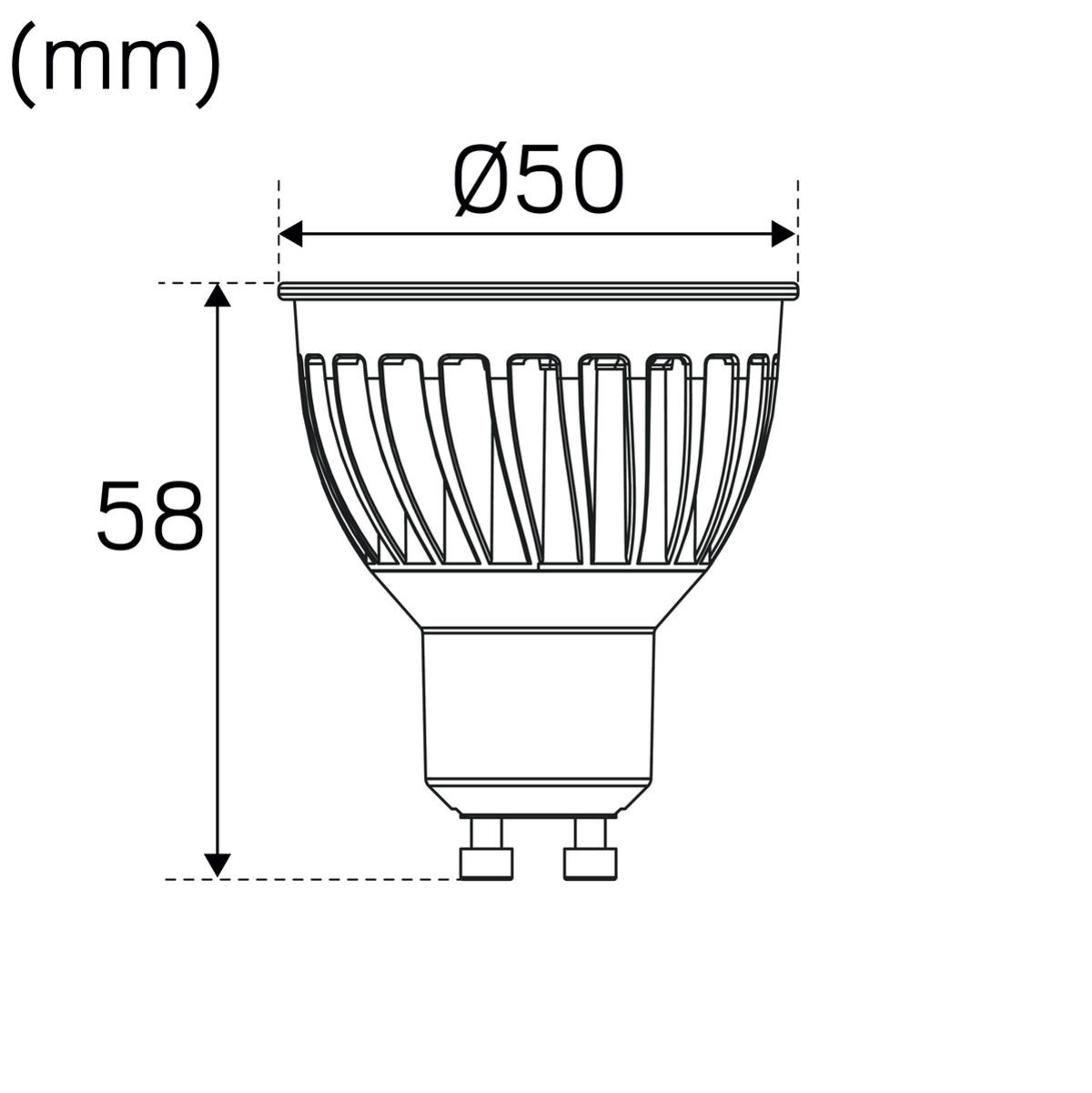

Lamp Holder (type) GU10
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 815
Luminaire Lumen (lm) 470
Beam Angle (°) 36
Rated Beam Angle (°) 40
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Technical data
Adjustable Yes
Tiltable (°) 30
Life Time L70 50 000h Ta 25°C
Nominel Life Time (h) 50000
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 4,8
Efficiency Luminaire (lm/W) 81
Efficiency System (lm/W) 81
Energy Efficiency Class A++
Operation and Connection

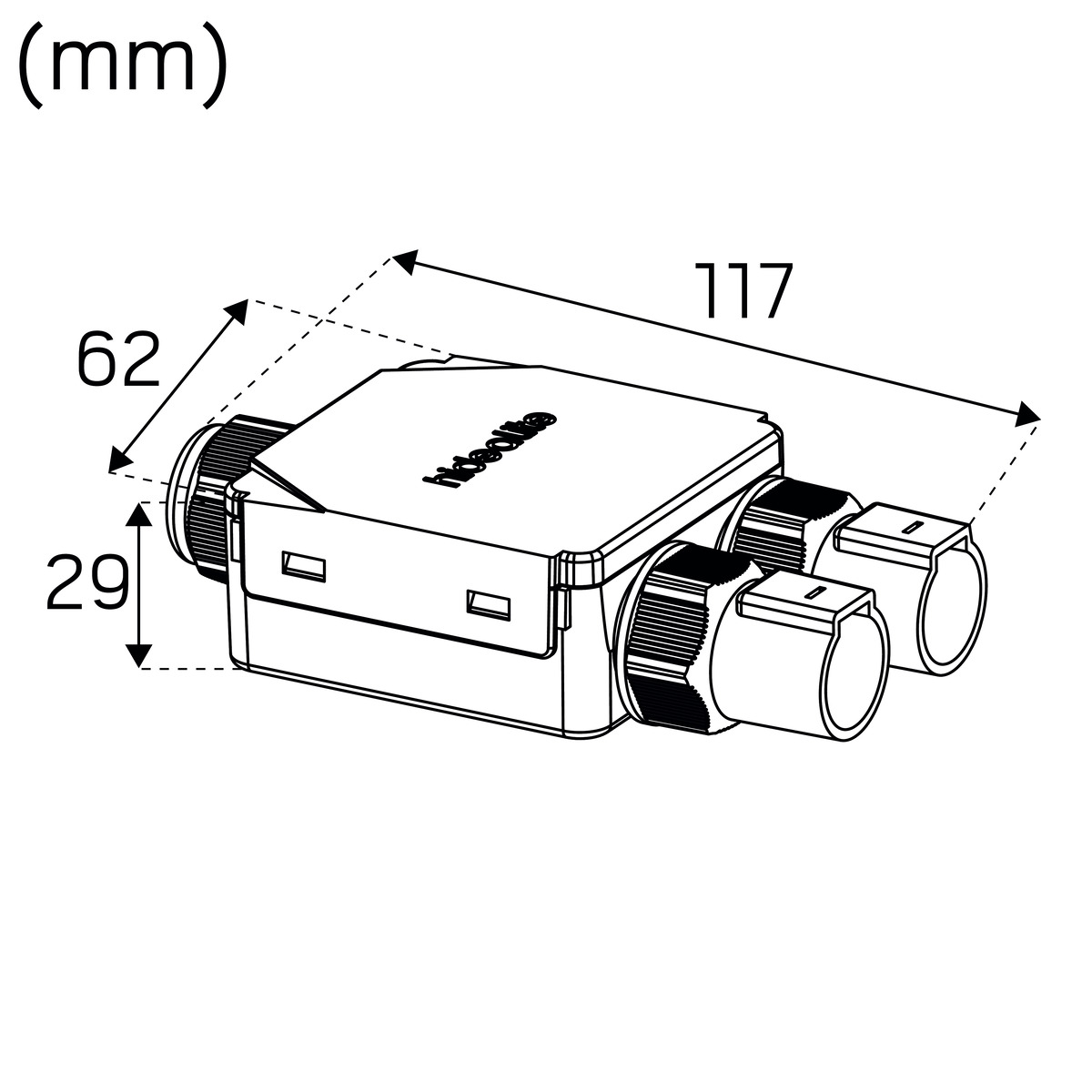

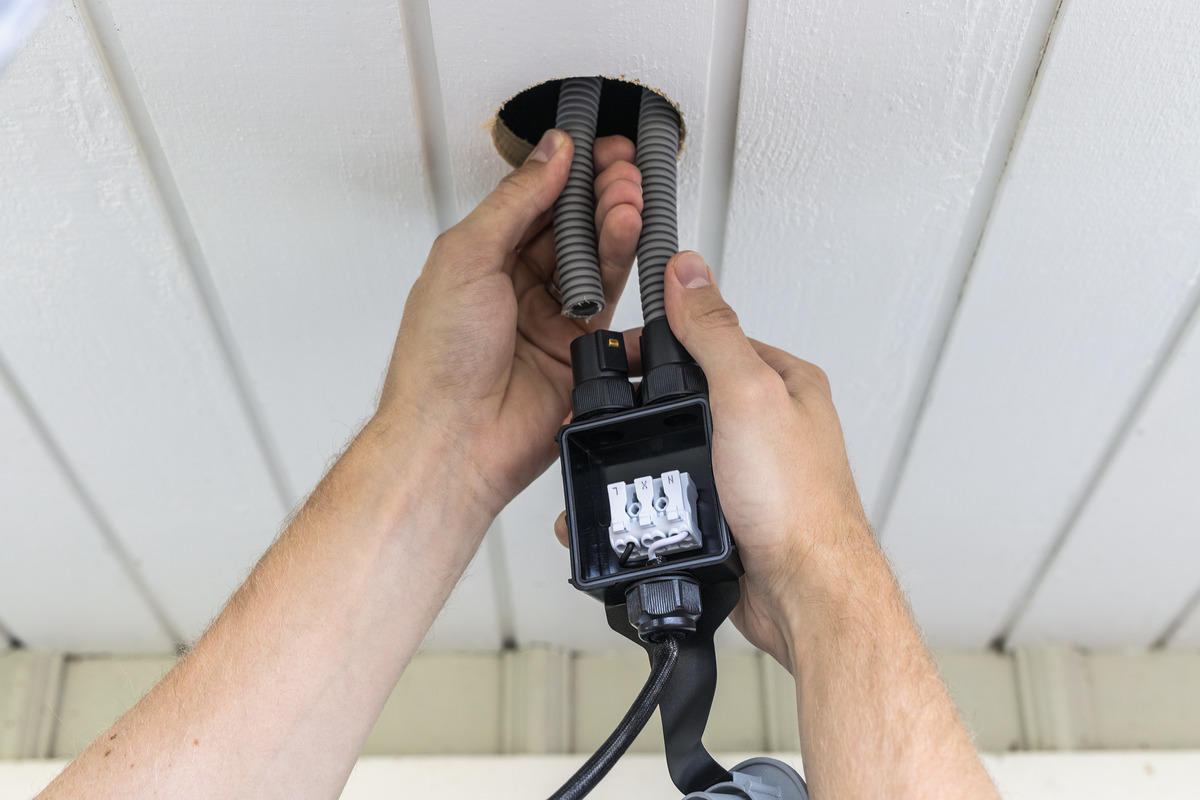

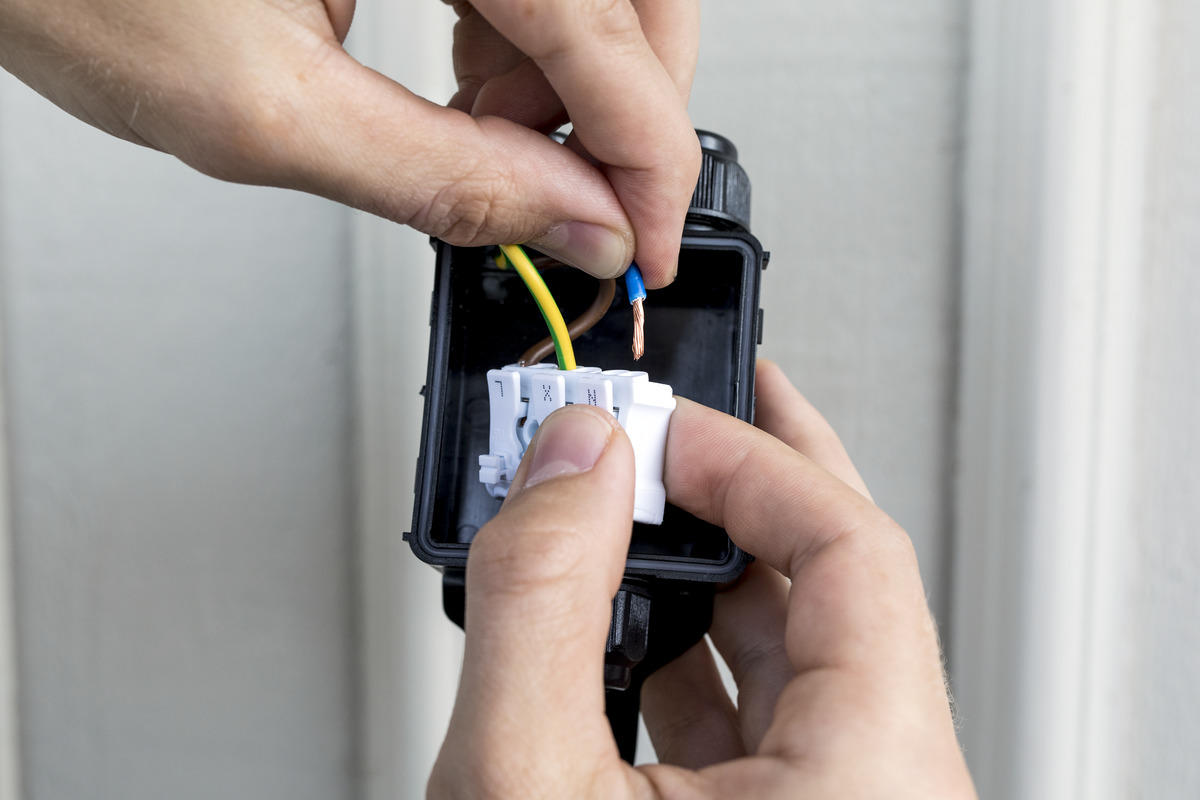

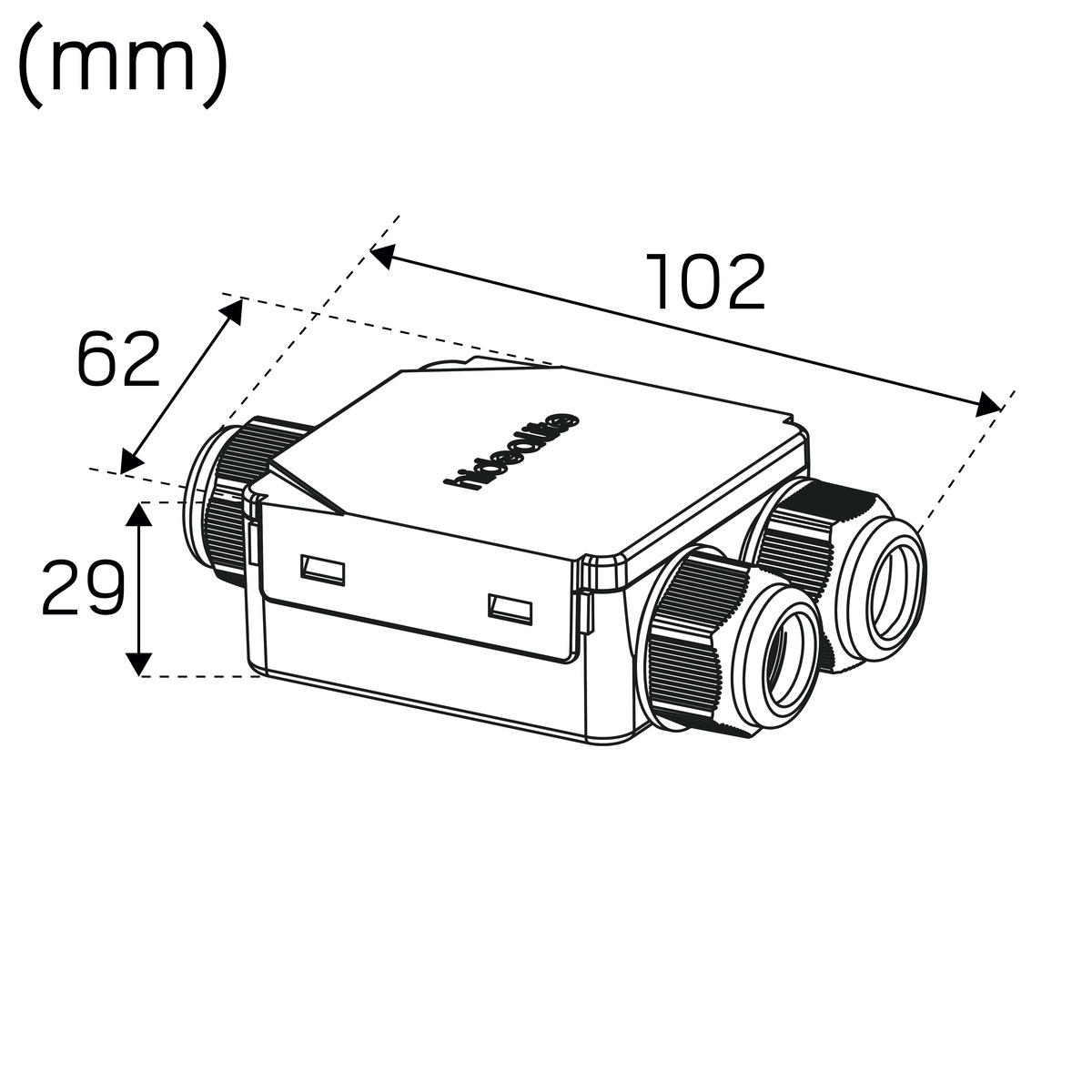

Connection (type) Quick Connection
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge
Fuse B10 (pcs) 68
Fuse B16 (pcs) 110
Fuse C10 (pcs) 114
Fuse C16 (pcs) 184
Color and material
Material Aluminium
Color Antracit
Color Code (RAL) 7016
Measurement and installation

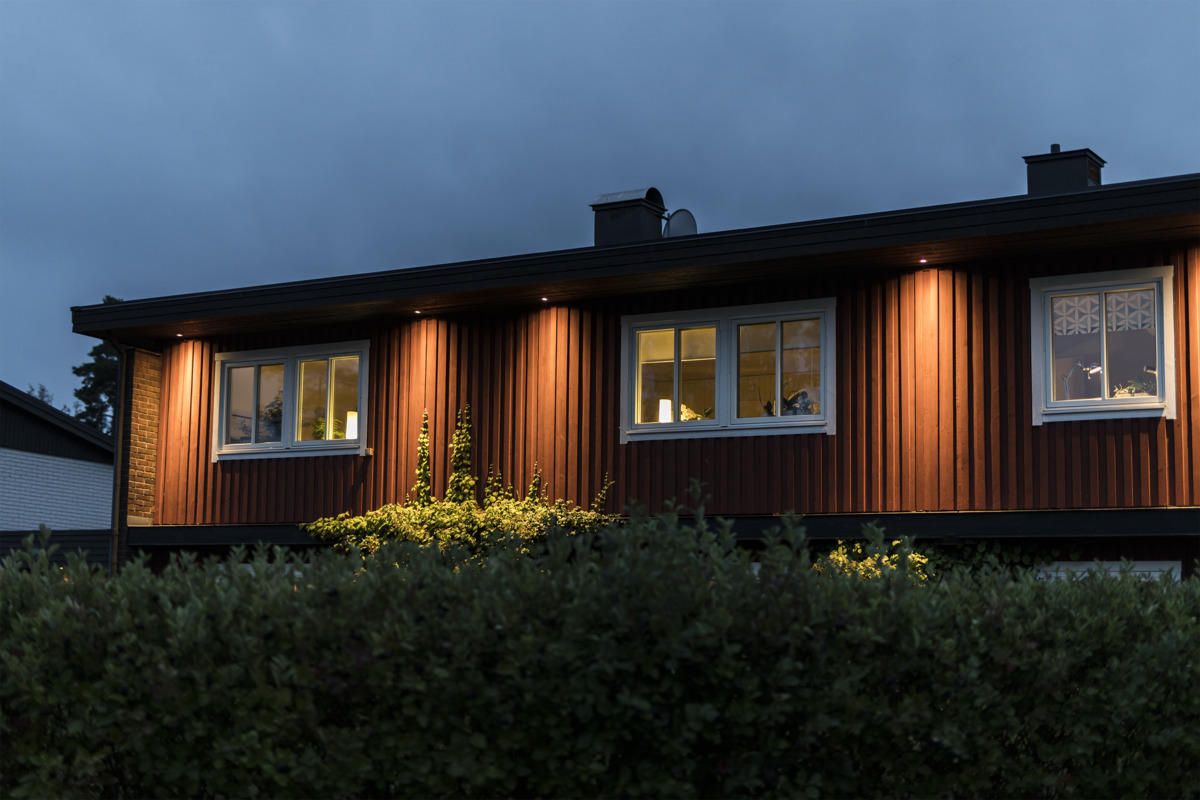

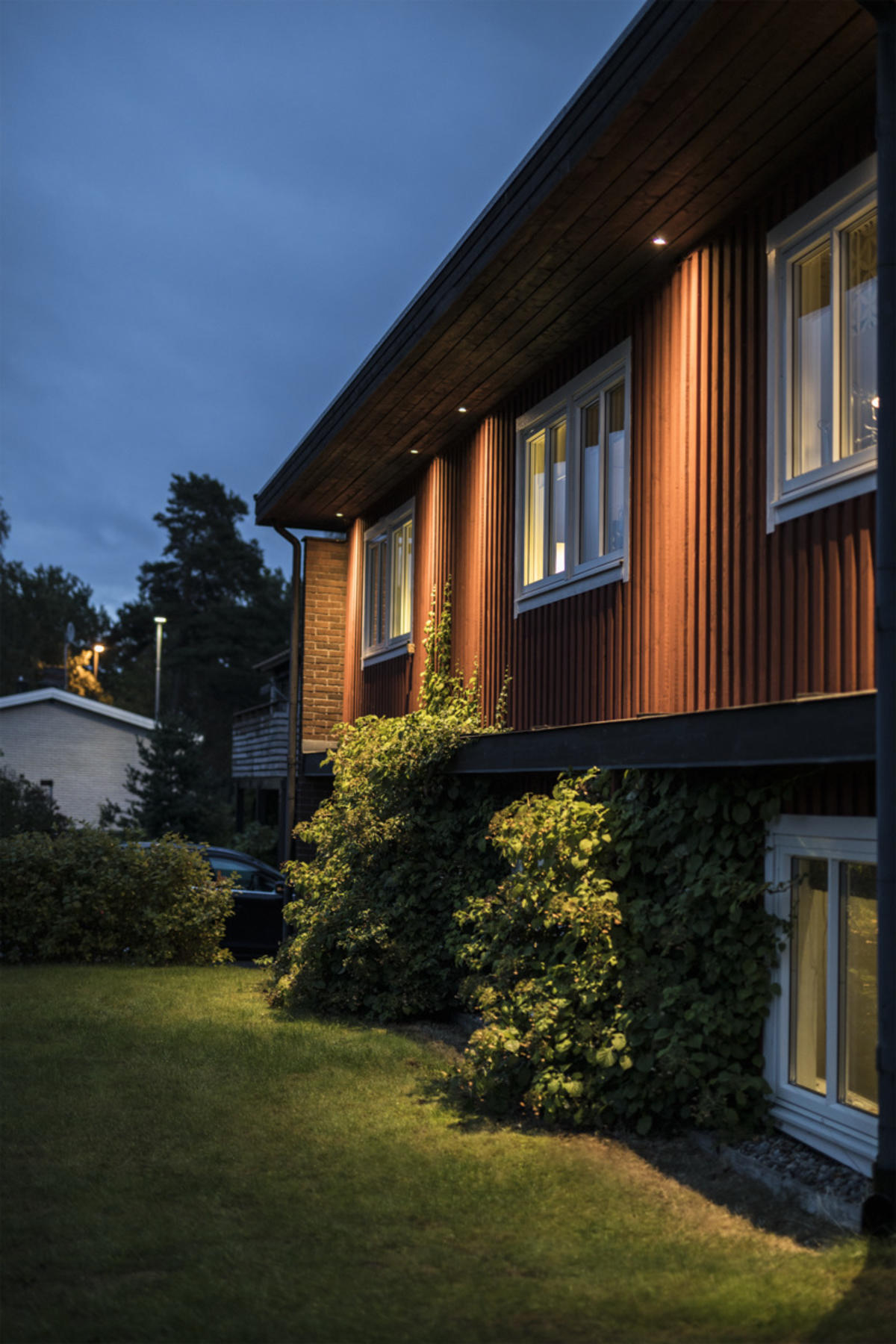

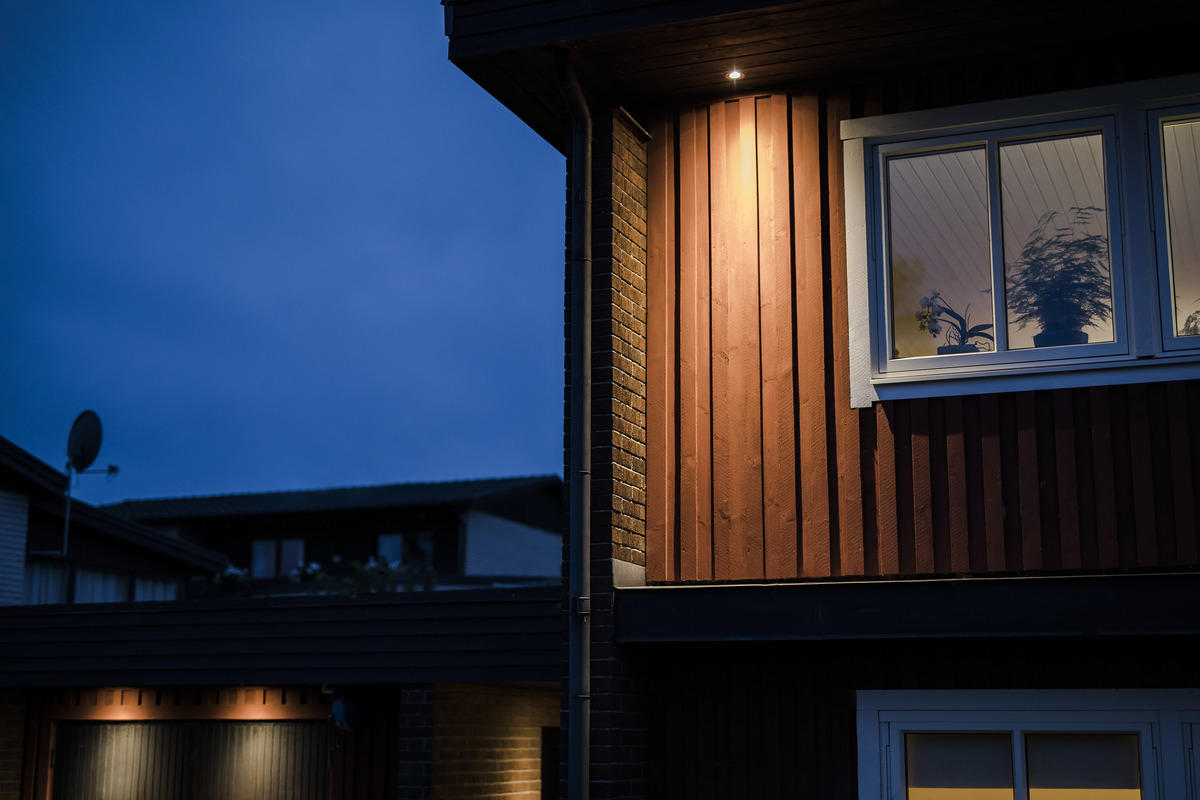

Operation Environment Indoor, Outdoor
IP Degree of Protection 23
Installation Built-in
Mounting Installation Tension Spring
Ceiling Thickness Interval (mm) 2-26
Fire Safety Marks Not in insulation without protection cover
Protection Cover 7466700, 7466701
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650
Protection Class II

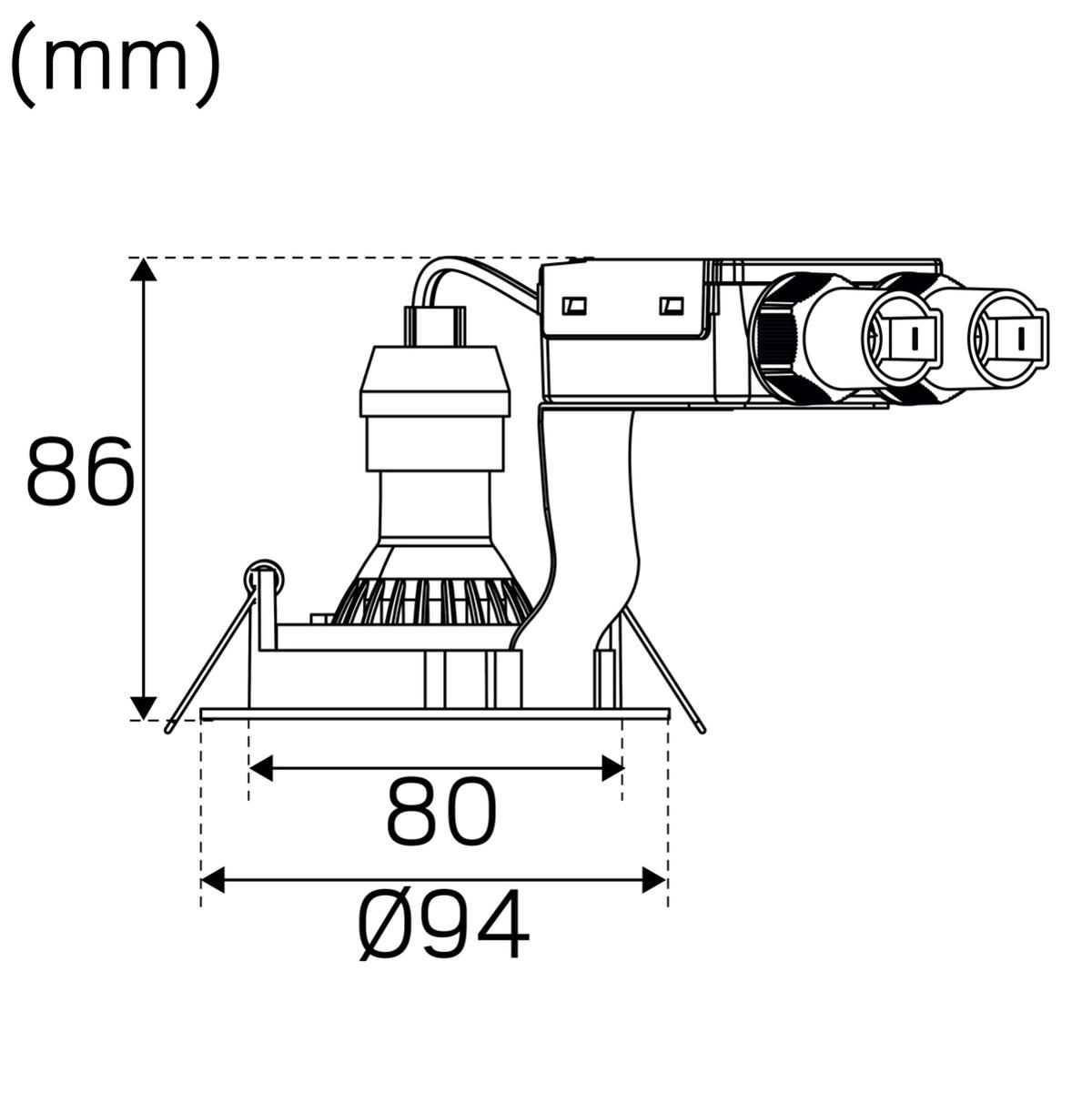

Height (mm) 86
Diameter (mm) 95
Weight (kg) 0,3
Min. Built-in (mm) 200x200x120
Height Exterior Part (mm) 3
Min. Built-in (Ø mm) 83
Max. Built-in (Ø mm) 88
