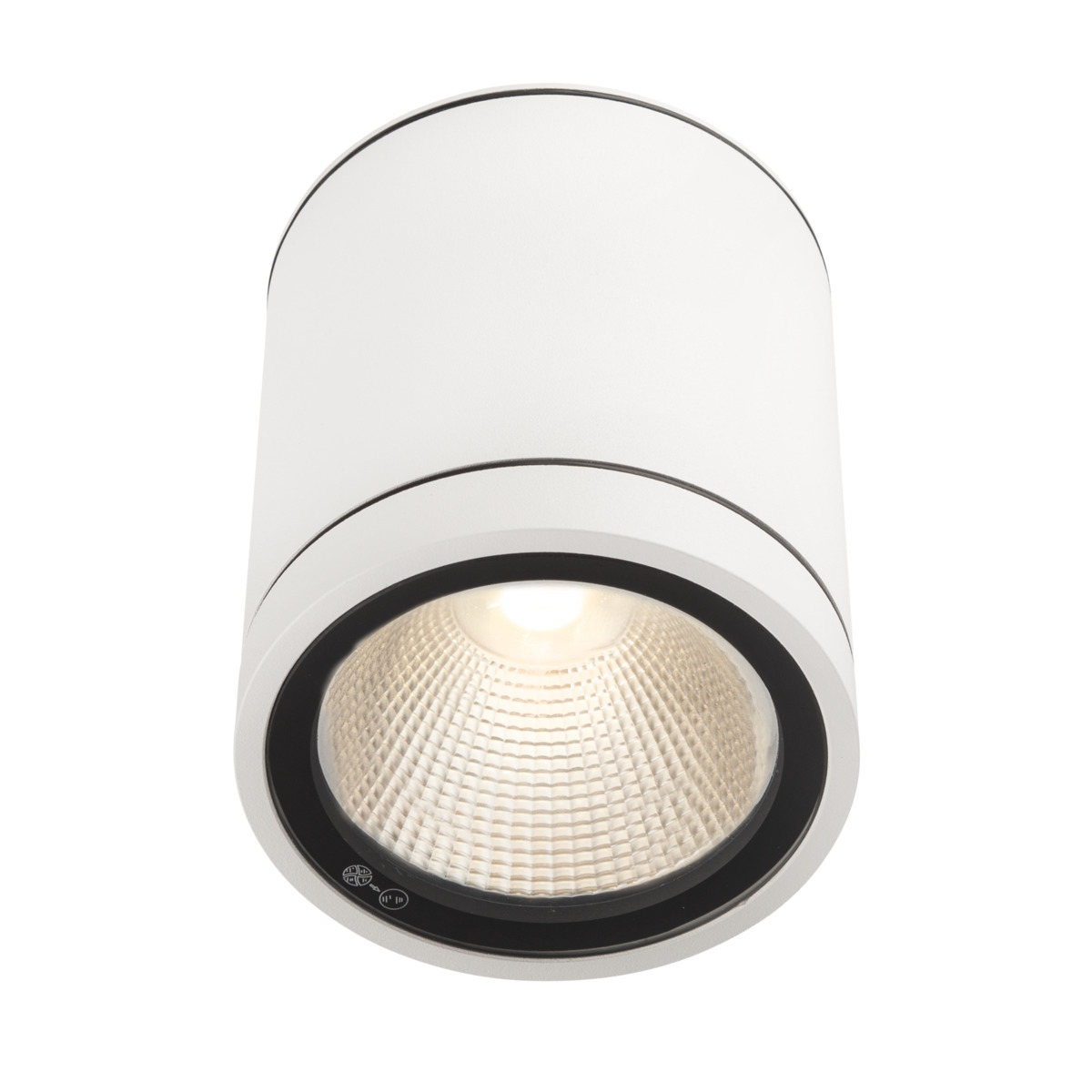

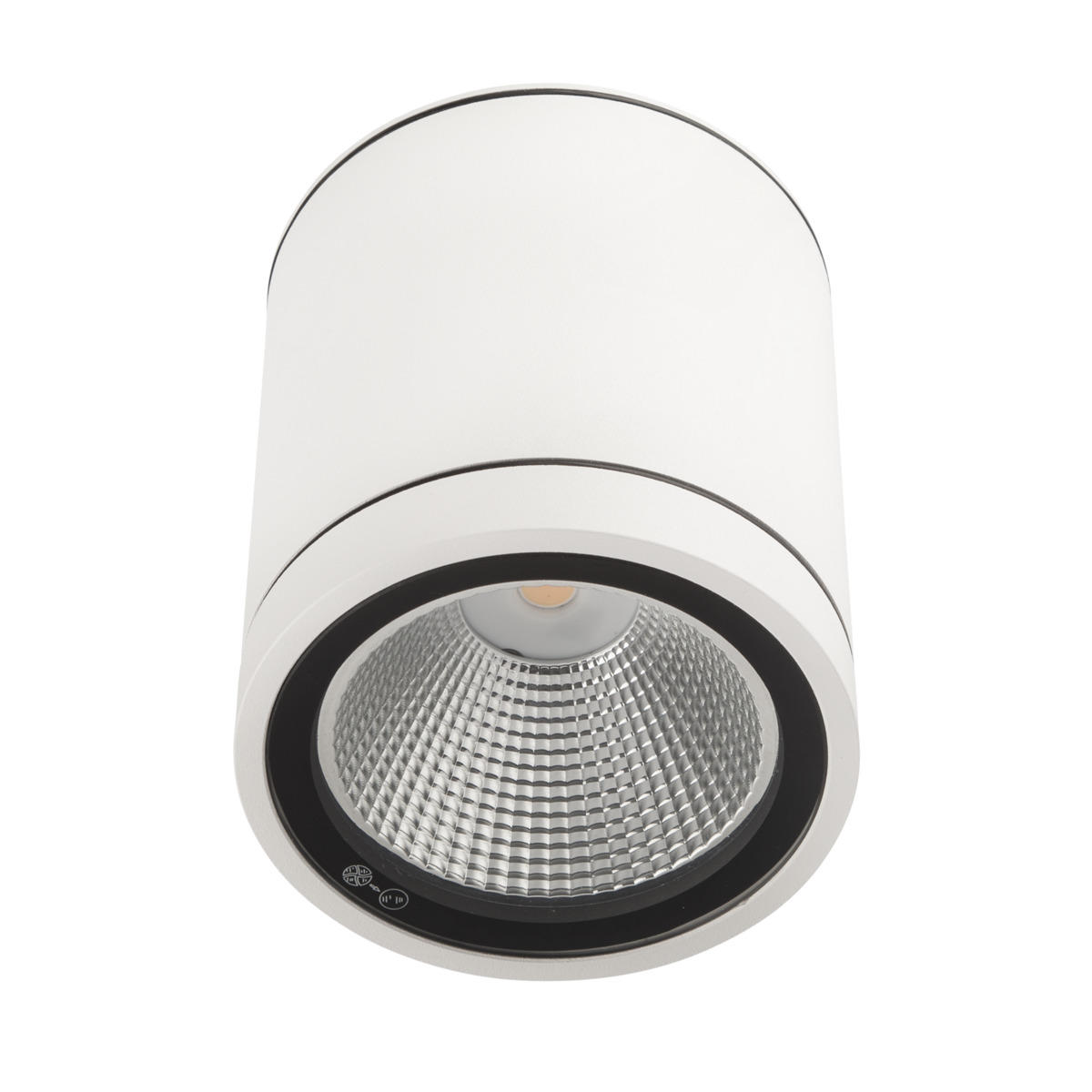

Milo XL Down

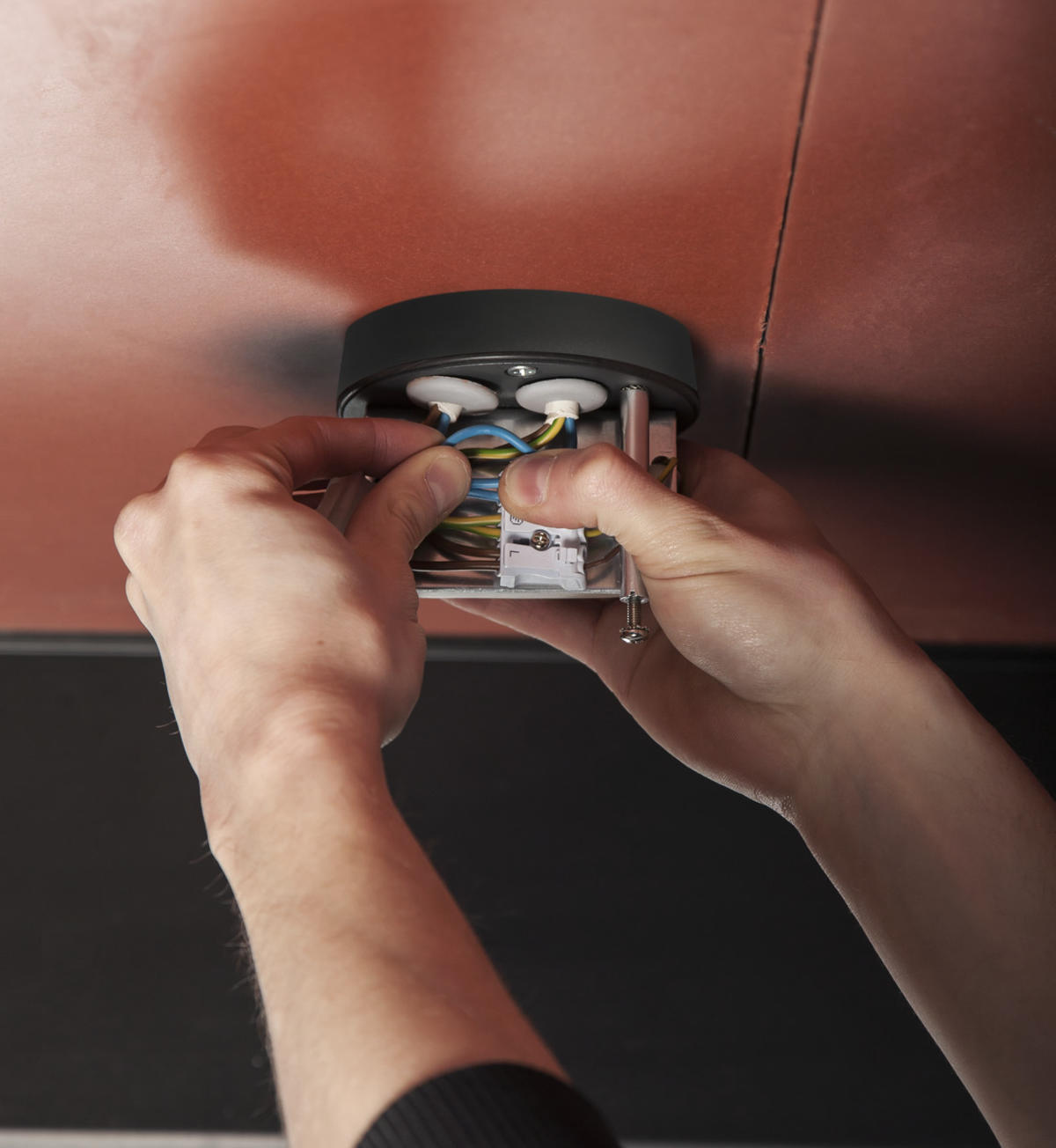

Ceiling light in timeless design for installation flat against the ceiling. Good glare free reflector technology with high lumen output. IP55 rating, anodised and powder coated for tough environments. Simple installation thanks to separate rear element with dual cable bushings and push-in terminal block for through wiring. Spacers and cover ring for surface mounted cable included, facilitates installation on uneven ceilings and simplifies row installation. Built-in mains dimmable driver.

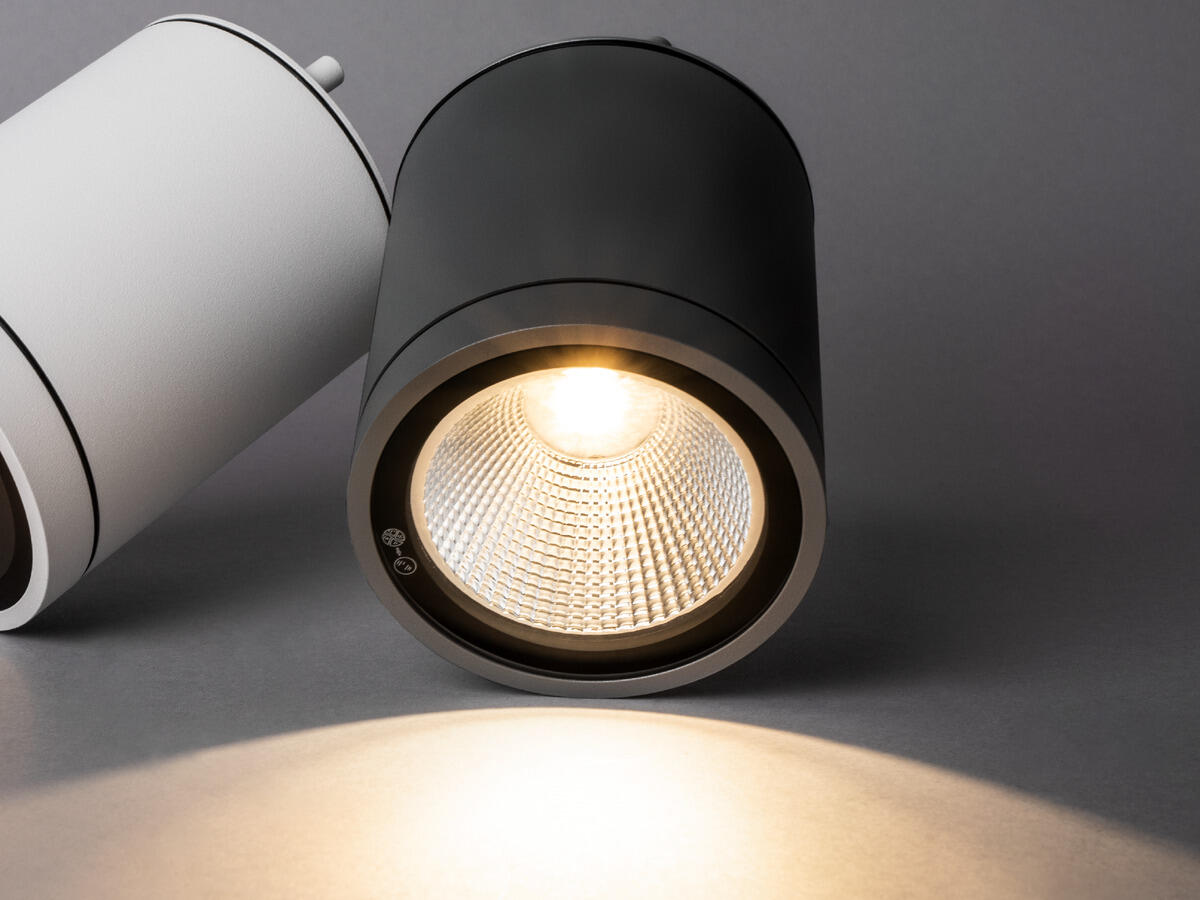

Variants	GTIN	Item Name	Color
	7392971130071	Milo XL Down White 3000K	White

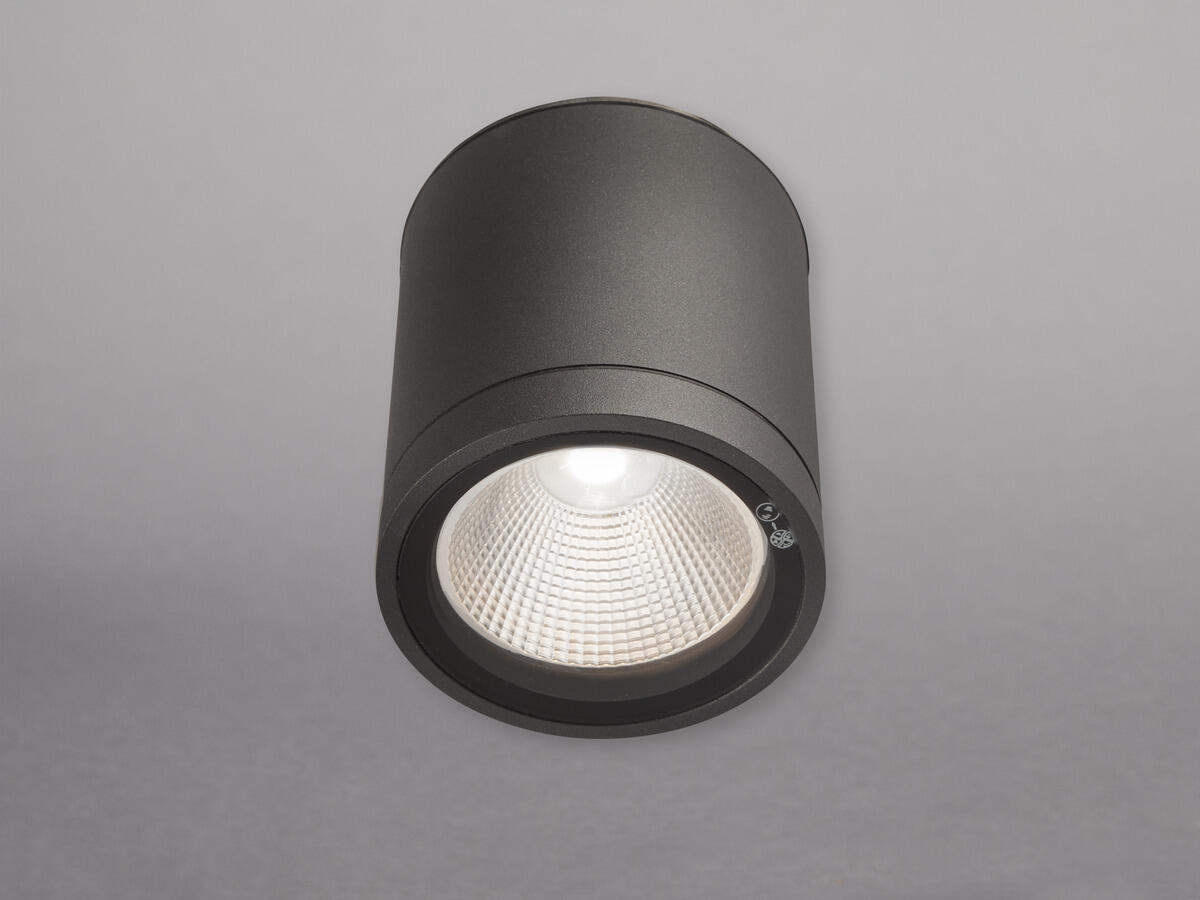

	7392971130095	Milo XL Down Anthracite 3000K	Antracit

Description: GTIN 7392971130071

Item Name Milo XL Down White 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1200

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1400

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 75 000h Ta 25°C

Nominel Life Time (h) 75000

Lumen maintenance 50 000h L80

Lumen maintenance 75 000h L70

LLMF @ 50 000h 0,8

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,05

Stroboscopic effect (SVM) 0,02
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 13

Power Luminaire (W) 16

System Power (W) 16

Efficiency Luminaire (lm/W) 75

Efficiency System (lm/W) 75

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes - replaceable

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 3x0,75-2,5

Through Wiring Yes

Strain Relief Yes

Operating Temperature -20…+40

Max. Tc (°C) 85

Memory Function Power Failure No

Fuse B10 (pcs) 140

Fuse B16 (pcs) 224

Fuse C10 (pcs) 280

Fuse C16 (pcs) 448
Color and material: Material Aluminium

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 55

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK06

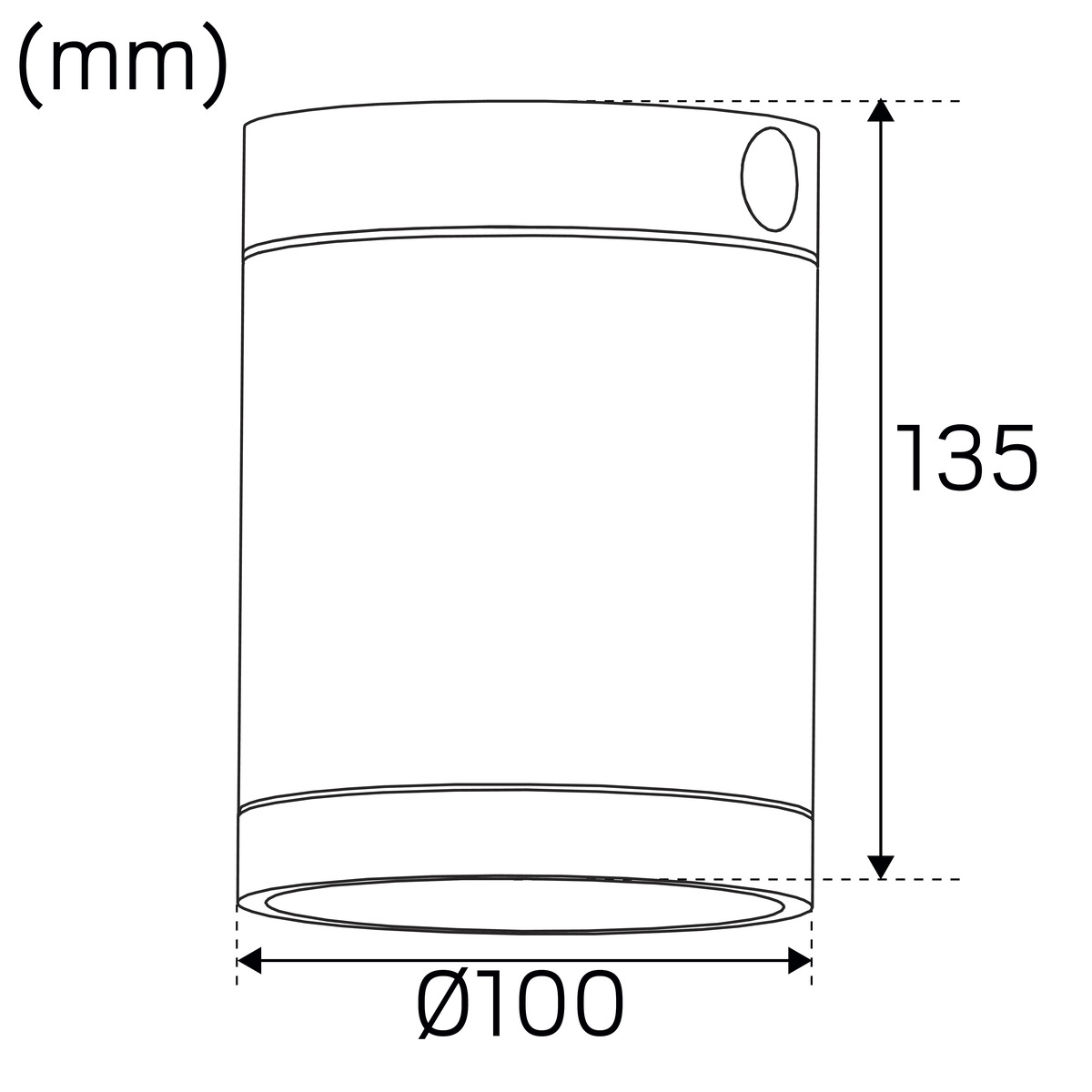

Height (mm) 139

Diameter (mm) 100

Weight (kg) 0,74
