Scout G2

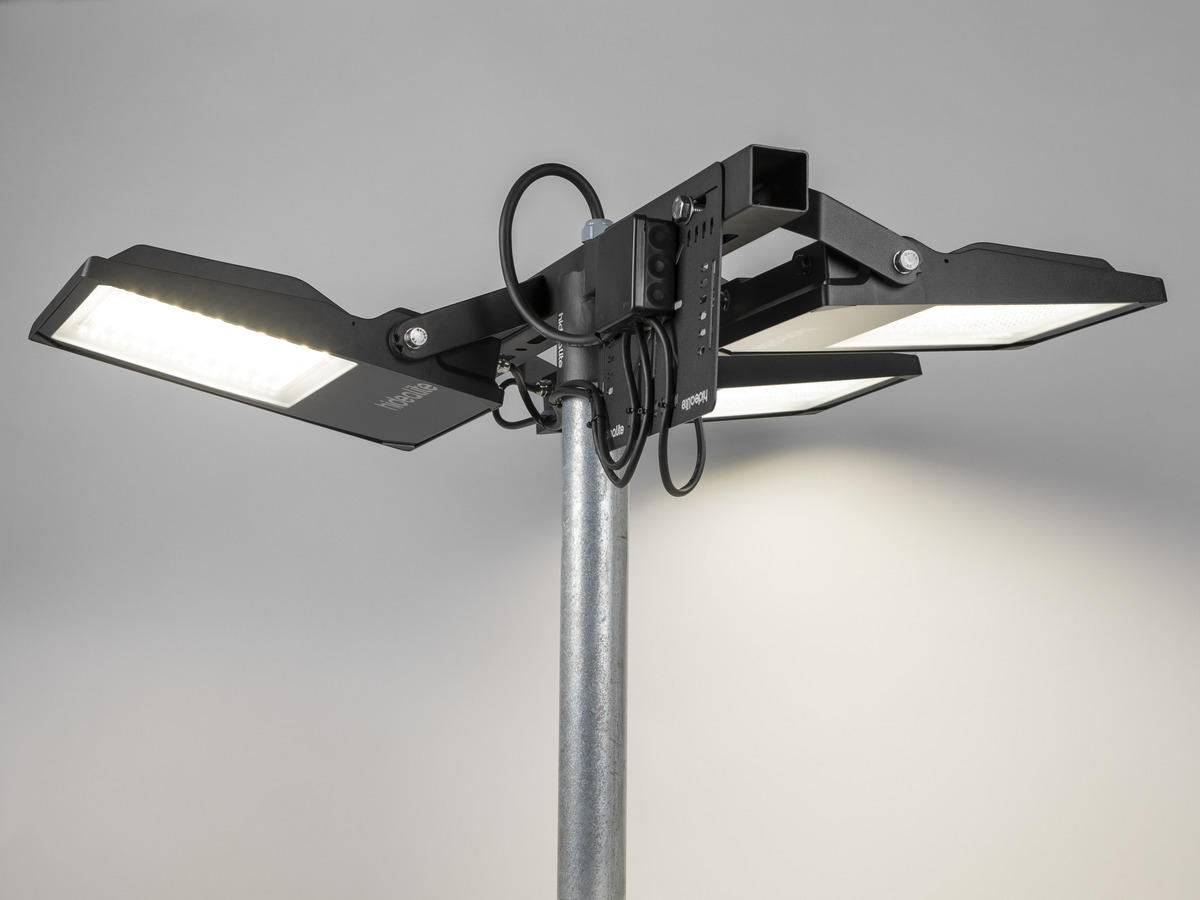

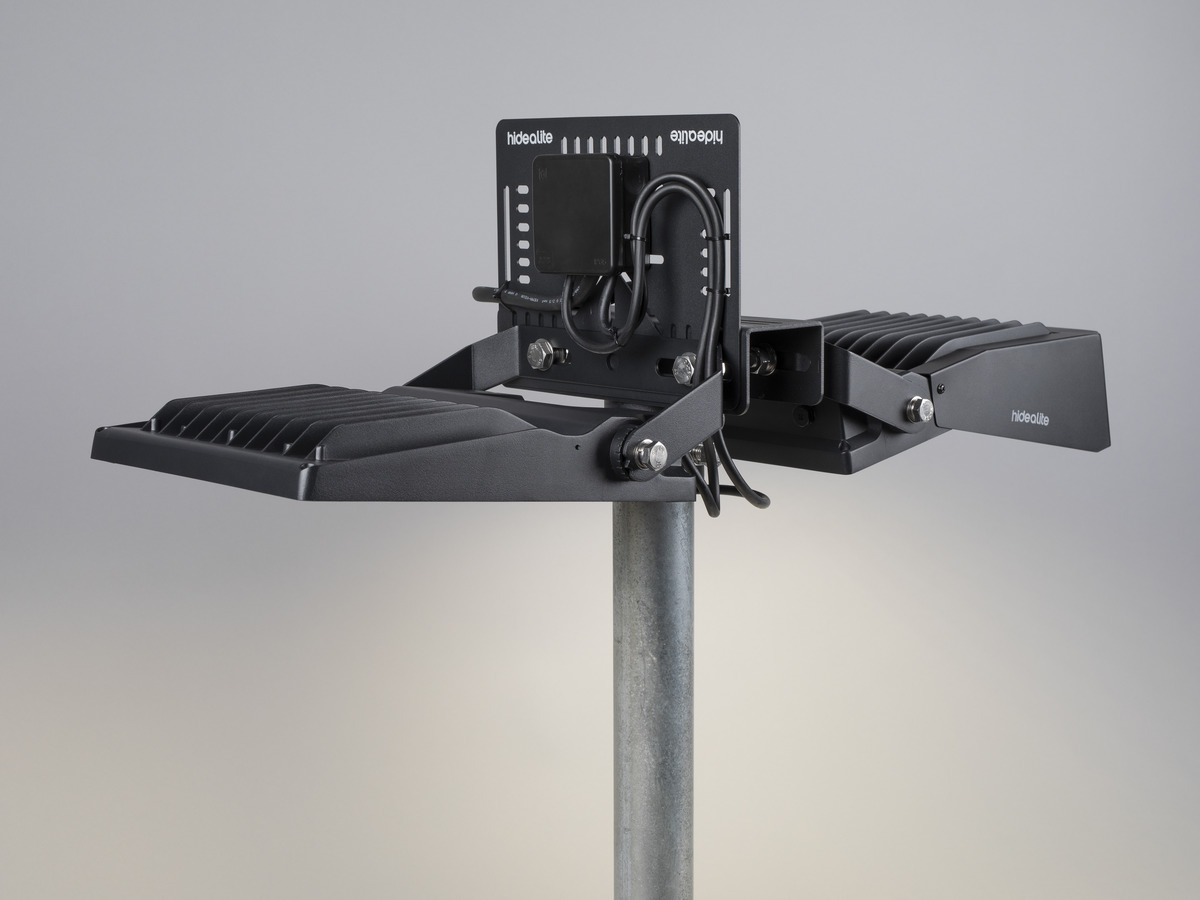

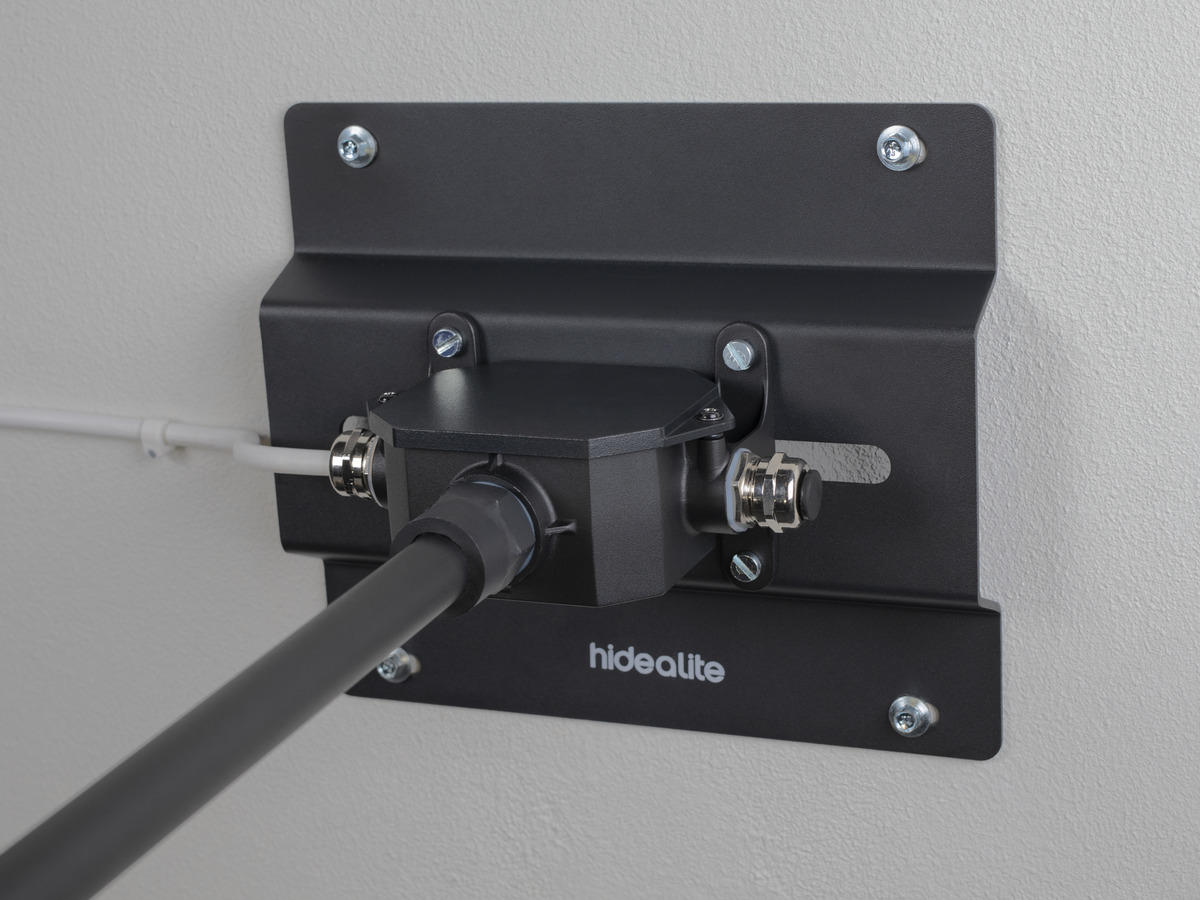

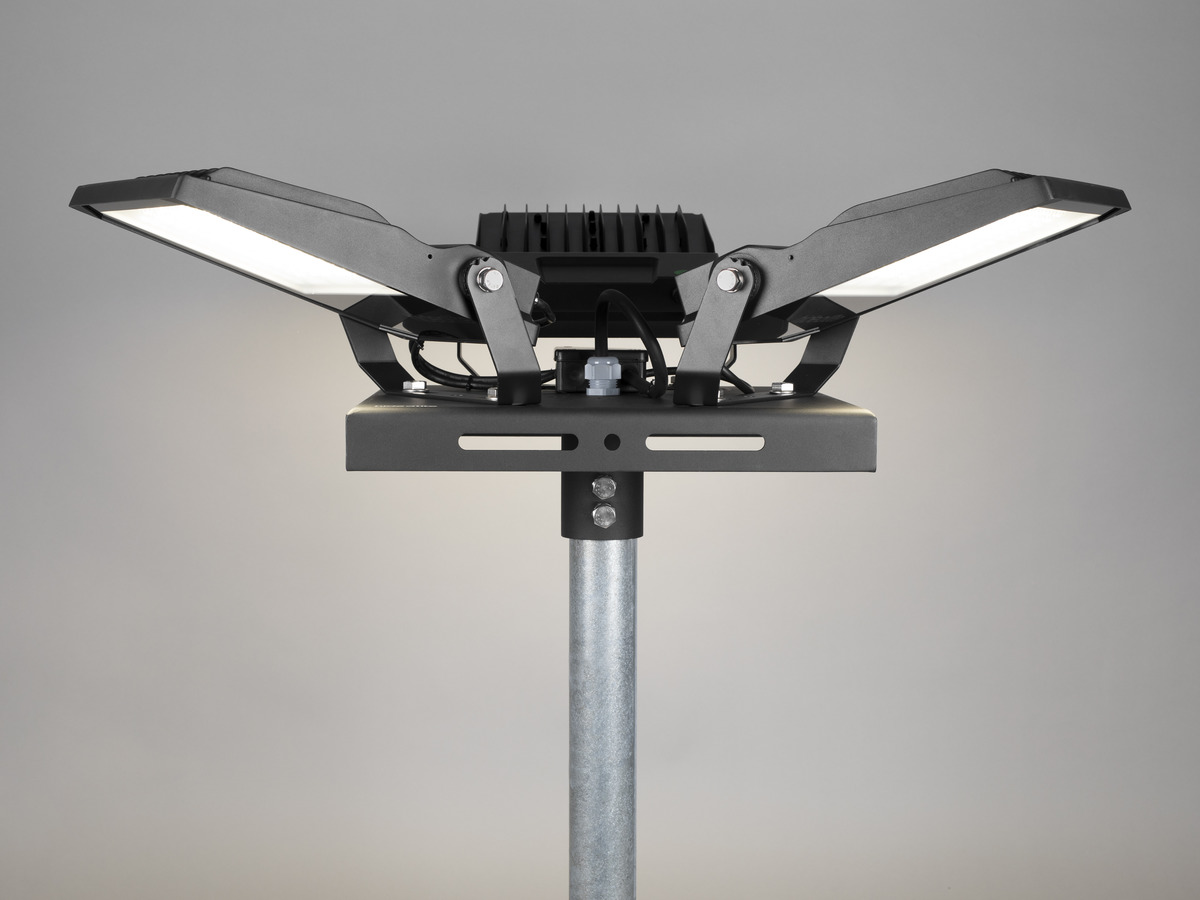

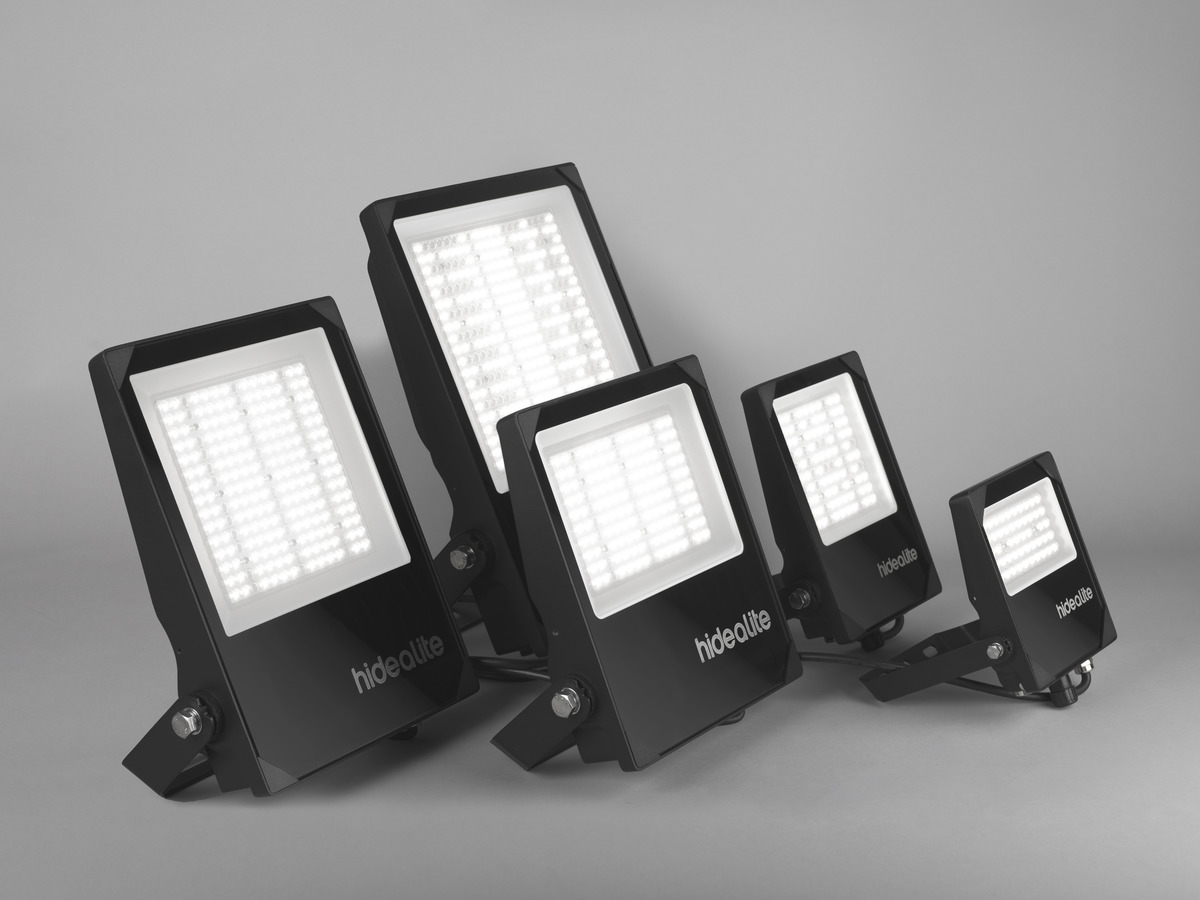

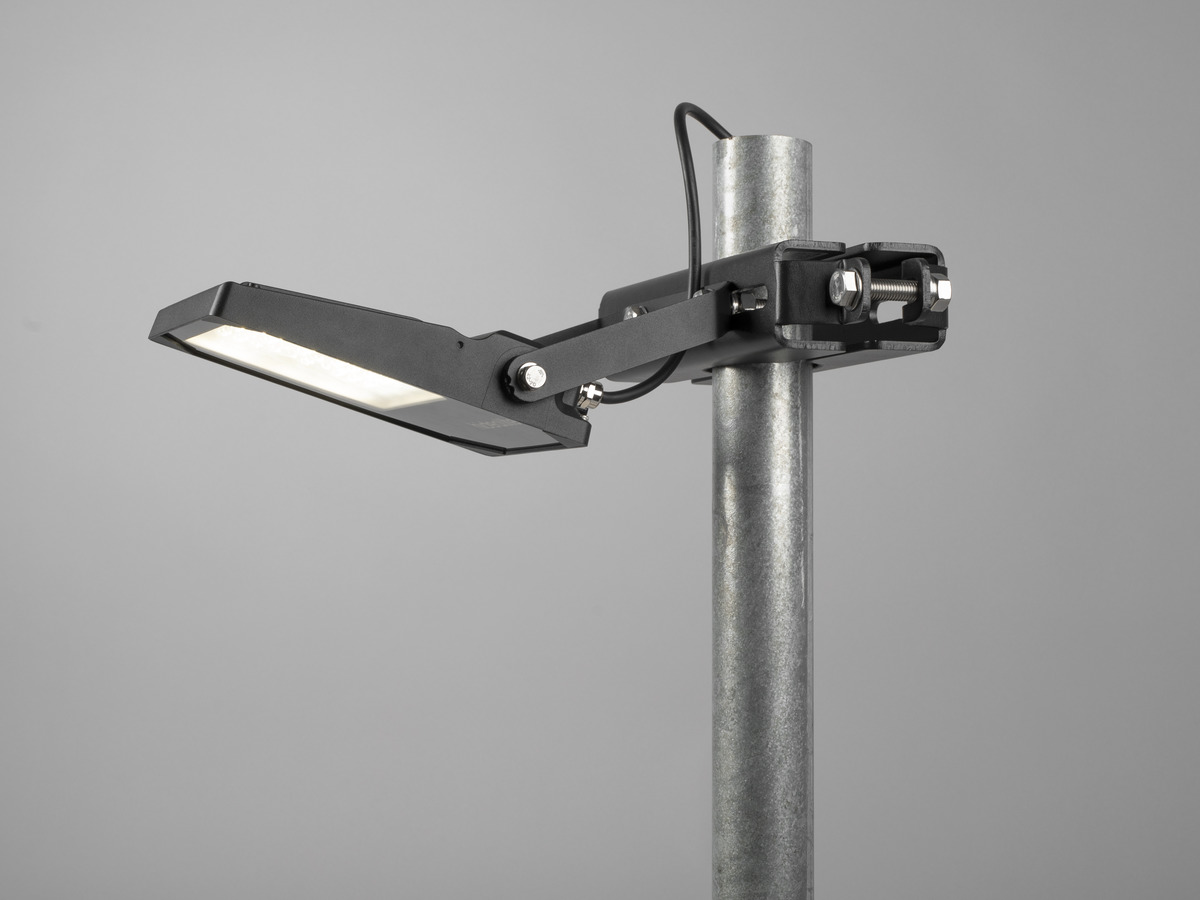

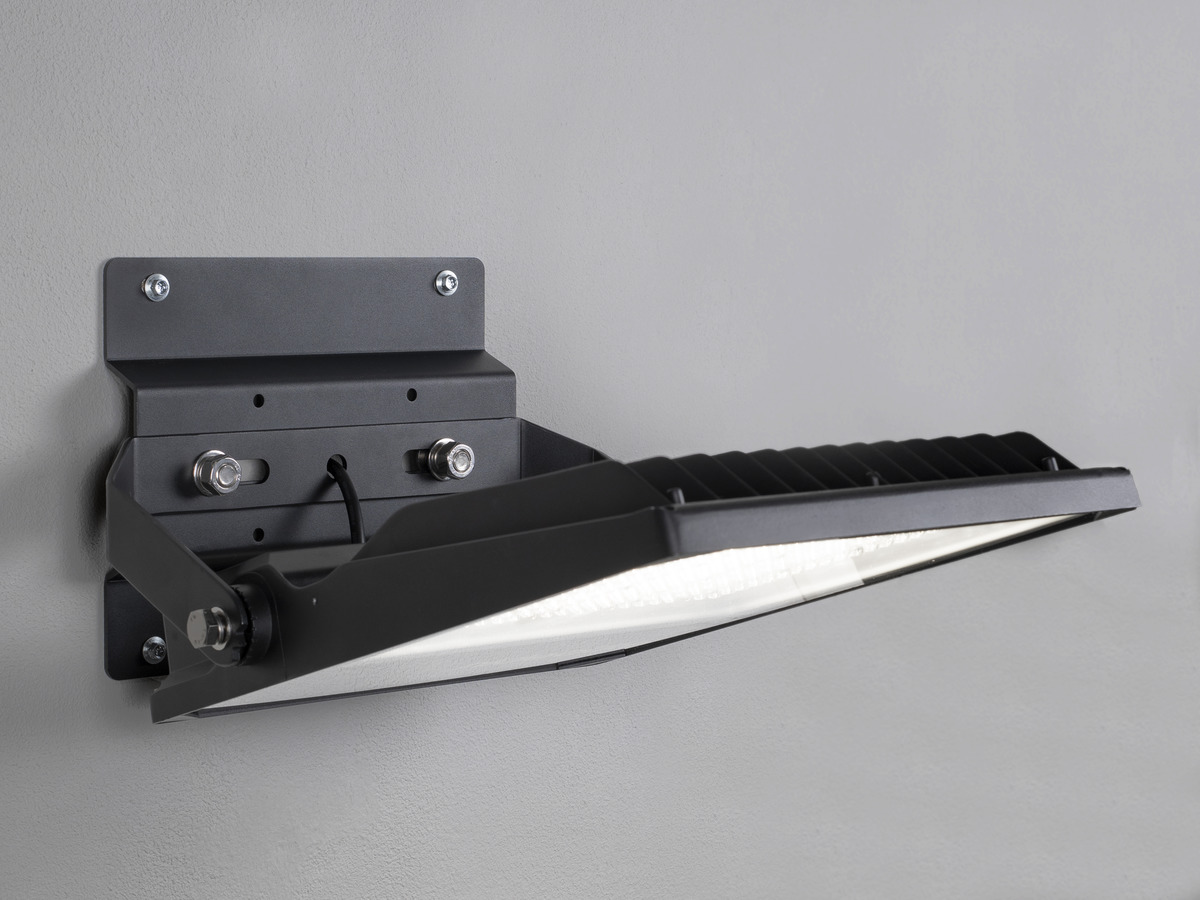

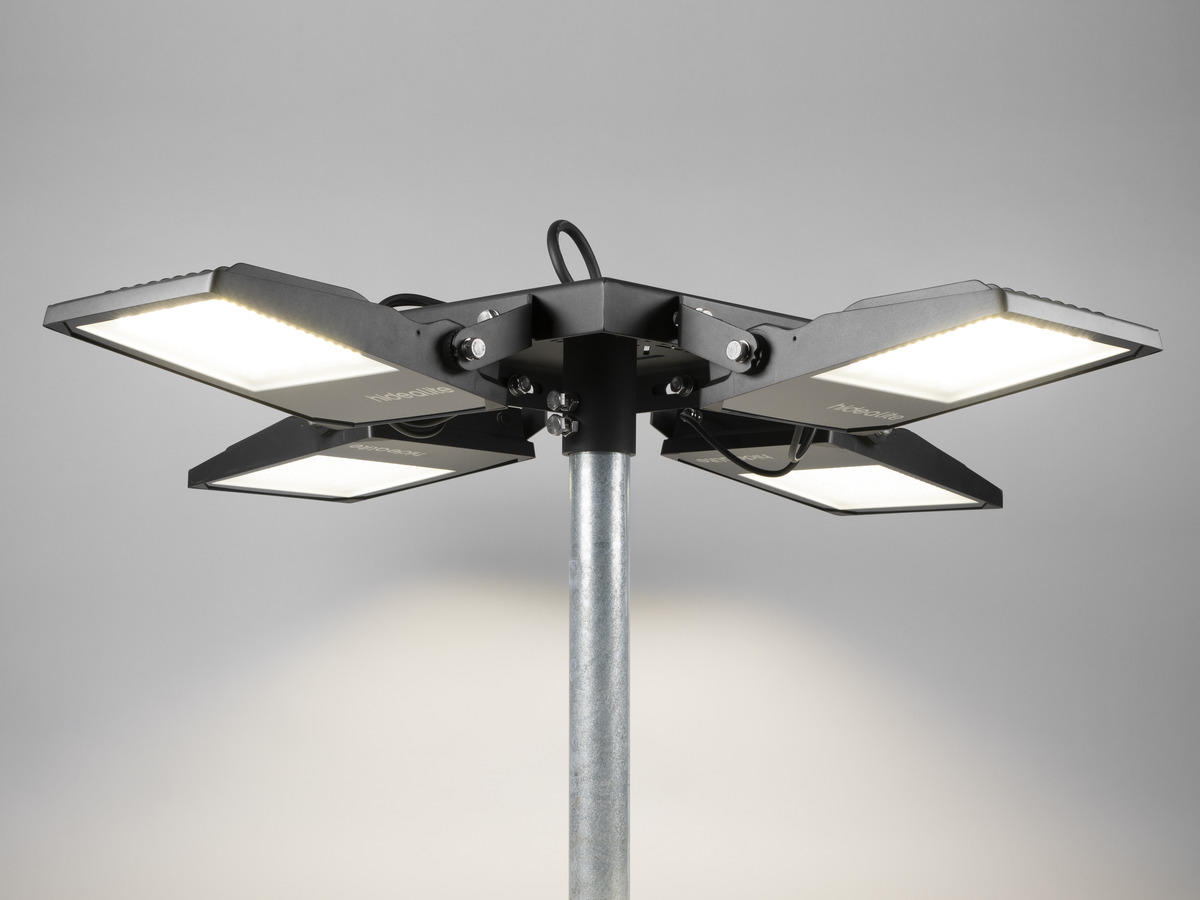

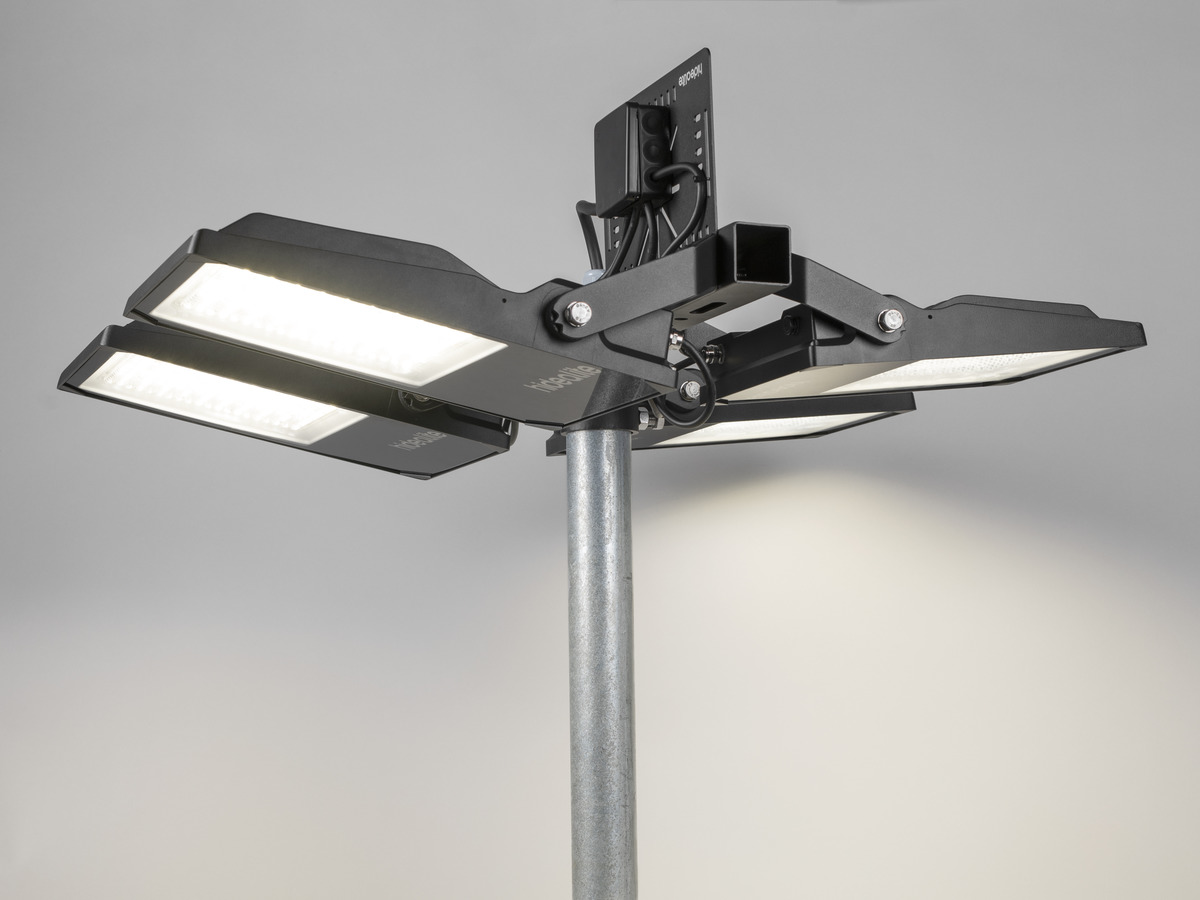

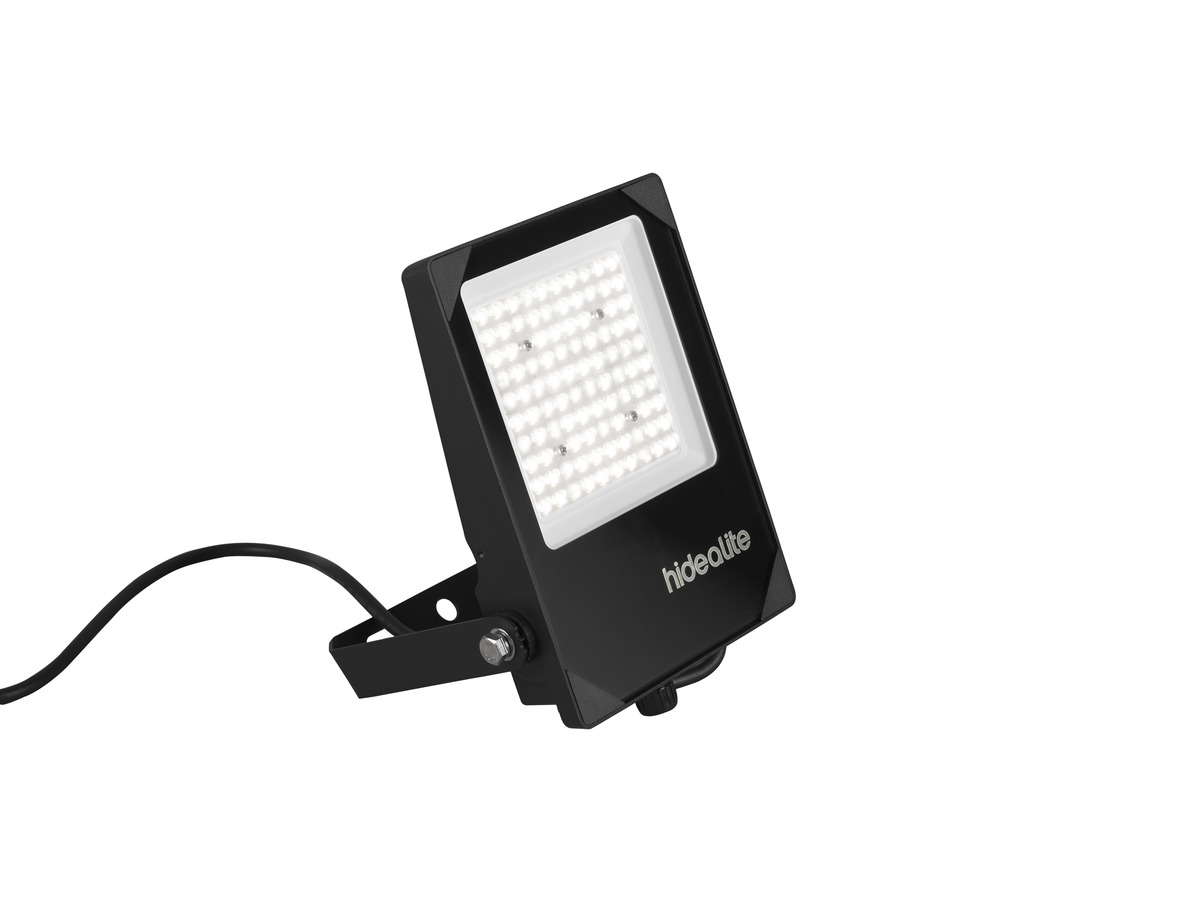

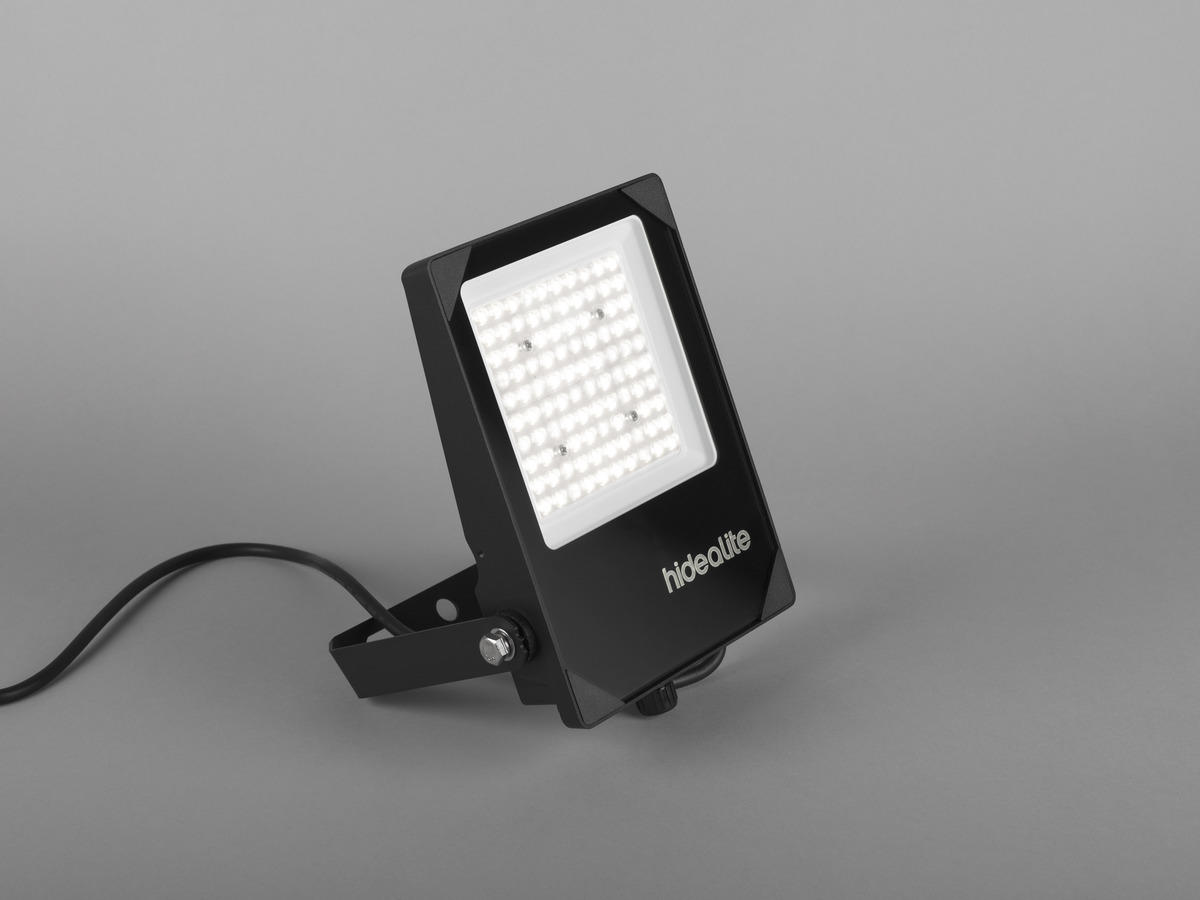

Robust floodlight in five sizes - perfectly suited for outdoor environments such as warehouse doors or as parking, facade or signage lighting. Scout G2 offers many possibilities, with accessories in various combinations to suit different areas of application. Accessories are supplied with bolts, nuts and screws to permit various combinations. Asymmetric light distribution and high luminous efficacy. Adjustable bracket, fitted with screws. With Scout G2 XS, you can easily change the output with DIP-Switch Power. Comes complete with integrated and replaceable driver and 2m rubber cable for direct 230V connection.
Variants
| GTIN | Item Name | Luminaire Lumen (lm) | Type of Dimming | |
|---|---|---|---|---|
|
7392971146102 | Scout G2 S 4000K Asym | 7100 | |
|
7392971146089 | Scout G2 XS 4000K Asym | 4250 | DIP-Switch Power |
|
7392971146096 | Scout G2 XS 4000K Asym PIR | 4250 | PIR Sensor |
|
7392971146119 | Scout G2 S 4000K Asym PIR | 7100 | PIR Sensor |
|
7392971146126 | Scout G2 M 4000K Asym | 14000 | |
|
7392971146133 | Scout G2 L 4000K Asym | 21050 | |
|
7392971146140 | Scout G2 XL 4000K Asym | 28000 |
Scout G2 S 4000K Asym
- Description
-
GTIN
7392971146102
Item Name Scout G2 S 4000K Asym
Warranty 5 years
- Light Technical Data
-
Light Source
LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Replaceable Control gear by professional
LED Colour White
Colour Temperature (K) 4000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 5
Initial Chromaticity 0.38, 0.38
Luminous Intensity (cd) 2200
Luminaire Lumen (lm) 7100
Beam Angle (°) 150

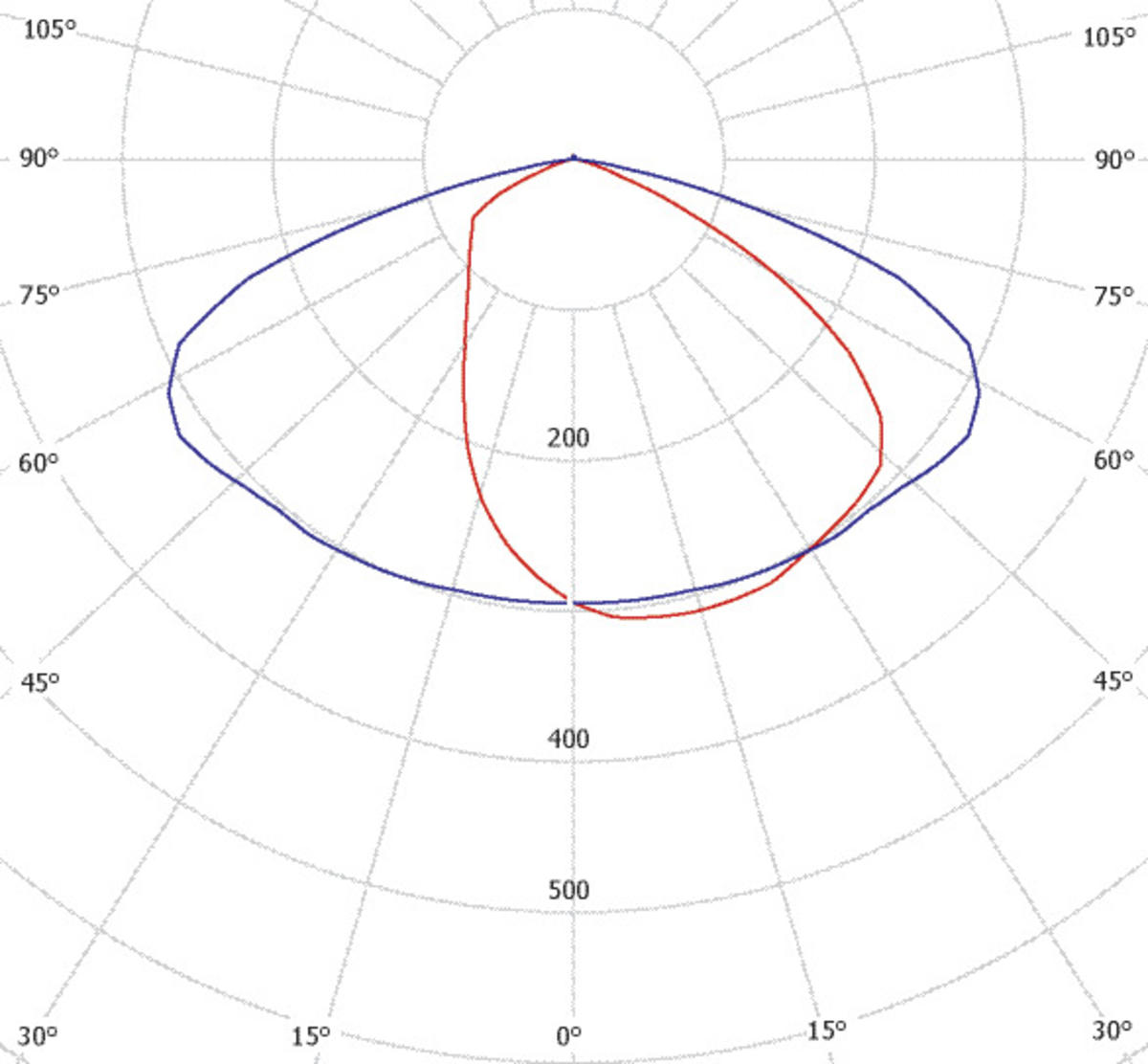

Light sharing Asymmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 69
Life Time L70 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L87
Lumen maintenance 75 000h L80
Lumen maintenance 100 000h L74
LLMF @ 50 000h 0,87
LLMF @ 100 000h 0,74
Life Time Driver 50 000h/5%
- Technical data
-
Adjustable
Yes
Tiltable (°) 270
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Voltage Forward (Vf) 138
Power LED (W) 45
Power Luminaire (W) 50
System Power (W) 50
Efficiency Luminaire (lm/W) 142
Efficiency System (lm/W) 142
Containing light source energy efficiency class (EU) 2019/2015 E
- Operation and Connection
-
Driver Included
Yes
Driver Model Constant Voltage
Driver Type Built-in
Connection (type) Cable
Length Connection (cm) 200
Connection (mm2) 3x1,0
Through Wiring No
Strain Relief Yes
Power Factor ʎ 0,9
Efficiency (%) 90
Power loss (W) 5
Leakage current (mA) (at 230 V, 50 Hz, full load) 0,75
THD (%) 25
Constant Current (mA) 330
Operating Temperature
Max. Tc (°C) 105
Dimmable No
Inrush current (max/time) 50A 344µs
Mains surge protection DM (kV) 4
Mains surge protection CM (kV) 2
Fuse B10 (pcs) 30
Fuse B16 (pcs) 46
Fuse C10 (pcs) 39
Fuse C16 (pcs) 57
- Color and material
-
Material
Aluminium
Color Black
Available in special color No
- Measurement and installation
-
Operating Environment
IP Degree of Protection 66
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Fire Safety Marks D-mark
Approval Marks CE
Impact Strength IK08
Filament Test IEC 695-2-1(°C) 850

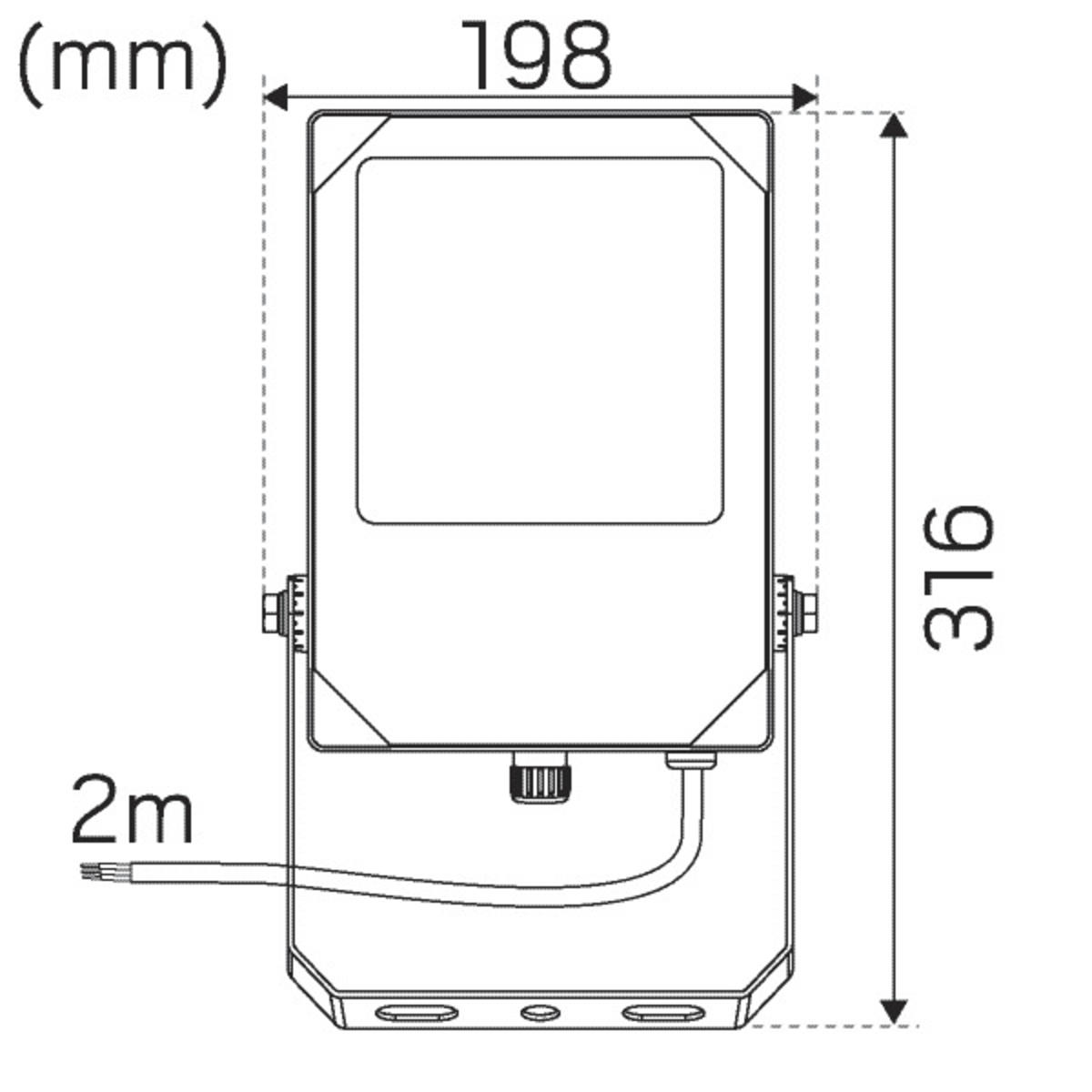

Length (mm) 266
Width (mm) 198
Height (mm) 46
Weight (kg) 1,545
