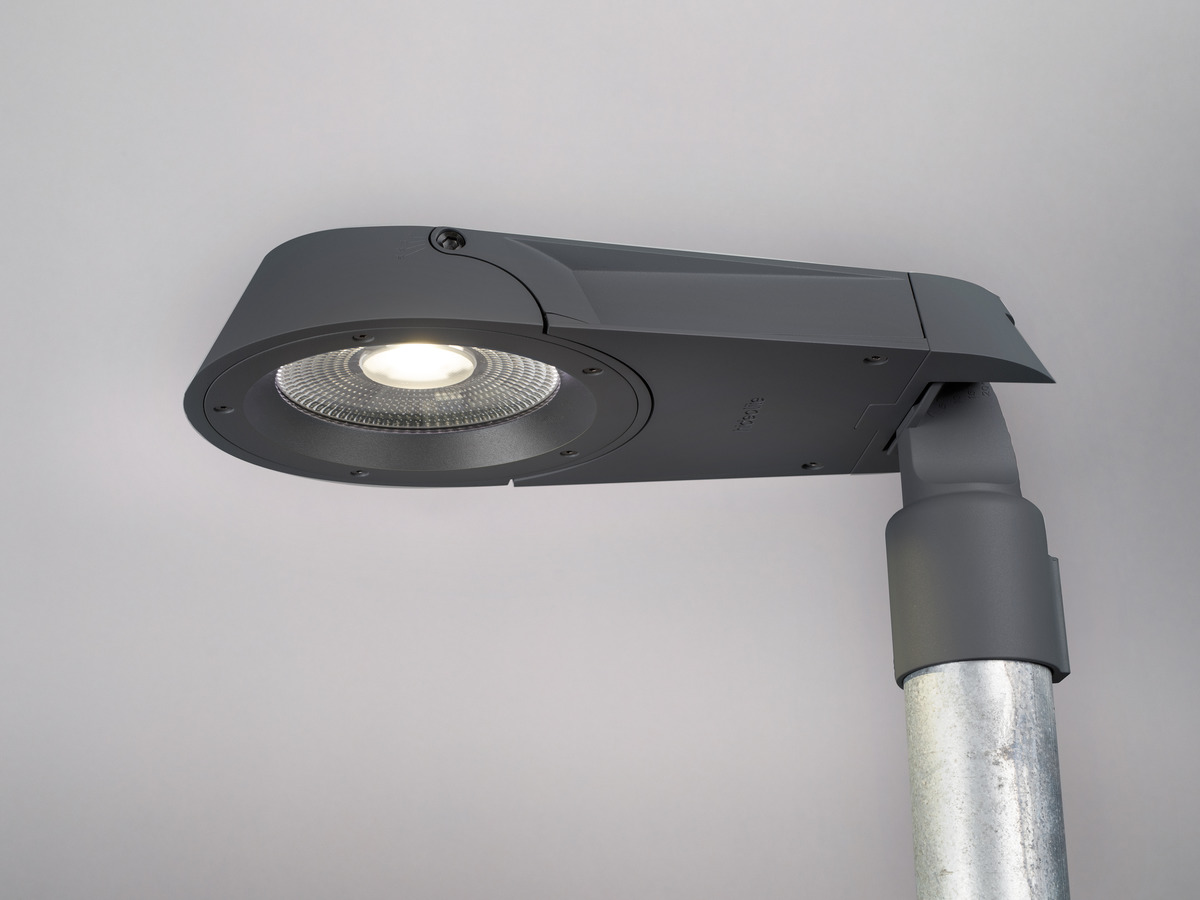

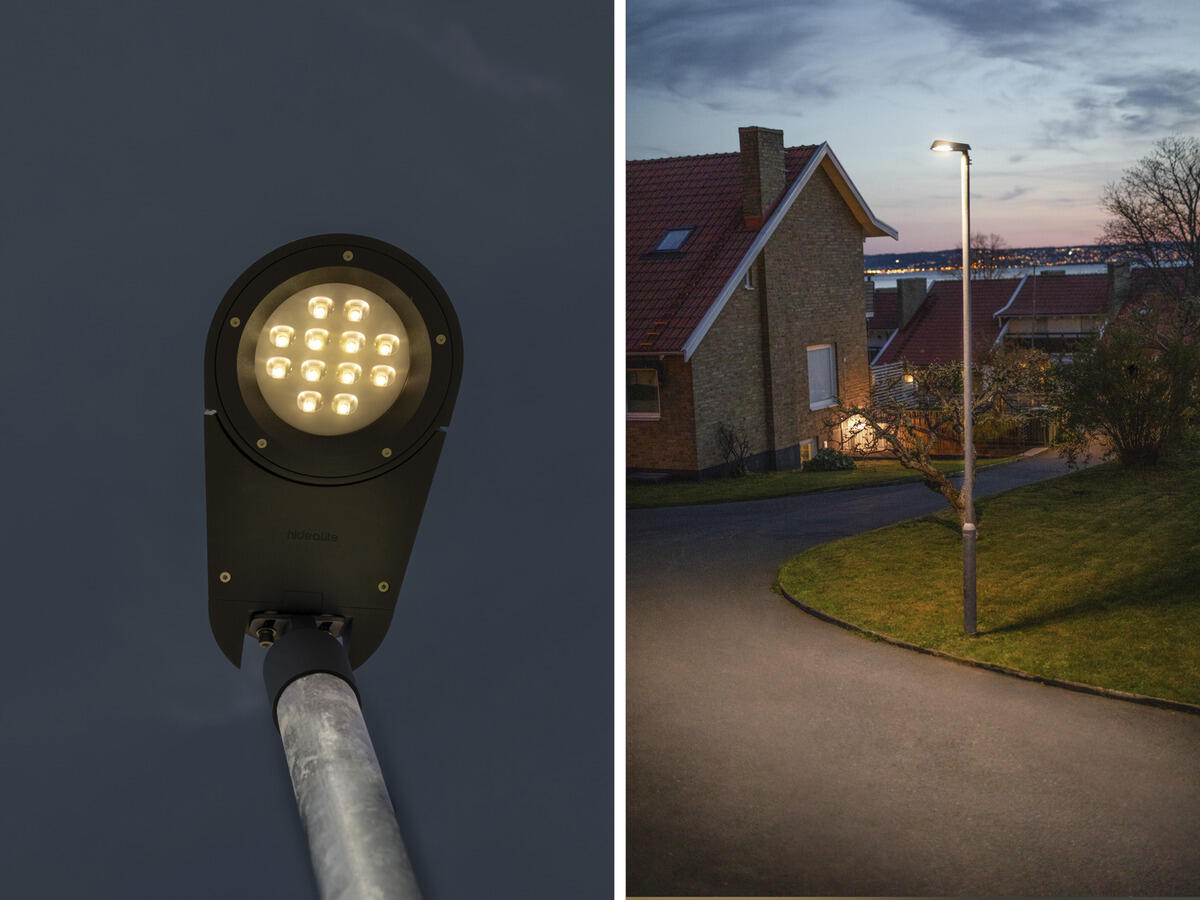

Sharp Post

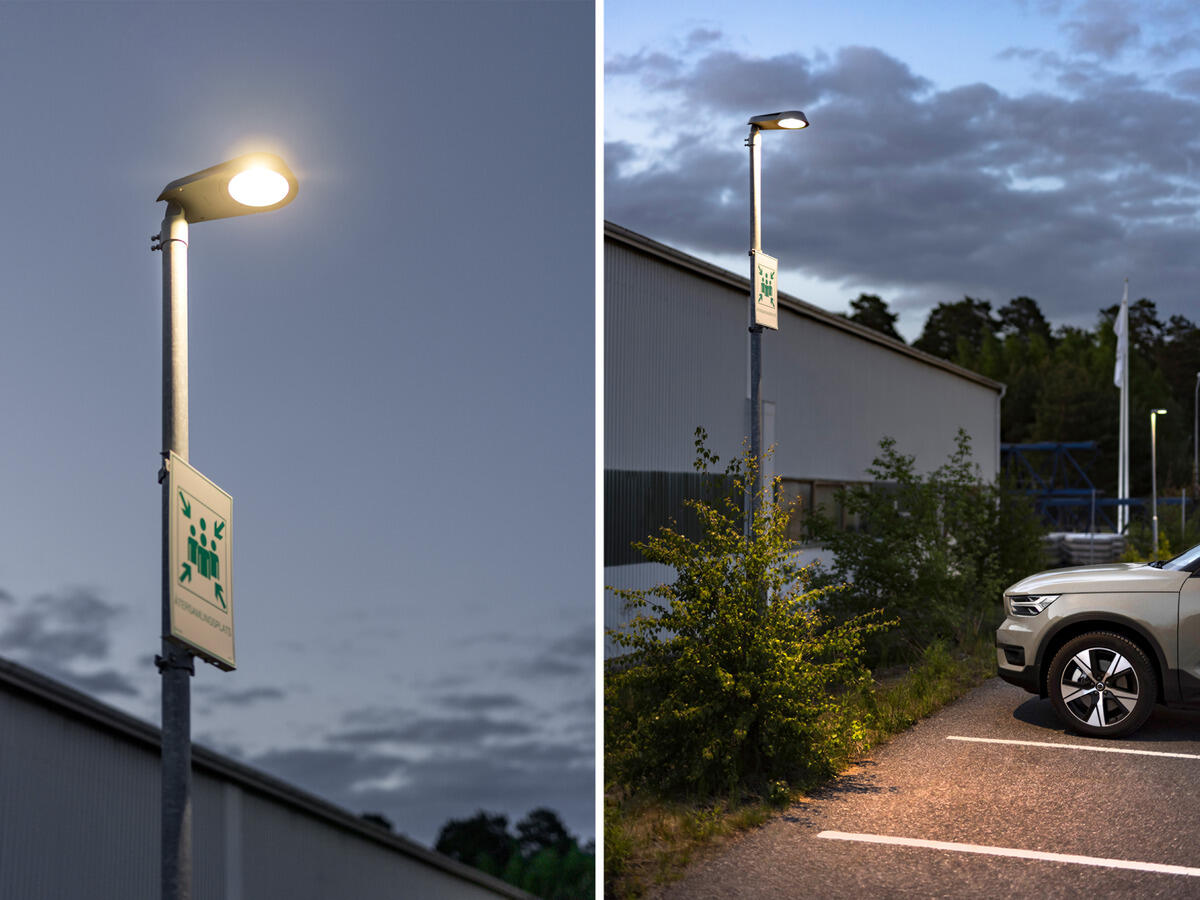

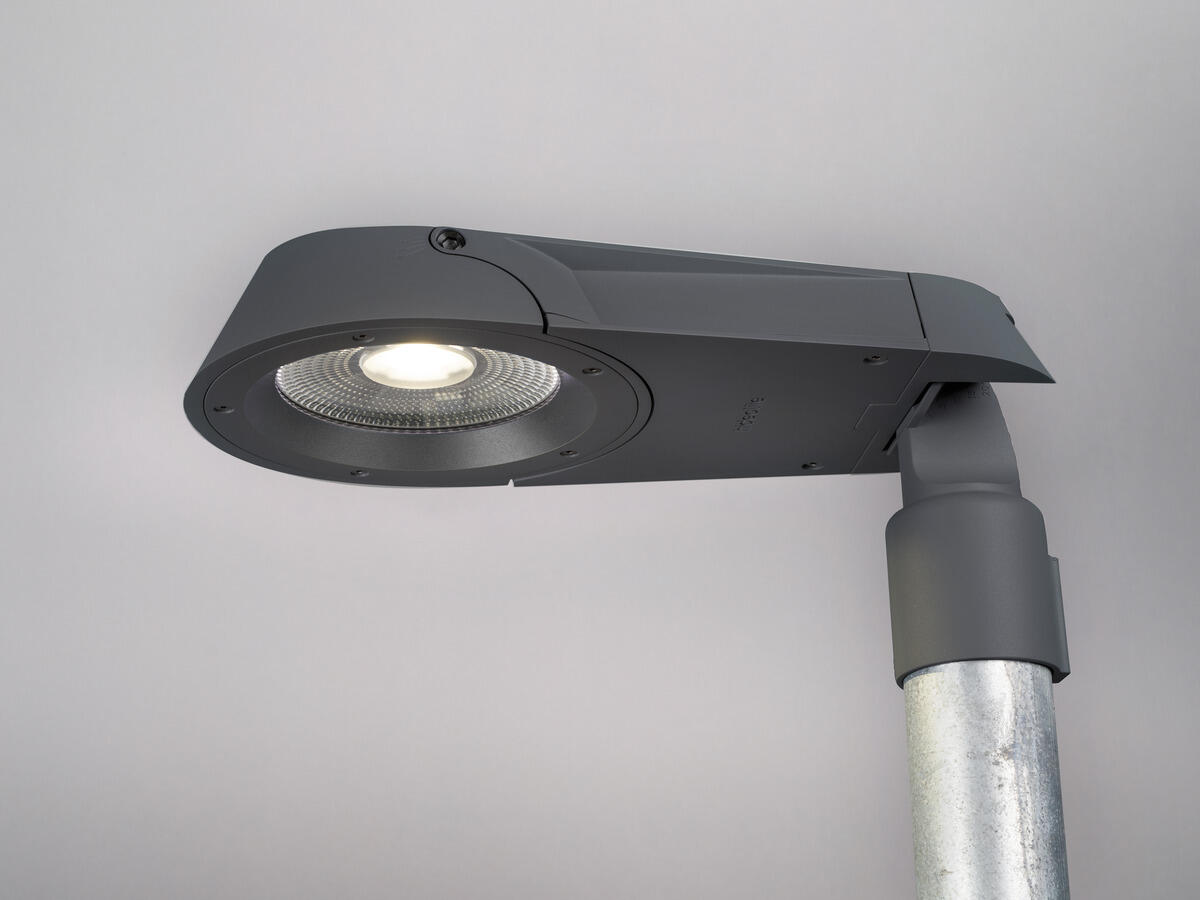

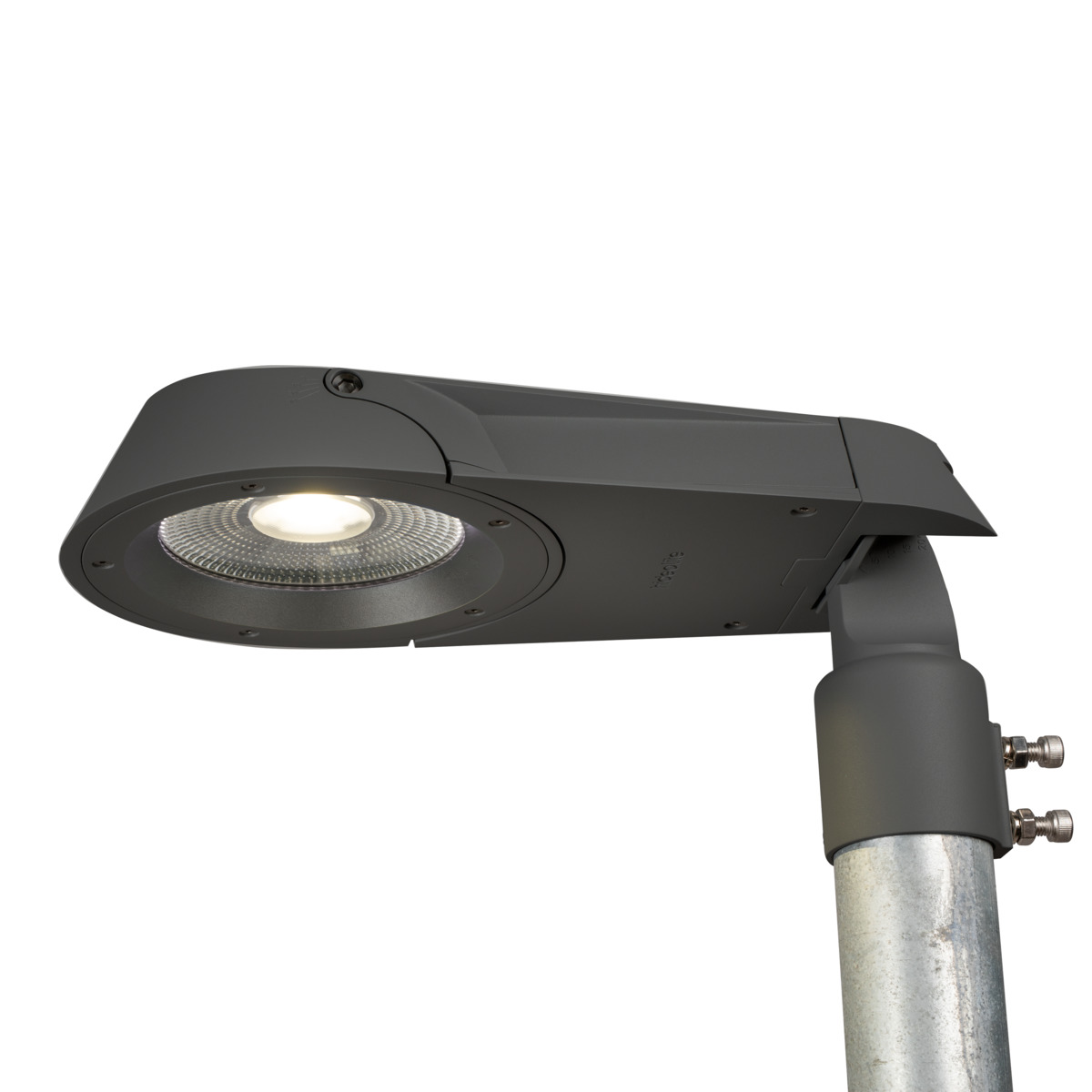

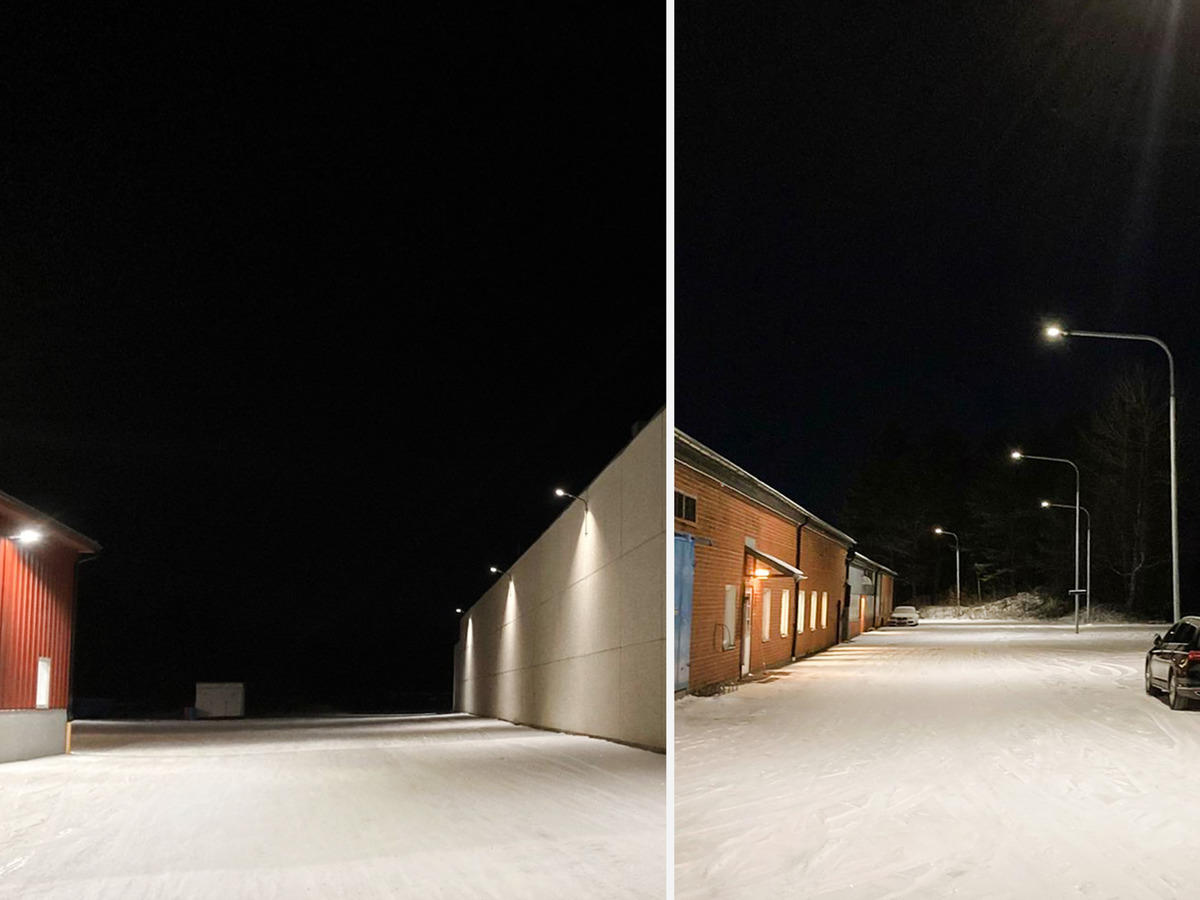

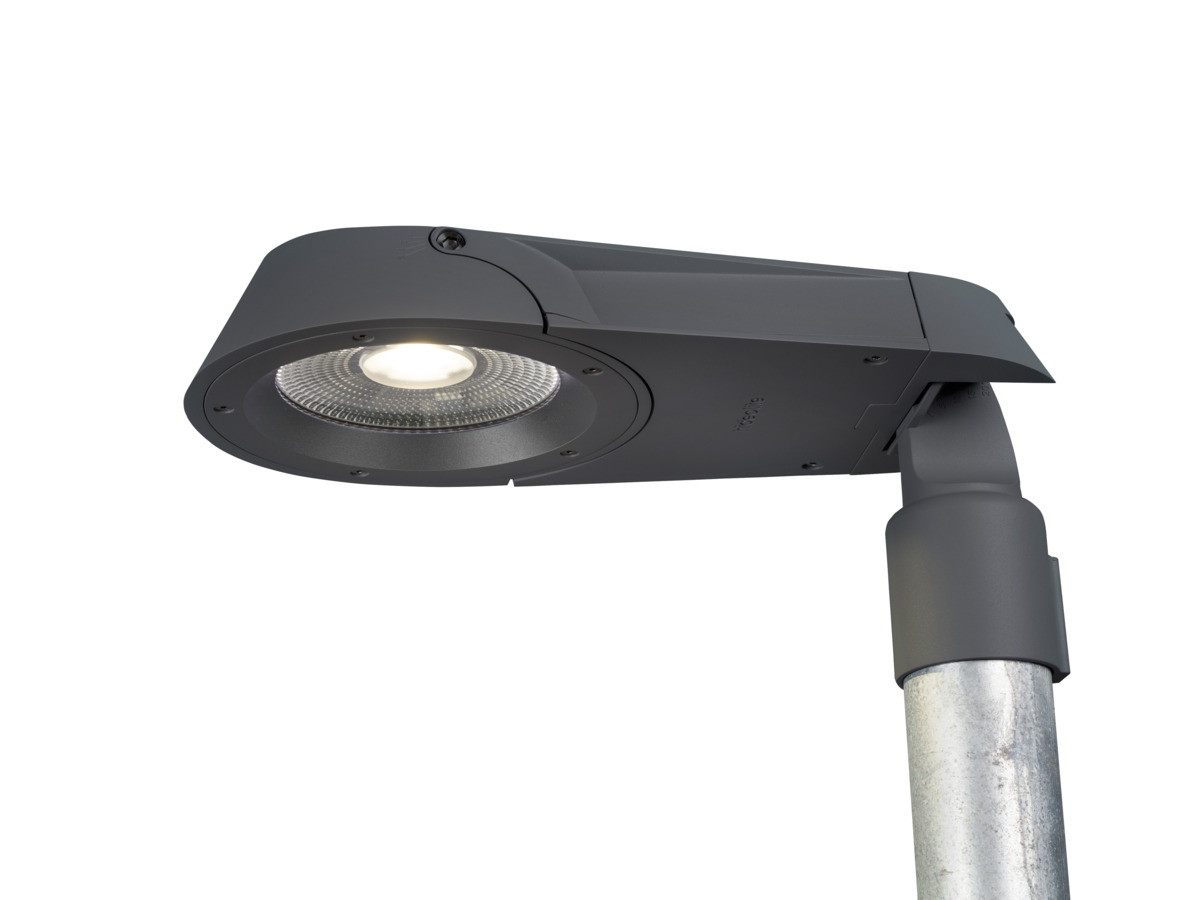

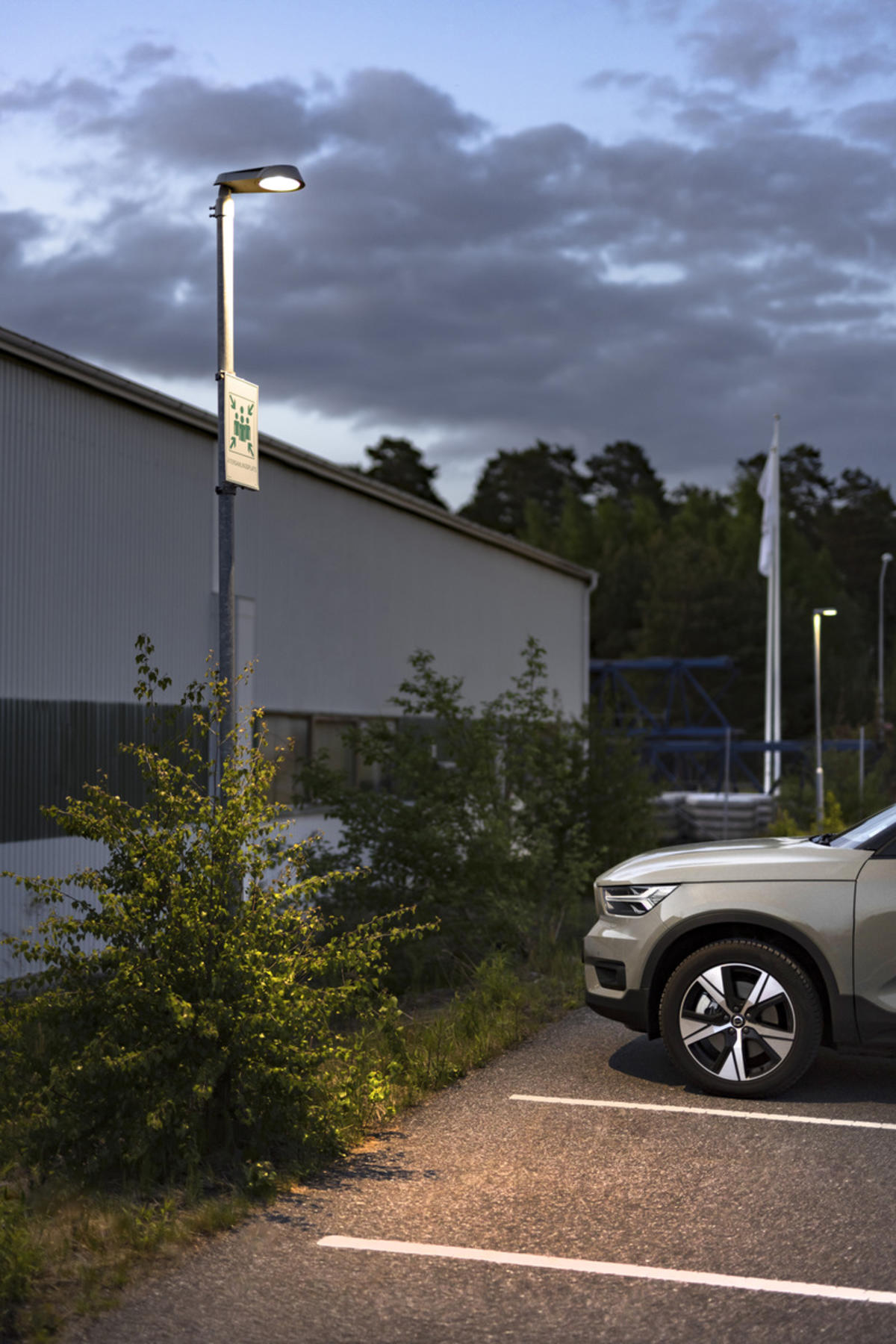

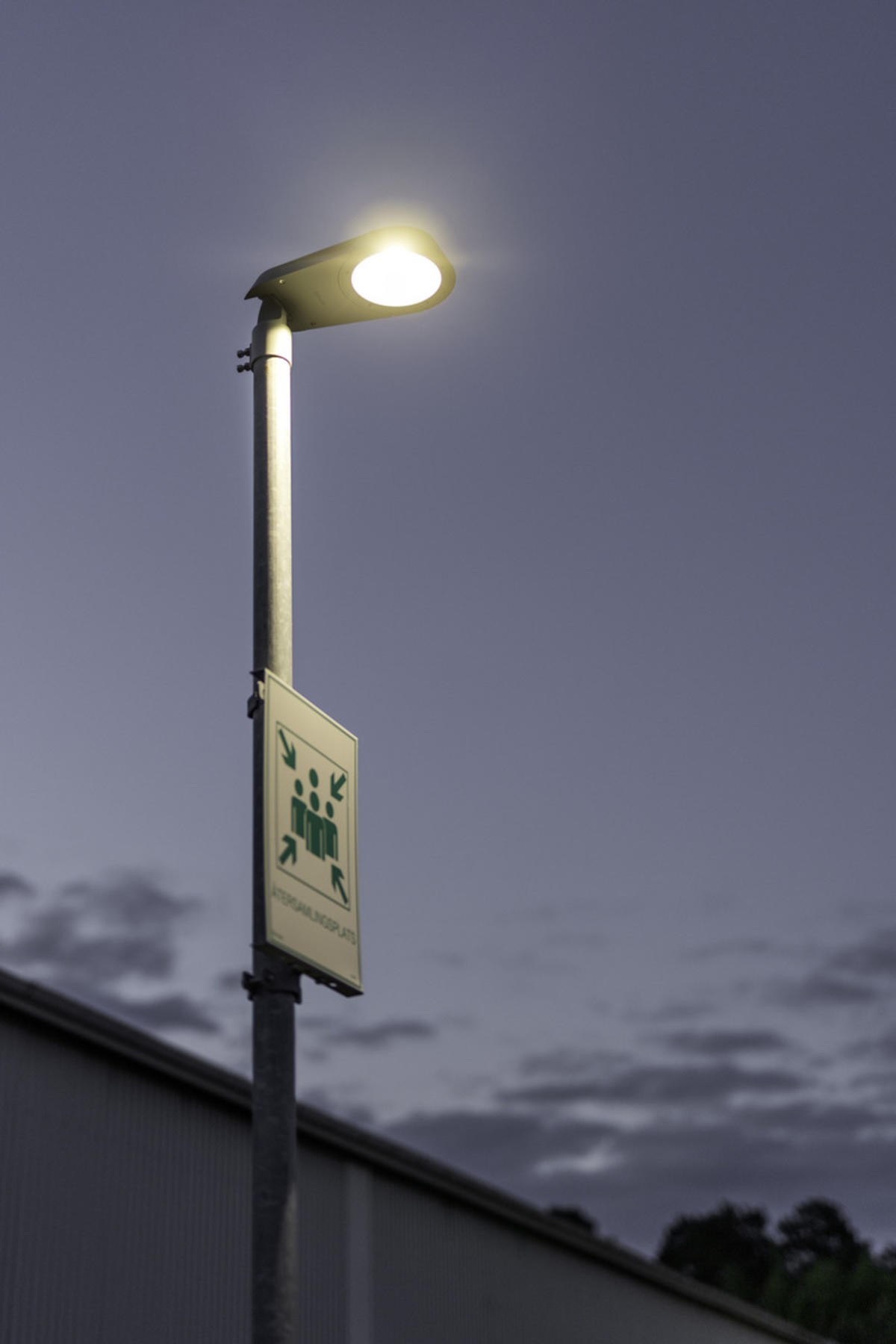

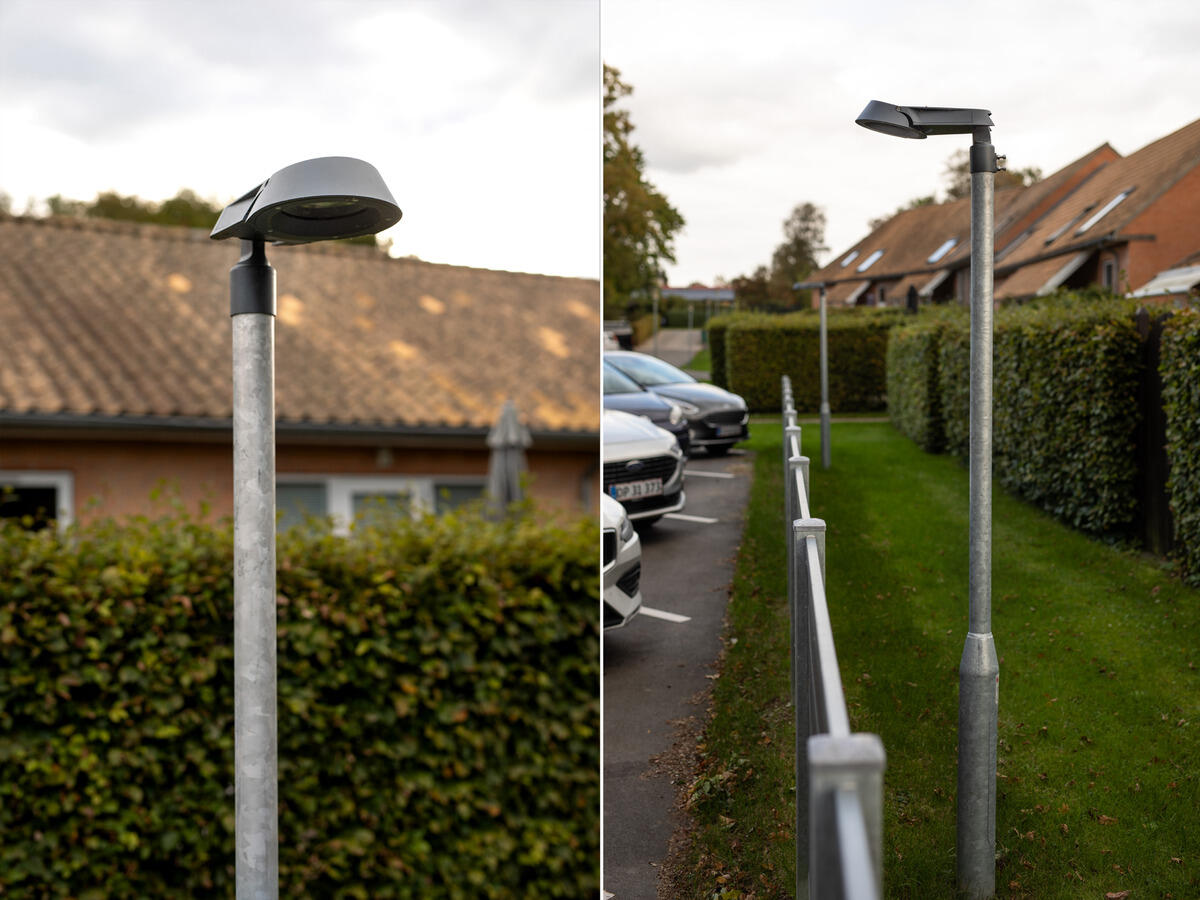

Sharp Post is a perfect post luminaire in a sharp design for installation on posts and complies with requirements for glare, evenness and colour rendering for car parks. Perfect for smaller cycle parking areas to large shopping centres and open areas, posts between 4-6m. Adjustable lumen output and selectable colour temperature via DIP-switch. Impact resistant (IK10) with durable powder coating to withstand our Nordic climate. Light can be directed thanks to the adjustable luminaire head. Easily installed with flexible post bracket for posts of 48mm or 60mm diameter. Supplied with 5m of pre-mounted rubber cable for easy connection in the post.
Exists in several colors
  • Grå
  • Antracit

Variants

GTIN Item Name Color

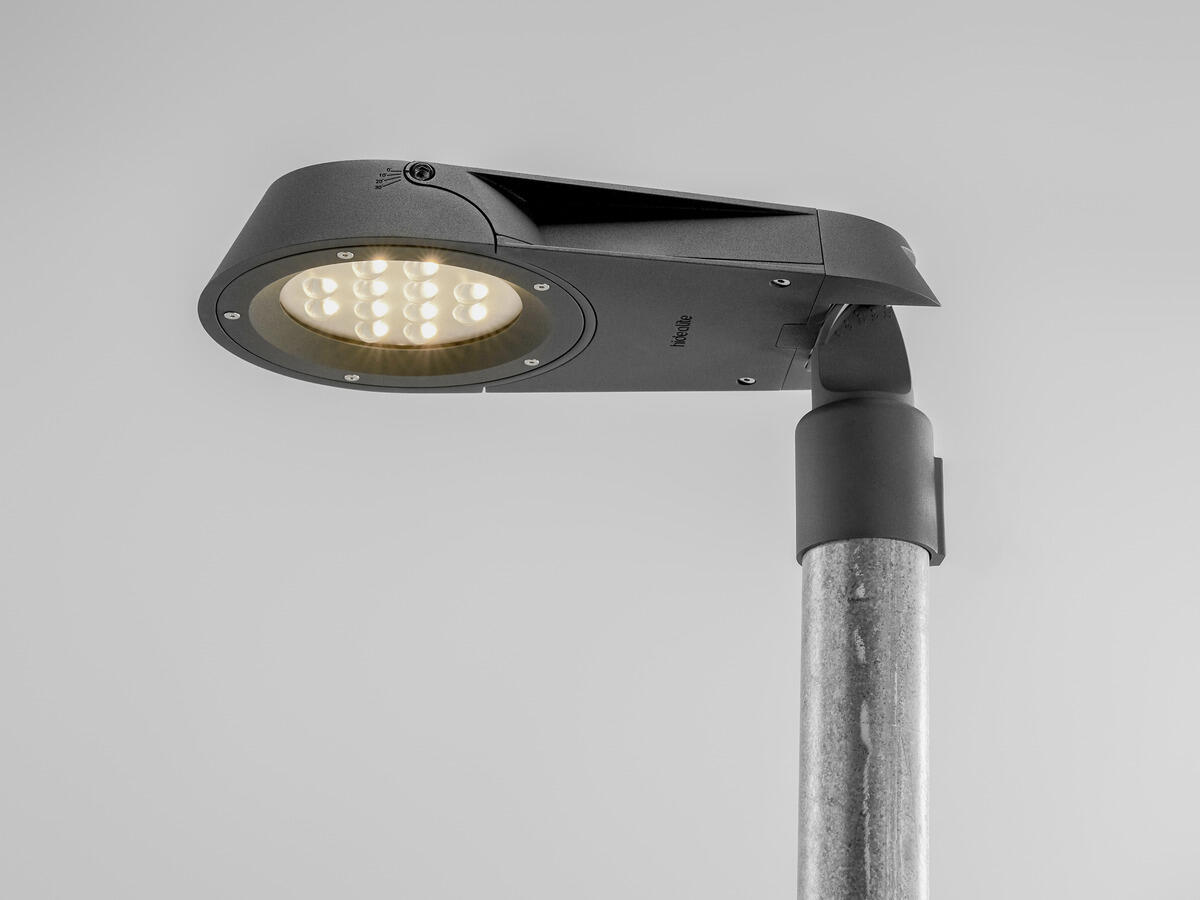

Sharp Post Anthracite 7392971145259 Sharp Post Anthracite Antracit

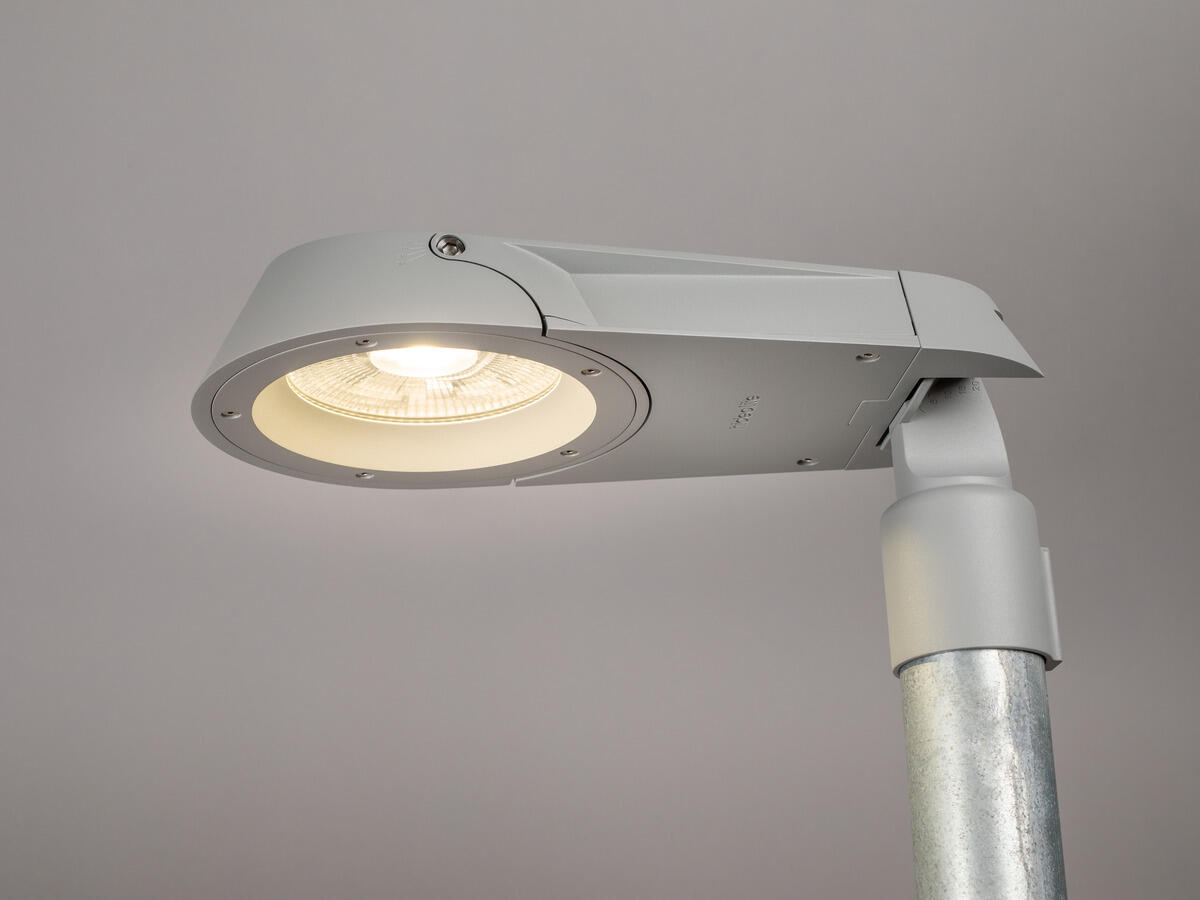

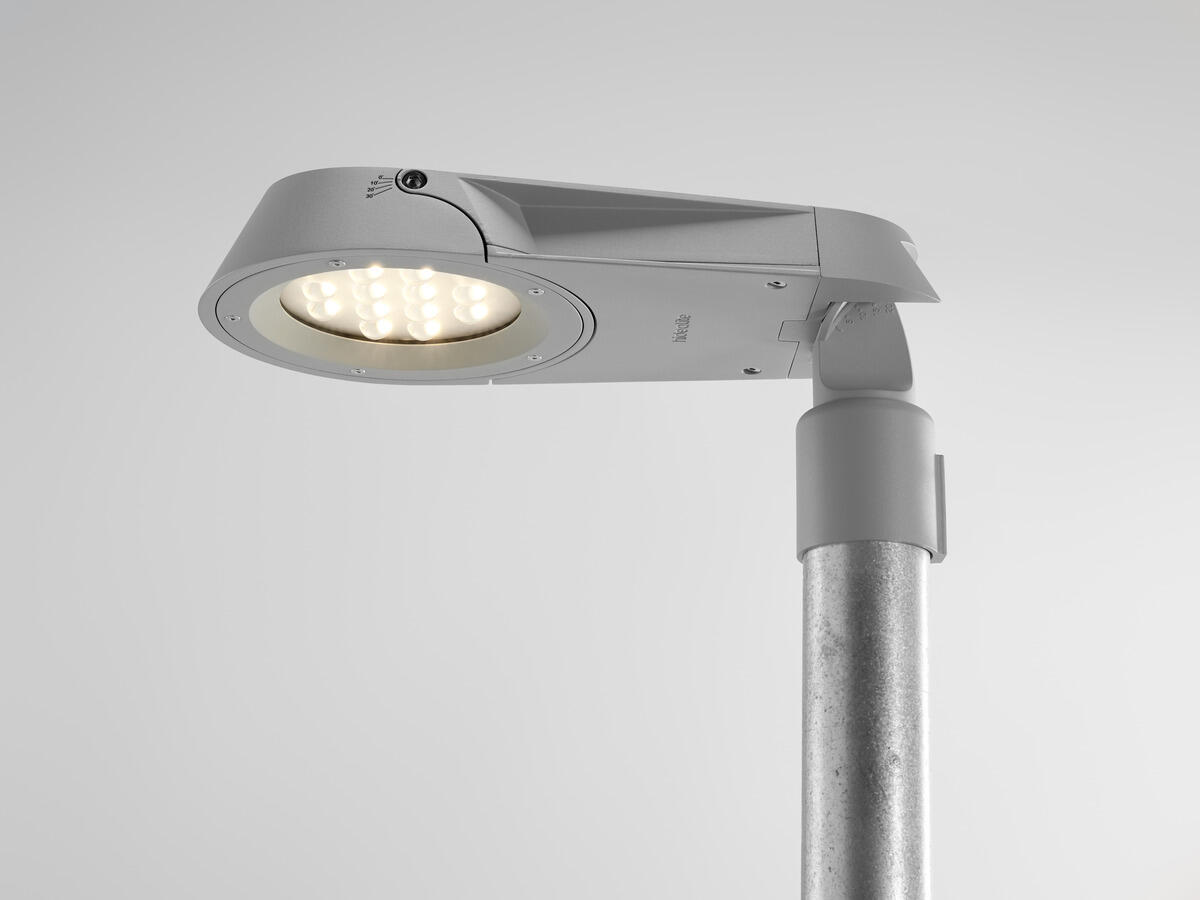

Sharp Post Grey 7392971145242 Sharp Post Grey Grey
Description
GTIN 7392971145259
Item Name Sharp Post Anthracite
Warranty 5 years

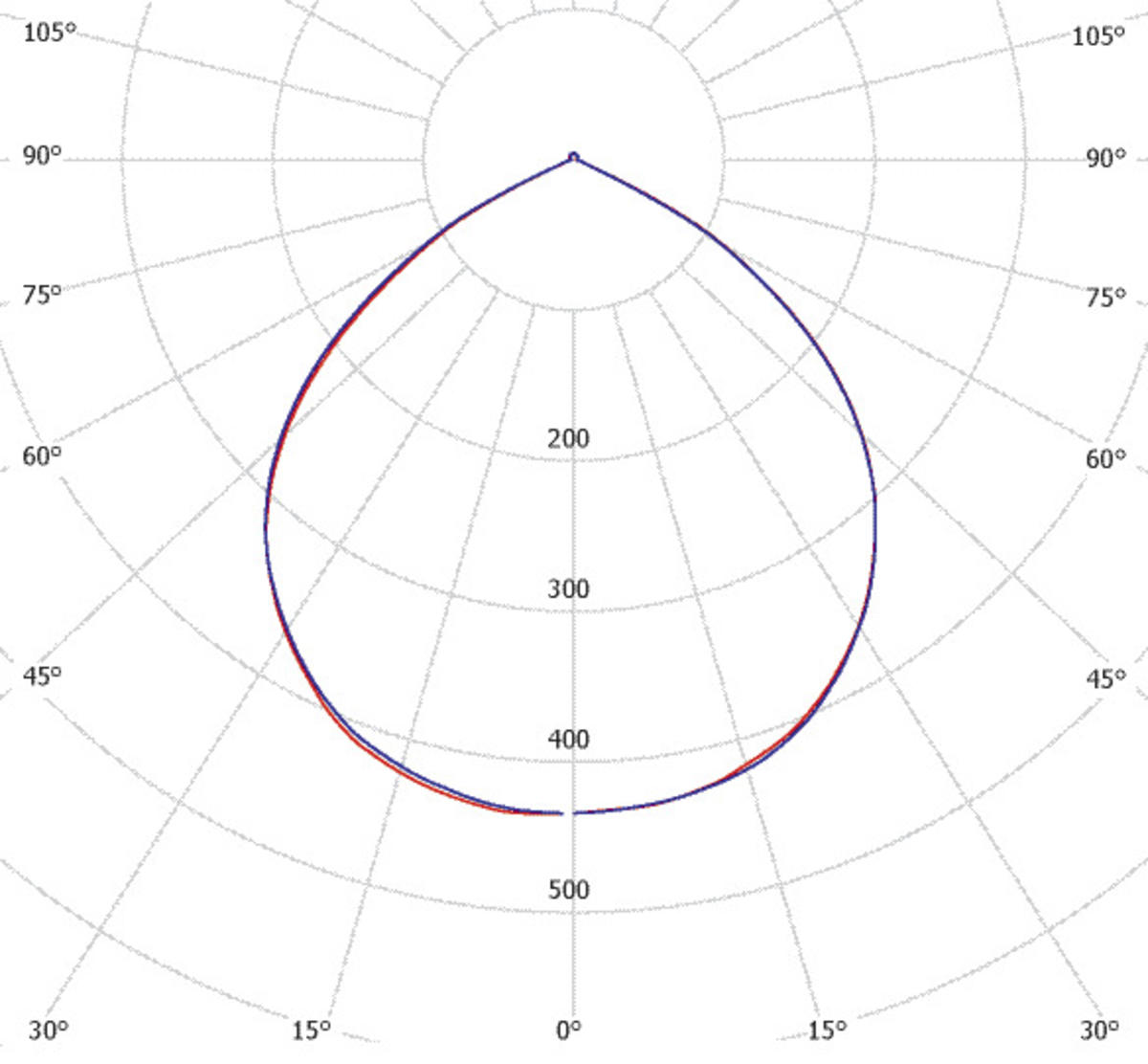

Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 3000, 4000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Initial Chromaticity 3000K: x: 0.4427, y: 0.4171, 4000K: x: 0.3796, y: 0.3777
Luminous Intensity (cd) 1280
Luminaire Lumen (lm) 2950
Beam Angle (°) 100
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L84
Lumen maintenance 75 000h L76
Lumen maintenance 100 000h L70
LLMF @ 50 000h 0,84
LLMF @ 100 000h 0,7
Life Time Driver 50 000h/10%
Technical data
Tiltable (°) 30
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Voltage Forward (Vf) 36
Power LED (W) 27
Power Luminaire (W) 31
System Power (W) 31
Efficiency Luminaire (lm/W) 95
Efficiency System (lm/W) 95
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Manufacturer Hide-a-lite
Connection (type) Cable
Length Connection (cm) 500
Connection (mm2) 2x1,0
Strain Relief Yes
Power Factor ʎ 0,94
Efficiency (%) 86
Power loss (W) 4,31
Leakage current (mA) (at 230 V, 50 Hz, full load) 0,2
THD (%) 9
Constant Current (mA) 250, 500, 750
Operating Temperature -20…+50
Max. Tc (°C) 105
Dimmable No

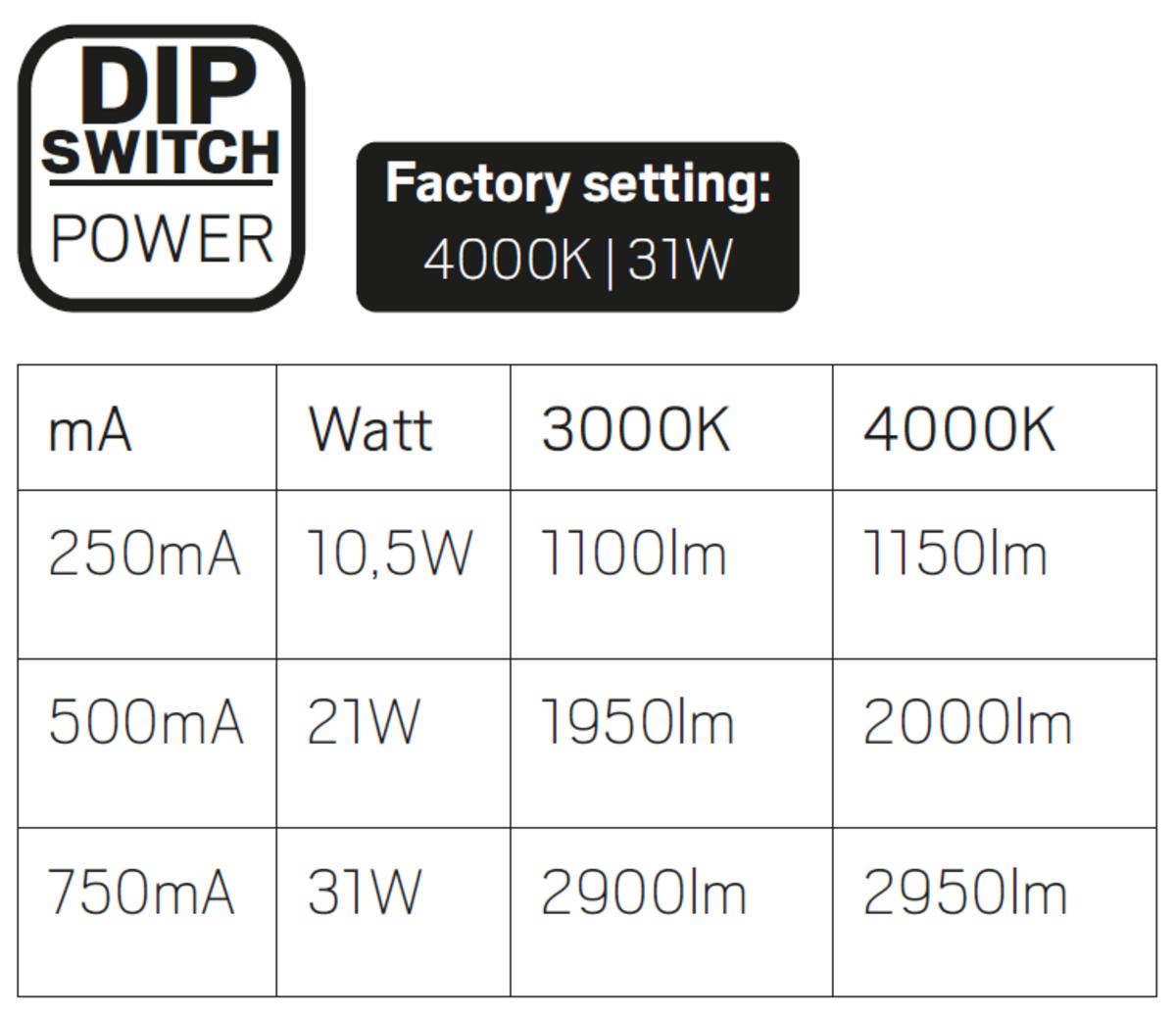

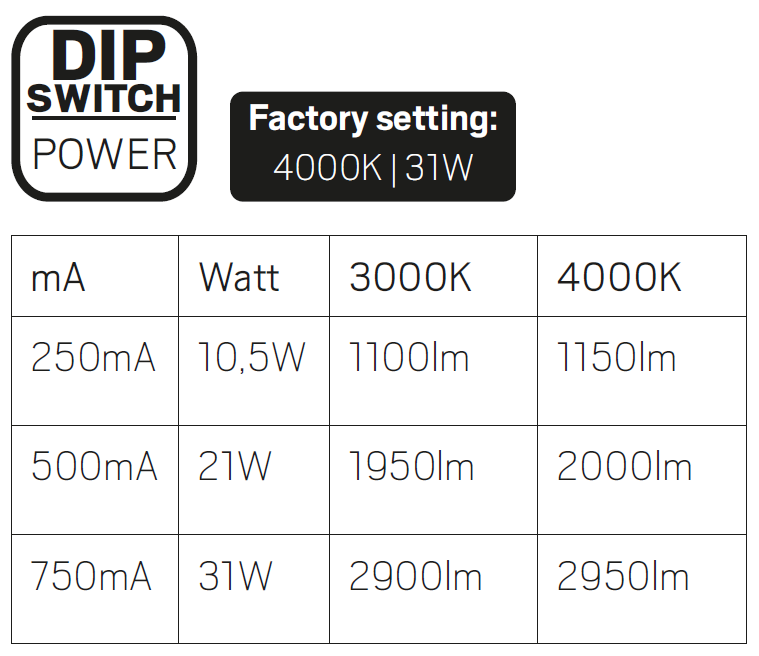

Type of Dimming DIP-Switch Power
Protection Against Short Circuit, Overload
Mains surge protection DM (kV) 1,5
Mains surge protection CM (kV) 1,5
Fuse B10 (pcs) 12
Fuse B16 (pcs) 19
Fuse C10 (pcs) 20
Fuse C16 (pcs) 32
Color and material
Material Aluminium
Color Antracit
Environmental Assessment Byggvarubedömningen

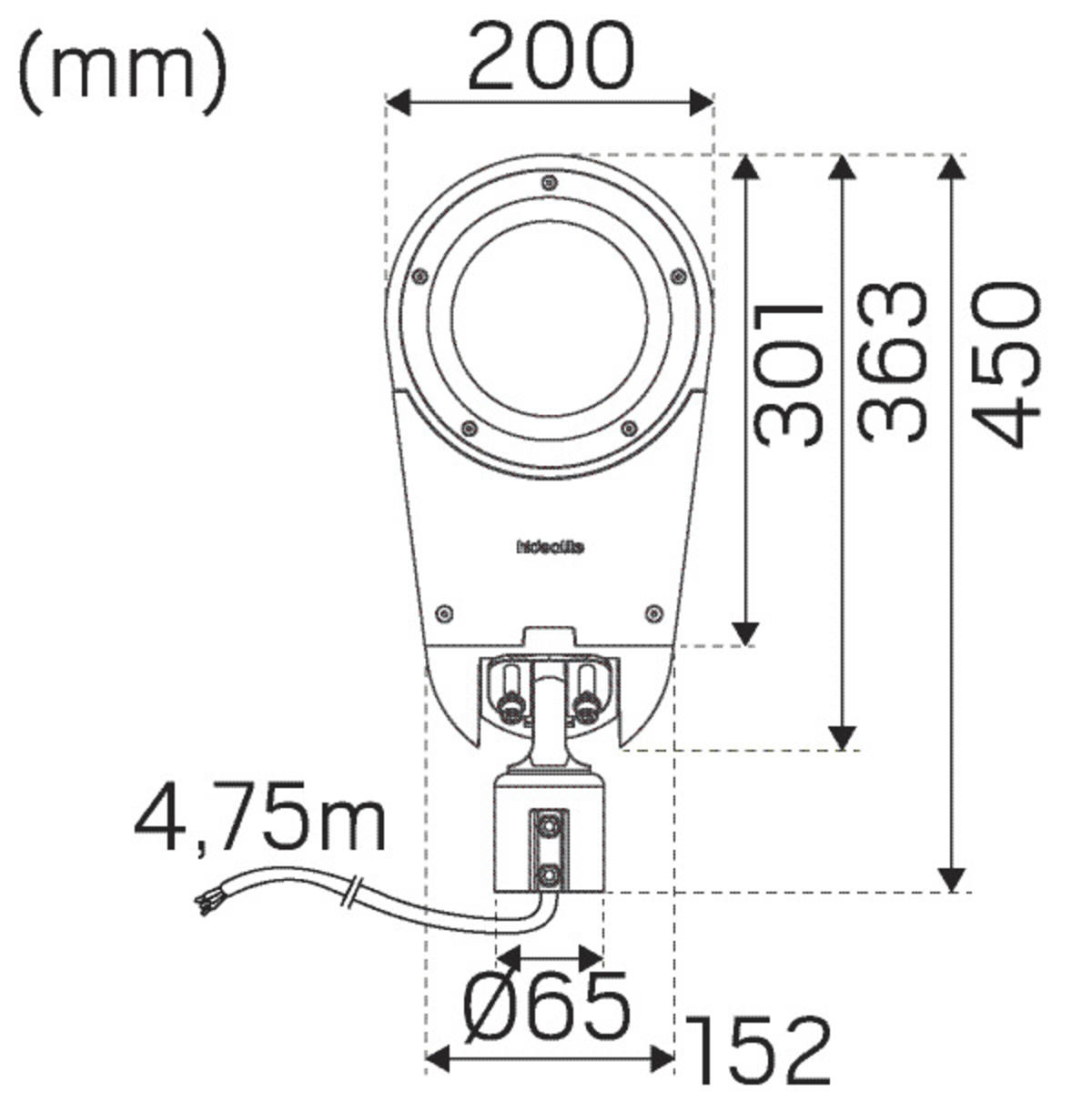

Measurement and installation
Operating Environment Indoor / dry locations, Outdoor
IP Degree of Protection 65
Protection Class I
Installation Post assembly
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK10
Length (mm) 450
Width (mm) 200
Height (mm) 61
Weight (kg) 2,76
