Arc

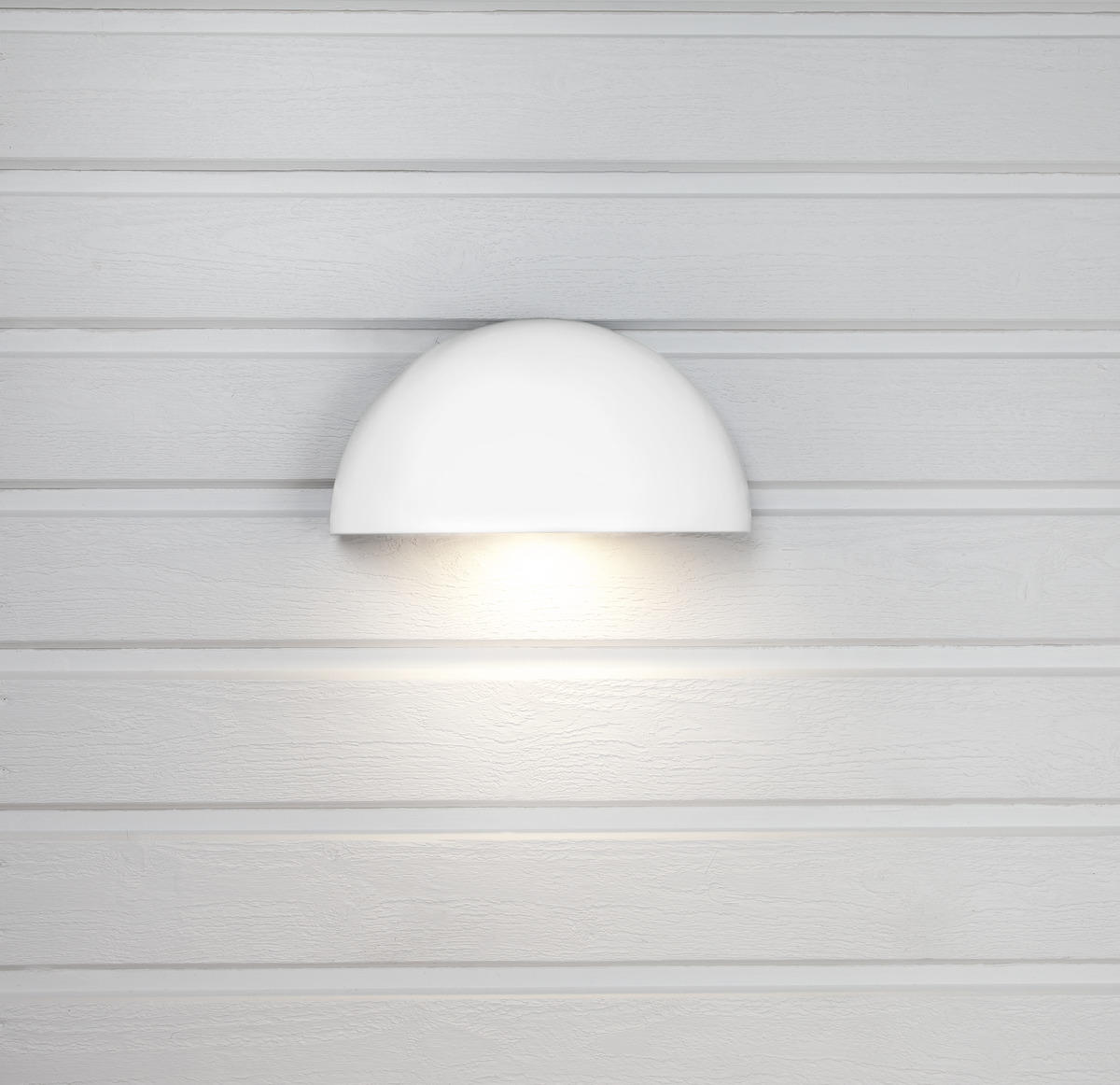

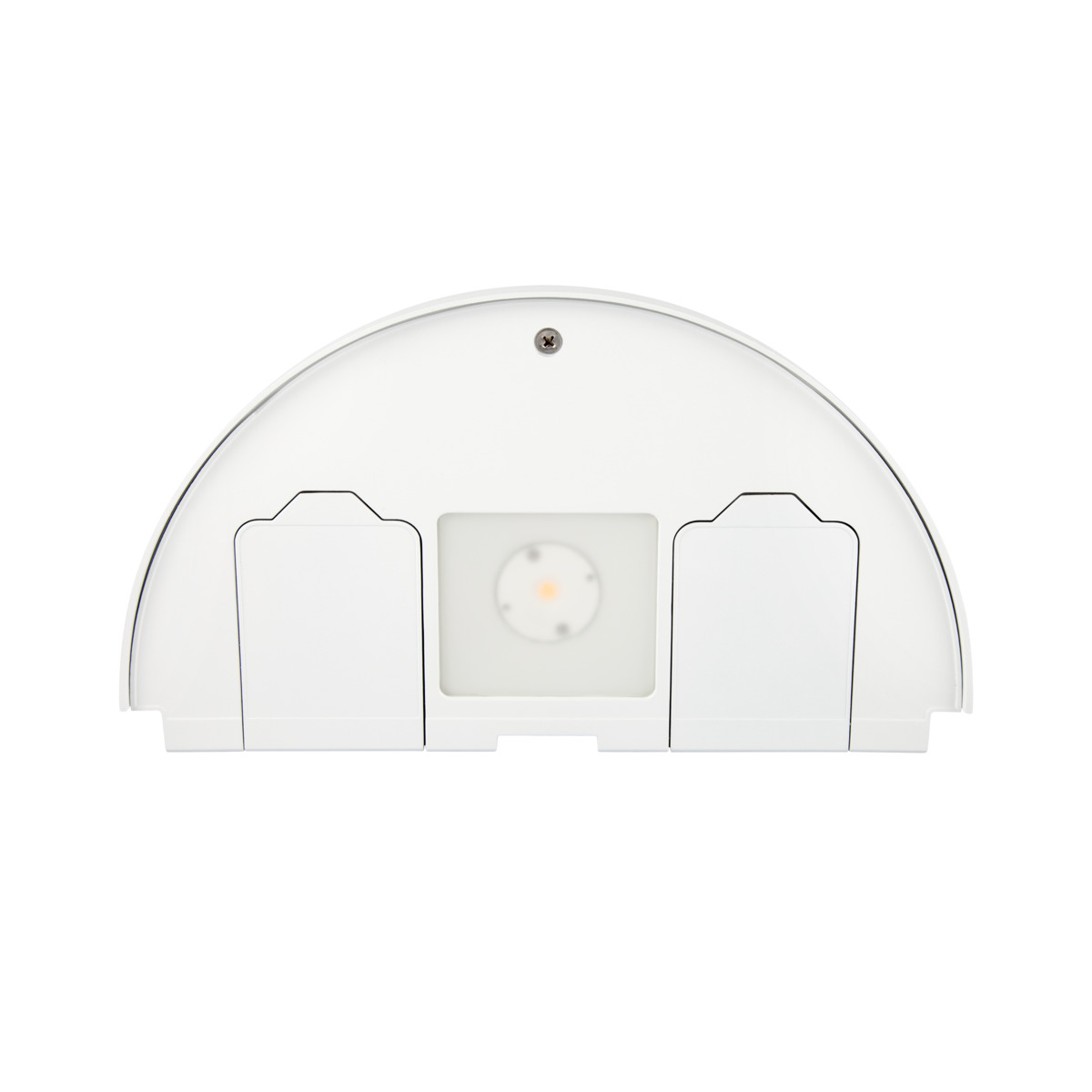

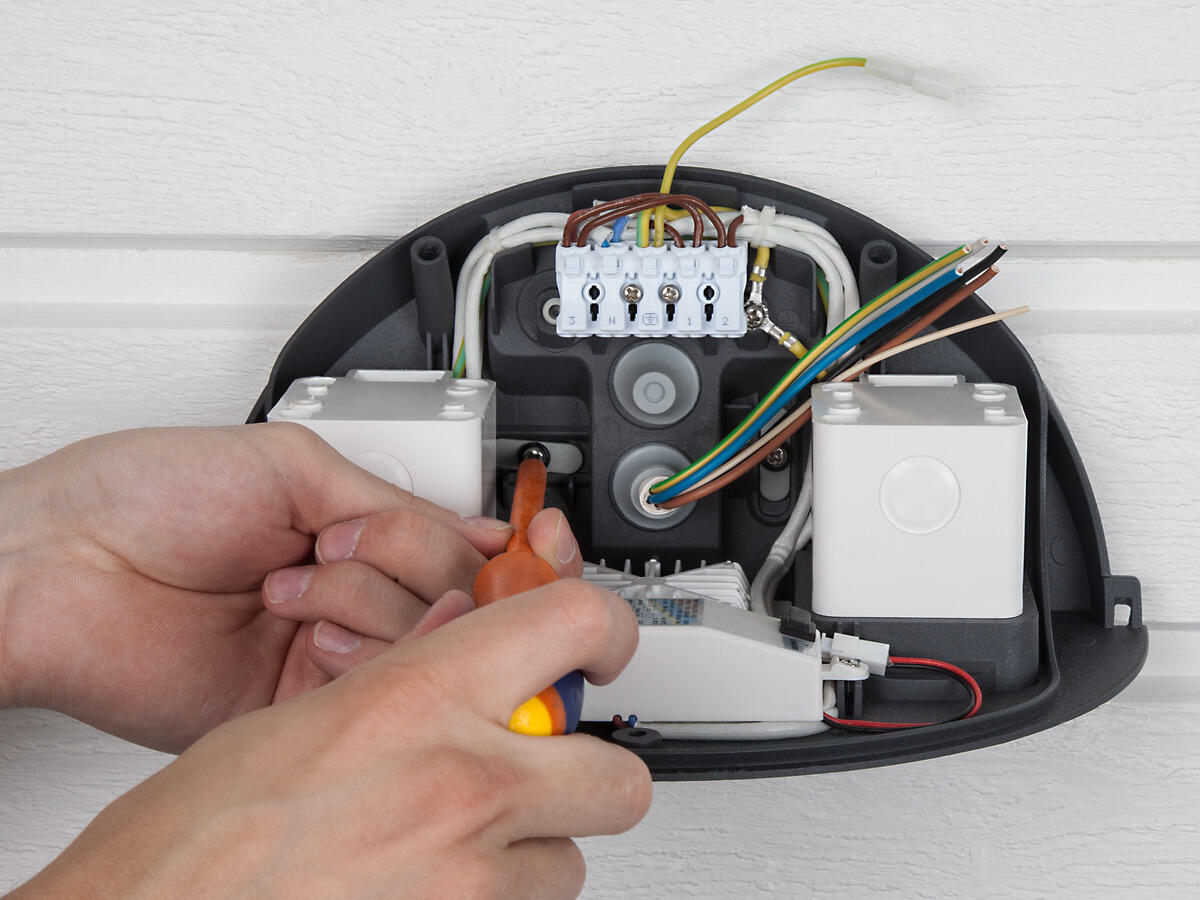

Facade luminaire in traditional design with a pleasant, even and wide light distribution on the wall. The luminaire comes with or without two integrated electric sockets on the underside, perfect for garden tools, electric grills or winter decorations. Possible to control sockets and lighting separately. Very simple installation thanks to separate body, few screws and lots of room. Integrated driver with adjustable light level via DIP-Switch Power. Can be dimmed using external driver, see user instructions.

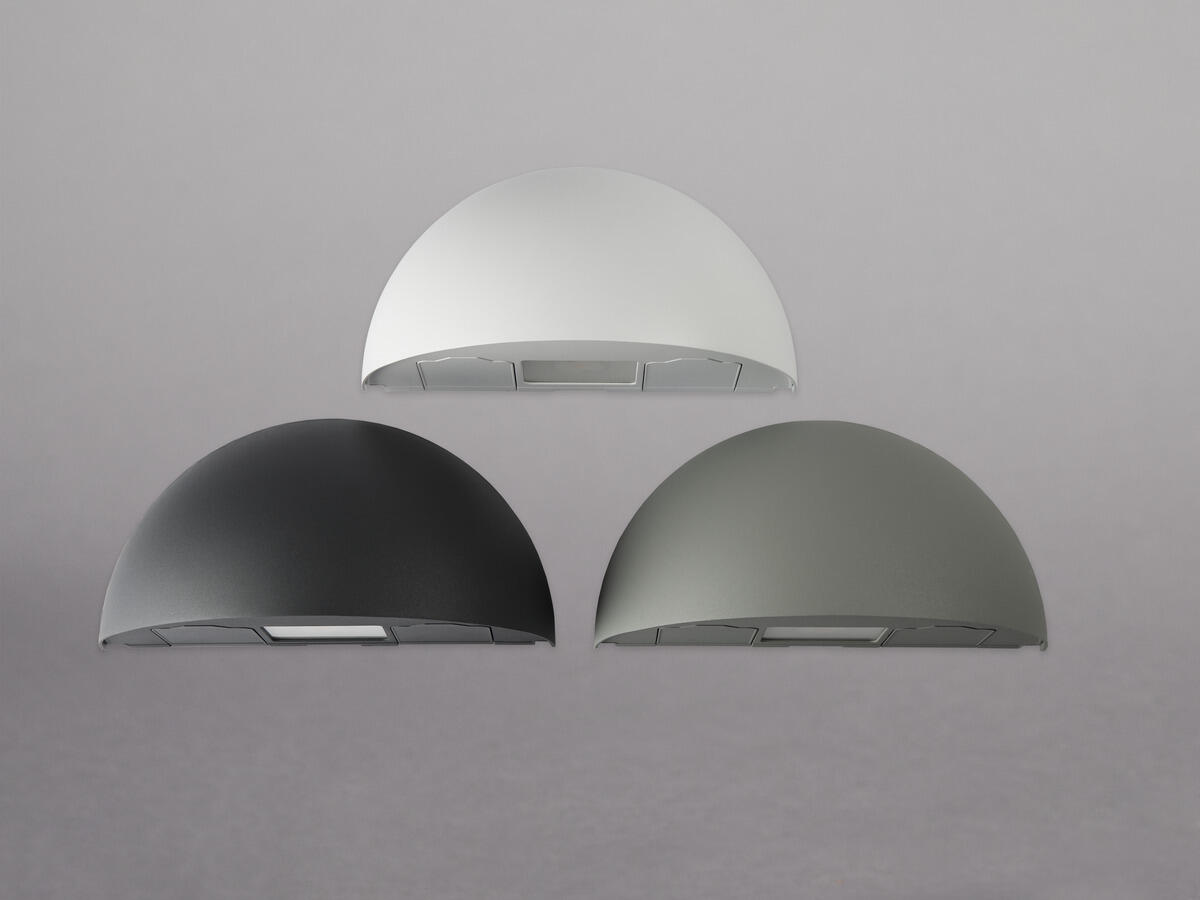

Variants
| GTIN | Item Name | Color | |
|---|---|---|---|
|
7392971131290 | Arc White 3000K | White |
|
7392971131306 | Arc Grey 3000K | Grey |
|
7392971131313 | Arc Anthracite 3000K | Antracit |
Arc White 3000K
- Description
-
GTIN
7392971131290
Item Name Arc White 3000K
Warranty 5 years
- Light Technical Data
-
Light Source
LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Replaceable Control gear by professional
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Initial Chromaticity x:0,434 y:0,403
Luminous Intensity (cd) 225
Luminaire Lumen (lm) 575
Beam Angle (°) 100
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 80 000h Ta 25°C
Nominel Life Time (h) 80000
Life Time Driver 50 000h/10%
- Technical data
-
Voltage (type)
AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Voltage Forward (Vf) 18
Power LED (W) 5,5
Power Luminaire (W) 7
System Power (W) 7
Efficiency Luminaire (lm/W) 82
Efficiency System (lm/W) 82
Containing light source energy efficiency class (EU) 2019/2015 F
- Operation and Connection
-
Driver Included
Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 3x0,75-2,5
Through Wiring Yes
Strain Relief Yes
Operating Temperature
Max. Tc (°C) 80
Dimmable No
Type of Dimming DIP 60% 100%, DIP-Switch Power
Fuse B10 (pcs) 50
Fuse B16 (pcs) 80
Fuse C10 (pcs) 58
Fuse C16 (pcs) 93
- Color and material
-
Material
Diecasted, Aluminium
Material Housing/Enclosure Plastic
Color White
Environmental Assessment SundaHus, Byggvarubedömningen
- Measurement and installation
-
Operating Environment
IP Degree of Protection 65
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK10

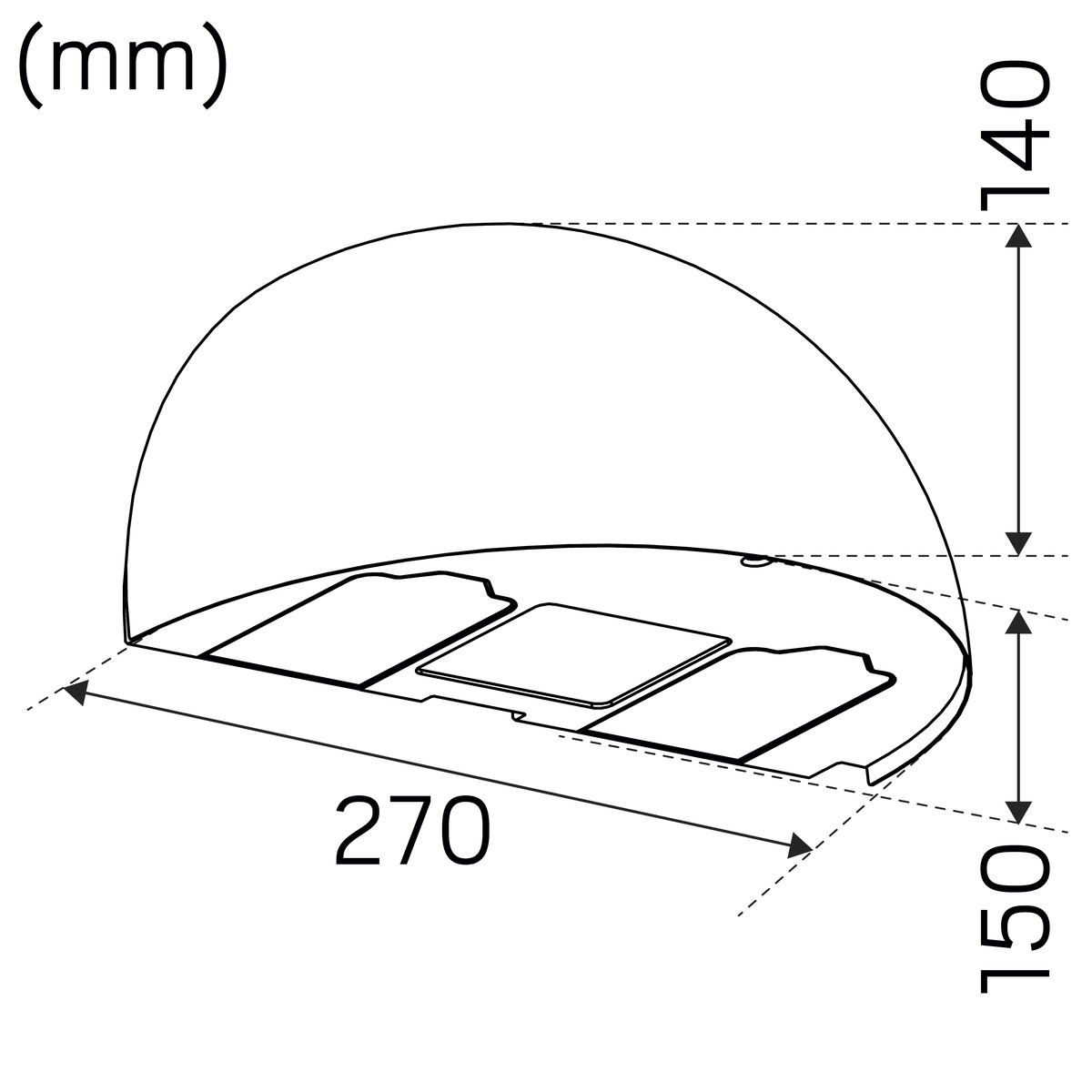

Length (mm) 270
Width (mm) 140
Height (mm) 150
Weight (kg) 1,38
