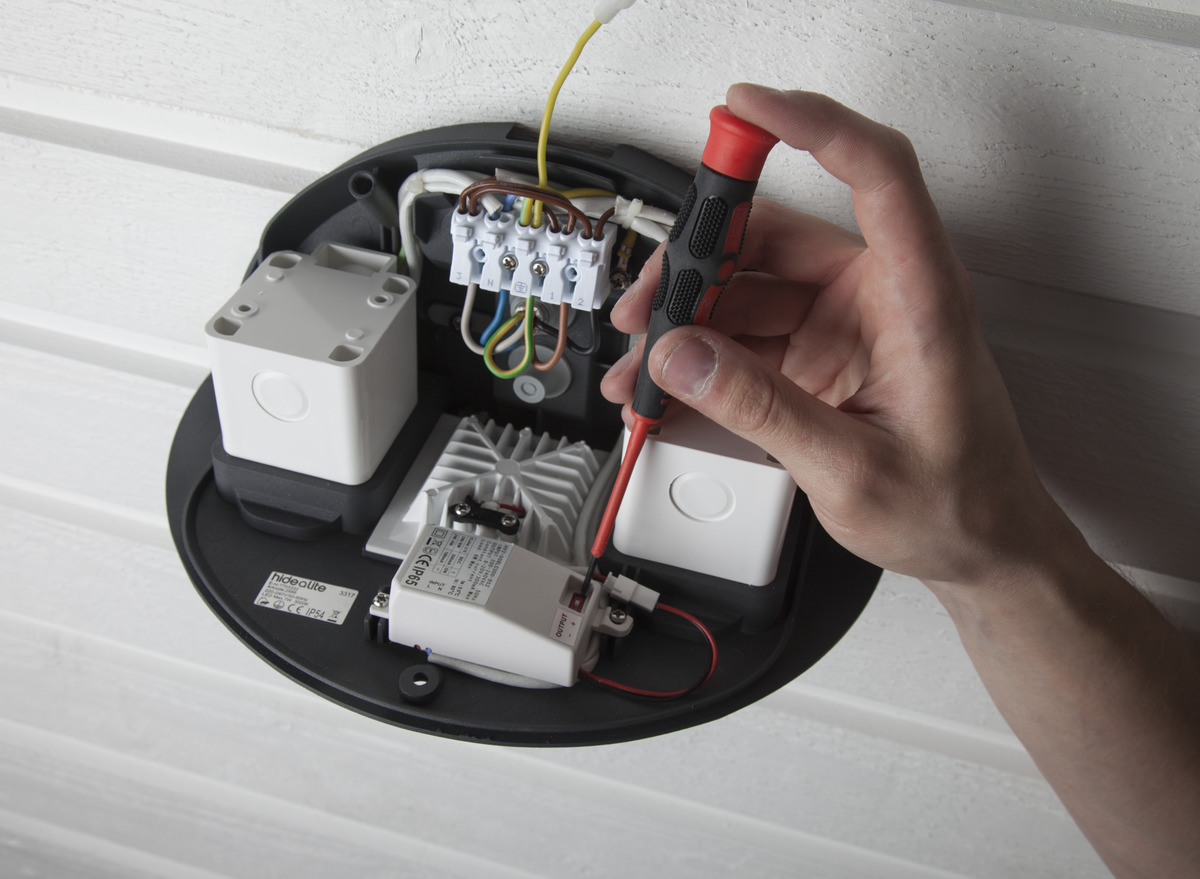

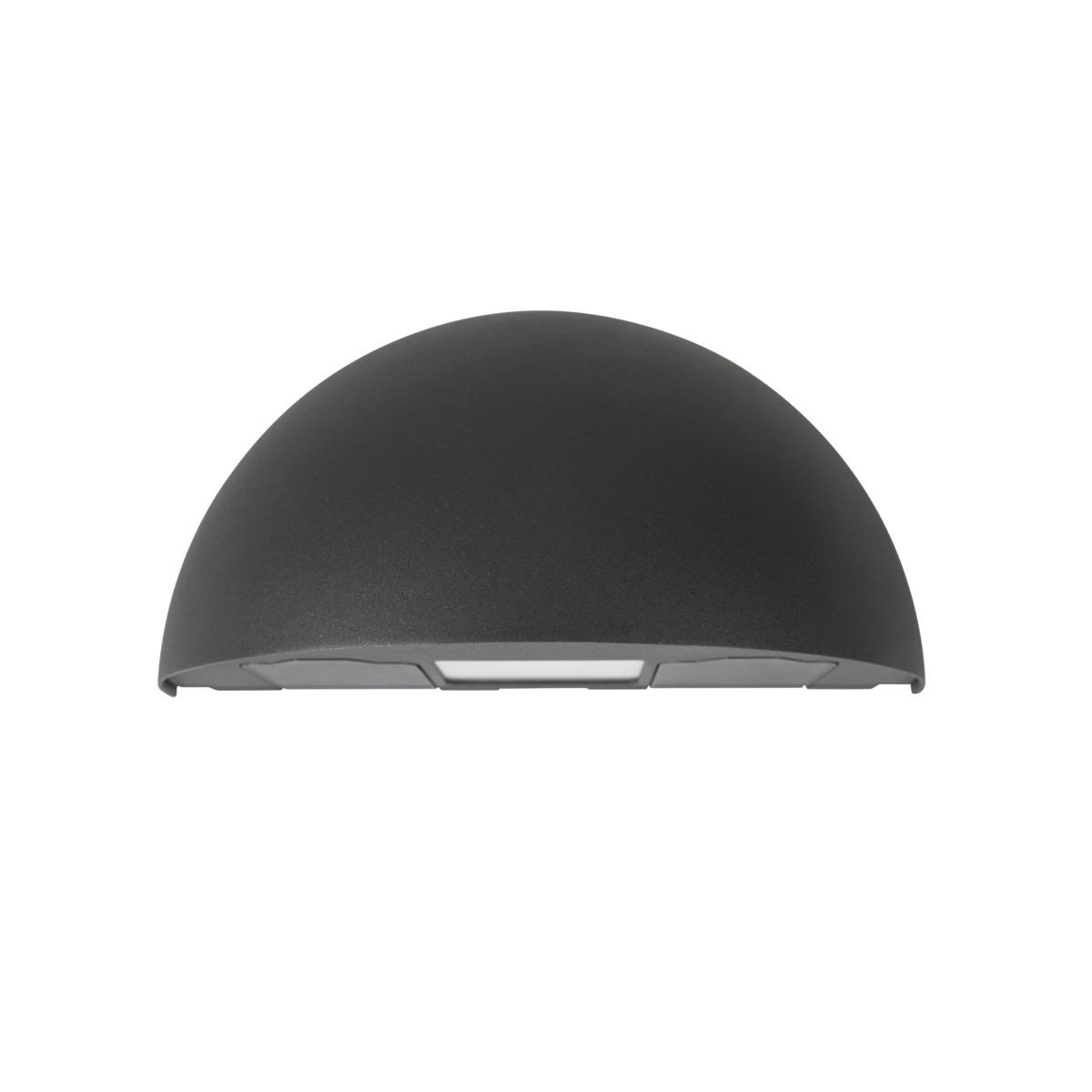

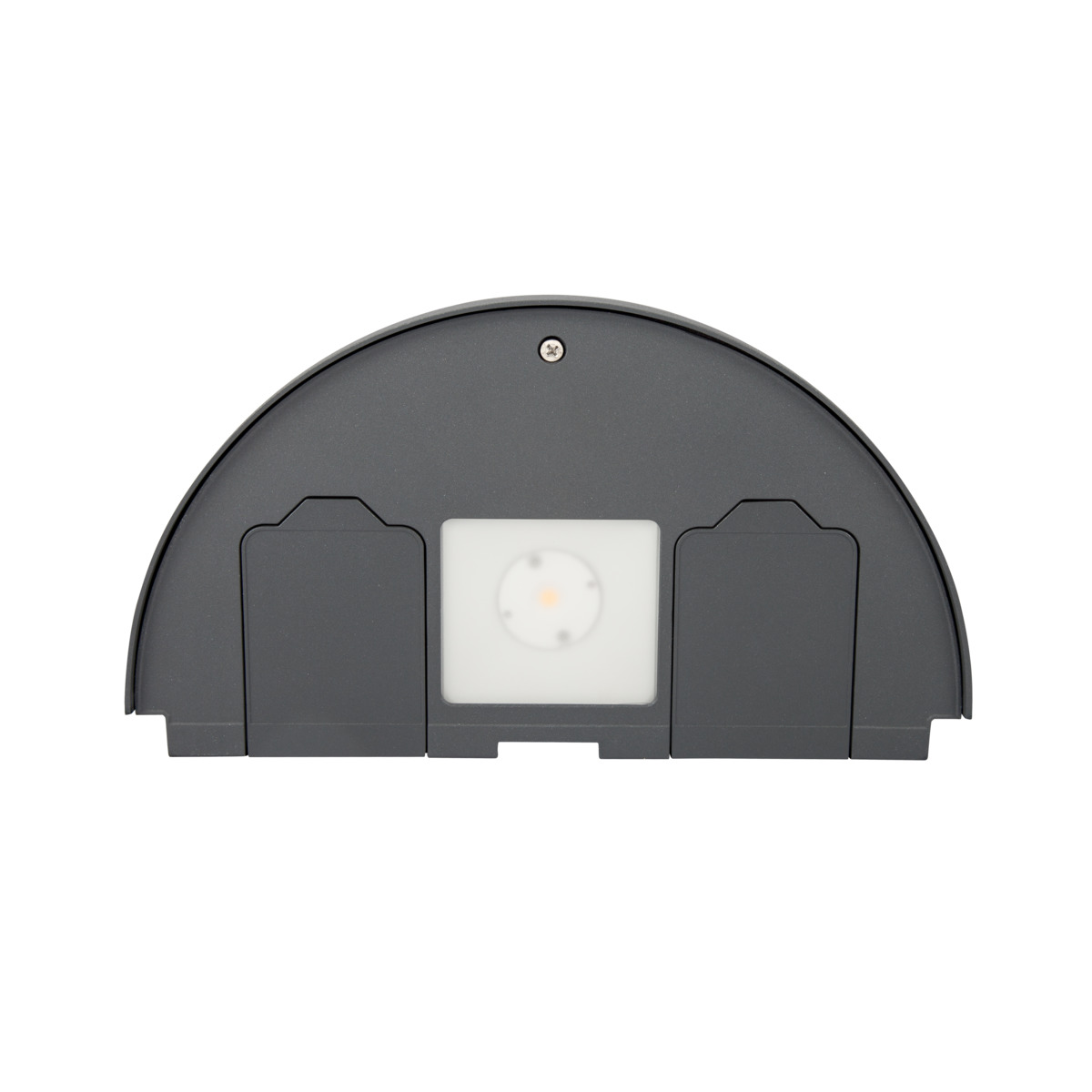

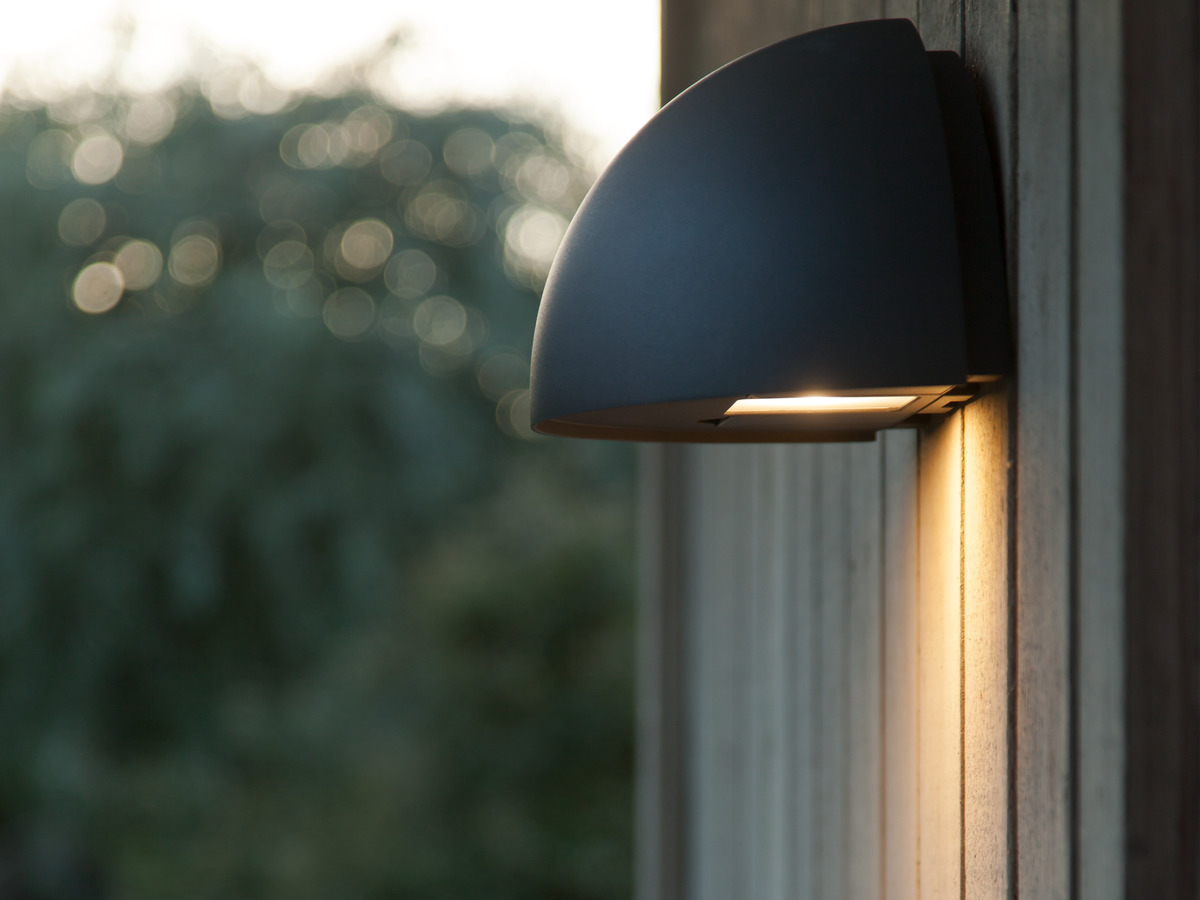

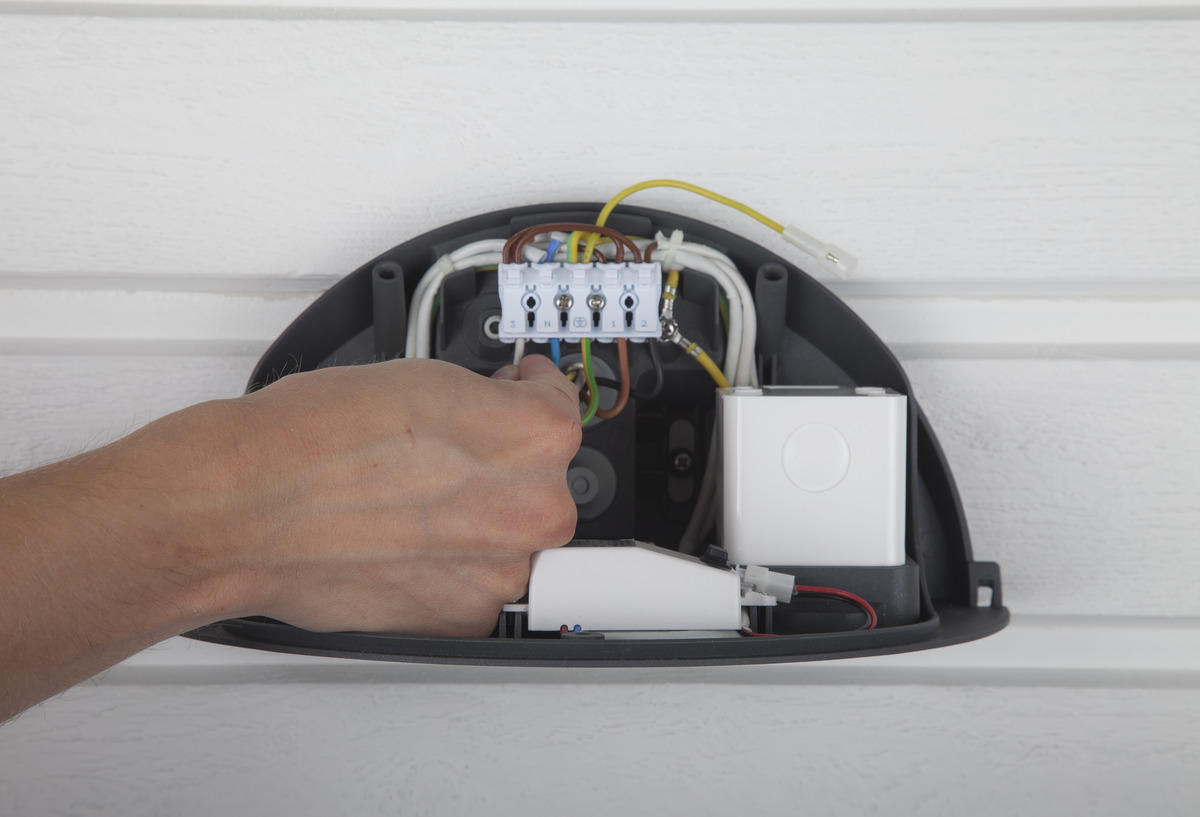

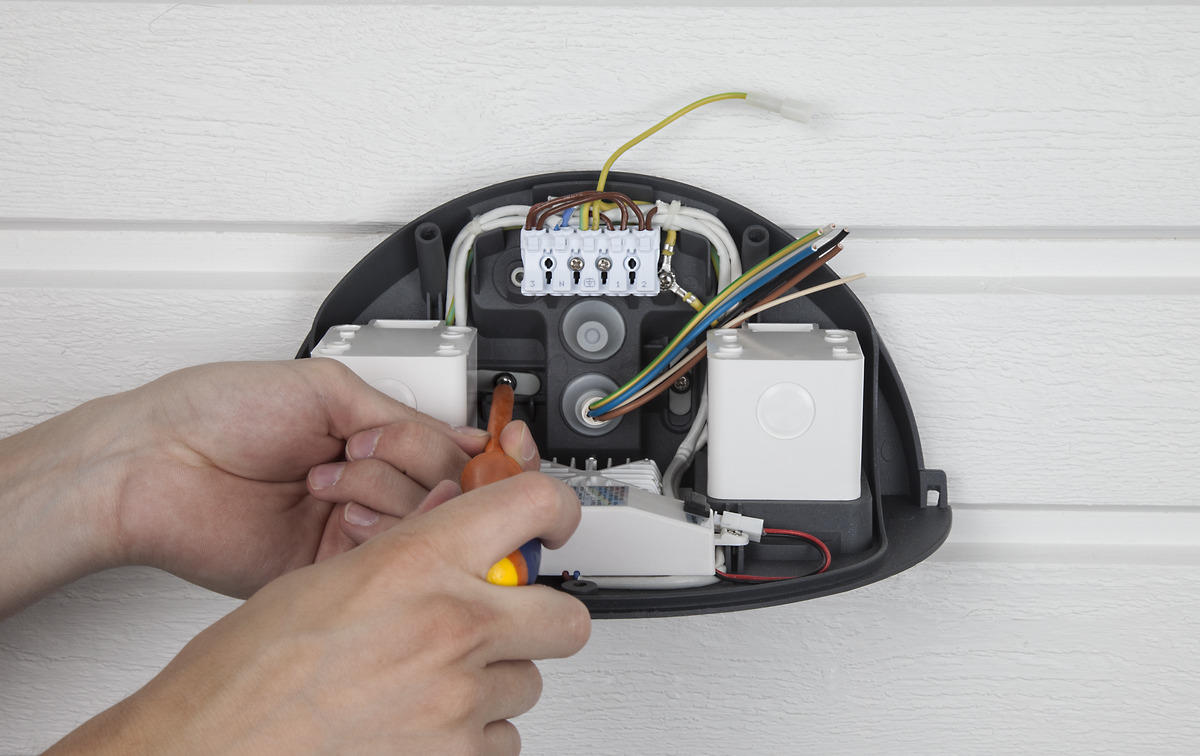

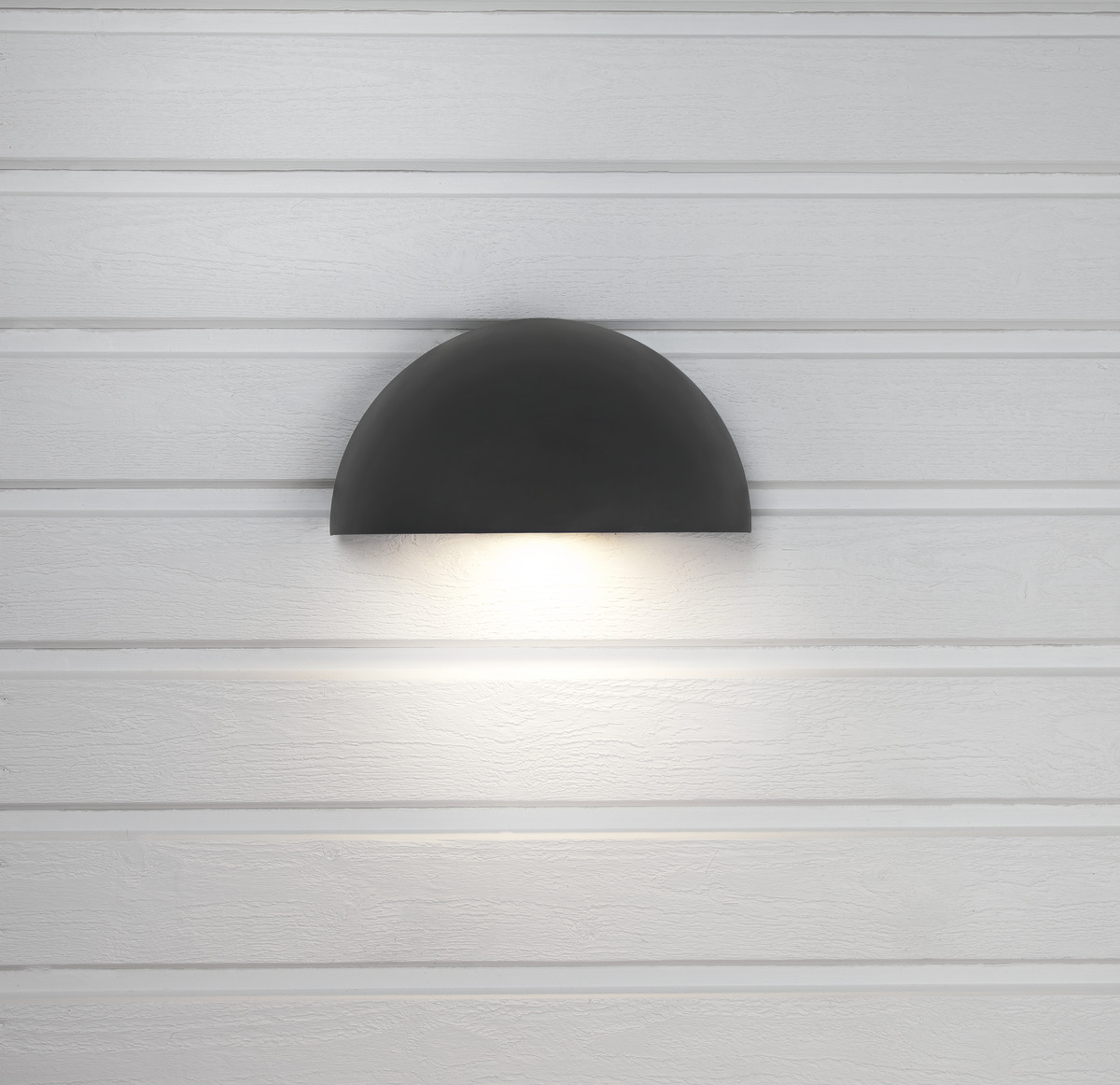

Facade luminaire in traditional design with a pleasant, even and wide light distribution on the wall. The luminaire comes with or without two integrated electric sockets on the underside, perfect for garden tools, electric grills or winter decorations. Possible to control sockets and lighting separately. Very simple installation thanks to separate body, few screws and lots of room. Integrated driver with adjustable light level via DIP switch. Can be dimmed using external driver, see user instructions.
Exists in several colors
  • Vit
  • Grå
  • Antracit


GTIN Item Name Color
Arc Anthracite 3000K 7392971131313 Arc Anthracite 3000K Antracit
Arc White 3000K 7392971131290 Arc White 3000K White
Arc Grey 3000K 7392971131306 Arc Grey 3000K Grey
GTIN 7392971131313
Item Name Arc Anthracite 3000K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 225
Luminaire Lumen (lm) 575
Beam Angle (°) 100
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 80 000h Ta 25°C
Nominel Life Time (h) 80000
Life Time Driver 50 000h/10%
Technical data
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Voltage Forward (Vf) 18
Power LED (W) 5,5
Power Luminaire (W) 7
System Power (W) 7
Efficiency Luminaire (lm/W) 82
Efficiency System (lm/W) 82
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 3x0,75-2,5
Through Wiring Yes
Strain Relief Yes
Operating Temperature -25…+50
Max. Tc (°C) 80
Dimmable No
Type of Dimming DIP 60% 100%
Fuse B10 (pcs) 50
Fuse B16 (pcs) 80
Fuse C10 (pcs) 58
Fuse C16 (pcs) 93
Color and material
Material Diecasted, Aluminium
Material Housing/Enclosure Plastic
Color Antracit
Environmental Assessment SundaHus, Byggvarubedömningen

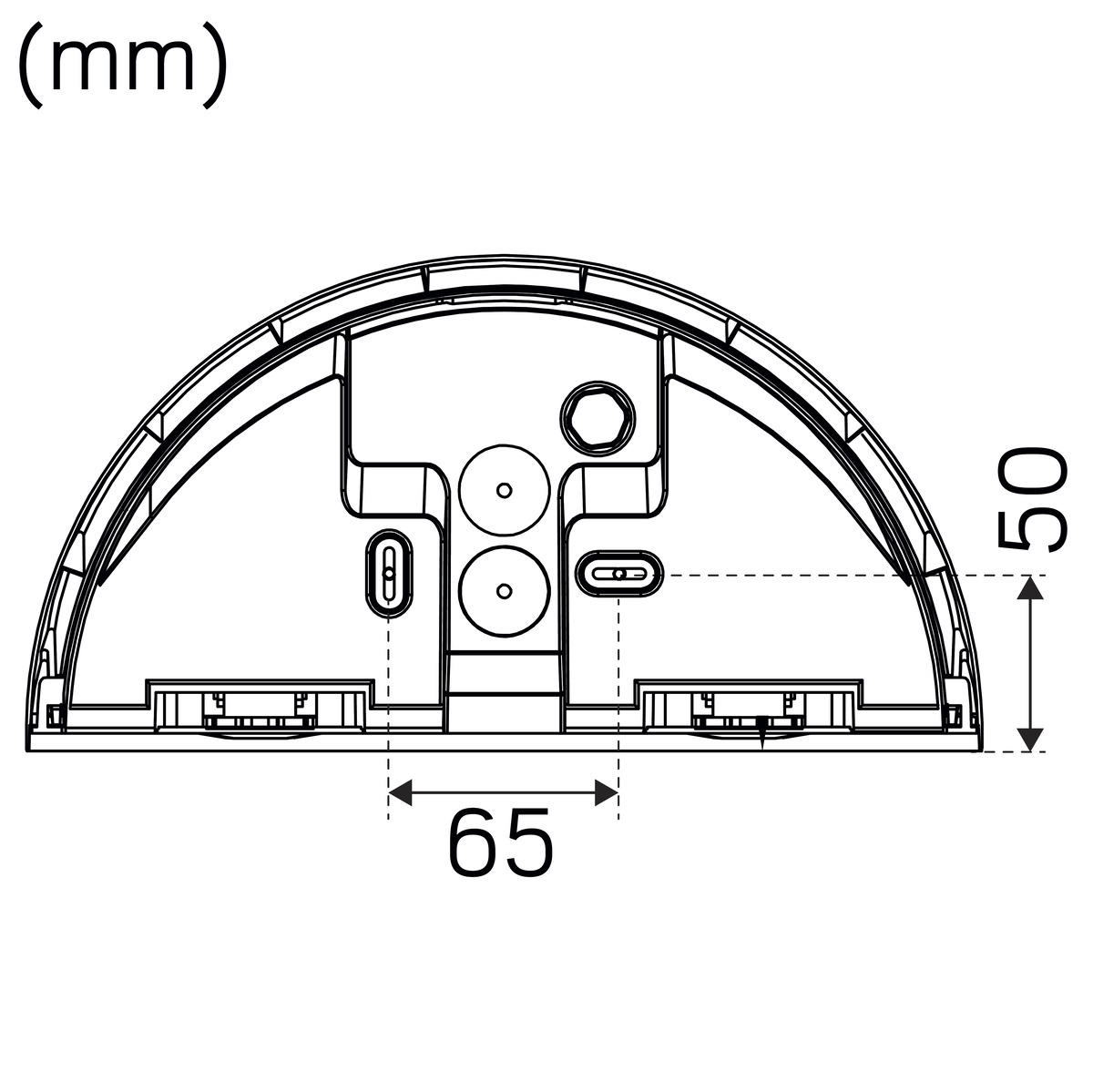

Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 65
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK10

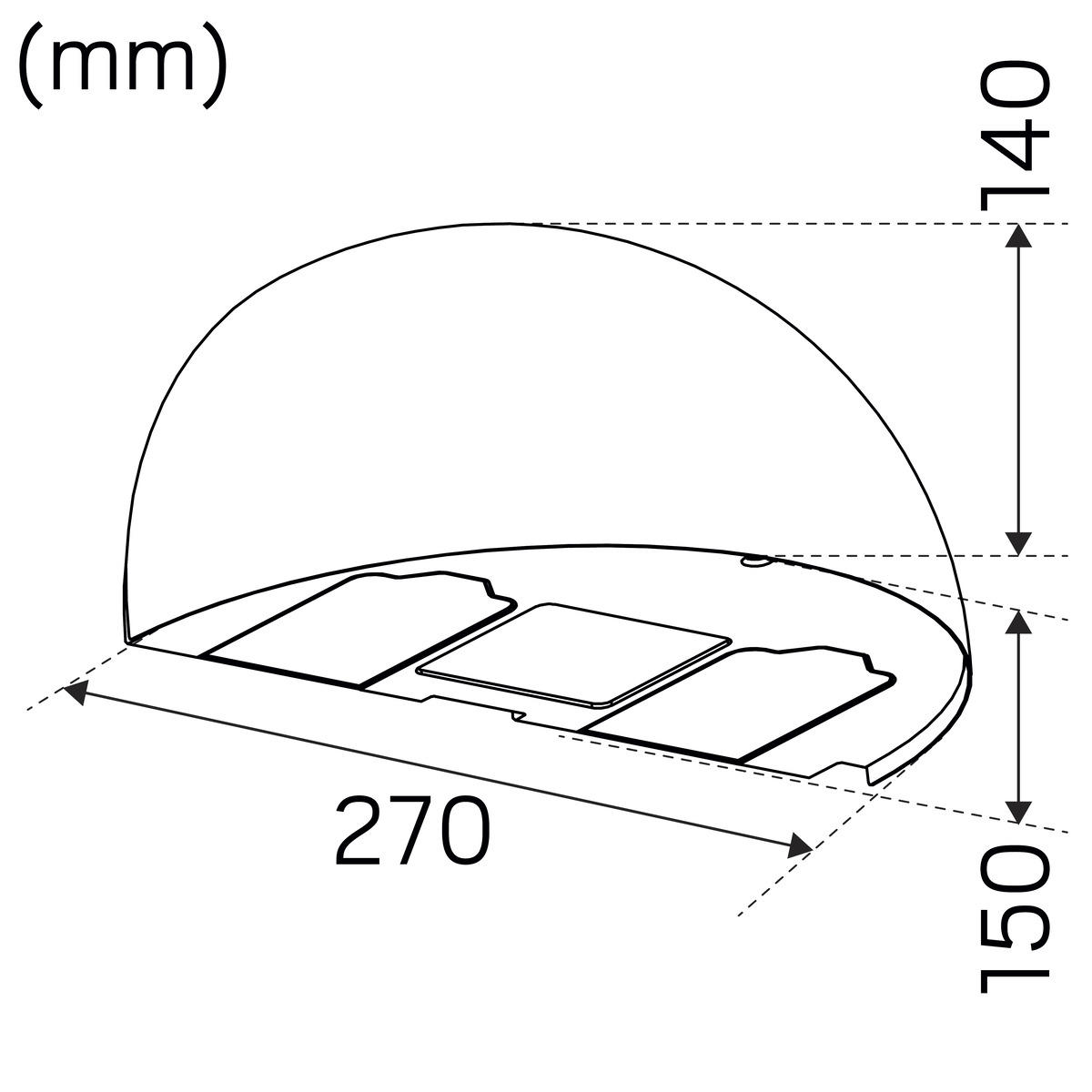

Length (mm) 270
Width (mm) 140
Height (mm) 150
Weight (kg) 1,38
