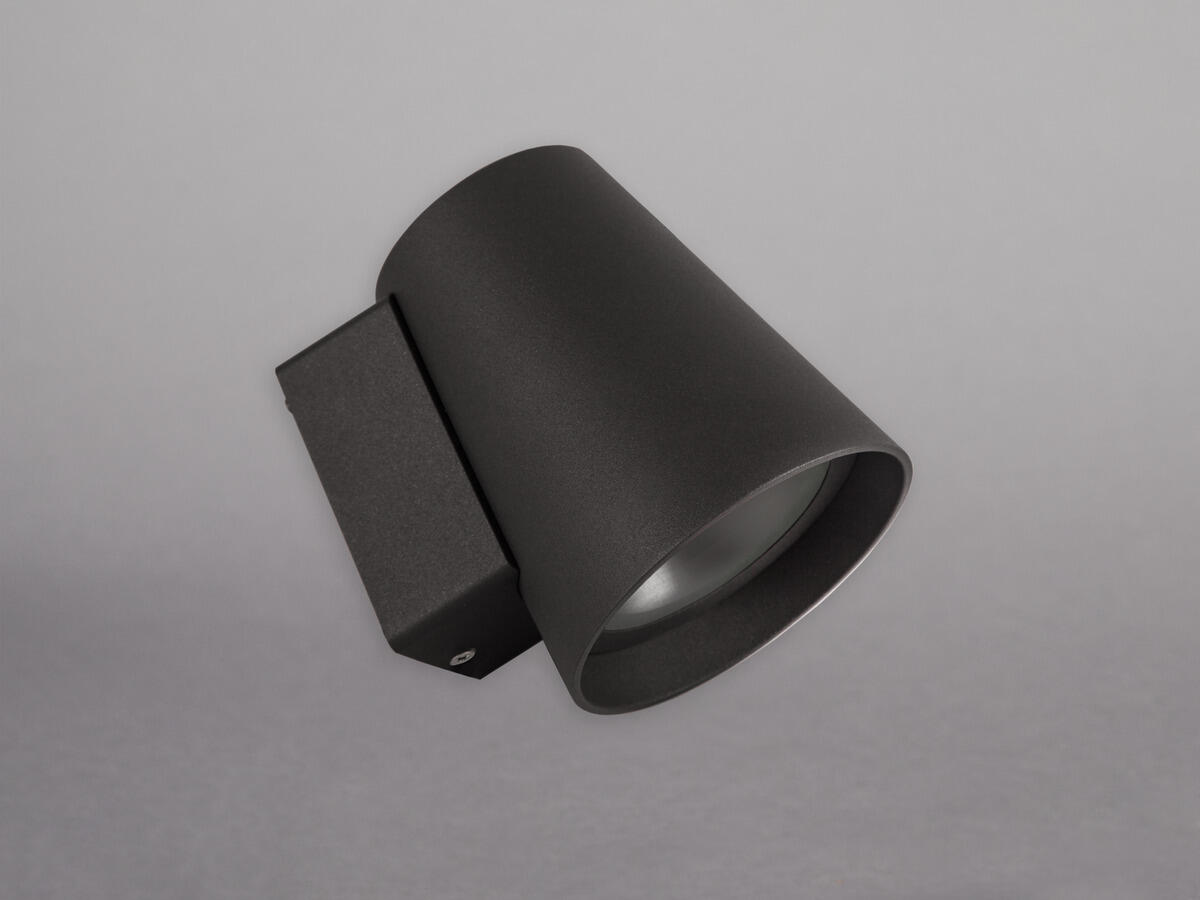

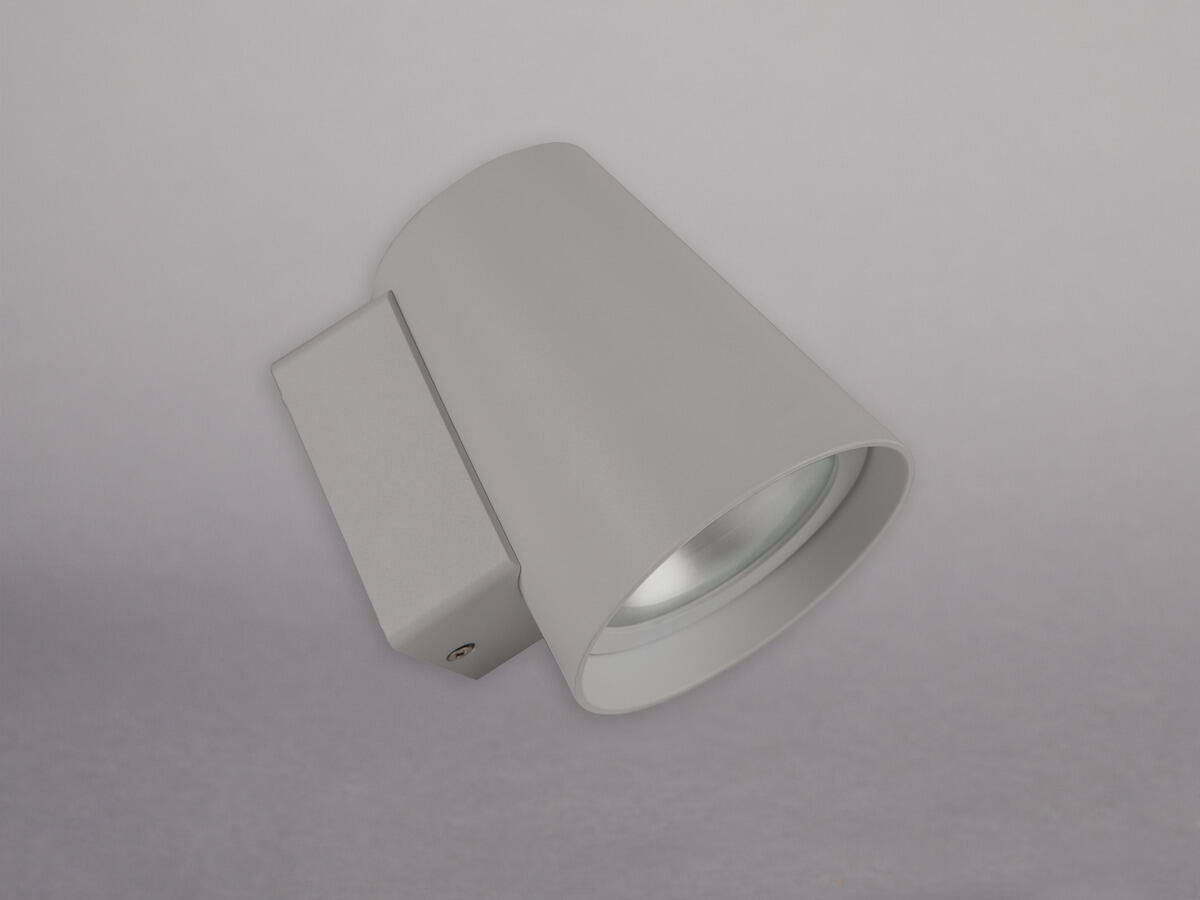

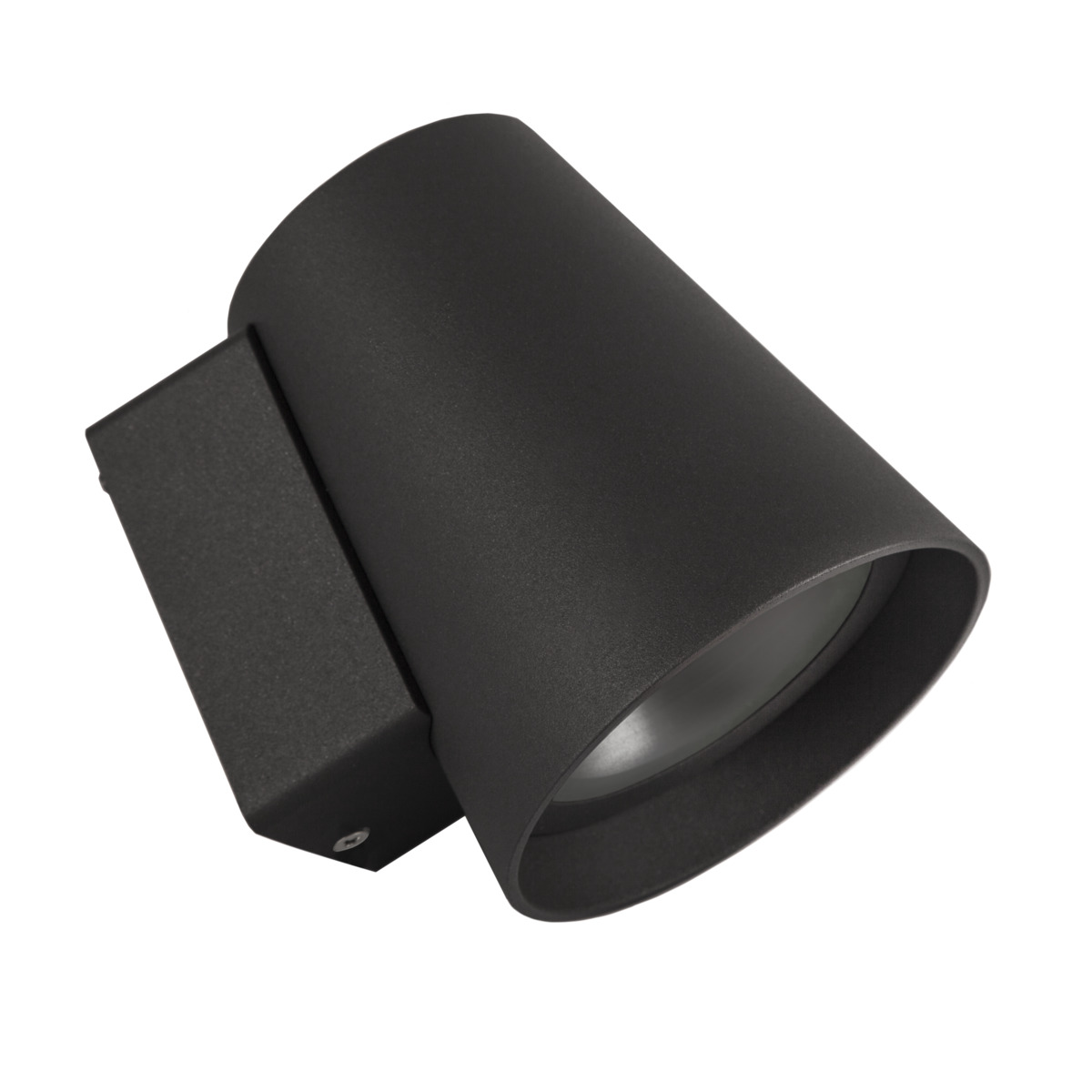

Cone

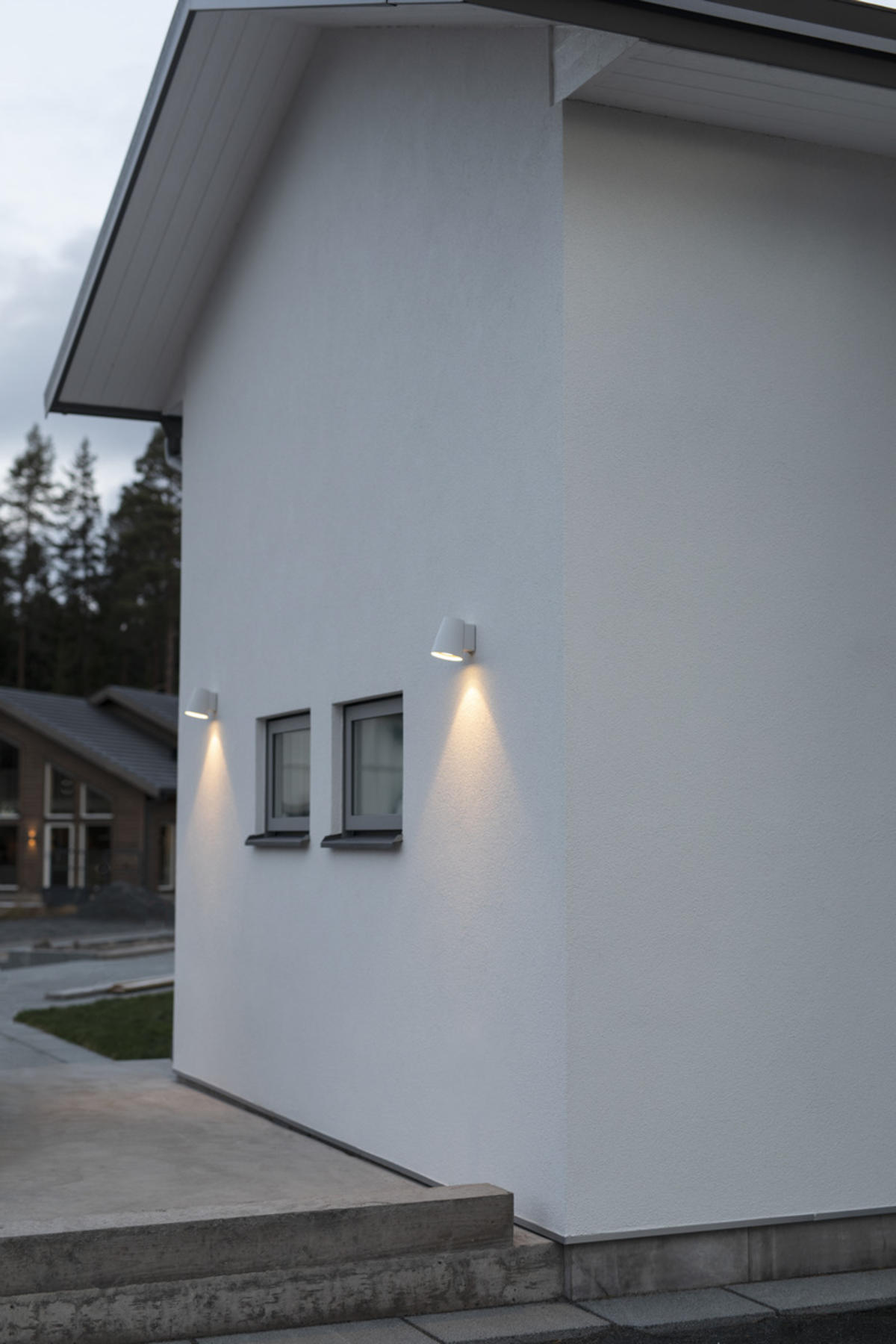

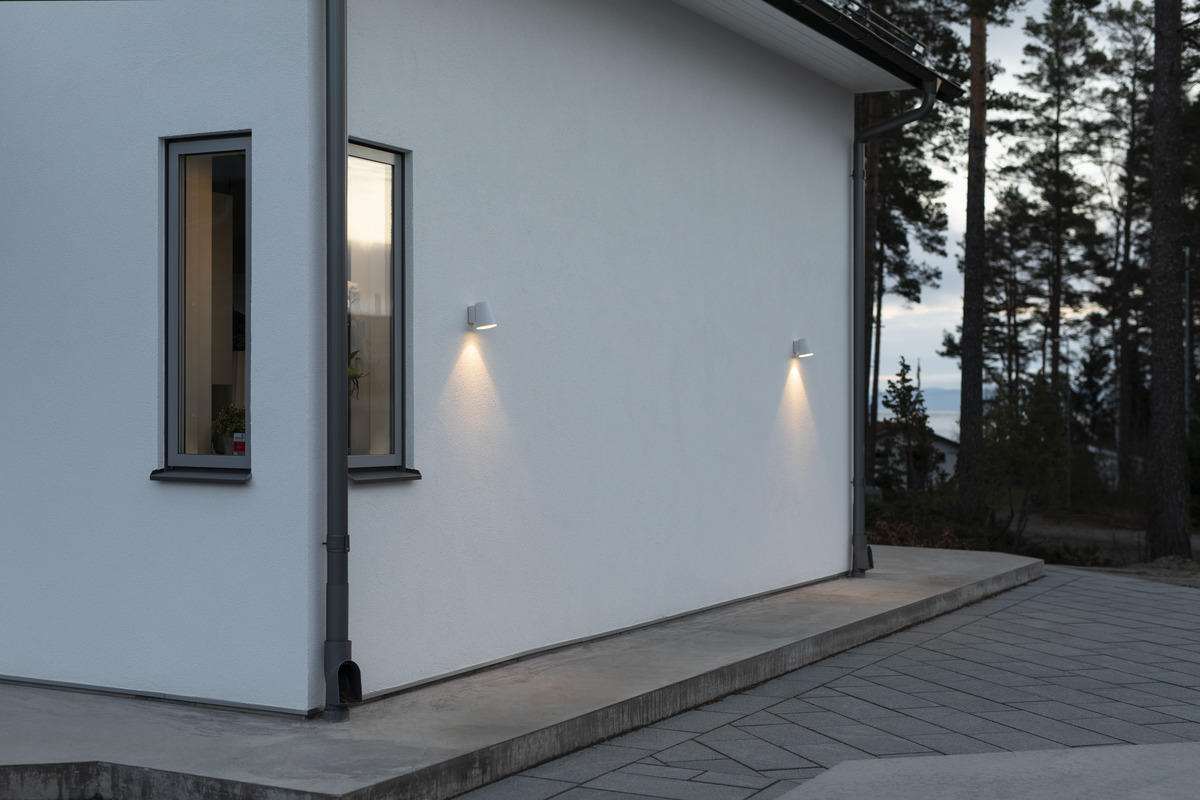

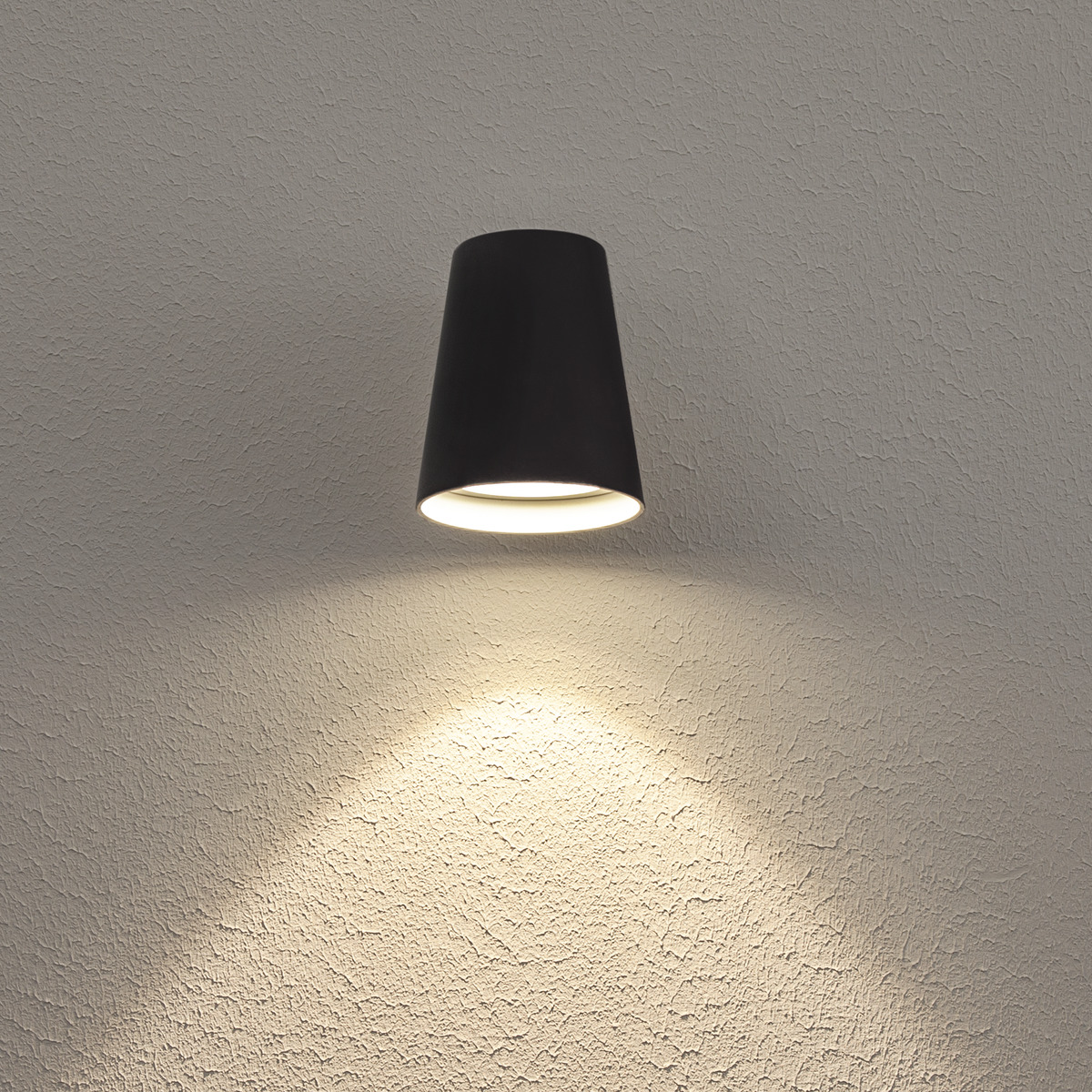

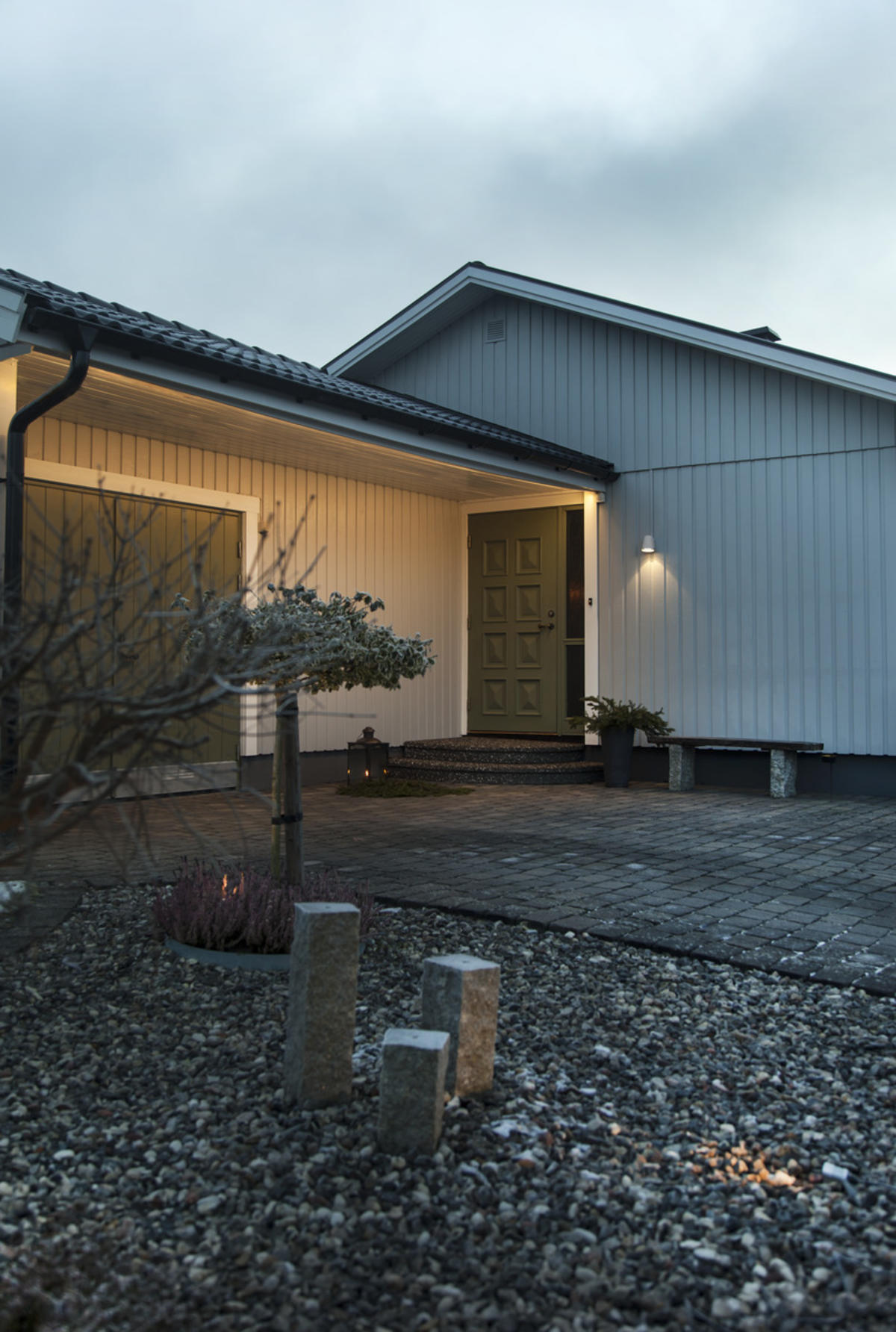

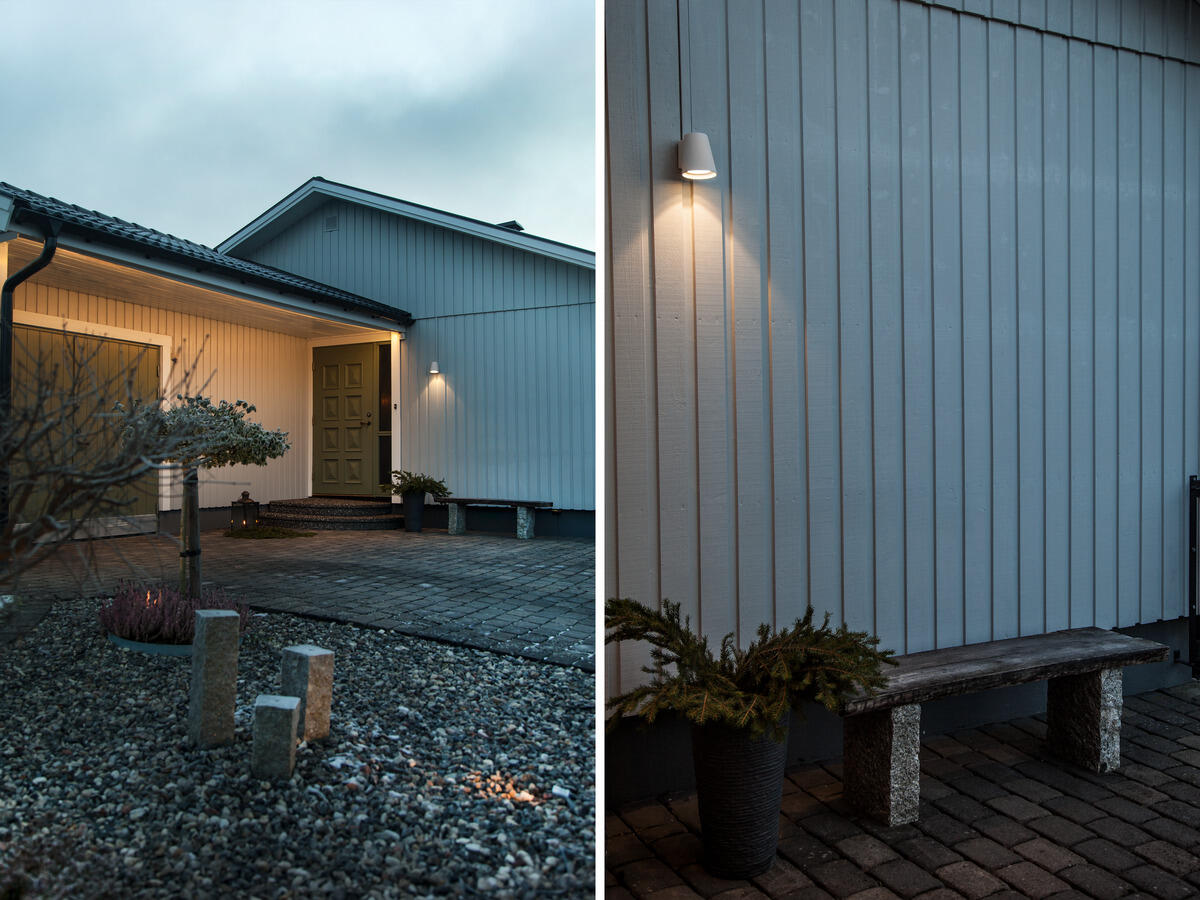

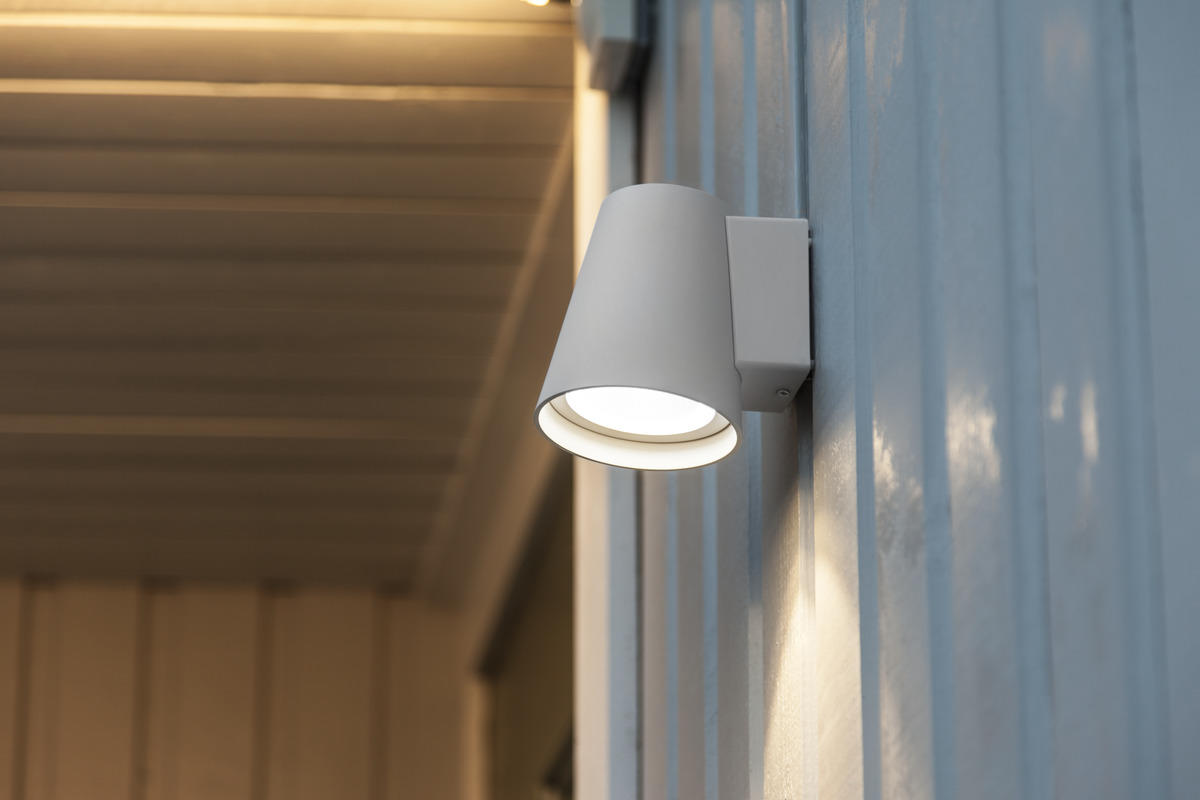

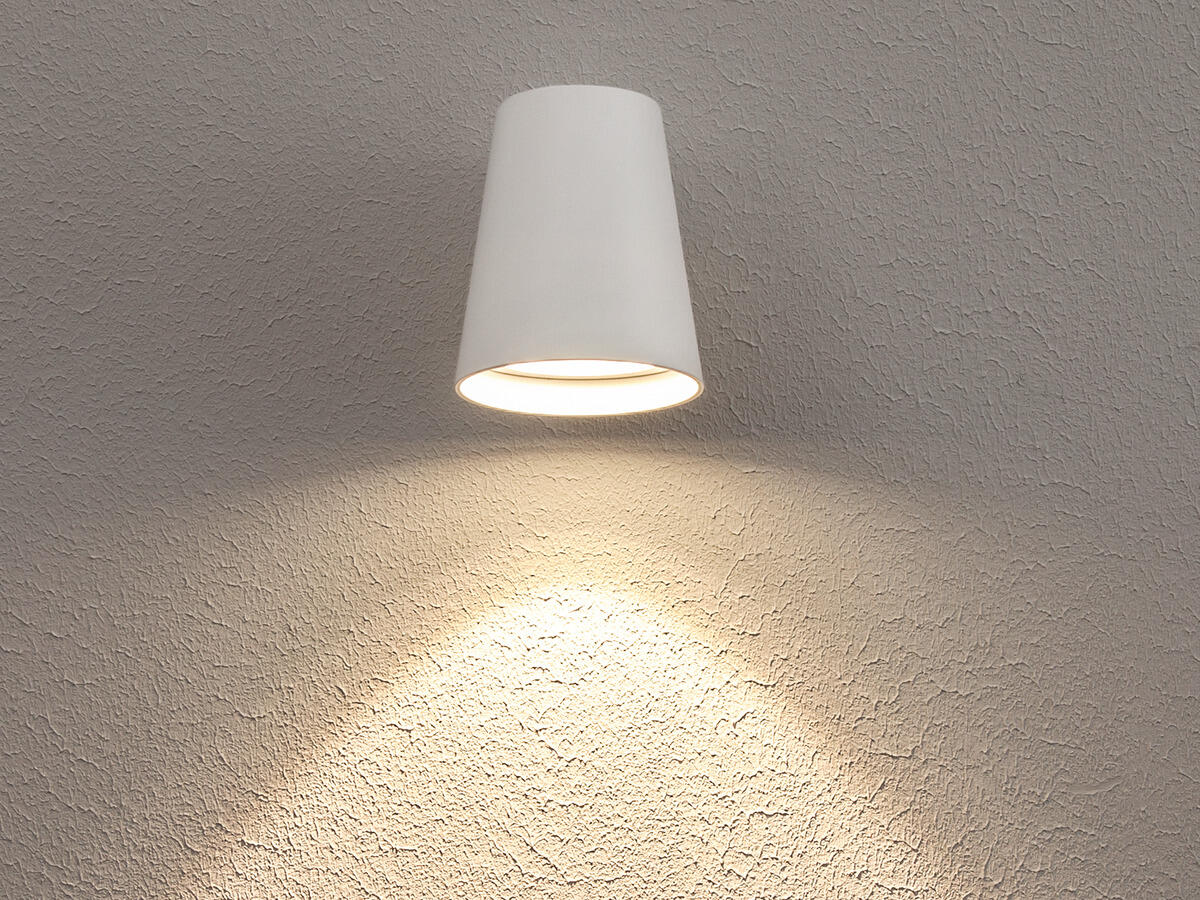

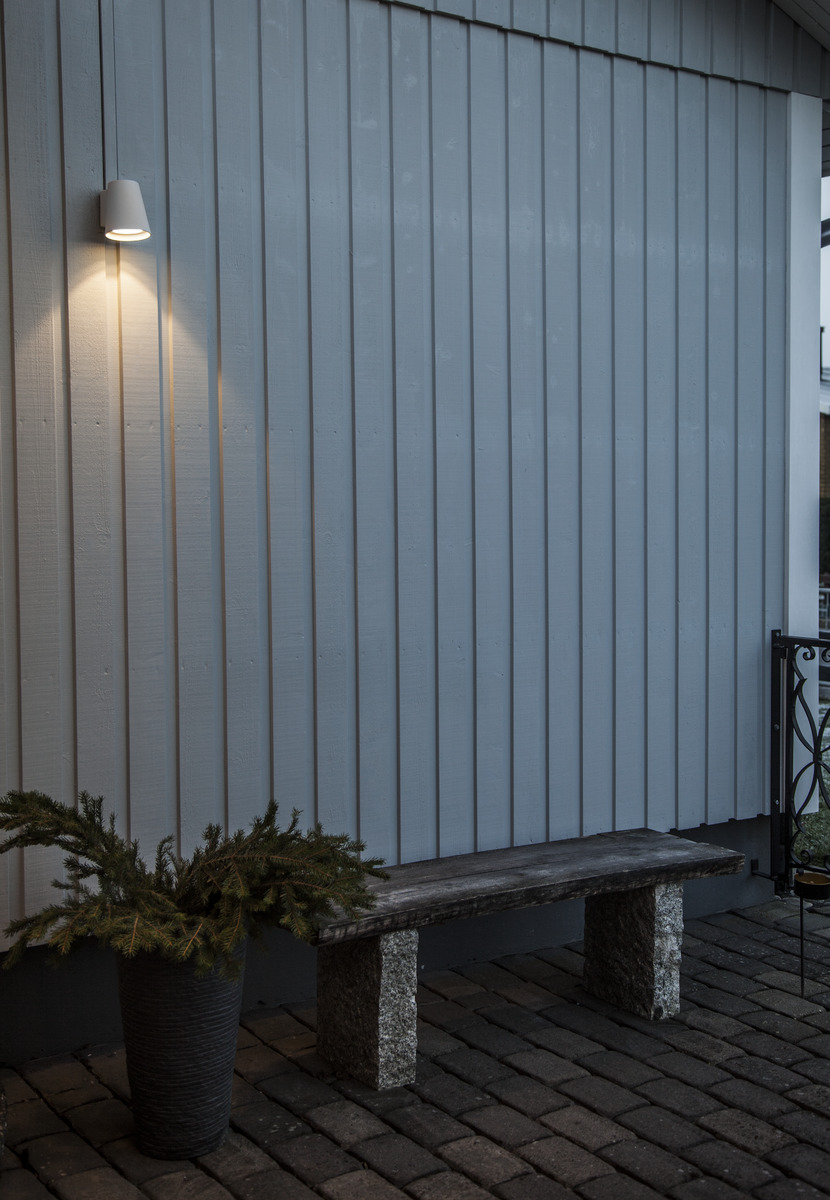

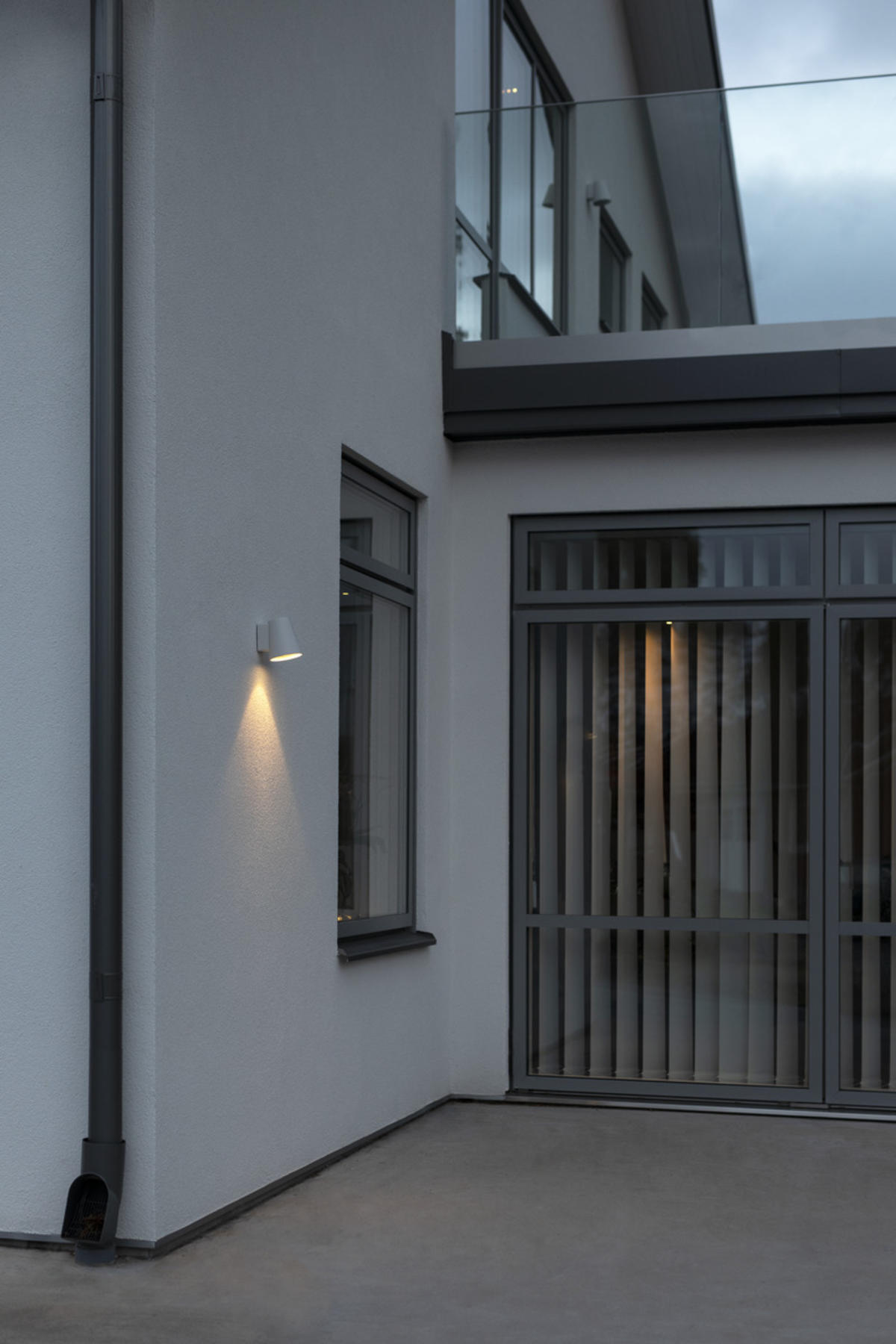

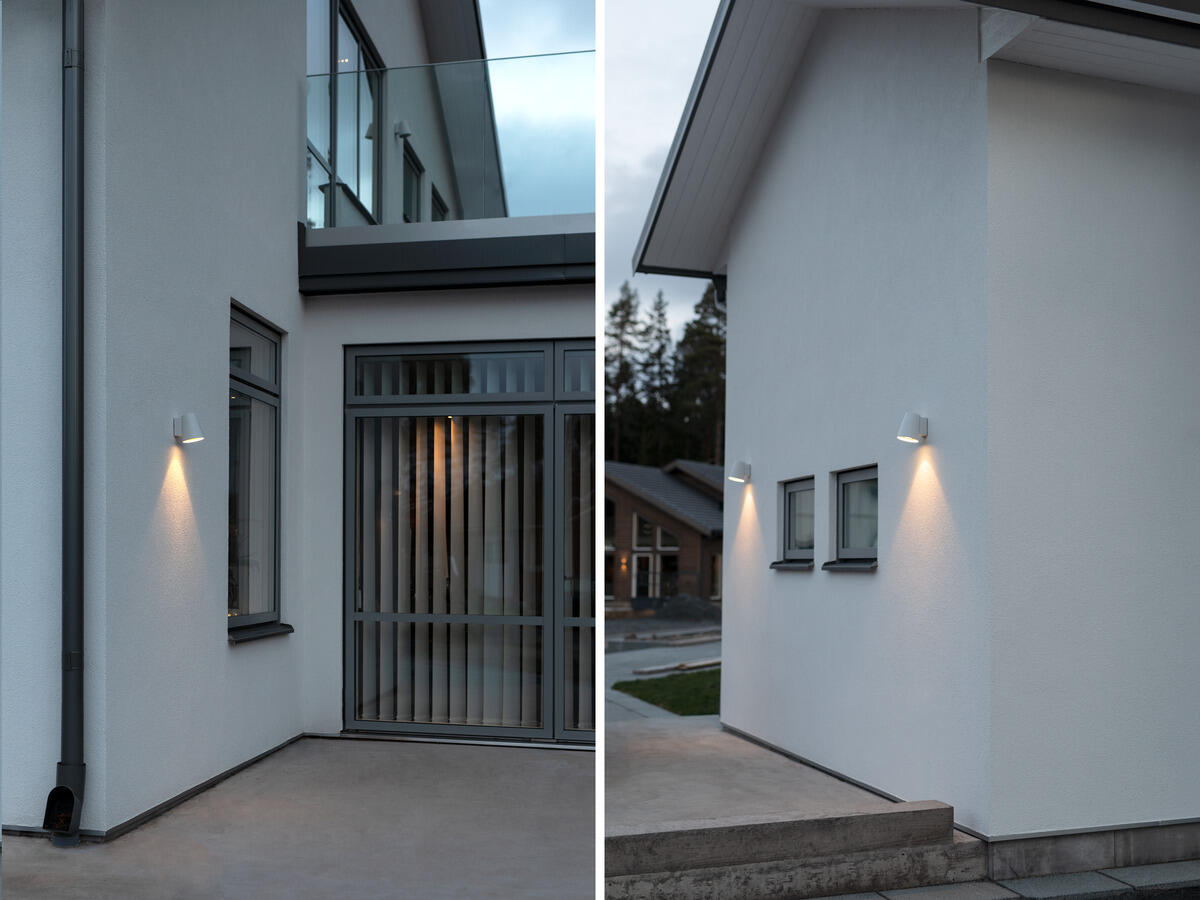

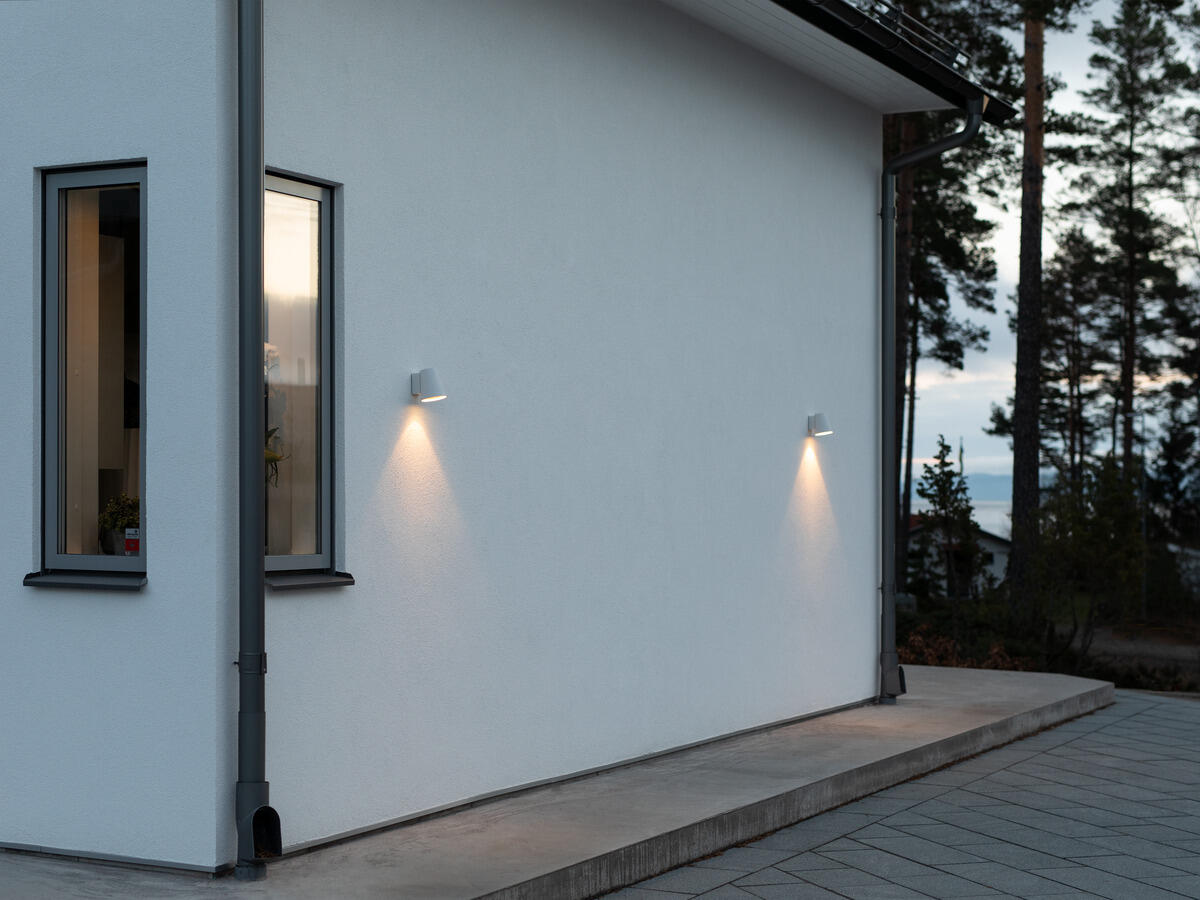

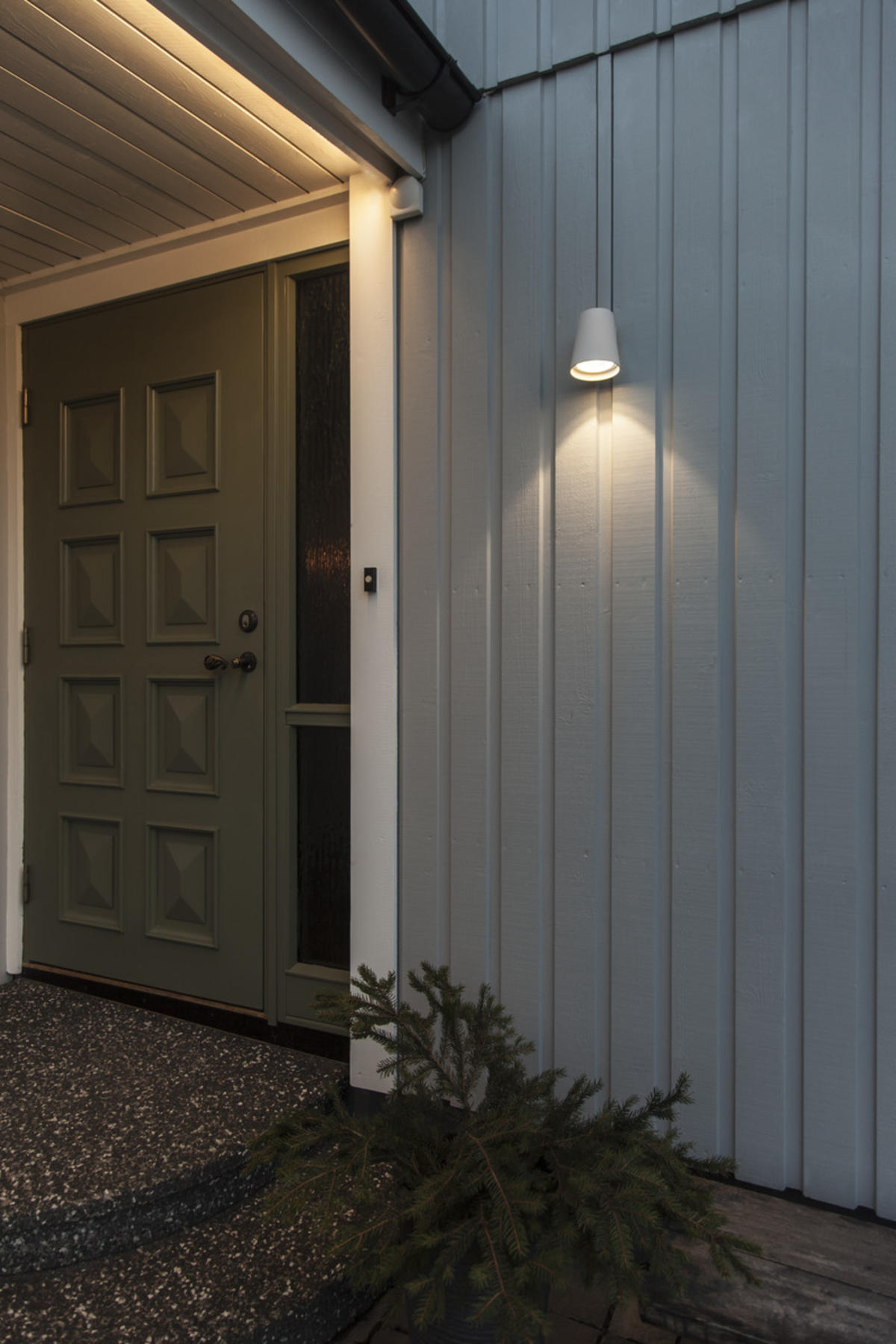

A neat wall fixture with a clean conical design. LED COB with reflector optics providing an asymmetrical light spread that lights up the wall and the ground below. Simple installation thanks to separate rear element with dual cable bushings and push-in terminal block for through wiring. Spacers for surface-mounted cable routing included. IP54 rated with durable powder coating for tough environments. Integrated driver with adjustable light level via DIP switch. Can be dimmed using external driver, see user instructions.
Exists in several colors
  • Vit
  • Grå
  • Antracit

Variants

GTIN Item Name Color
Cone Anthracite 7392971133102 Cone Anthracite Antracit

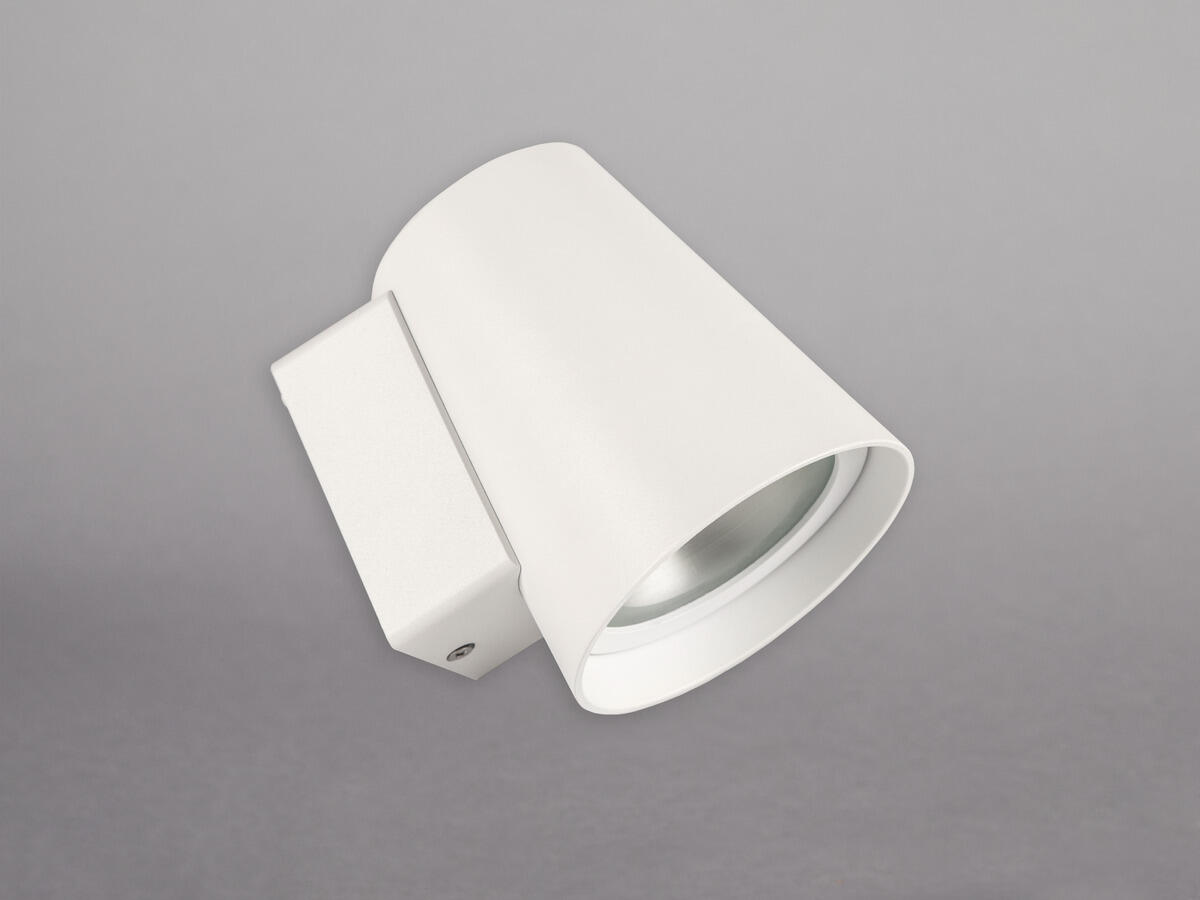

Cone White 7392971133089 Cone White White
Cone Grey 7392971133096 Cone Grey Grey

Cone Anthracite A

Description
GTIN 7392971133102
Item Name Cone Anthracite
Warranty 5 years
Type .
Light Technical Data
Light Source LED
Light Source Included Yes
Light Source Included (type) LED not exchangeable
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 196
Luminaire Lumen (lm) 250
Beam Angle (°) 45
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 80 000h Ta 25°C
Nominel Life Time (h) 80000
Life Time Driver 50 000h
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Voltage Forward (Vf) 9,1
Power LED (W) 2,7
Power Luminaire (W) 3
System Power (W) 3
Efficiency Luminaire (lm/W) 83
Efficiency System (lm/W) 83
Energy Efficiency Class A
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 5x0,75-2,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,5
Efficiency (%) 65
Standby Power 1,6
Operating Temperature -20…+50
Max. Tc (°C) 80
Dimmable No
Type of Dimming DIP 60% 100%
Fuse B10 (pcs) 340
Fuse B16 (pcs) 573
Fuse C10 (pcs) 413
Fuse C16 (pcs) 653
Color and material
Material Aluminium
Color Antracit
Color Code (RAL) 7016
Halogen free No
Environmental Assessment SundaHus
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 54
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK09
Filament Test IEC 695-2-1(°C) 650

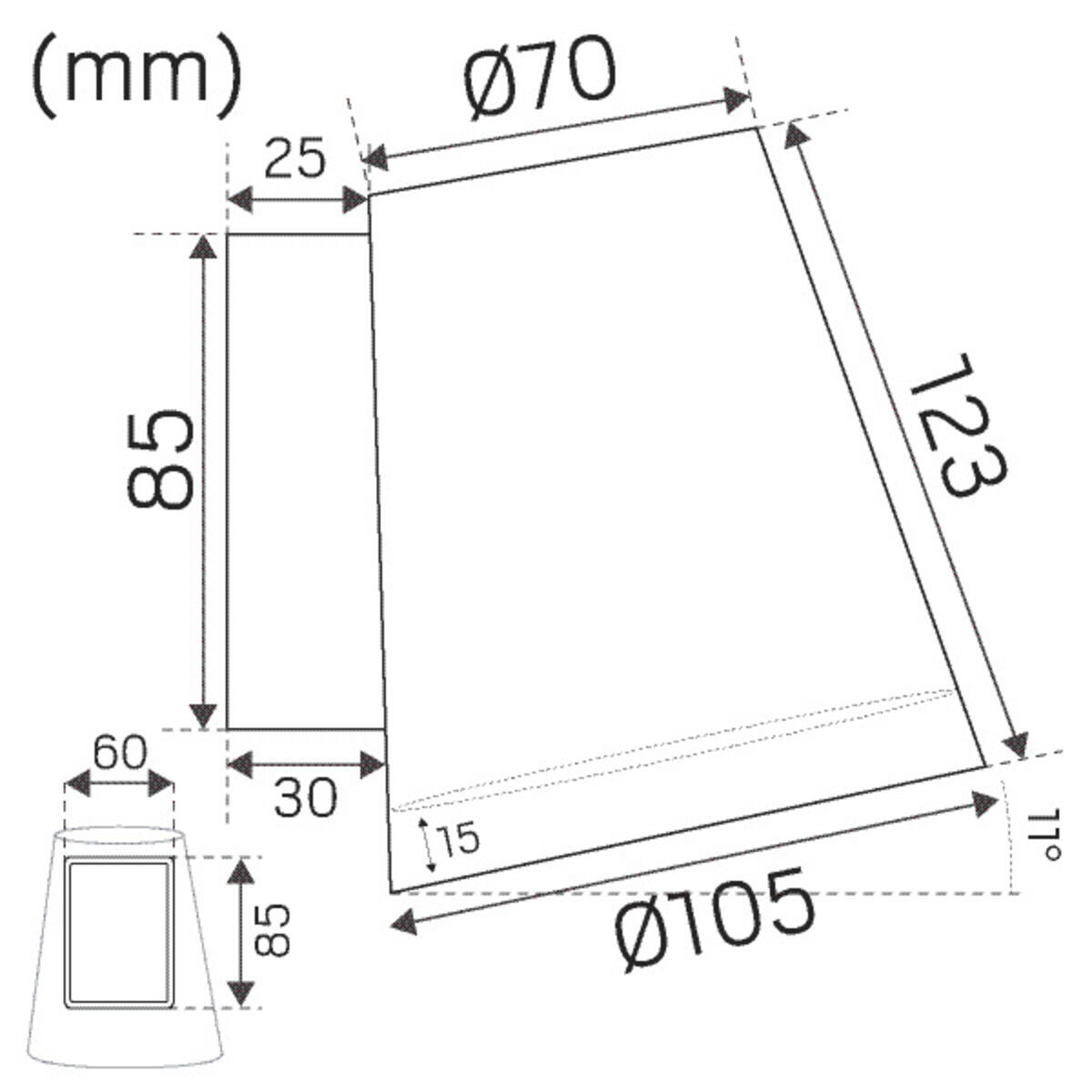

Width (mm) 105
Height (mm) 140
Depth (mm) 135
Diameter (mm) 105
Weight (kg) 0,64
