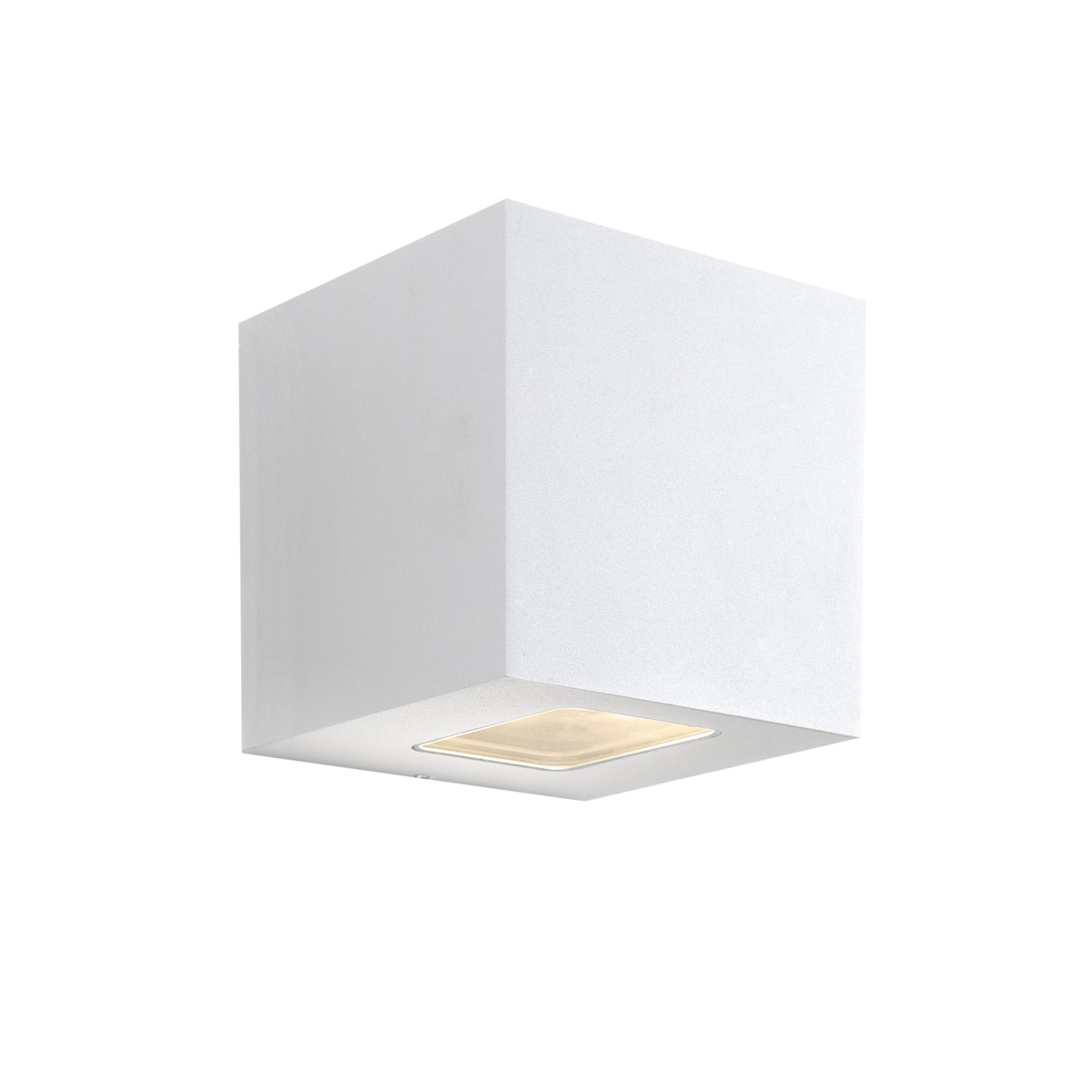

Cube XL II

Adjustable lumen output via DIP-Switch Power, see manual for levels
Push-in, loop-in, loop-out terminal block
Separate rear element with double cable bushings for easy installation
IP65 and durable powder coating
Spacers for surface-mounted cable routing included

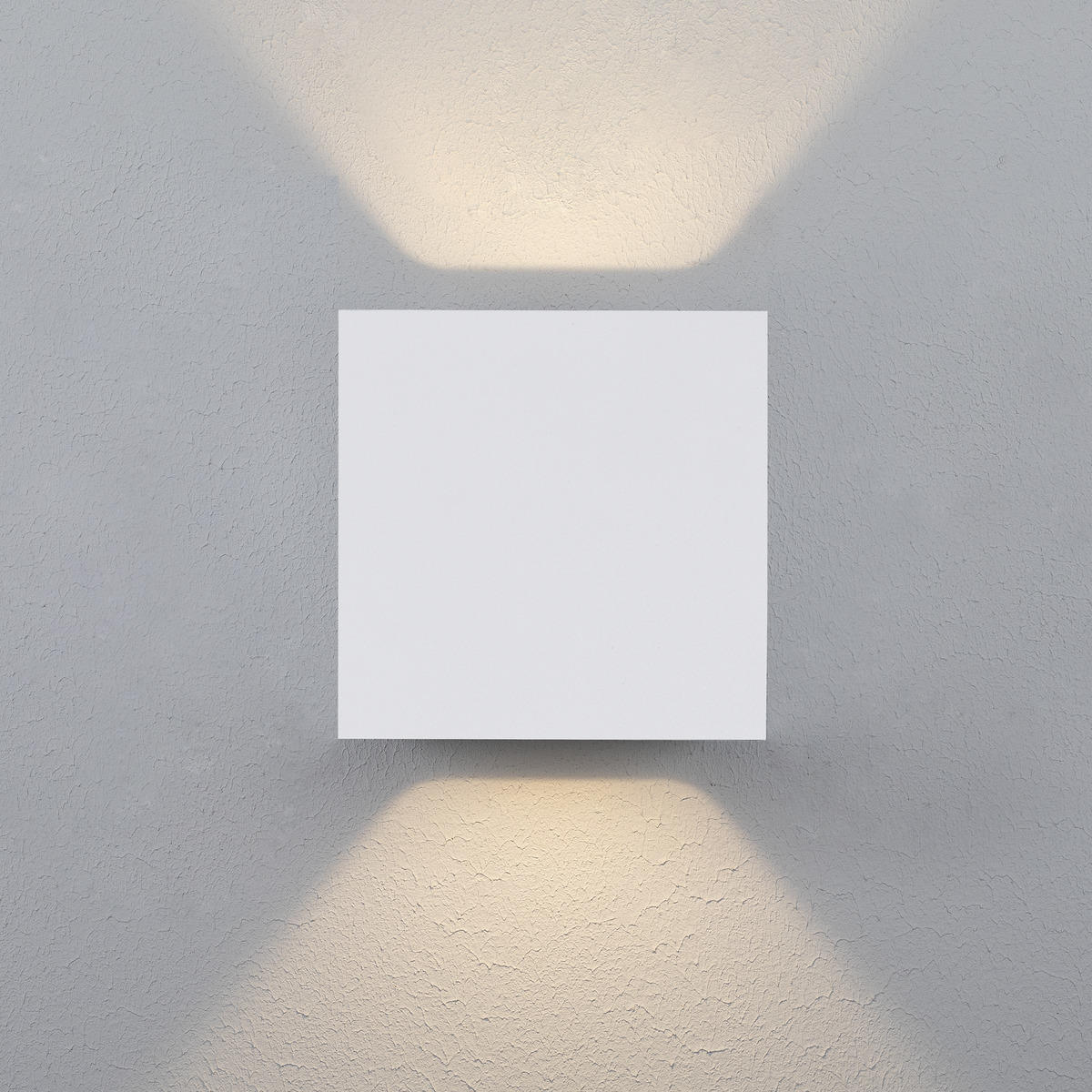

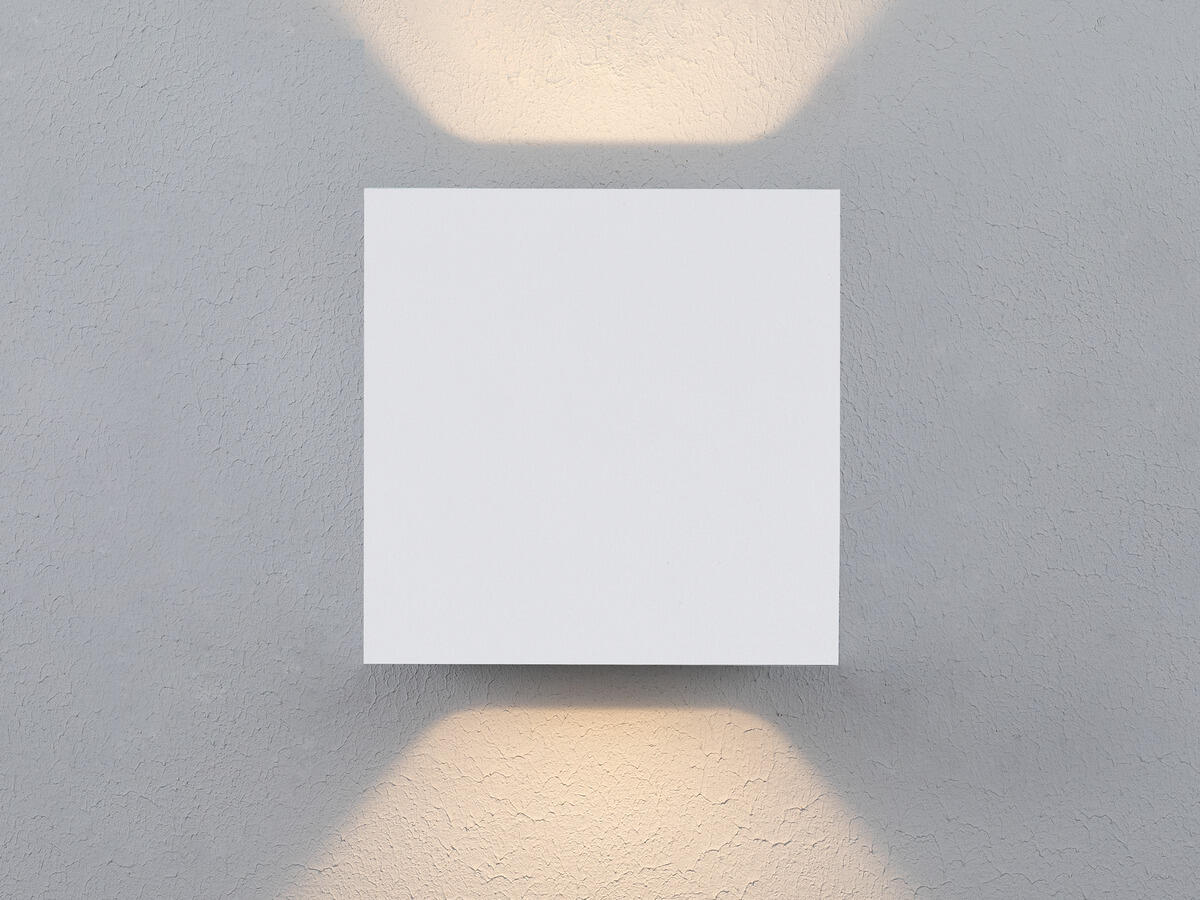

Impact resistant wall luminaire in cube-shaped timeless design for illumination of larger facades and entrances. Big brother in the Cube family. Easily installed and ready for direct connection to 230V. Simple installation thanks to separate rear element and push-in, loop-in, loop-out terminal block. Spacers for surface-mounted cable routing included. IP65 rating and durable powder coating for tough environments. Integrated driver with separate adjustable light level via DIP-Switch Power for up or downlight, 60% and 100%.

GTIN	Item Name	Color
7392971135755	Cube XL II White 3000K	White
7392971135762	Cube XL II Grey 3000K	Grey

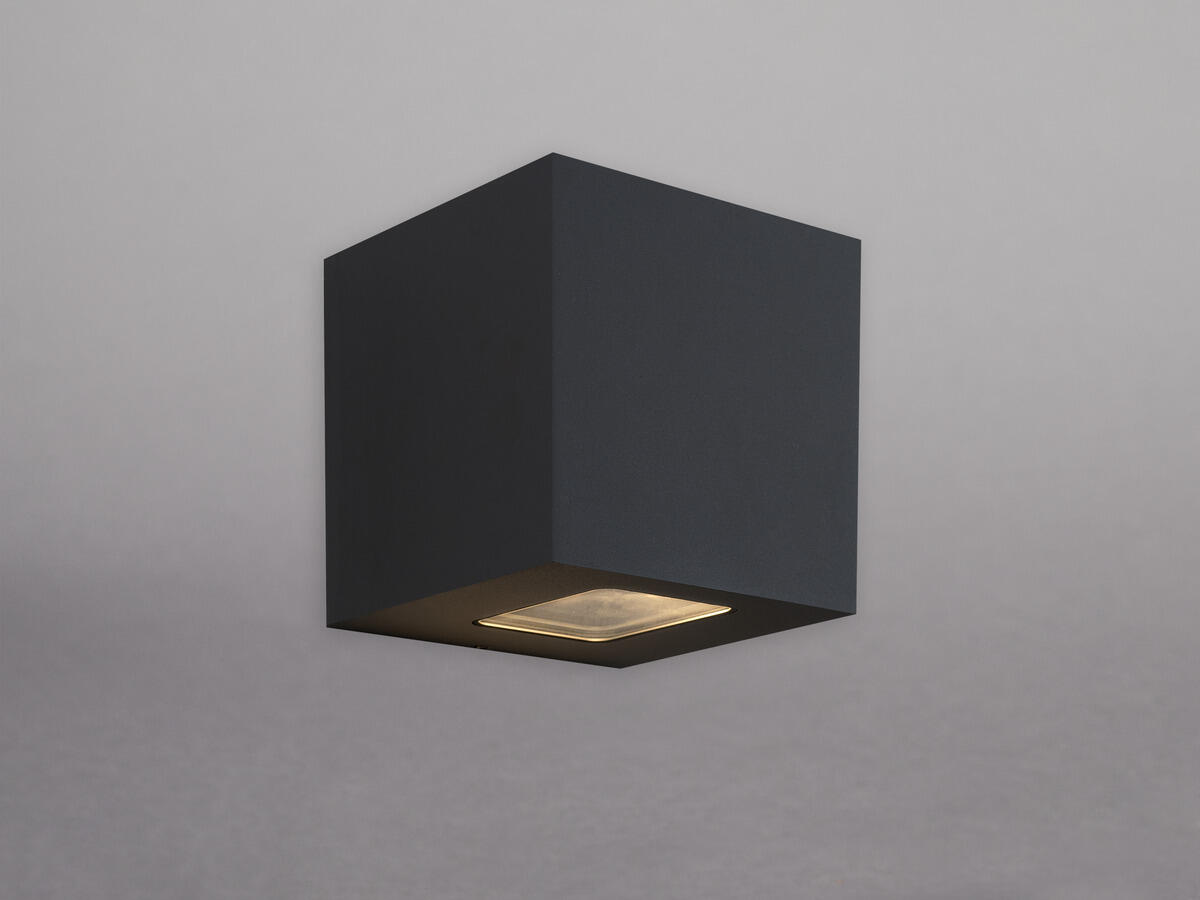

7392971135779	Cube XL II Anthracite 3000K	Antracit

Description: GTIN 7392971135755

Item Name Cube XL II White 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1890

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 617

Beam Angle (°) 80

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 2

Number of LED (pcs) 2

Life Time L70 75 000h Ta 25°C

Nominel Life Time (h) 75000

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,023

Stroboscopic effect (SVM) 0,012
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Voltage Forward (Vf) 31

Power LED (W) 21,6

Power Luminaire (W) 25

System Power (W) 25

Efficiency Luminaire (lm/W) 76

Efficiency System (lm/W) 76

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable No

Type of Dimming DIP 60% 100%, DIP-Switch Power

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief No

Constant Current (mA) 180, 300

Operating Temperature -20…+50

Max. Tc (°C) 80

Fuse B10 (pcs) 12

Fuse B16 (pcs) 21

Fuse C10 (pcs) 14

Fuse C16 (pcs) 23
Color and material: Material Aluminium

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Outdoor

IP Degree of Protection 65

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK10

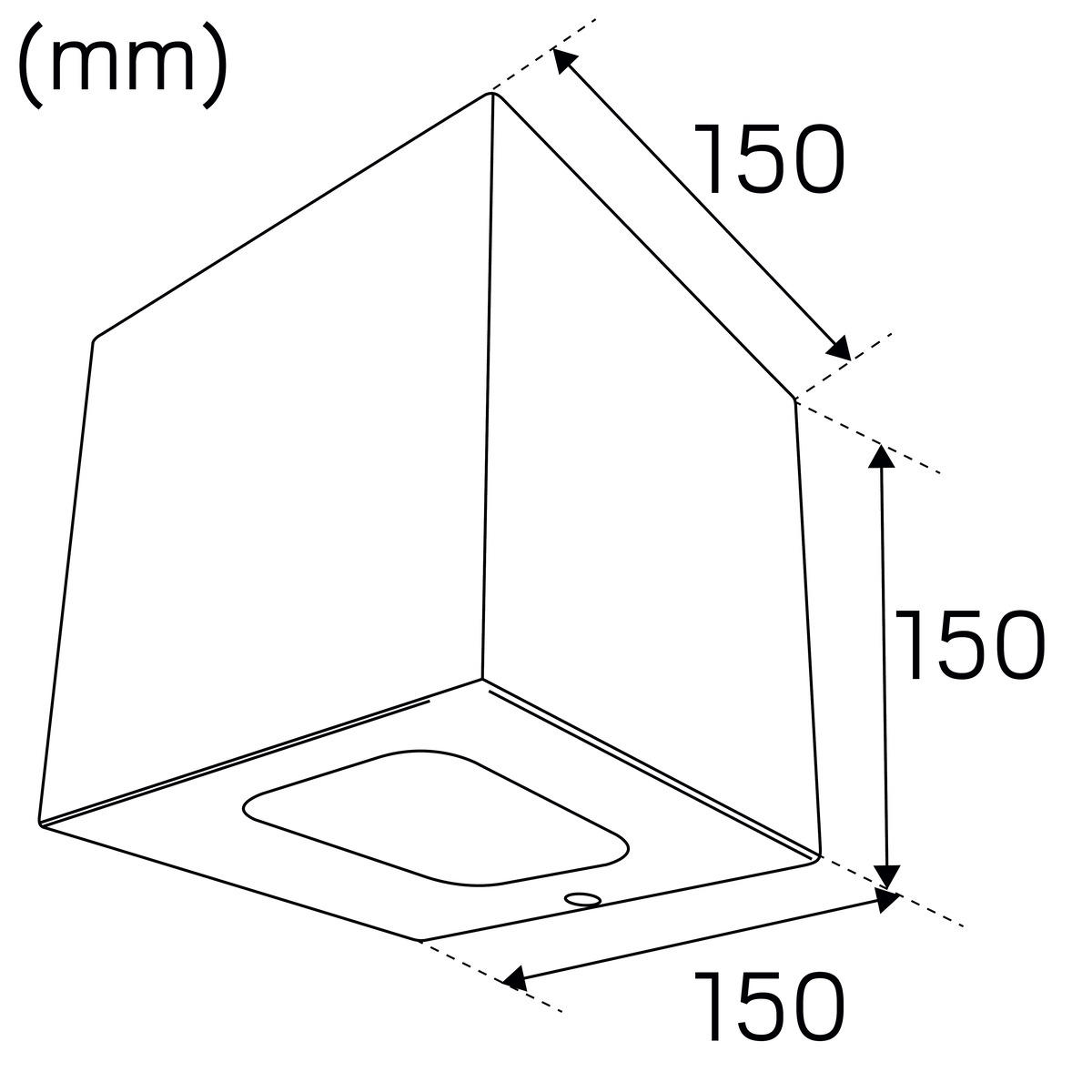

Width (mm) 150

Height (mm) 150

Depth (mm) 150

Weight (kg) 3,13
