Edge XL
Downlight luminaire in discrete and simple design with wide angle light pattern for facades and walls. Gives a welcoming feel to large buildings or properties. Easily installed and ready for direct connection to 230V. Simple installation thanks to separate rear element and push-in, loop-in, loop-out terminal block. IP65 rating and durable powder coating for tough environments. Integrated driver with adjustable light level via DIP switch Power, 60% and 100%.
Variants
| GTIN | Item Name | Color | |
|---|---|---|---|
|
7392971135786 | Edge XL White 3000K | White |
|
7392971135793 | Edge XL Grey 3000K | Grey |
|
7392971135809 | Edge XL Anthracite 3000K | Antracit |

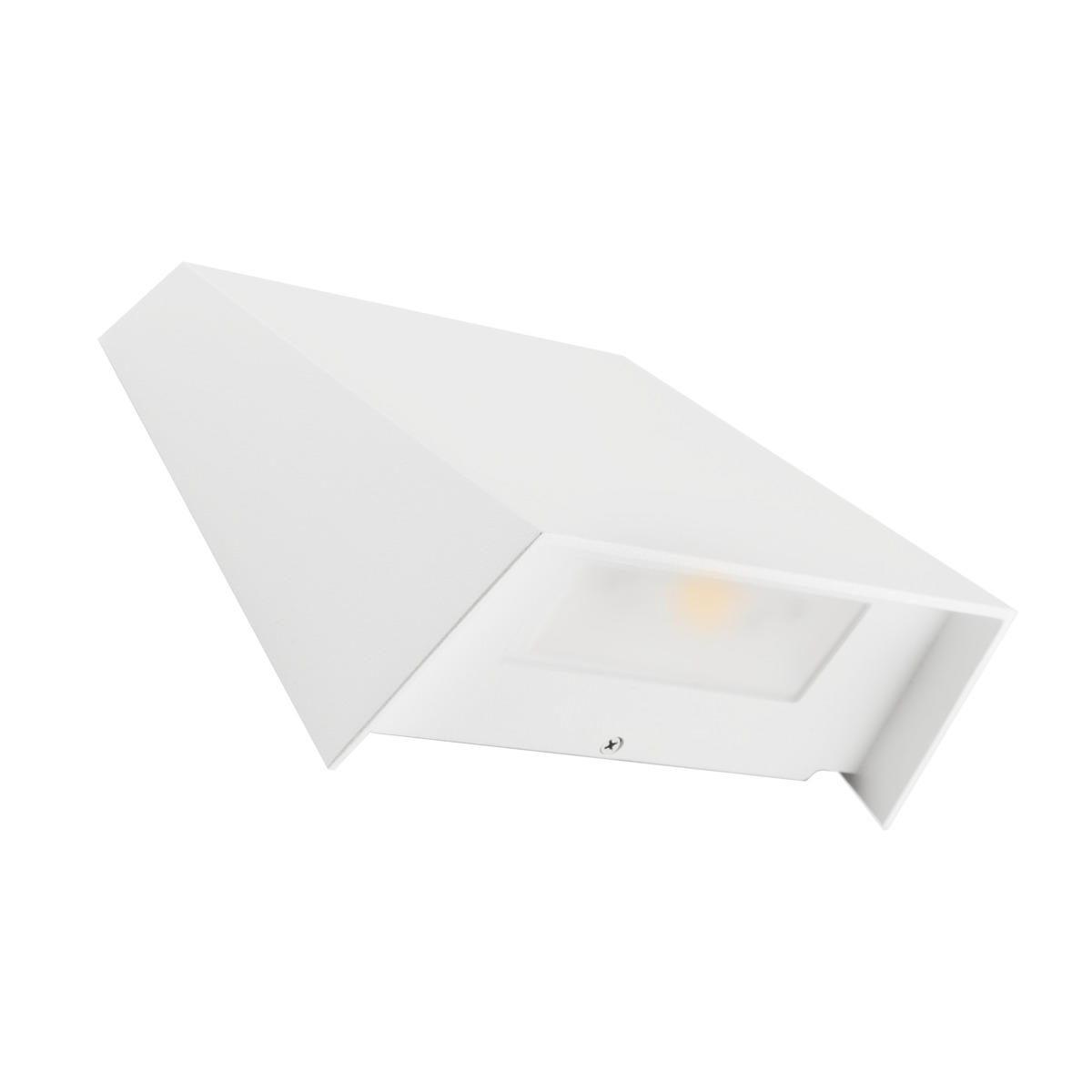

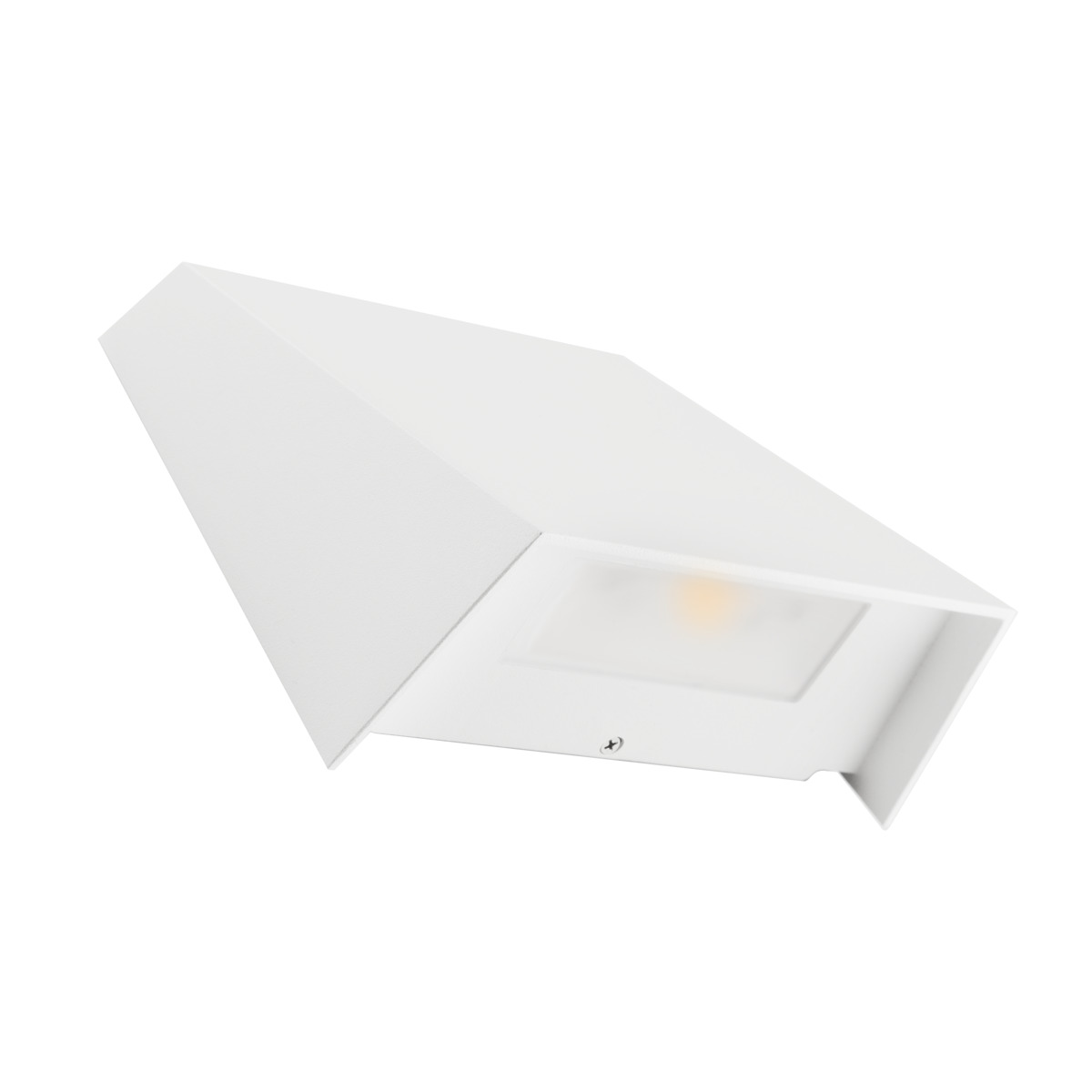

Edge XL White 3000K
- Description
-
GTIN
7392971135786
Item Name Edge XL White 3000K
Warranty 5 years
- Light Technical Data
-
Light Source
LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Replaceable Control gear by professional
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Initial Chromaticity x:0,434 y:0,403
Luminous Intensity (cd) 245
Luminaire Lumen (lm) 660
Beam Angle (°) 160
Light sharing Asymmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 100 000h Ta 25°C
Nominel Life Time (h) 100000
Life Time Driver 50 000h/10%
- Technical data
-
Adjustable
No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Voltage Forward (Vf) 34
Power LED (W) 10,7
Power Luminaire (W) 12,5
System Power (W) 12,5
Efficiency Luminaire (lm/W) 53
Efficiency System (lm/W) 53
Containing light source energy efficiency class (EU) 2019/2015 E
- Operation and Connection
-
Driver Included
Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief No
Constant Current (mA) 180, 300
Operating Temperature
Max. Tc (°C) 60
Dimmable No
Type of Dimming DIP 60% 100%, DIP-Switch Power
Fuse B10 (pcs) 31
Fuse B16 (pcs) 50
Fuse C10 (pcs) 36
Fuse C16 (pcs) 58
- Color and material
-
Material
Aluminium
Color White
Environmental Assessment Byggvarubedömningen
- Measurement and installation
-
Operating Environment
IP Degree of Protection 65
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK10

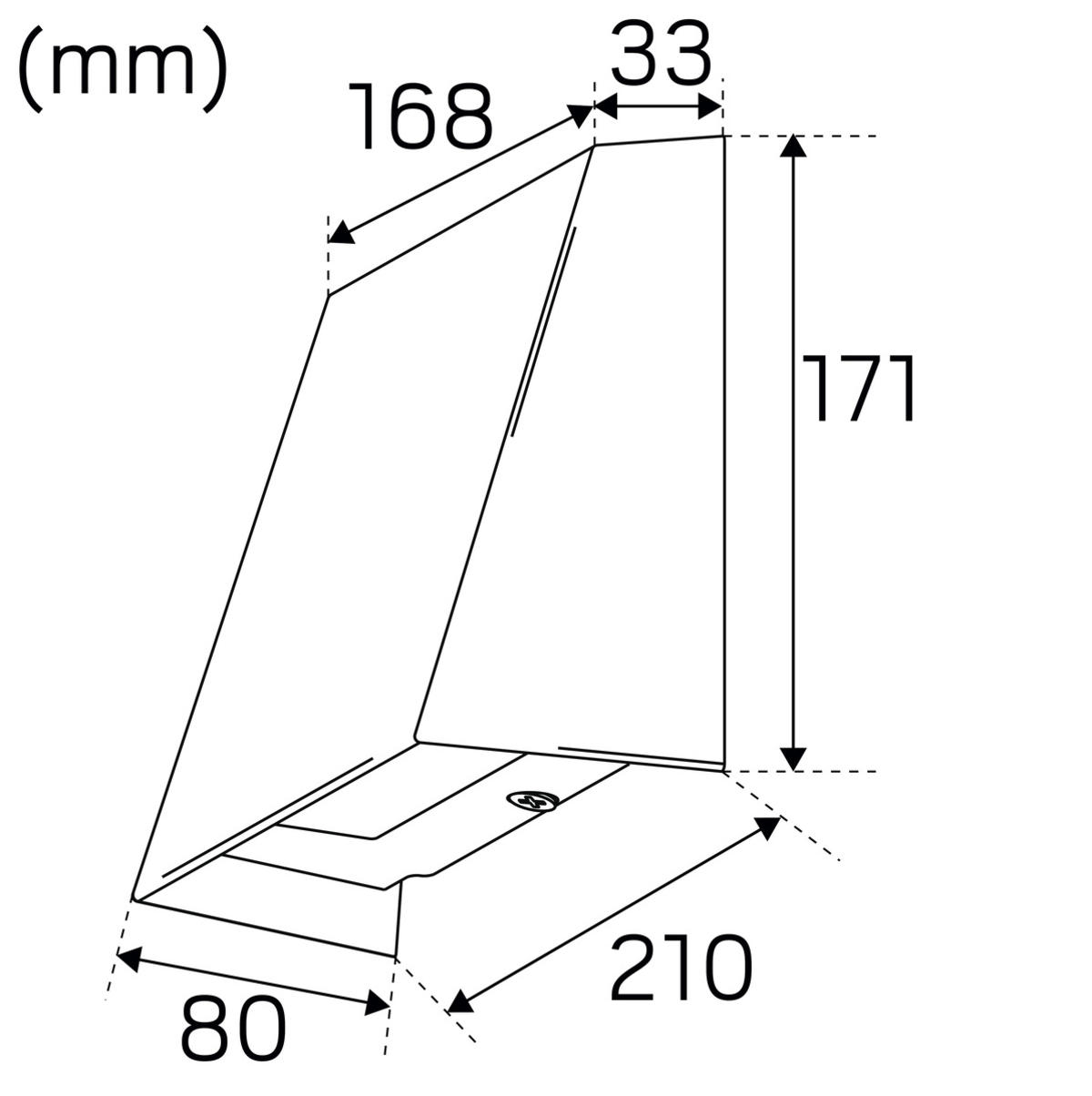

Width (mm) 210
Height (mm) 171
Depth (mm) 92
Weight (kg) 1,1
