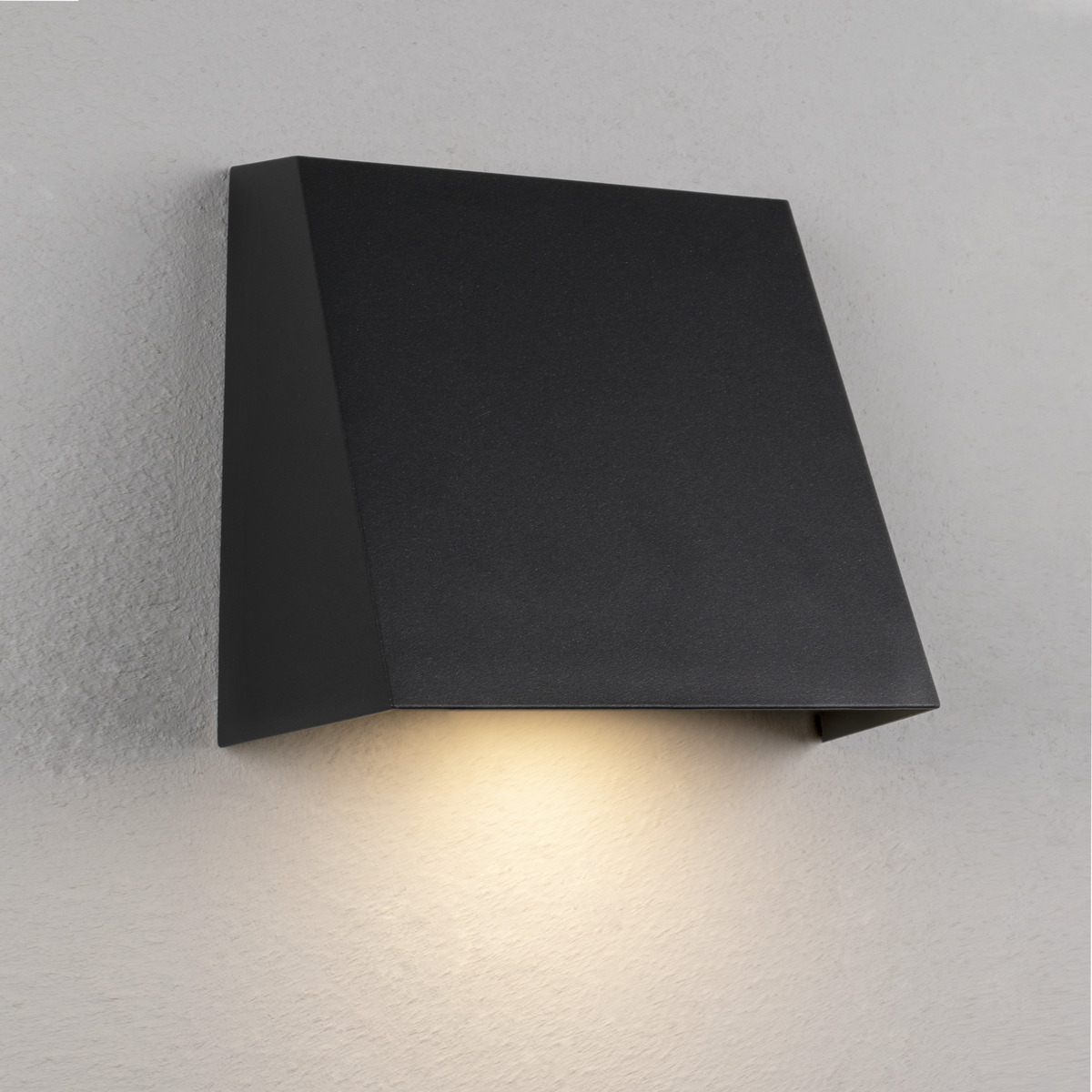

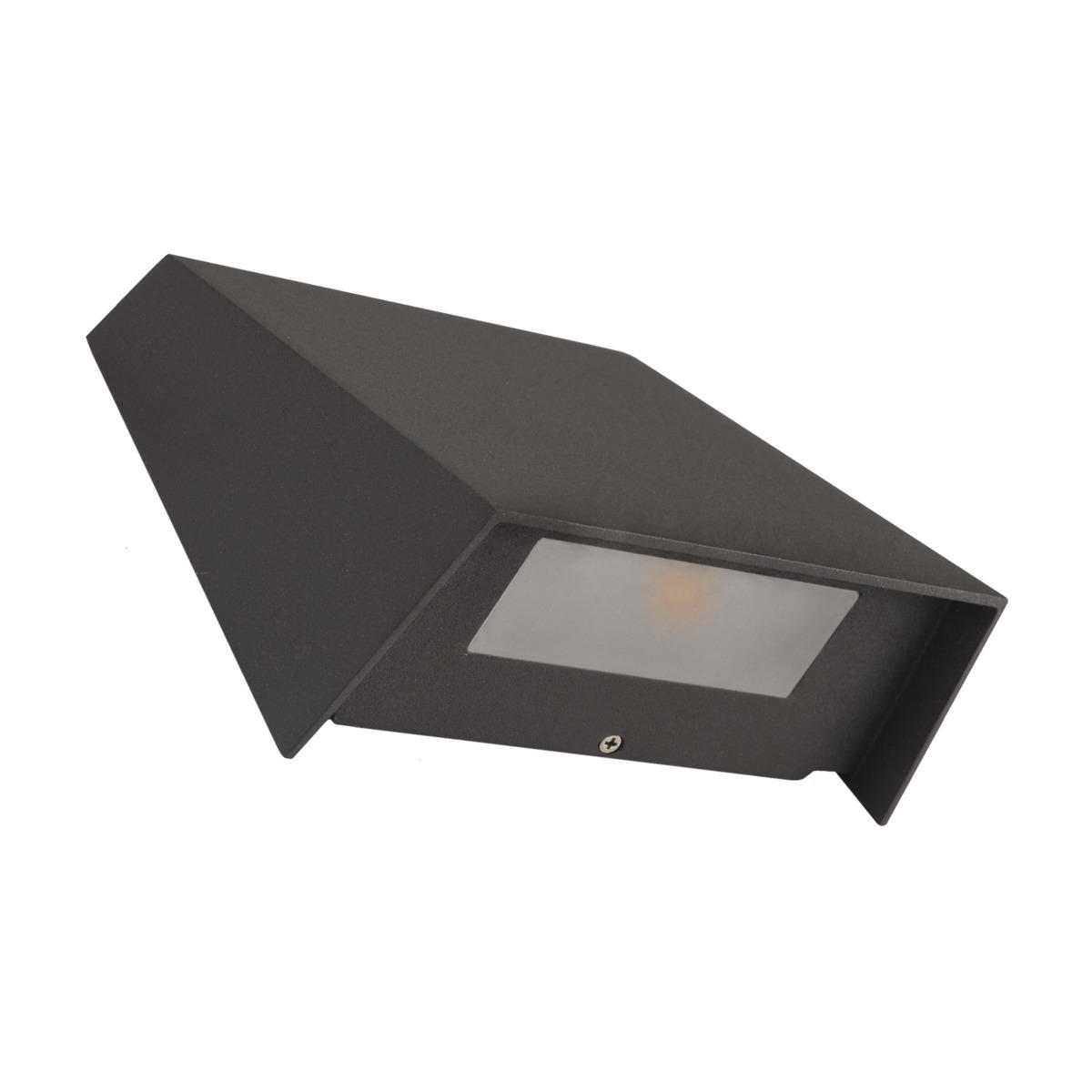

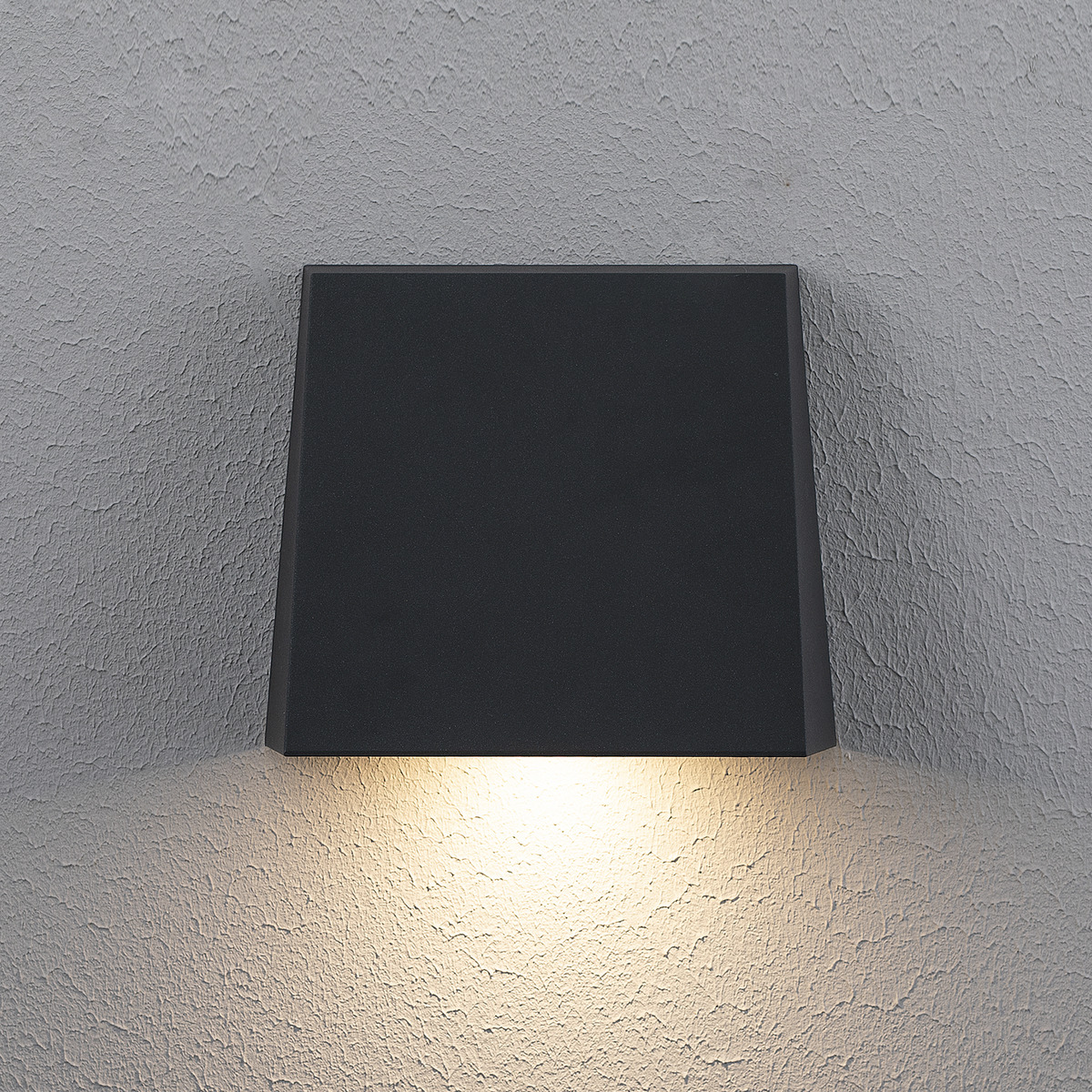

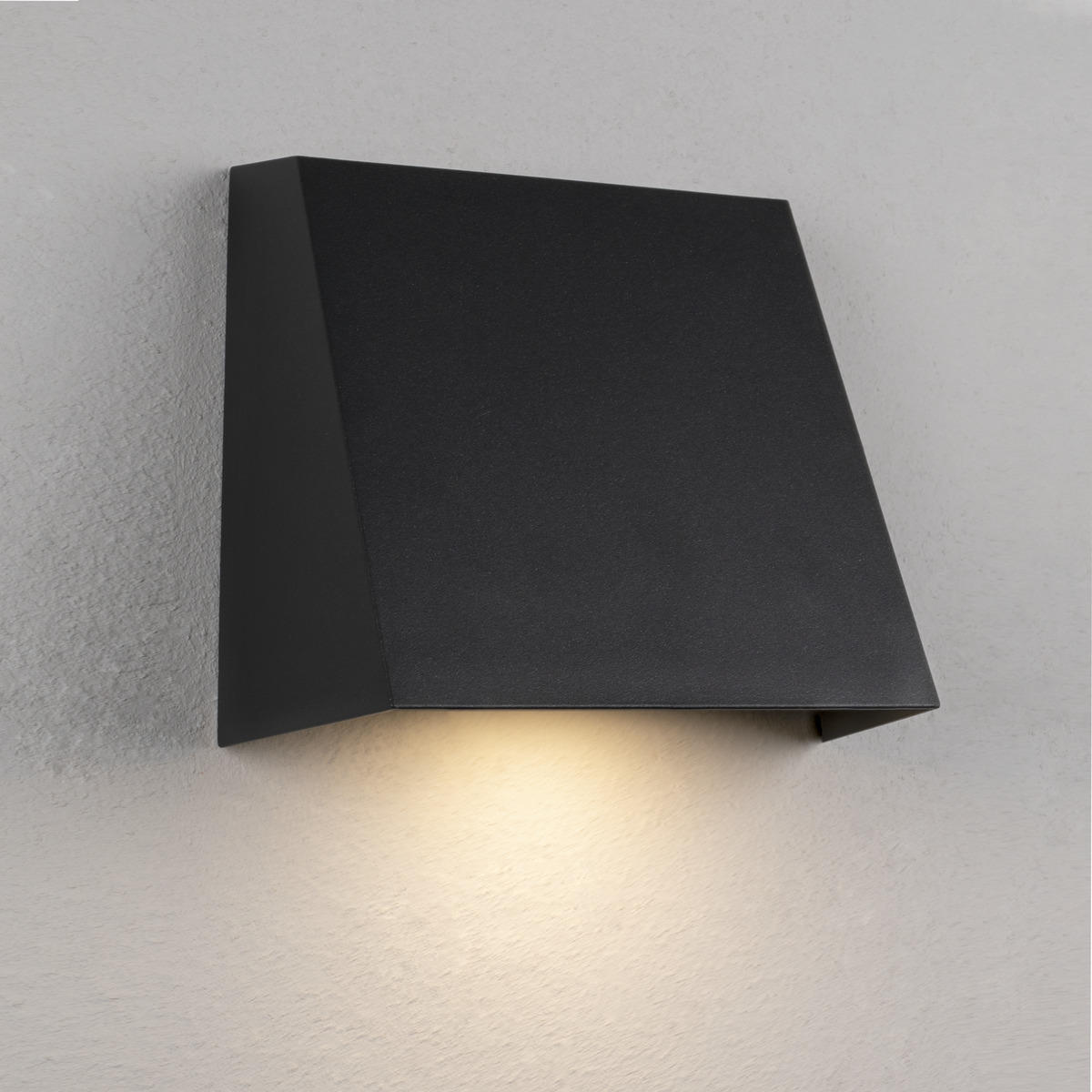

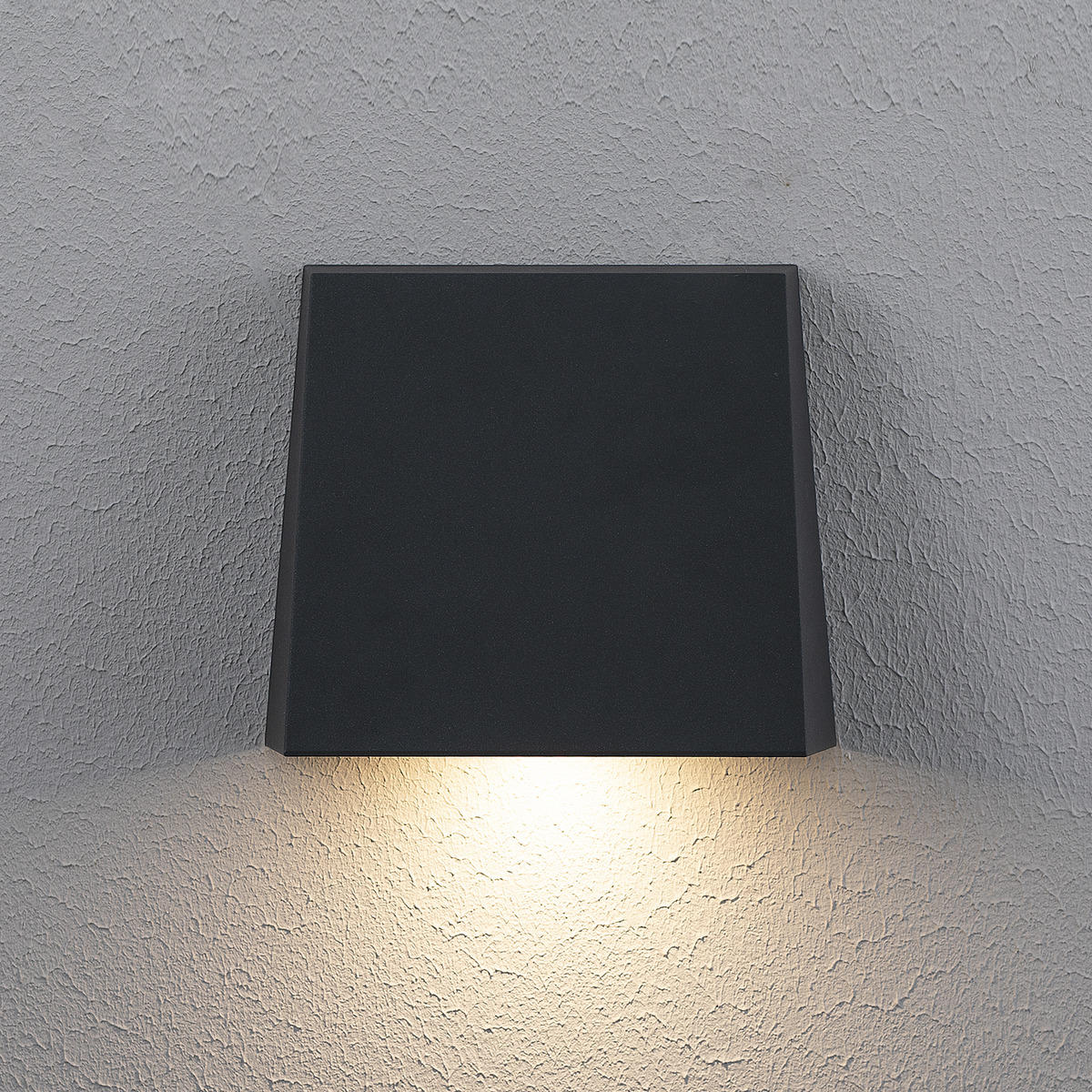

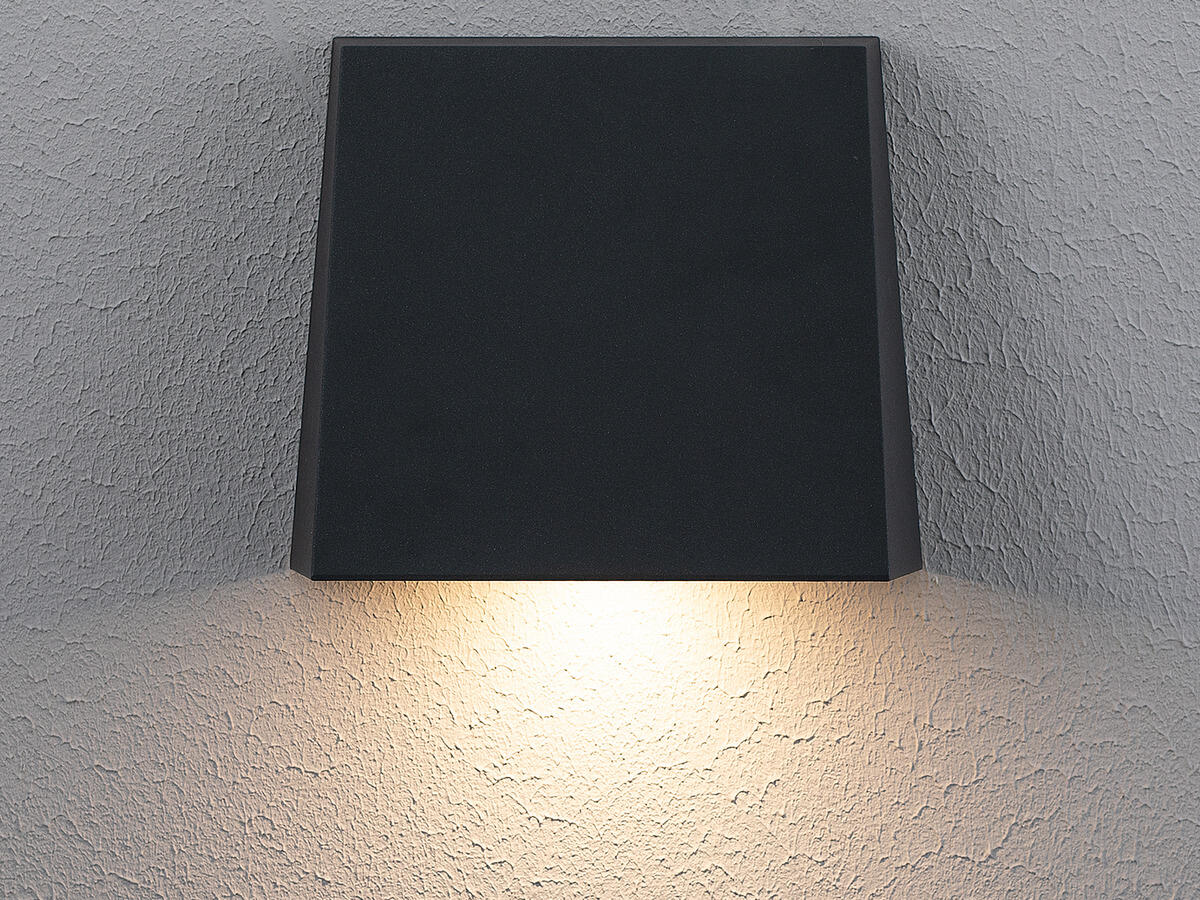

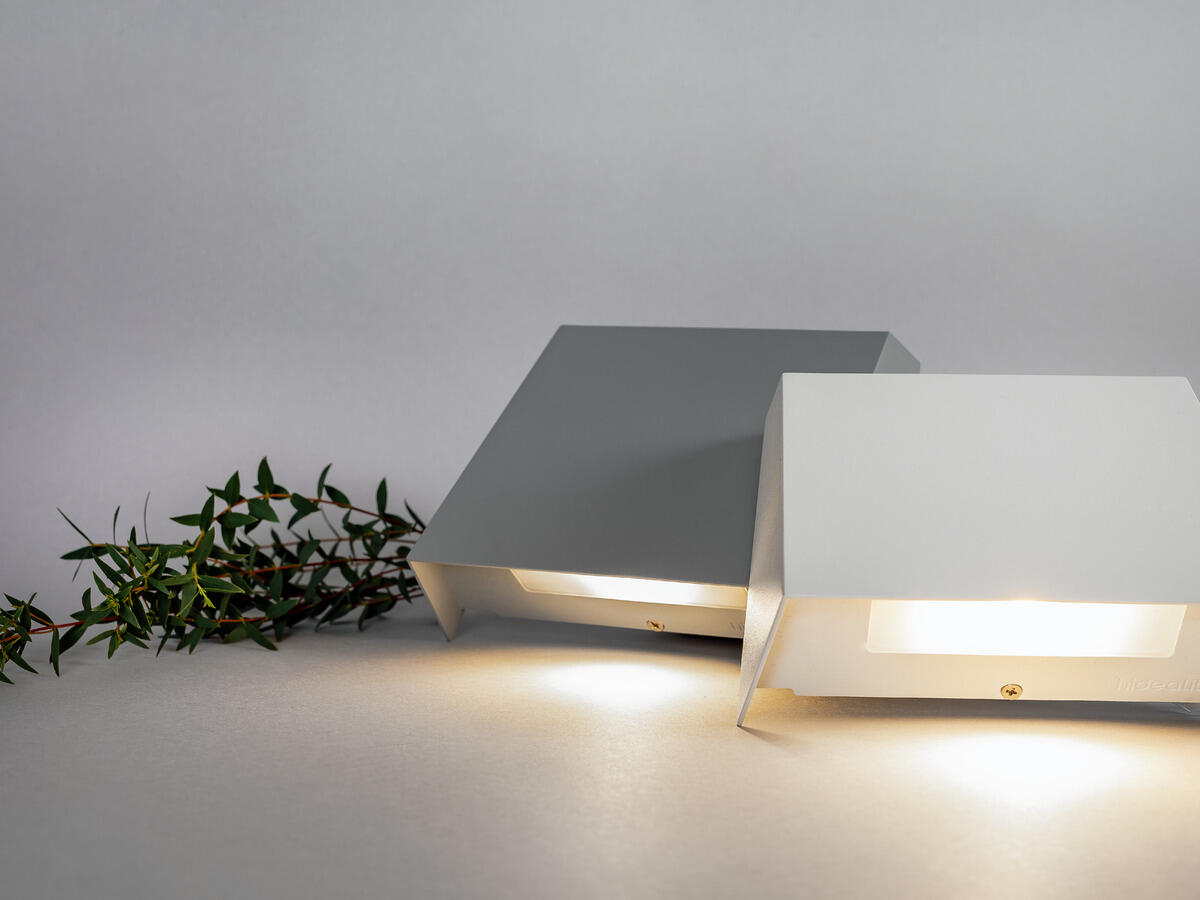

Edge XL

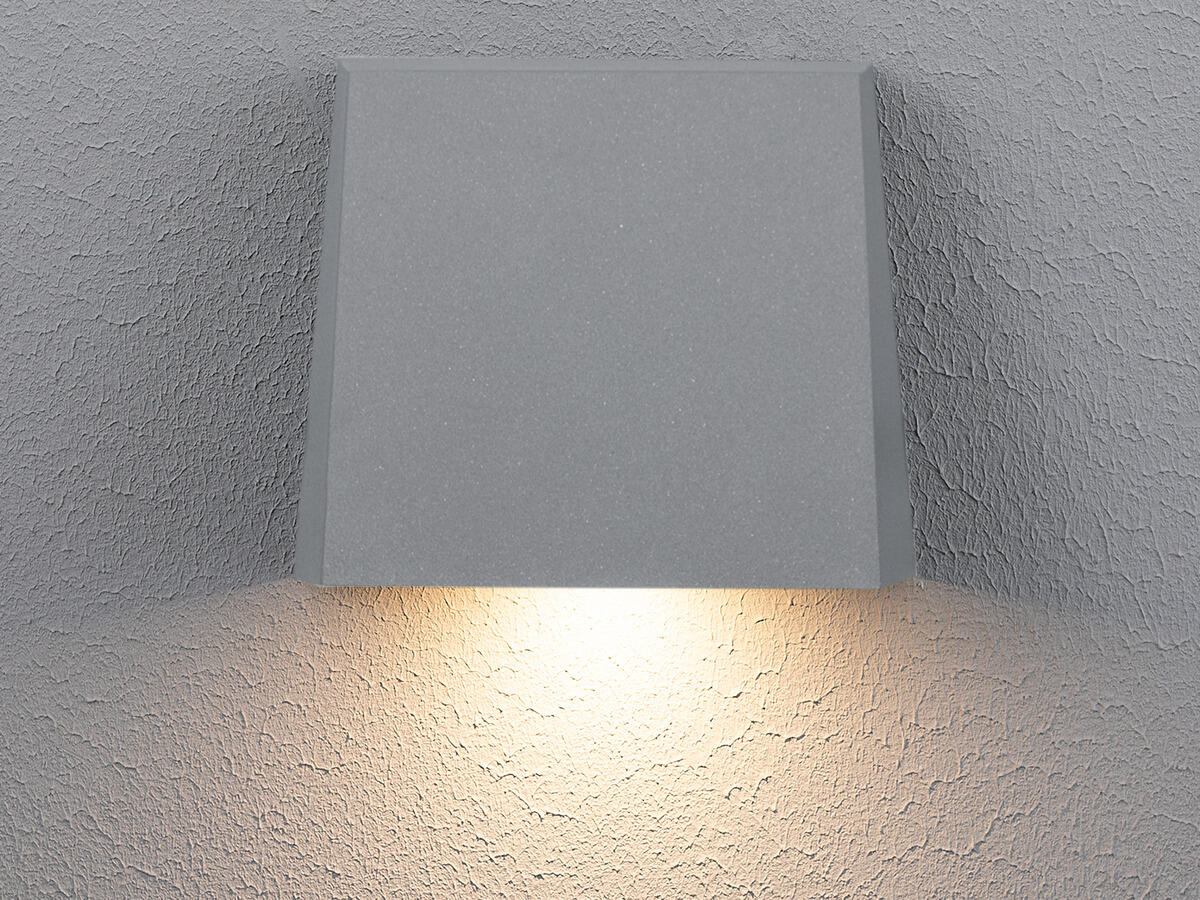

Downlight luminaire in discrete and simple design with wide angle light pattern for facades and walls. Gives a welcoming feel to large buildings or properties. Easily installed and ready for direct connection to 230V. Simple installation thanks to separate rear element and push-in, loop-in, loop-out terminal block. IP65 rating and durable powder coating for tough environments. Integrated driver with adjustable light level via DIP switch, 60% and 100%.

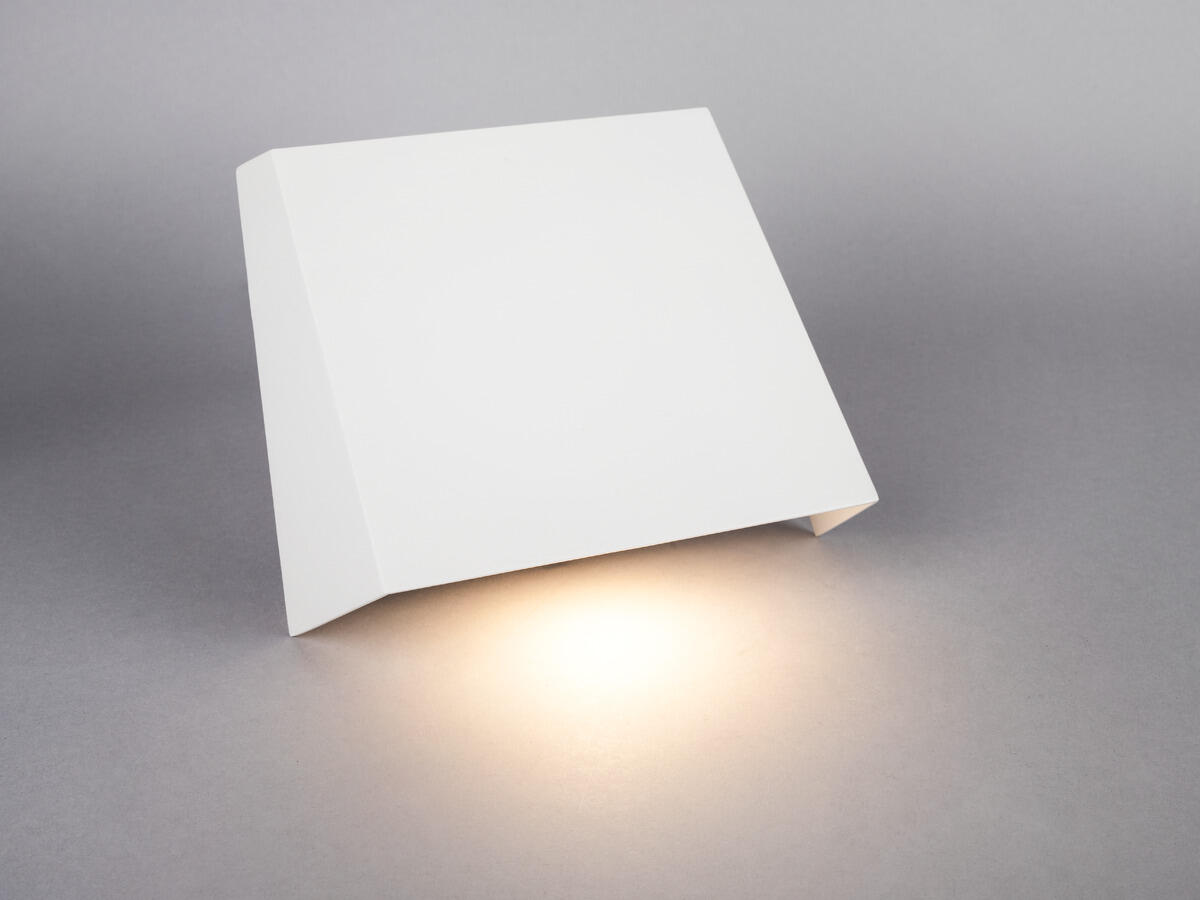

Exists in several colors
  • Vit #ffffff
  • Antracit #4e4e4e
  • Grå #b8b3b0

Variants

GTIN Item Name Color
Edge XL Anthracite 3000K 7392971135809 Edge XL Anthracite 3000K Antracit
Edge XL Grey 3000K 7392971135793 Edge XL Grey 3000K Grey
Edge XL White 3000K 7392971135786 Edge XL White 3000K White

Edge XL Anthracite 3000K A+

Description
GTIN 7392971135809
Item Name Edge XL Anthracite 3000K
Warranty 5 years
Lighting Data
Light Source LED
Light Source Included (type) LED not exchangeable
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 245
Luminaire Lumen (lm) 660
Beam Angle (°) 160
Light sharing Asymmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Technical data
Adjustable No
Life Time L70 100 000h Ta 25°C
Nominel Life Time (h) 100000
Life Time Driver 50 000h/10%
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Voltage Forward (Vf) 34
Power LED (W) 10,7
Power Luminaire (W) 12,5
System Power (W) 12,5
Efficiency LED (lm/W) 58
Efficiency Luminaire (lm/W) 53
Efficiency System (lm/W) 53
Energy Efficiency Class A+
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief No
Operating Temperature -20…+50
Max. Tc (°C) 60
Dimmable No
Type of Dimming DIP 60% 100%
Fuse B10 (pcs) 31
Fuse B16 (pcs) 50
Fuse C10 (pcs) 36
Fuse C16 (pcs) 58
Color and material
Material Aluminium
Color Antracit
Color Code (RAL) 7024
Measurement and installation
Operation Environment Indoor, Outdoor
IP Degree of Protection 65
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK10
Protection Class I

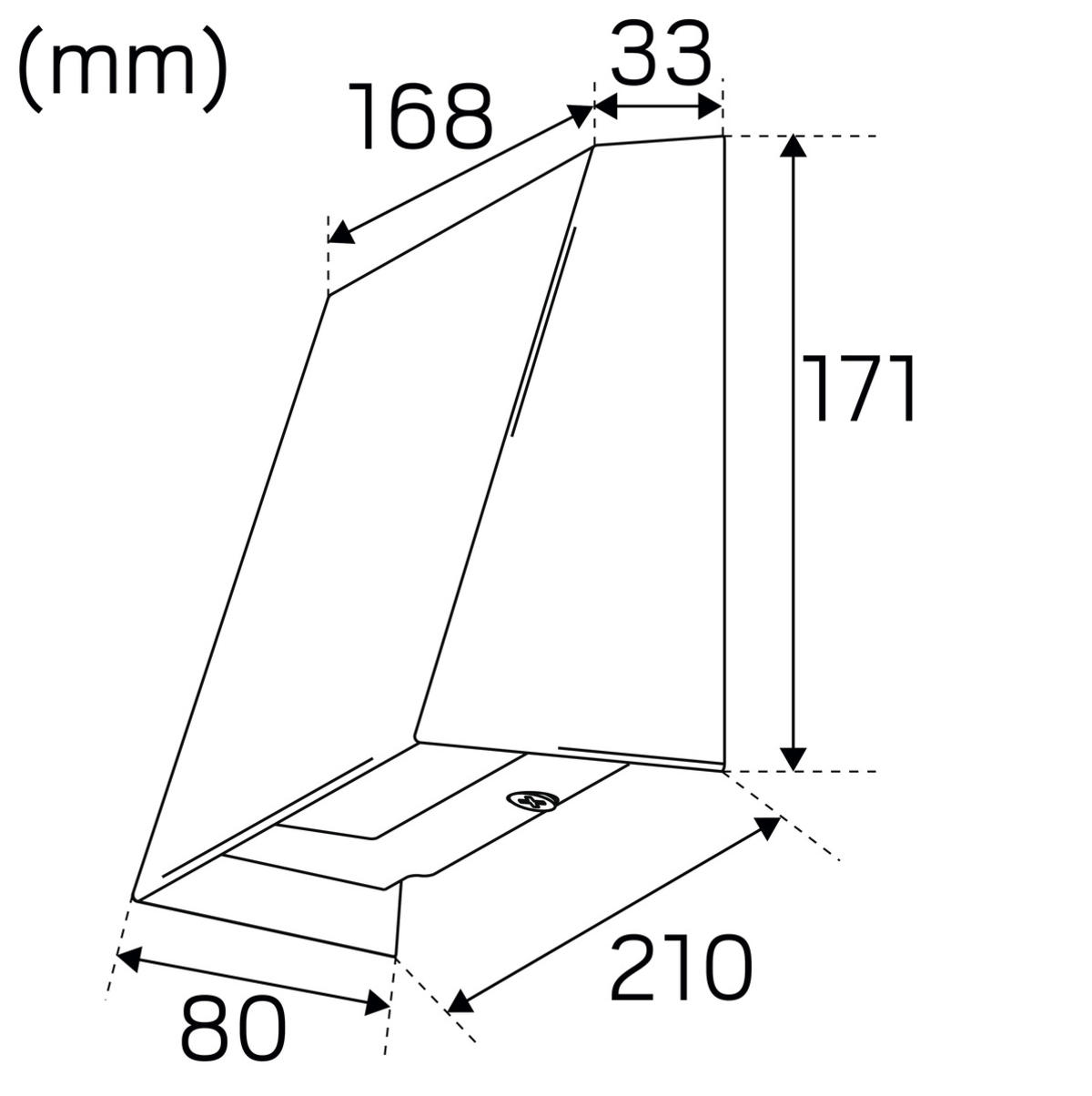

Width (mm) 210
Height (mm) 171
Depth (mm) 92
Weight (kg) 1,1
