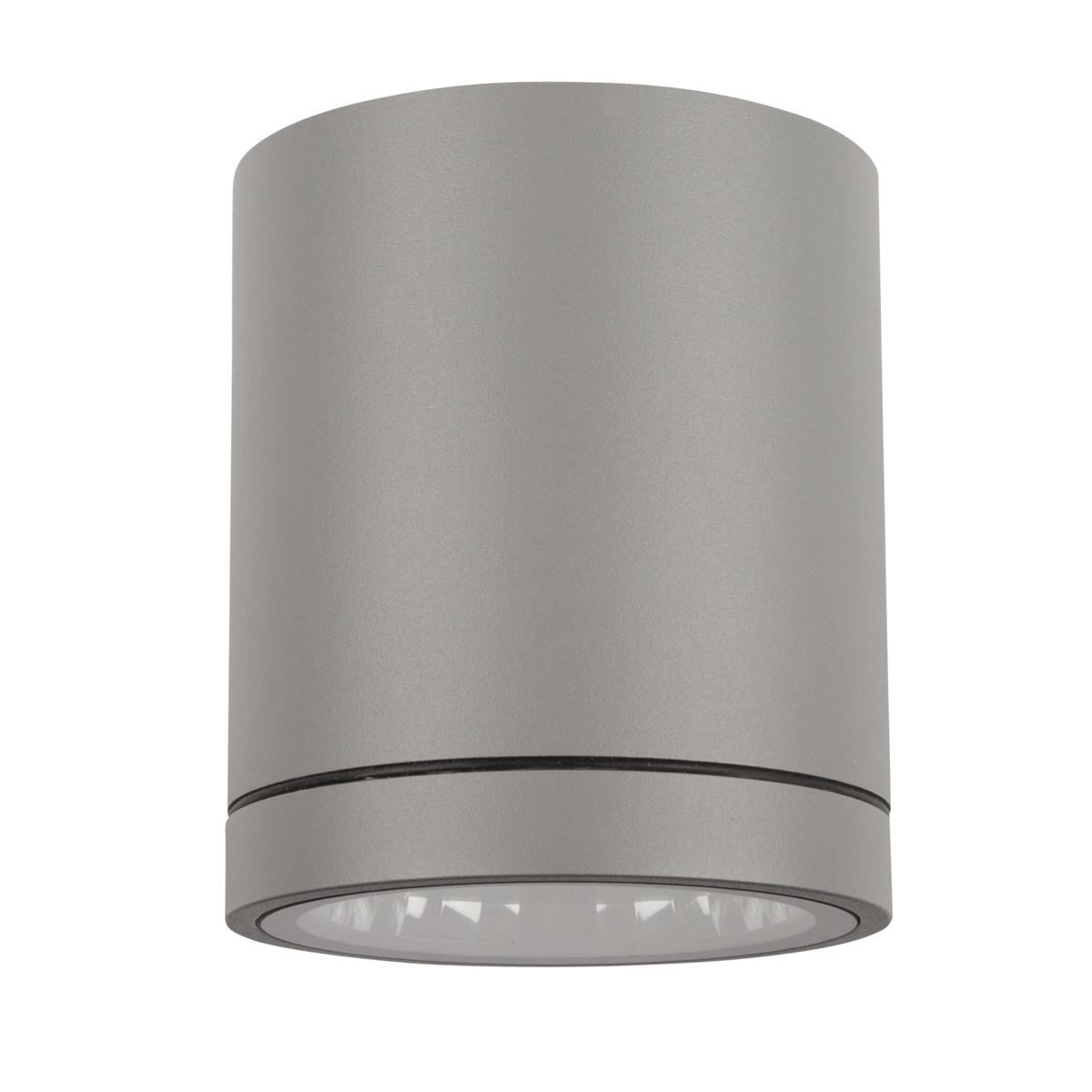

Milo XL I

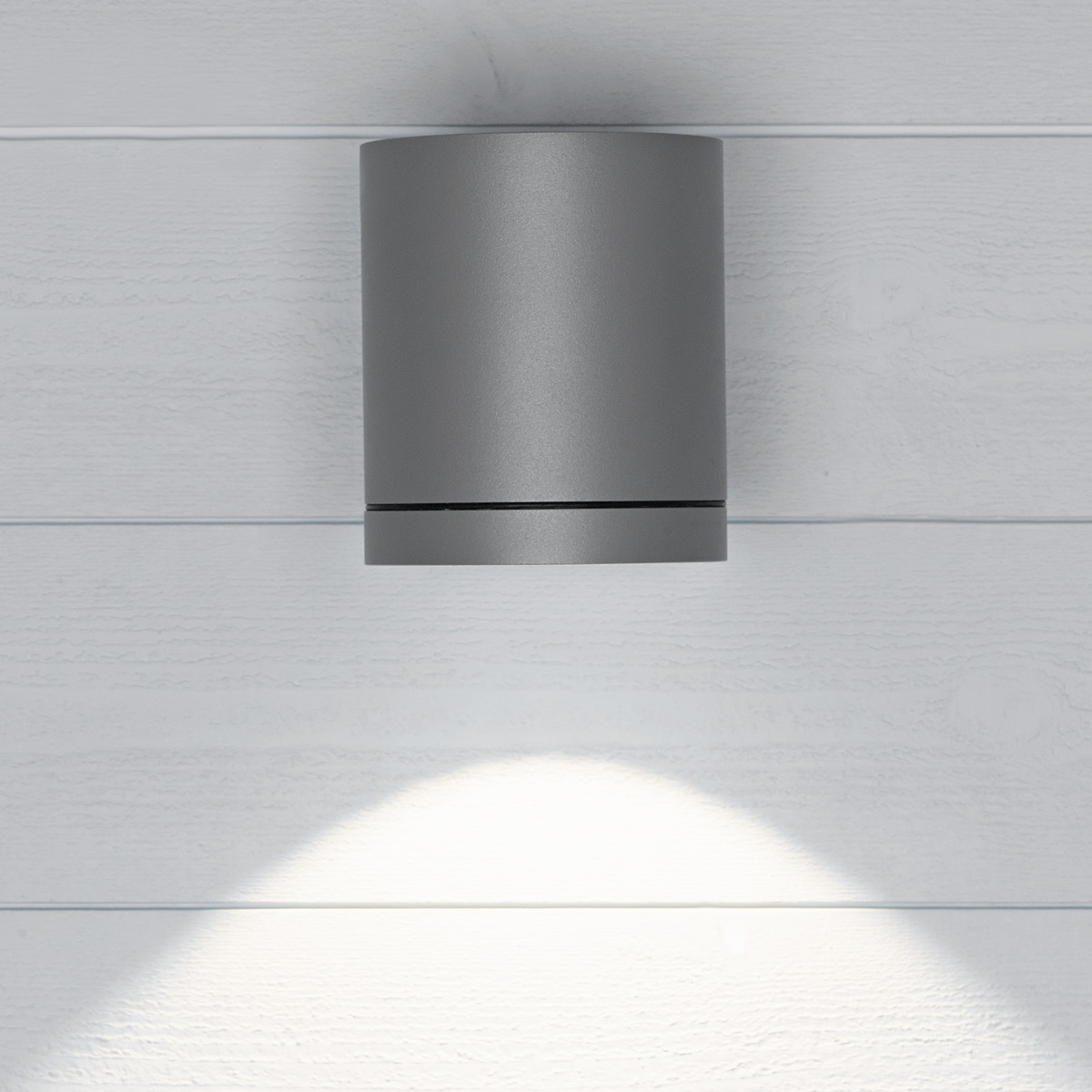

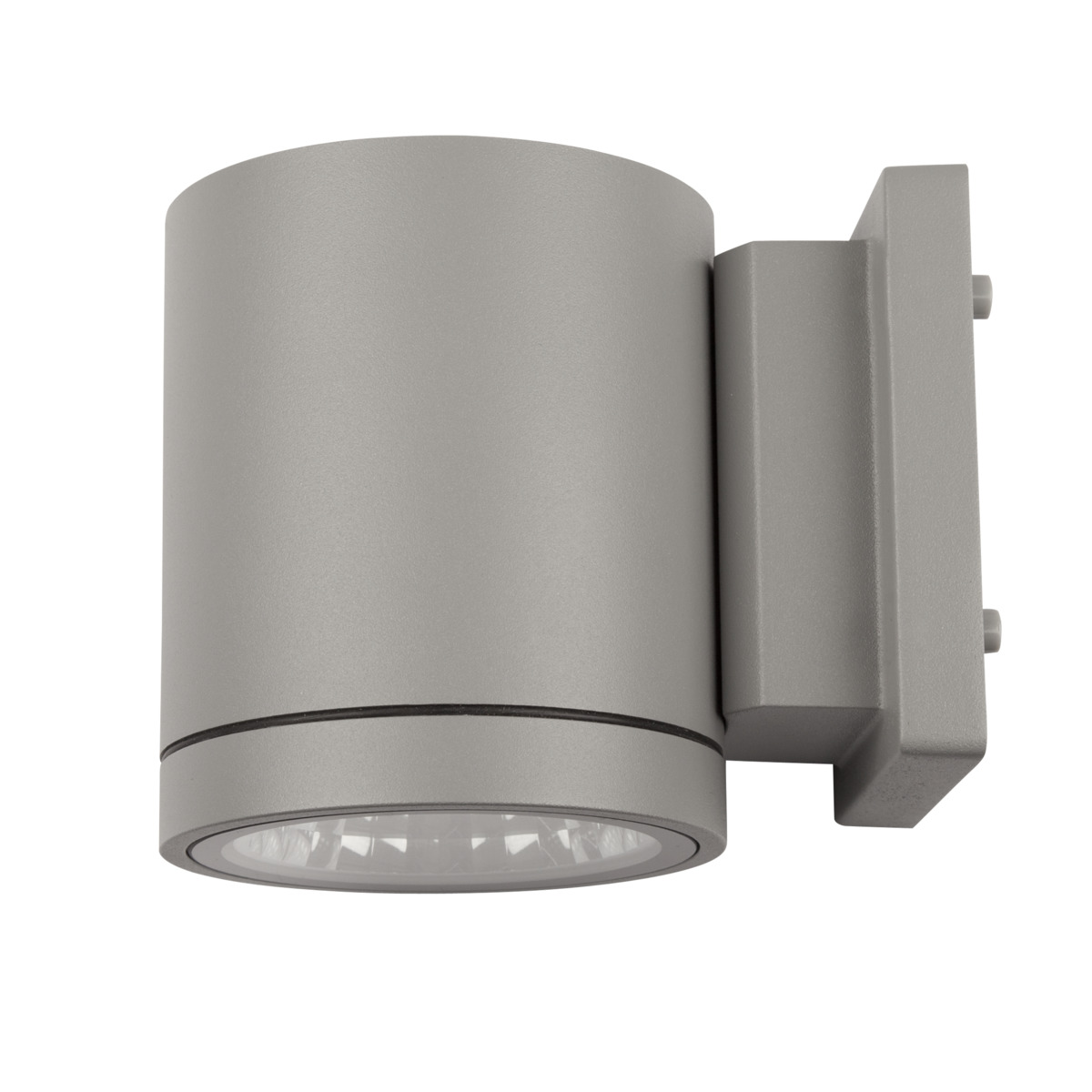

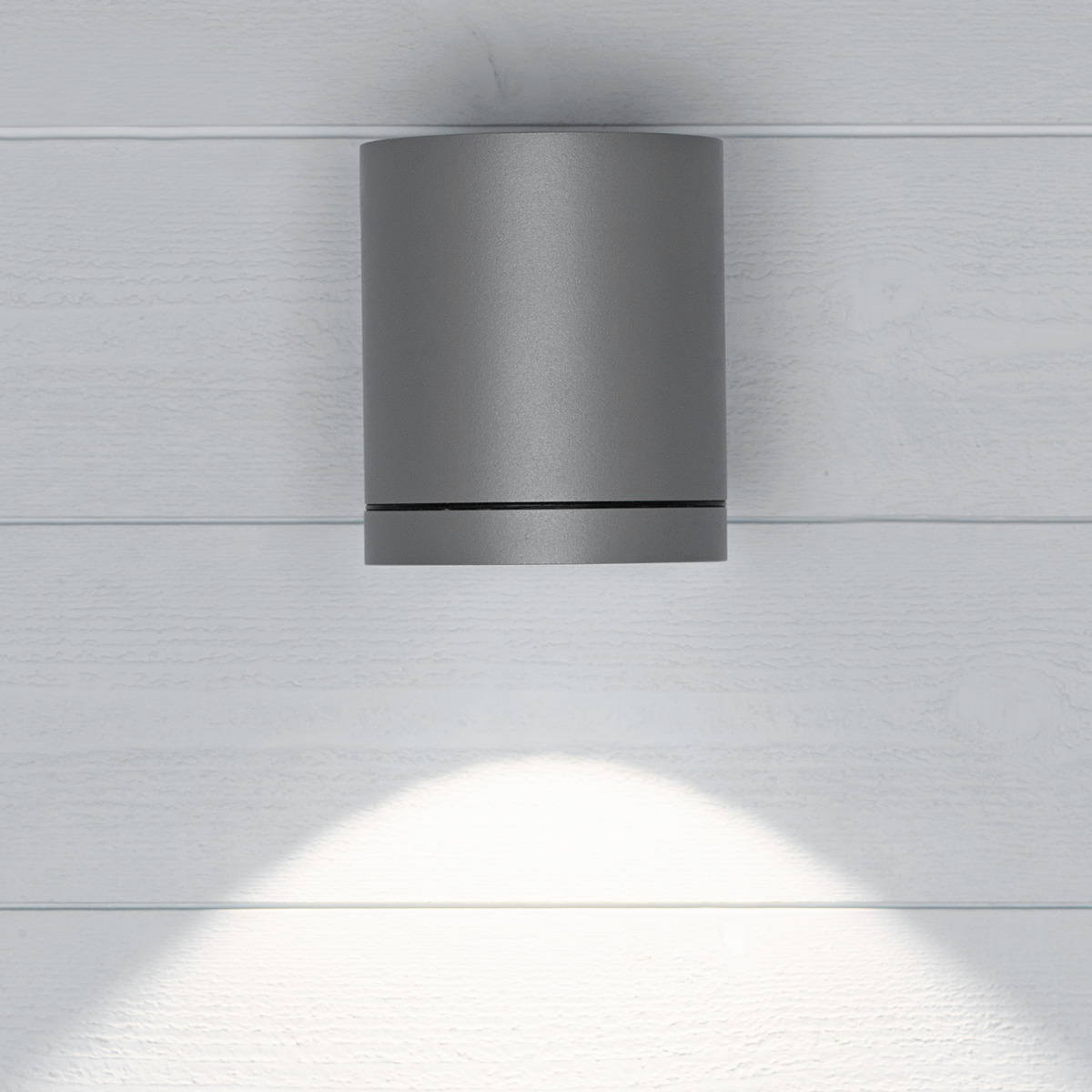

Wall-mounted luminaire with timeless design with downward light emission. LED COB with reflector optics and well-conceived design provides a good light spread and good luminous comfort. Separate rear element with dual cable bushings and push-in, loop-in, loop-out terminal block for easy installation. IP55 design with anodised and powder-coated housing for rough outdoor climate. Comes with built-in driver and spacers for surface-mounted cable routing.
Exists in several colors

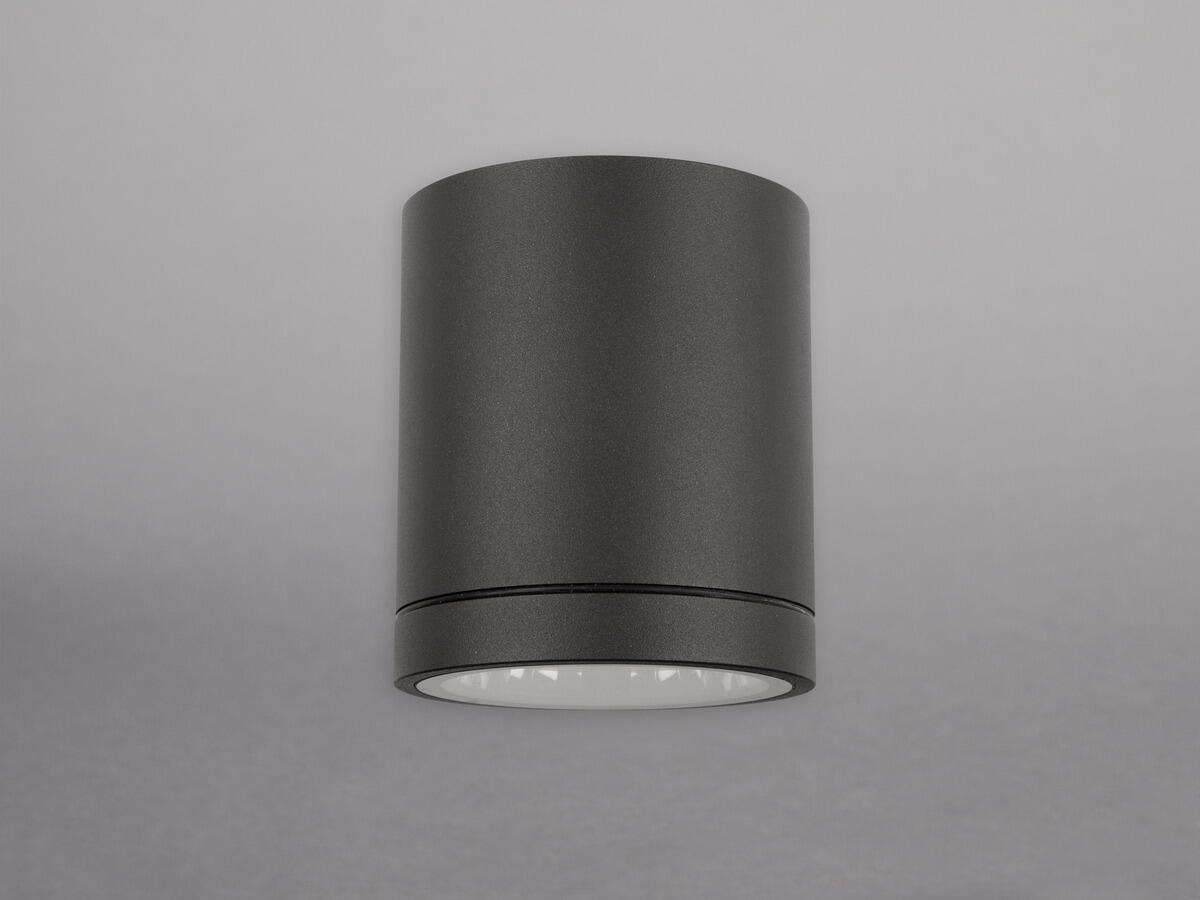

  • Antracit #4e4e4e
  • Grå #b8b3b0

Variants

GTIN Item Name Color
Milo XL I 3000K Anthracite 7392971132976 Milo XL I 3000K Anthracite Antracit
Milo XL I 3000K Grey 7392971132969 Milo XL I 3000K Grey Grey

Milo XL I 3000K Grey A+

Description
GTIN 7392971132969
Item Name Milo XL I 3000K Grey
Warranty 5 years
Type .
Lighting Data
Light Source LED
Light Source Included (type) LED not exchangeable
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 1600
Luminaire Lumen (lm) 1000
Beam Angle (°) 45
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Technical data
Adjustable No
Life Time (L70 B50) 60 000h Ta 25°C
Nominel Life Time (h) 60000
Life Time Driver 50 000h/10%
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power LED (W) 8,4
Power Luminaire (W) 10,5
System Power (W) 10,5
Efficiency Luminaire (lm/W) 95
Efficiency System (lm/W) 95
Energy Efficiency Class A+
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Operating Temperature -20…+40
Max. Tc (°C) 80
Dimmable No
Fuse B10 (pcs) 8
Fuse B16 (pcs) 14
Fuse C10 (pcs) 29
Fuse C16 (pcs) 47
Color and material
Material Aluminium
Color Grey
Color Code (RAL) 7042
Halogen free No
Measurement and installation
Operation Environment Indoor, Outdoor
IP Degree of Protection 55
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK06
Protection Class I

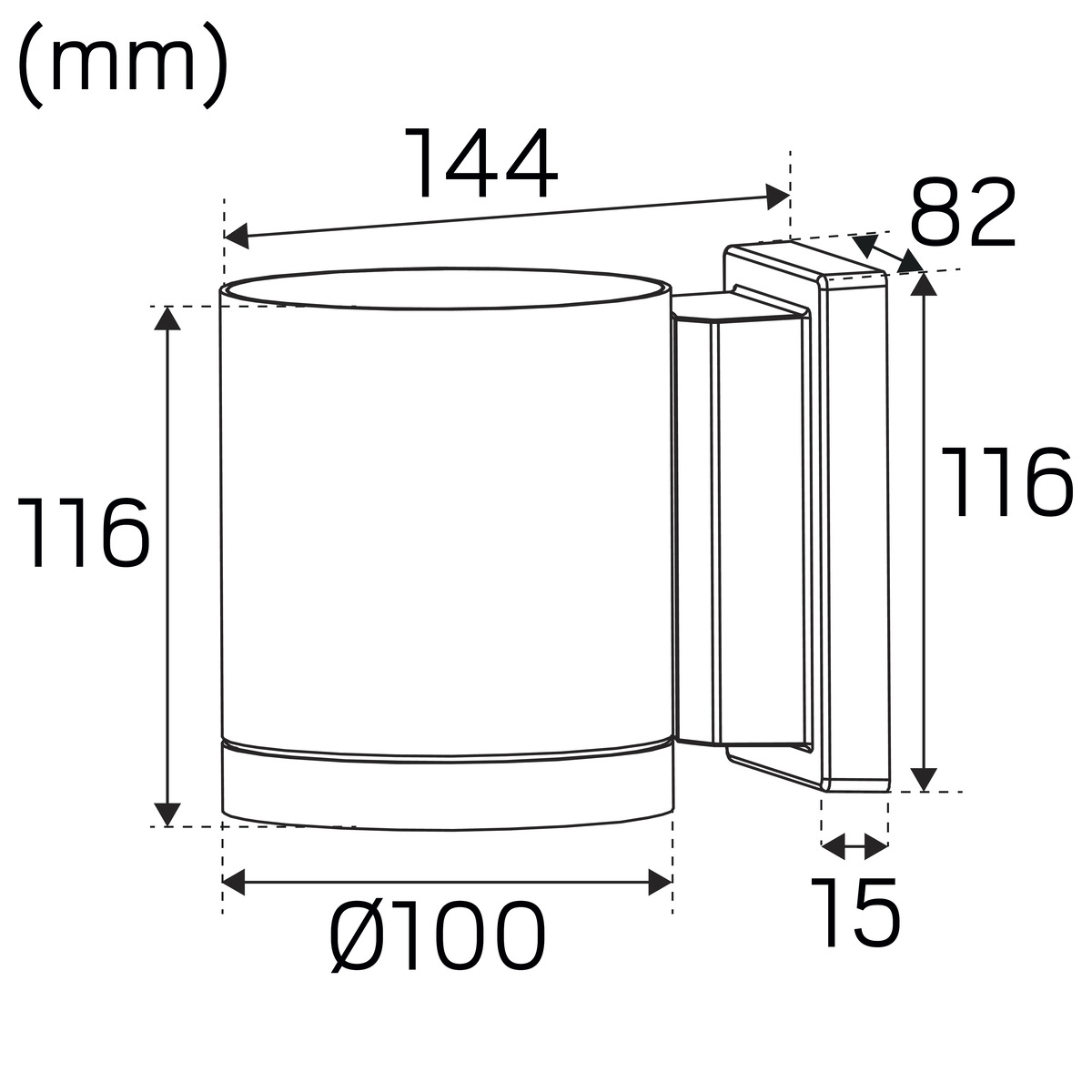

Width (mm) 82
Height (mm) 116
Depth (mm) 144
Diameter (mm) 100
Weight (kg) 0,96
