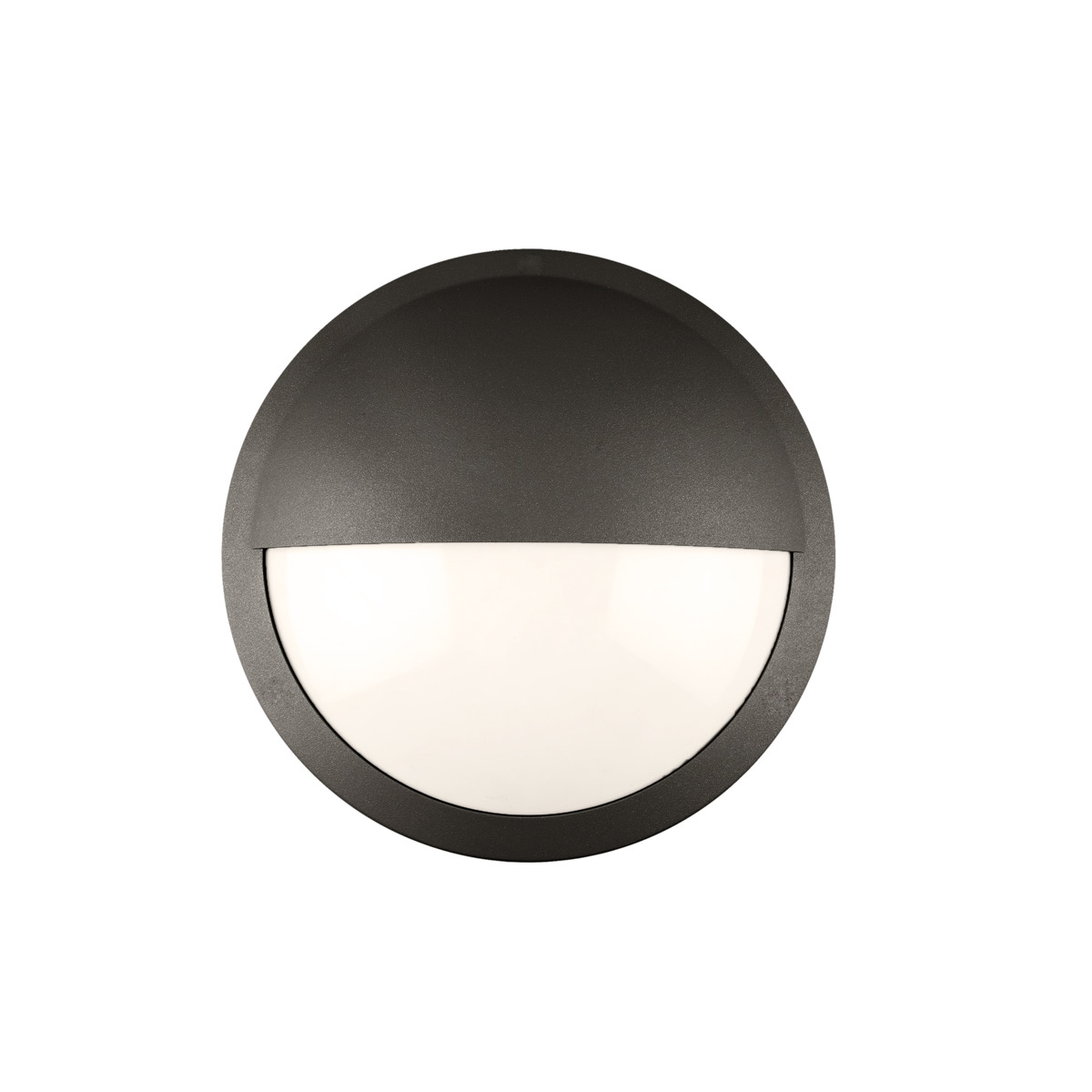

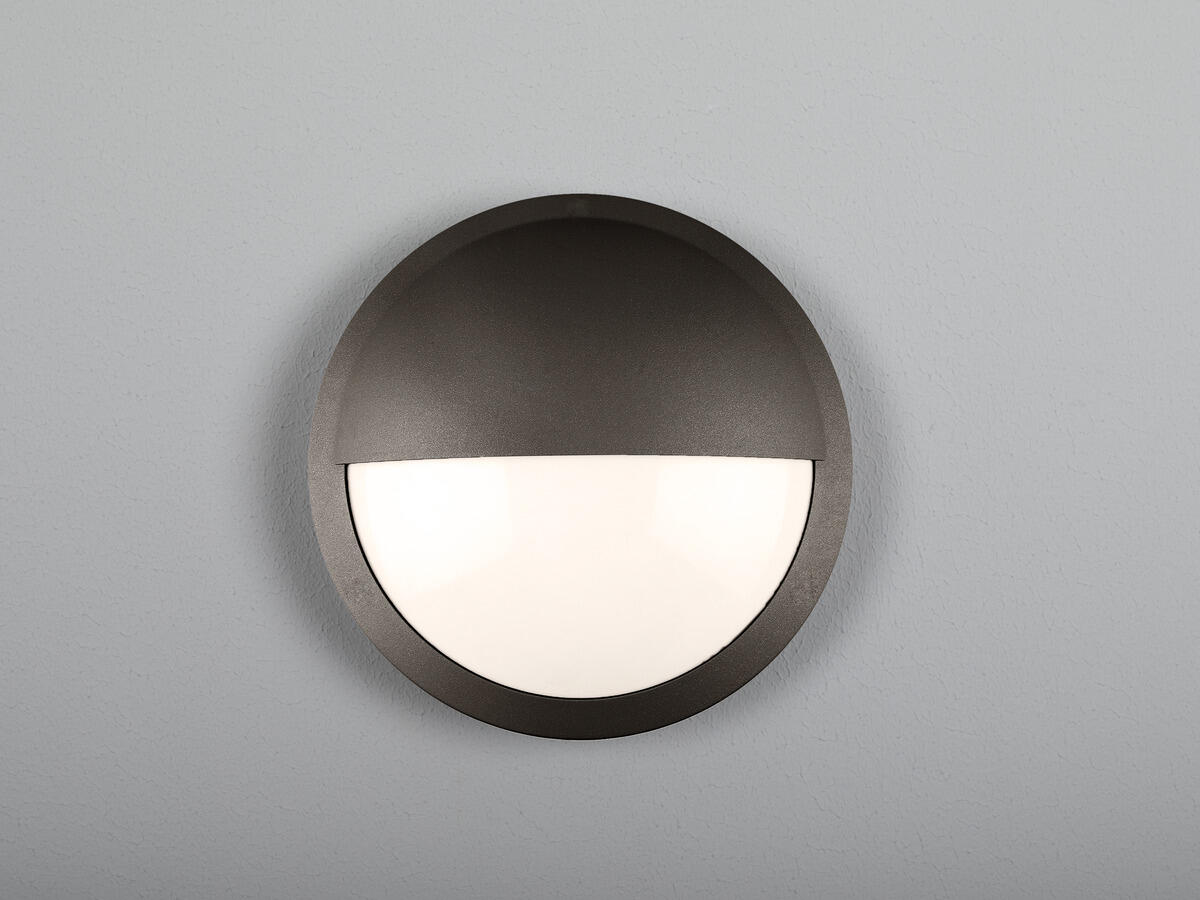

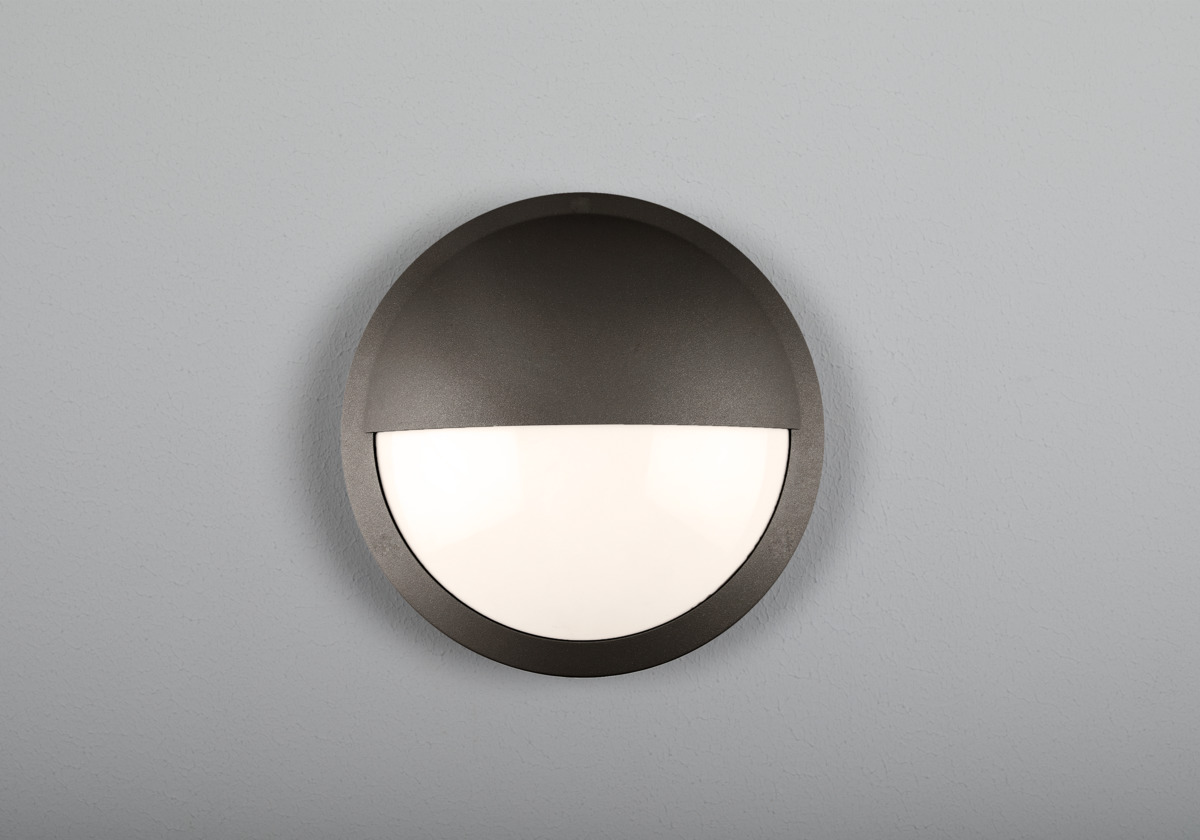

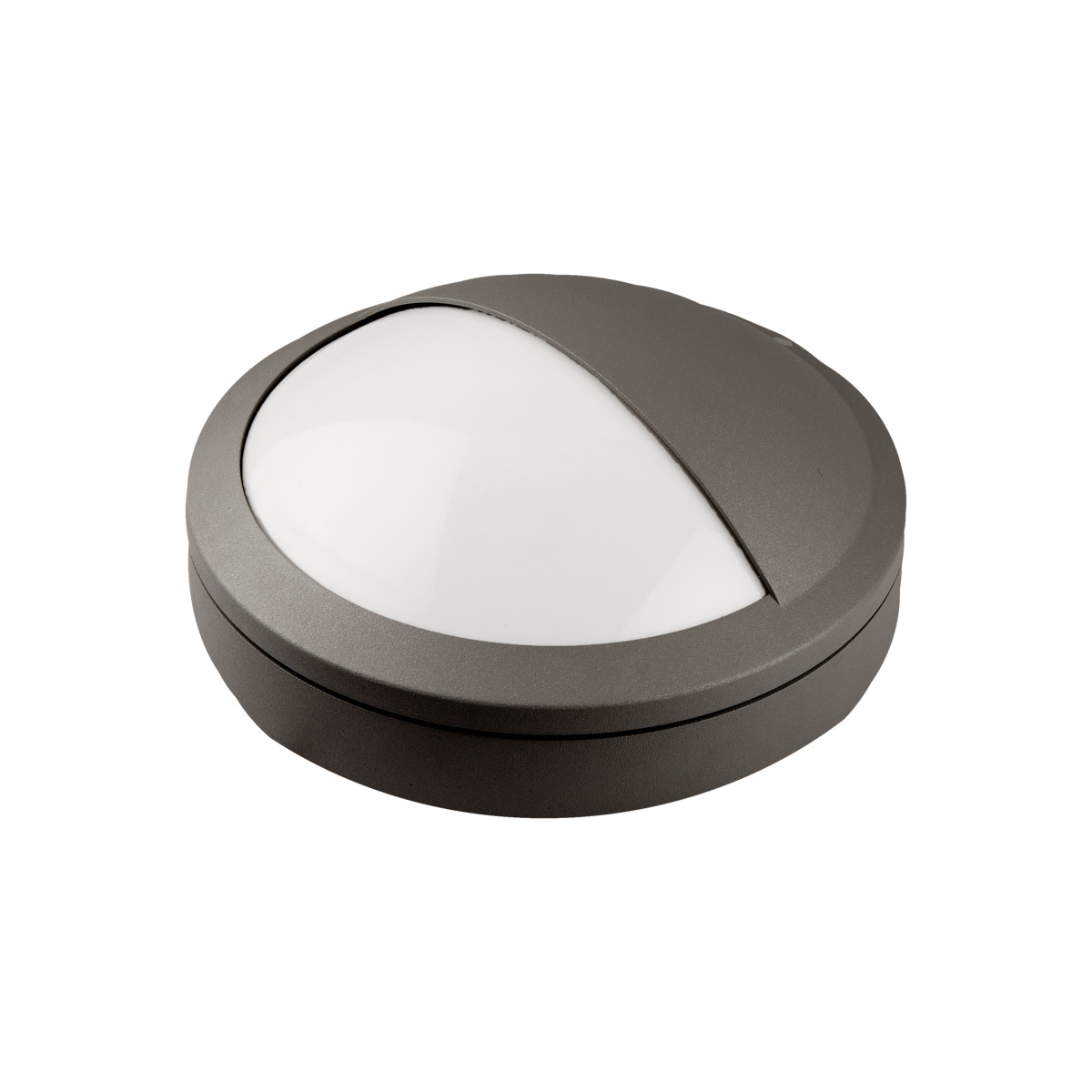

Moon Public Eye IK10

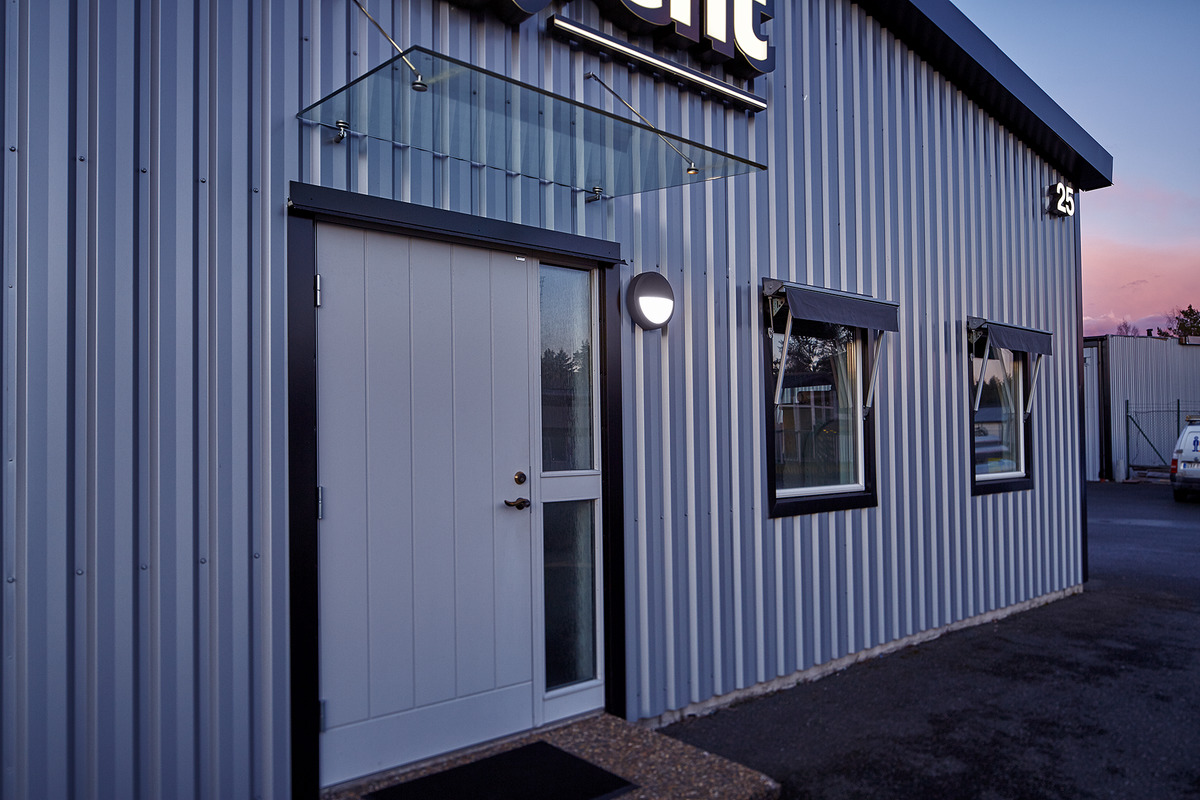

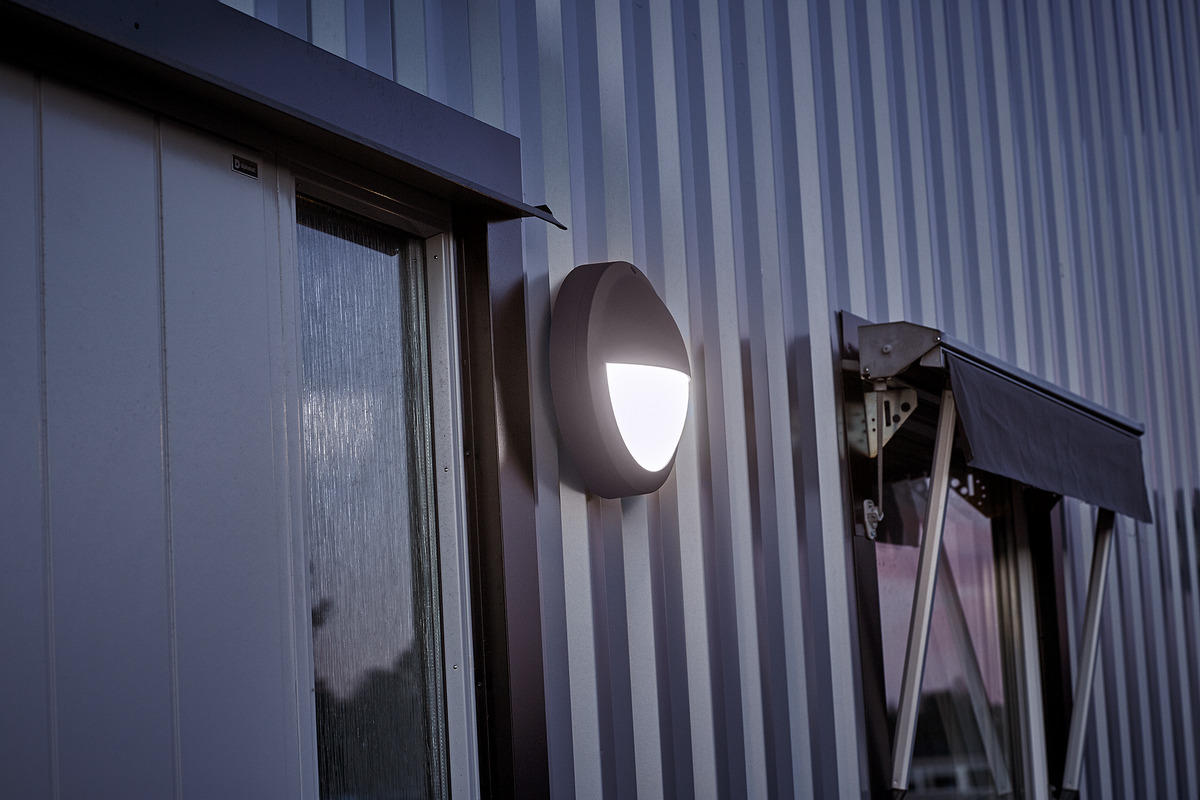

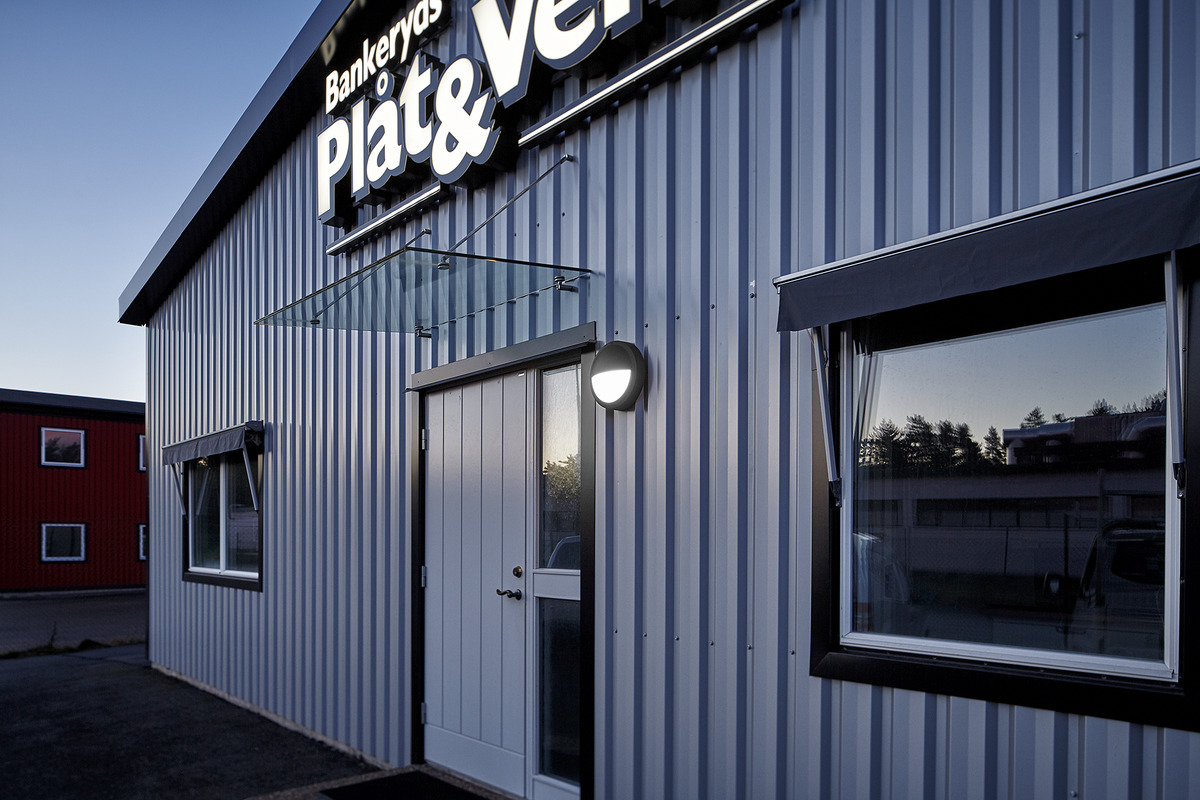

Stylish wall plafond light in IP65 model for energy-saving outdoor lighting: residential areas, tunnels, pathways, in garages and industrial properties. Impact resistant UV treated polycarbonate enables this luminaire to withstand rough use (IK10). Complete with quick connection and the possibility of through wiring in the luminaire. This luminaire has an integrated/exchangeable 230V LED module and therefore no separate driver. Everything is included i the LED module for simple maintenance.
Exists in several colors
  • Vit
  • Grå
  • Antracit


GTIN Item Name Color Luminaire Lumen (lm)
Moon Public Eye IK10 Anthracite 7392971125817 Moon Public Eye IK10 Anthracite Antracit 550
Moon Public Eye IK10 White 7392971125190 Moon Public Eye IK10 White White 730
Moon Public Eye IK10 Grey 7392971125152 Moon Public Eye IK10 Grey Grey 590

Moon Public Eye IK10 Anthracite A

GTIN 7392971125817
Item Name Moon Public Eye IK10 Anthracite
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Light Source Included (type) LED exchangeable
LED Colour Warm White
Colour Temperature (K) 3000, 4000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 4
Luminous Intensity (cd) 185
Luminaire Lumen (lm) 550
Beam Angle (°) 110
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 60
Life Time L80 50 000h Ta 25°C
Nominel Life Time (h) 50000
Lumen maintenance 50 000h L85
LLMF @ 50 000h 0,85
Life Time Driver 50 000h/10%
Technical data
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power LED (W) 13
Power Luminaire (W) 16
System Power (W) 16
Energy Efficiency Class A
Operation and Connection
Driver Included Yes
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 3x0,75-2,5

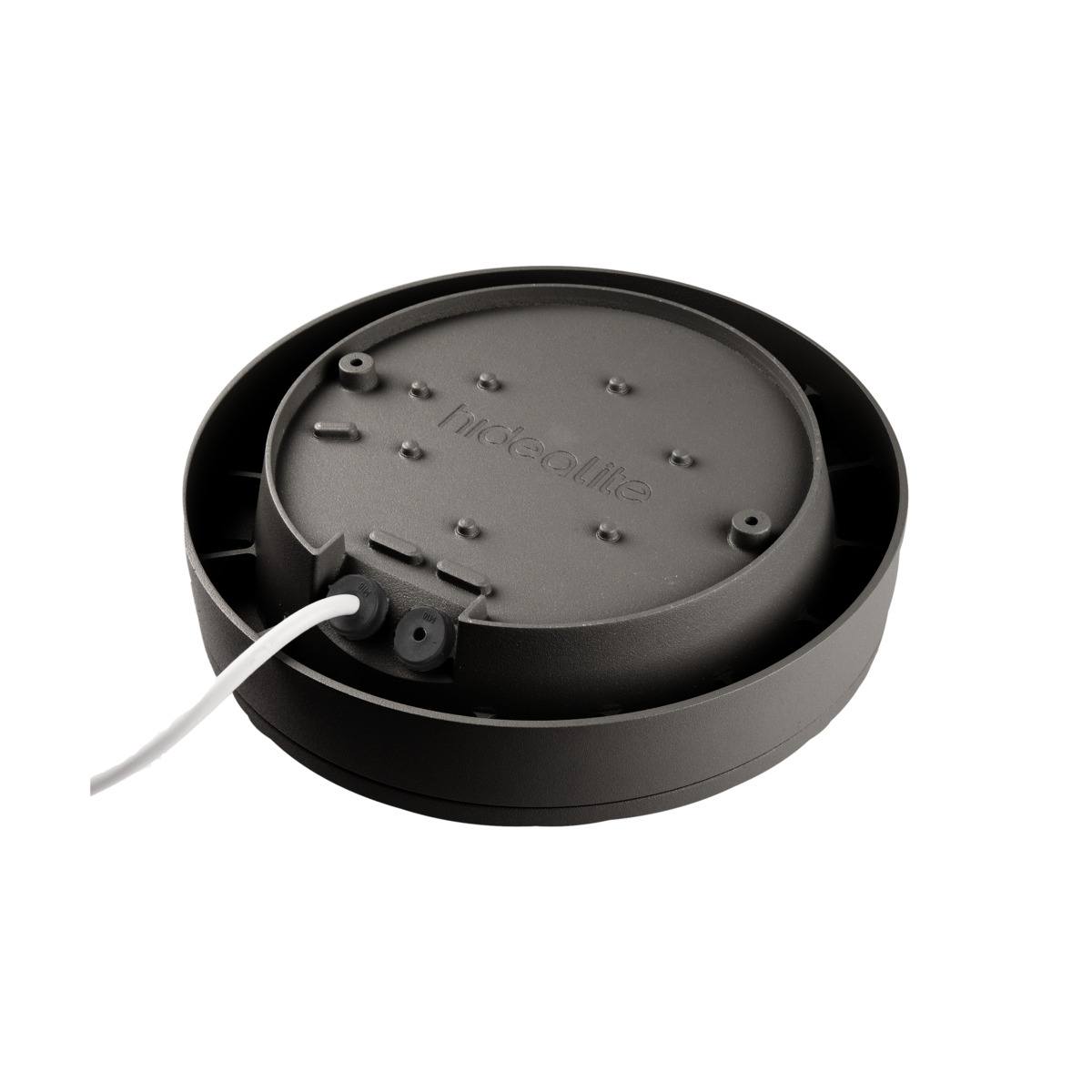

Through Wiring Yes
Strain Relief Yes
Operating Temperature -35...+45
Max. Tc (°C) 85
Dimmable No
Type of Dimming OnOff
Fuse B10 (pcs) 43
Fuse B16 (pcs) 63
Fuse C10 (pcs) 50
Fuse C16 (pcs) 77
Color and material
Material Diecasted, Aluminium
Material Housing/Enclosure Polycarbonate
Mercury Free Yes
Color Antracit
Color Code (RAL) 7016
Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 65
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK10
Filament Test IEC 695-2-1(°C) 650

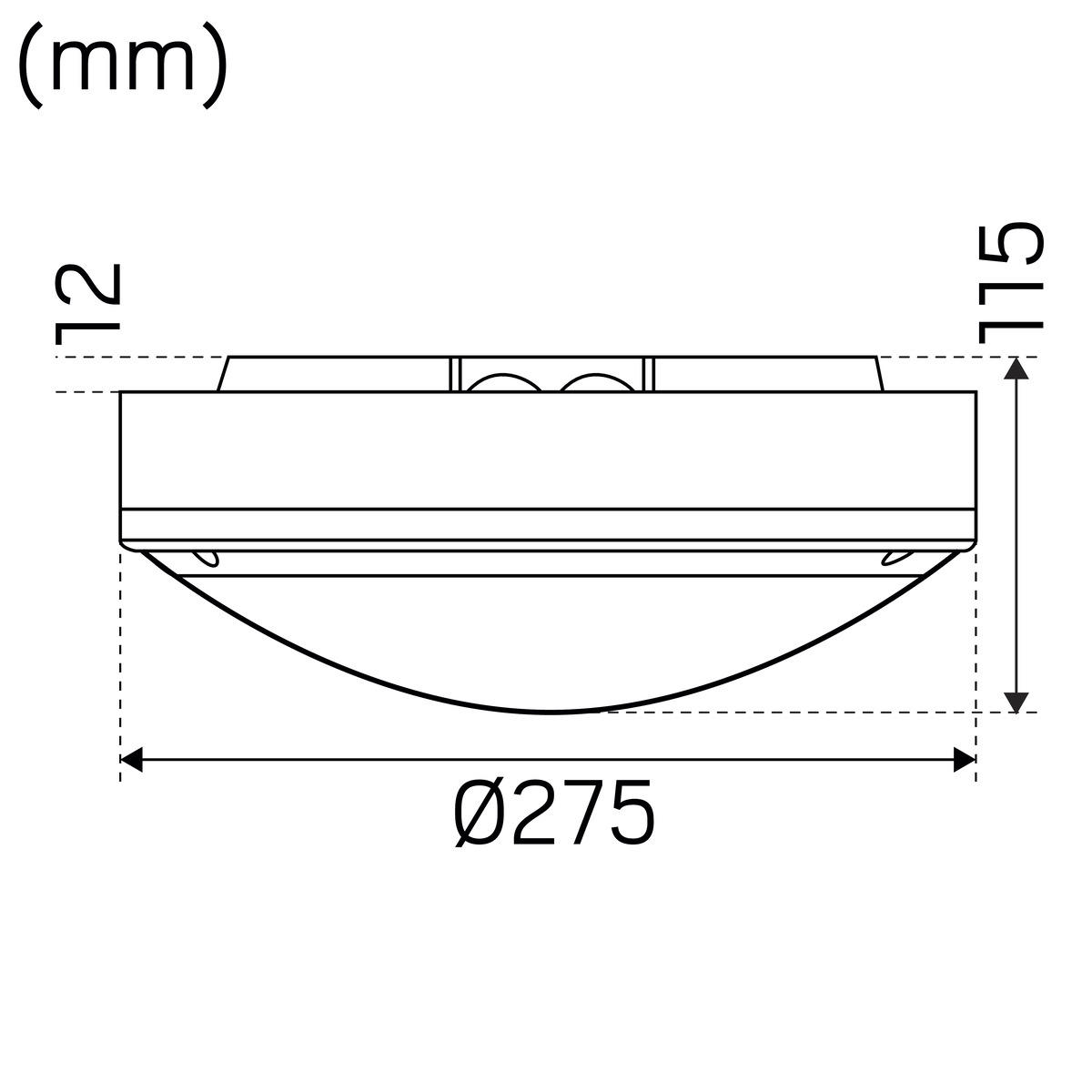

Height (mm) 115
Diameter (mm) 275
Weight (kg) 1,72
