Actor G2 Pendant Actor G2 Pendant DP White DIM I

Selectable colour temperature via DIP-Switch ColourTemp
Replaceable LED and driver
Complete pendant luminaire
Opal, microprismatic or double parabolic glare shield
Selectable light distribution 30/70 or 50/50 via DIP switch
DP meets display screen and UGR requirements (UGR<19) according to EN 12464–1 under standard conditions
Easy height adjustment with suspension kitControl: Pull switch, DALI, sensor, sensor with CasambiEasily link up to 15 luminaires (5 for Casambi)

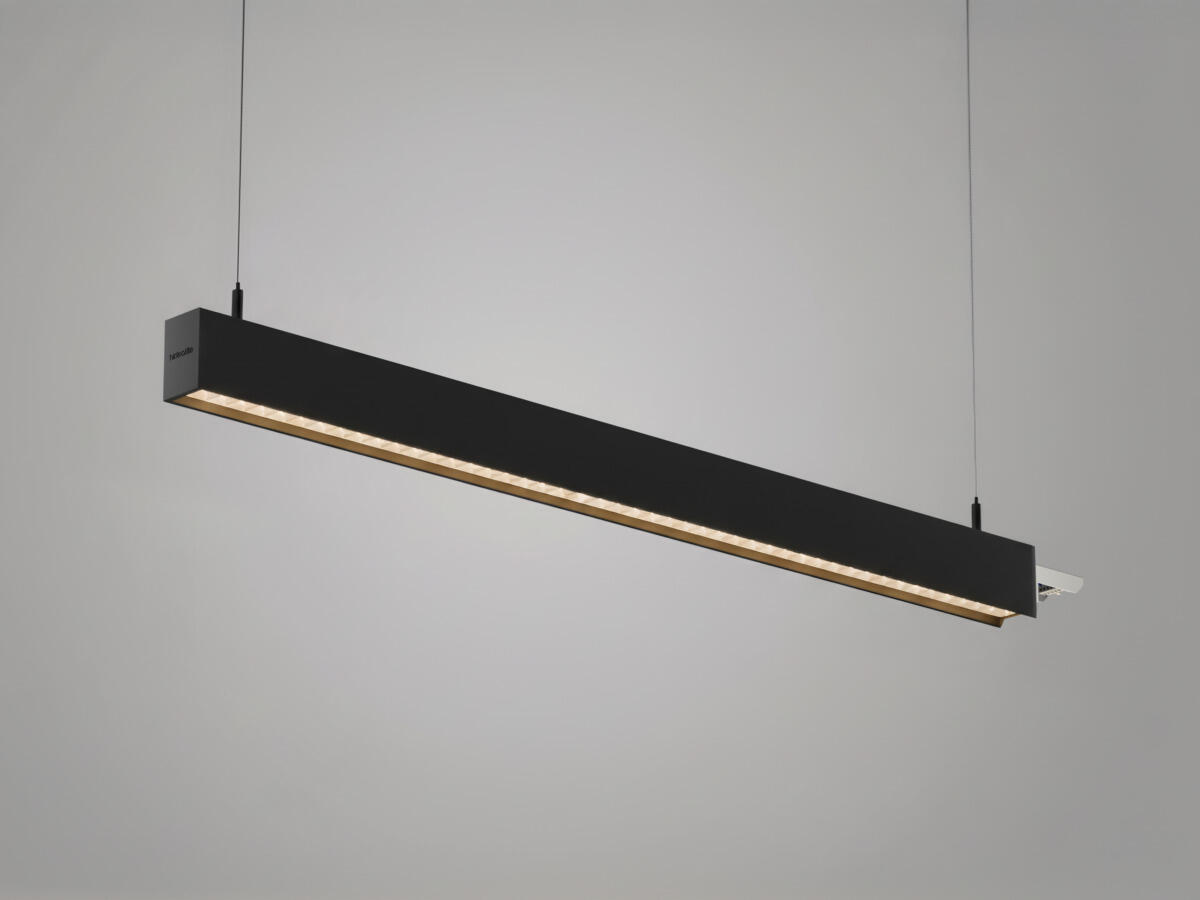

Actor G2 Pendant is a suspended interior luminaire designed for easy installation and high visual comfort. Available in white or black powder-coated aluminium, it suits any modern environment. The suspension kit allows you to adjust the height effortlessly, and the built-in DIP switch lets you set both light distribution and colour temperature directly on site—quickly, precisely and without tools. No need to decide everything in advance; the light can be adjusted once the installation is complete. The design is modular, meaning you only replace the needed part—not the entire luminaire. It can be installed as a single unit or linked into long light lines. Choose between up/down light distribution of 30/70 or 50/50, depending on whether you want more work light downwards or ambient light upwards. The luminaire is available as dimmable via one or two pull cords, PIR with or without a pull cord, PIR with Casambi, and DALI. As an option for all versions, LINK luminaires and accessories such as L, T and X are available for building light lines and patterns. Select between opal, microprismatic or double parabolic glare shields. The double parabolic version meets screen and UGR requirements (UGR < 19 for offices) under standard conditions. Delivered complete with ceiling mounting accessories, earthed cable set or 5-pole ALI cable with open ends.

We can customize the product See the possibilities of customization

GTIN	Item Name	Color	Max. Luminaire Lumen (lm)	Type of Dimming	Beam Angle (°)
7392971154541	Actor G2 Pendant DP White DIM I	White	5550	Pull Dimmer	75
7392971154558	Actor G2 Pendant DP White DIM II	White	5650	Pull Dimmer	75
7392971154565	Actor G2 Pendant DP White DIM I PIR	White	5800	Pull Dimmer	75
7392971154572	Actor G2 Pendant DP White PIR	White	5800	DALI 2 CLO	75
7392971154589	Actor G2 Pendant DP White Casambi PIR	White	5800	DALI 2 CLO	75
7392971154596	Actor G2 Pendant DP White DALI CLO	White	5800	DALI 2 CLO, Push 230V	75
7392971154602	Actor G2 Pendant DP White DIM I LINK	White	5550		75
7392971154374	Actor G2 Pendant DP White DIM II LINK	White	5650		75
7392971154619	Actor G2 Pendant DP White DALI/PIR LINK	White	5800	DALI 2 CLO, Push 230V	75
7392971154626	Actor G2 Pendant DP Black DIM I	Black	5150	Pull Dimmer	75
7392971154633	Actor G2 Pendant DP Black DIM II	Black	5250	Pull Dimmer	75
7392971154640	Actor G2 Pendant DP Black DIM I PIR	Black	5350	Pull Dimmer	75
7392971154657	Actor G2 Pendant DP Black PIR	Black	5350	DALI 2 CLO	75
7392971154664	Actor G2 Pendant DP Black Casambi PIR	Black	5350	DALI 2 CLO	75
7392971154671	Actor G2 Pendant DP Black DALI CLO	Black	5350	DALI 2 CLO, Push 230V	75
7392971154688	Actor G2 Pendant DP Black DIM I LINK	Black	5150		75
7392971154381	Actor G2 Pendant DP Black DIM II LINK	Black	5250		75
7392971154695	Actor G2 Pendant DP Black DALI/PIR LINK	Black	5350	DALI 2 CLO, Push 230V	75
7392971154701	Actor G2 Pendant MP White DIM I	White	5850	Pull Dimmer	80
7392971154718	Actor G2 Pendant MP White DIM II	White	5800	Pull Dimmer	80
7392971154725	Actor G2 Pendant MP White DIM I PIR	White	6100	Pull Dimmer	80
7392971154732	Actor G2 Pendant MP White PIR	White	6100	DALI 2 CLO	80
7392971154749	Actor G2 Pendant MP White Casambi PIR	White	6100	DALI 2 CLO	80
7392971154756	Actor G2 Pendant MP White DALI CLO	White	6100	DALI 2 CLO, Push 230V	80
7392971154763	Actor G2 Pendant MP White DIM I LINK	White	5850		80
7392971154398	Actor G2 Pendant MP White DIM II LINK	White	5800		80
7392971154770	Actor G2 Pendant MP White DALI/PIR LINK	White	6100	DALI 2 CLO, Push 230V	80
7392971154787	Actor G2 Pendant MP Black DIM I	Black	5400	Pull Dimmer	80
7392971154794	Actor G2 Pendant MP Black DIM II	Black	5700	Pull Dimmer	80
7392971154800	Actor G2 Pendant MP Black DIM I PIR	Black	5600	Pull Dimmer	80
7392971154817	Actor G2 Pendant MP Black PIR	Black	5600	DALI 2 CLO	80
7392971154824	Actor G2 Pendant MP Black Casambi PIR	Black	5600	DALI 2 CLO	80
7392971154831	Actor G2 Pendant MP Black DALI CLO	Black	5600	DALI 2 CLO, Push 230V	80
7392971154848	Actor G2 Pendant MP Black DIM I LINK	Black	5400		80
7392971154404	Actor G2 Pendant MP Black DIM II LINK	Black	5700		80
7392971154855	Actor G2 Pendant MP Black DALI/PIR LINK	Black	5600	DALI 2 CLO, Push 230V	80
7392971154862	Actor G2 Pendant OP White DIM I	White	5950	Pull Dimmer	70
7392971154879	Actor G2 Pendant OP White DIM II	White	5900	Pull Dimmer	70
7392971154886	Actor G2 Pendant OP White DIM I PIR	White	6150	Pull Dimmer	70
7392971154893	Actor G2 Pendant OP White PIR	White	6150	DALI 2 CLO	70
7392971154909	Actor G2 Pendant OP White Casambi PIR	White	6150	DALI 2 CLO	70
7392971154916	Actor G2 Pendant OP White DALI CLO	White	6150	DALI 2 CLO, Push 230V	70
7392971154923	Actor G2 Pendant OP White DIM I LINK	White	5950		70
7392971154411	Actor G2 Pendant OP White DIM II LINK	White	5900		70
7392971154930	Actor G2 Pendant OP White DALI/PIR LINK	White	6150	DALI 2 CLO, Push 230V	70
7392971154947	Actor G2 Pendant OP Black DIM I	Black	5550	Pull Dimmer	70
7392971154954	Actor G2 Pendant OP Black DIM II	Black	5800	Pull Dimmer	70
7392971154961	Actor G2 Pendant OP Black DIM I PIR	Black	5750	Pull Dimmer	70
7392971154978	Actor G2 Pendant OP Black PIR	Black	5750	DALI 2 CLO	70
7392971154985	Actor G2 Pendant OP Black Casambi PIR	Black	5750	DALI 2 CLO	70
7392971154992	Actor G2 Pendant OP Black DALI CLO	Black	5750	DALI 2 CLO, Push 230V	70
7392971155005	Actor G2 Pendant OP Black DIM I LINK	Black	5550		70
7392971154428	Actor G2 Pendant OP Black DIM II LINK	Black	5800		70
7392971155012	Actor G2 Pendant OP Black DALI/PIR LINK	Black	5750	DALI 2 CLO, Push 230V	70

Show more articles

Description: GTIN 7392971154541

Item Name Actor G2 Pendant DP White DIM I

Warranty 5 years
Light Technical Data: Min. Armaturlumen (lm) 5000

Max. Luminaire Lumen (lm) 5550

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional

LED Colour White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1430

Beam Angle (°) 75

Light sharing Symmetric

Light Outlet 30/70, 50/50

Number of Lamps (pcs) 2

Number of LED (pcs) 288

Life Time h Ta °C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 75 000h L85

Lumen maintenance 100 000h L80

LLMF @ 50 000h 0.9

LLMF @ 100 000h 0.8

Life Time Driver 100 000h/10%

Flicker (PstLM) 0,0143

Stroboscopic effect (SVM) 0,0007
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Max. Power Luminaire (W) 41

Max. System Power (W) 41

Max. Efficiency Luminaire (lm/W) 135

Max. Efficiency System (lm/W) 135

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable Yes

Type of Dimming Pull Dimmer

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer Hide-a-lite

Connection (type) Cord Set, Quick Connection

Length Connection (cm) 250

Through Wiring No

Strain Relief No

Power Factor ʎ 0,9

Efficiency (%) 89

Power loss (W) 41

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5

THD (%) 10

Constant Current (mA) 850

Min. Ta (°C) 0

Max. Ta (°C) 35

Max. Tc (°C) 80

Dimming secondary side Hybrid

Suitable for random switching Yes

Memory Function Power Failure No

Protection Against Short Circuit, Overload

Mains surge protection DM (kV) 1

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 23

Fuse B16 (pcs) 28

Fuse C10 (pcs) 37

Fuse C16 (pcs) 45
Color and material: Material Aluminium

Color White

Halogen free No

Environmental Assessment EPD
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Pendant

Approval Marks CE

Length (mm) 1206

Width (mm) 52

Height (mm) 78

Weight (kg) 2,24

DIP-table Luminous flux

Effect	Light distribution	3000K	4000k
41W	50/50	5000lm	5150lm
41W	30/70	5300lm	5500lm

Show table

Show DIP-table

Actor G2 Pendant DP White DIM I

Effect	Light distribution	3000K	4000k
41W	50/50	5000lm	5150lm
41W	30/70	5300lm	5500lm

Factory setting: 3000K

Spare parts

If you need spare parts, contact our customer support

LED-Module Actor G2 Glare shields DP White X474
Driver Actor G2 DIM I Pendant X541
